Angular Contact Ball Bearing Pair - 95 mm Bore, 145 mm OD, 24 mm Wide, 15° Contact Angle, ABEC 7, Heavy Preload, Phenolic Cage$204.88| MFR / Brand | SNFA |
|---|---|
| MPN | EX95 |
| Model | 7019 / EX 95 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 95 mm |
| OD | 145 mm |
| Width | 24 mm |
| Material | Bearing Steel |
|---|---|
| Min Temp | -30°C |
| Cage Type | Phenolic |
| Dynamic Load Rating | 50 kN |
| Static Load Rating | 48 kN |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Balls |
| Max Temp | 120°C |
| Item Weight | 2.50 lbs |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Contact Angle | 15° |
| Running Accuracy | P4 |
| Running Accuracy Radial And Axial Runout | P4 |
| Limiting Speed | 11000 rpm |
| Cross Reference 1 | SKF 7019 CD/P4A |
|---|---|
| Cross Reference 2 | FAG B7019-C-T-P4S |

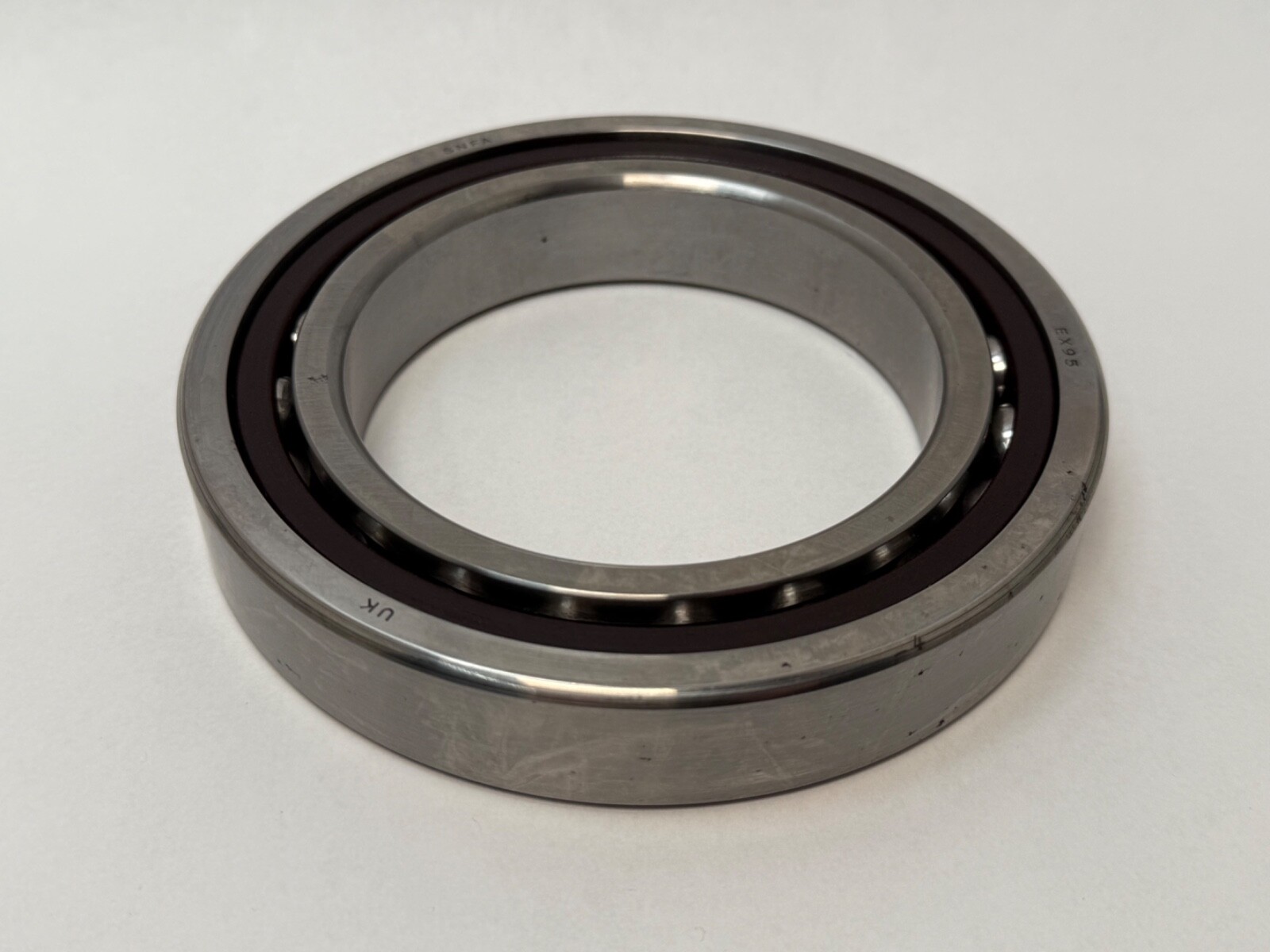

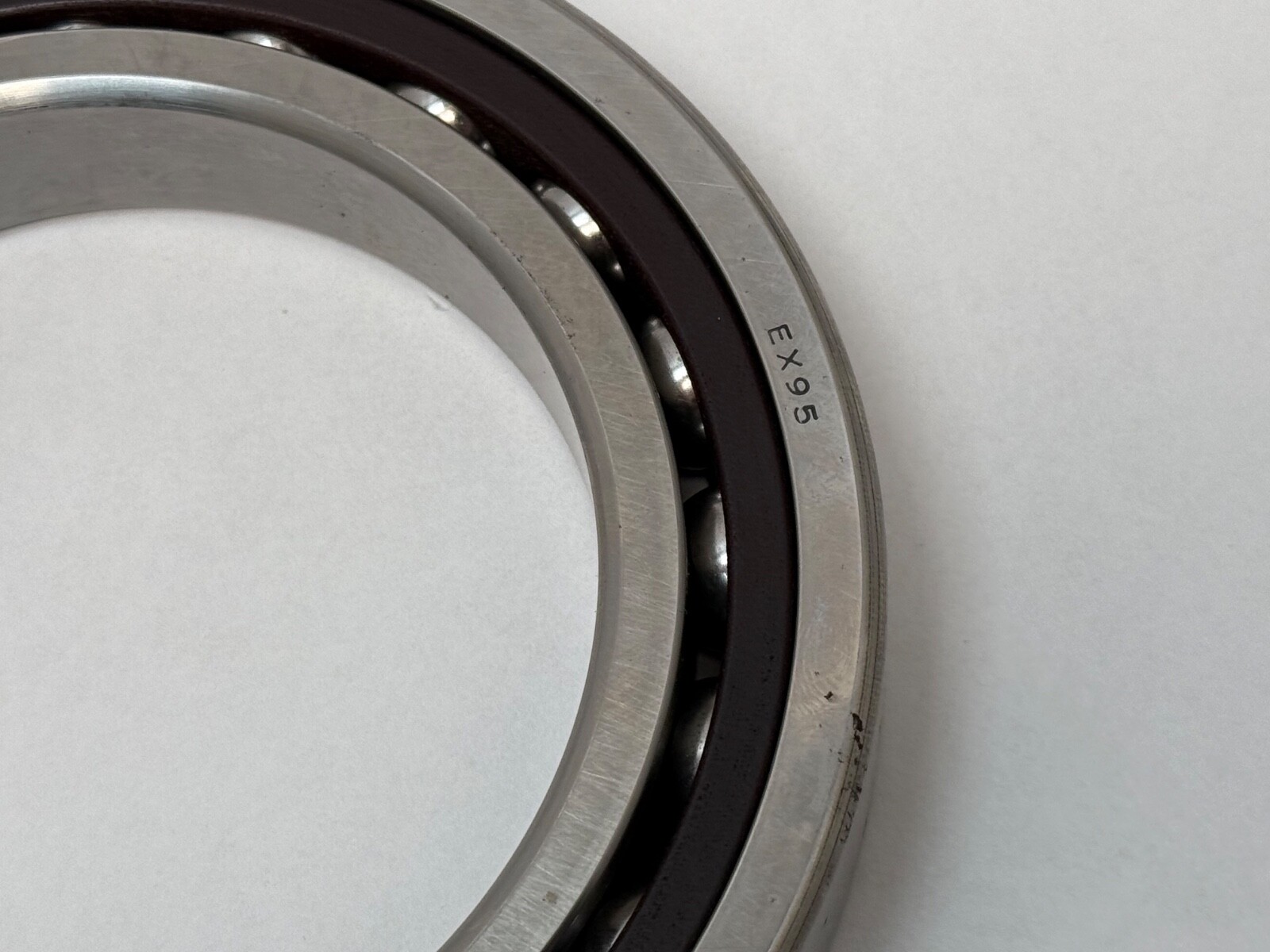

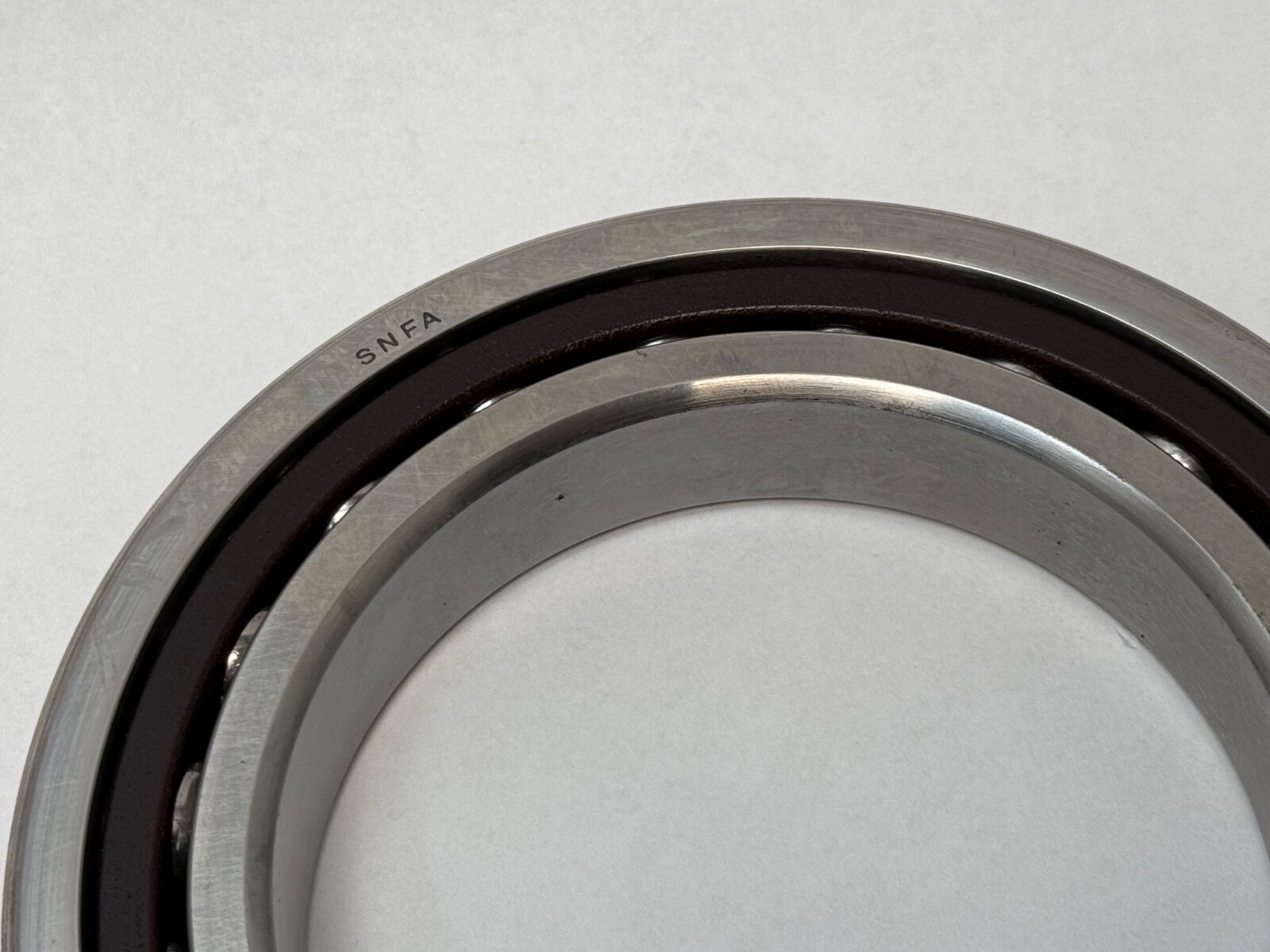

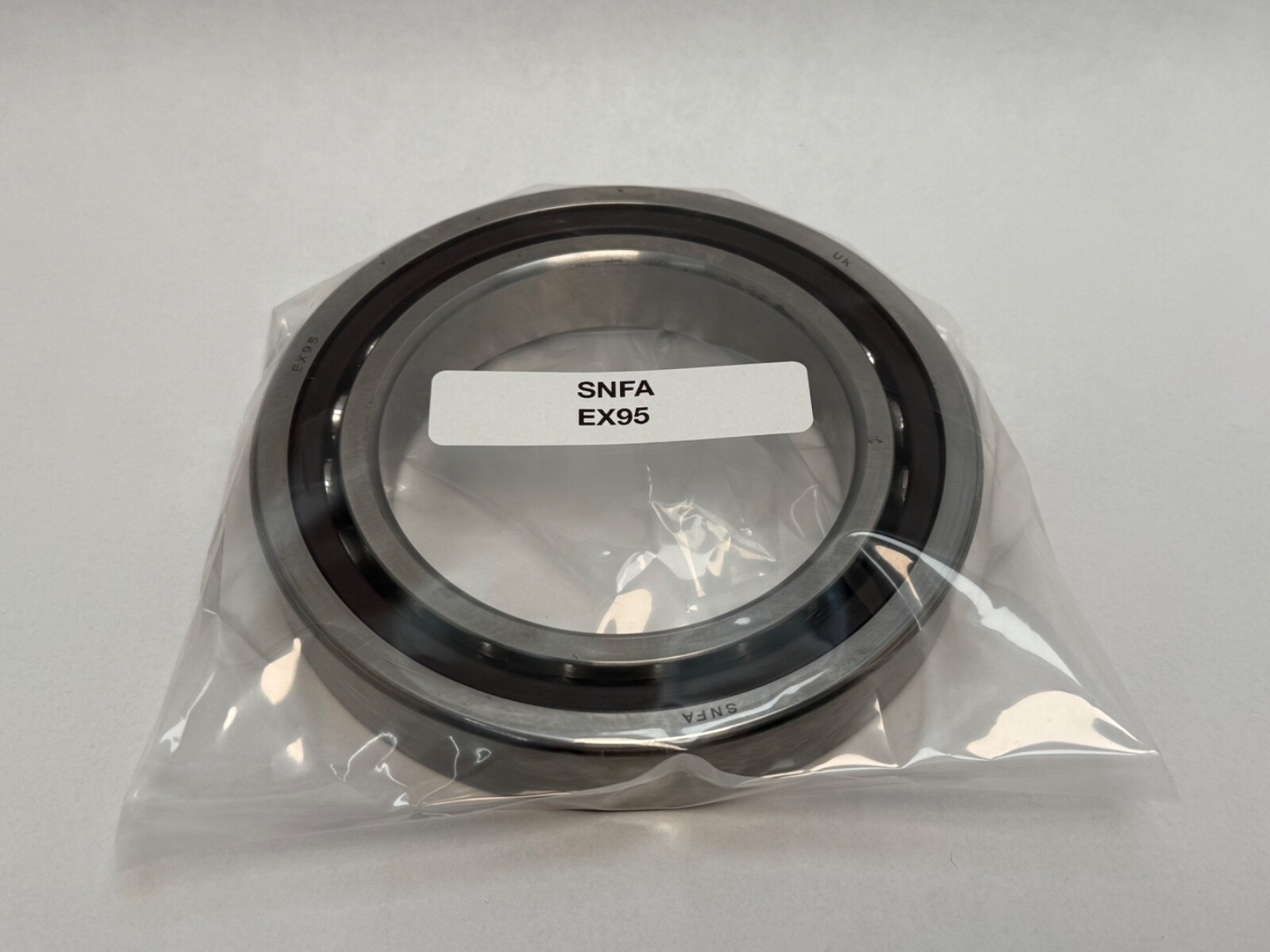

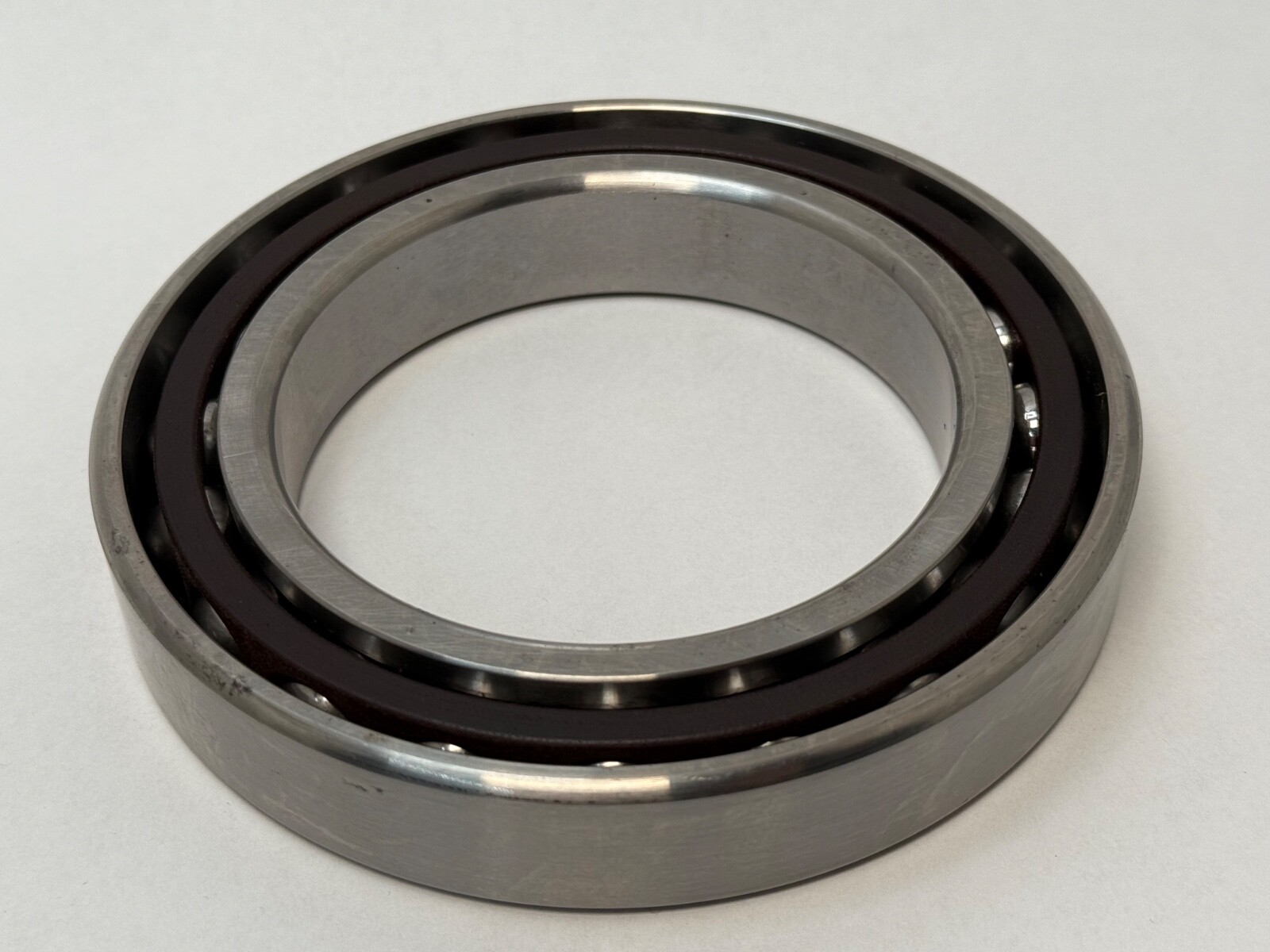

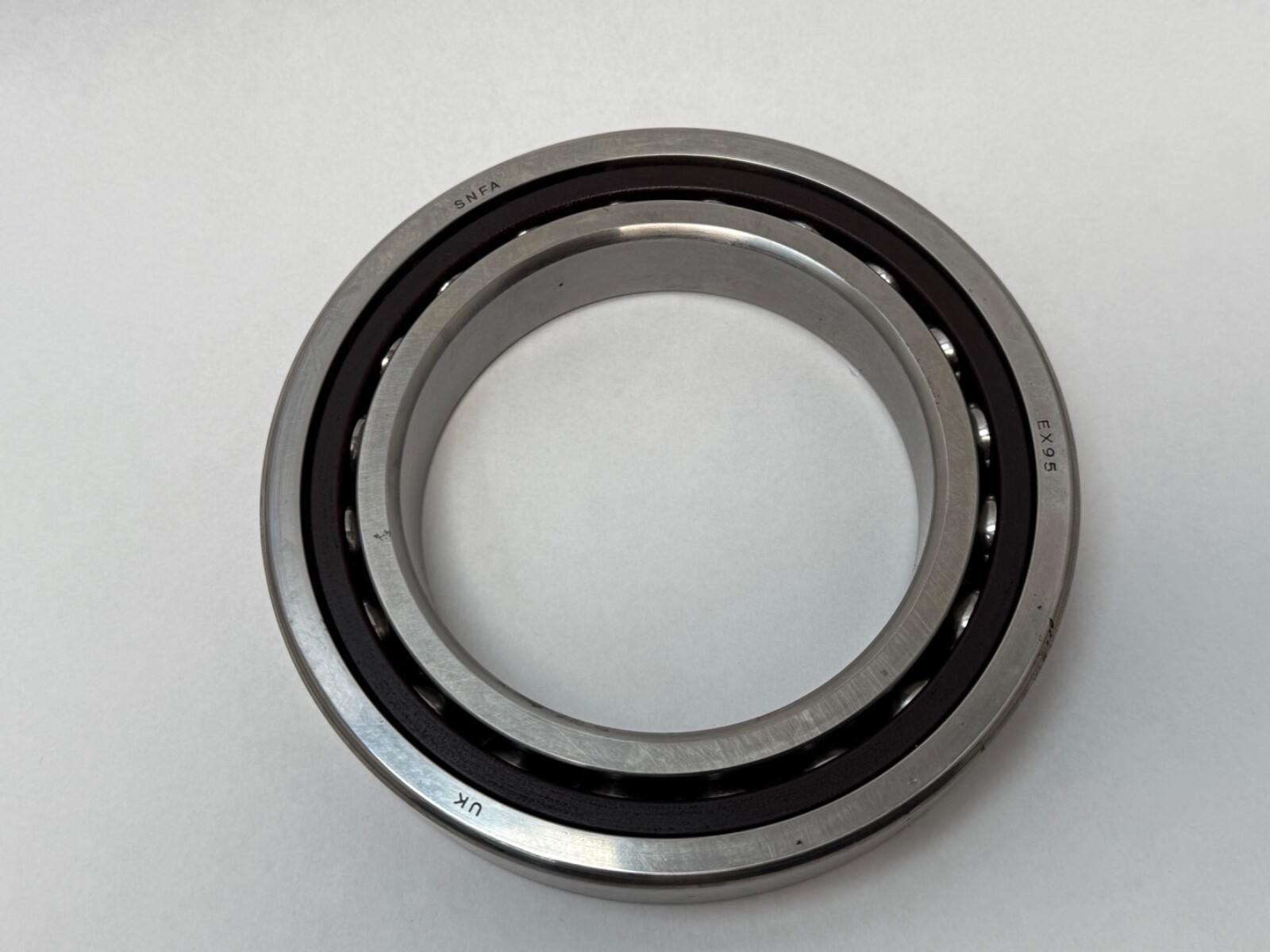

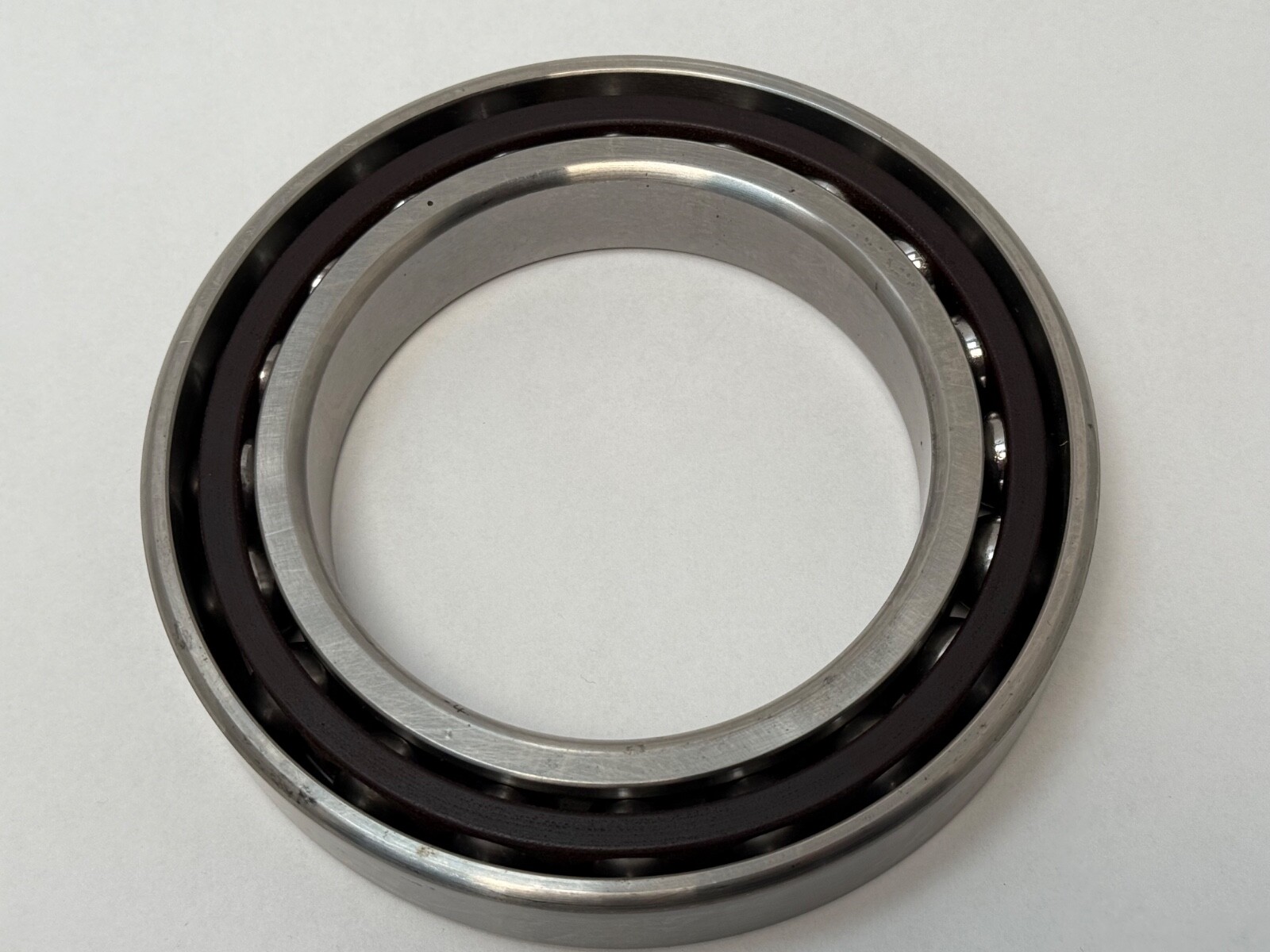

SNFA EX95 Angular Contact Bearing 7019 EX-95 – Precision Performance
Discover the reliability and quality of the SNFA EX95 Angular Contact Bearing. Engineered for performance, this bearing boasts a bore diameter of 95 mm, an outside diameter of 145 mm, and a thickness of 24 mm. It is designed for a precision fit and optimal load distribution, making it an essential component for various machinery applications.
Brand: SNFA
Type: Angular Contact Ball Bearing
Model: 7019 / EX 95 (MPN: EX95)
Country of Origin: United Kingdom
Condition: New – Open Box
Whether you are completing repairs or enhancing machinery efficiency, this bearing is manufactured to ensure superior performance and durability. Suitable for a wide range of industrial and automotive applications, it minimizes friction and maximizes service life.
We offer competitive prices and international shipping on every order. Enjoy combined shipping rates and same-day shipping on all items! Next-day shipping is also available at checkout. If you cannot find a specific part, do not hesitate to contact us for assistance.
Invest in the SNFA EX95 Angular Contact Bearing today to enhance your machinery’s performance!
