Super-precision angular contact ball bearing pair, 75 x 130 x 25 mm, 15° contact angle, ABEC 7 / P4, light preload. SKF 7215 CD/P4ADGA equivalent.
List Price
$381.55
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNFA |
|---|---|
| MPN | E275-7CE1DUL |
| Model | E 275-7 CE 1 DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 75 mm |
| OD | 130 mm |
| Width | 25 mm |
| Material | Chrome Steel |
|---|---|
| Series | E 200 (ISO 02) |
| Preload | Light |
| Mpn Variants | E275-7CE1DUL, E 275 7CE1 DUL, E-275-7-CE-1-DUL, E 275-7 CE 1 DUL |
| Precision Class | ABEC 7 / P4 |
| Cage Type | Outer-ring guided |
| Dynamic Load Rating | 71,500 N |
| Static Load Rating | 62,000 N |
| Rolling Elements | Ball |
| Item Weight | 1.17 kg (2.58 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 10,000 rpm grease; 17,000 rpm oil |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal matched pair (back-to-back, face-to-face or tandem) |
| Industry Terms | super precision spindle bearing; angular contact ball bearing pair; machine tool spindle bearing; universal matched duplex bearing |
| Common Misspellings | E275 7CE1 DUL; E275-7CE1-DUL; SNFA E2757CE1DUL; SNFA E 275-7 CE 1 DUL |
| Closure Type | Open |
| Cross Reference 1 | SKF 7215 CD/P4ADGA |
|---|---|
| Cross Reference 2 | SKF 7215 CDGA/P4A |
| Cross Reference 3 | FAG B7215-C-T-P4S-UL |
| Cross Reference 4 | NSK 7215CTRDULP4 |
| Cross Reference 5 | Fafnir 2MM215WICRDUL |

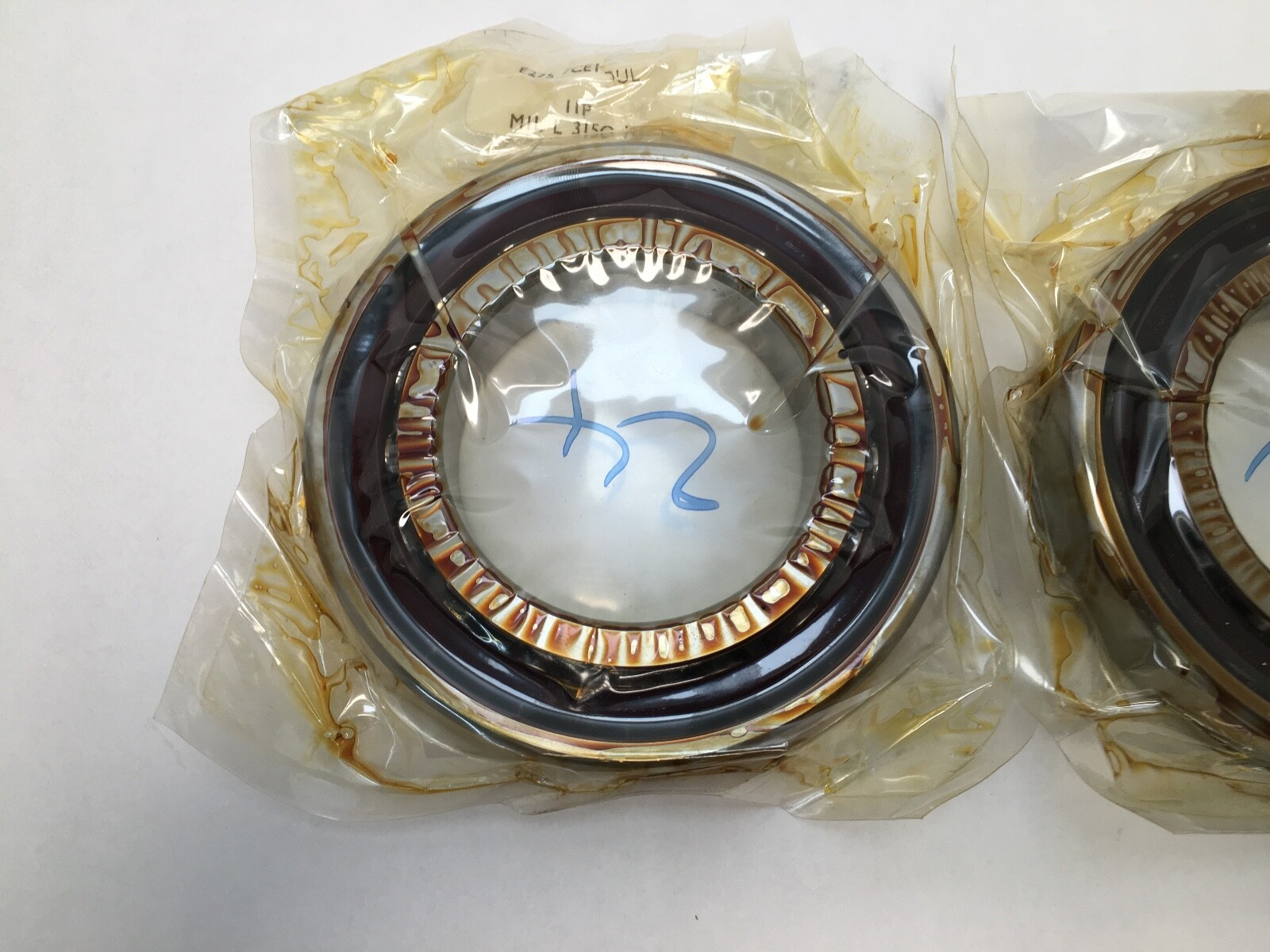

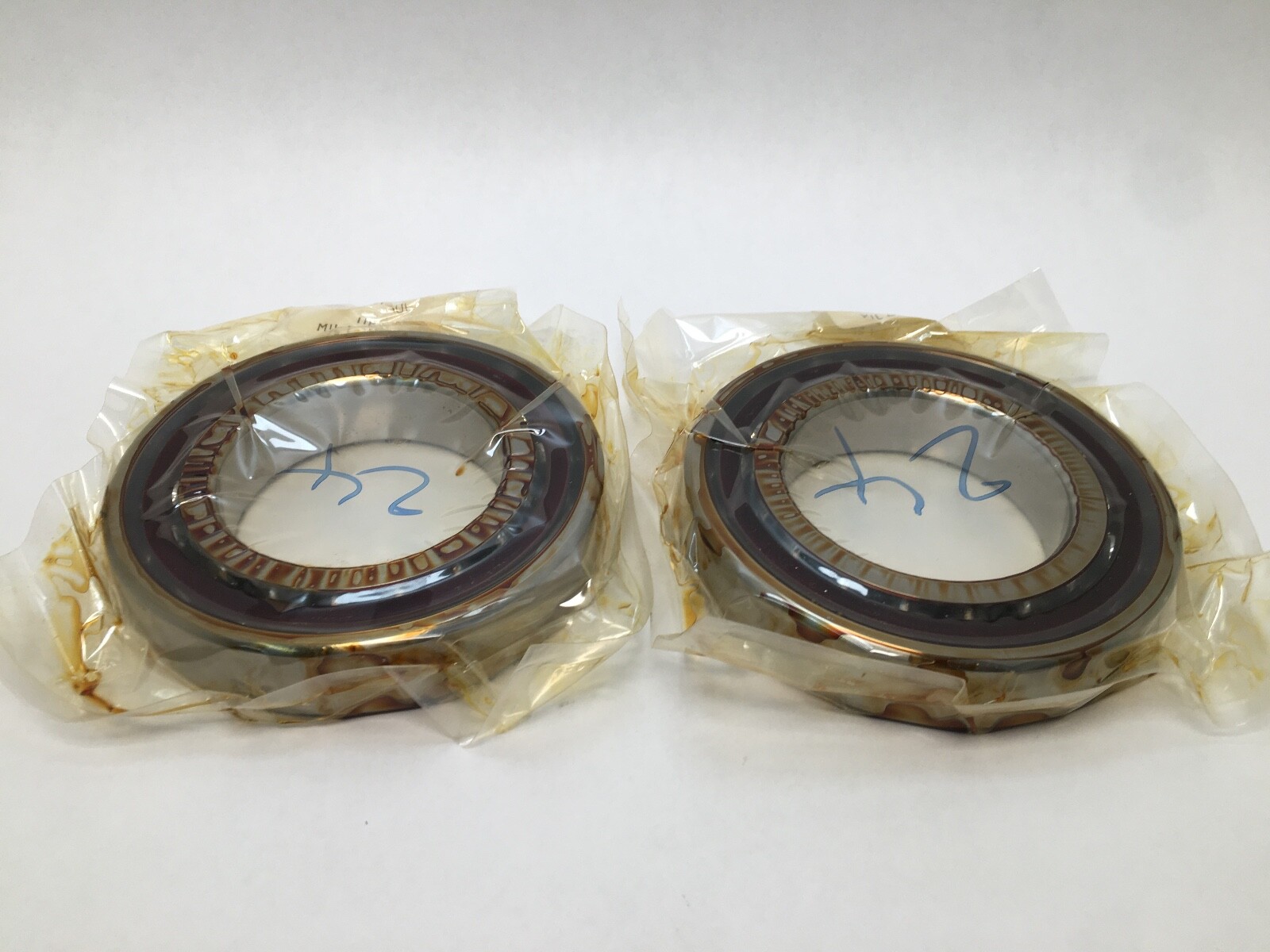

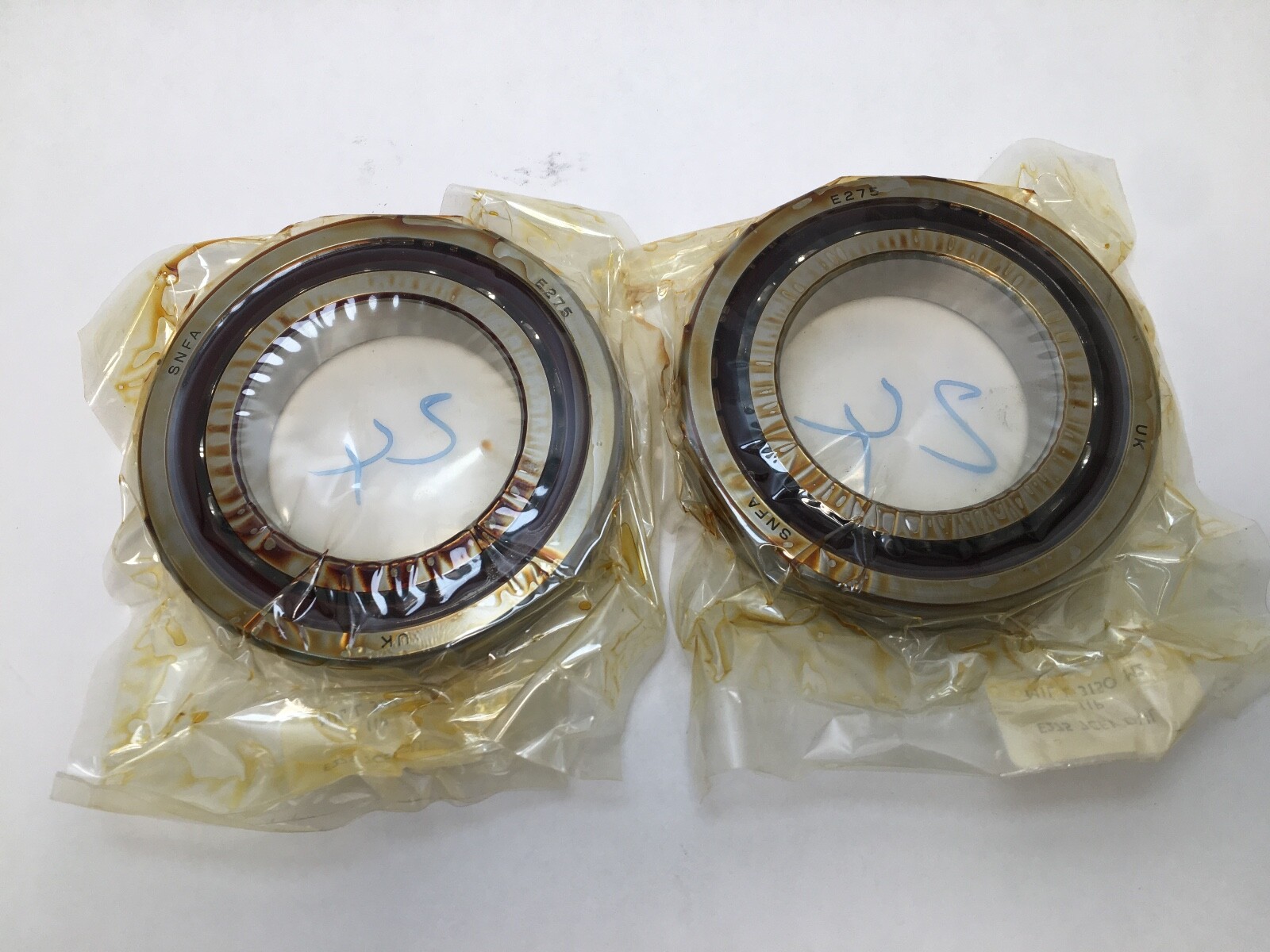

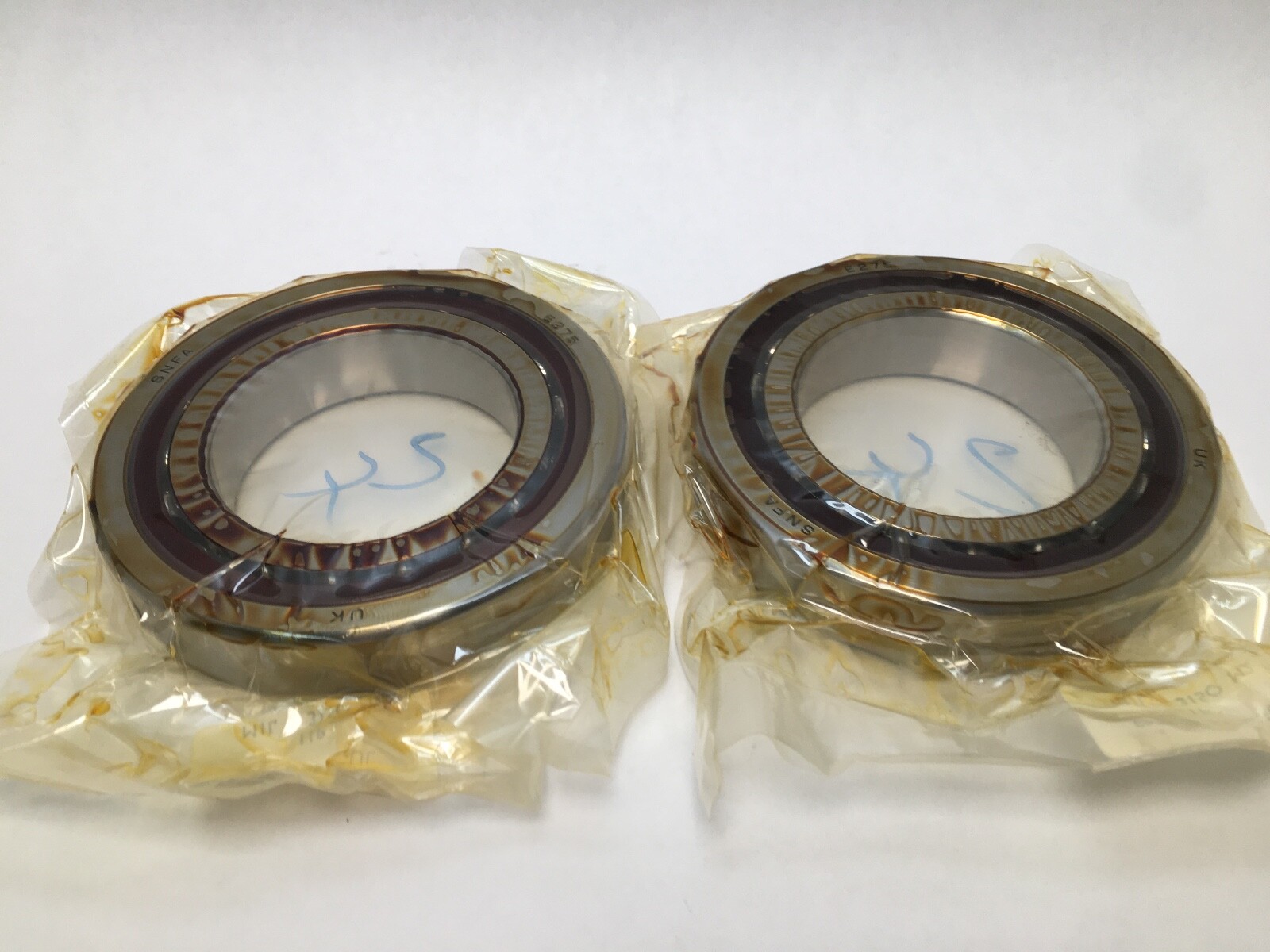

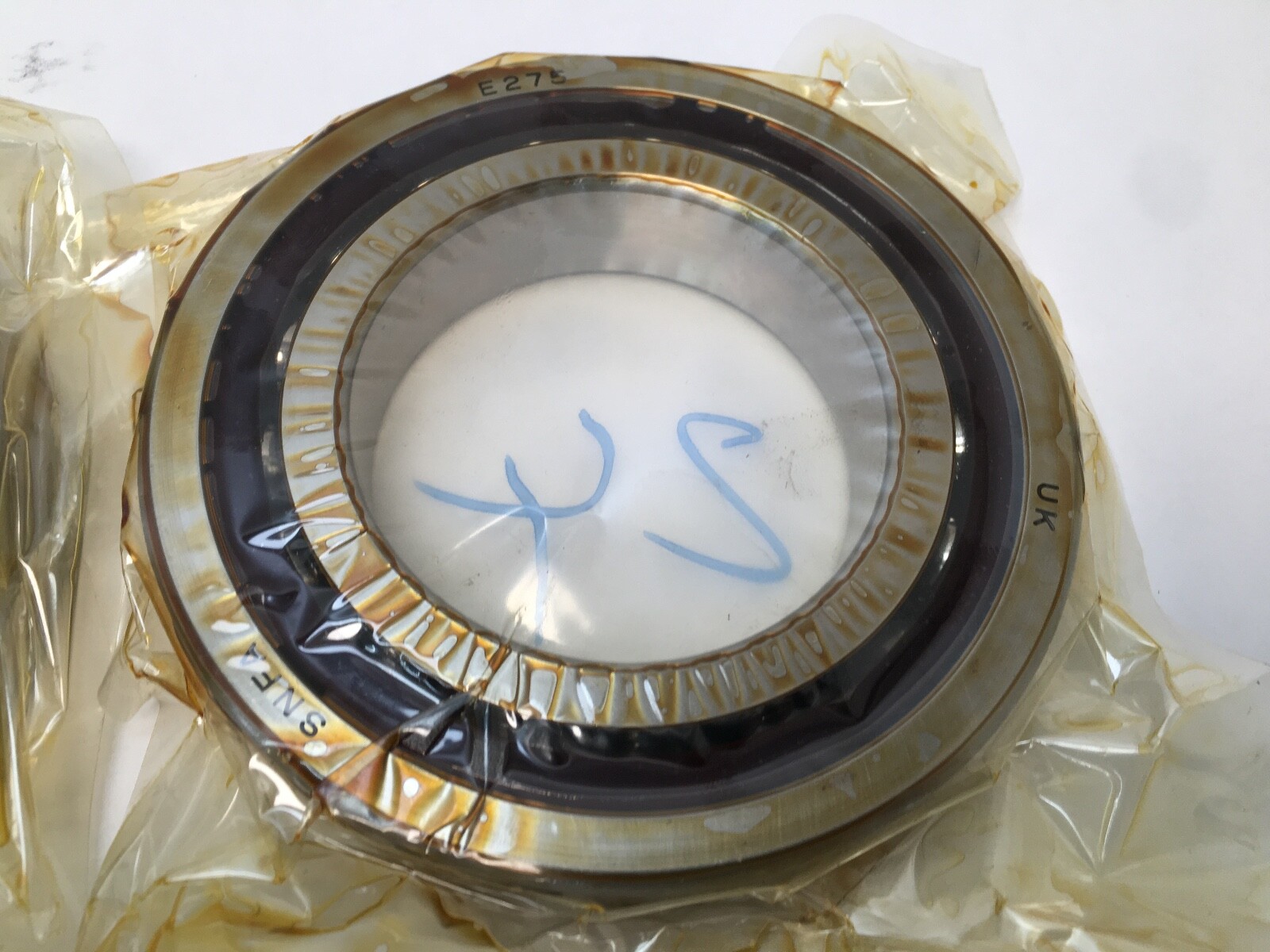

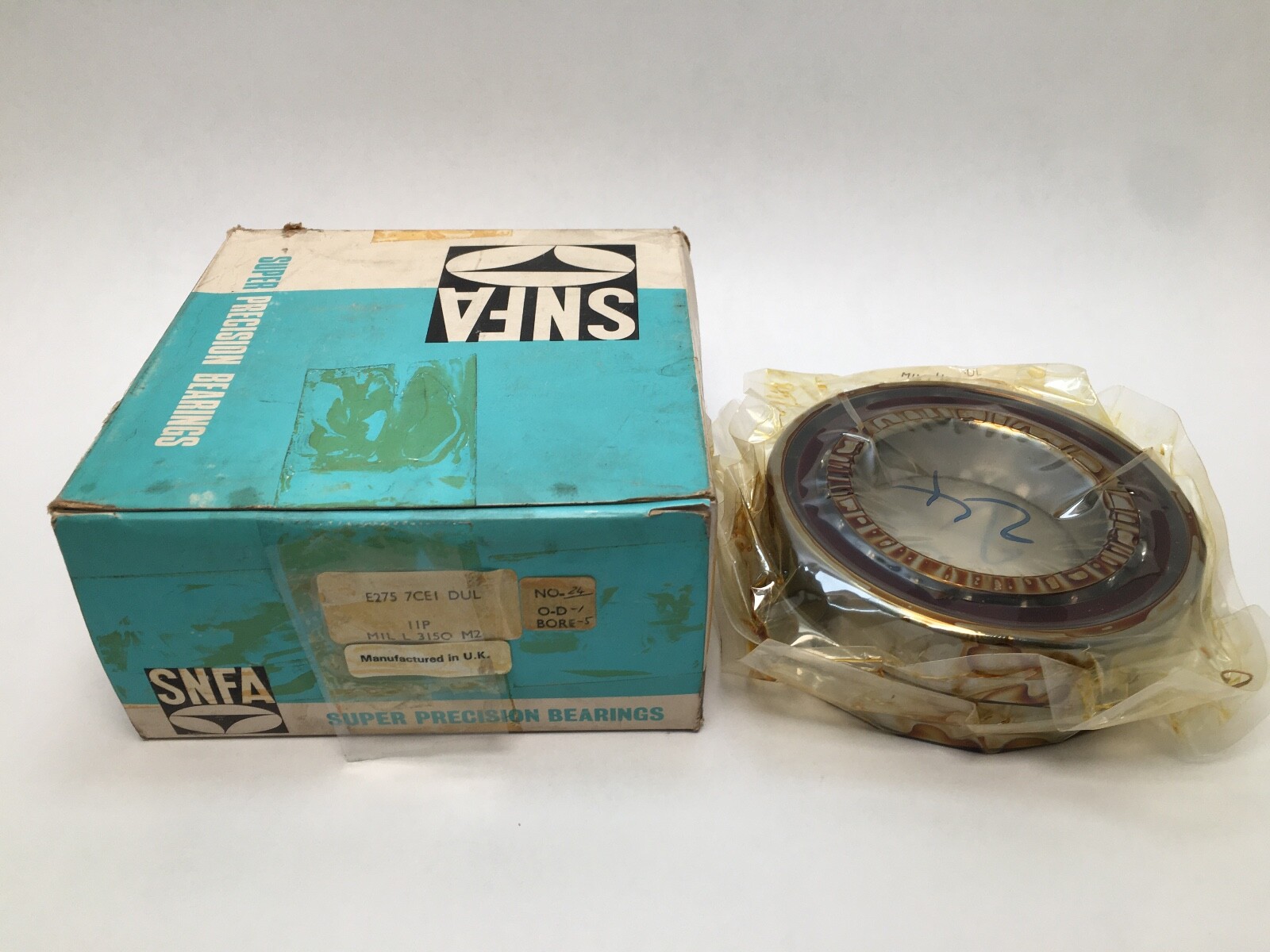

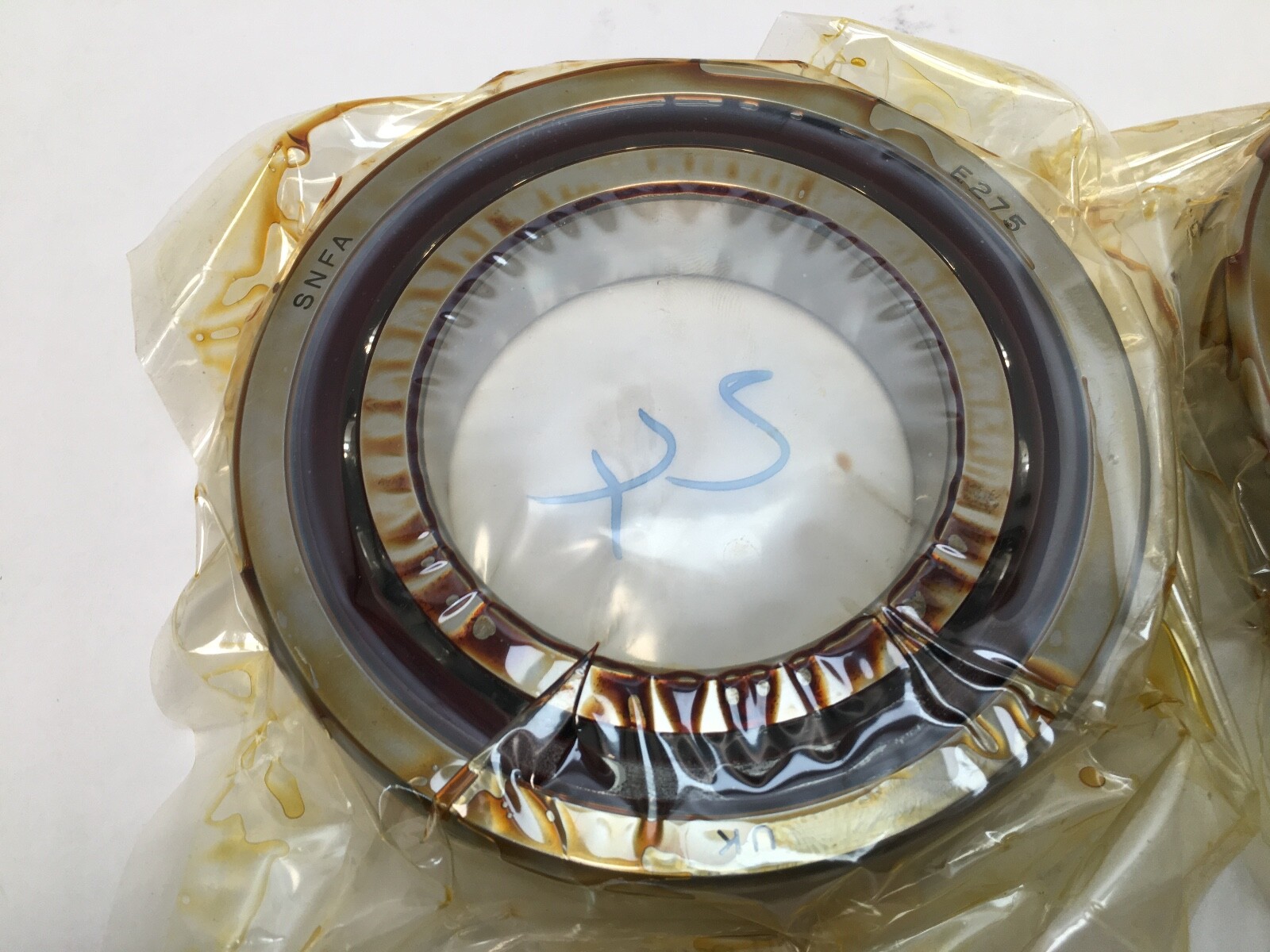

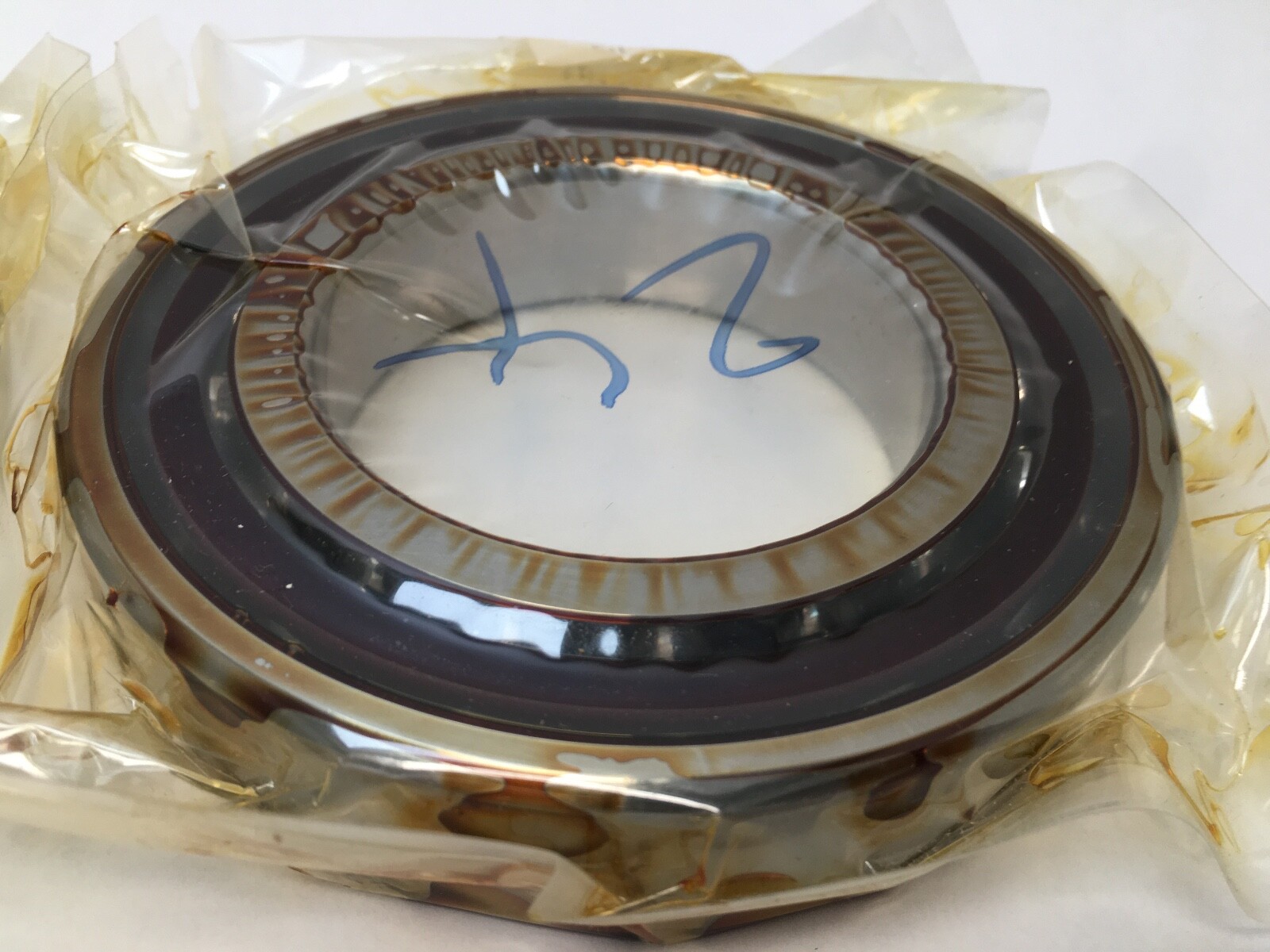

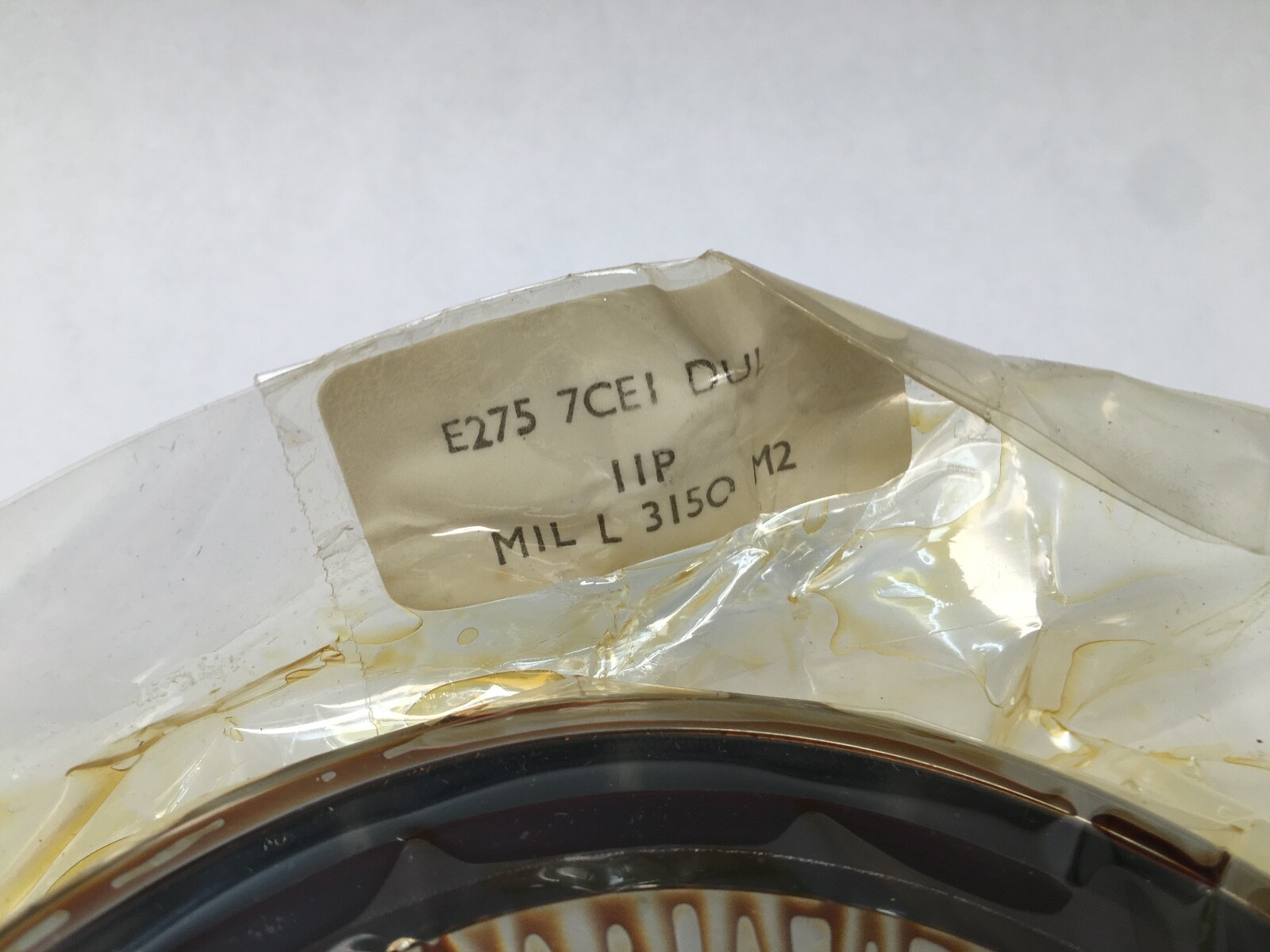

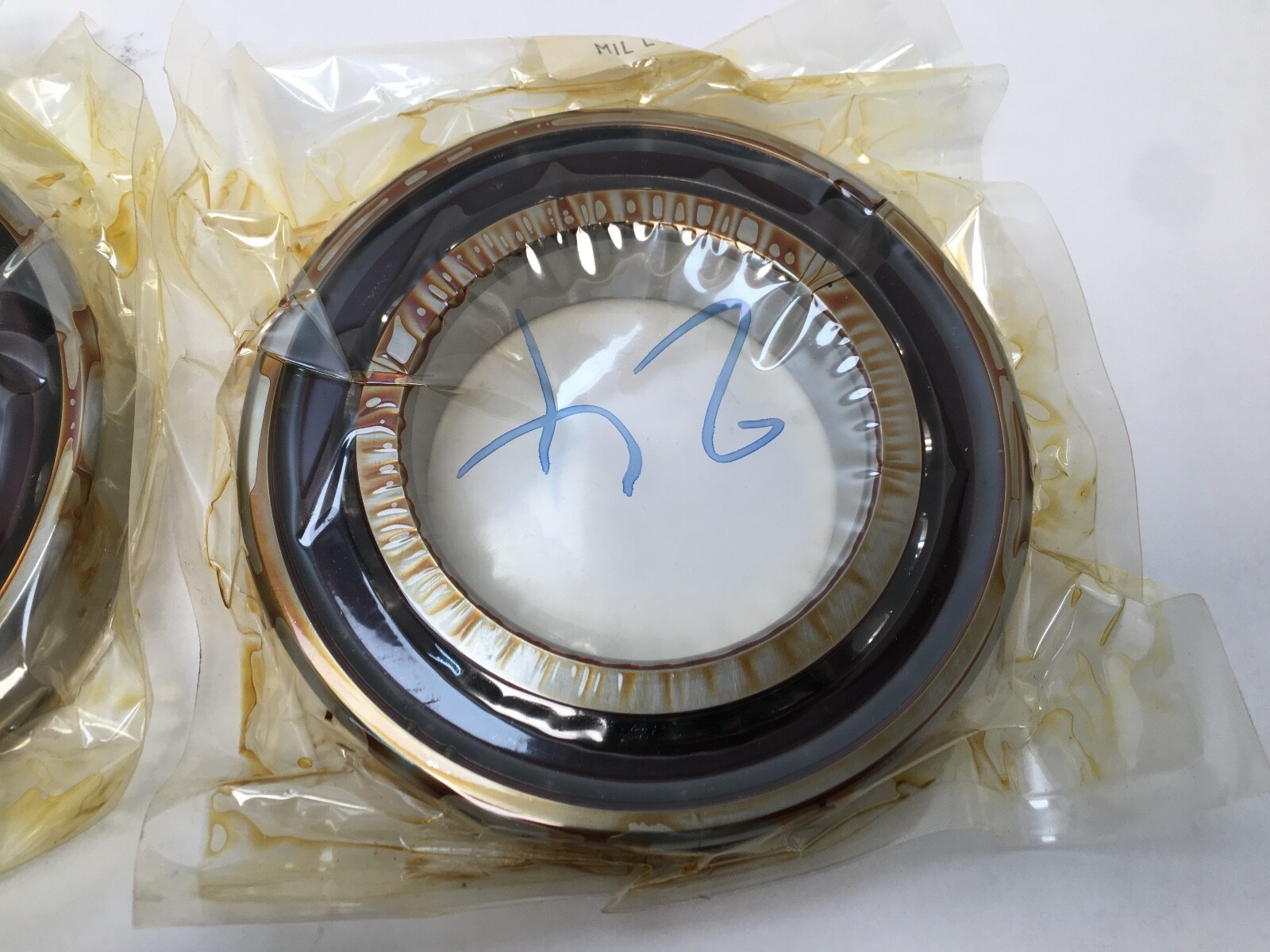

SNFA E275-7CE1DUL is a matched set of two super-precision single-row angular contact ball bearings from the SNFA E 200 series, ISO dimension series 02. Unit Quantity: 2 Pcs. Bore Diameter: 75 mm. Outside Diameter: 130 mm. Width: 25 mm per bearing. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Closure Type: Open.
E2 — SNFA E 200 series, ISO dimension series 02 (72xx envelope).
75 — bore diameter in millimetres.
7 — SNFA precision grade, ABEC 7 (ISO P4).
C — phenolic resin cage.
E — cage centred on the outer ring.
1 — 15° contact angle.
DU — universal duplex set: two bearings ground for back-to-back, face-to-face or tandem mounting.
L — light preload.
Dynamic Load Rating: 71,500 N per bearing. Static Load Rating: 62,000 N per bearing. Limiting Speed: 10,000 rpm grease; 17,000 rpm oil-air, single bearing. Item Weight: 1.17 kg (2.58 lb) per bearing. Cage Type: Outer-ring guided. Cage Material: Phenolic. Precision Class: ABEC 7 / P4. Preload: Light. Mounting Arrangement: Universal matched pair, back-to-back, face-to-face or tandem. Closure Type: Open. Number Of Rows: 1. Unit Quantity: 2 Pcs. Ratings, speeds and weight are those of the SKF 7215 CD/P4A equivalent.
Envelope per bearing: 75 x 130 x 25 mm. The two bearings are ground for back-to-back, face-to-face or tandem mounting.
SKF lists the E 200 series as the SNFA equivalent of its 72 .. D range; the current SKF equivalent is the 7215 CD/P4ADGA pair. Cross-references with the same 75 x 130 x 25 mm envelope and 15° contact angle: SKF 7215 CD/P4ADGA, SKF 7215 CDGA/P4A, FAG B7215-C-T-P4S-UL, NSK 7215CTRDULP4, Fafnir 2MM215WICRDUL.
Each bearing measures 75 mm bore by 130 mm outside diameter by 25 mm wide.
2 Pcs, a universal duplex set (DU) with light preload (L).
15° contact angle (code 1) and ABEC 7 / ISO P4 precision (code 7).
