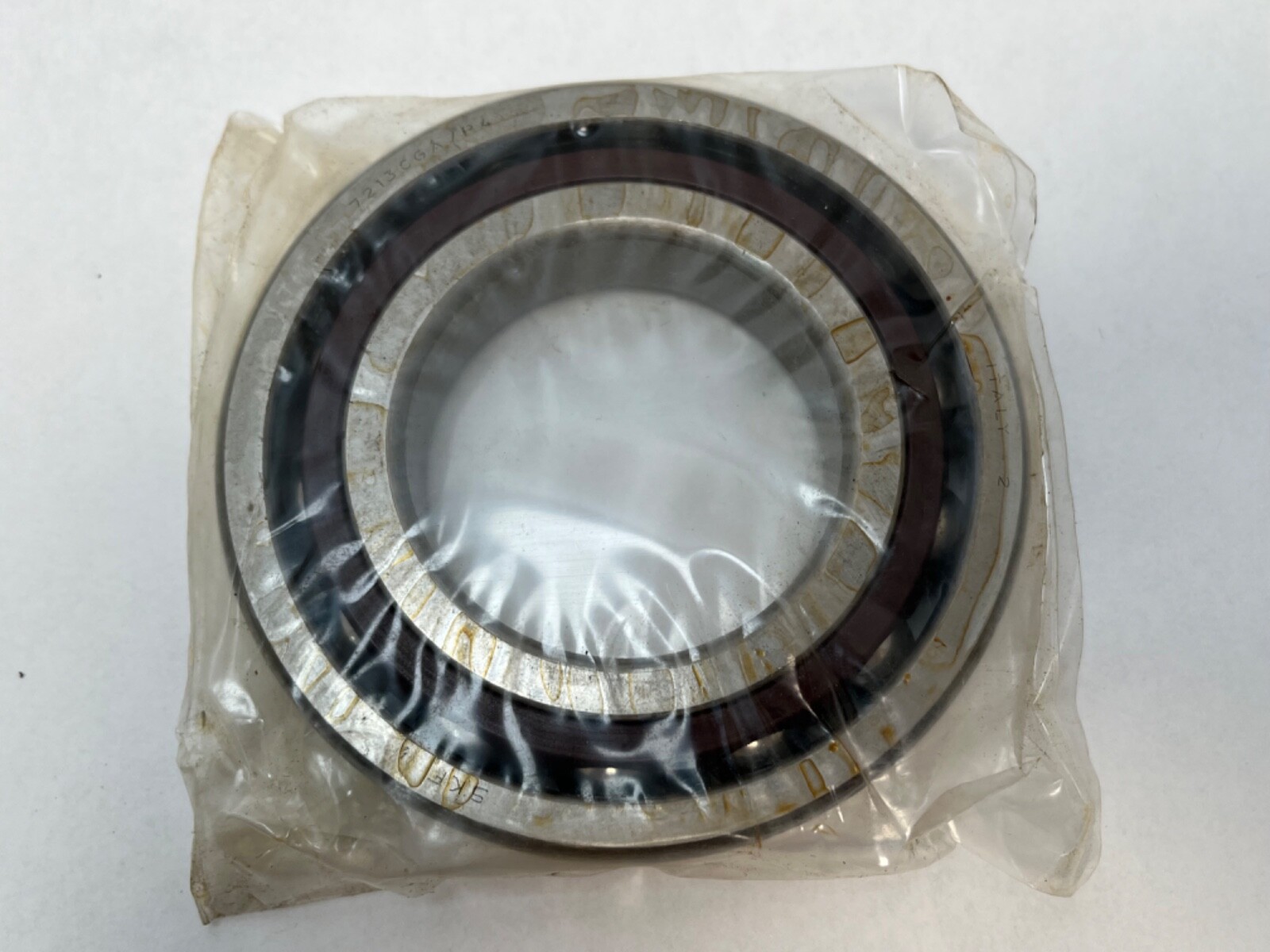

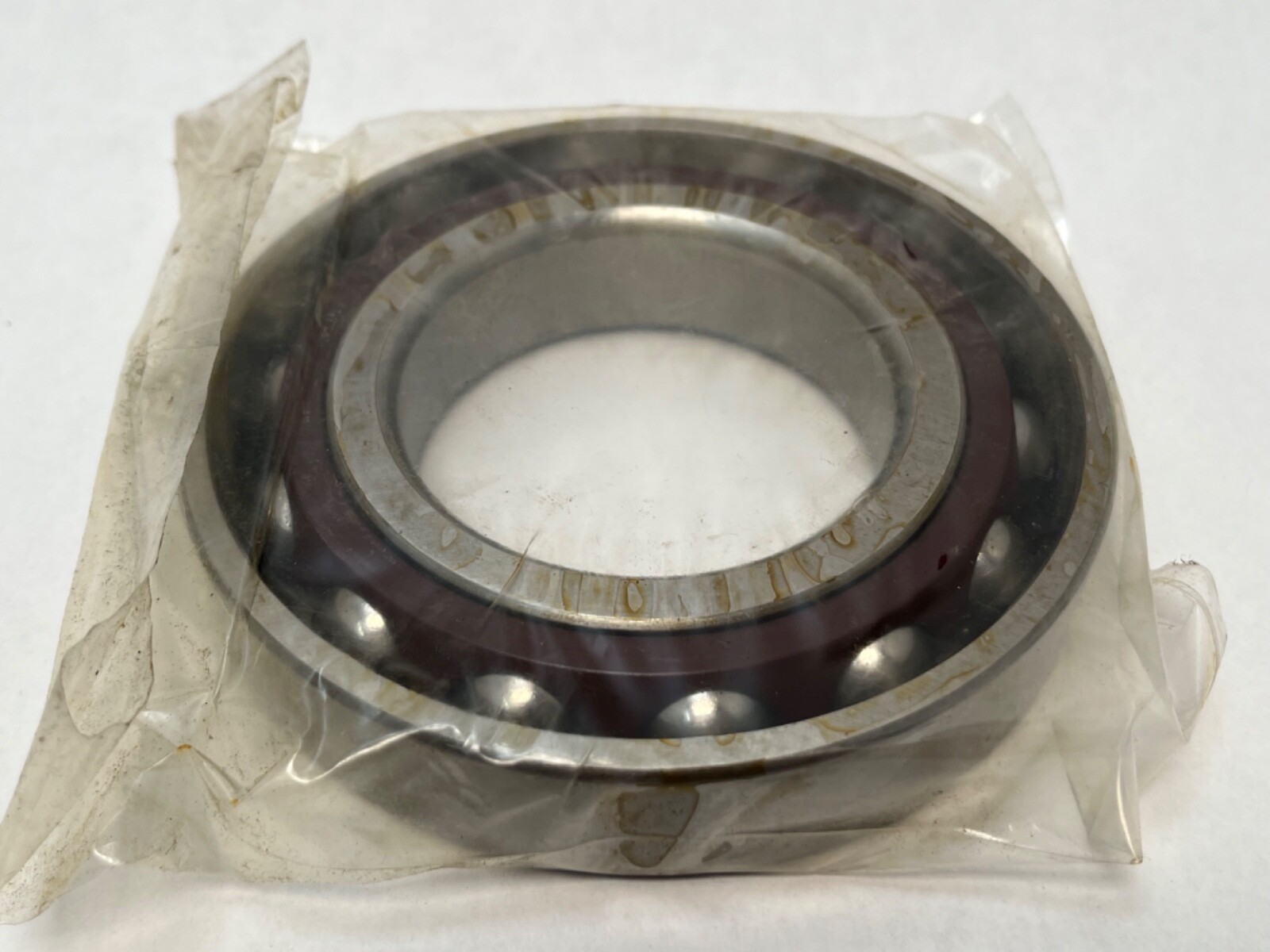

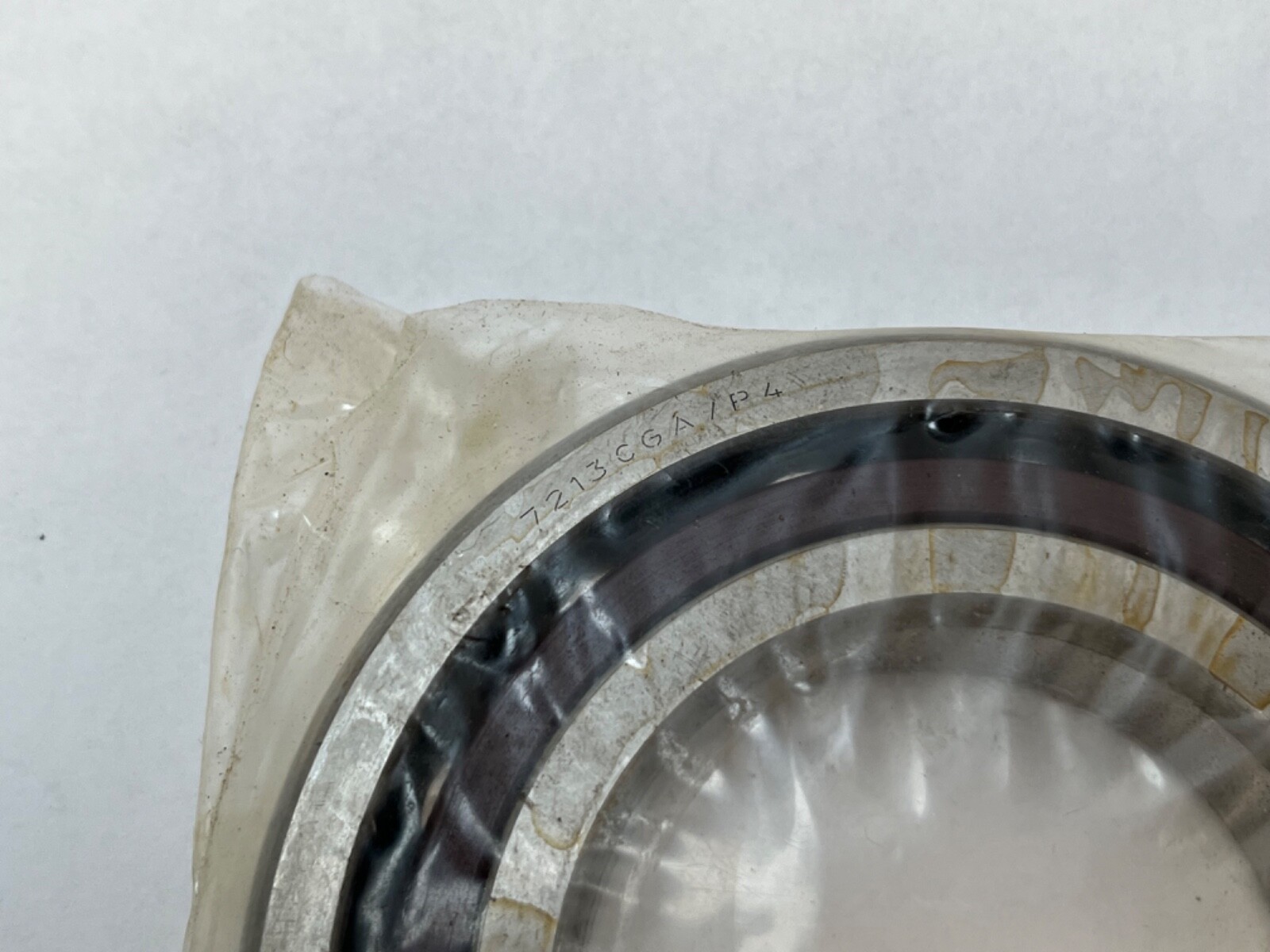

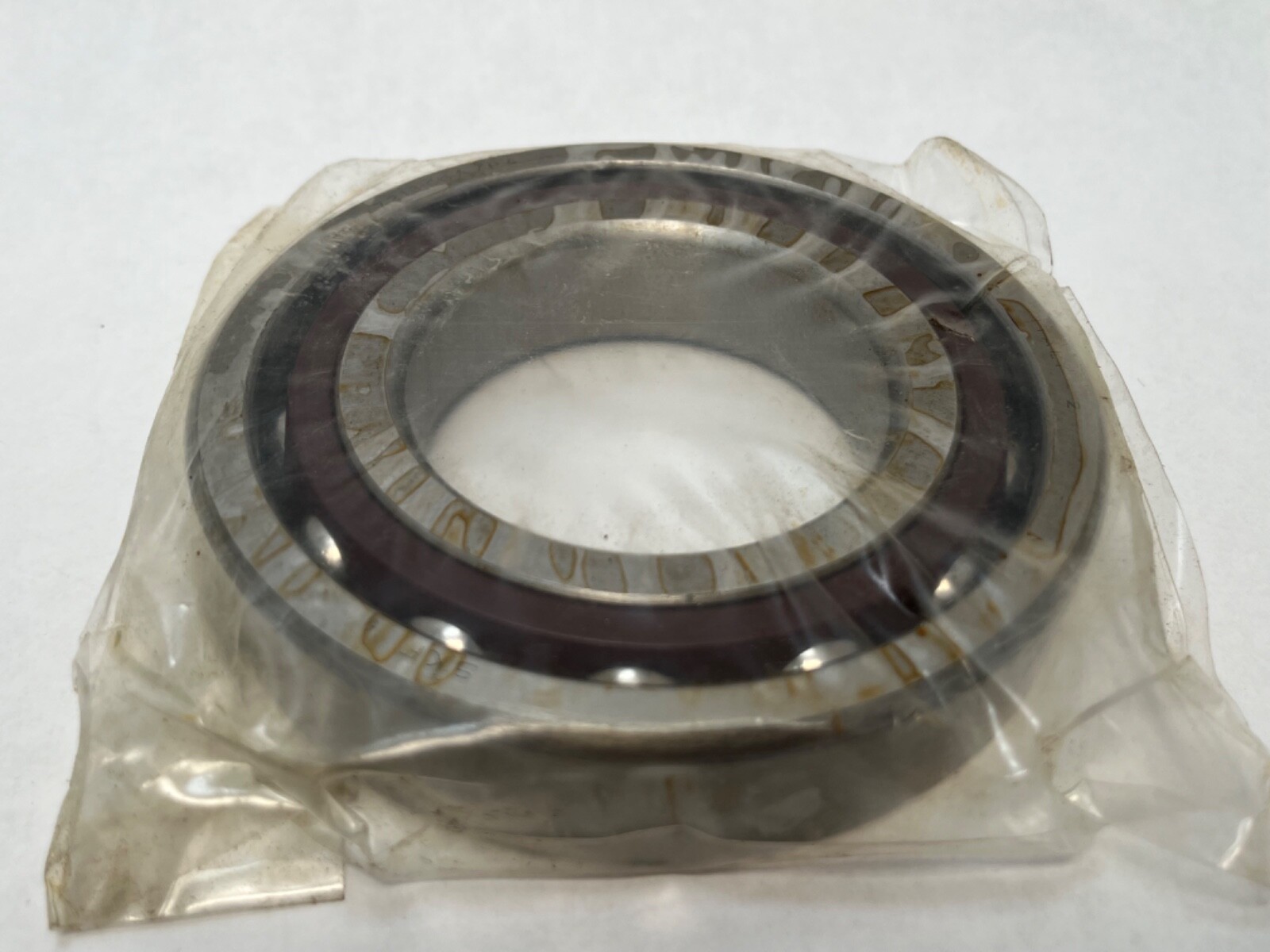

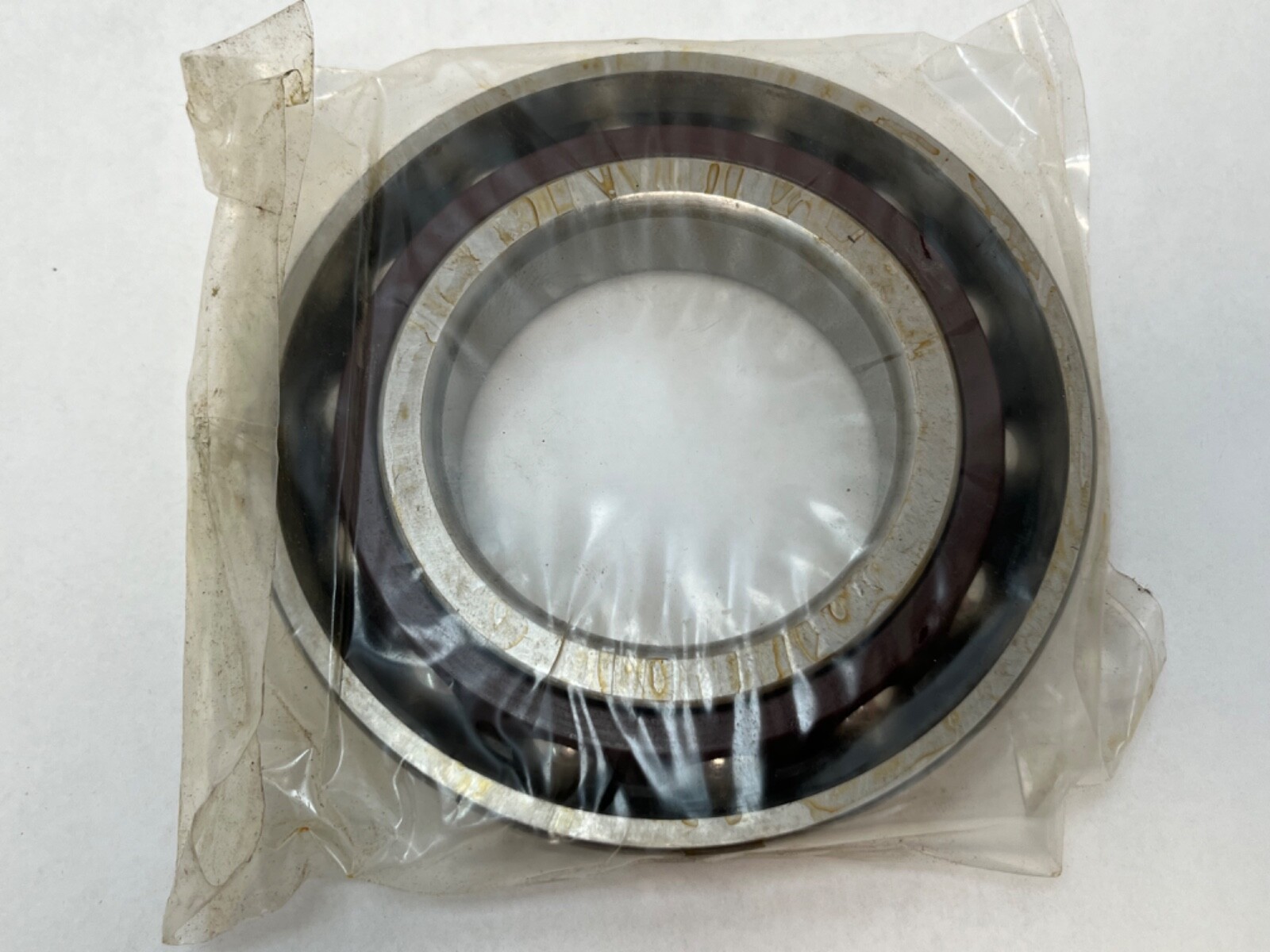

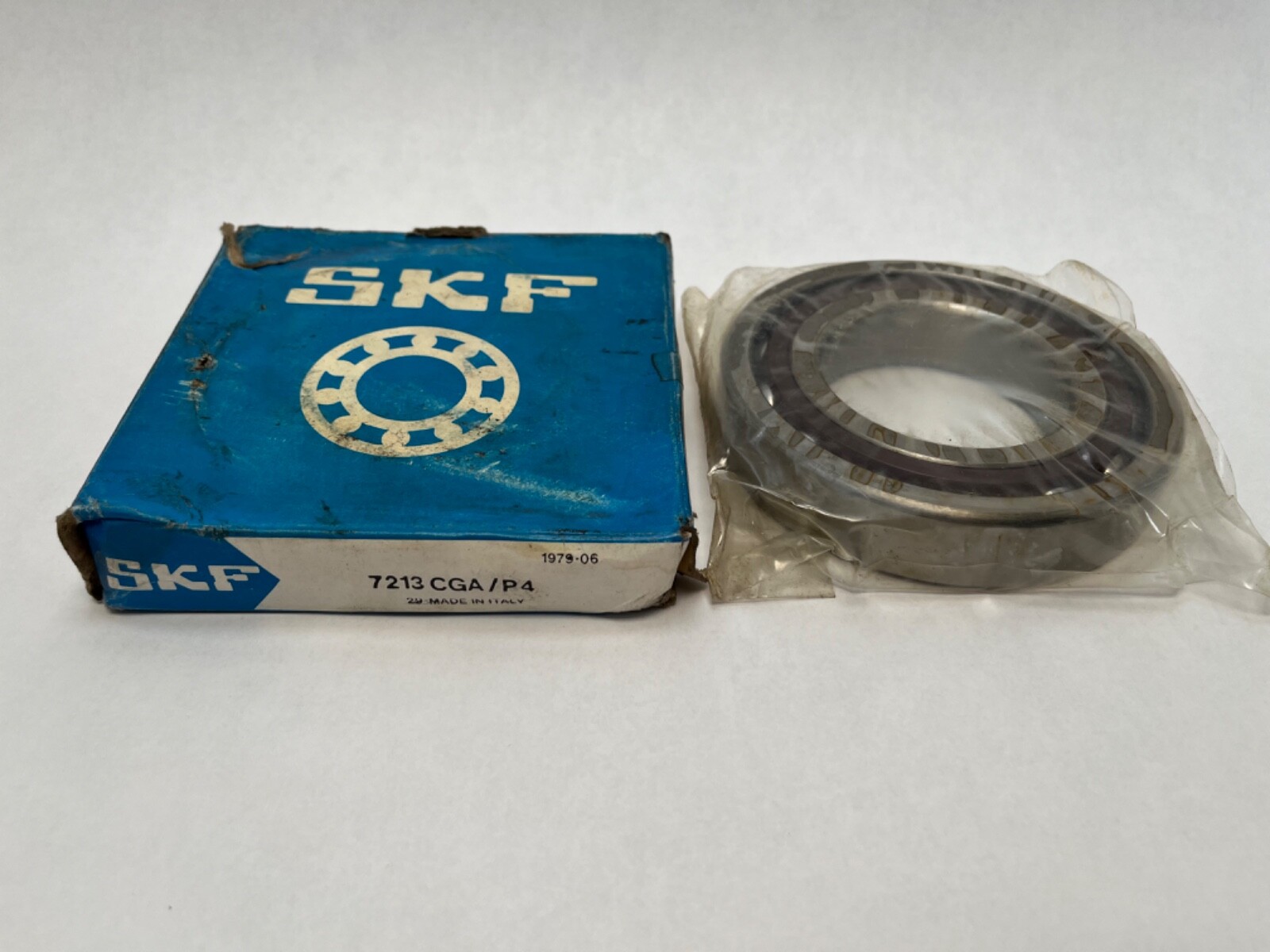

SKF 7213-CGA/P4 angular contact ball bearing, 65 x 120 x 23 mm, 15° contact angle, extra light preload, ABEC 7 / P4. Universally matchable single bearing.
List Price
$186.79
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7213CGAP4 |
| Model | 7213 C GA P4 / 2MM213WI CR SUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 65 mm |
| OD | 120 mm |
| Width | 23 mm |
| Material | Bearing Steel |
|---|---|
| Series | 72 |
| Preload | Extra light |
| Base Number | 7213 |
| Industry Terms | super-precision angular contact bearing, spindle bearing, universal matching bearing |
| Application Types | Machine tool spindles, grinding spindles, precision gearboxes |
| Mpn Variants | 7213-CGA/P4, 7213CGAP4, 7213 C GA P4, 7213-C-GA-P4, 7213C |
| Arrangement Configuration | Single bearing, universally matchable (DB, DF, DT) |
| Precision Class | ABEC 7 / P4 |
| Closure Type | Open |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Bearing Material | Bearing steel |
| Cross Reference 1 | FAG B7213-C-T-P4S-UL |
|---|---|
| Cross Reference 2 | NSK 7213CTYNSULP4 |
| Cross Reference 3 | Fafnir 2MM213WI CR SUL |
| Cross Reference 4 | SKF 7213 CDGA/P4A |
SKF 7213-CGA/P4 is a single-row super-precision angular contact ball bearing in the ISO 72 (02) dimension series. Bearing type: Angular Contact Ball Bearing. Bore Diameter: 65 mm. Outside Diameter: 120 mm. Overall Width: 23 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Preload: Extra light (GA). Closure Type: Open. Seal type: Open. Number Of Rows: 1. Bore Type: Straight. Snap ring included: No. Bearing Material: Bearing steel. Harmonization Code: 8482.10.50.
7213 — 72 series angular contact ball bearing, bore code 13 = 65 mm, 65 x 120 x 23 mm.
C — 15° contact angle. The shallow angle favours speed and radial stiffness.
GA — single bearing ground for universal matching, extra light preload.
P4 — ISO tolerance class 4, equivalent to ABEC 7.
The 15° contact angle carries combined radial and one-direction axial load at high speed, suited to machine-tool spindles, grinding heads and precision gearboxes. Universal matching allows the bearing to be set in DB, DF or DT arrangements with any other GA bearing of the same size, giving an extra light preload in DB or DF.
Unit Quantity: 1 Pc. Single universally matchable bearing.
Cross-Reference: FAG B7213-C-T-P4S-UL; NSK 7213CTYNSULP4; Fafnir 2MM213WI CR SUL; SKF 7213 CDGA/P4A (current SKF D-design successor, same envelope and angle). Common alternate part numbers: 7213CGAP4, 7213 C GA P4, 7213-C-GA-P4.
