SKF7211 ACD/P4ATBTBSuper Precision Angular Contact Ball Bearing Matched Triplex Set – 55 mm ID, 100 mm OD, 21 mm Width, Open, 25° Contact Angle, Light Preload, Back-to-Back Against a Tandem Pair

Condition: New

Availability:

1 in stock

Super-precision angular contact ball bearing set, 55 x 100 x 21 mm, 25 degree contact angle, light preload, back-to-back against a tandem pair.

List Price

$450.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandSKF
MPN7211 ACD/P4ATBTB
Model7211ACD/P4A TBTB
Bearing TypeAngular Contact Ball Bearing, Open
ID55 mm
OD100 mm
Width21 mm per bearing

Technical Specifications

MaterialBearing steel
Series72 (ISO 72, medium section)
LubricantOil Preservative
PreloadLight
Base Number7211
Industry Termsspindle bearing, super precision bearing, machine tool bearing, matched triplex set, TBT arrangement, ABEC 7
Bore Shaft Size55 mm
Mpn Variants7211 ACD/P4ATBTB, 7211ACDP4ATBTB, 7211-ACD-P4A-TBTB, 7211ACD/P4A TBTB, 7211ACDTBTB
Precision ClassP4A
Cage TypeMachined
Precision RatingP4A
Rolling ElementsSteel balls
Cage MaterialPhenolic
Number Of Rows1 per bearing
Bore TypeStraight
Snap Ring IncludedWithout Snap Ring
Harmonization Code8482.10.50.28
Contact Angle25°
Mounting ArrangementTriplex TBT: back-to-back against a tandem pair
Part Number7211 ACD/P4ATBTB
Common MisspellingsSKF 7211ACD P4ATBTB; SKF 7211 ACD/P4A TBTB; SKF7211ACD/P4ATBTB; SKF 7211 ACD P4A-TBTB
Application TypesMachine tool spindles; precision rotating shafts; high-speed spindles
Closure TypeOpen

Cross-References

Cross Reference 1FAG B7211-E-T-P4S – single bearing, not a matched set
Cross Reference 2SKF 7211 CD/P4ATBTB – 15° contact angle
Cross Reference 3SKF 7211 ACD/P4ATBTA – extra light preload
Seller Part Number: B-BK2#R3AVN3

Product Description

What this part is:

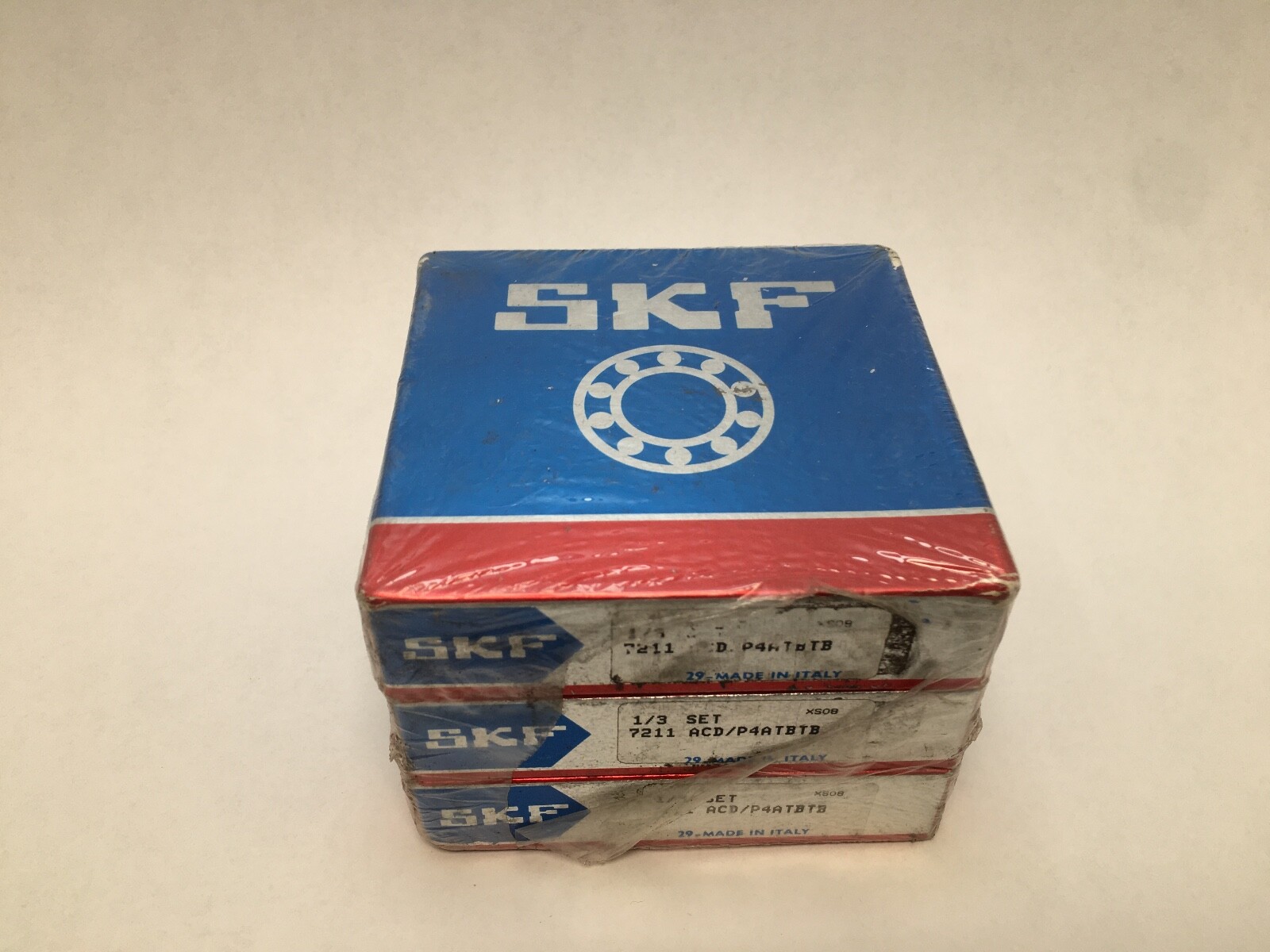

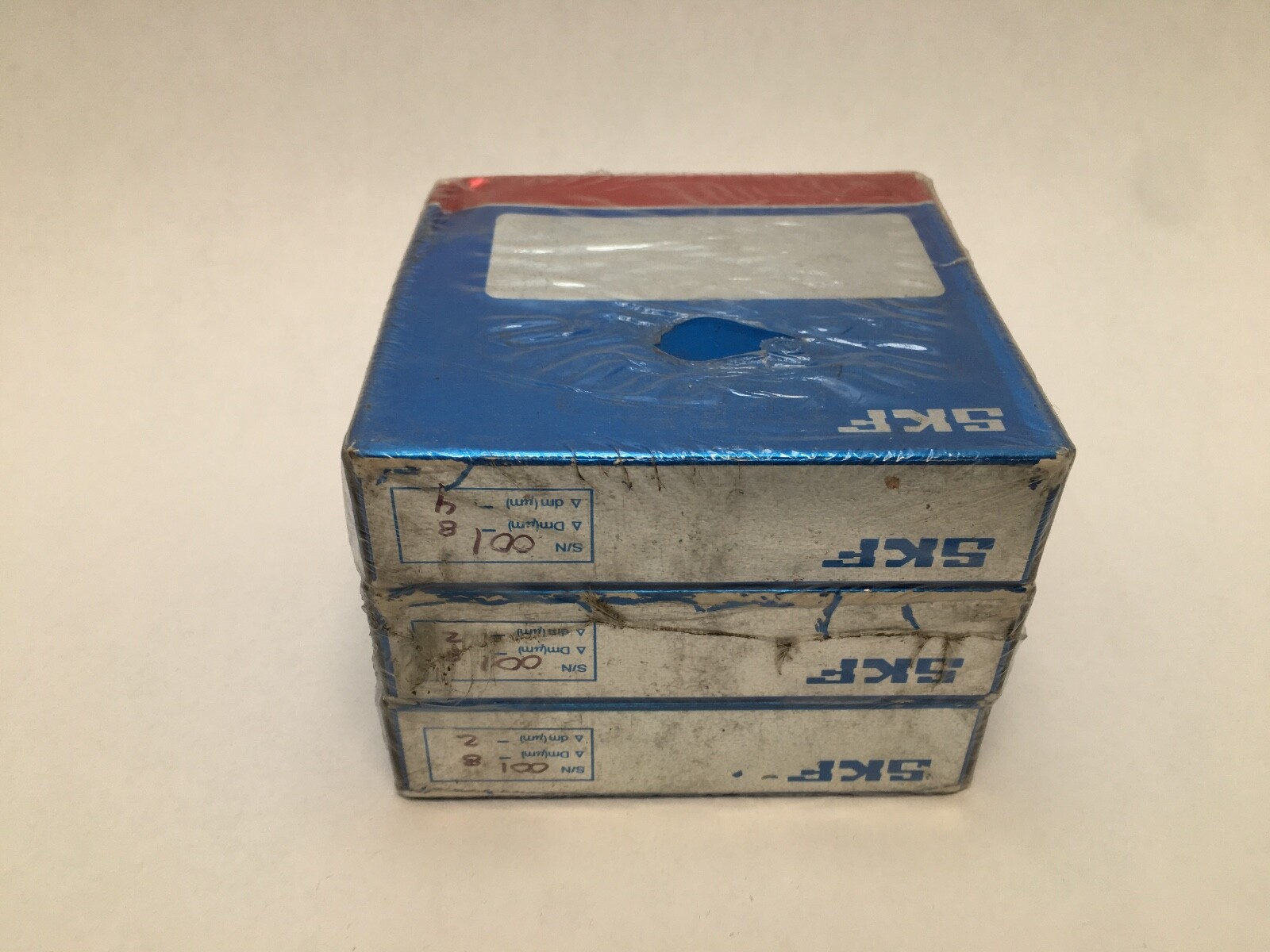

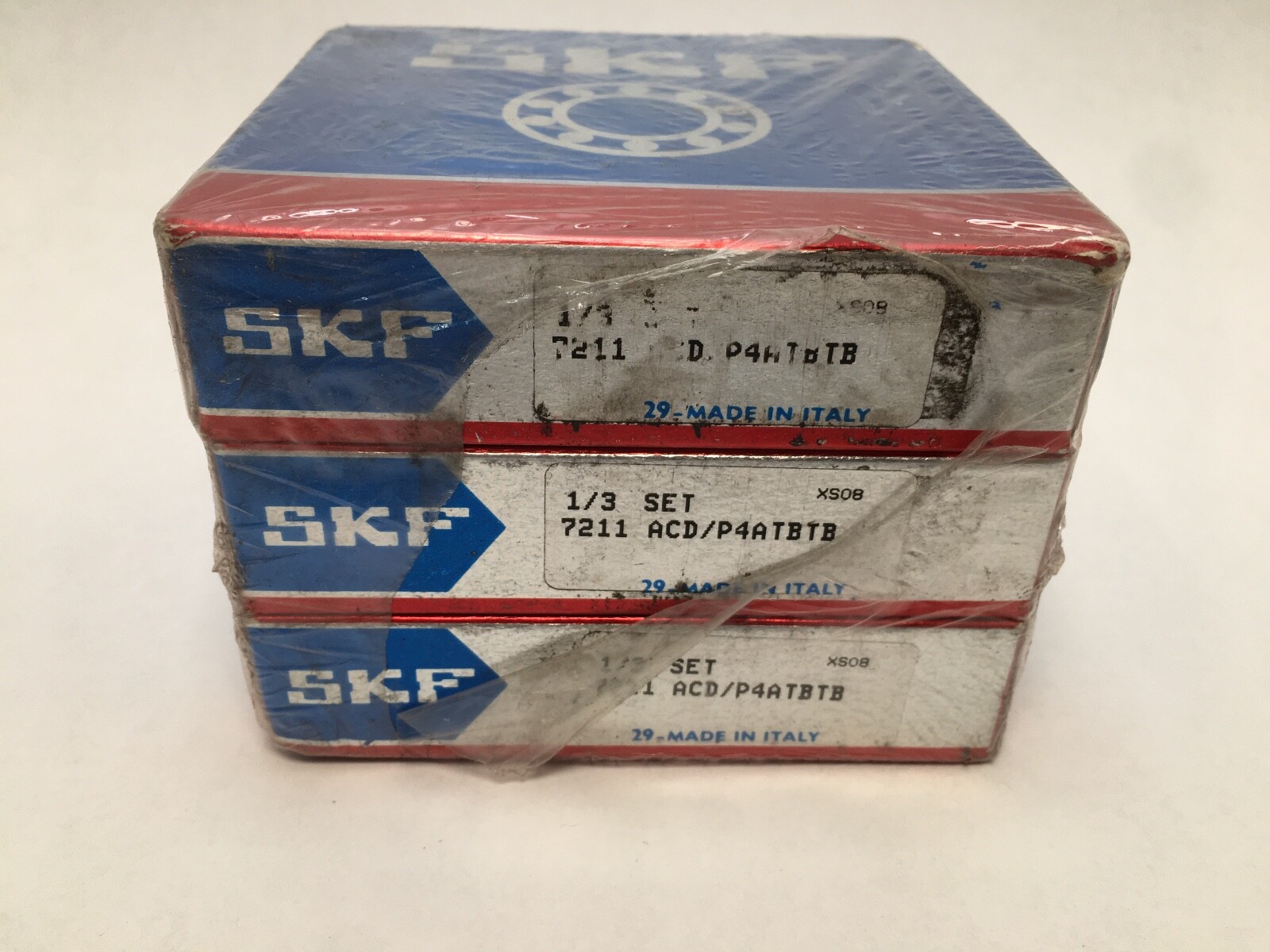

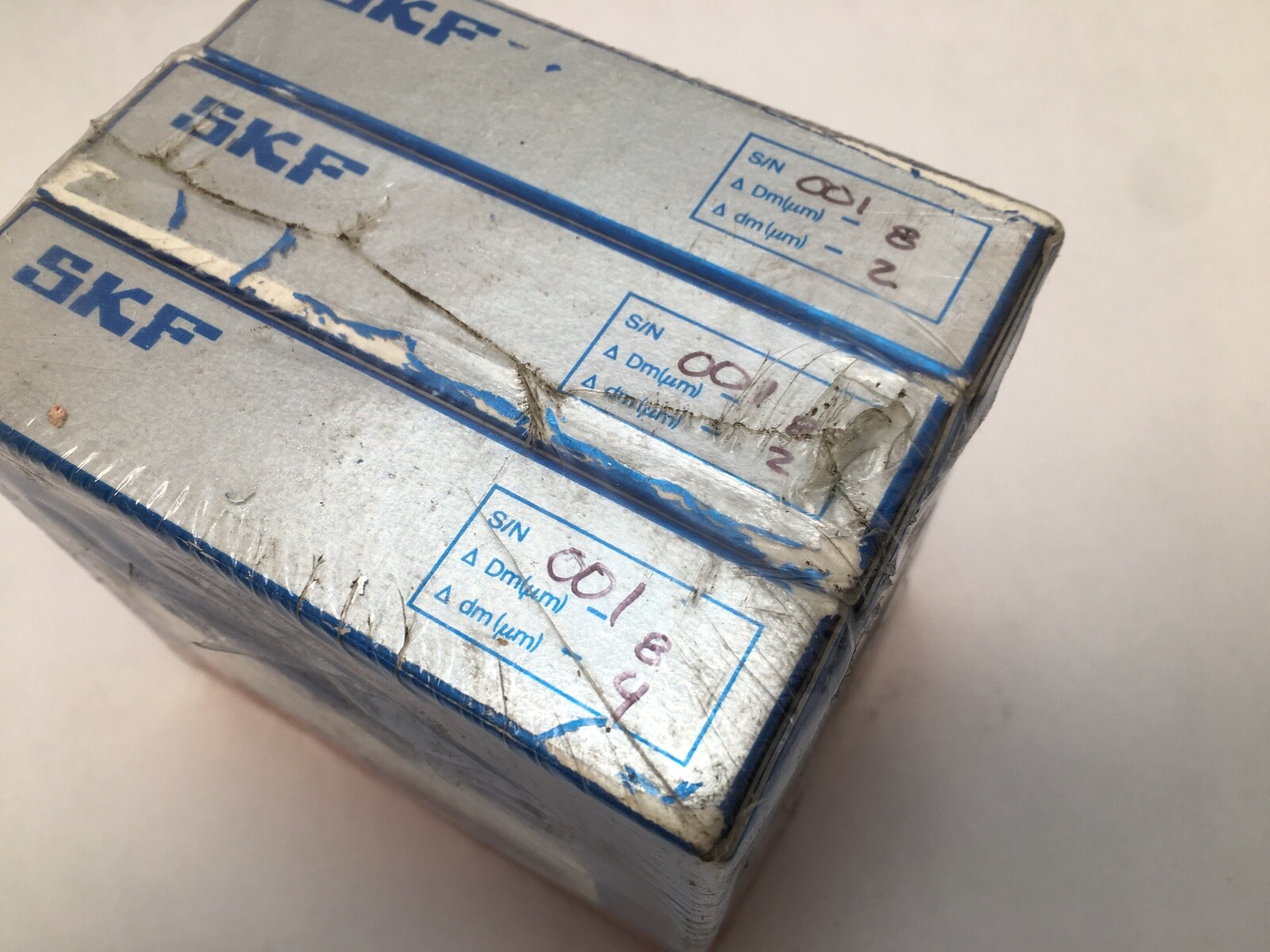

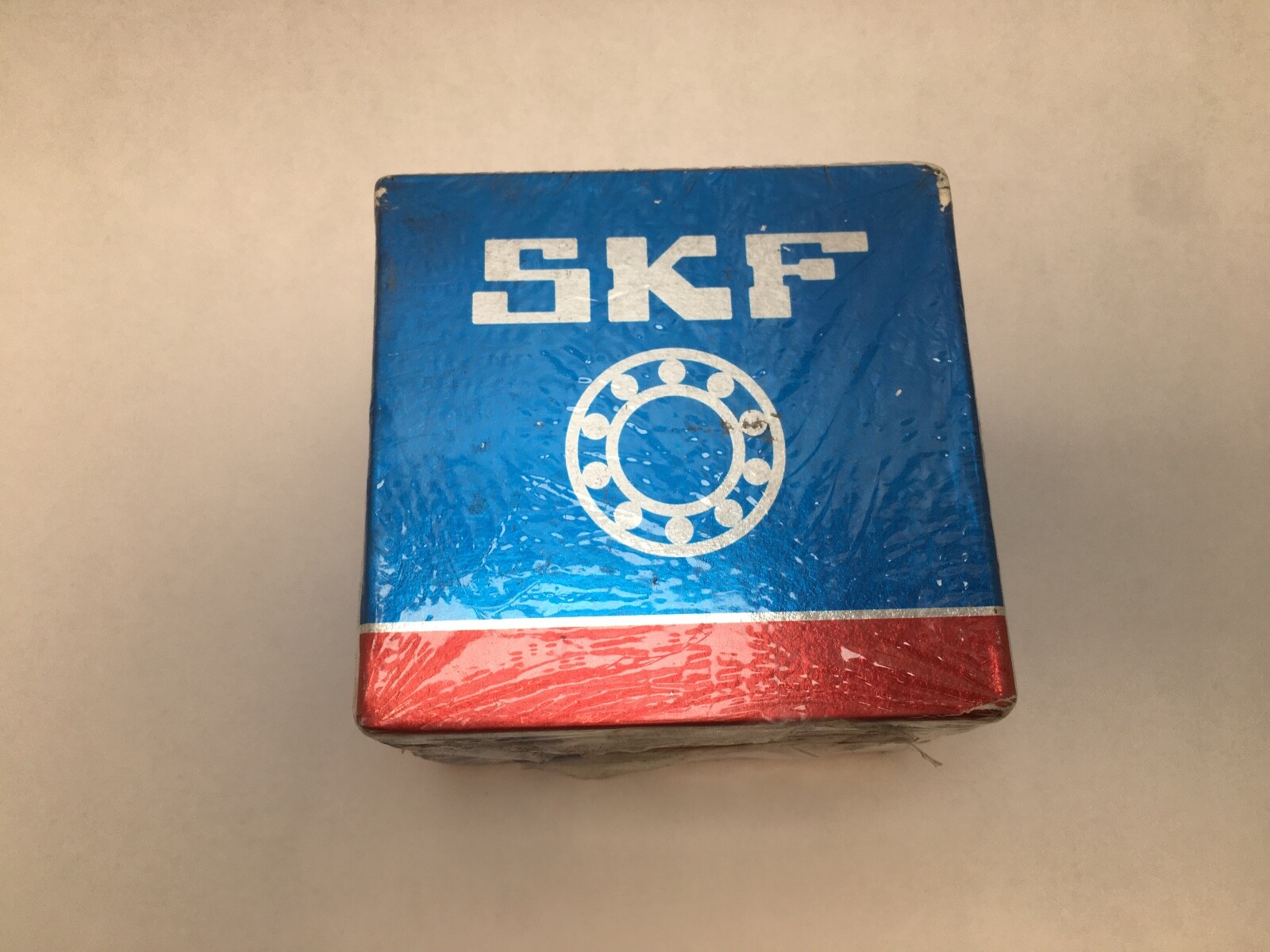

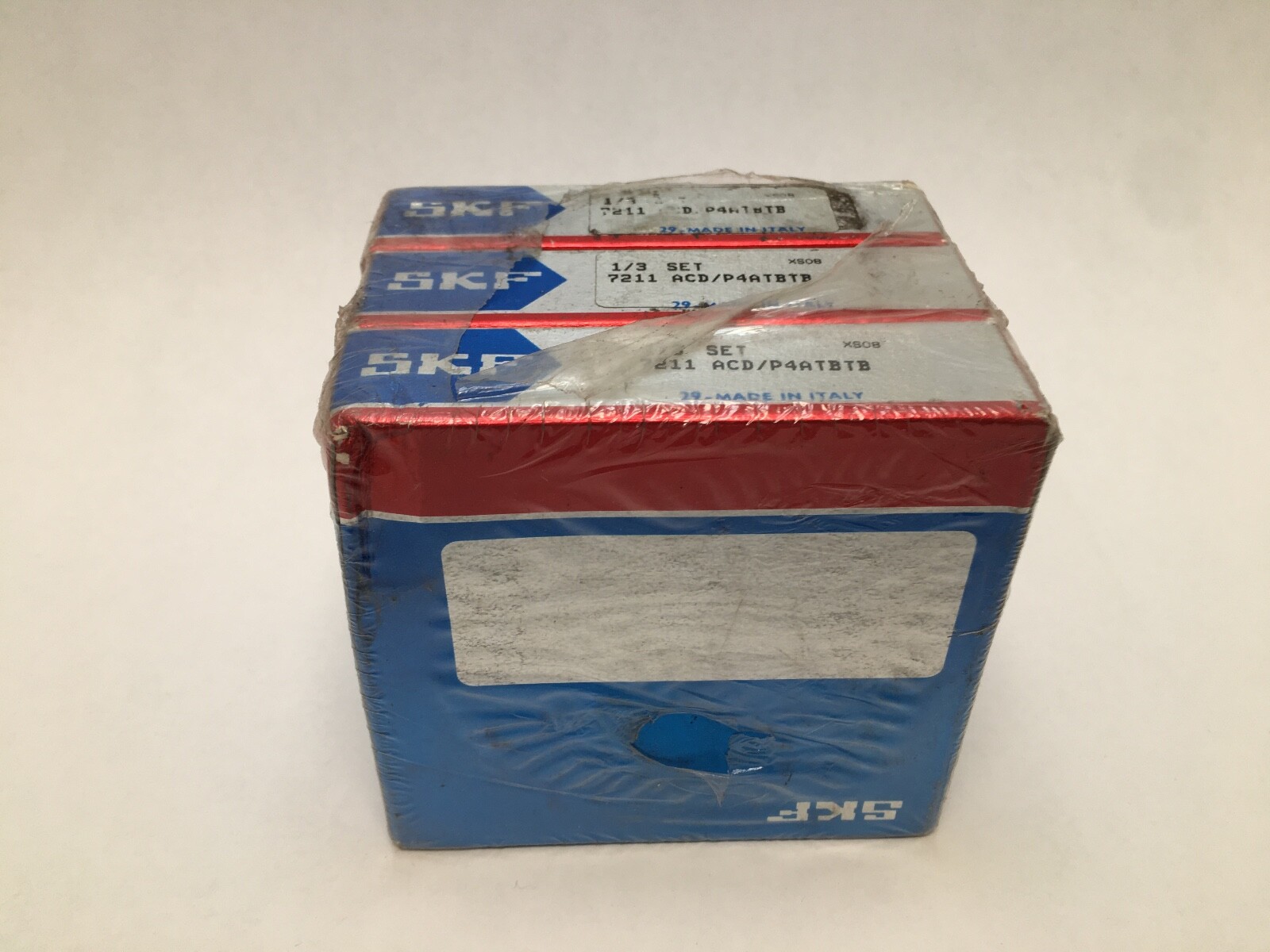

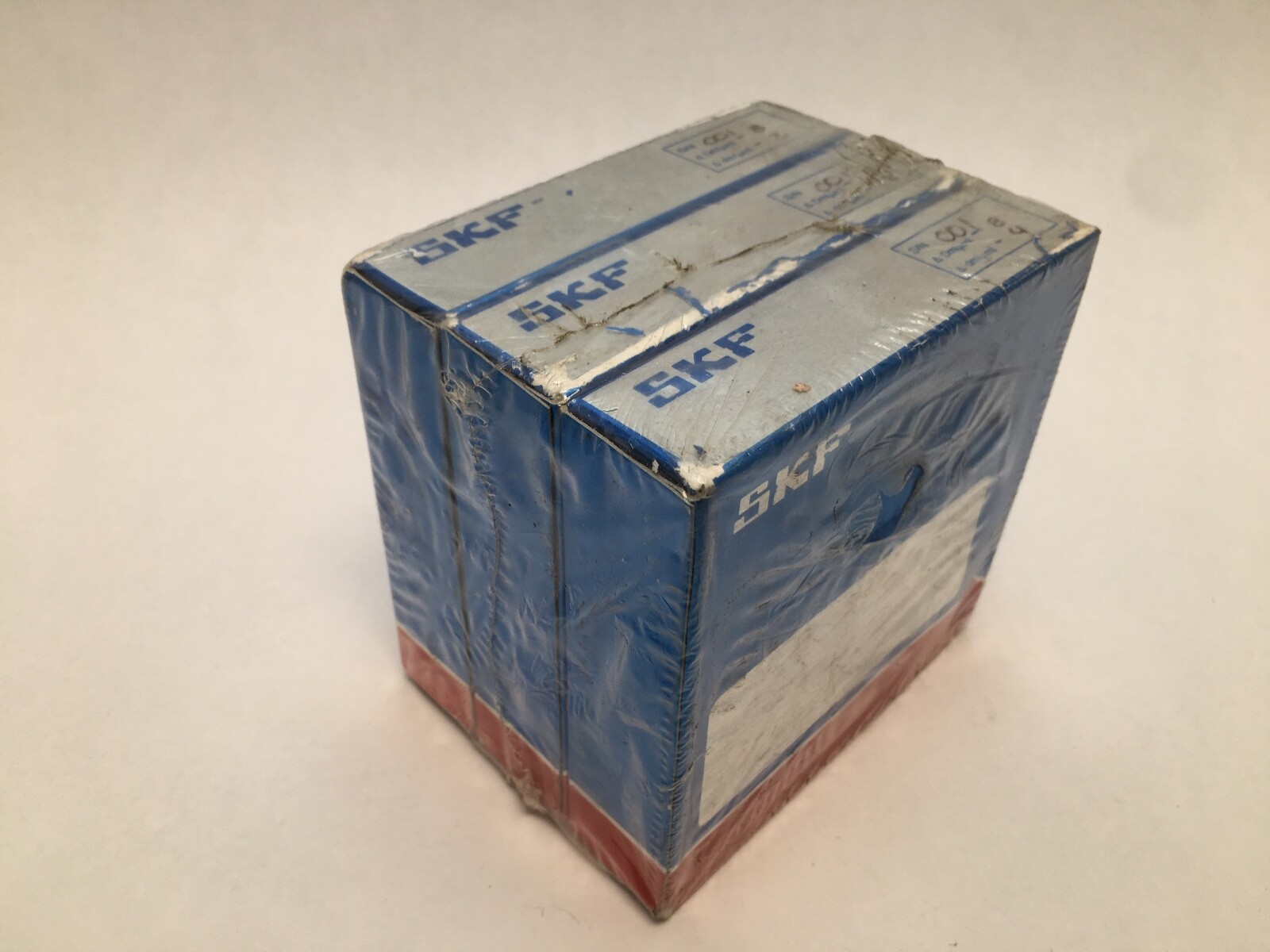

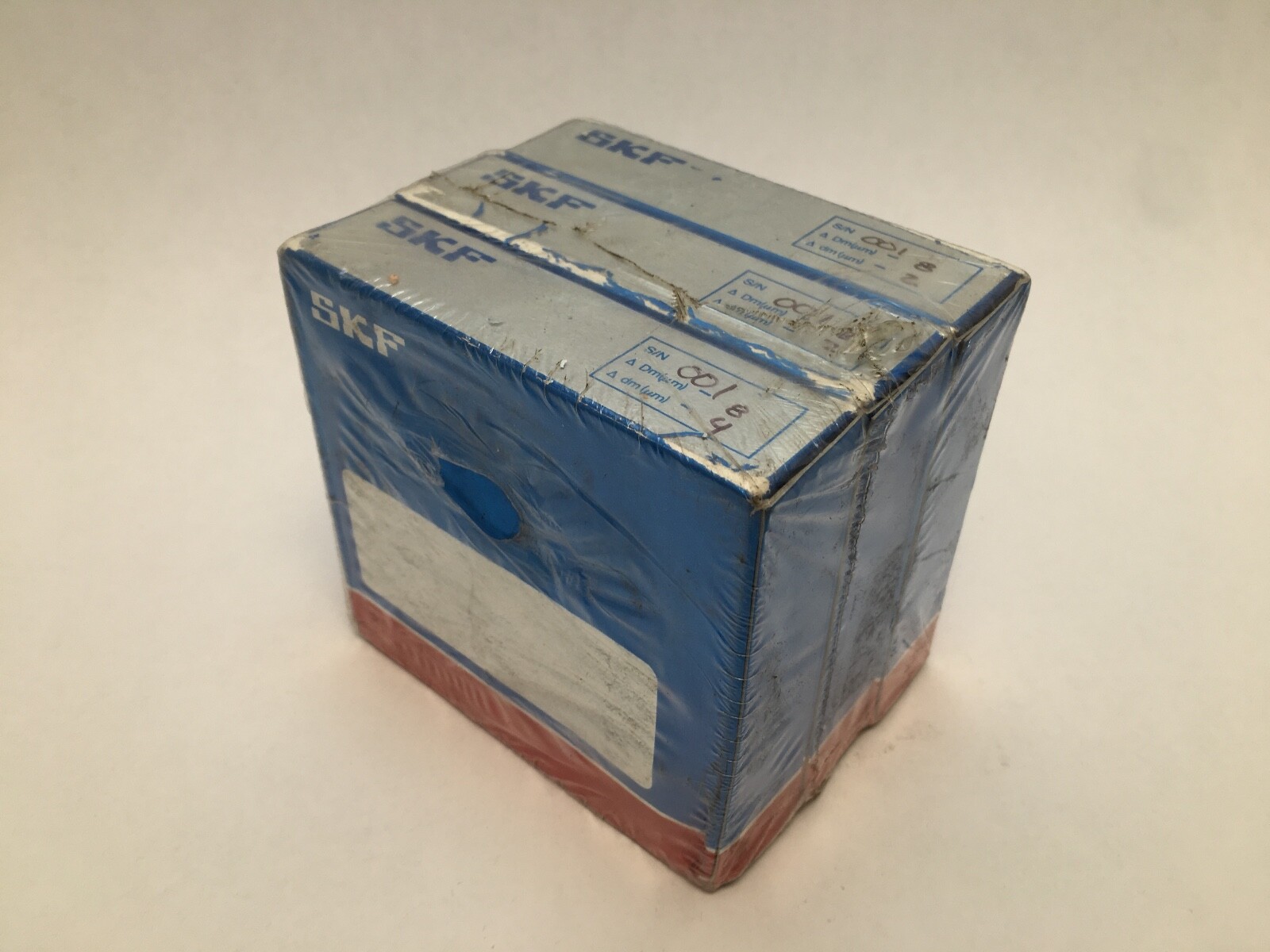

SKF 7211 ACD/P4ATBTB is a super-precision angular contact ball bearing supplied as a matched triplex set of three bearings: two in tandem with the third mounted back-to-back against them. Each bearing is 55 mm bore, 100 mm outside diameter and 21 mm wide, 63 mm for the triplex set. Open on both faces. Unit Quantity: 3 Pcs. Condition: New.

Decoding the designation:

7211 — angular contact ball bearing, ISO 72 medium section, 55 x 100 x 21 mm.

ACD — 25° contact angle.

P4A — SKF super-precision class.

TBT — triplex set: T is three bearings, BT is back-to-back against a tandem set.

B — light preload.

Specifications:

Bore Diameter: 55 mm. Outside Diameter: 100 mm. Width: 21 mm per bearing. Total Width: 63 mm for the triplex set. Contact Angle: 25°. Number Of Rows: 1 per bearing. Rolling Elements: Steel balls. Closure Type: Open. Precision Class: P4A. Cage Material: Phenolic. Preload: Light. Series: 72 (ISO 72, medium section). Harmonization Code: 8482.10.50.28. Country of Origin: Italy.

Dimensions and mounting:

Bore: 55 mm. Outside diameter: 100 mm. Width: 21 mm per bearing, 63 mm for the set. Bore Type: Straight. Mounting Arrangement: triplex, back-to-back against a tandem pair.

Compatibility and replacement:

Related SKF and FAG numbers: FAG B7211-E-T-P4S is the matching 25° bearing sold as a single, not as a matched set. SKF 7211 CD/P4ATBTB is the same set at a 15° contact angle. SKF 7211 ACD/P4ATBTA is the same set at extra light preload.

Frequently asked questions:

What size is the SKF 7211 ACD/P4ATBTB?

Bore 55 mm, outside diameter 100 mm, width 21 mm per bearing, 63 mm for the three-bearing set.

What does TBT mean in 7211 ACD/P4ATBTB?

TBT is a triplex set of three bearings: two in tandem and one mounted back-to-back against them.

What contact angle and preload does it have?

ACD gives a 25° contact angle and the B in TBTB gives light preload.
