Availability:
Out of stock

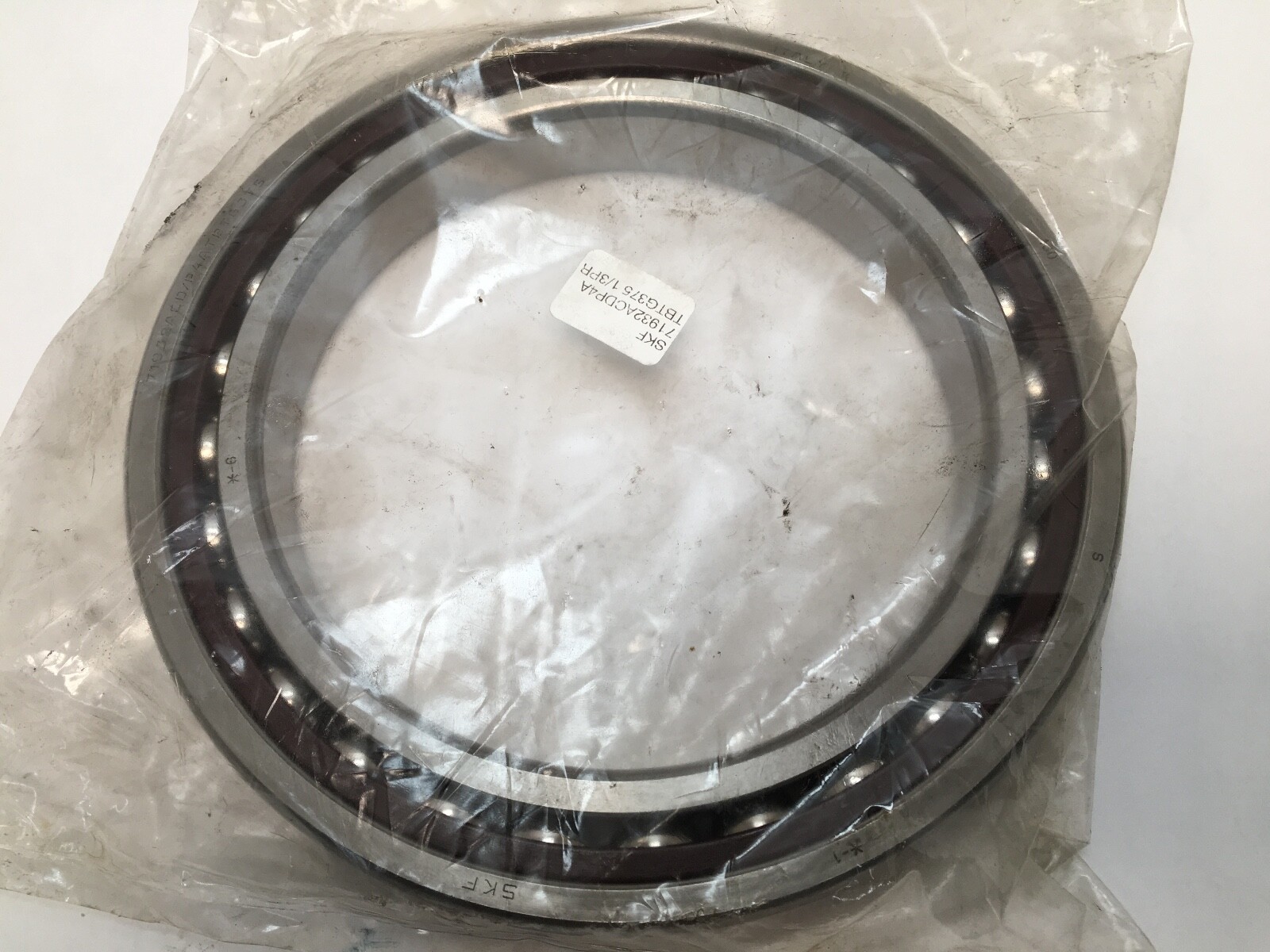

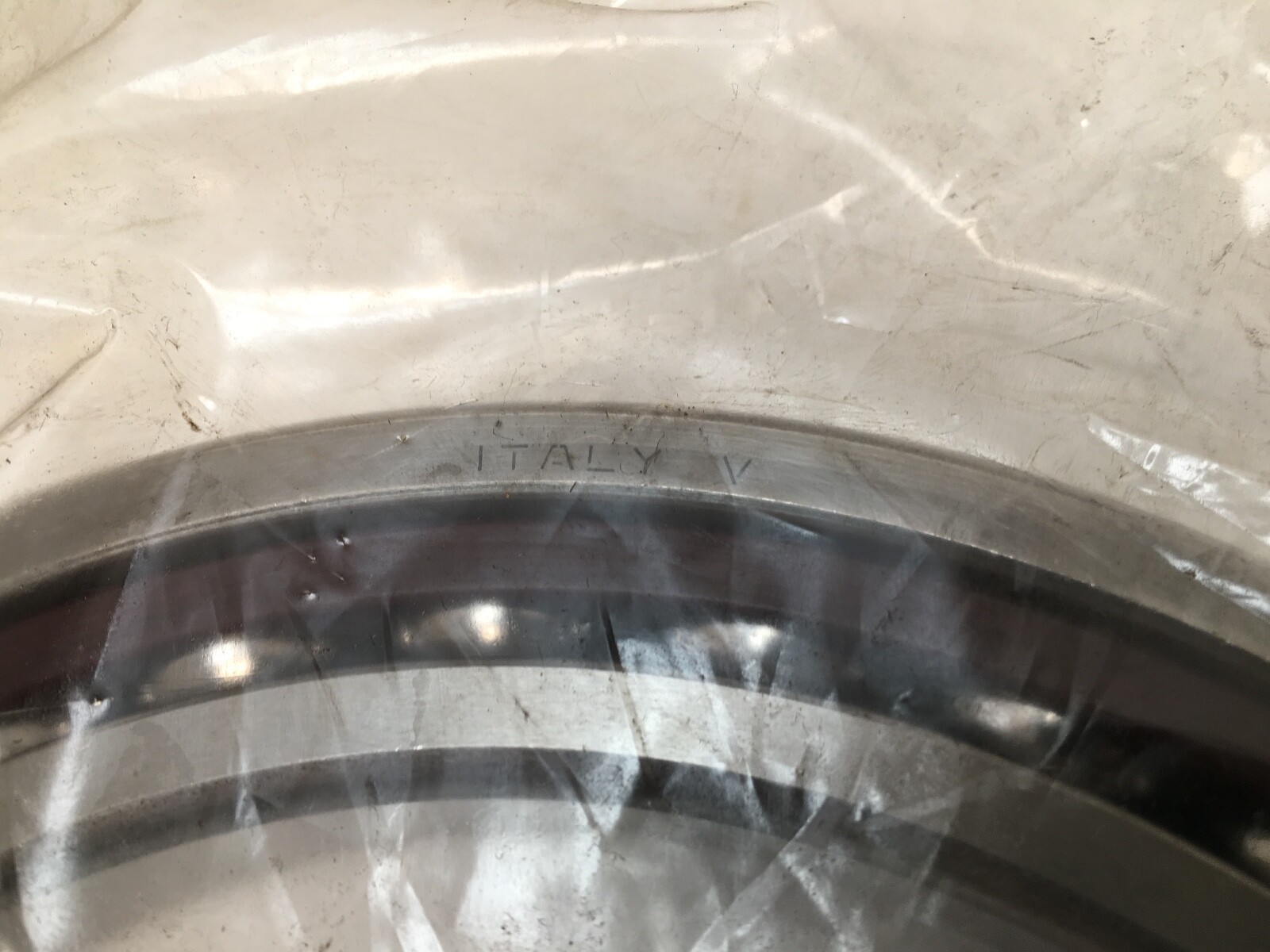

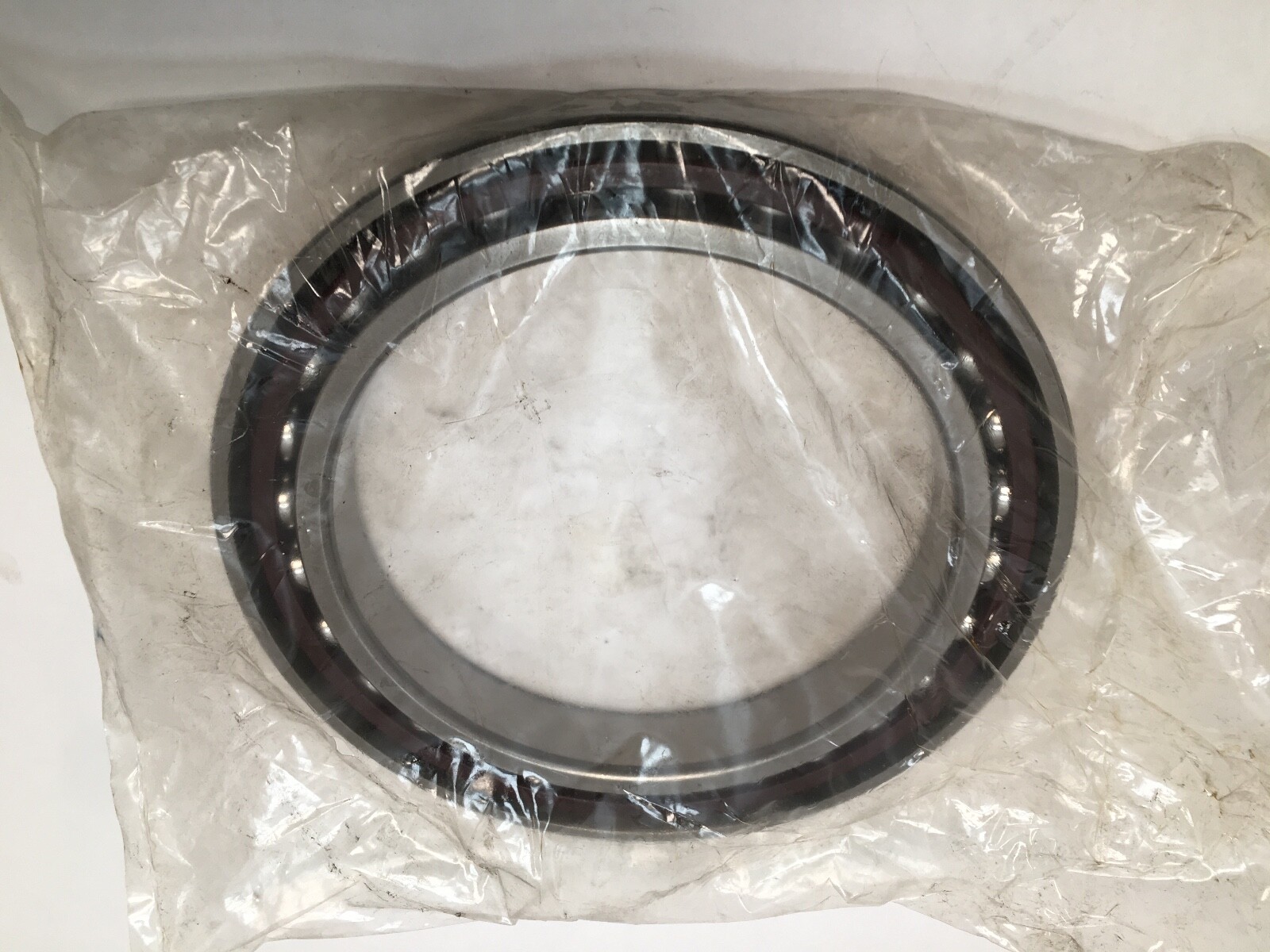

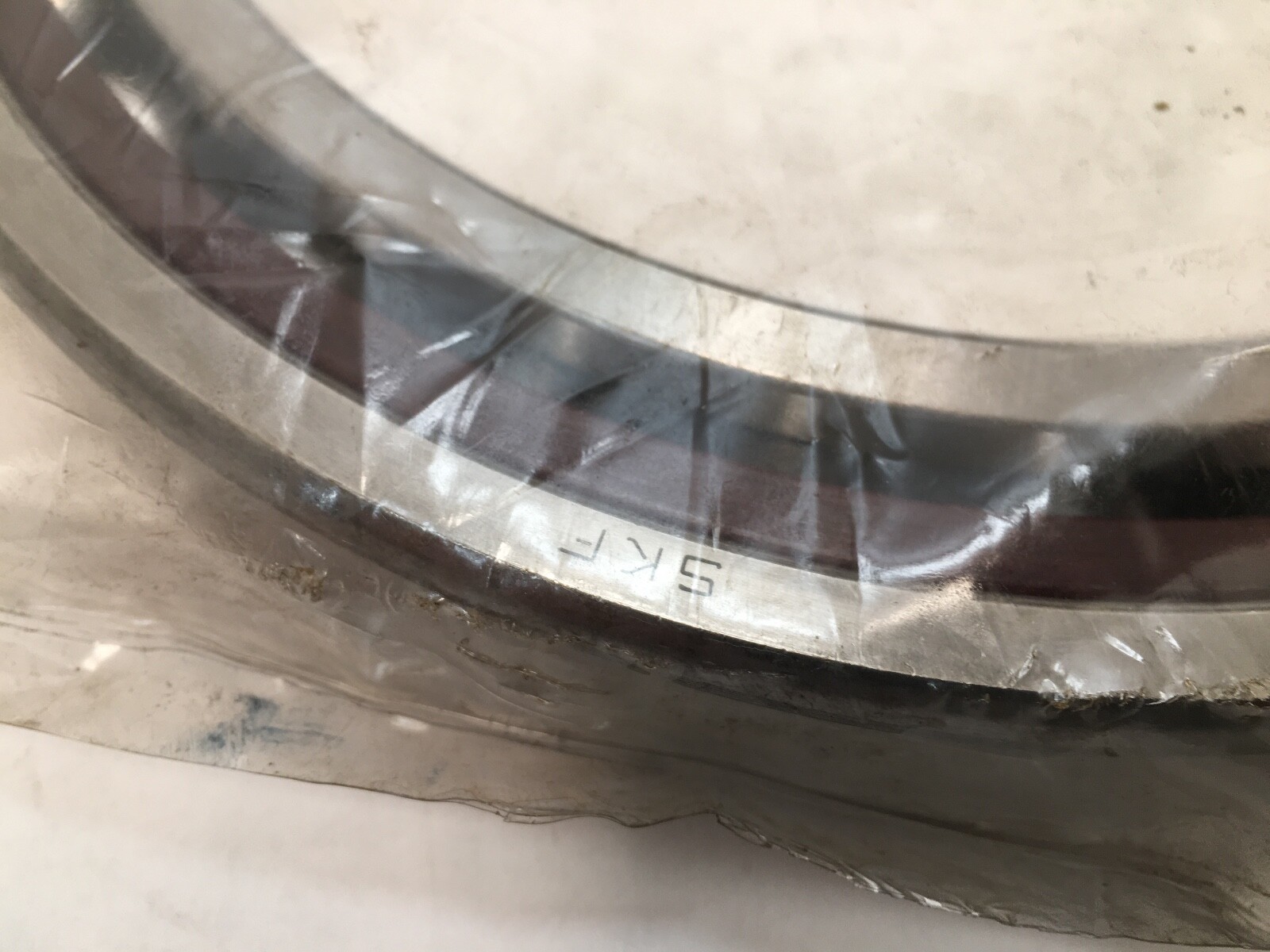

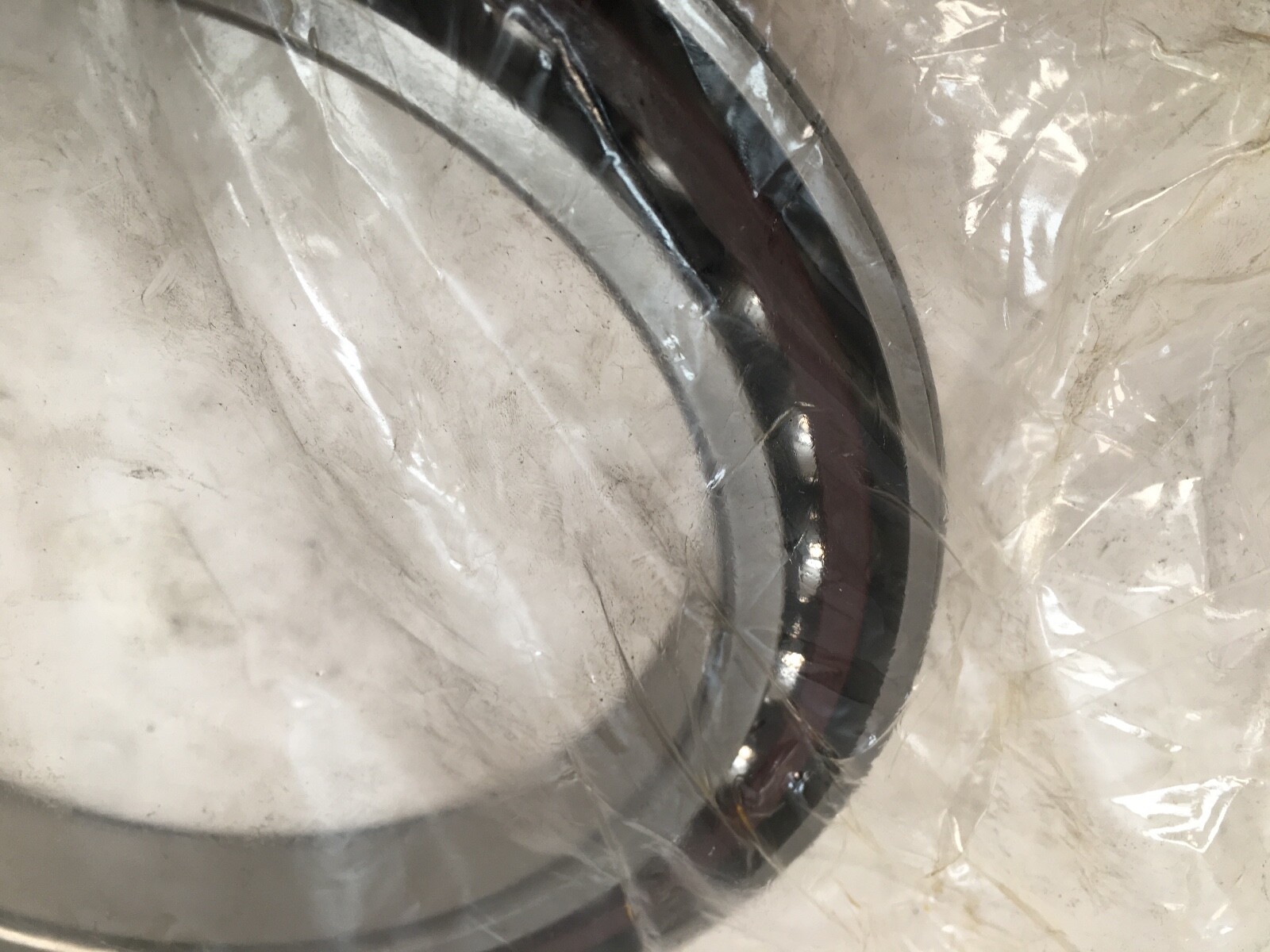

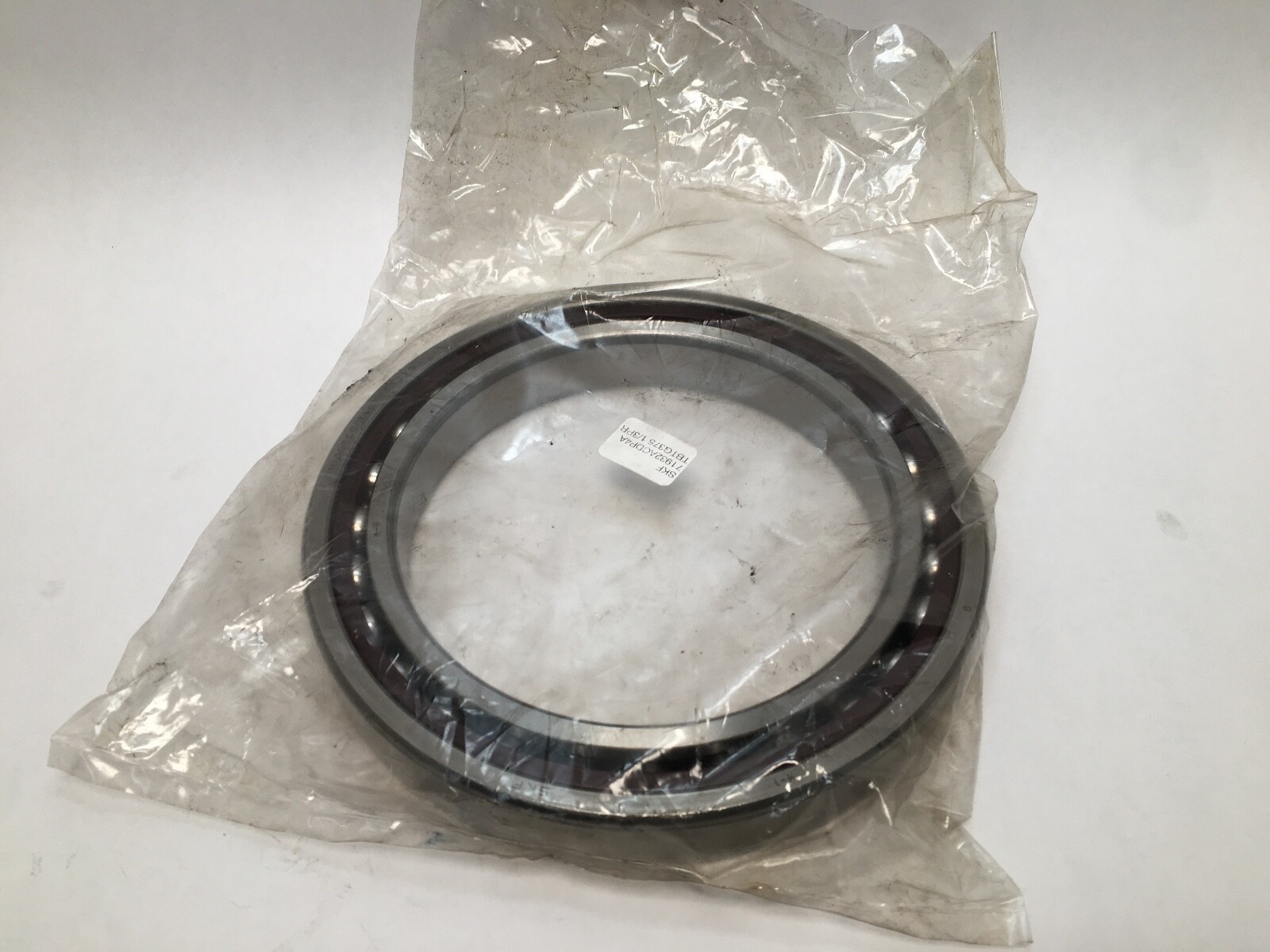

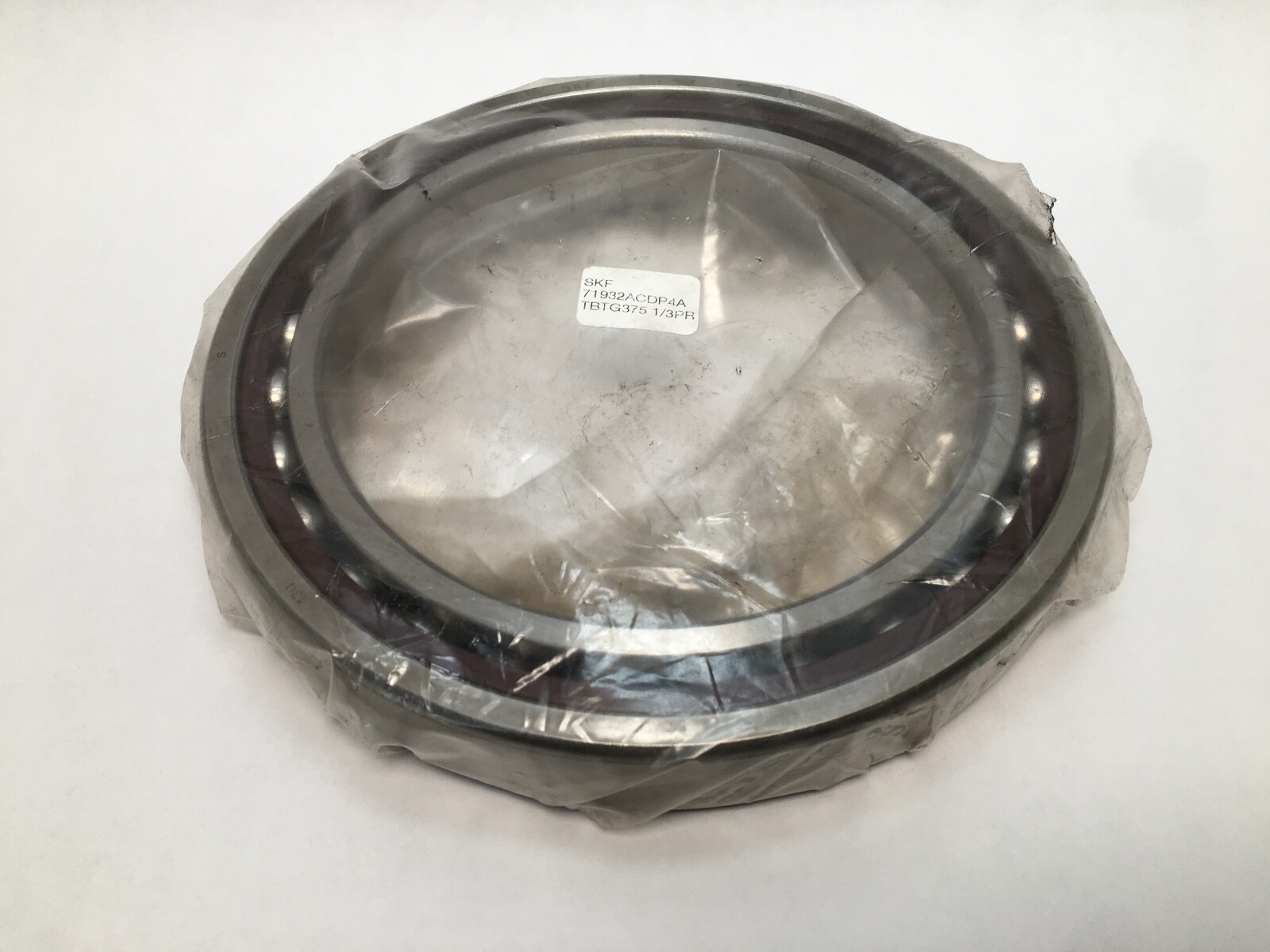

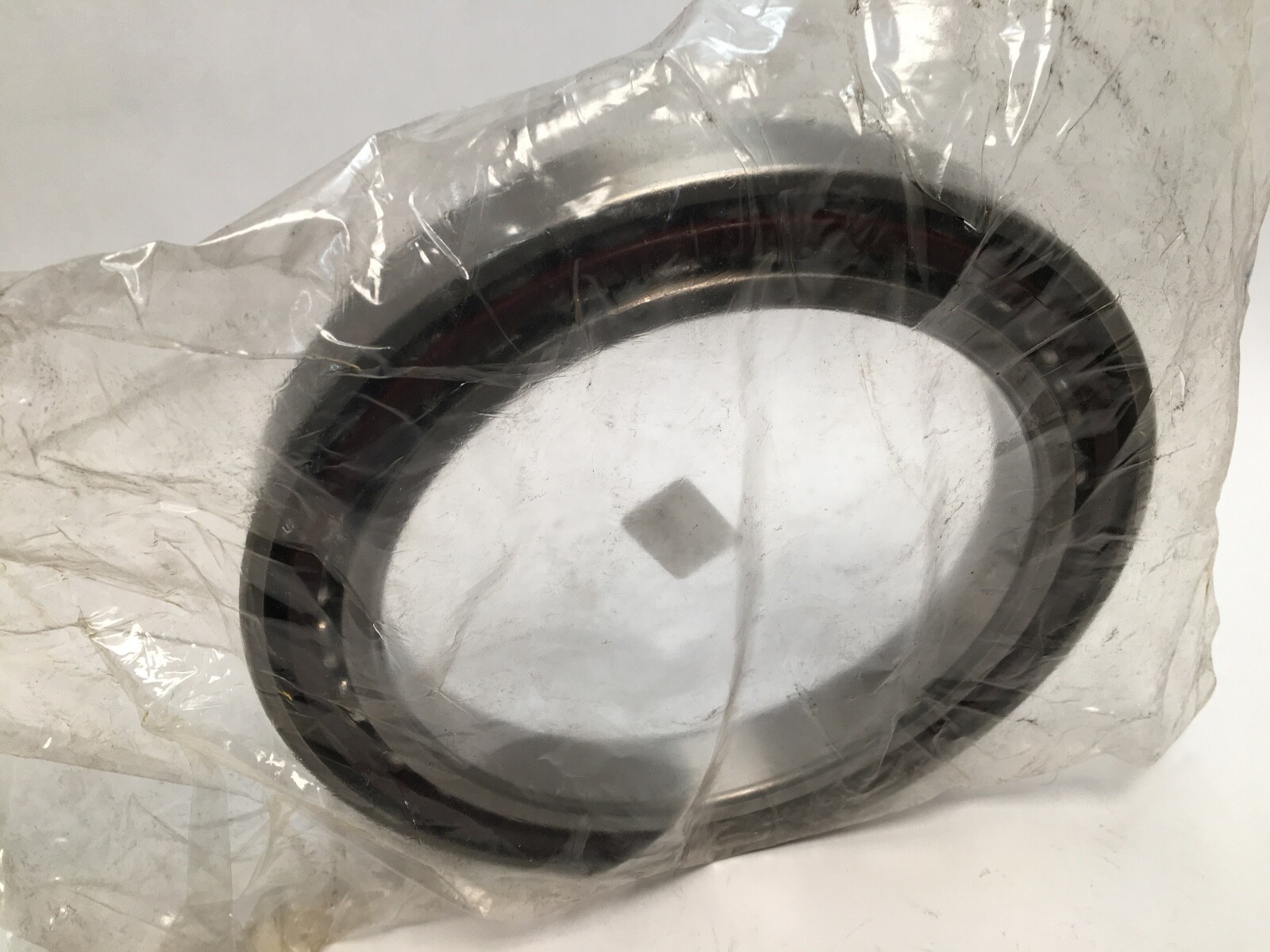

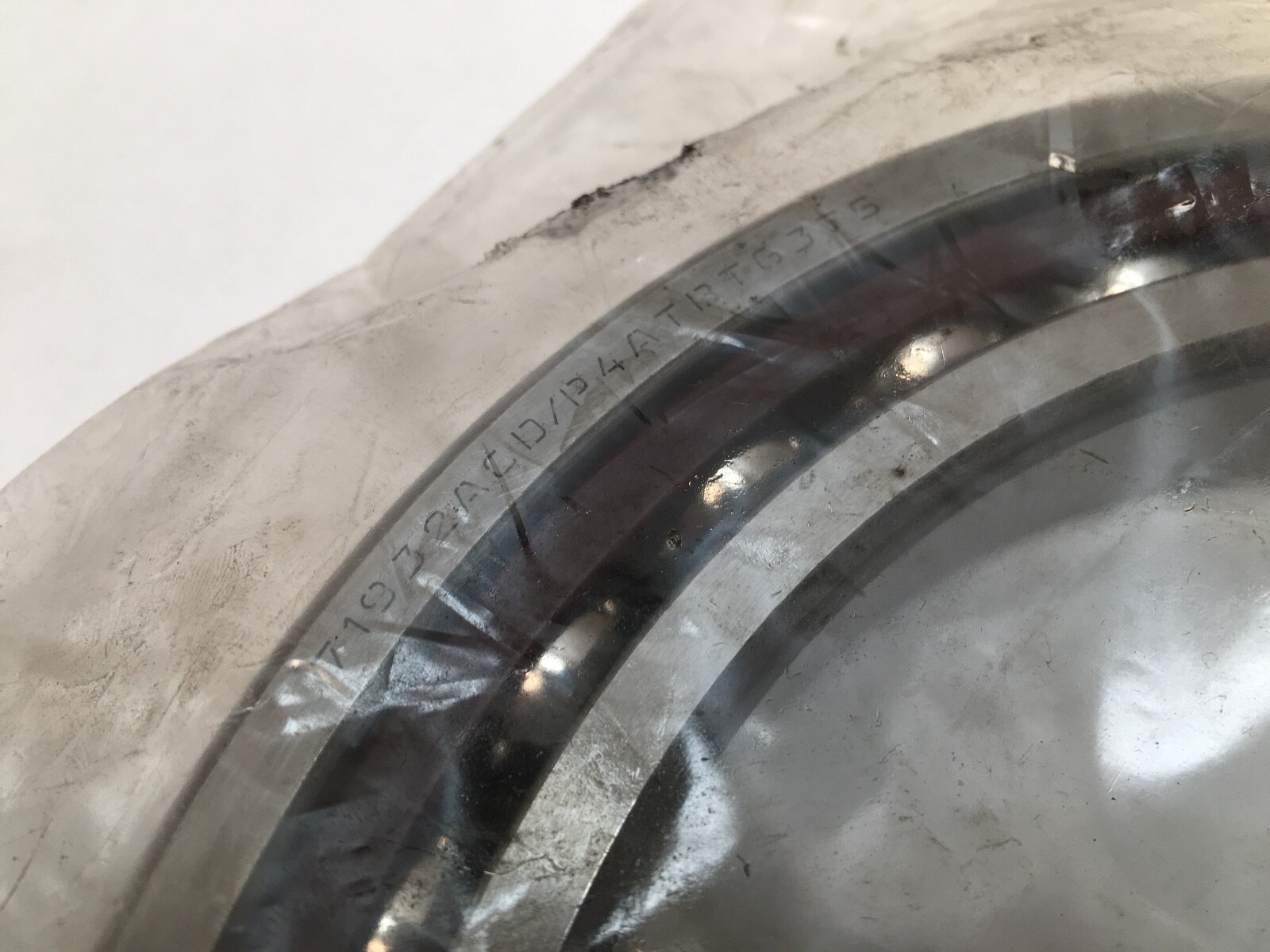

Super-precision angular contact ball bearing, 160 x 220 x 28 mm, 25° contact angle, class P4A. One bearing from a factory three-bearing TBT set.
List Price
$1,093.75
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Super Precision Angular Contact Ball Bearing 160 x 220 x 28 mm, 15° Contact Angle, P4S / ABEC 7 Class, Phenolic Cage, Extra-Thin 719 Section, Universal Light Preload$942.96
Matched Pair Super-Precision Angular Contact Ball Bearings – 160 mm ID, 220 mm OD, 28 mm Width Each, Open, 25° Contact Angle, Phenolic Cage, Medium Preload, 2 Pcs$2,293.76
Angular Contact Bearing - 160 mm ID, 240 mm OD, 38 mm Width, Open, 15° Contact Angle$758.85
Angular Contact Ball Bearing — 160 mm ID, 240 mm OD, 38 mm Width, 15° Contact Angle, ABEC 7, Light Preload$1,124.52| MFR / Brand | SKF |
|---|---|
| MPN | 71932ACDP4ATBTG375 |
| Model | 71932ACD/P4ATBTG375 ABEC7 2MM9332WI 7932 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 160 mm |
| OD | 220 mm |
| Width | 33 mm |
| Base Number | 71932 |
|---|---|
| Industry Terms | Spindle bearing; super-precision bearing; precision angular contact bearing; machine tool bearing; triplex set bearing |
| Common Misspellings | 71932 ACD P4A TBTG375; 71932ADCP4A; 719 32 ACD; 71932ACDP4ATBT6375; 71932 ACD P4A TBT G375 |
| Application Types | Machine tool spindles; grinding spindles; high-speed motor spindles; precision rotary tables |
| Overall Width | 28 mm |
| Mpn Variants | 71932 ACD/P4ATBTG375; 71932ACDP4ATBTG375; 71932-ACD-P4A-TBTG375; 71932ACDP4A; 71932ACDP4ATBTB; 7932A |
| Arrangement Configuration | One bearing from a three-bearing TBT set |
| Precision Class | P4A |
| Cage Type | Outer-ring shoulder-guided |
| Dynamic Load Rating | 124,000 N |
| Static Load Rating | 153,000 N |
| Precision Rating | P4A |
| Rolling Elements | Ball |
| Item Weight | 2.64 kg (5.82 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Mounting Arrangement | TBT triplex — two in tandem, one back-to-back |
| Bearing Material | Bearing steel |
| Cross Reference 1 | Timken/Fafnir 3MM9332WICR |
|---|---|
| Cross Reference 2 | FAG B71932-E-T-P4S |
| Cross Reference 3 | NSK 7932A5TRP4 |
| Cross Reference 4 | RHP 71932X3TRP4 |
SKF 71932 ACD/P4A super-precision, high-capacity single-row angular contact ball bearing, supplied to the TBTG375 matched-set execution. Bore Diameter: 160 mm. Outside Diameter: 220 mm. Overall Width: 28 mm. Contact Angle: 25°. Precision Class: P4A. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Cage Type: Outer-ring shoulder-guided. Bearing Material: Bearing steel. Item Weight: 2.64 kg (5.82 lb) per bearing.
719 — ISO extra-light dimension series. A 160 mm bore carries a 220 mm outside diameter in a 28 mm section.
32 — bore code. 32 × 5 = 160 mm.
AC — 25° contact angle. The higher angle carries more axial load and raises axial stiffness.
D — high-capacity internal design.
P4A — SKF super-precision tolerance class: P4 dimensional accuracy with running accuracy held tighter still.
TBT — triplex set arrangement: two bearings in tandem sharing thrust in one direction, the third set back-to-back against them to take thrust the other way.
Dynamic Load Rating: 124,000 N. Static Load Rating: 153,000 N. Both figures are per bearing. At this section the static rating sits above the dynamic one, which is normal for the extra-light 719 series and sets a high permanent-deformation limit at rest.
Contact Angle: 25°. Radial load is carried together with axial load acting in one direction, with the steeper load line favouring thrust capacity and axial stiffness over top speed.
Closure Type: Open, supplied unlubricated and preserved for spindle-shop cleaning and grease or oil charging at build. Contact type is normal, two-point. Both rings are one piece.
Mounting Arrangement: TBT triplex — two in tandem, one back-to-back. Bore Type: Straight. Item Weight: 2.64 kg (5.82 lb) per bearing. Harmonization Code: 8482.10.50.
Unit Quantity: 1 Pc. One bearing from a factory three-bearing TBT set, ground to the same matched execution as its two mates.
Same envelope, same 25° angle, same super-precision class: Timken/Fafnir 3MM9332WICR, FAG B71932-E-T-P4S, NSK 7932A5TRP4, RHP 71932X3TRP4.
