Super precision angular contact ball bearing, 95 x 145 x 24 mm, 15° contact angle, P4 tolerance, extra light preload. SKF 70 series high-capacity D design.
List Price
$275.00
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7019 CDGA/P4 |
| Model | 7019-C-P4-DGA |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 95 mm |
| OD | 145 mm |
| Width | 24 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Lubricant | Oil/Grease |
| Preload | Extra light |
| Mpn Variants | 7019-CDGA/P4, 7019 CDGA/P4, 7019CDGAP4, 7019-C-P4-DGA, 7019CD/P4A DGA, 7019C |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Fatigue load limit 3,100 N; axial stiffness 108 N/µm; 21 balls of 15.875 mm; oil nozzle position 113.7 mm |
| Dynamic Load Rating | 81,900 N |
| Static Load Rating | 80,000 N |
| Rolling Elements | Ball |
| Item Weight | 1.19 kg (2.62 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universally matchable: back-to-back, face-to-face or tandem |
| Bearing Material | Bearing steel |
| Cross Reference 1 | SKF 7019 CDGA/P4A – P4A tolerance class |
|---|---|
| Cross Reference 2 | FAG B7019-C-T-P4S-UL – light preload, not extra light |
| Cross Reference 3 | NSK 7019CTYNSULP4 – light preload, not extra light |
| Cross Reference 4 | Timken 2MM9119WI SUL – light preload, not extra light |

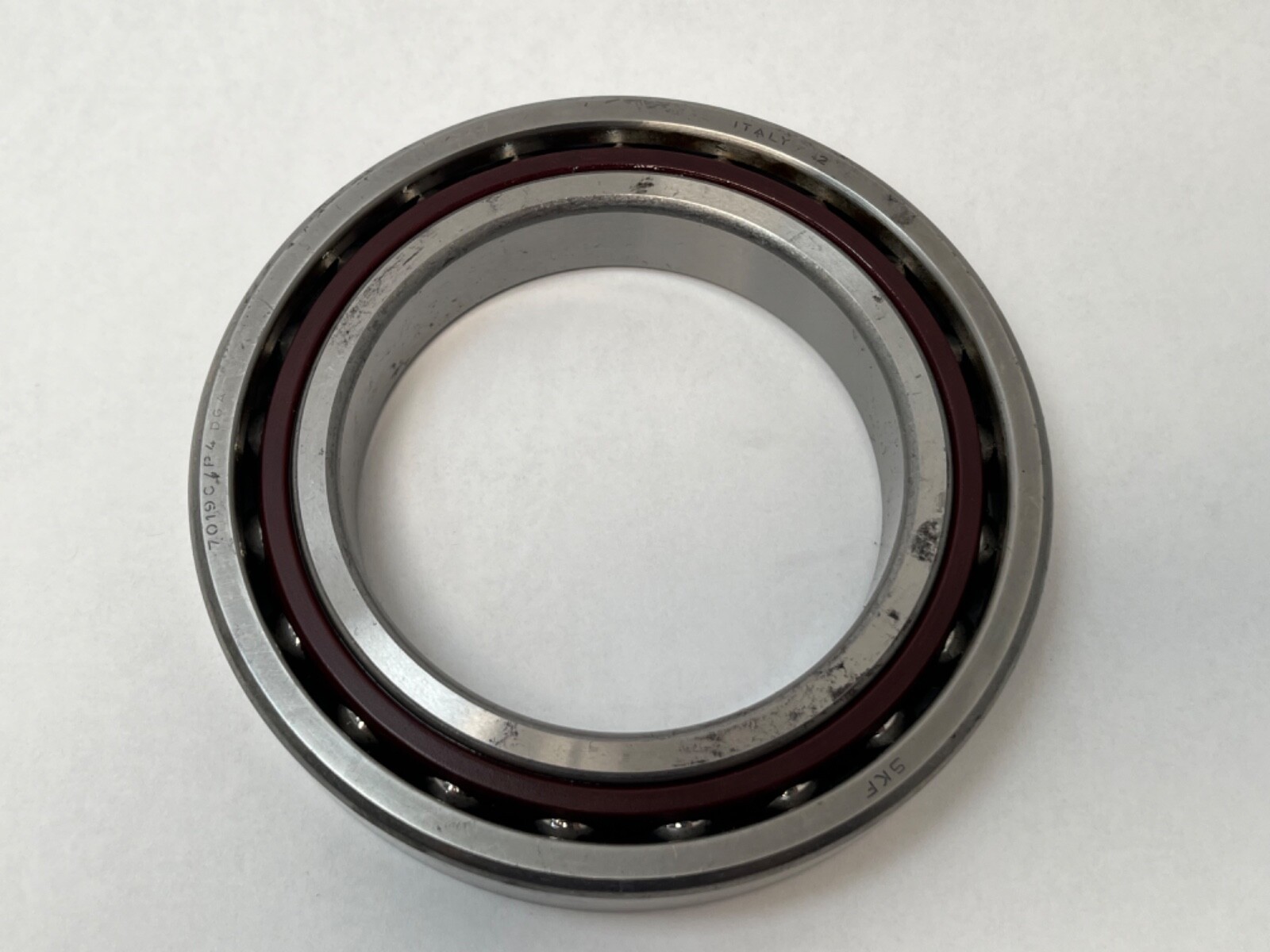

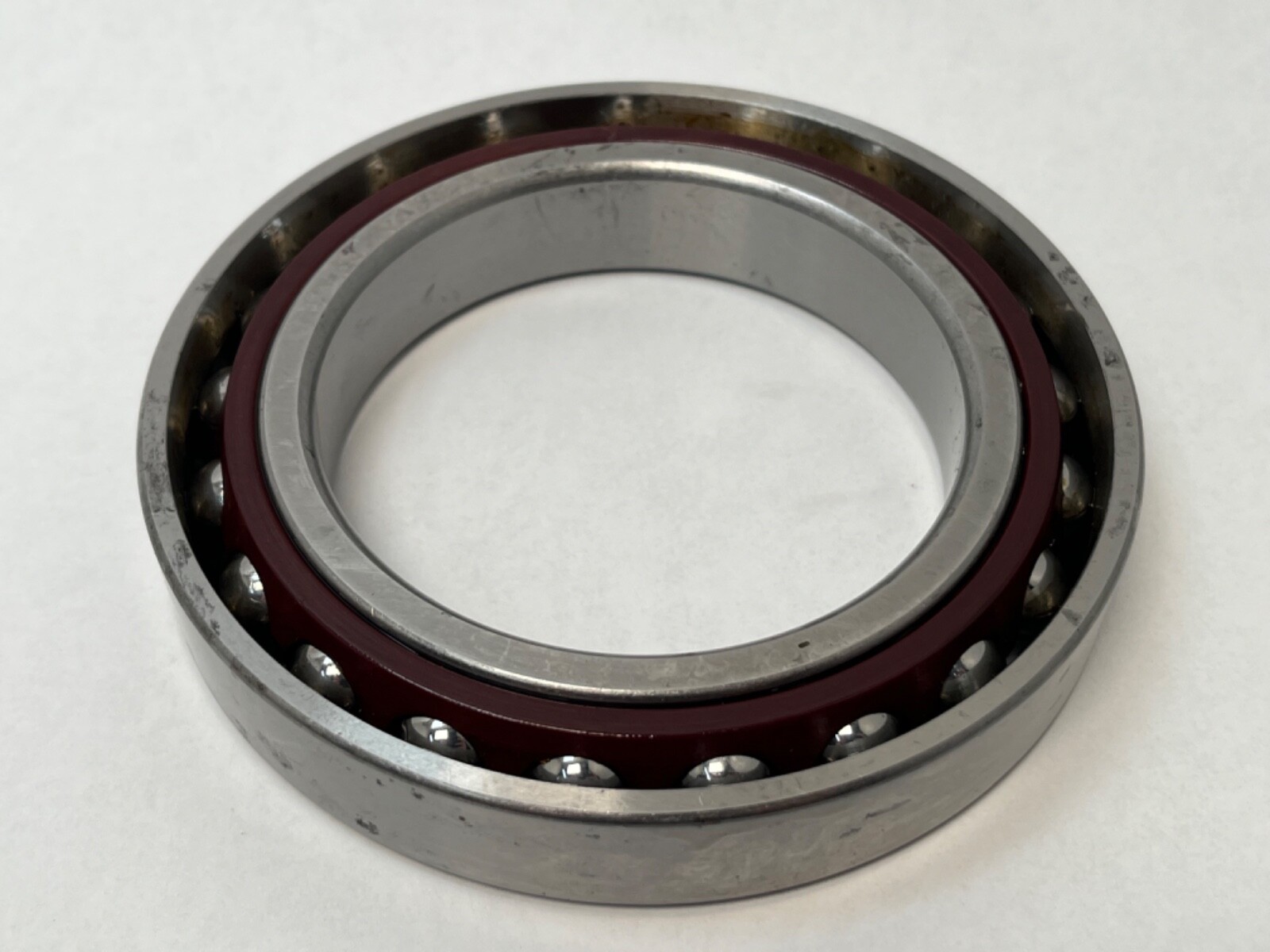

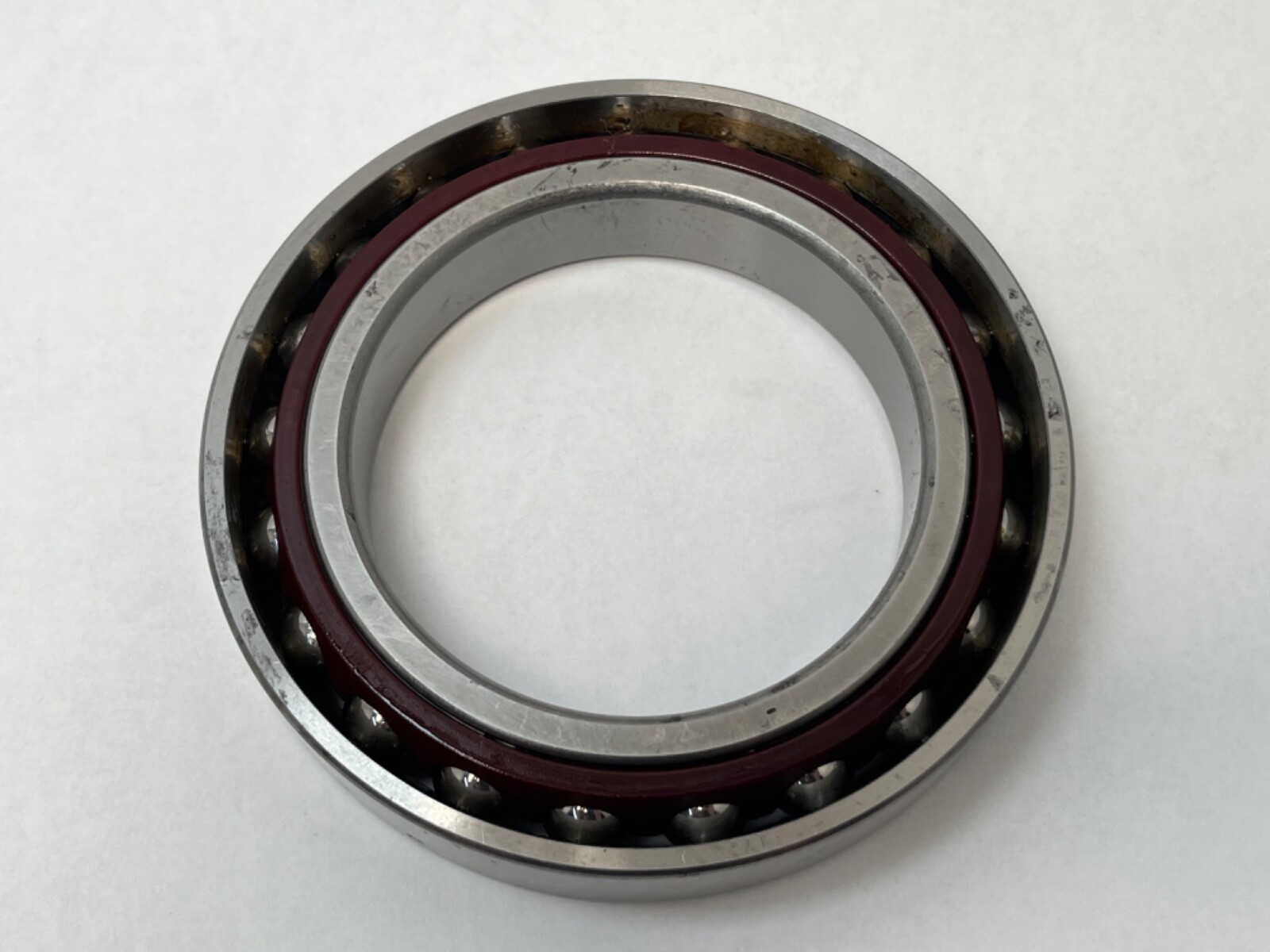

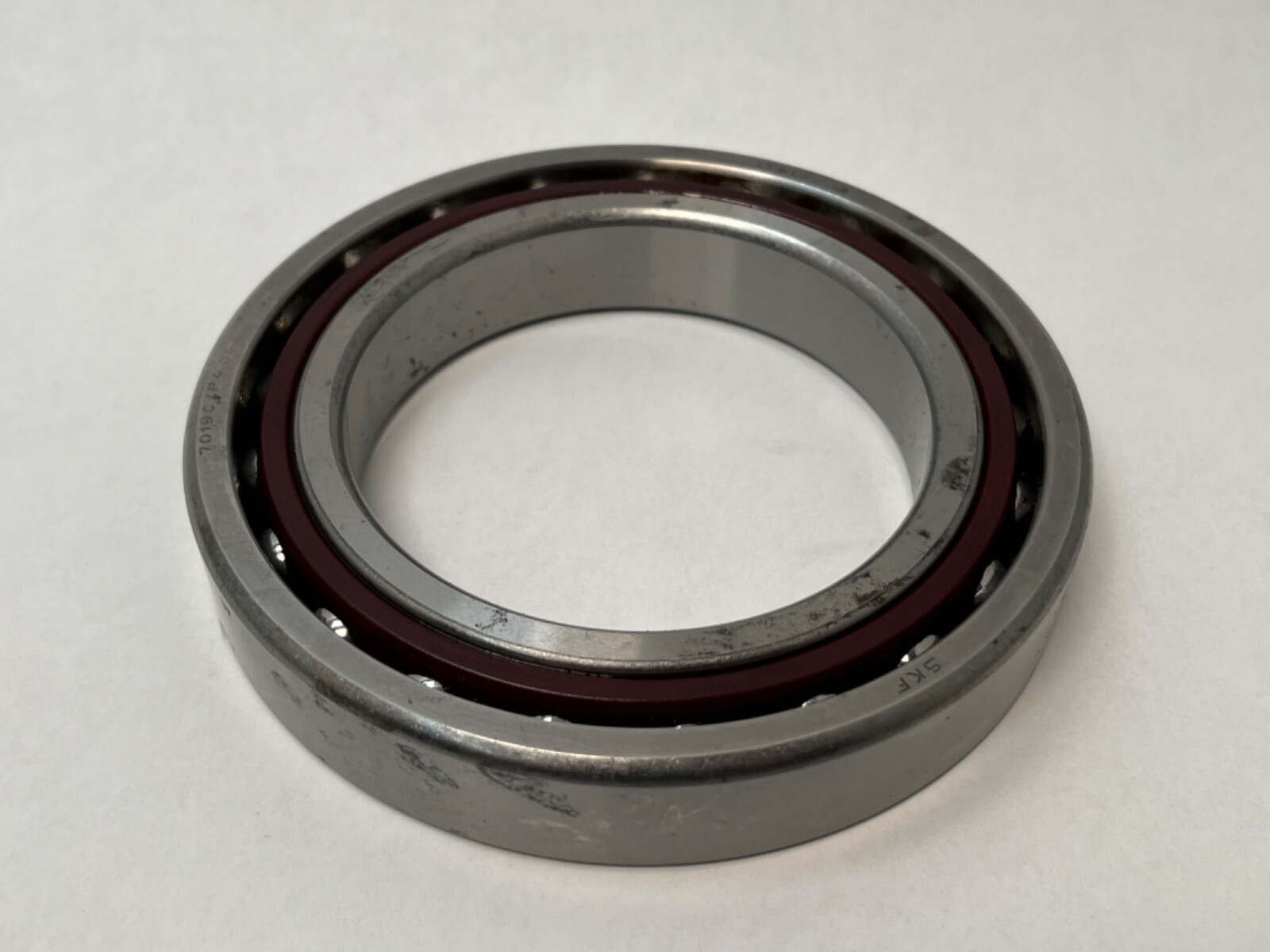

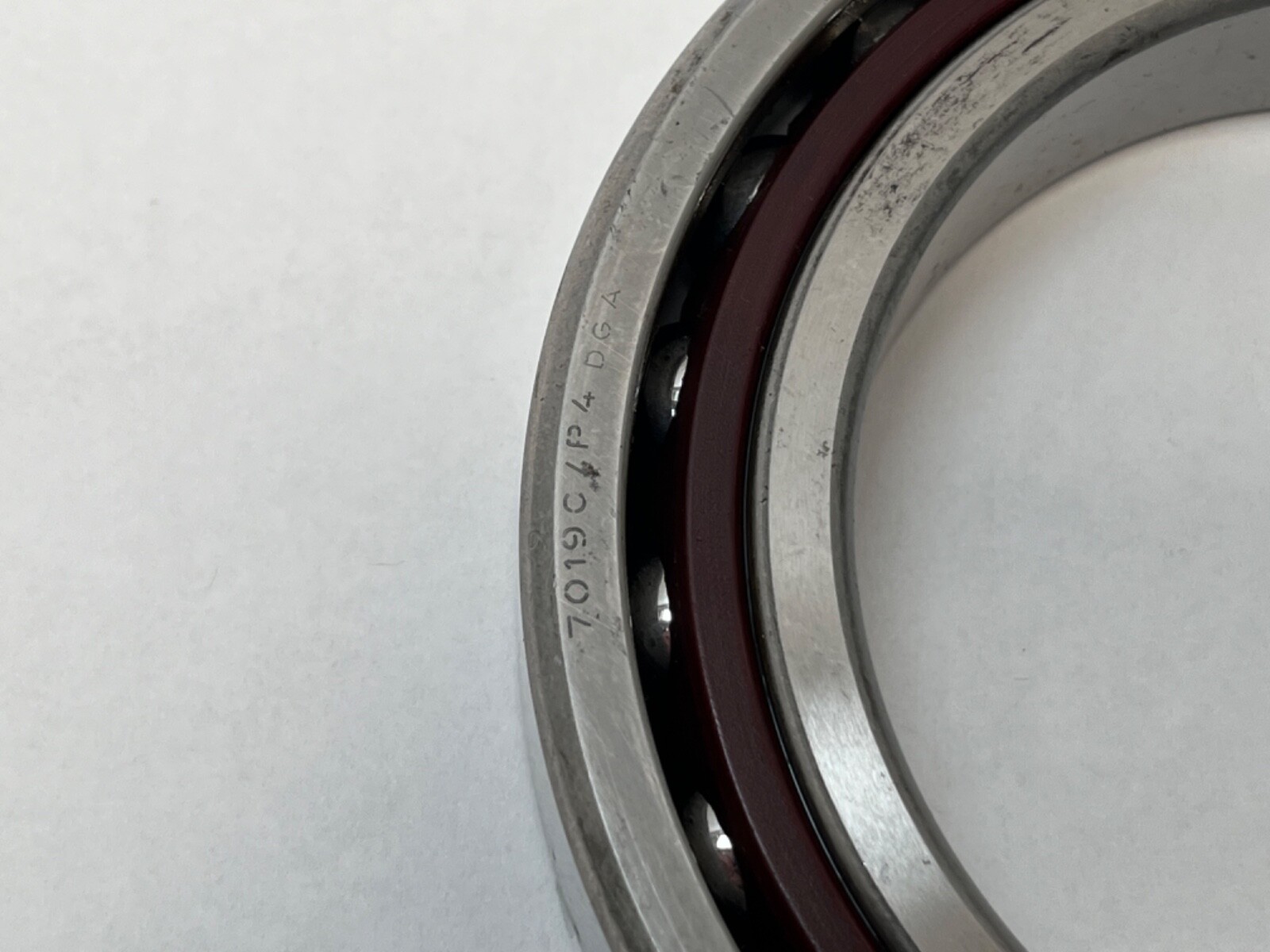

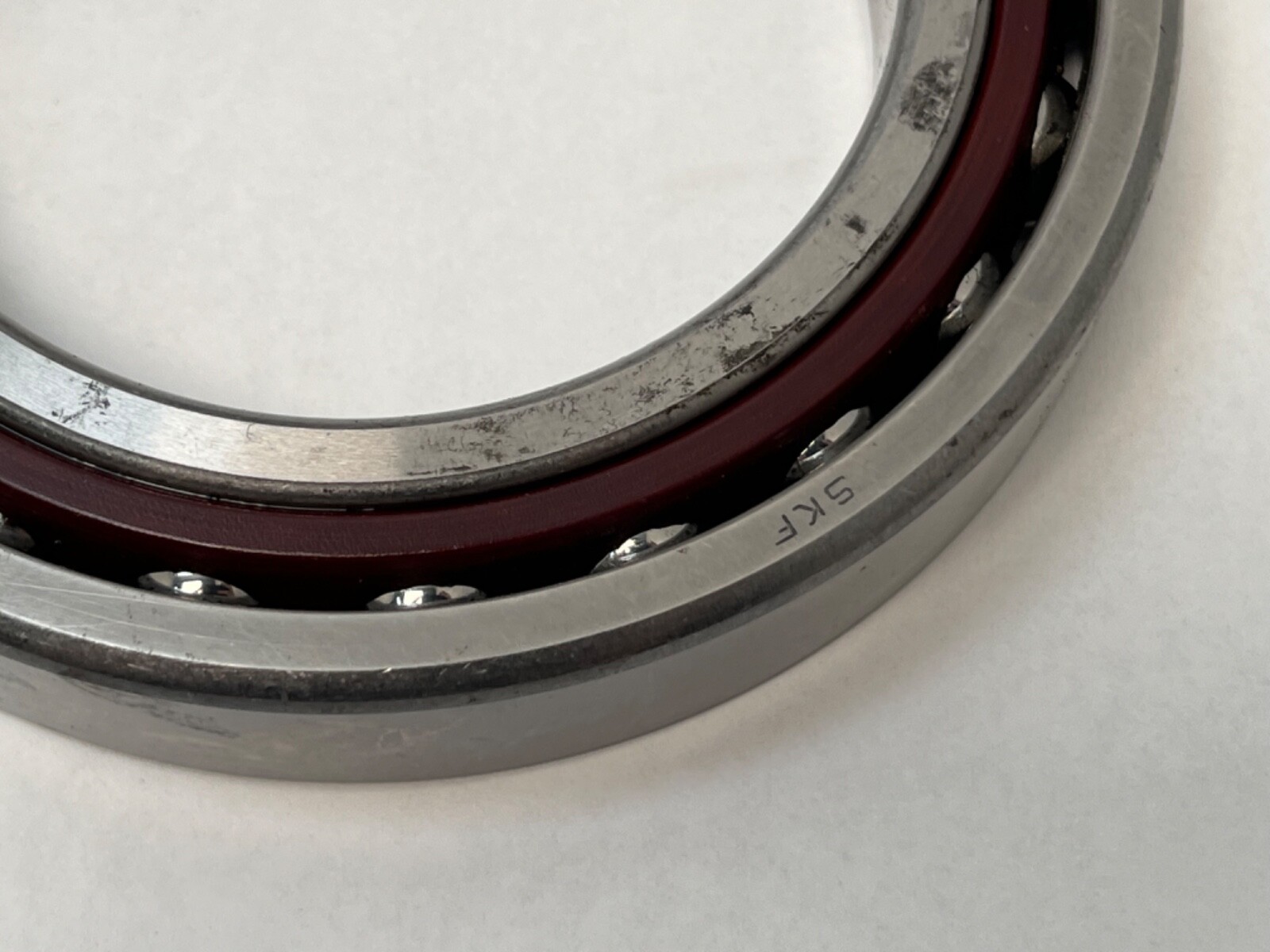

SKF 7019 CDGA/P4 is a super-precision, high-capacity single row angular contact ball bearing from the SKF 70 series. It is universally matchable and can be combined back-to-back, face-to-face or in tandem to give a predetermined extra light preload without shims.
7019 — 70 series angular contact ball bearing, 95 mm bore, 145 mm outside diameter.
CD — high-capacity D design with a 15° contact angle.
GA — single bearing for universal matching, extra light preload.
P4 — ISO P4 tolerance class, equivalent to ABEC 7.
Bore Diameter: 95 mm. Outside Diameter: 145 mm. Width: 24 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Preload: Extra light. Axial stiffness: 108 N/µm. Dynamic Load Rating: 81,900 N. Static Load Rating: 80,000 N. Fatigue load limit: 3,100 N. Ball diameter: 15.875 mm. Number of balls: 21. Reference grease quantity: 15.6 cm³. Item Weight: 1.19 kg (2.62 lb). Bearing Material: Bearing steel. Closure Type: Open.
Inner ring shoulder diameter d1: 110.4 mm. Outer ring shoulder diameter D1: 129.6 mm. Chamfer r1,2 min: 1.5 mm. Chamfer r3,4 min: 1 mm. Pressure point distance a: 28.2 mm. Shaft abutment da/db min: 102 mm. Housing abutment Da max: 138 mm; Db max: 141 mm. Fillet radius ra max: 1.5 mm; rb max: 1 mm. Oil nozzle position dn: 113.7 mm.

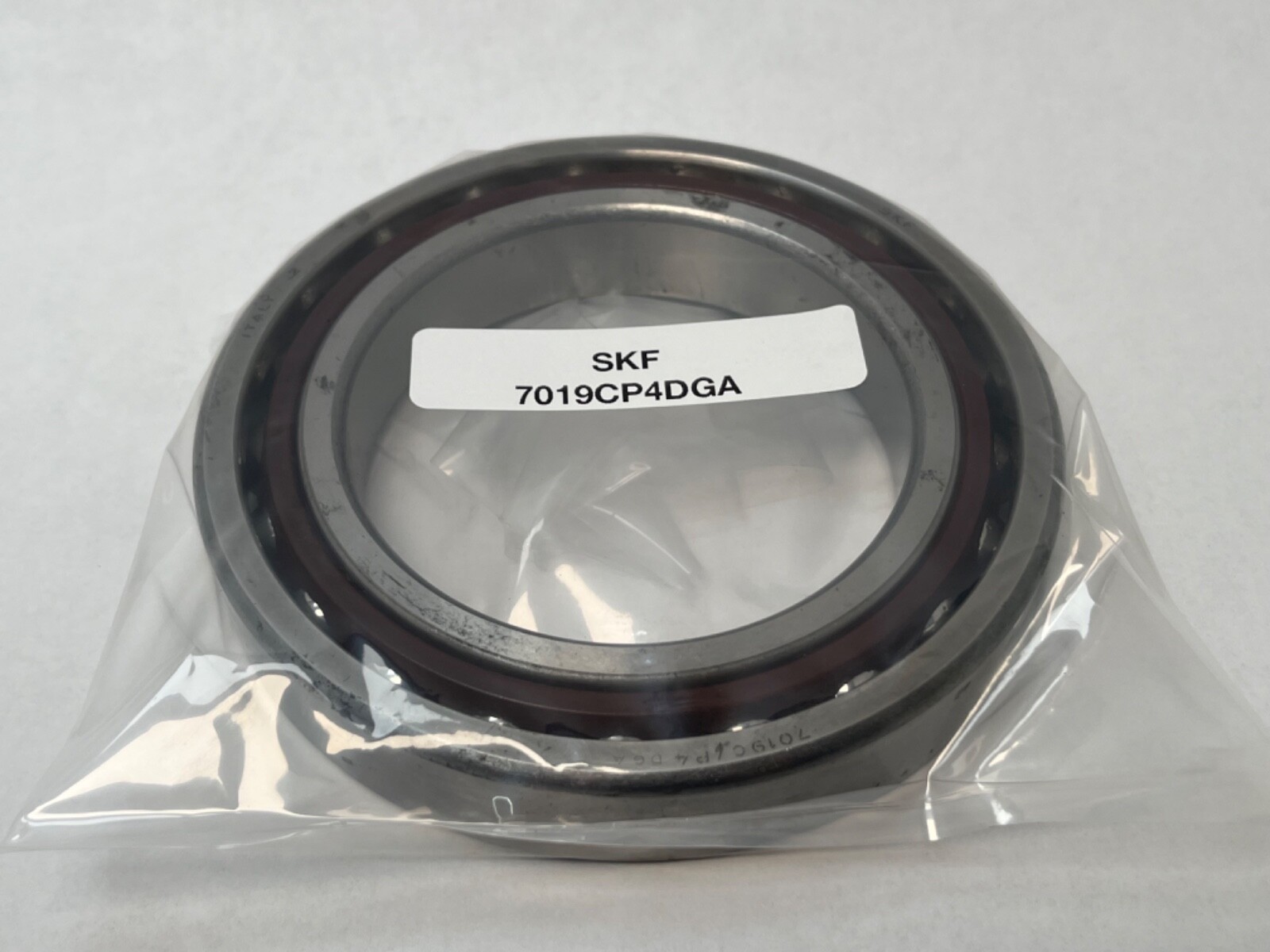

Unit Quantity: 1 Pc. Single universally matchable bearing. Condition: new old stock, open box.
SKF 7019 CDGA/P4A is the closest part, the same 15° extra light preload in the P4A tolerance class. FAG B7019-C-T-P4S-UL, NSK 7019CTYNSULP4 and Timken/Fafnir 2MM9119WI SUL have the same 95 x 145 x 24 mm size and 15° angle but are light preload, not extra light.
