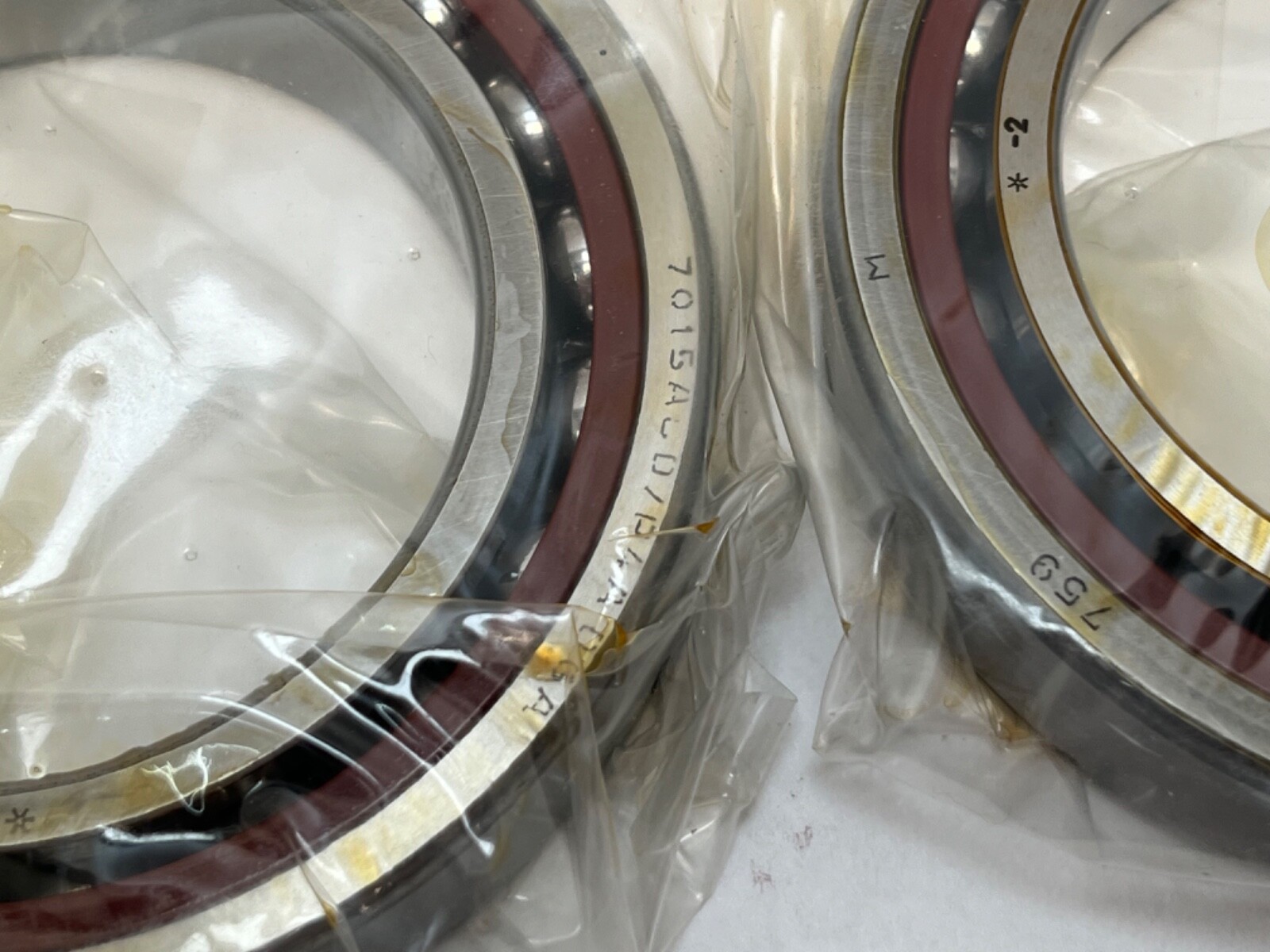

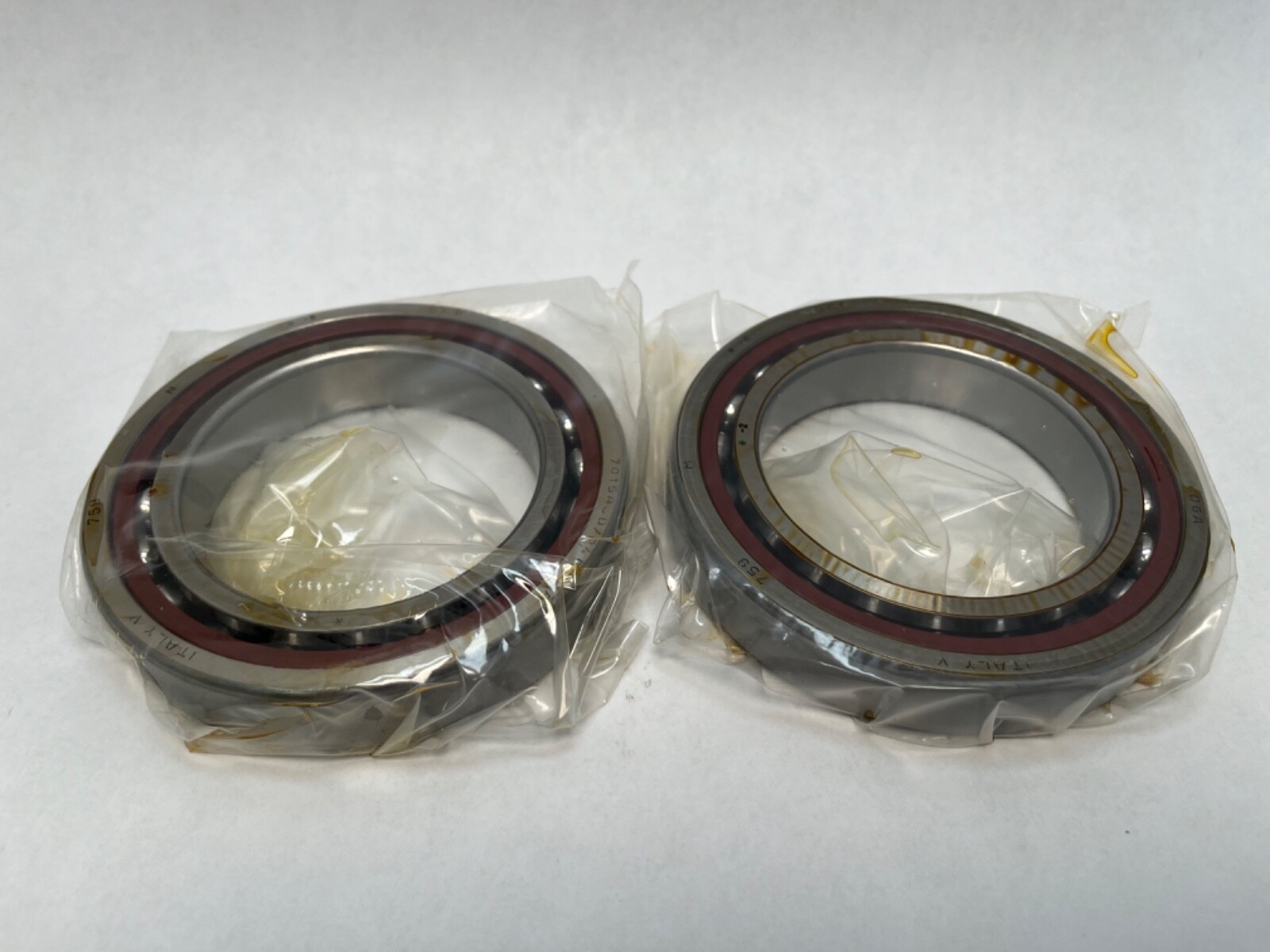

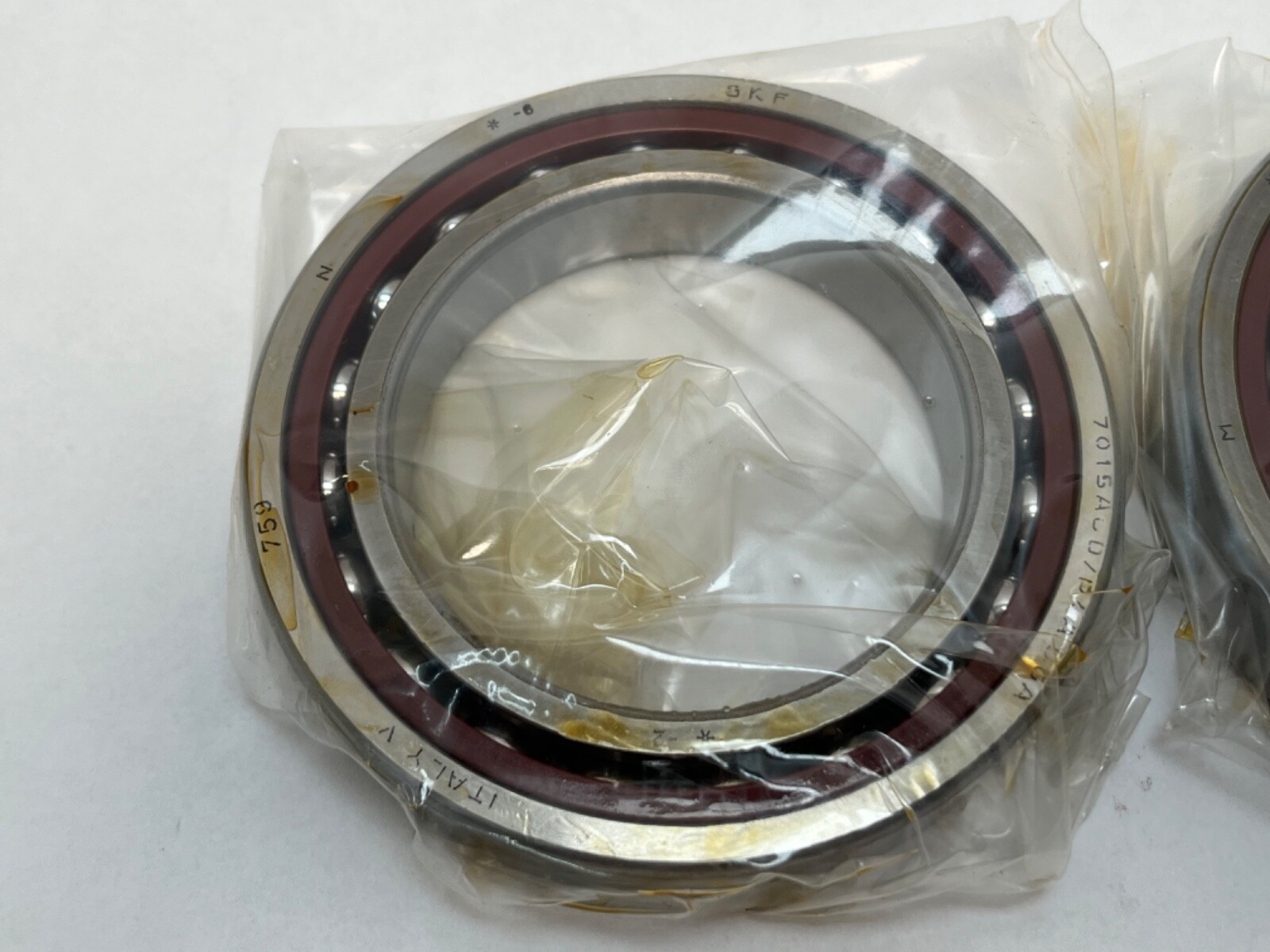

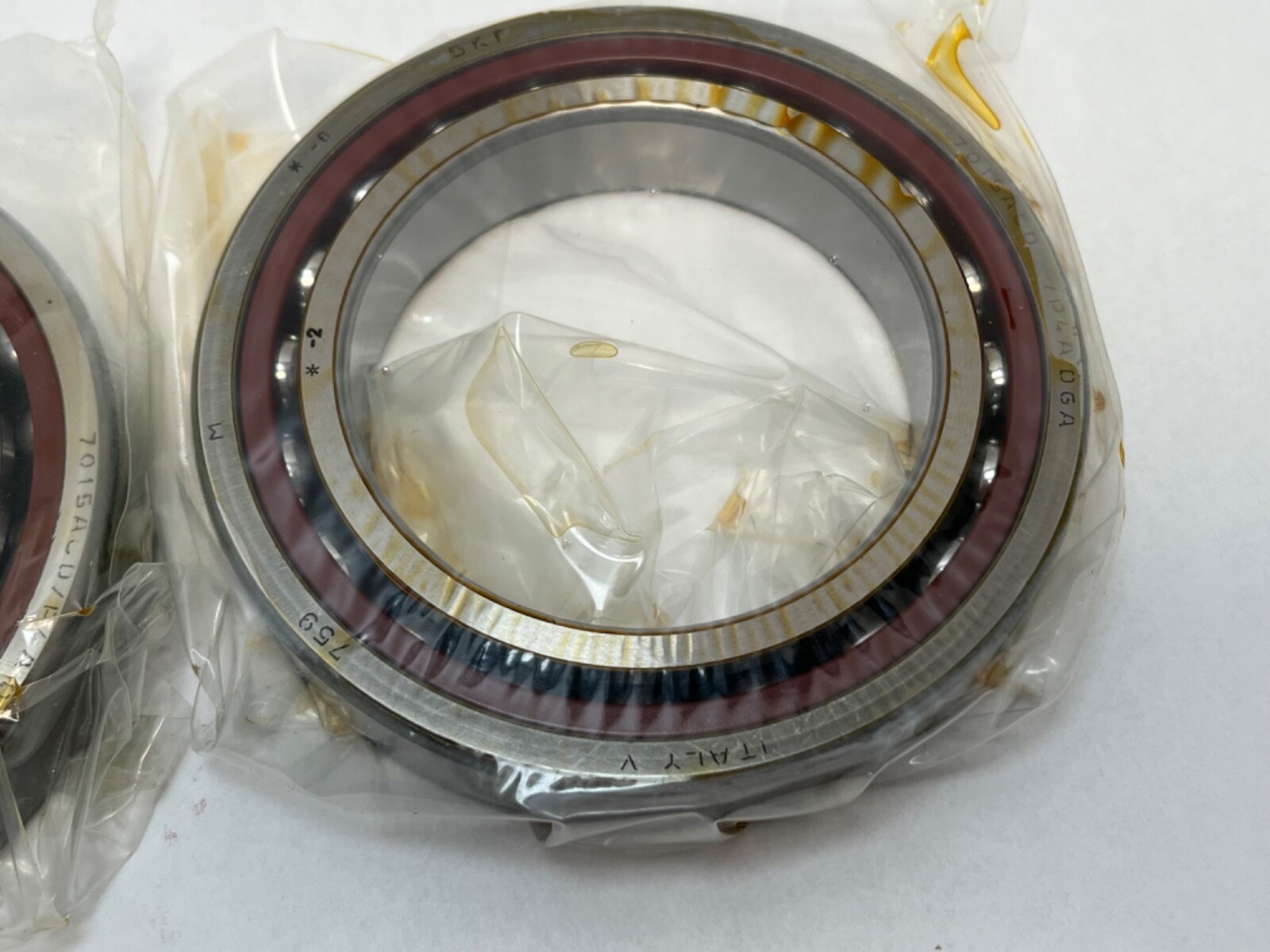

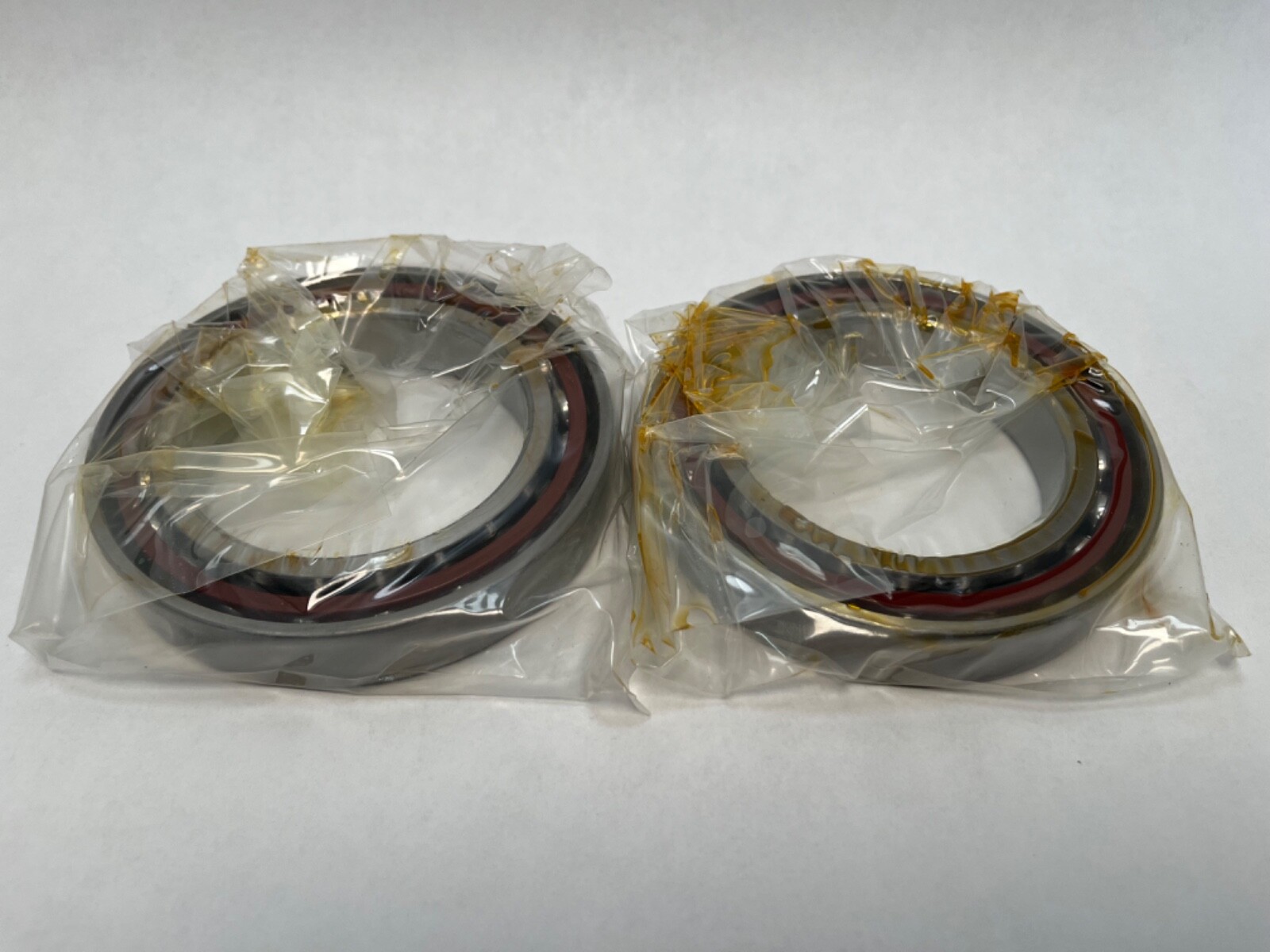

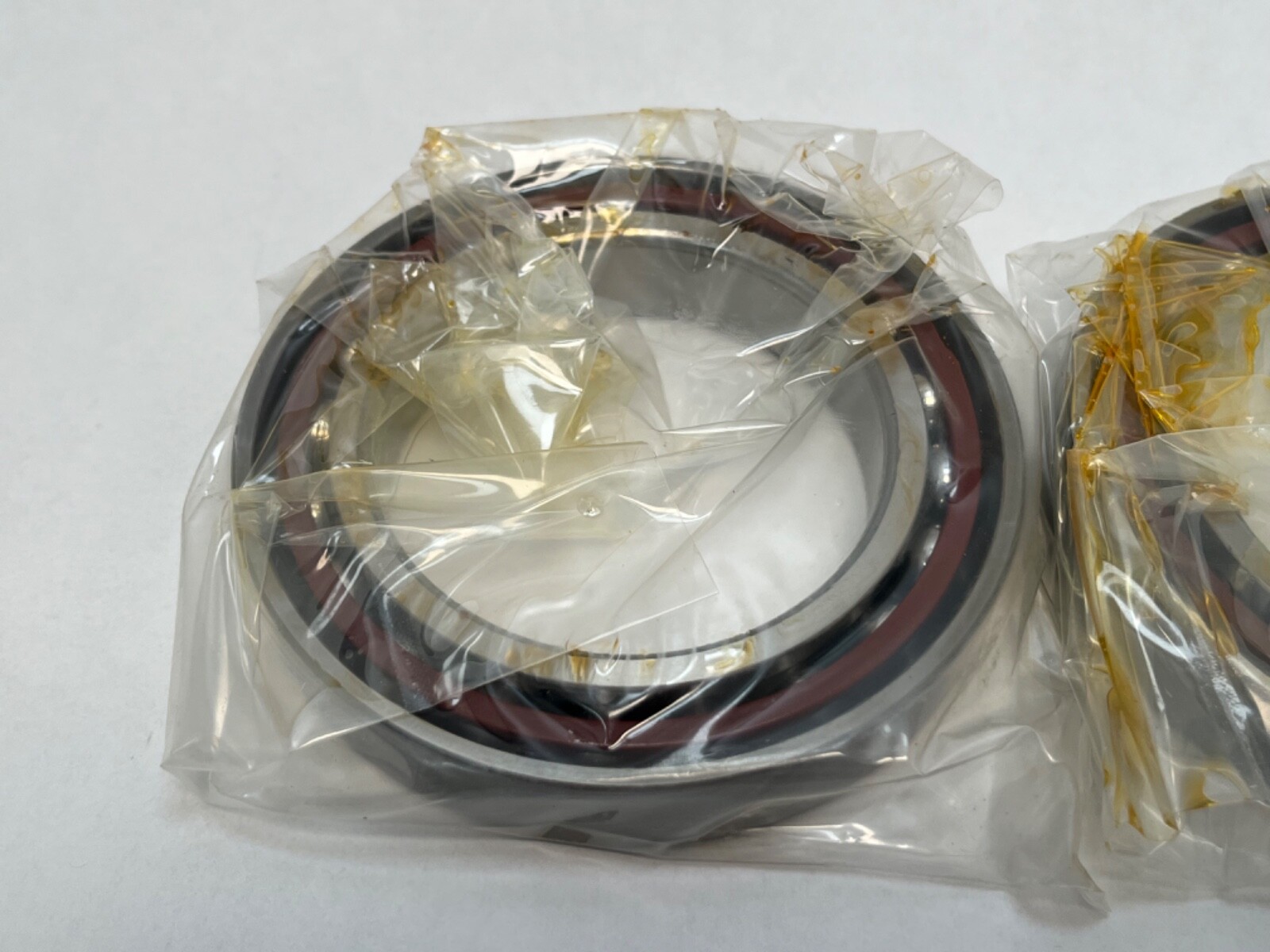

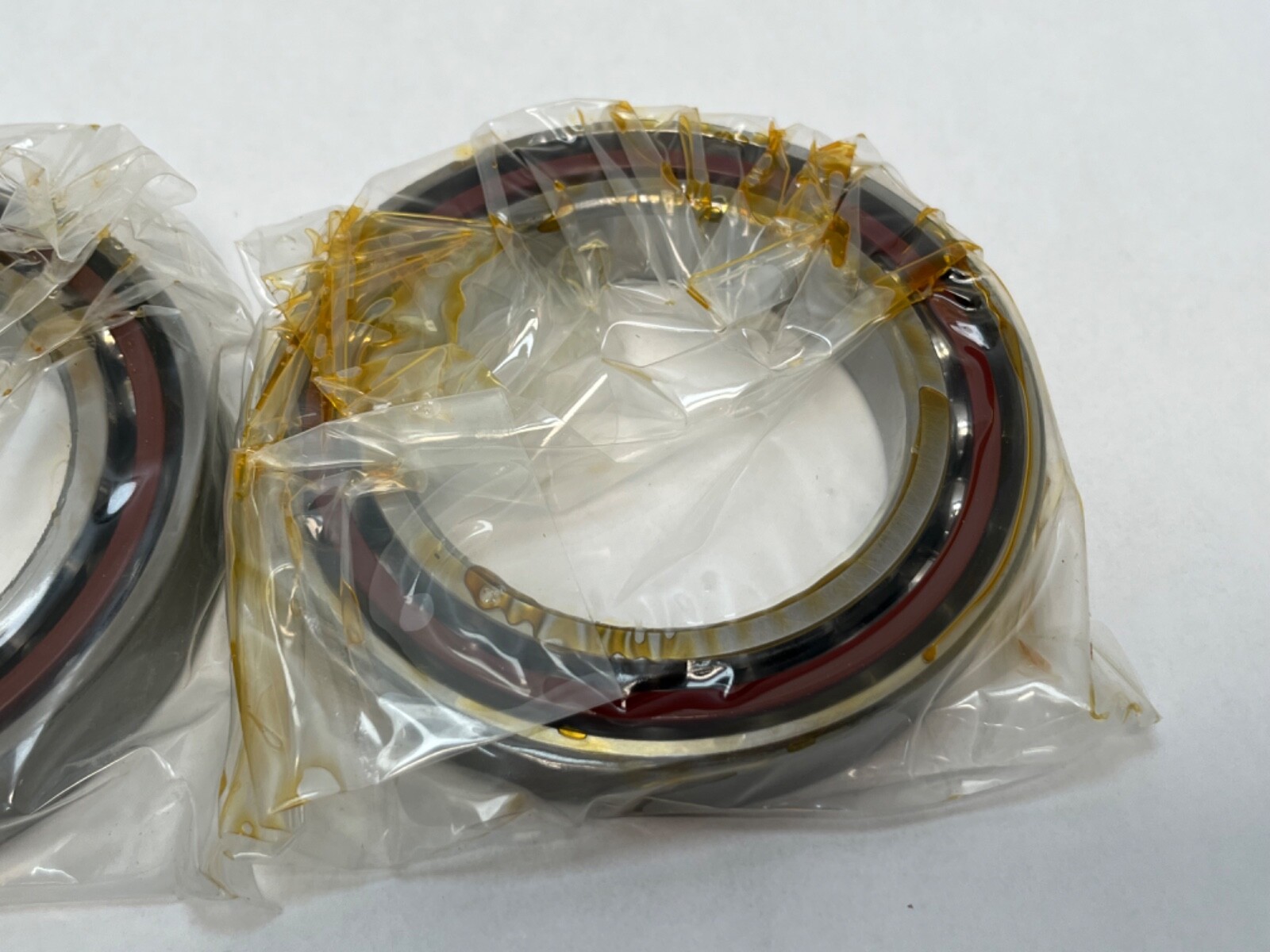

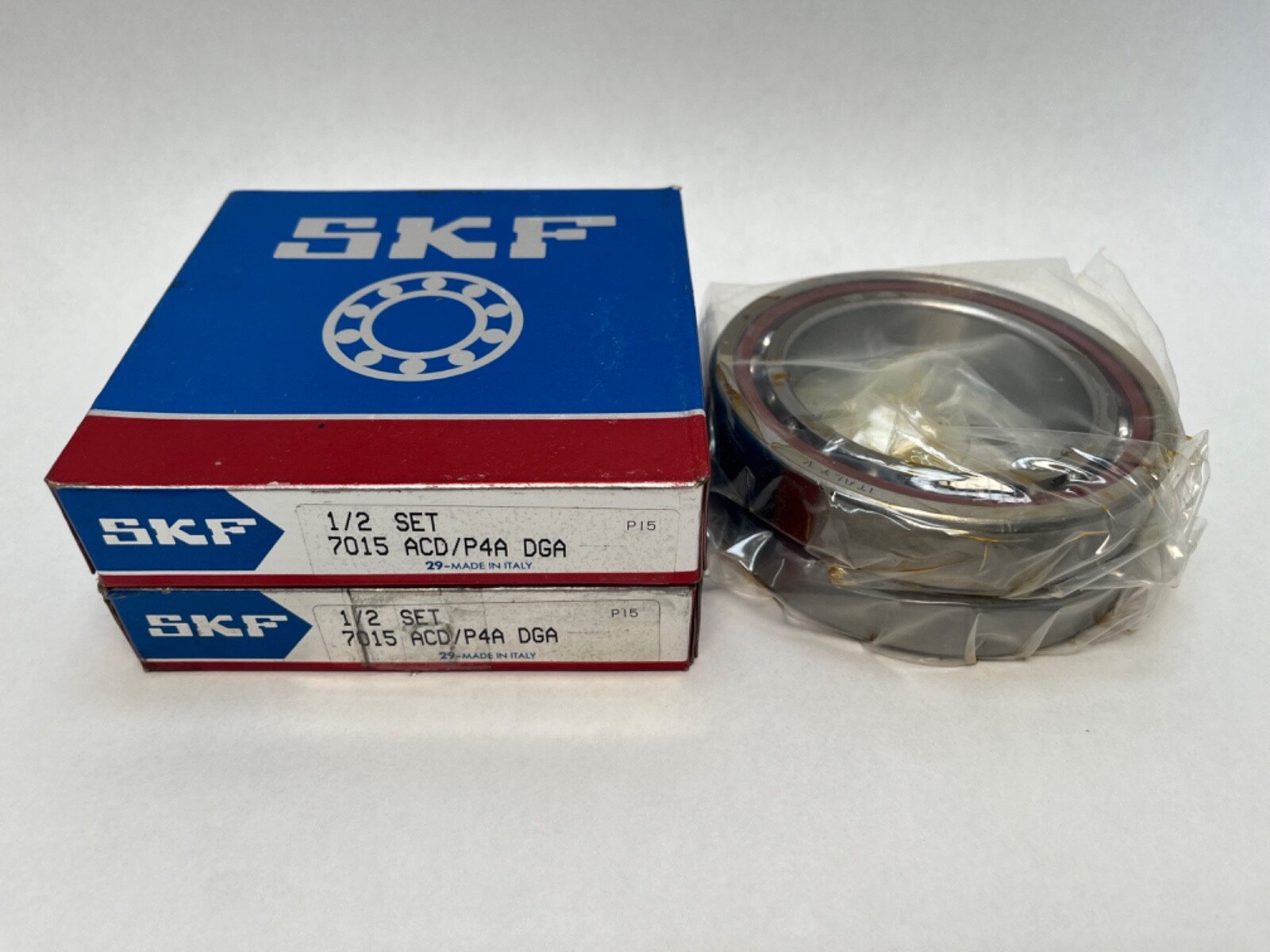

SKF7015 ACD/P4ADGASuper Precision Angular Contact Ball Bearing Matched Set – 75 mm ID, 115 mm OD, 20 mm Width, 25° Contact Angle, P4A, Extra Light Preload

Condition: New

Availability:

1 in stock

Super precision angular contact ball bearing set of two, 75 x 115 x 20 mm each, 25° contact angle, P4A precision, extra light preload. SKF 7015 ACD/P4ADGA.

Same day shipment

List Price

$254.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandSKF
MPN7015 ACD/P4ADGA
Model7015 ACD P4A DGA / 3MM9115WI CR DUL
Bearing TypeAngular Contact Ball Bearing, Open
ID75 mm
OD115 mm
Width20 mm

Technical Specifications

MaterialBearing Steel
Series7000
LubricantOil/Grease
PreloadExtra light (310 N)
Total Width40 mm (pair)
Mpn Variants7015-ACD/P4ADGA, 7015 ACD/P4ADGA, 7015ACDP4ADGA, 7015-ACD-P4A-DGA, 7015 ACD P4A DGA
Precision ClassABEC 7 / P4A
Additional AttributesFatigue load limit 3,900 N (set); axial stiffness 200 N/µm; 20 balls of 12.7 mm per bearing; oil nozzle position 90 mm
Dynamic Load Rating80,600 N (matched set)
Static Load Rating93,000 N (matched set)
Rolling ElementsBall
Number Of Rows1
Bore TypeStraight
Snap Ring IncludedNo
Limiting Speed10,000 rpm grease; 16,000 rpm oil-air (single bearing basis)
Harmonization Code8482.10.50
Contact Angle25°
Mounting ArrangementUniversally matched set: back-to-back, face-to-face or tandem
Bearing MaterialBearing steel
Closure TypeOpen

Cross-References

Cross Reference 1FAG B7015-E-T-P4S-DUL - light preload, P4S
Cross Reference 2NSK 7015A5TYNDULP4 - light preload
Cross Reference 3Timken Fafnir 3MM9115WI DUL - light preload
Seller Part Number: B-EE1#RFT63A

Product Description

What this part is:

SKF 7015 ACD/P4ADGA is a matched set of two super-precision, high-capacity D design single row angular contact ball bearings from the SKF 70 series. The set is universally matched and can be arranged back-to-back, face-to-face or in tandem. Unit Quantity: 2 Pcs.

Decoding the designation:

7015 — 70 series angular contact ball bearing, 75 mm bore, 115 mm outside diameter.

ACD — high-capacity D design with a 25° contact angle.

P4A — SKF precision class: ISO P4 dimensional accuracy with tighter running accuracy.

DGA — matched set of two bearings for universal matching, extra light preload.

Specifications:

Bore Diameter: 75 mm. Outside Diameter: 115 mm. Overall Width: 20 mm per bearing. Total Width: 40 mm (pair). Contact Angle: 25°. Precision Class: ABEC 7 / P4A. Preload: Extra light, 310 N. Dynamic Load Rating: 80,600 N (matched set). Static Load Rating: 93,000 N (matched set). Fatigue load limit: 3,900 N (set). Axial stiffness: 200 N/µm (set). Limiting Speed: 10,000 rpm grease; 16,000 rpm oil-air, single bearing basis, before the SKF matched-set speed reduction factor. Ball diameter: 12.7 mm. Number of balls: 20 per bearing. Bearing Material: Bearing steel. Closure Type: Open.

Dimensions and mounting:

Inner ring shoulder diameter d1: 87.3 mm. Outer ring shoulder diameter D1: 102.7 mm. Chamfer r1,2 min: 1.1 mm. Chamfer r3,4 min: 0.6 mm. Shaft abutment da/db min: 81 mm. Housing abutment Da max: 109 mm; Db max: 111 mm. Fillet radius ra max: 1 mm; rb max: 0.6 mm. Oil nozzle position dn: 90 mm. Reference grease quantity: 8.4 cm³ per bearing.

Compatibility and replacement:

FAG B7015-E-T-P4S-DUL — light preload, P4S. NSK 7015A5TYNDULP4 — light preload. Timken Fafnir 3MM9115WI DUL — light preload.

Frequently asked questions:

What are the dimensions of the SKF 7015 ACD/P4ADGA?

Bore Diameter: 75 mm. Outside Diameter: 115 mm. Overall Width: 20 mm per bearing, 40 mm for the pair.

What does ACD mean in SKF 7015 ACD/P4ADGA?

ACD is the high-capacity D design with a 25° contact angle.

What does DGA mean in SKF 7015 ACD/P4ADGA?

DGA is a universally matched set of two bearings with extra light preload, 310 N.
