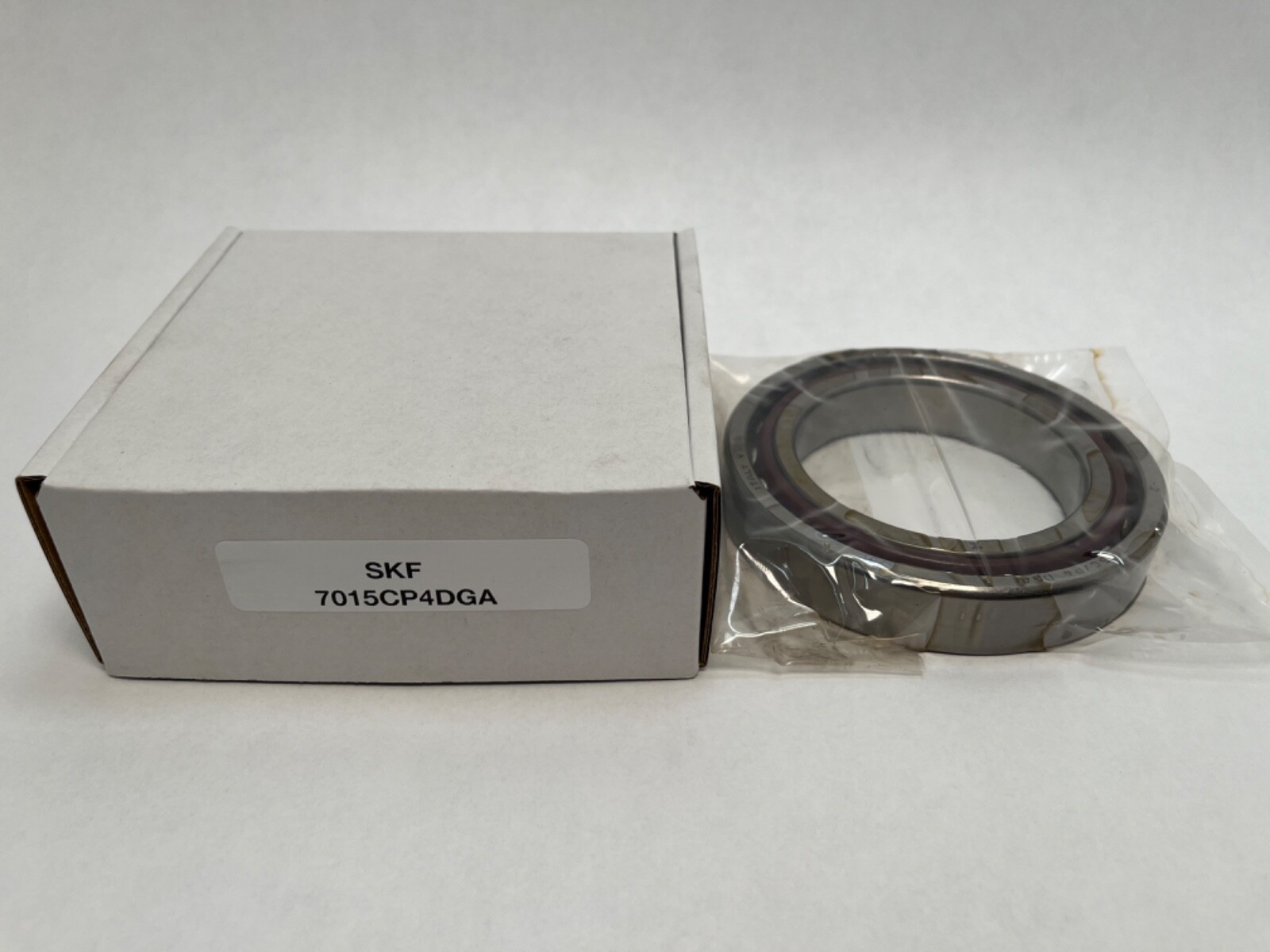

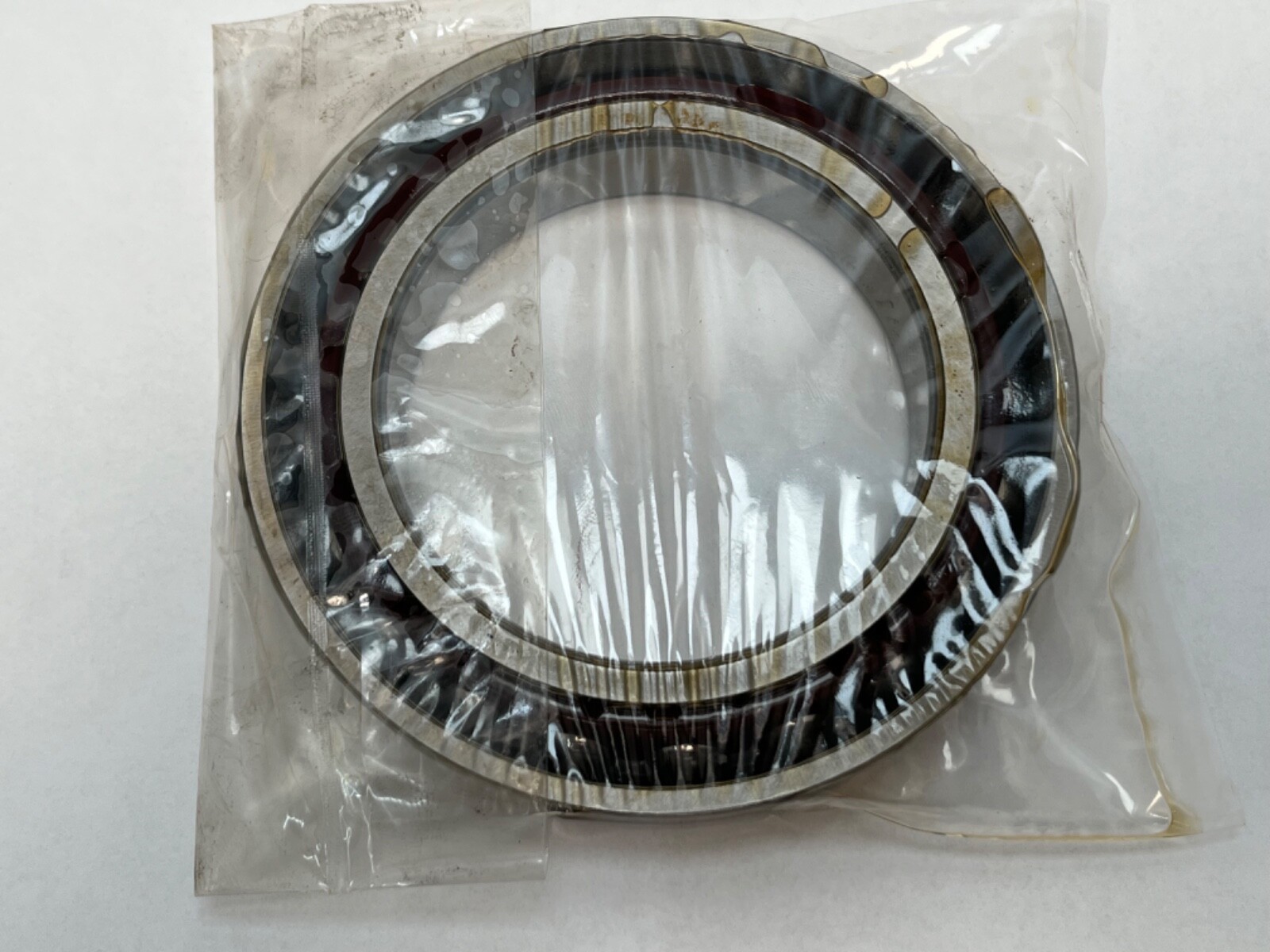

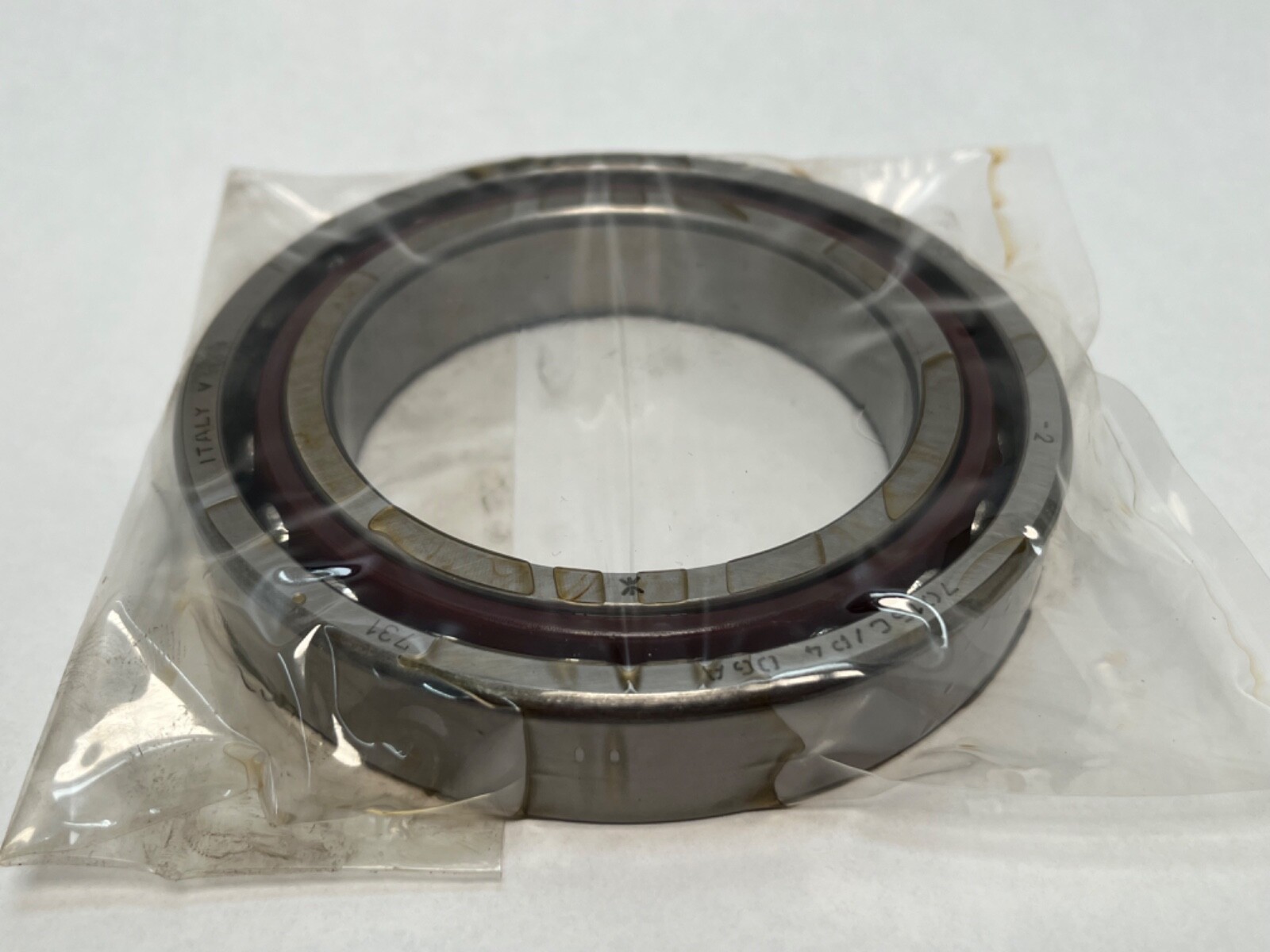

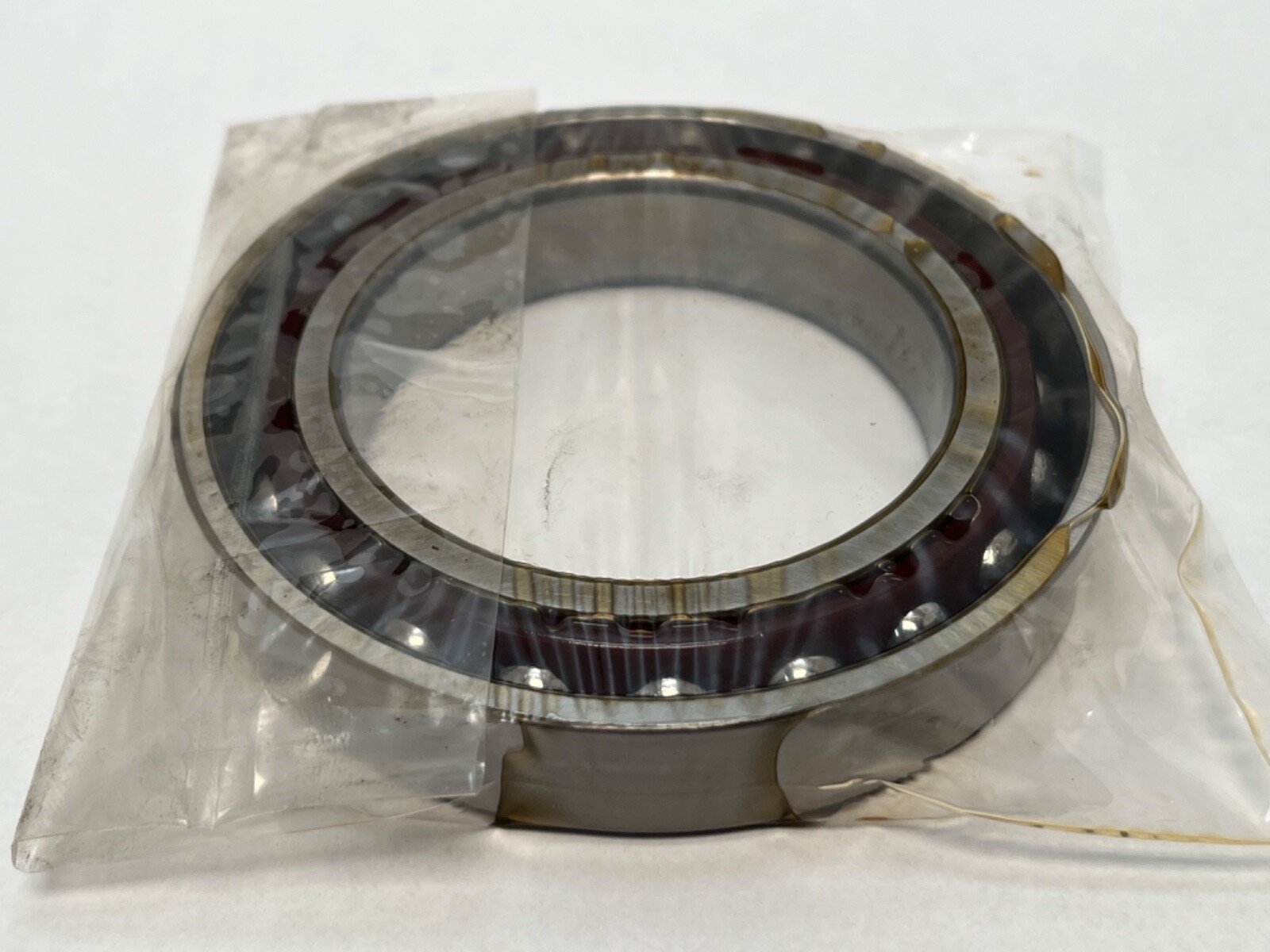

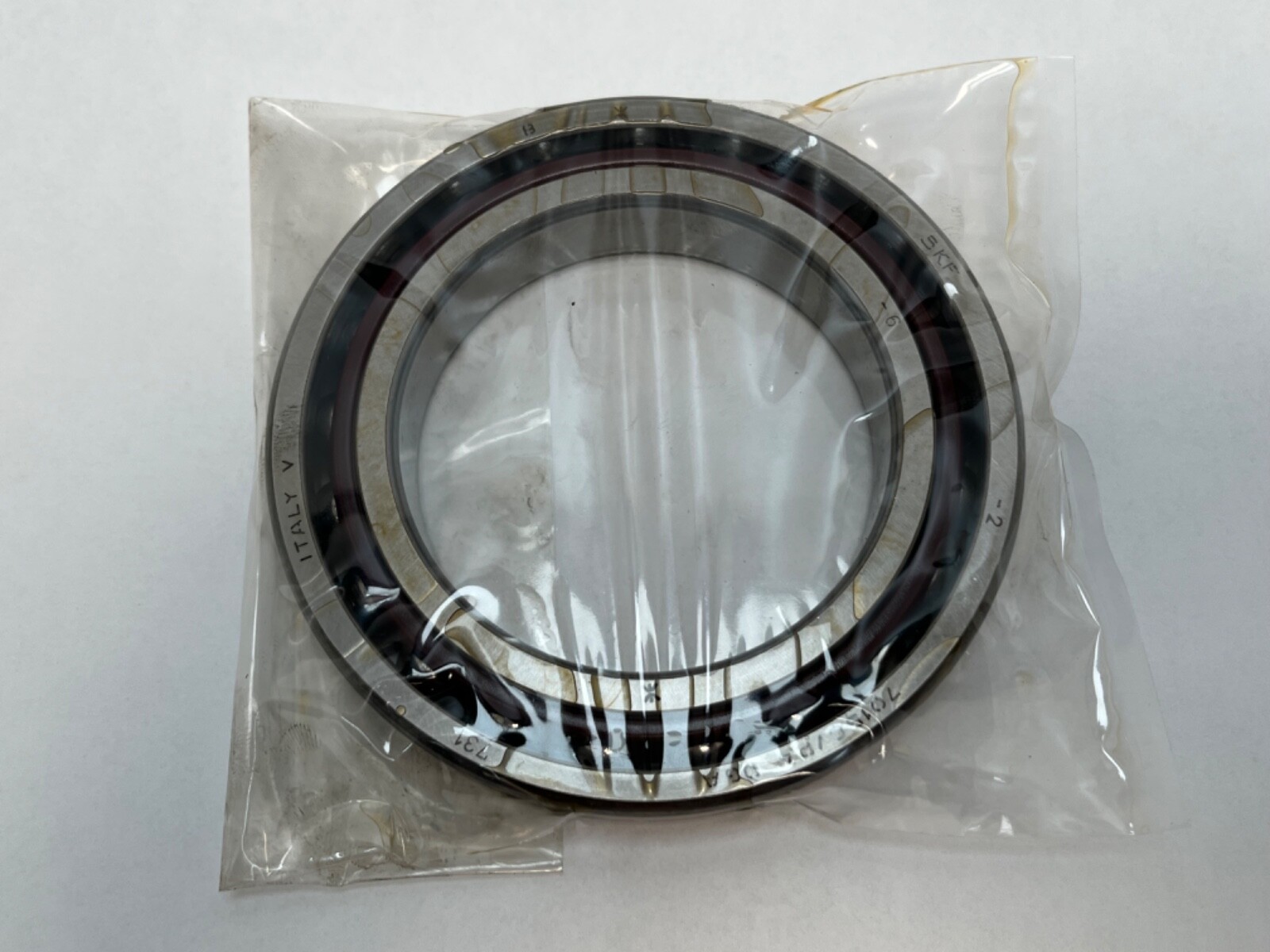

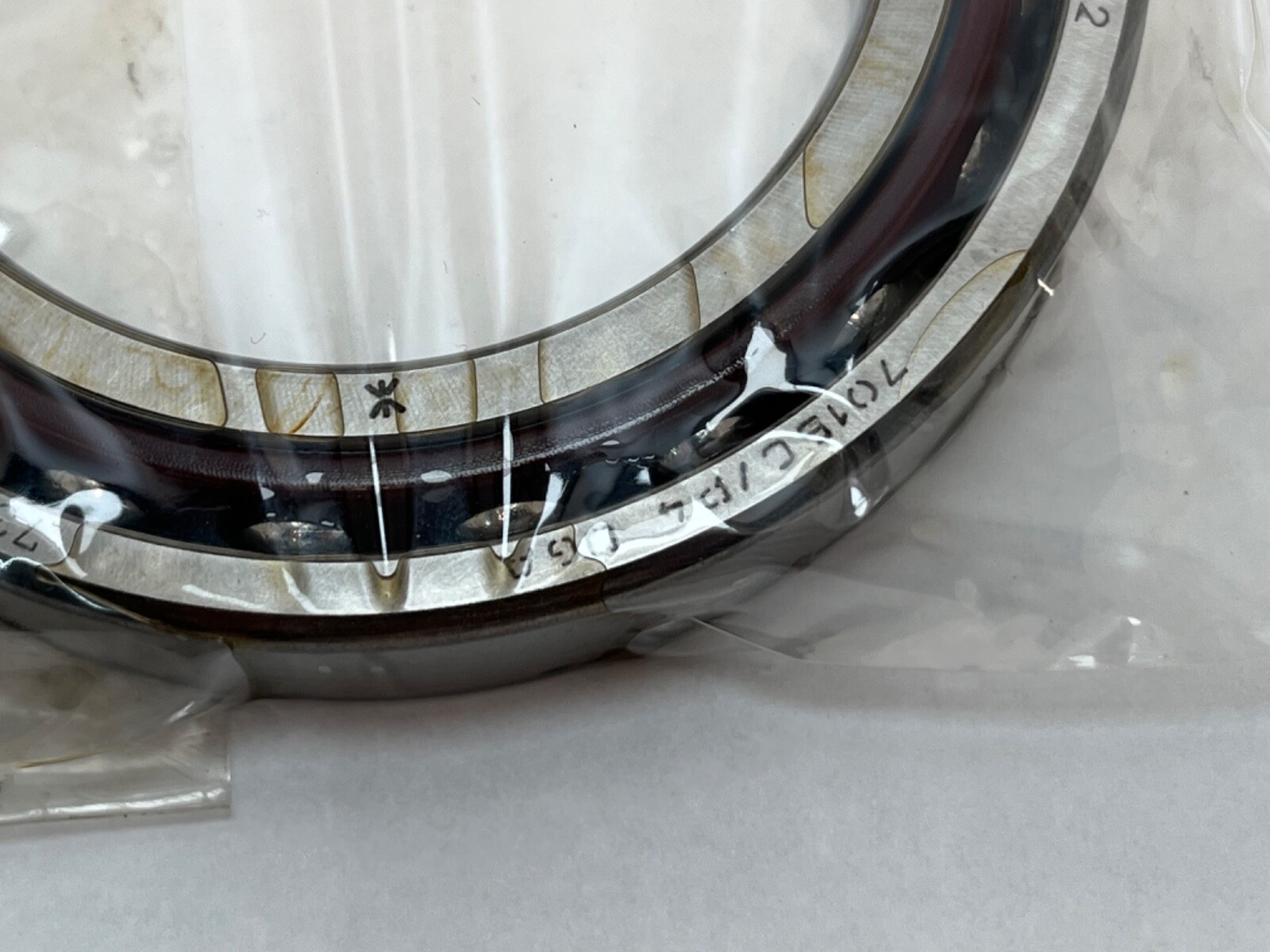

SKF7015 CDGA/P4AAngular Contact Ball Bearing — Super-Precision P4A, 75 mm ID, 115 mm OD, 20 mm Width, 15° Contact Angle, Universally Matchable, Extra Light Preload

Product Description

What this part is:

SKF 7015 CDGA/P4A super-precision, high-capacity, universally matchable single-row angular contact ball bearing with a 15° contact angle and extra light preload. Unit Quantity: 1 Pc. A single bearing, usable alone or paired with any other GA bearing of the same designation.

Decoding the designation:

70 — ISO light dimension series 10. A 75 mm bore carries a 115 mm outside diameter in a 20 mm section.

15 — bore code. 15 × 5 = 75 mm.

C — 15° contact angle.

D — high-capacity internal design.

GA — universally matchable, extra light preload.

P4A — SKF super-precision tolerance class: P4 dimensional accuracy with running accuracy held tighter still.

Specifications:

Bore Diameter: 75 mm. Outside Diameter: 115 mm. Overall Width: 20 mm. Contact Angle: 15°. Precision Class: P4A. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Bearing Material: Bearing steel. Series: 7000. Base Number: 7015. Preload: Extra light (GA). Arrangement: Universally matchable single bearing. Item Weight: 0.617 kg (1.36 lb). Harmonization Code: 8482.10.50.

Dynamic Load Rating: 52,700 N. Static Load Rating: 49,000 N. Contact type: normal, two-point. Both rings are one piece. Radial load is carried together with axial load acting in one direction. Supplied without lubricant.

Dimensions and mounting:

Bore Diameter: 75 mm. Outside Diameter: 115 mm. Width: 20 mm. Mounting Arrangement: universally matchable back-to-back, face-to-face or tandem.

Compatibility and replacement:

Same envelope and 15° angle in other super-precision schemes at light preload: Timken/Fafnir 2MM9115WICRSUL, FAG B7015-C-T-P4S-UL, NSK 7015CTRSULP4, RHP 7015X2TRSULP4. GB is the light and GC the medium preload on the same SKF envelope. Searchable forms of the number: 7015 CDGA/P4A, 7015-CDGA/P4, 7015 CD/P4ADGA, 7015CDGAP4A, 7015-C-P4-DGA, 7015C.

Frequently asked questions:

What are the size and contact angle?

75 mm bore, 115 mm outside diameter, 20 mm width, with a 15° contact angle.

What does GA mean?

Universally matchable with extra light preload.

What are the load ratings?

Dynamic load rating 52,700 N and static load rating 49,000 N.
