Super-precision angular contact ball bearing, 75 x 115 x 20 mm, 25-degree contact angle, ABEC 7, universally matchable, extra light preload. SKF 7015 ACGA/P4.
List Price
$133.86
5 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7015 ACGA/P4 |
| Model | 7015 AC GA P4 / 3MM9115WI CR SUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 75 mm |
| OD | 115 mm |
| Width | 20 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Series | 7000 |
| Preload | Extra light |
| Base Number | 7015 |
| Industry Terms | spindle bearing; super precision angular contact; machine tool bearing; universally matchable bearing; extra light preload spindle bearing |
| Common Misspellings | 7015ACGA P4; 7015-ACGAP4; SKF 7015AGCA/P4; 7015ACG/P4; 7015ACGA-P4A |
| Application Types | Machine tool spindles; grinding heads; high-speed gearboxes; precision rotary tables |
| Bore Shaft Size | 75 mm (2.9528 in) |
| Mpn Variants | 7015 ACGA/P4; 7015ACGA/P4; 7015-AC-GA-P4; 7015ACGAP4; 7015 AC GA P4 |
| Precision Class | ABEC 7 / ISO P4 |
| Precision Rating | ABEC 7 / ISO P4 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Part Number | 7015 ACGA/P4 |
| Cross Reference 1 | Fafnir 3MM9115WI-CR-SUL - light preload |
|---|---|
| Cross Reference 2 | NSK 7015A5TRSUL - light preload |
| Cross Reference 3 | FAG B7015E.T.P4S.UL - light preload |

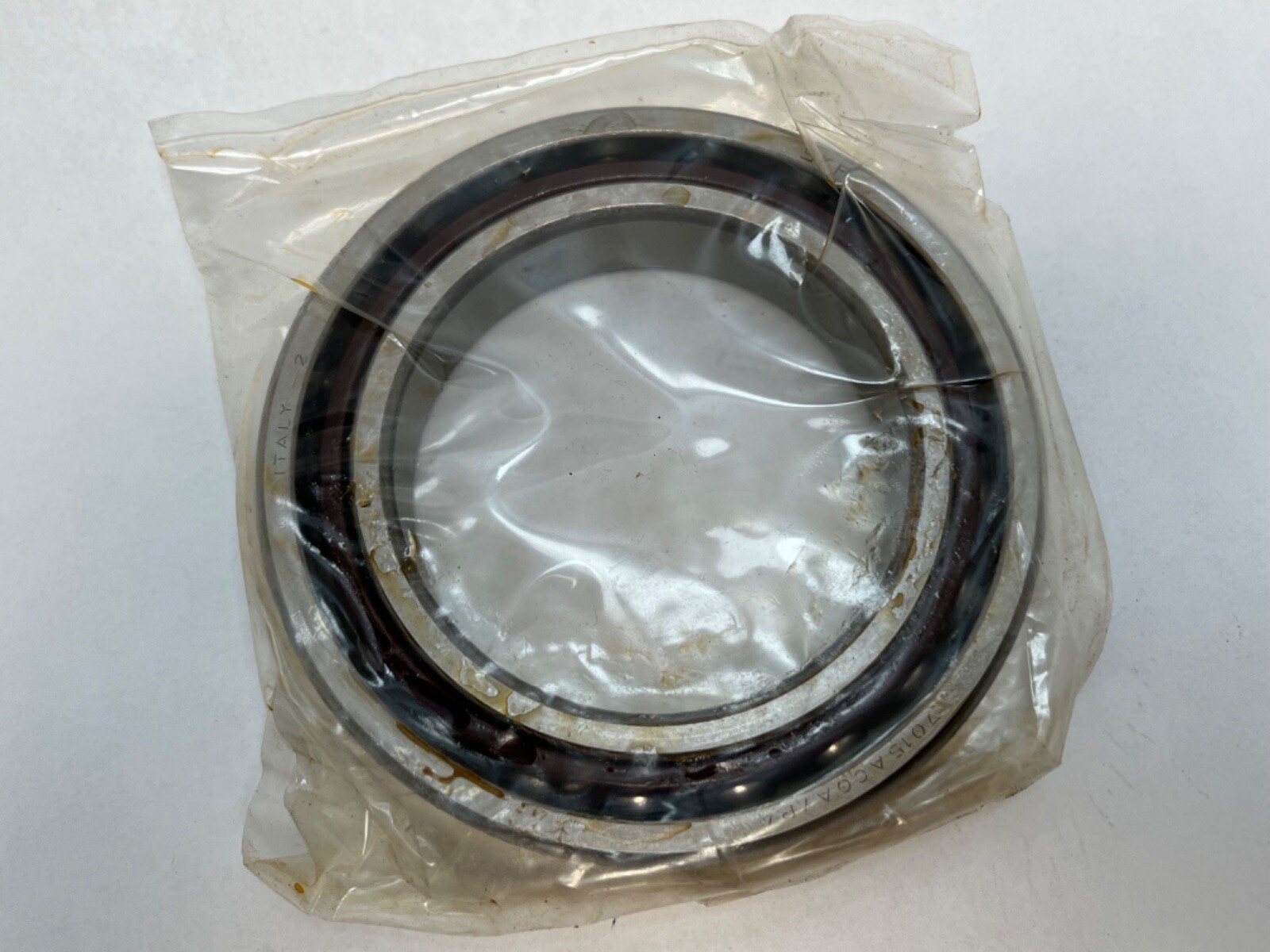

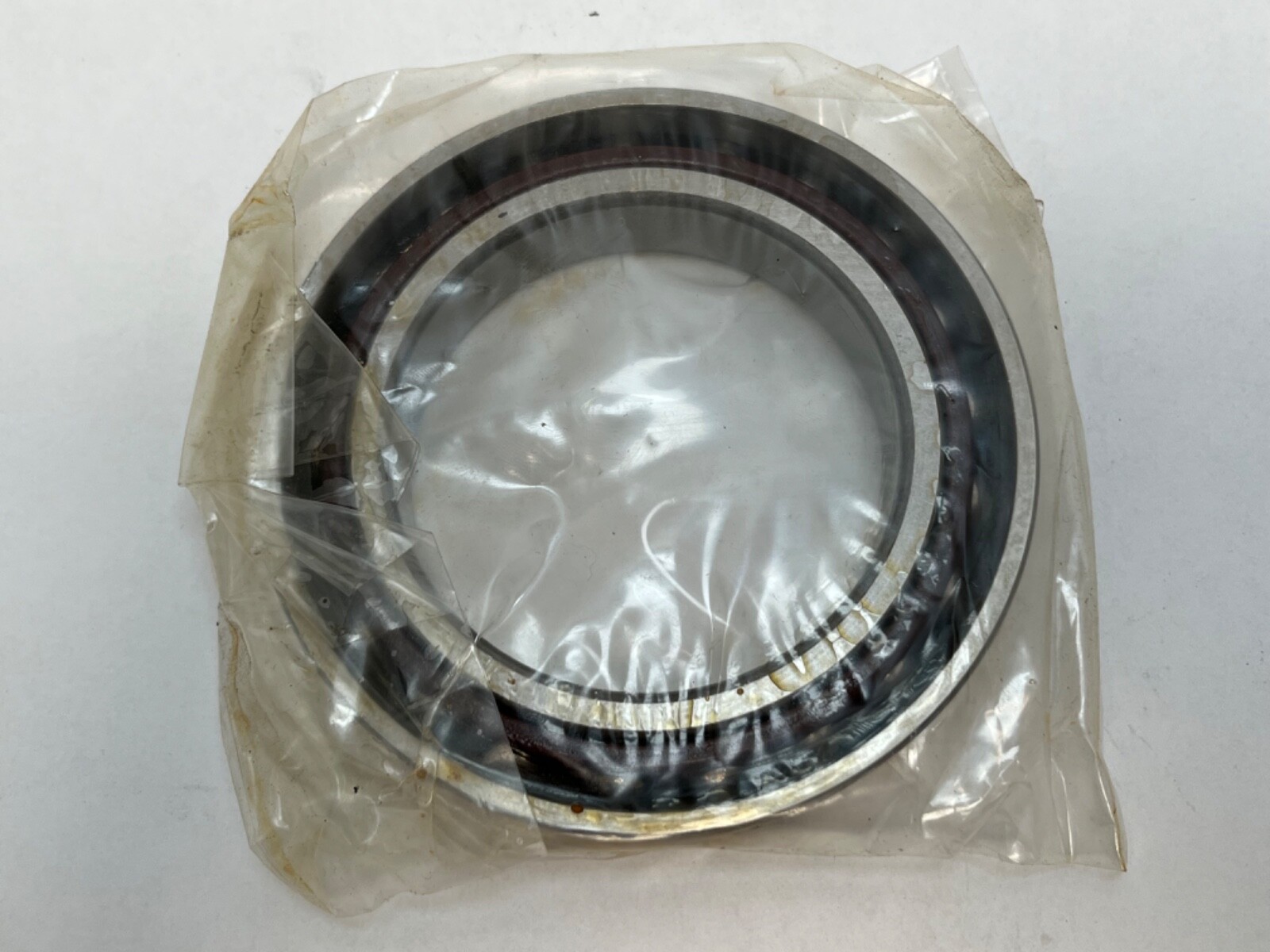

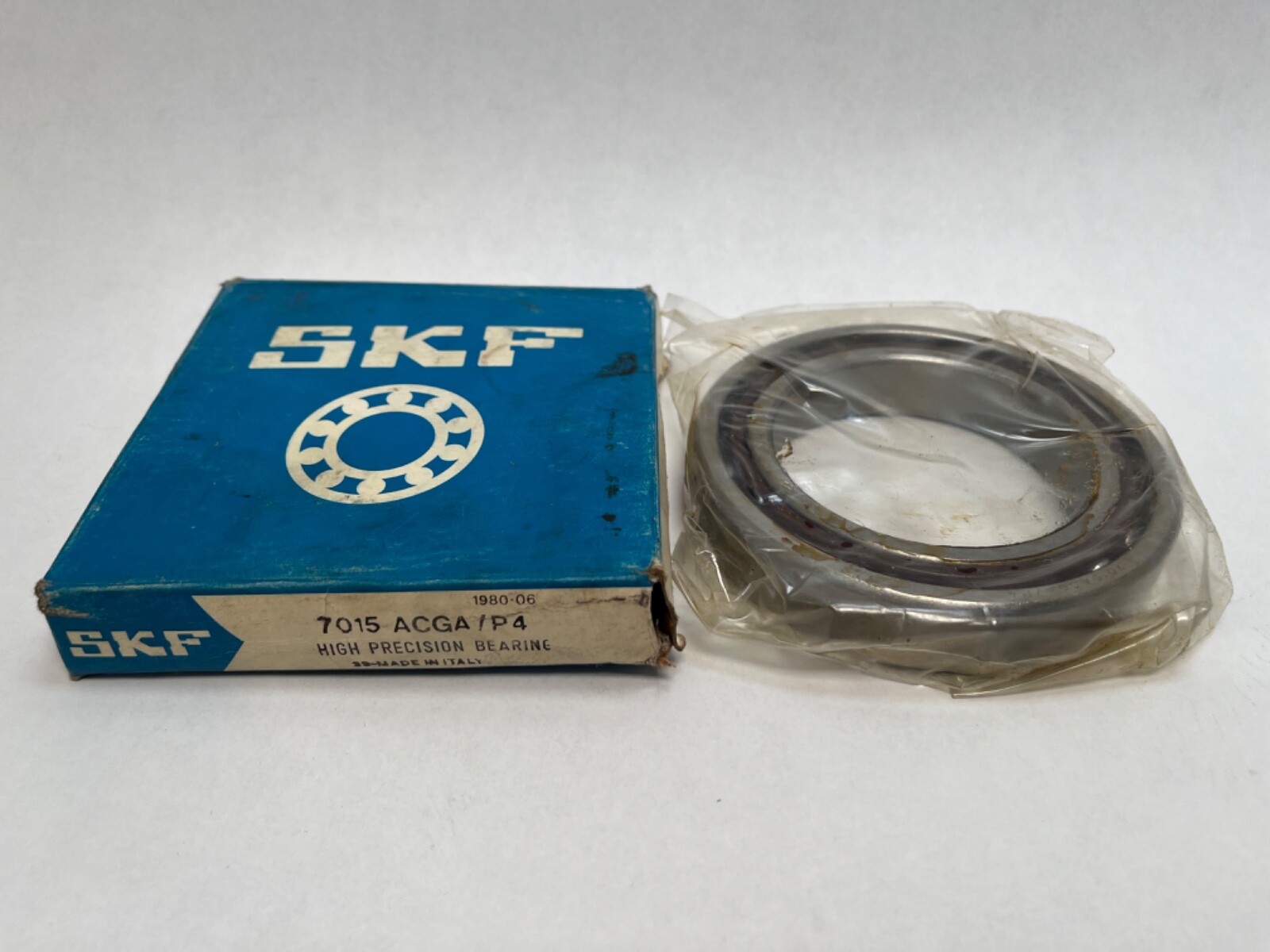

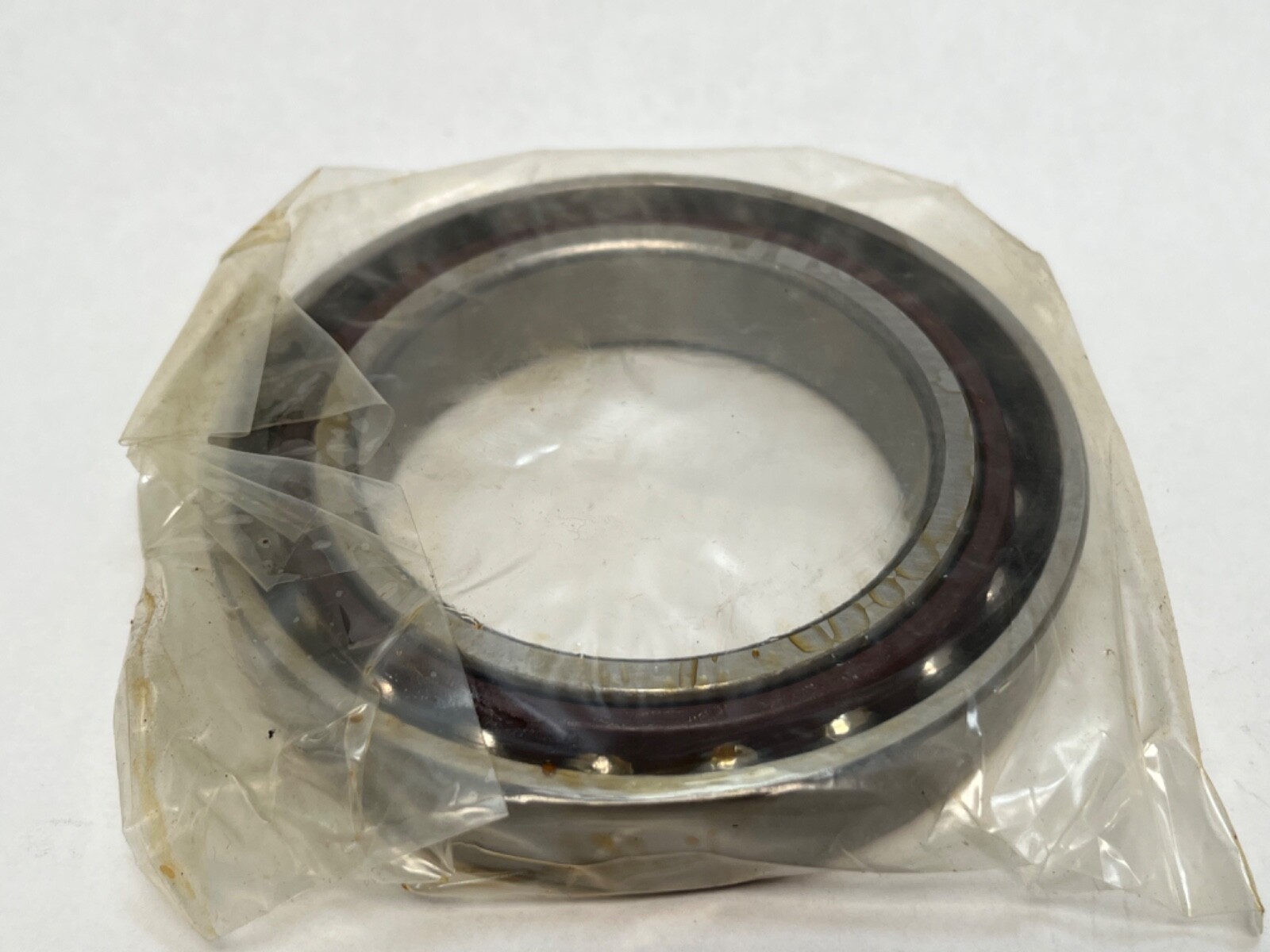

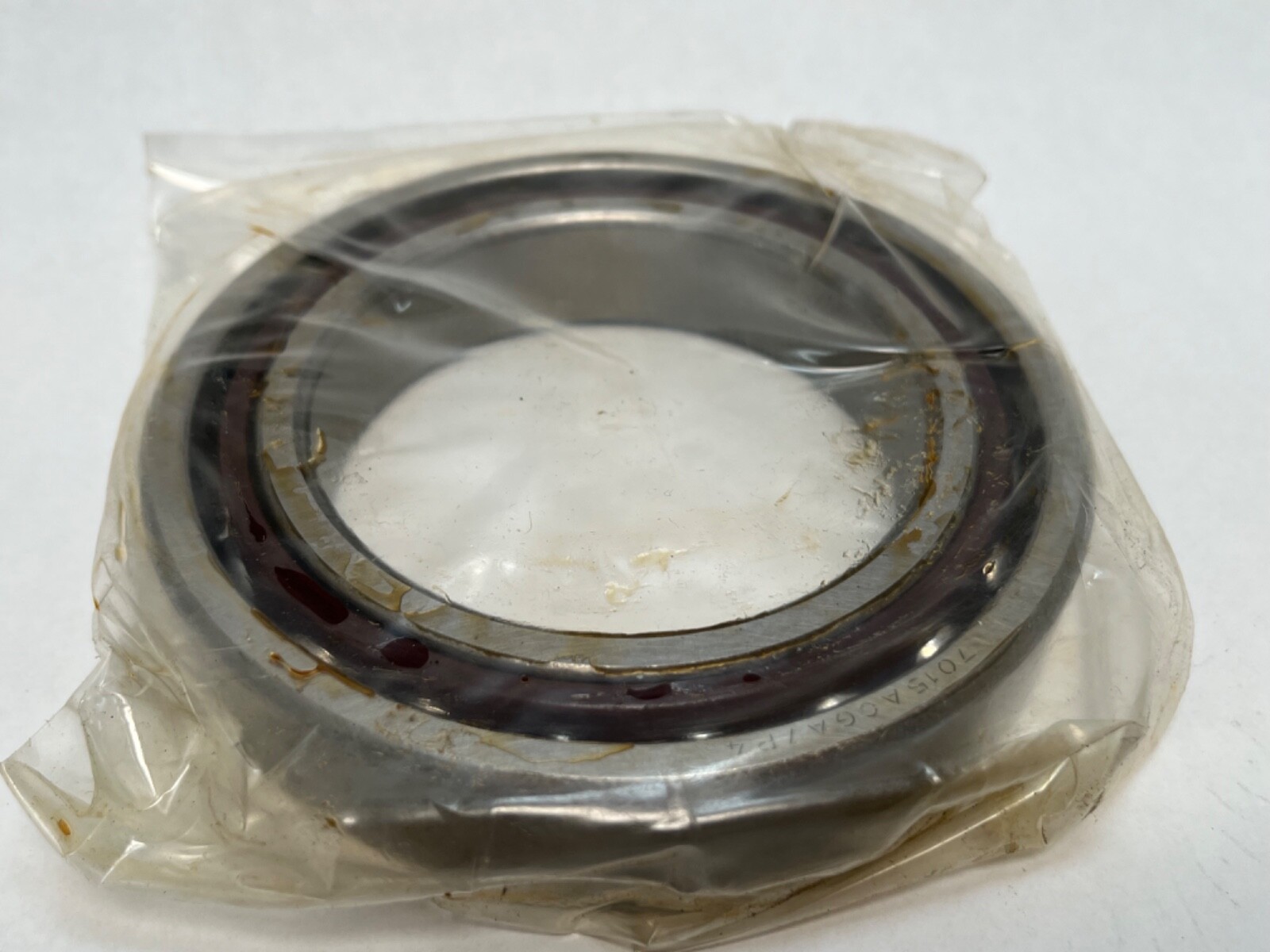

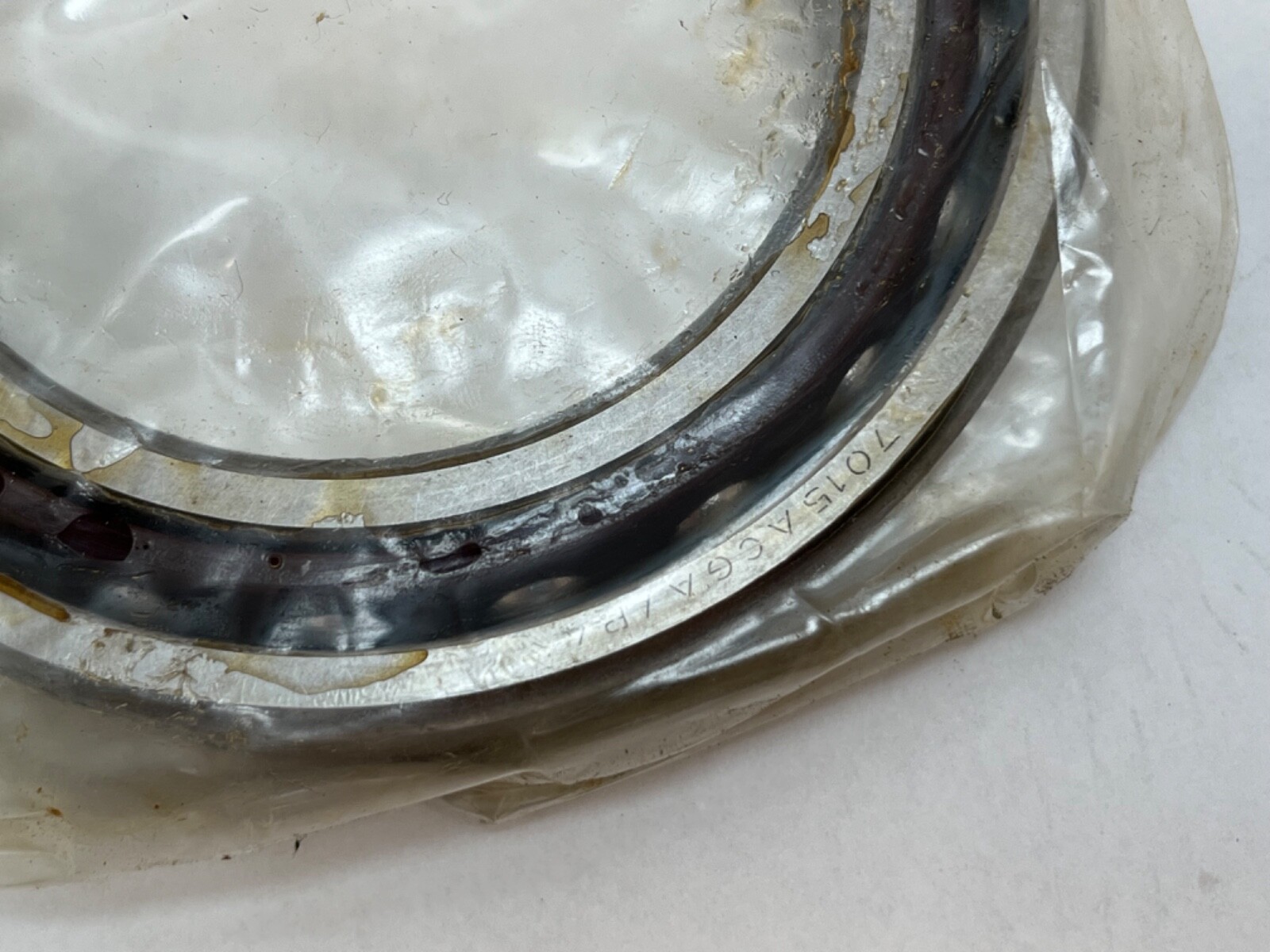

SKF 7015 ACGA/P4 super-precision single-row angular contact ball bearing, open, 75 mm bore, 115 mm outside diameter, 20 mm width. ISO 70-series envelope. Contact angle 25°, ABEC 7 (ISO P4), universally matchable with extra light preload when paired. Sold as 1 Pc.
7015 — single-row angular contact ball bearing, ISO 70 series, 75 x 115 x 20 mm.
AC — 25° contact angle in the SKF scheme.
GA — universally matchable, extra light preload.
P4 — ABEC 7 precision class.
Bore Diameter: 75 mm. Outside Diameter: 115 mm. Width: 20 mm. Number Of Rows: 1. Contact Angle: 25°. Precision Class: ABEC 7 / ISO P4. Preload when paired: extra light. Closure Type: open. Rolling Elements: steel balls. Unit Quantity: 1 Pc.
Envelope: 75 x 115 x 20 mm, ISO 7015 size. Ring faces are ground so that bearings of this designation form back-to-back, face-to-face or tandem sets at extra light preload.
Cross-references at 25° contact angle, ABEC 7, same 75 x 115 x 20 mm envelope, light preload (SKF GA is extra light): Fafnir 3MM9115WI-CR-SUL; NSK 7015A5TRSUL; FAG B7015E.T.P4S.UL.
25°, from the AC in the designation.
GA is universally matchable with extra light preload when bearings are paired.
75 mm bore, 115 mm outside diameter and 20 mm width, precision class ABEC 7 (ISO P4).
