Availability:
1 in stock

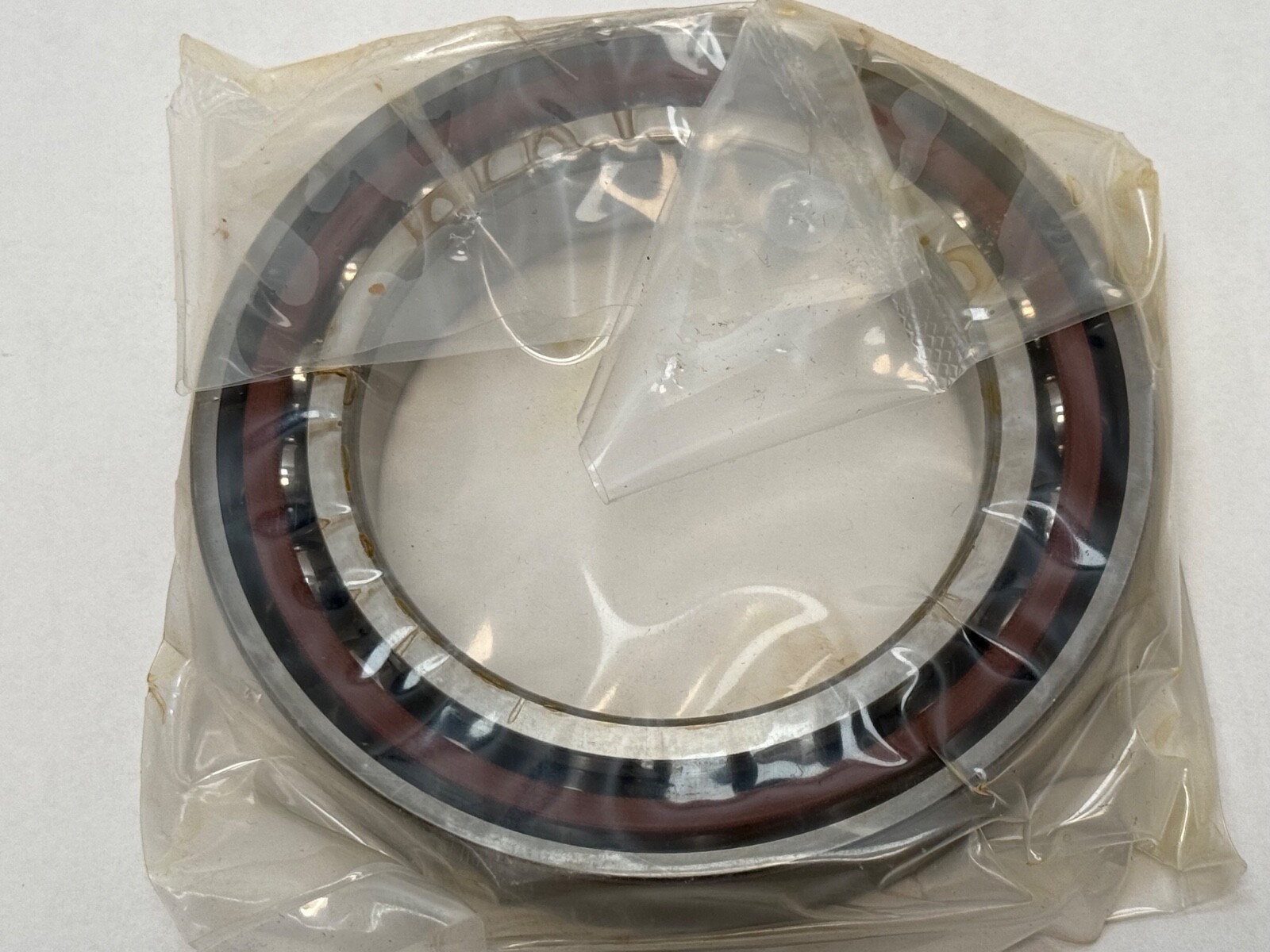

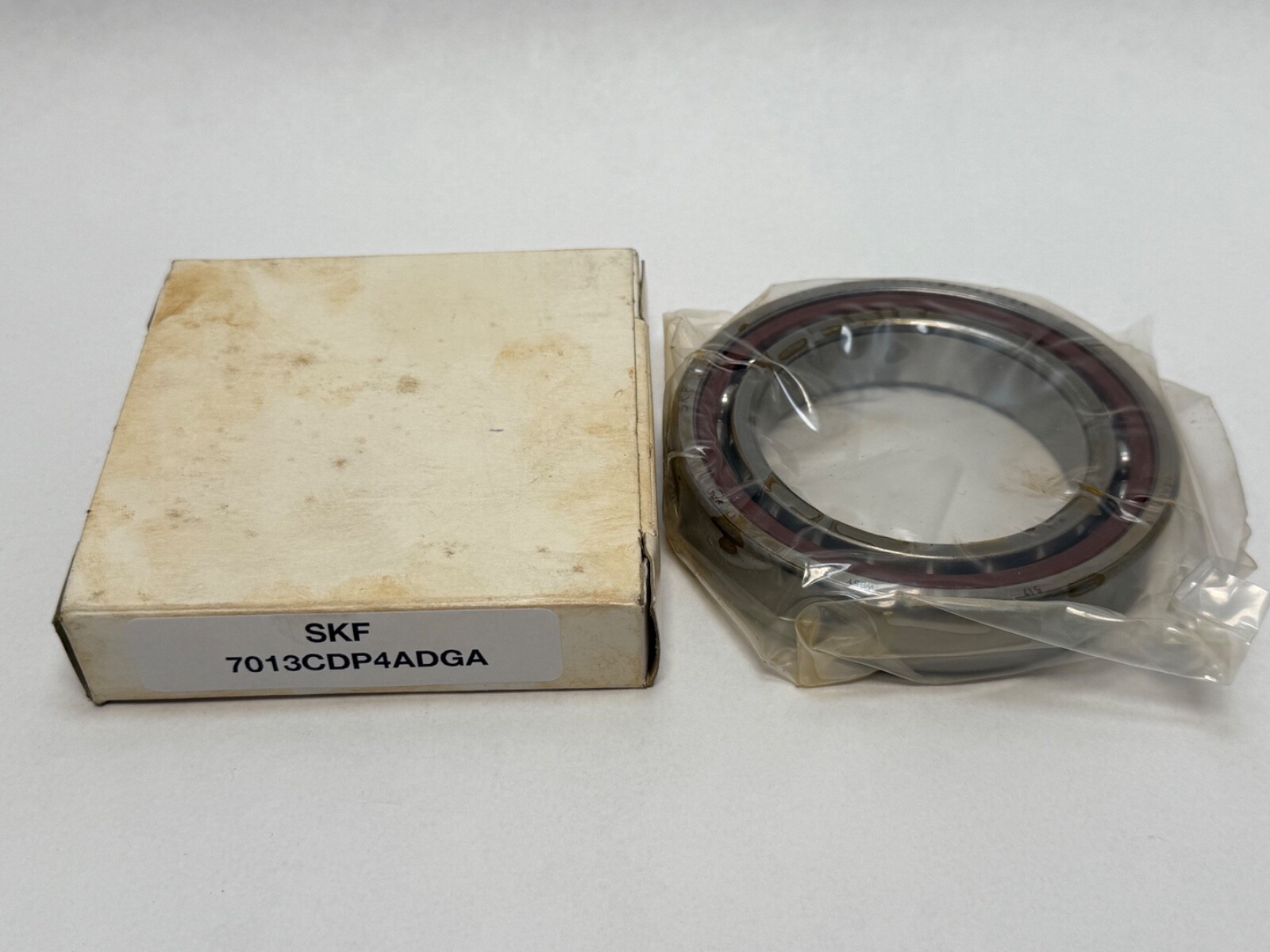

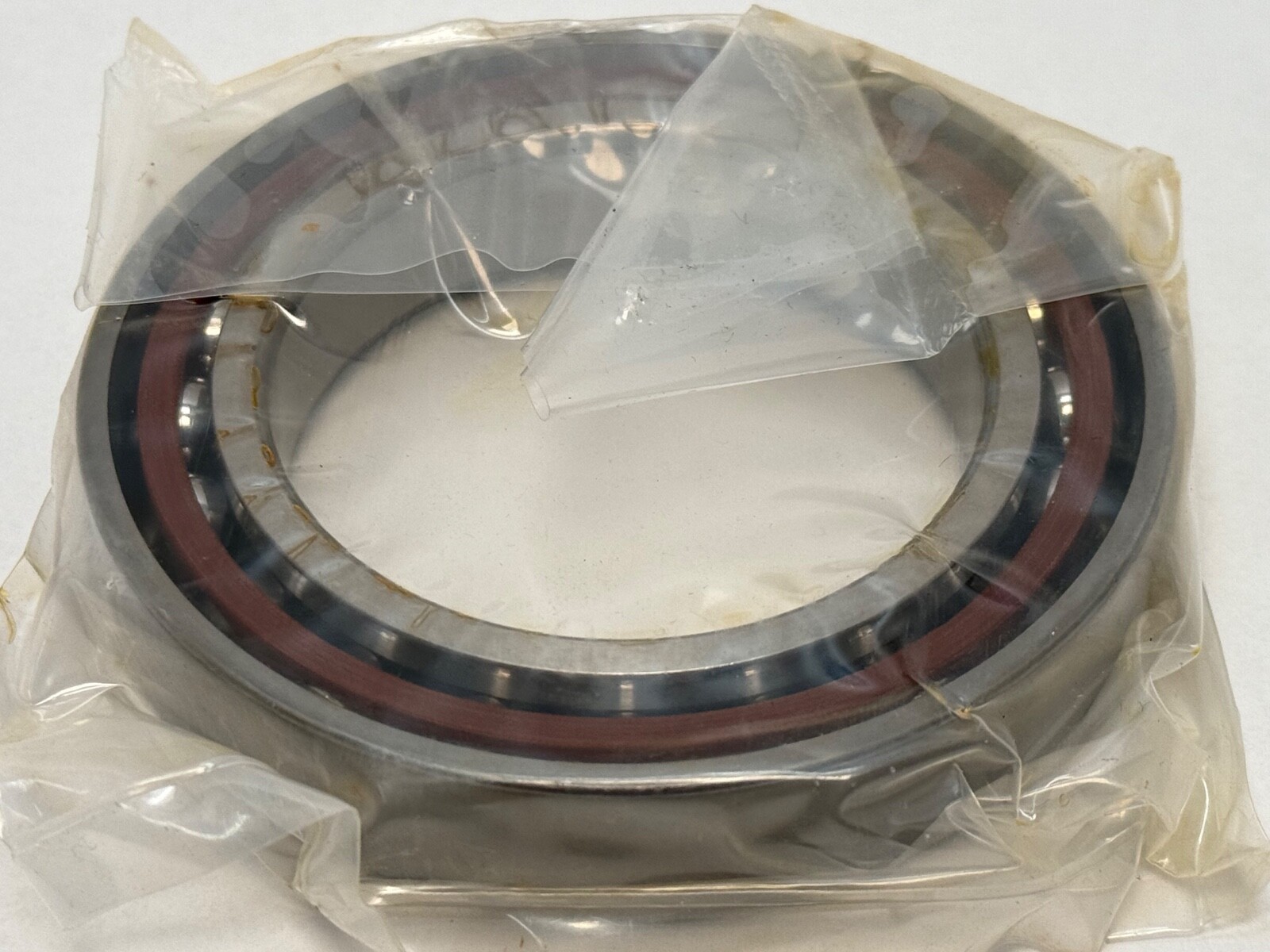

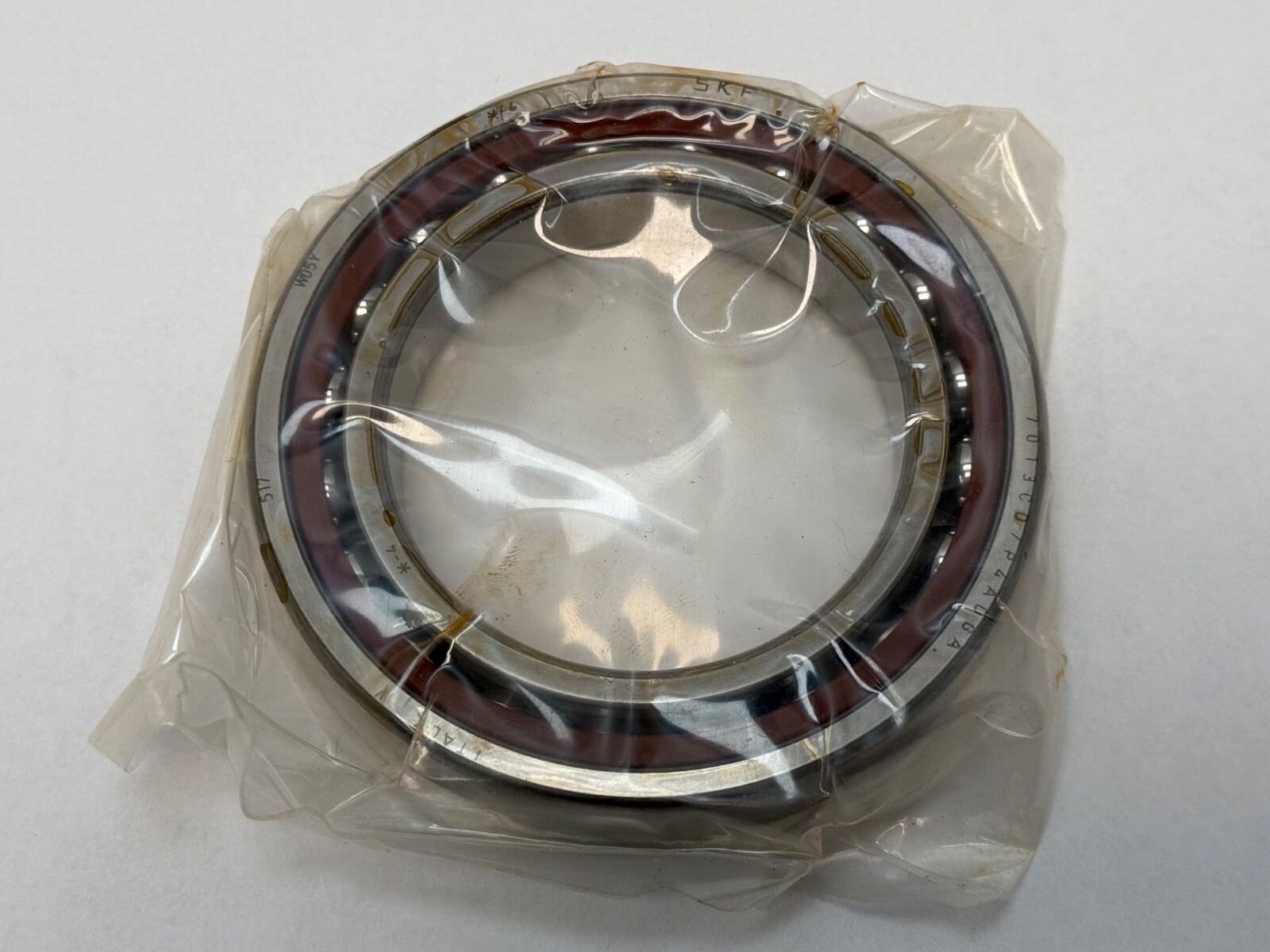

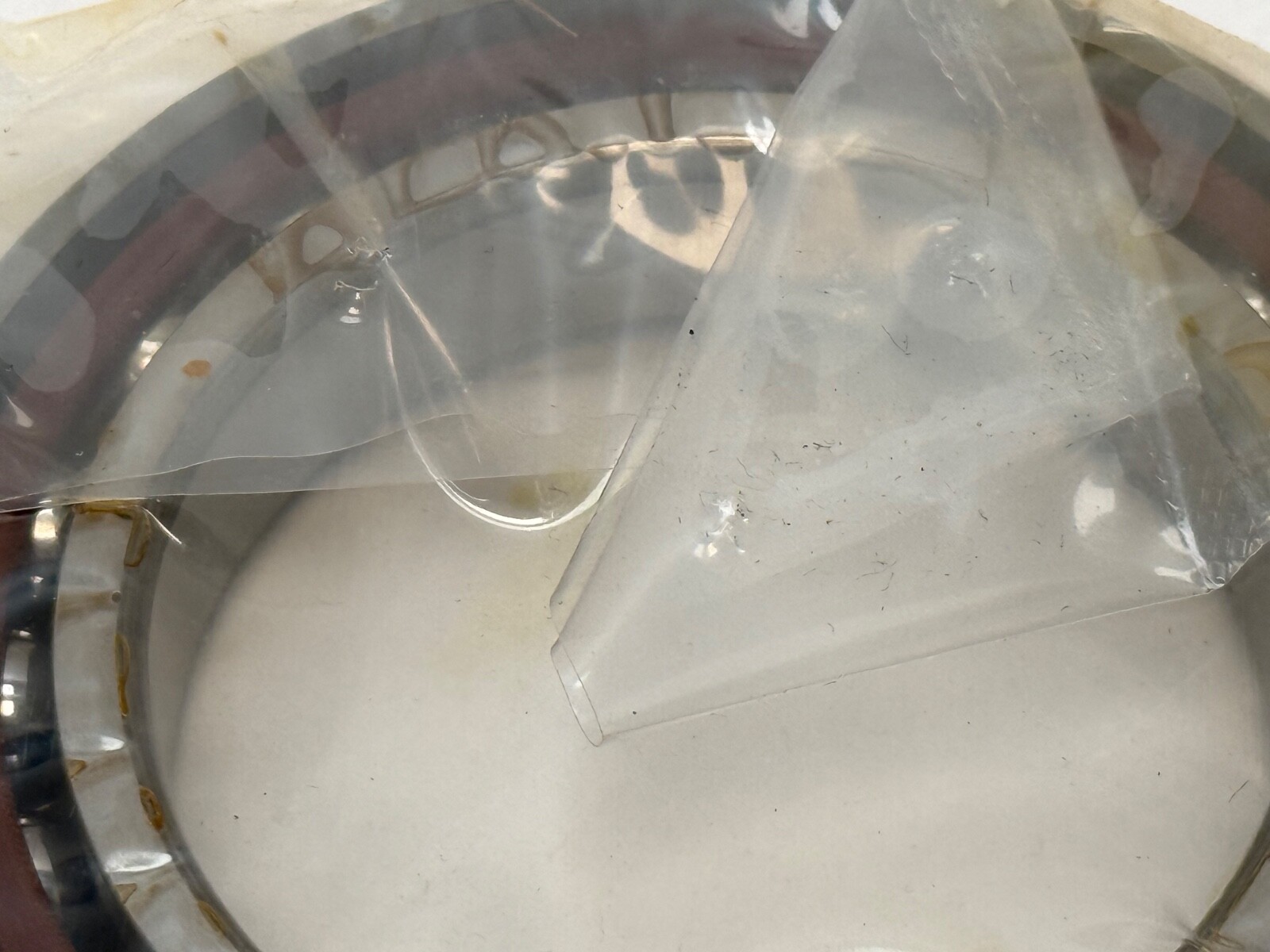

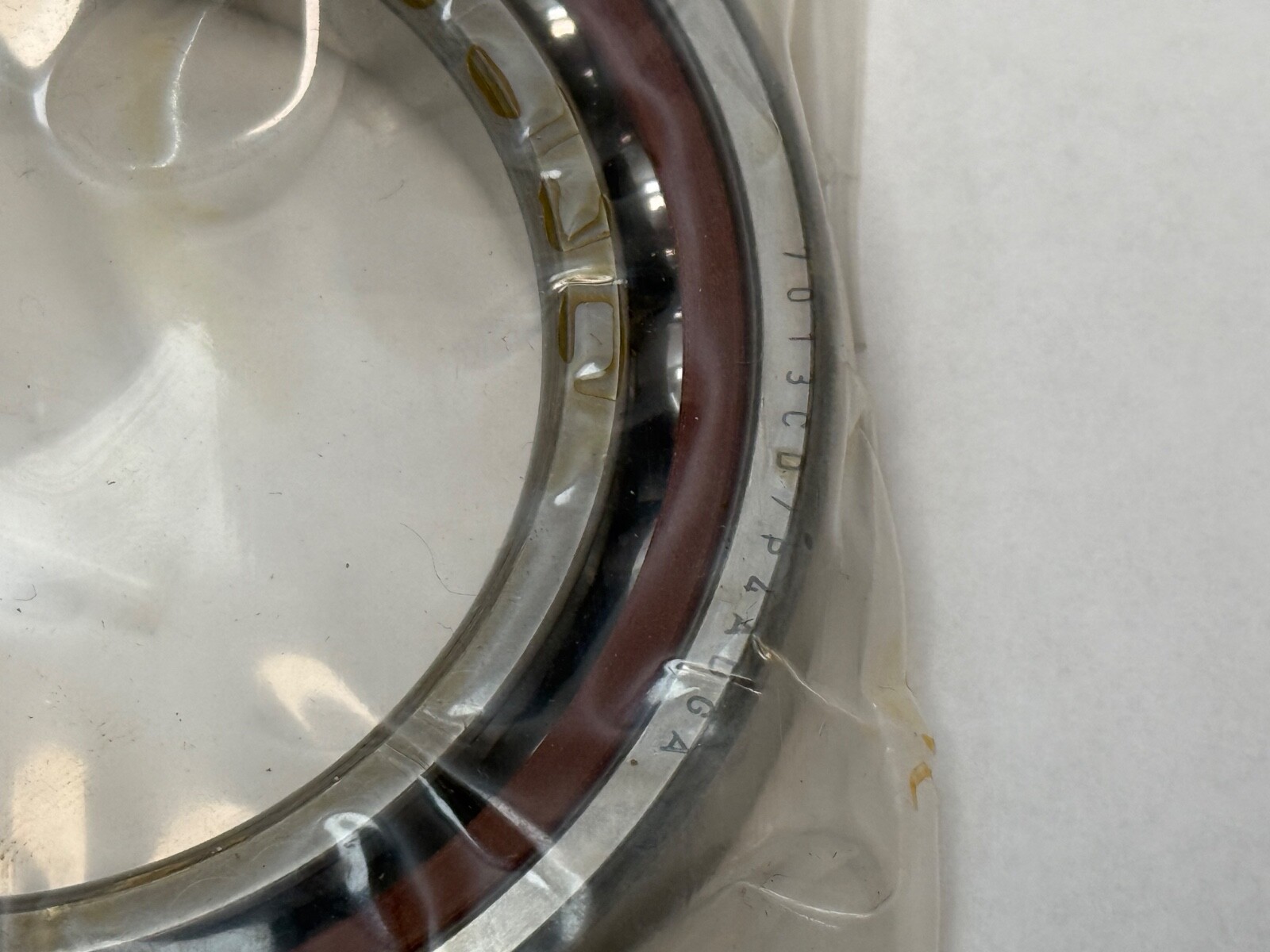

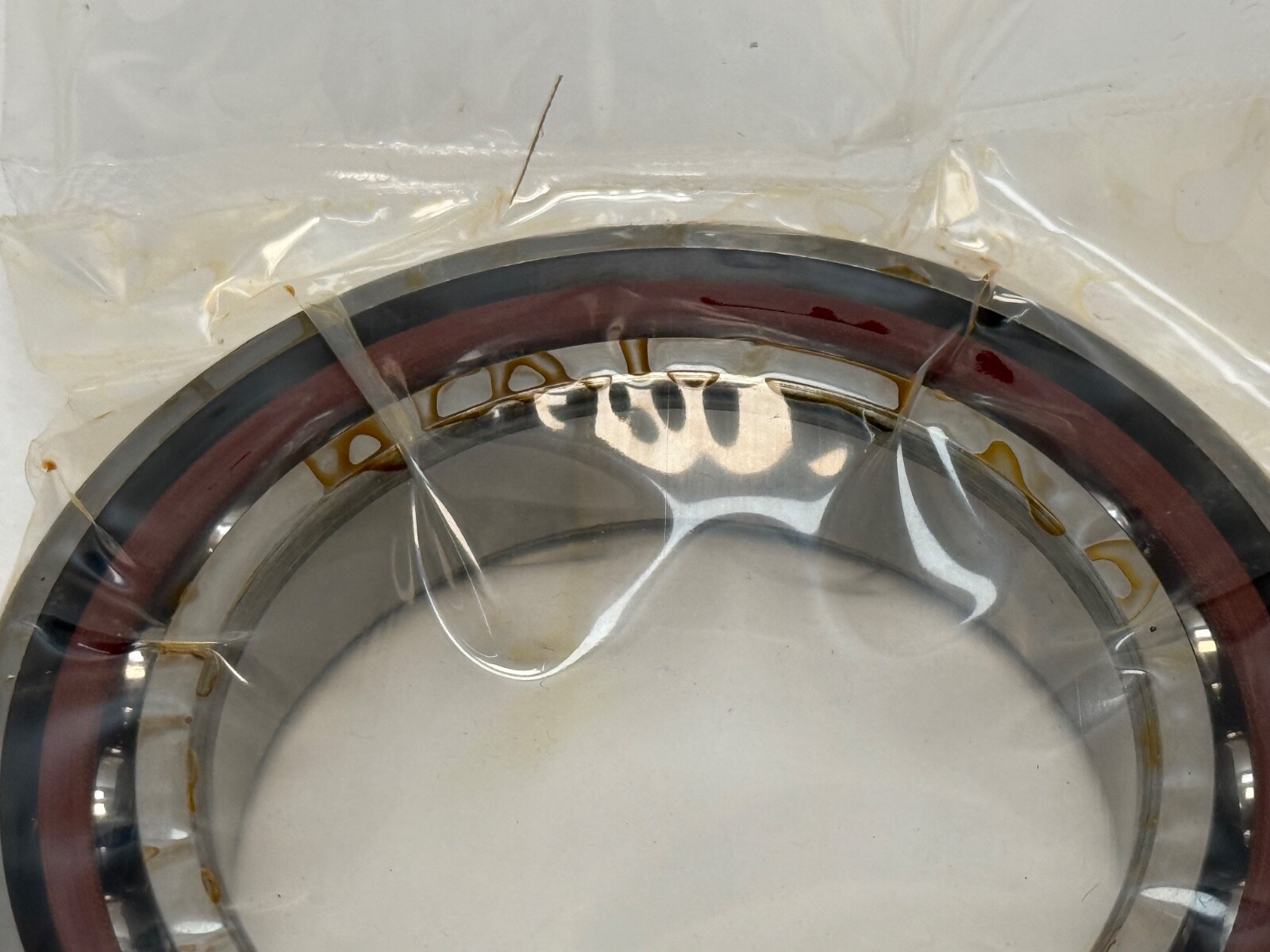

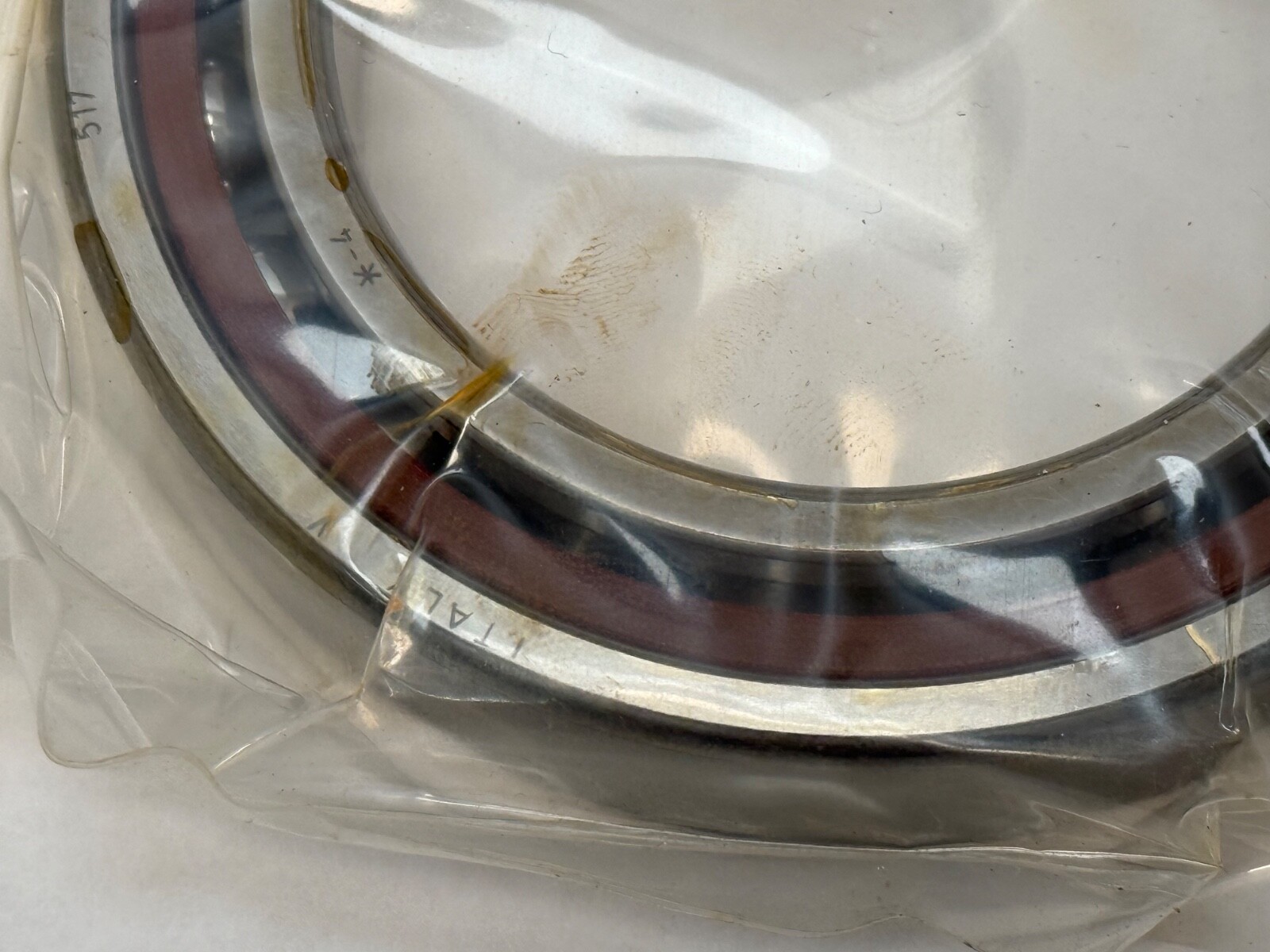

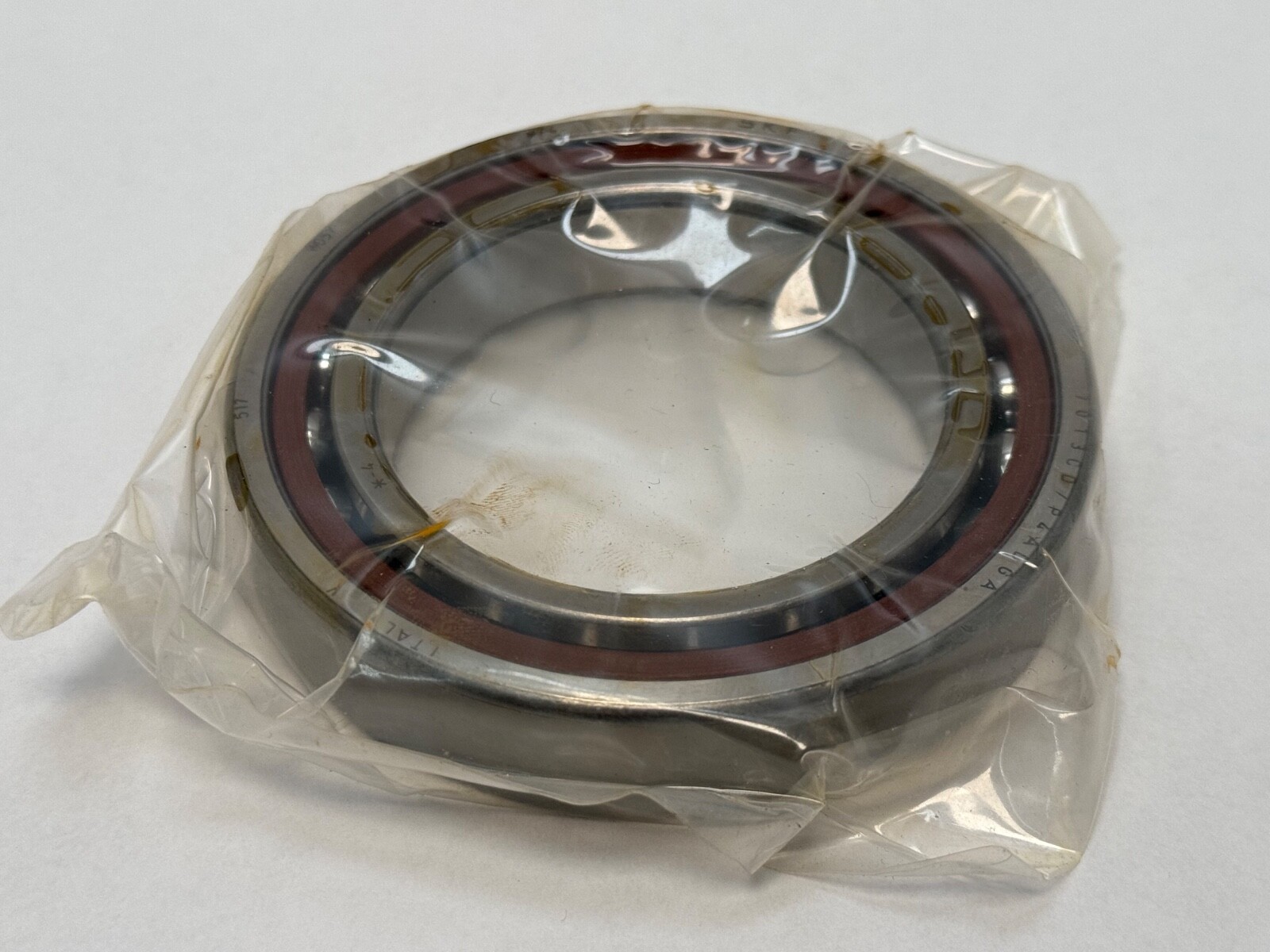

Super precision angular contact ball bearing, 65 x 100 x 18 mm, 15° contact angle, P4A tolerance, extra light preload (160 N). SKF 70 series high-capacity D design.
List Price
$183.41
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7013CDP4ADGA |
| Model | 7013CD/P4A DGA / 2MM9113WI CR DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 65 mm |
| OD | 100 mm |
| Width | 18 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Preload | Extra light (160 N) |
| Mpn Variants | 7013-CDGA/P4A, 7013 CDGA/P4A, 7013CDGAP4A, 7013-CD/P4ADGA, 7013-CD-P4A-DGA, 7013C |
| Precision Class | ABEC 7 / P4A |
| Additional Attributes | Fatigue load limit 1,600 N; axial stiffness 74 N/µm; 20 balls of 11.112 mm; oil nozzle position 78.1 mm |
| Dynamic Load Rating | 41,600 N |
| Static Load Rating | 37,500 N |
| Rolling Elements | Ball |
| Item Weight | 0.42 kg (0.93 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universally matchable: back-to-back, face-to-face or tandem |
| Bearing Material | Bearing steel |
| Cross Reference 1 | FAG B7013-C-T-P4S-UL |
|---|---|
| Cross Reference 2 | NSK 7013CTYNSULP4 |
| Cross Reference 3 | Timken 2MM9113WI SUL |
SKF 7013 CDGA/P4A is a super-precision, high-capacity single row angular contact ball bearing from the SKF 70 series. It is universally matchable and can be combined back-to-back, face-to-face or in tandem to give a predetermined extra light preload without shims.
7013 — 70 series angular contact ball bearing, 65 mm bore, 100 mm outside diameter.
CD — high-capacity D design with a 15° contact angle.
GA — single bearing for universal matching, extra light preload.
P4A — SKF precision class: ISO P4 dimensional accuracy with tighter running accuracy.
Bore Diameter: 65 mm. Outside Diameter: 100 mm. Width: 18 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4A. Preload: Extra light, 160 N unmounted (back-to-back or face-to-face pair). Axial stiffness: 74 N/µm. Dynamic Load Rating: 41,600 N. Static Load Rating: 37,500 N. Fatigue load limit: 1,600 N. Ball diameter: 11.112 mm. Number of balls: 20. Reference grease quantity: 5.7 cm³. Item Weight: 0.42 kg (0.93 lb). Bearing Material: Bearing steel. Closure Type: Open.
Inner ring shoulder diameter d1: 75.8 mm. Outer ring shoulder diameter D1: 89.2 mm. Chamfer r1,2 min: 1.1 mm. Chamfer r3,4 min: 0.6 mm. Pressure point distance a: 20.1 mm. Shaft abutment da/db min: 71 mm. Housing abutment Da max: 94 mm; Db max: 96.8 mm. Fillet radius ra max: 1 mm; rb max: 0.6 mm. Oil nozzle position dn: 78.1 mm.
Unit Quantity: 1 Pc. Single universally matchable bearing.
Same envelope and 15° angle: FAG B7013-C-T-P4S-UL, NSK 7013CTYNSULP4, Timken/Fafnir 2MM9113WI SUL. Cage execution and exact class vary by maker.
