SKF7006 ACX/P4ADGASpindle Angular Contact Ball Bearing – 30 mm Bore, 55 mm OD, 13 mm Width, 25° Contact Angle, ABEC 7 / P4A, Extra Light Preload

Product Description

What this part is:

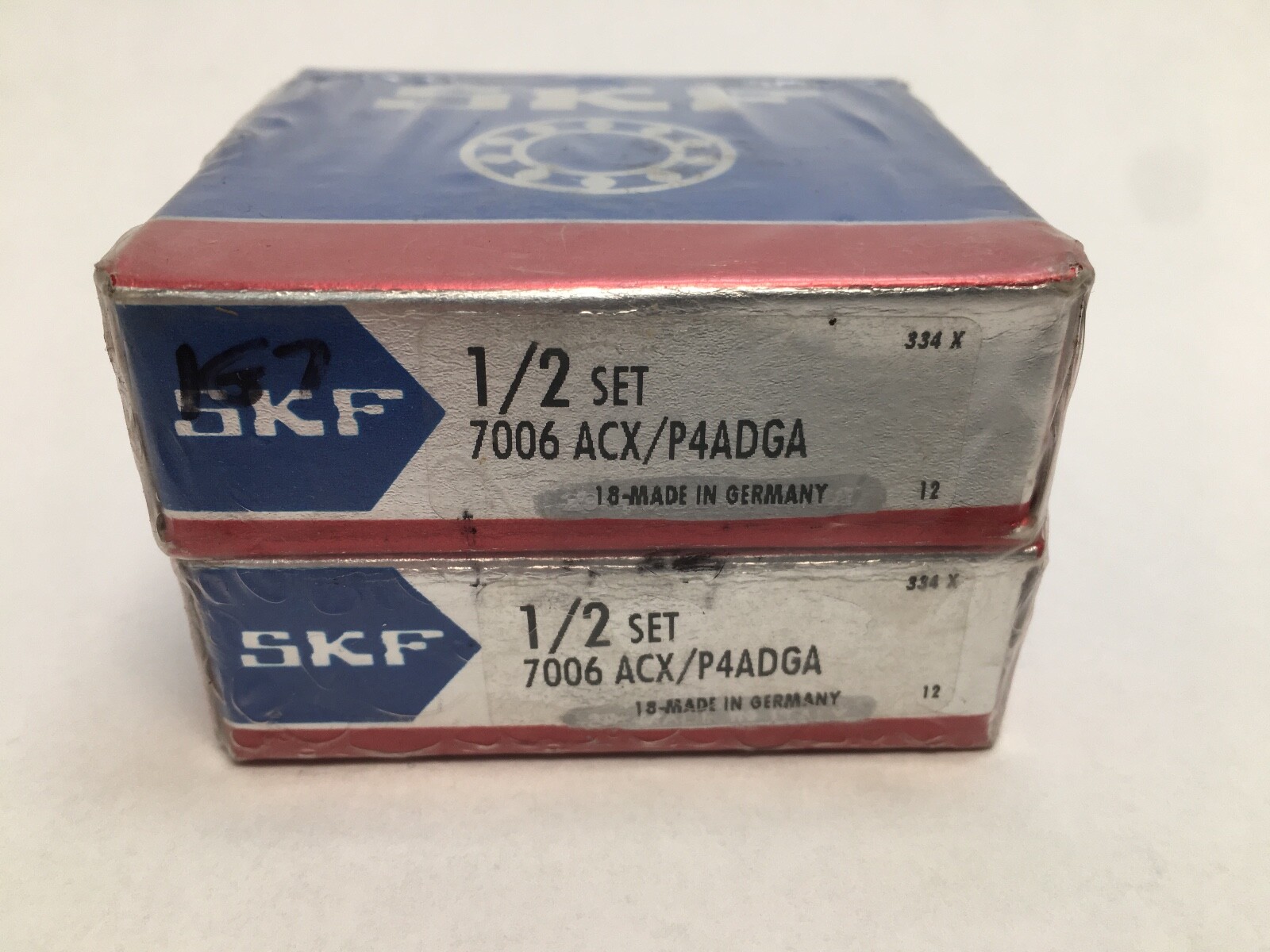

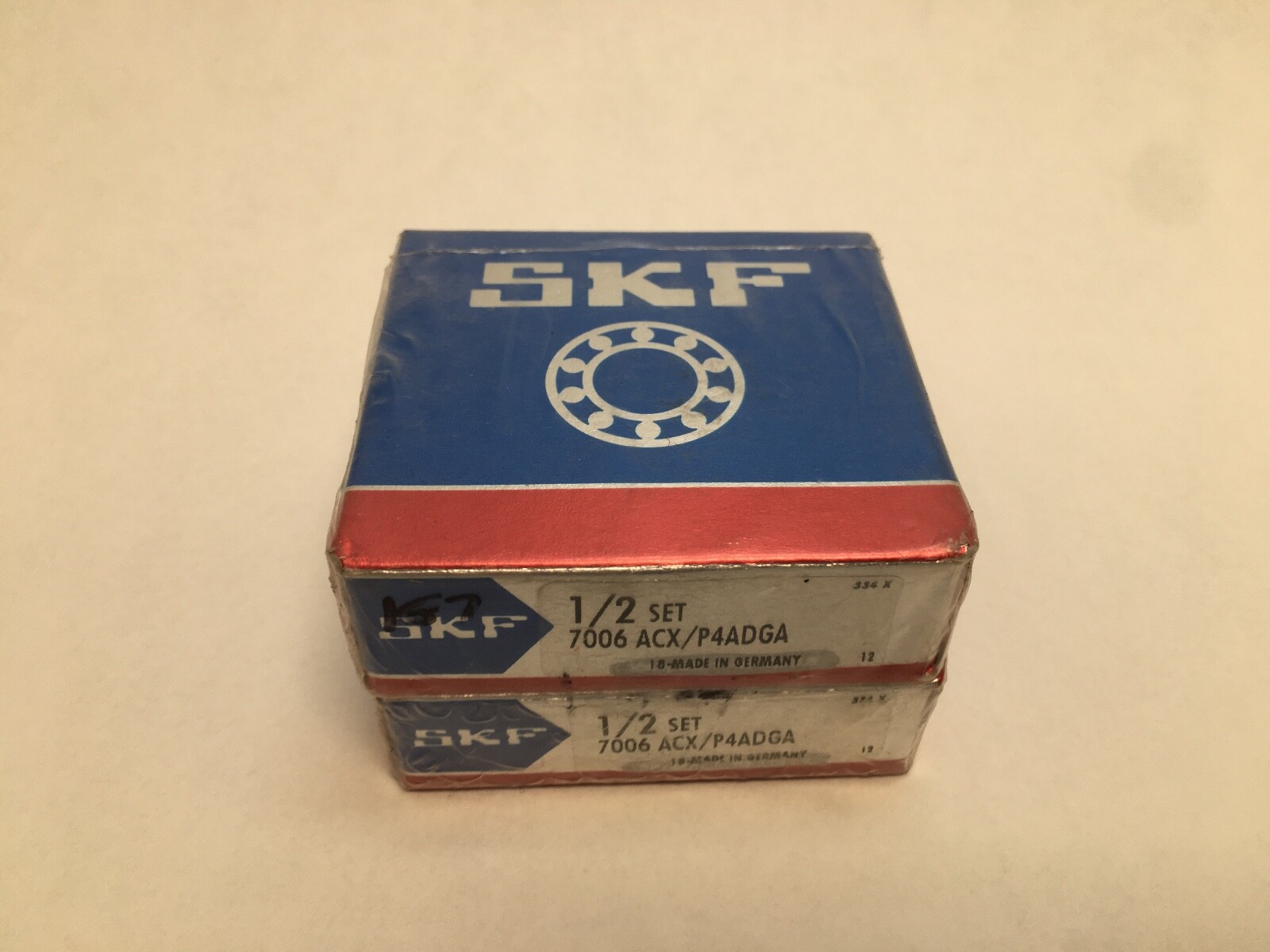

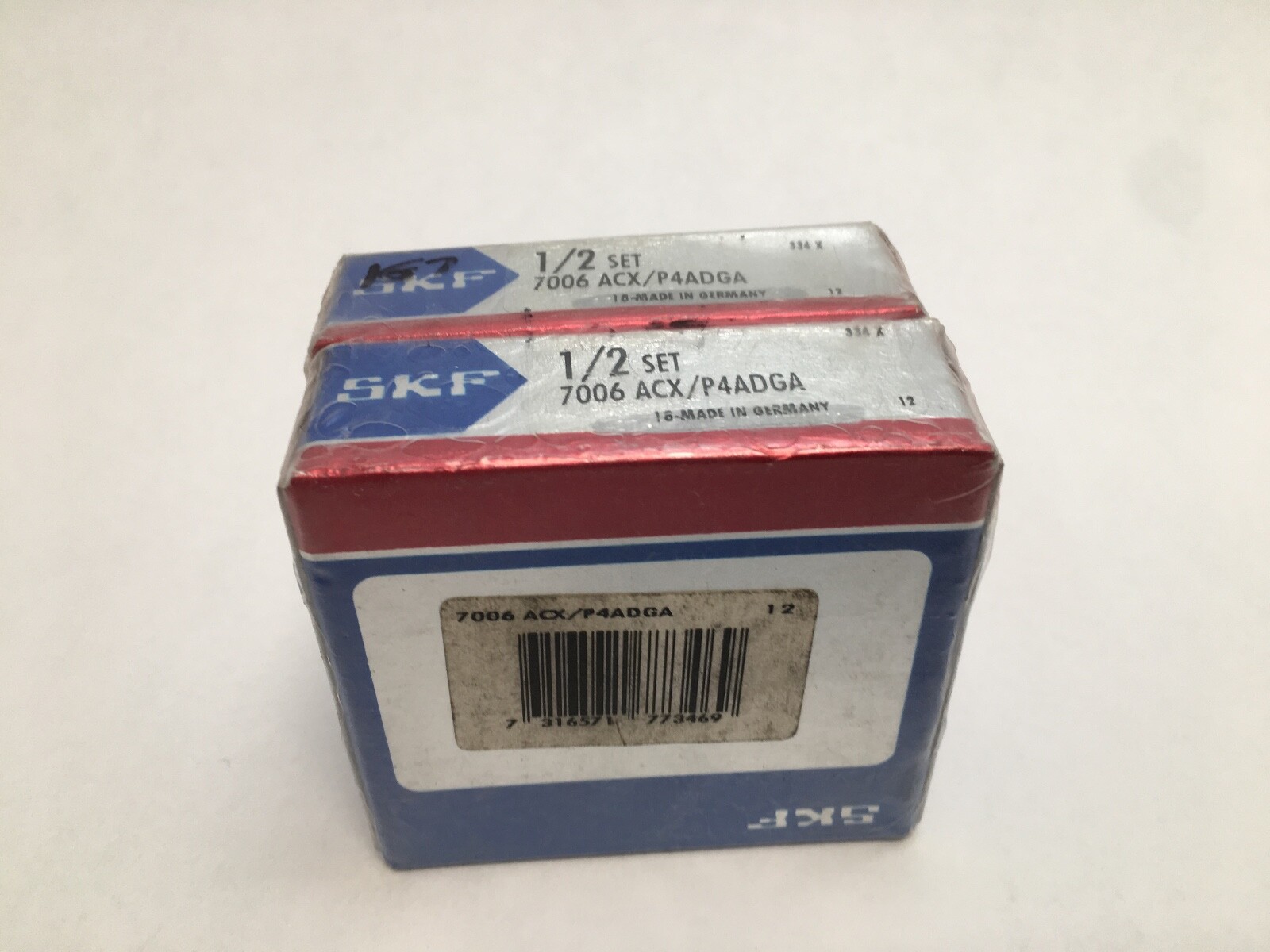

SKF 7006 ACX/P4ADGA is a matched set of two super-precision, high-capacity D design, single row angular contact ball bearings, 30 x 55 x 13 mm per bearing, 25° contact angle. Unit Quantity: 2 Pcs. SKF lists 7006 ACD/P4ADGA as the replacement for this designation, and the specifications below are SKF’s published data for that replacement.

Decoding the designation:

7006 — ISO 70 light dimension series, bore code 06, giving a 30 x 55 x 13 mm envelope per bearing.

A — 25° contact angle.

P4A — SKF super-precision tolerance class P4A, ABEC 7 running accuracy.

DGA — universally matchable set of two bearings, extra light preload.

Specifications:

Dynamic Load Rating: 22,100 N, set rating for the two bearings together. Static Load Rating: 15,300 N, set rating for the two bearings together. Contact Angle: 25°. Precision Class: ABEC 7 / P4A. Preload: extra light. Design: high-capacity D. Contact type: normal contact, two-point. Ring type: one-piece inner and outer rings. Rolling Elements: Ball. Number Of Rows: 1 per bearing. Closure Type: Open. Bearing Material: Bearing steel. Lubricant: none. Coating: without. Cage Type: outer-ring shoulder-guided.

Dimensions and mounting:

Bore Diameter: 30 mm. Outside Diameter: 55 mm. Overall Width: 13 mm per bearing. Total Width: 26 mm across the matched pair. Bore Type: Straight. Mounting Arrangement: universally matchable, back-to-back (DB), face-to-face (DF) or tandem (DT). Item Weight: 0.219 kg (0.48 lb) per matched pair. Harmonization Code: 8482.10.50. eCl@ss code: 23-05-08-04. UNSPSC code: 31171531.

Compatibility and replacement:

Cross-references: SKF 7006 ACD/P4ADGA (SKF’s own replacement); FAG B7006-E-T-P4S; NSK 7006A5TYNSULP4; RHP 7006A5TDULP4. All are 30 x 55 x 13 mm, 25° super-precision angular contact executions.

Frequently asked questions:

What are the dimensions of the SKF 7006 ACX/P4ADGA?

Each bearing is 30 mm bore, 55 mm outside diameter and 13 mm wide. The matched pair measures 26 mm across.

What contact angle and preload does it have?

Contact angle is 25°. The DGA suffix denotes a universally matchable set with extra light preload.

What is the SKF replacement designation?

SKF lists 7006 ACD/P4ADGA as the replacement for 7006 ACX/P4ADGA.
