Super-precision angular contact ball bearing set, 15 x 32 x 9 mm per bearing, ISO 70 series. Matched pair of two SKF bearings for tandem (DT) mounting.
List Price
$148.35
12 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7002 CC/PA9BDT |
| Model | 7002-CC-PA9B-DT 7002C |
| Bearing Type | Angular Contact Ball Bearing |
| Total Width | 18 mm (pair) |
|---|---|
| Arrangement Configuration | Matched pair, tandem |
| Mounting Arrangement | Tandem (DT) |
| Mpn Variants | 7002 CC/PA9BDT; 7002-CC-PA9B-DT; 7002CCPA9BDT |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Closure Type | Open |

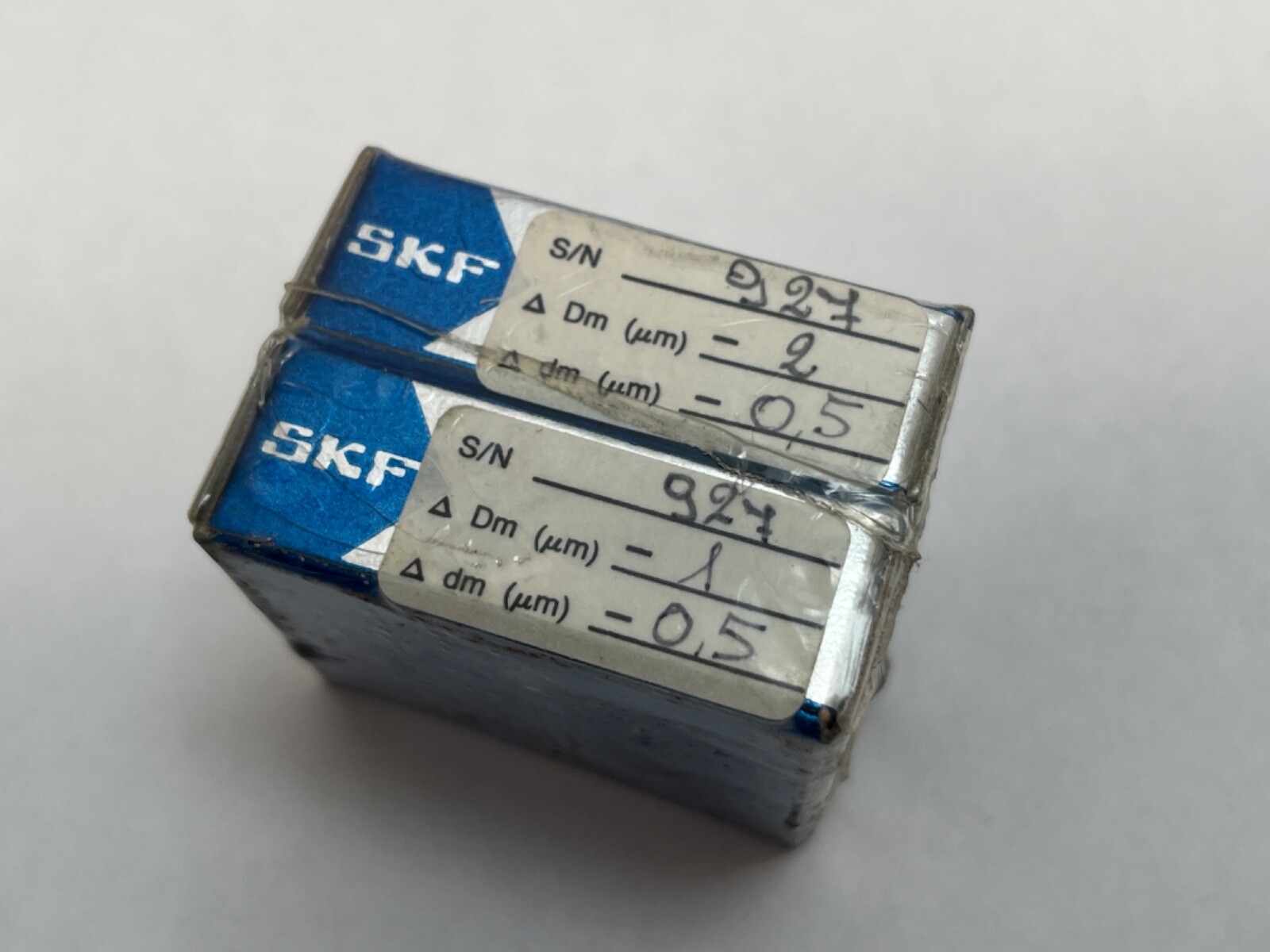

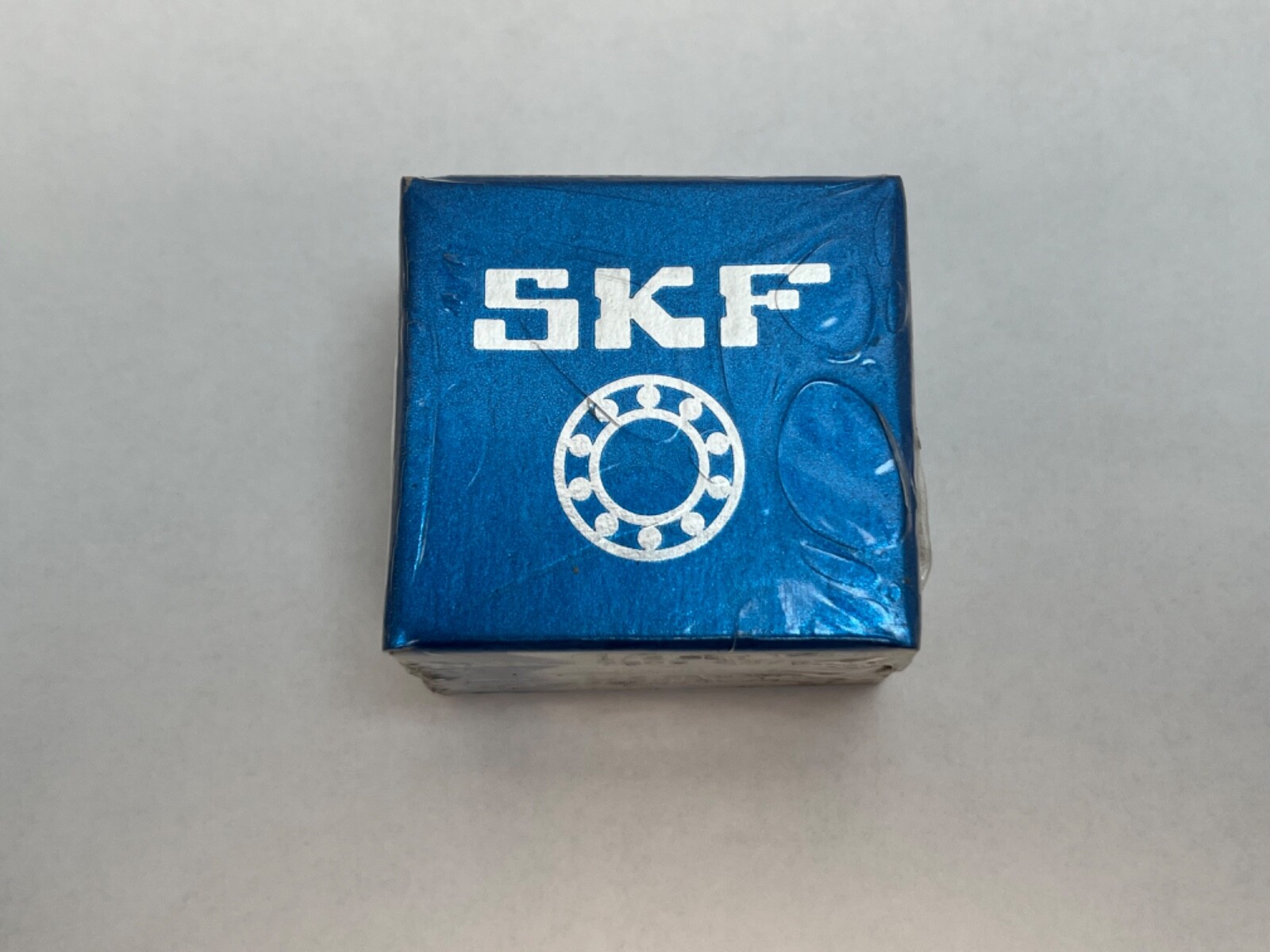

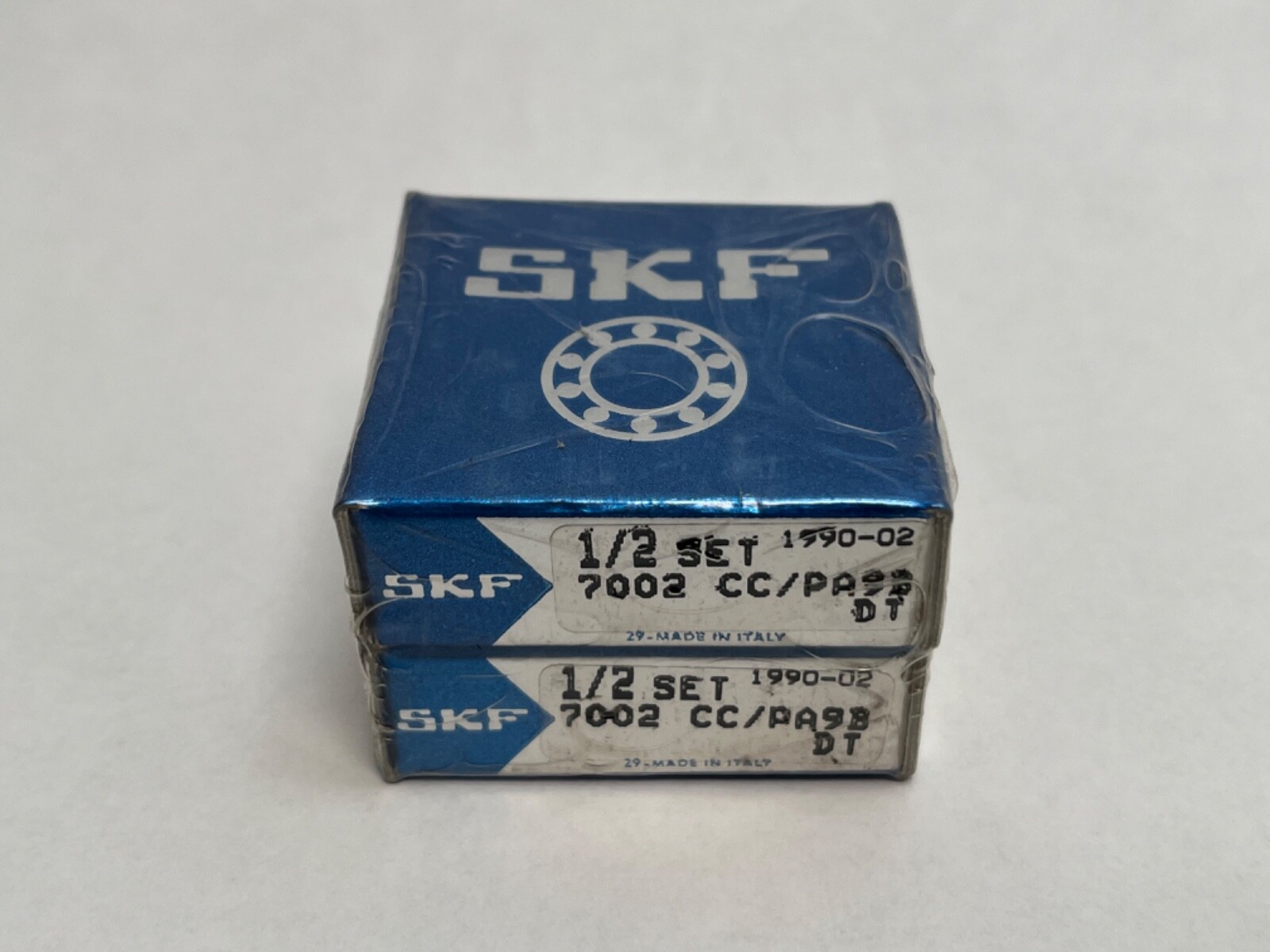

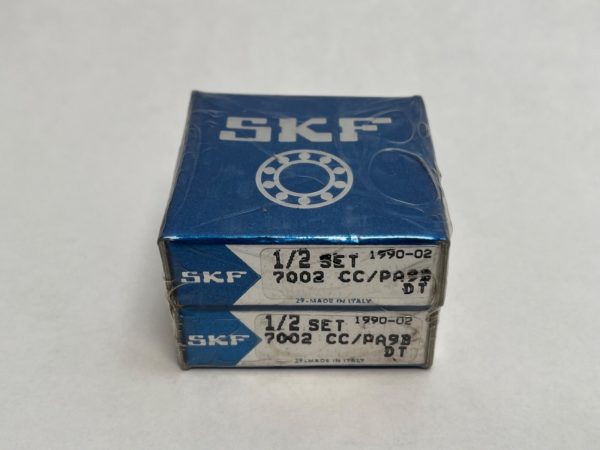

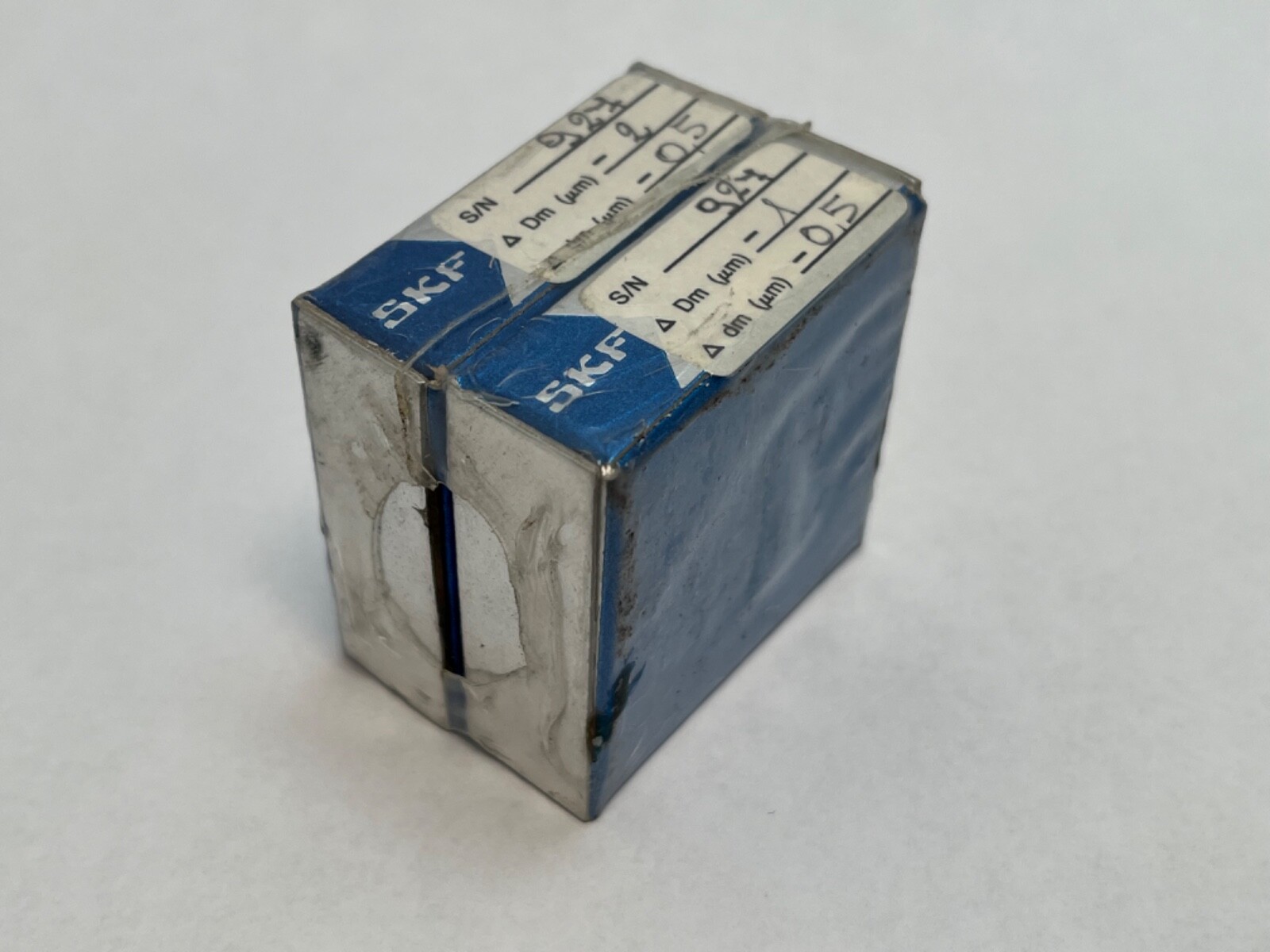

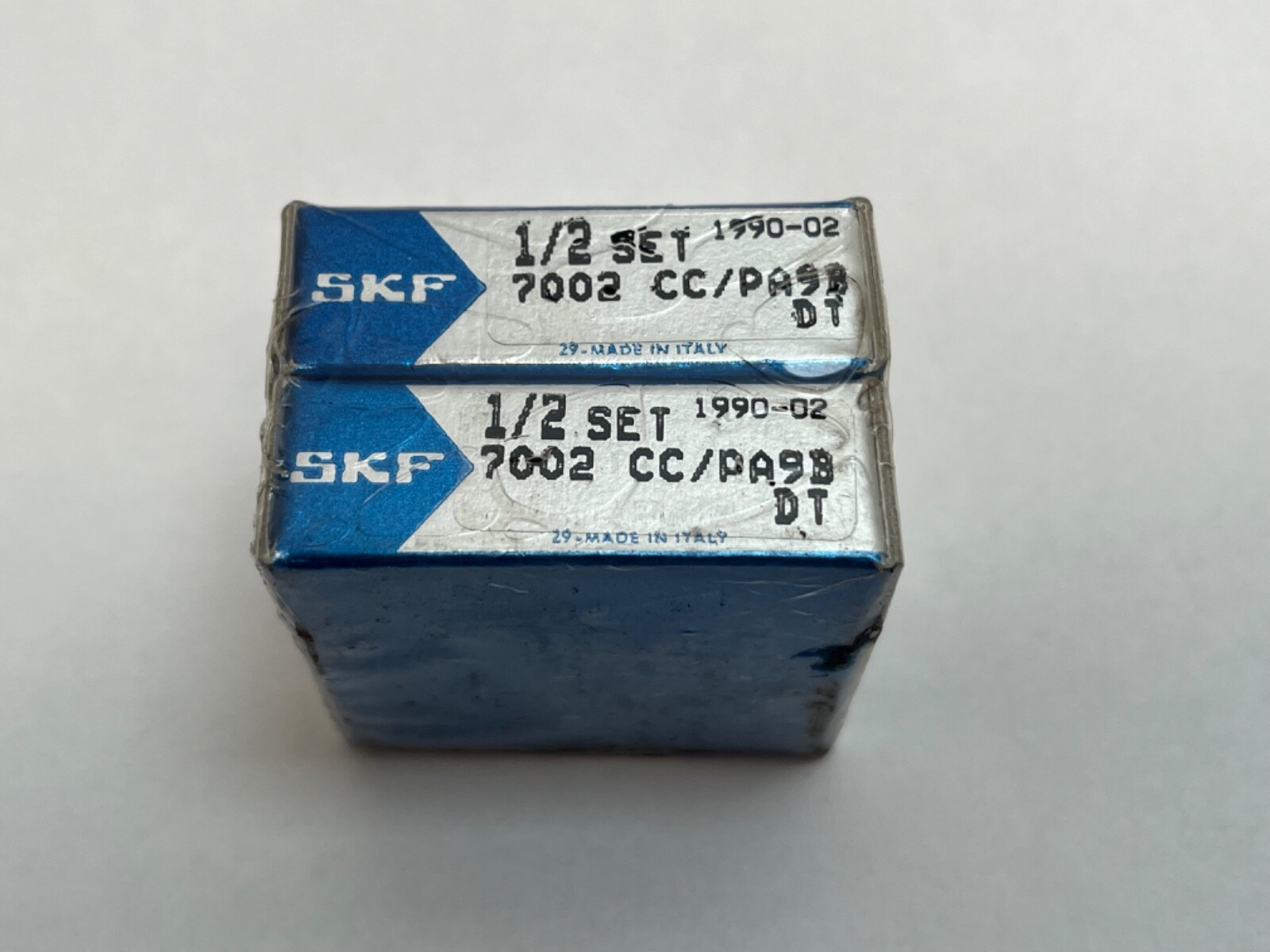

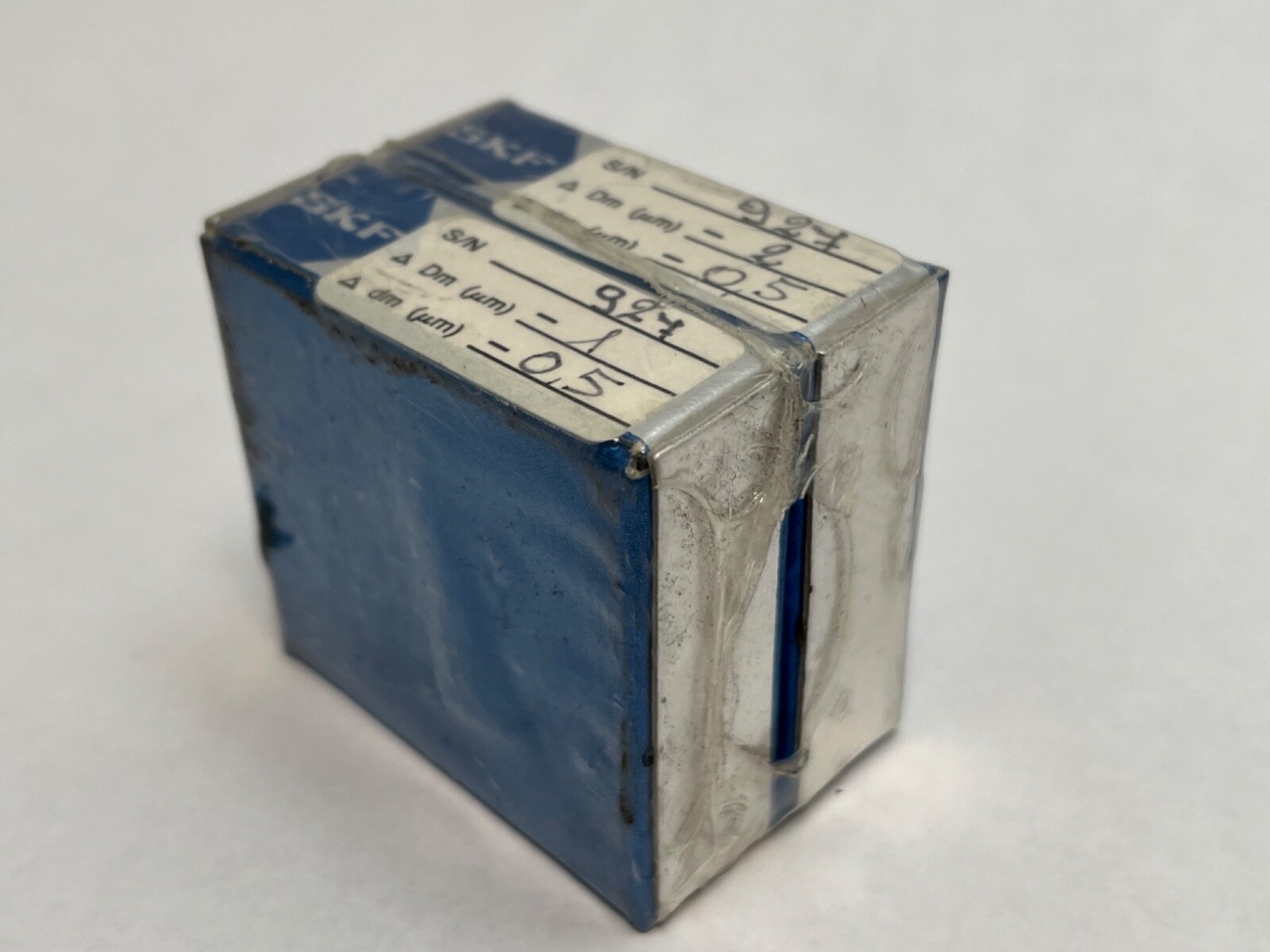

SKF 7002 CC/PA9BDT matched pair (2 Pcs) of single-row super-precision angular contact ball bearings, 15 x 32 x 9 mm per bearing, ISO 70 dimension series, arranged for tandem (DT) mounting.
7002 — ISO 70 extra-light dimension series, bore code 02, 15 x 32 x 9 mm.
DT — matched set of two bearings arranged in tandem, both contact lines facing the same direction, sharing axial load in one direction.
Bore Diameter: 15 mm. Outside Diameter: 32 mm. Overall Width: 9 mm per bearing. Total Width: 18 mm (pair). Rolling Elements: Ball. Number Of Rows: 1 per bearing. Bore Type: Straight. Closure Type: Open. Mounting Arrangement: Tandem (DT). Unit Quantity: 2 Pcs. Country of Origin: Italy. Harmonization Code: 8482.10.50.
Boundary dimensions per bearing: 15 mm bore, 32 mm outside diameter, 9 mm width. Matched pair stack width: 18 mm.
Bore 15 mm, outside diameter 32 mm, width 9 mm per bearing, 18 mm across the pair.
Two bearings, a matched pair arranged in tandem (DT).
DT is a matched set of two bearings in tandem, both contact lines facing the same direction, sharing axial load in one direction.
