Availability:
3 in stock

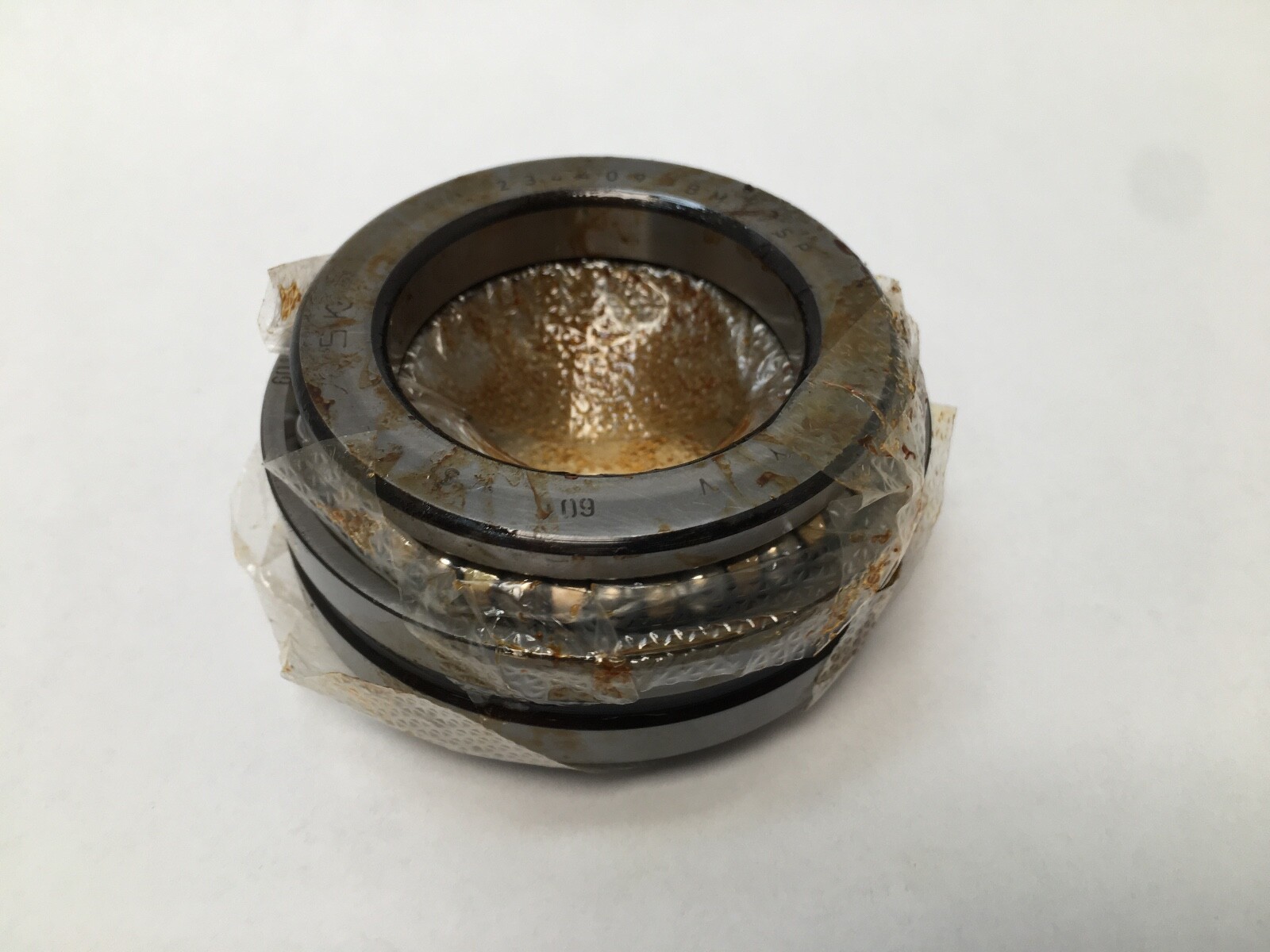

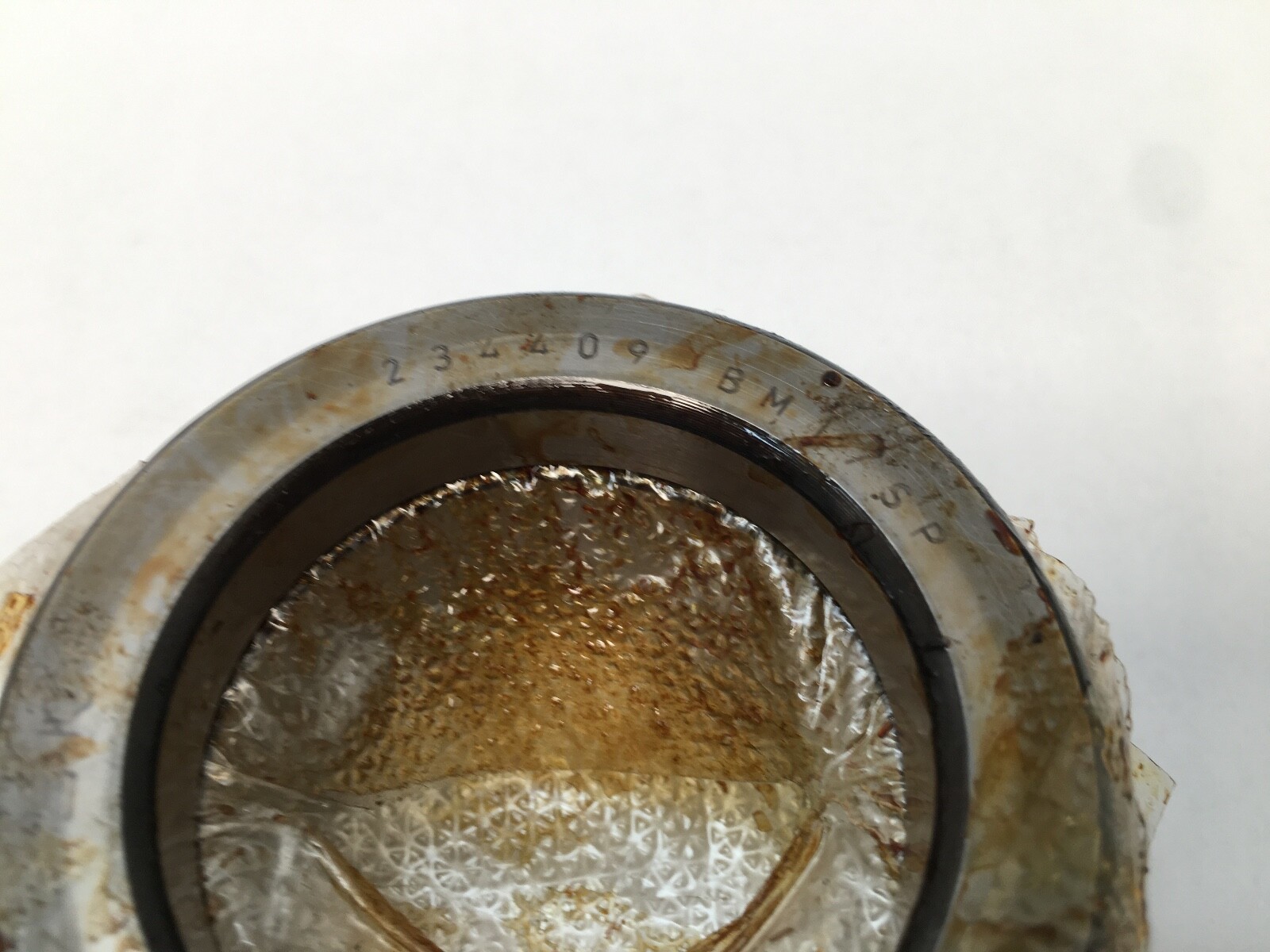

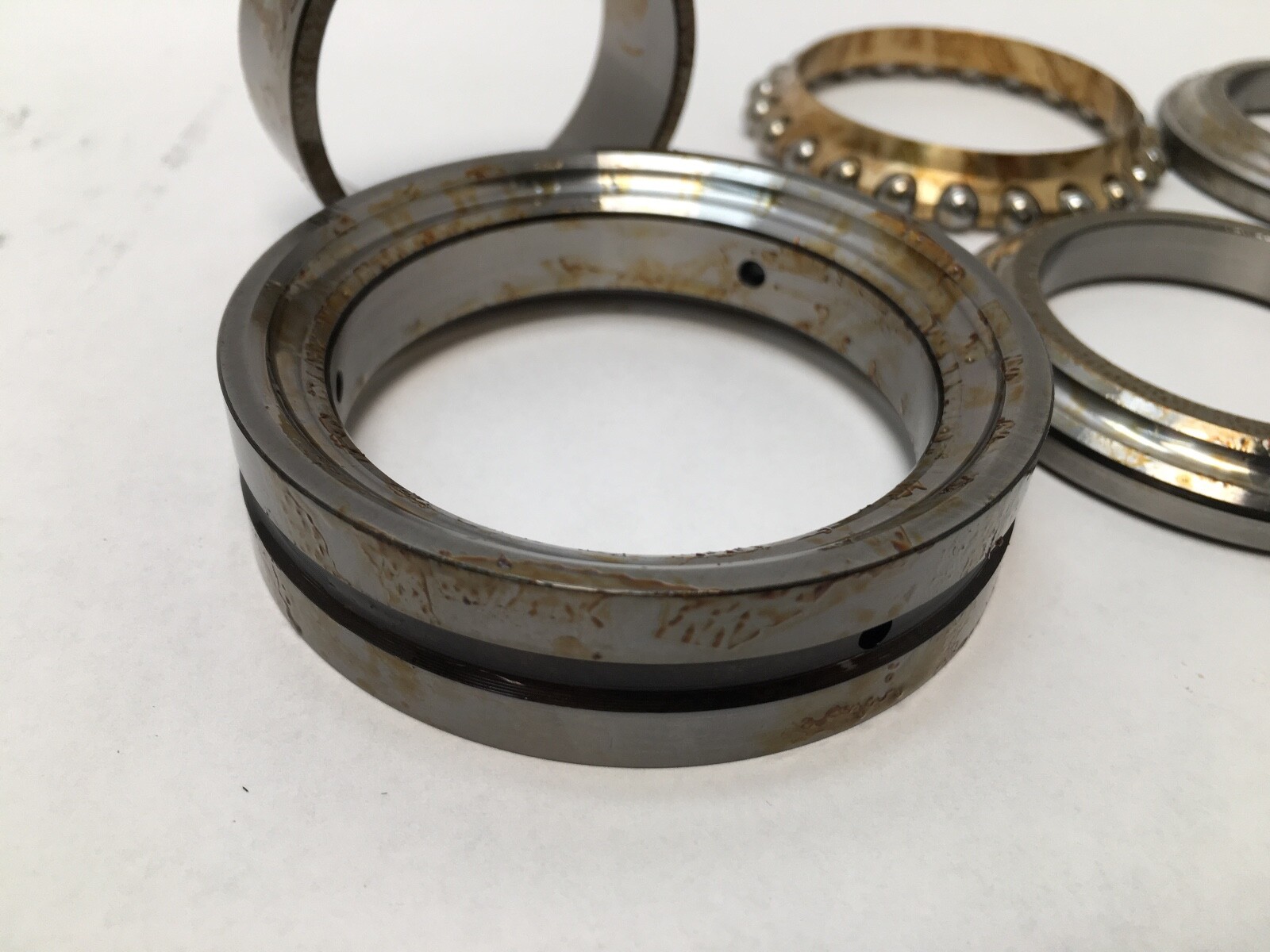

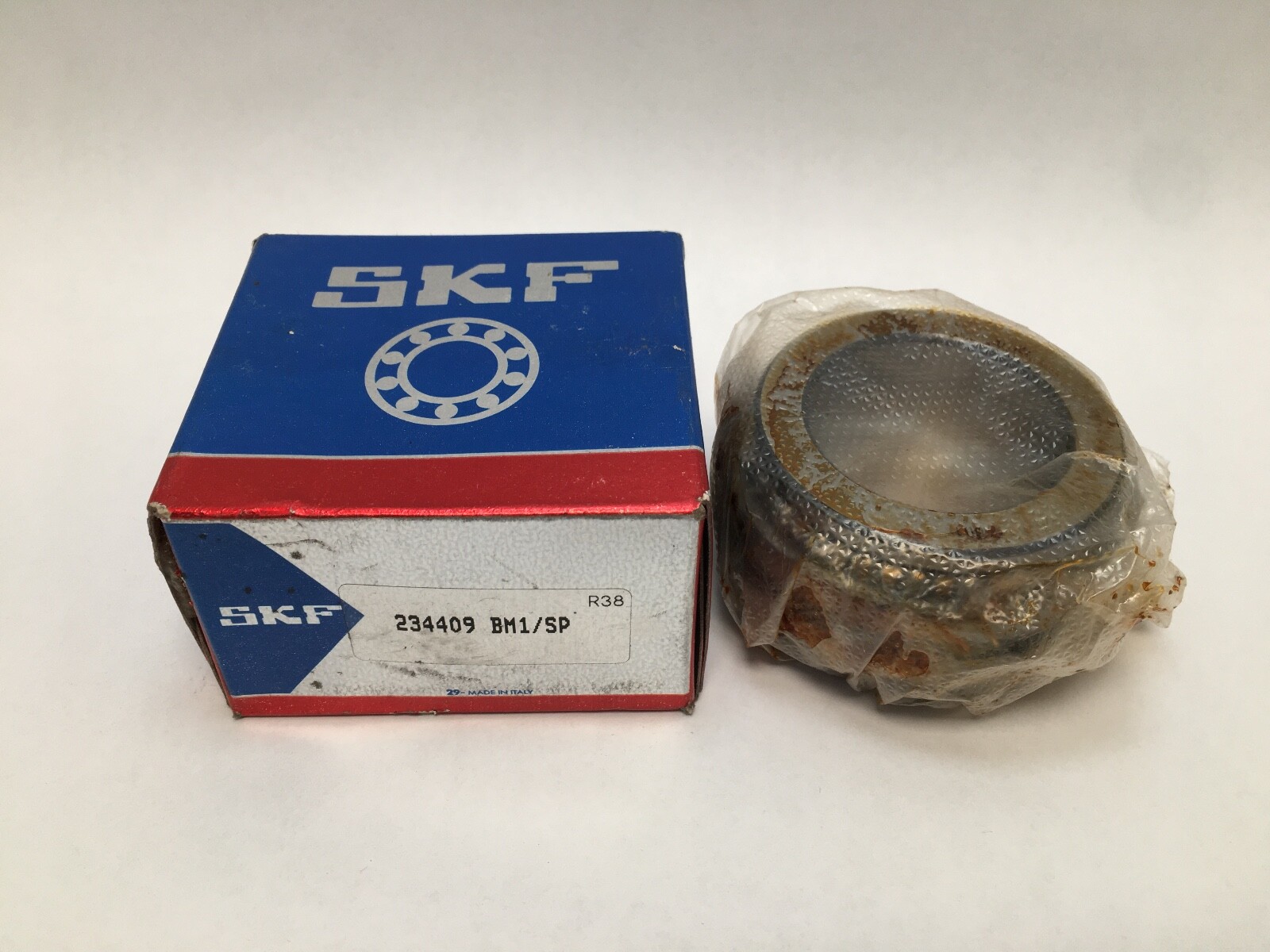

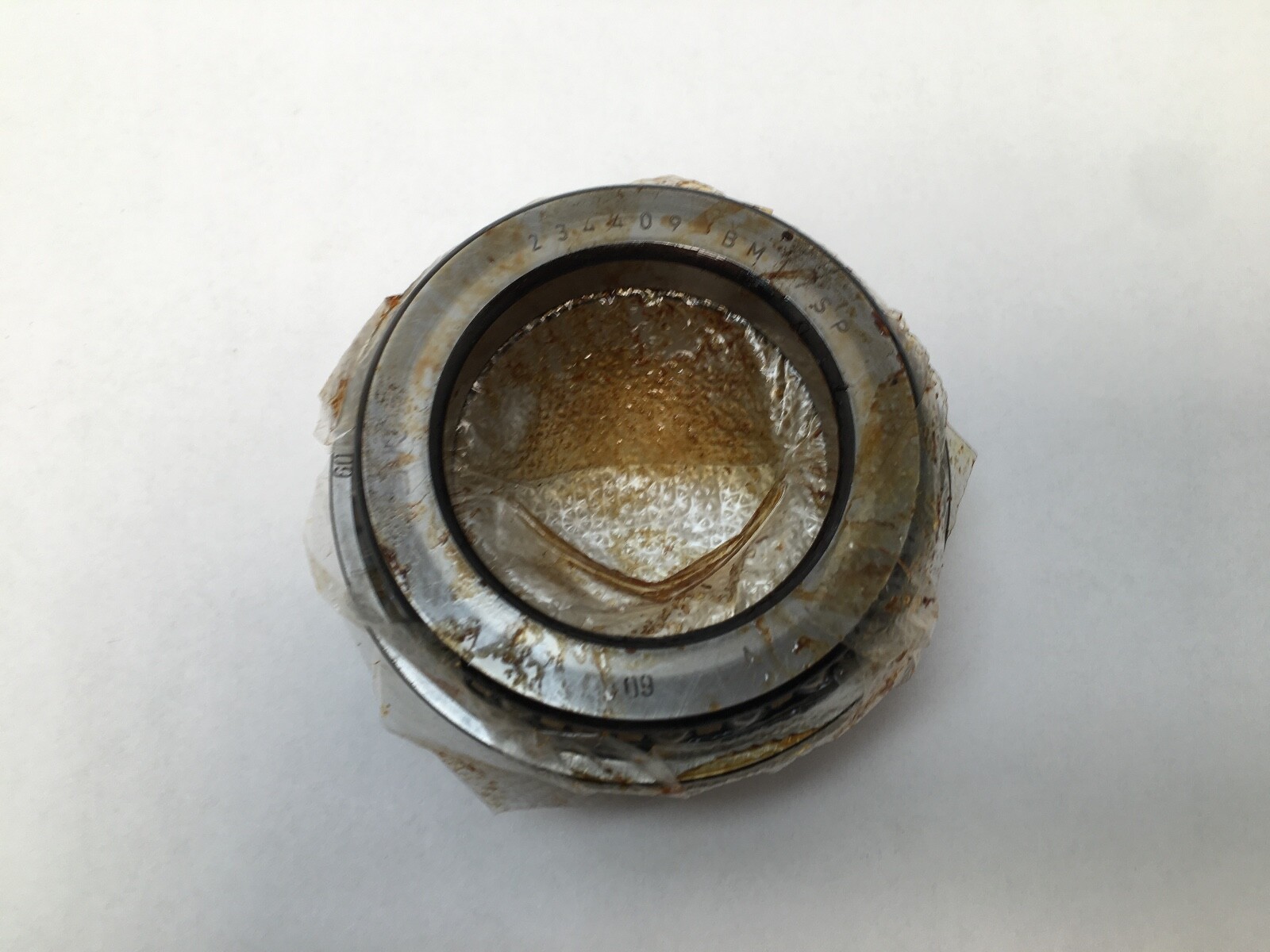

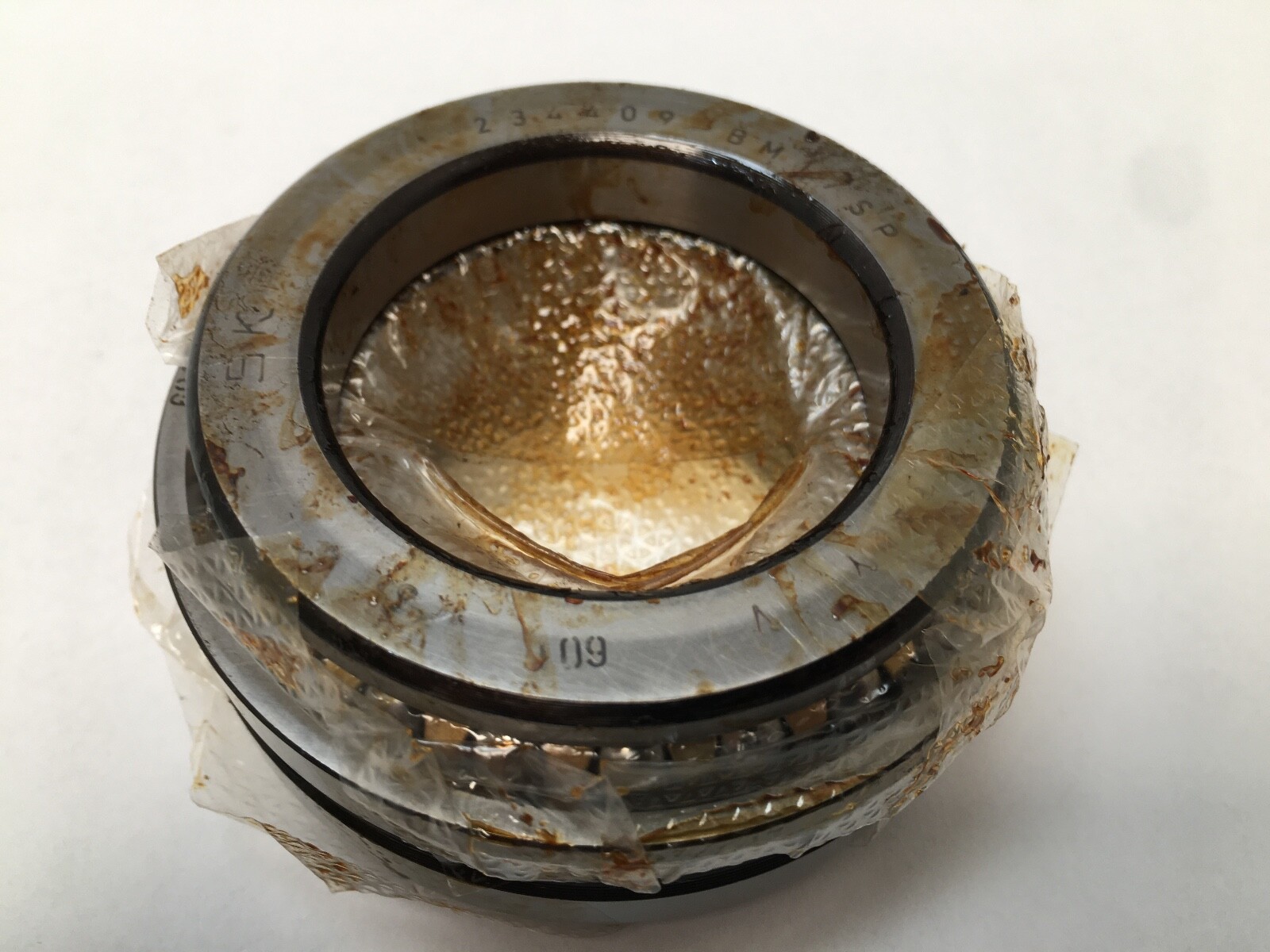

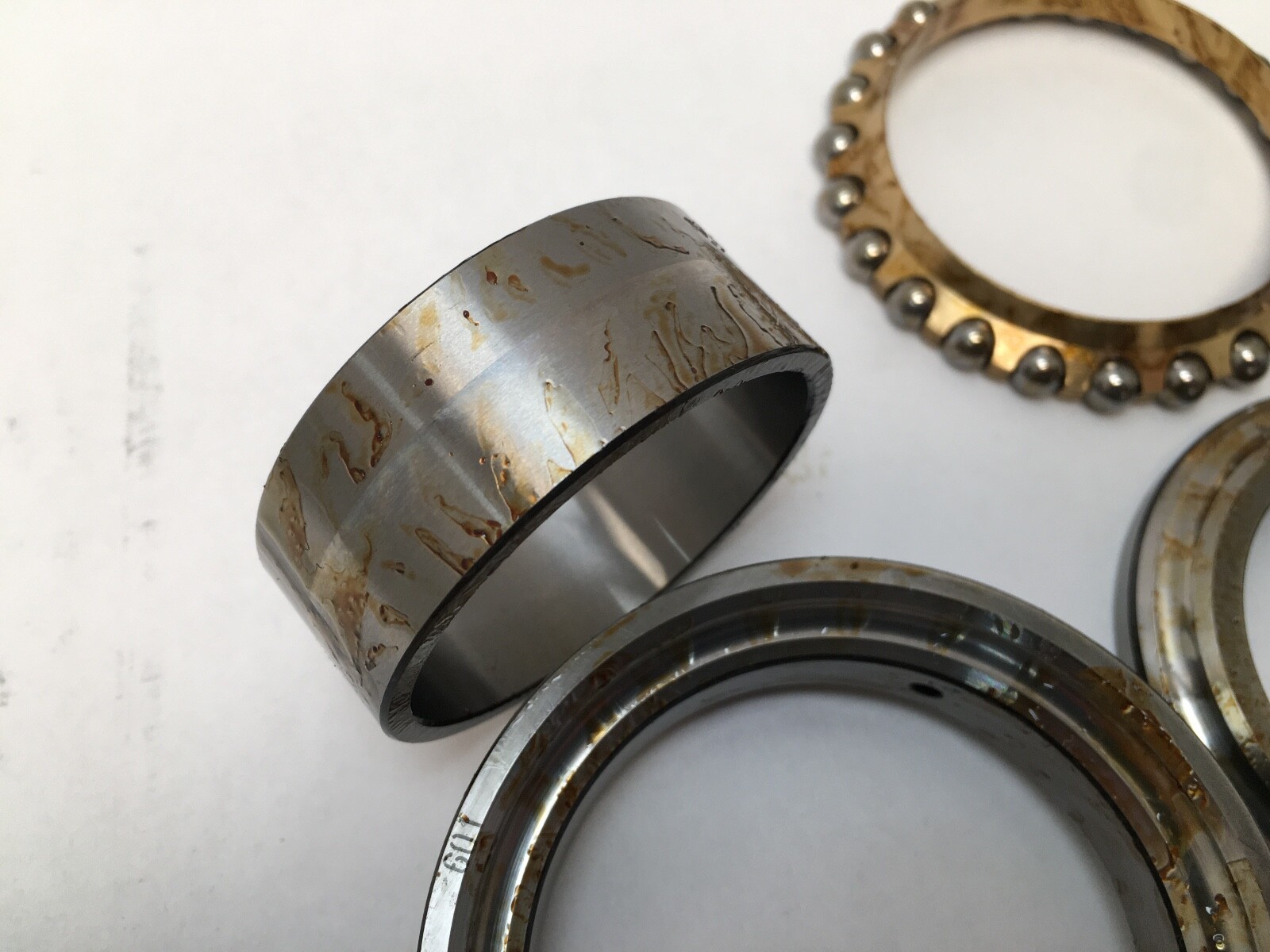

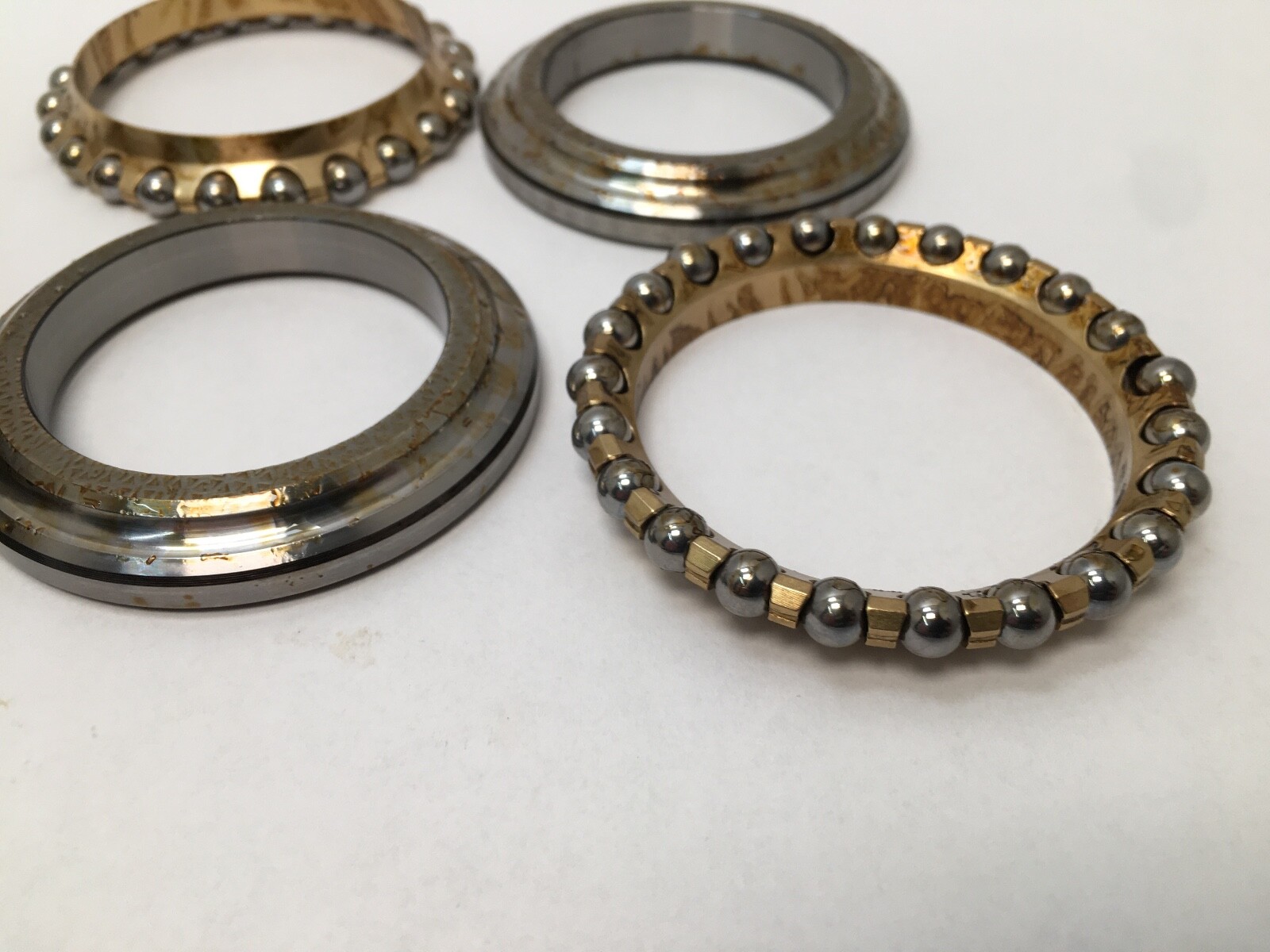

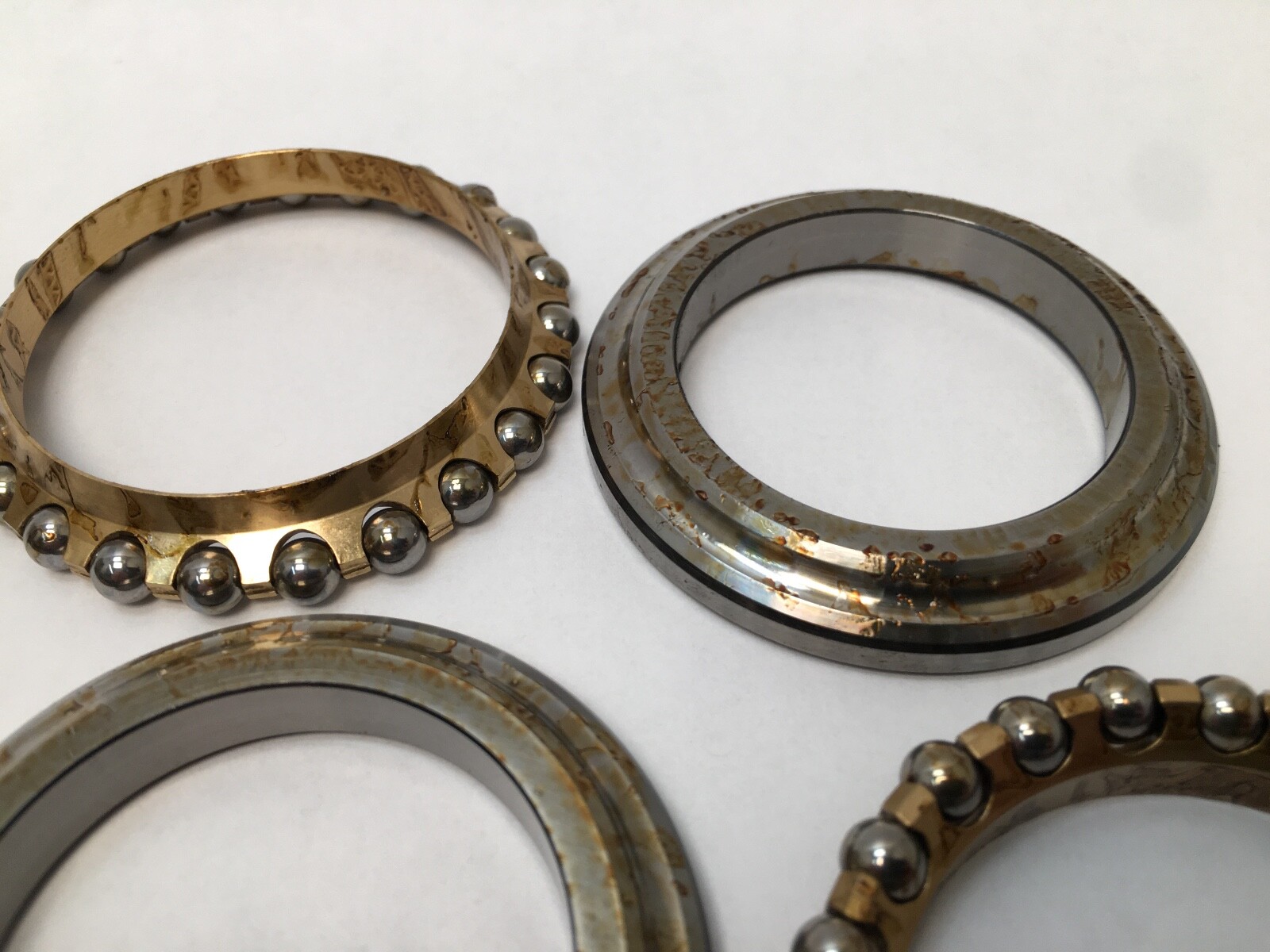

SKF 234409 BM1/SP double direction angular contact thrust ball bearing, 45 x 75 x 38 mm, 60° angle, brass cage, SP precision. For NN 30 K spindle arrangements.
List Price
$435.22
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 234409BM1SP |
| Model | 234409-BM 1 SP |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 75 mm |
| Width | 38 mm |
| Material | Chrome Steel |
|---|---|
| Series | 234400 |
| Mpn Variants | 234409 BM1/SP, 234409-BM1/SP, 234409BM1SP, 234409-BM 1 SP |
| Precision Class | SP |
| Precision Rating | SP |
| Rolling Elements | Ball |
| Cage Material | Machined brass |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 60° |
| Cross Reference 1 | SKF BTW 45 CTN9/SP (replacement) |
|---|---|
| Cross Reference 2 | FAG 234409-M-SP |
| Cross Reference 3 | NSK 45TAC20D |
SKF 234409 BM1/SP is a super-precision double direction angular contact thrust ball bearing with a 60° contact angle. It locates a machine tool spindle axially in both directions and pairs with a double row cylindrical roller bearing of the NN 30 K series on the same shaft seat.
2344 — double direction angular contact thrust ball bearing, series 2344, matched to the NN 30 series.
09 — bore code, 09 x 5 = 45 mm bore.
M1 — machined brass cage.
SP — SKF special precision tolerance class.
Bore Diameter: 45 mm. Outside Diameter: 75 mm. Height: 38 mm. Contact Angle: 60°. Axial Load Capability: Double-direction. Number Of Rows: 2. Cage Material: Machined brass. Precision Class: SP. Rolling Elements: Ball. Closure Type: Open.
The 60° angle gives high axial stiffness. The bearing takes axial load; the companion cylindrical roller bearing takes the radial load.

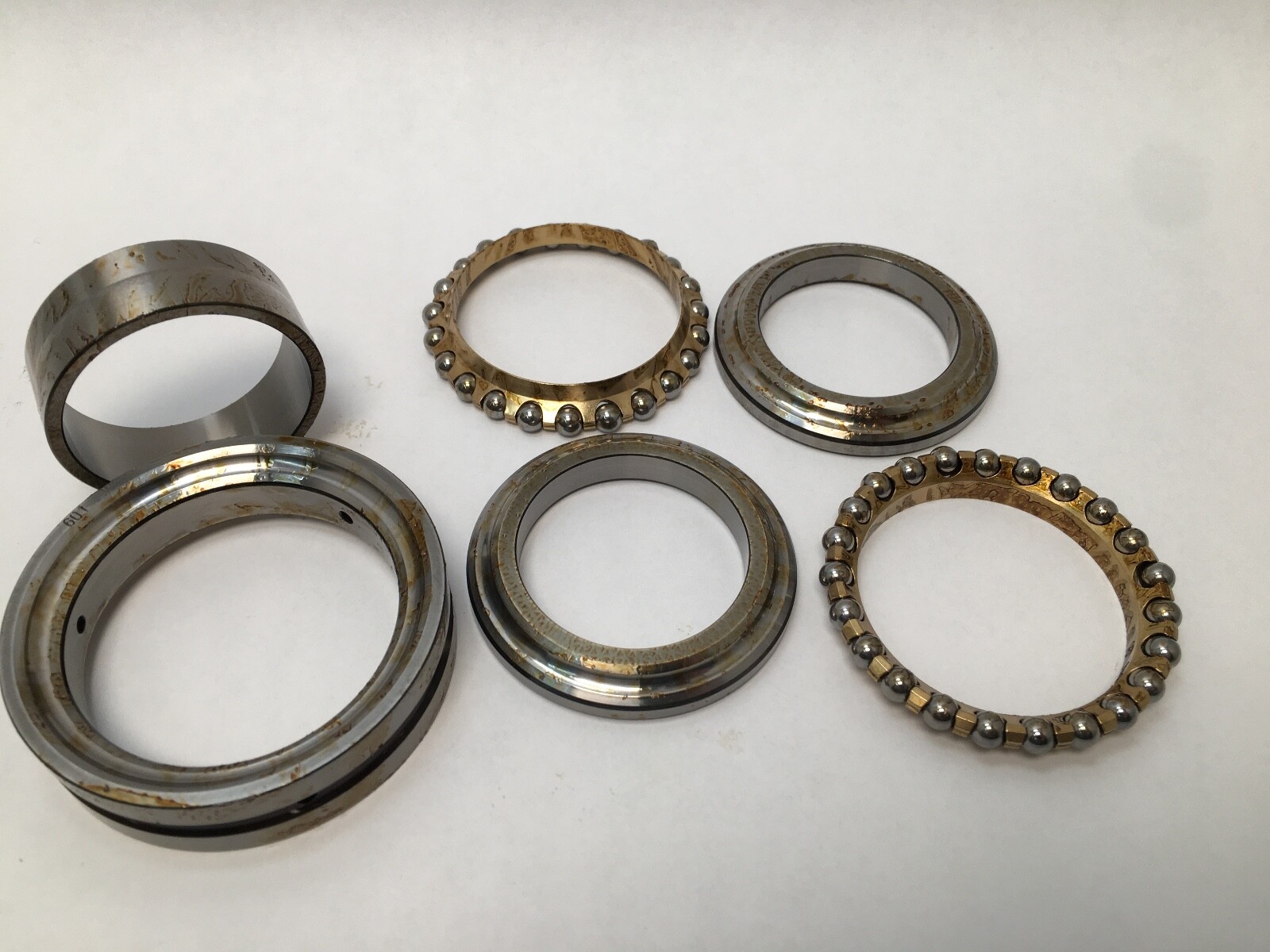

Unit Quantity: 1 Pc. Complete double direction bearing.
SKF replacement: BTW 45 CTN9/SP. Same envelope and type: FAG 234409-M-SP, NSK 45TAC20D. MPN variants: 234409 BM1/SP, 234409-BM1/SP, 234409BM1SP, 234409-BM 1 SP. Harmonization Code: 8482.10.50.28.
