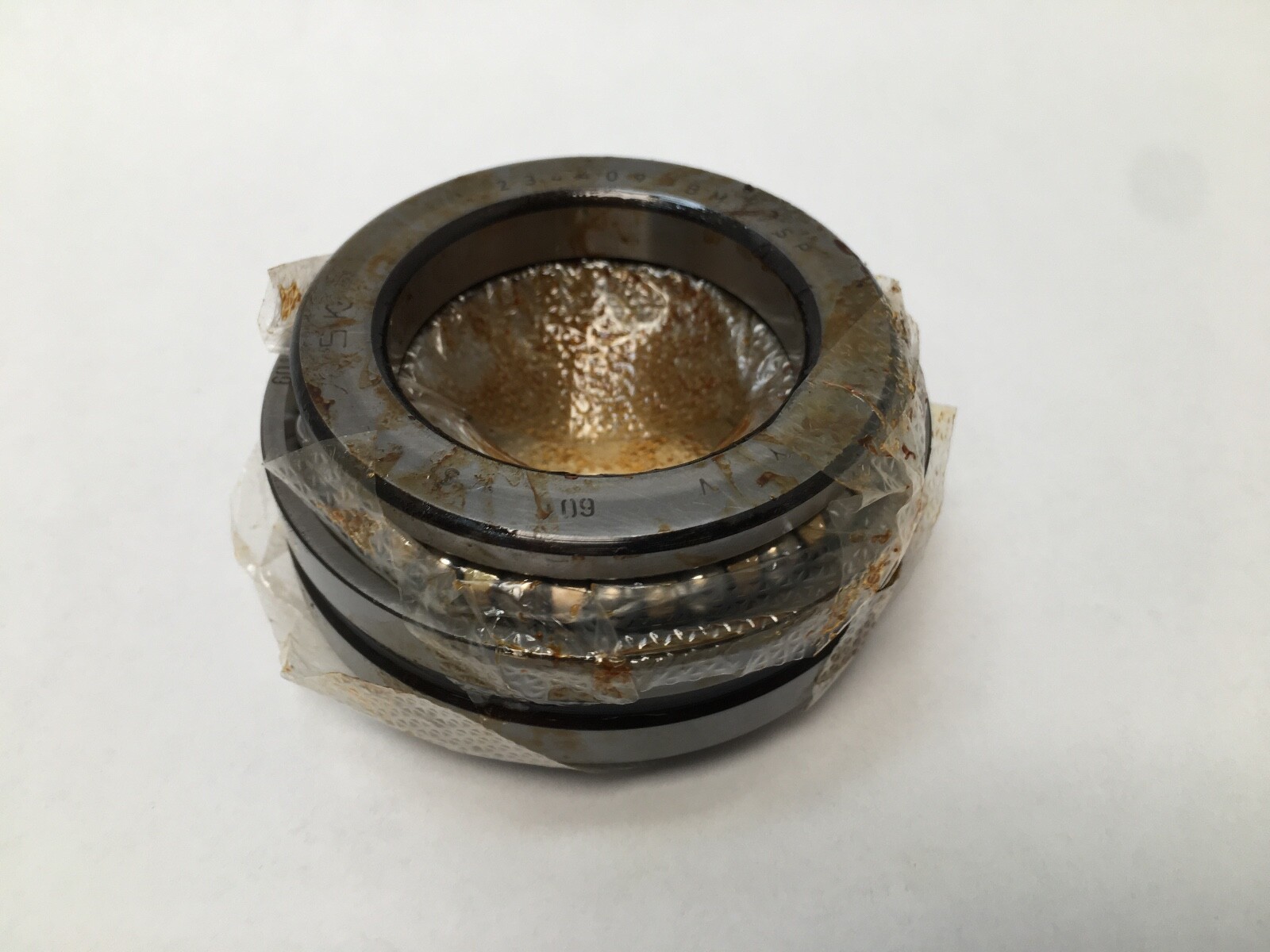

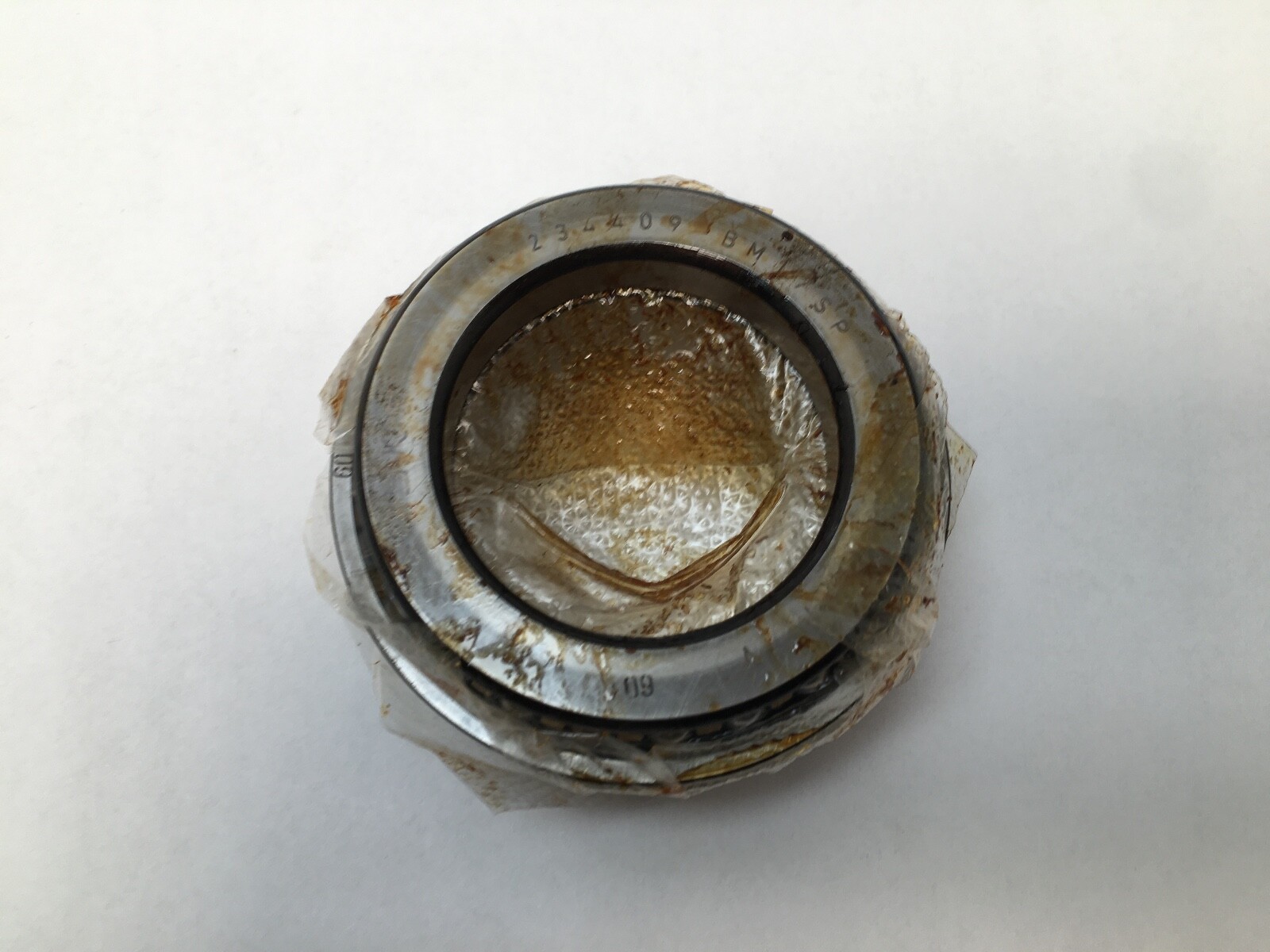

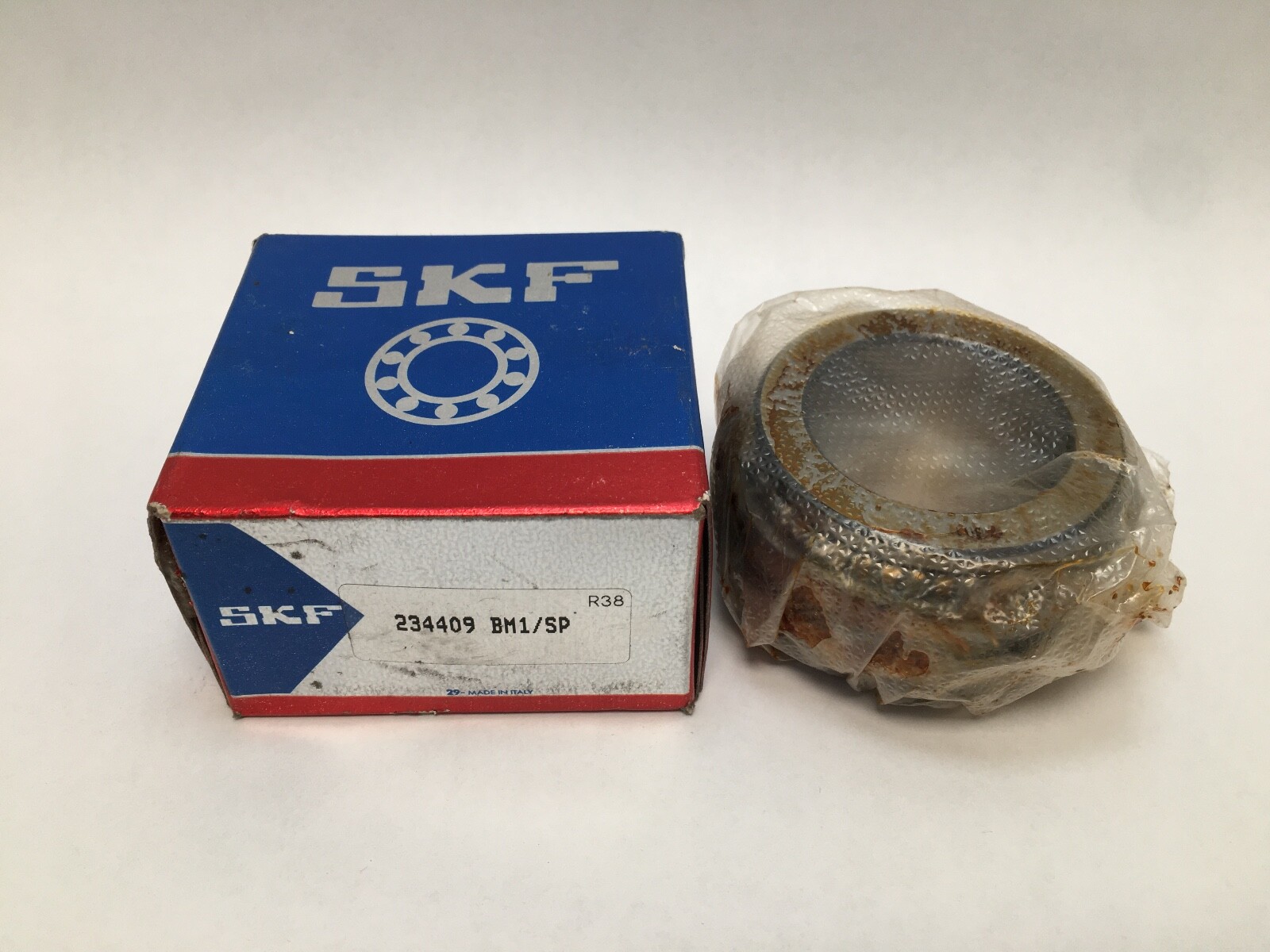

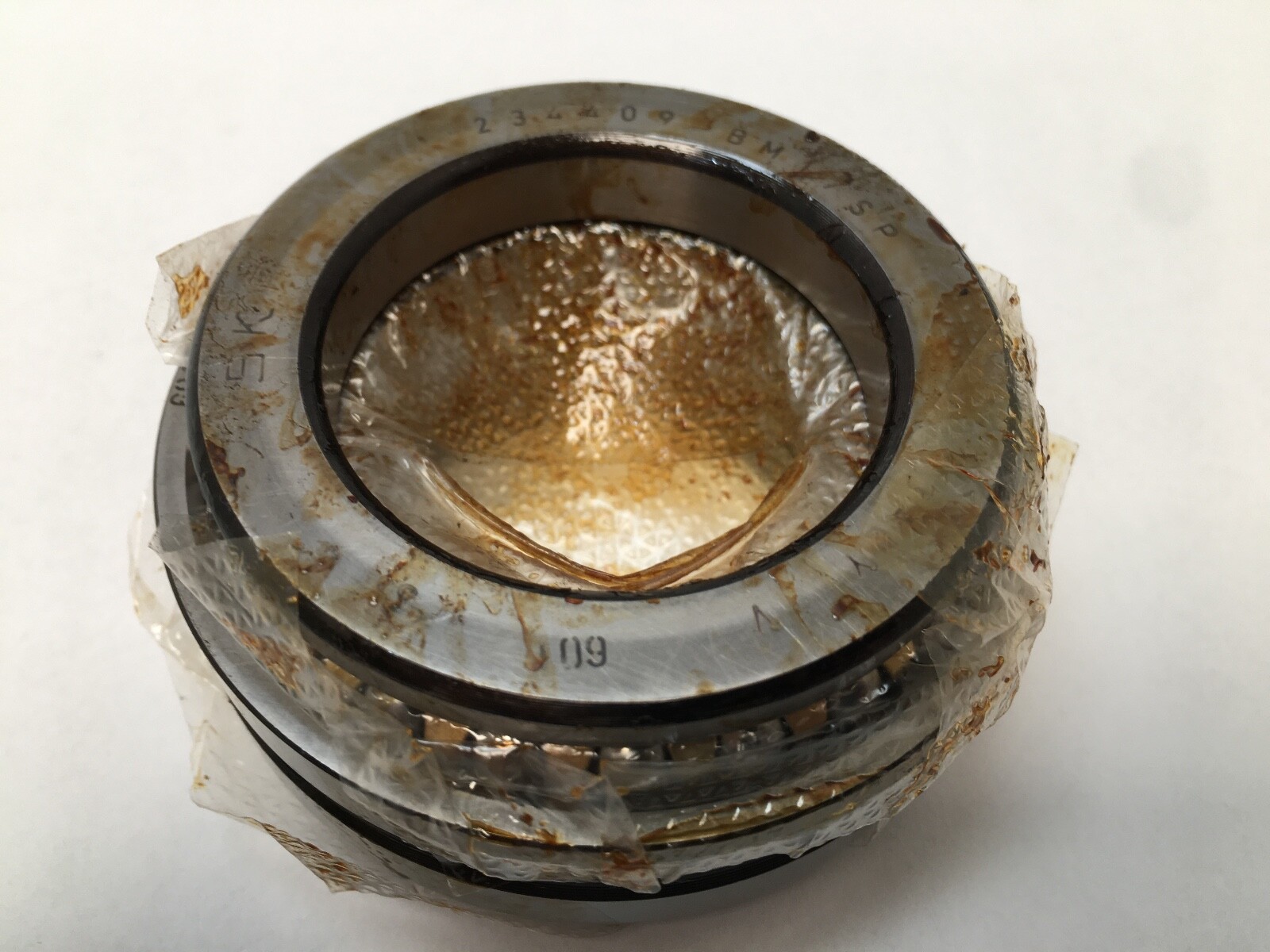

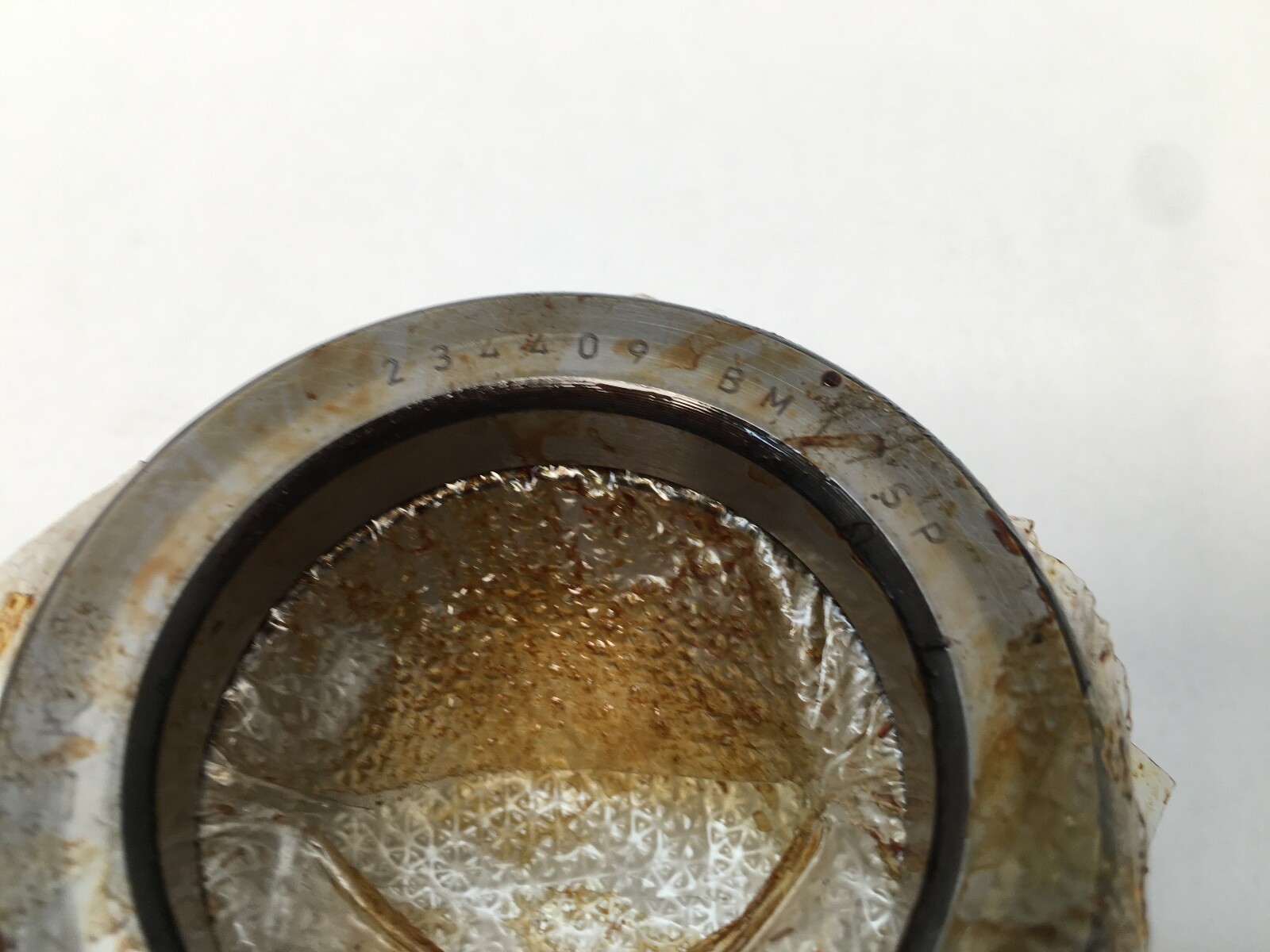

SKF 234409 BM1/SP double-direction angular contact thrust ball bearing, 45 x 75 x 38 mm, 60° contact angle, SP class, one-piece machined brass cage.
List Price
$435.22
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 234409 BM1/SP |
| Model | 234409-BM 1 SP |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 75 mm |
| Width | 38 mm |
| Material | Chrome Steel |
|---|---|
| Series | 234400 |
| Mpn Variants | 234409 BM1/SP; 234409-BM1/SP; 234409BM1SP; 234409-BM 1 SP; 234409 BM1 SP; 234409 |
| Precision Class | SP |
| Precision Rating | SP |
| Rolling Elements | Ball |
| Cage Material | Machined brass |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 60° |
| Industry Terms | ball screw support bearing; double-direction thrust angular contact bearing; axial angular contact ball bearing for screw drives; 60 degree thrust bearing; machine tool screw bearing |
| Common Misspellings | SKF 234409 BM1 SP; SKF 234409BM1SP; SKF 234409 BMI/SP; SFK 234409 BM1/SP; SKF 234409BM/SP |
| Application Types | Ball screw fixed-end support; machine tool feed axes; precision linear drives |
| Closure Type | Open |
| Cross Reference 1 | SKF BTW 45 CTN9/SP - plastic cage |
|---|---|
| Cross Reference 2 | FAG 234409-M-SP |
SKF 234409 BM1/SP double-direction angular contact thrust ball bearing with a 60° contact angle, super-precision class SP. One complete double-direction bearing. Unit Quantity: 1 Pc.
2344 — double-direction angular contact thrust ball bearing series 2344.
09 — bore code, 09 x 5 = 45 mm bore.
BM1 — one-piece machined brass cage.
SP — SKF super-precision tolerance class for screw-drive bearings.
Bore Diameter: 45 mm. Outside Diameter: 75 mm. Overall Height: 38 mm. Contact Angle: 60°. Axial Load Capability: Double-direction. Number Of Rows: 2. Rolling Elements: Ball. Closure Type: Open. Cage Material: Machined brass. Precision Class: SP. Series: 234400. Harmonization Code: 8482.10.50.28.
Cross-Reference 1: SKF BTW 45 CTN9/SP – SKF’s stated replacement for the 234409 BM1/SP, with a polyamide cage and a 22.1 kN dynamic rating. Cross-Reference 2: FAG 234409-M-SP.
Bore 45 mm, outside diameter 75 mm, height 38 mm.

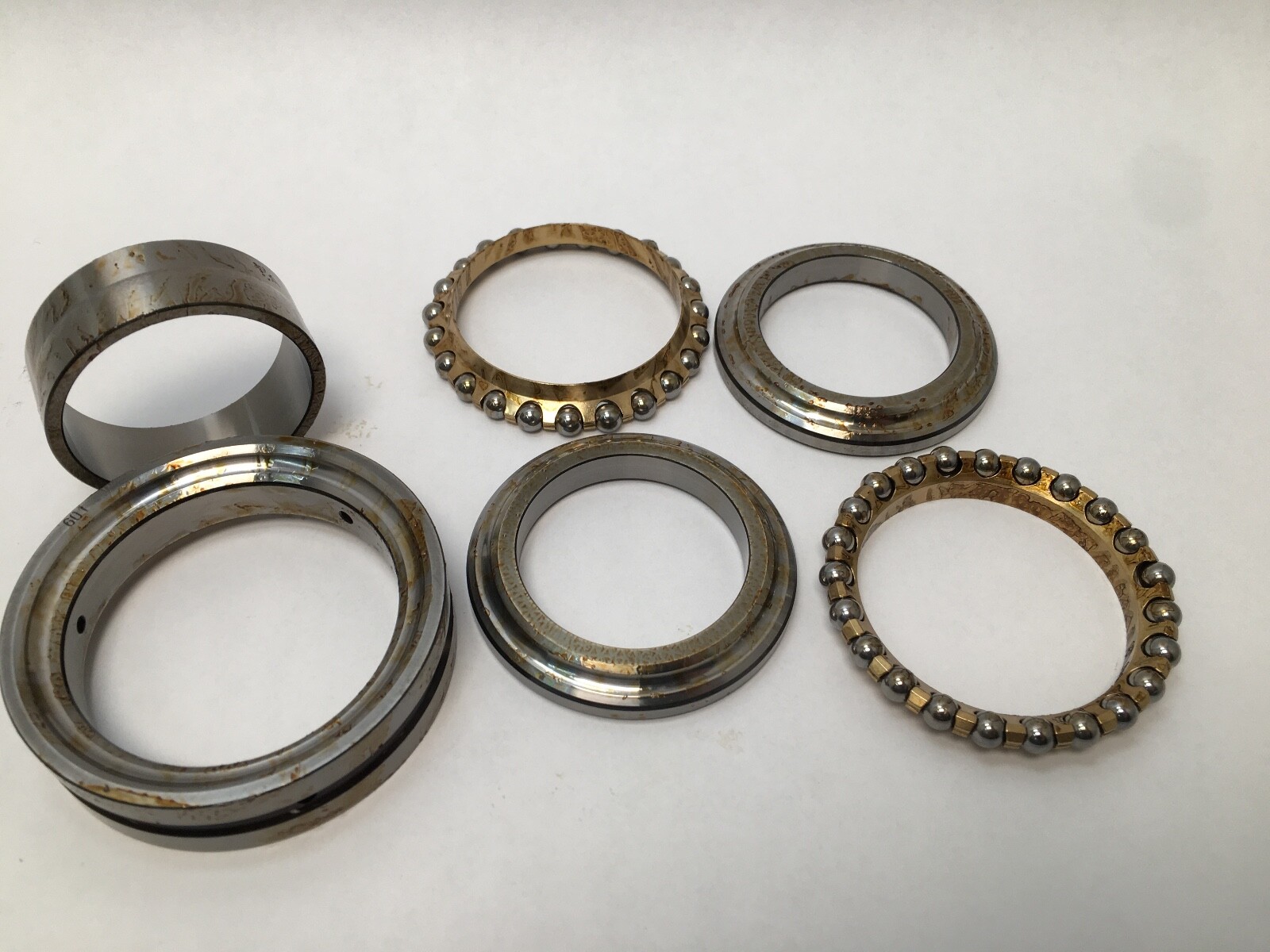

Contact angle 60°, double-direction, two rows of balls.

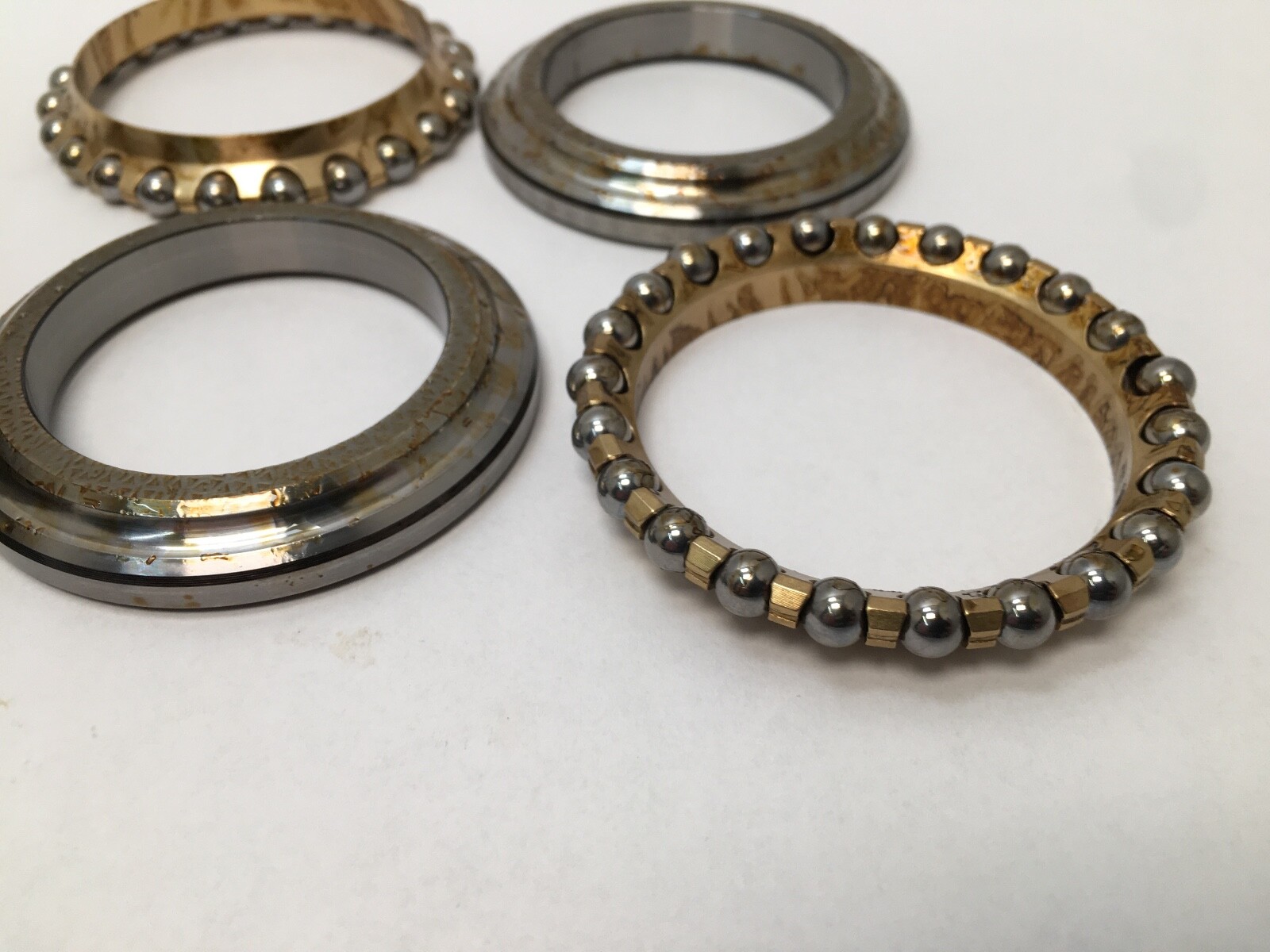

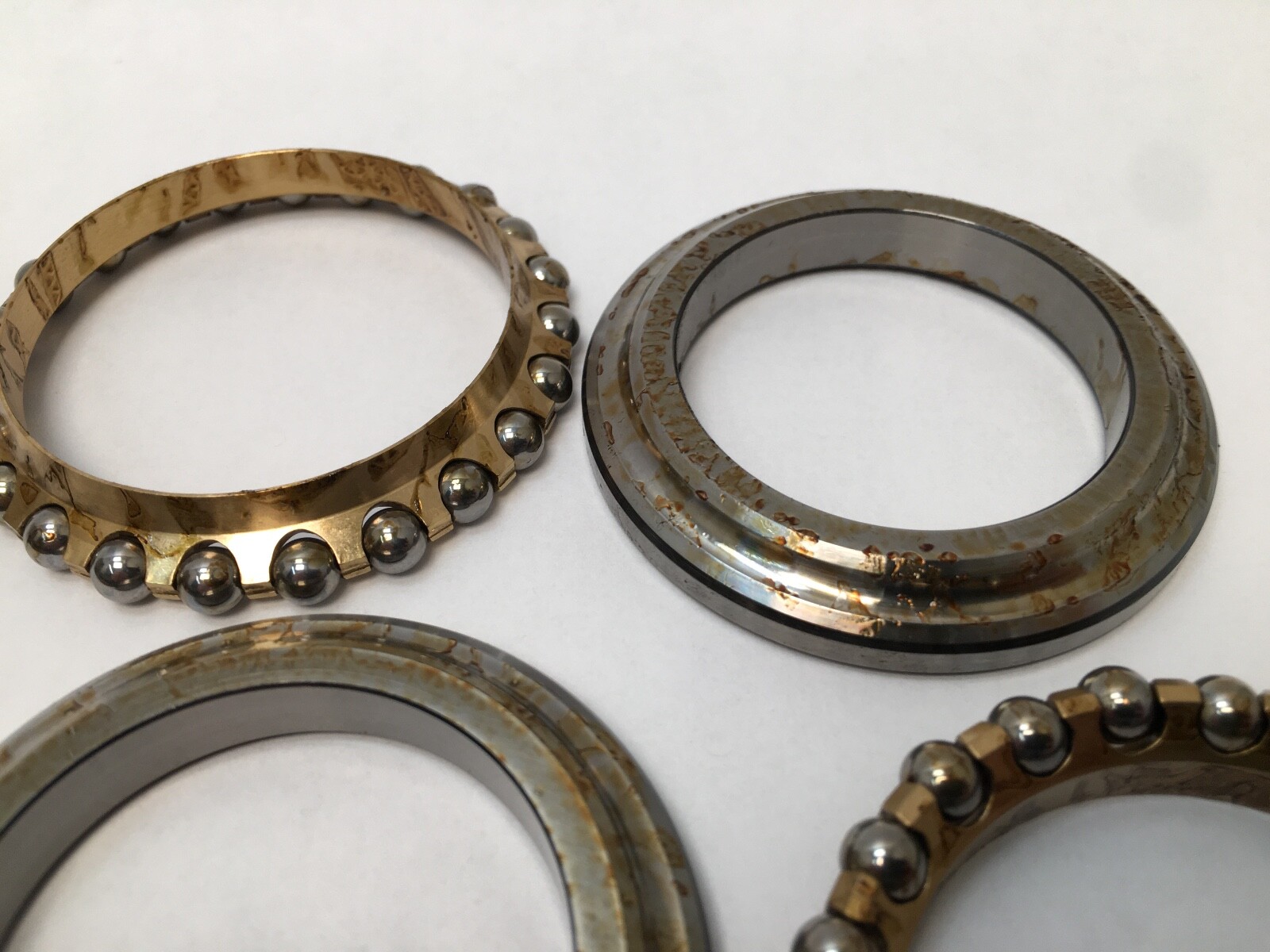

BM1 is a one-piece machined brass cage. SP is SKF’s super-precision tolerance class.
