Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

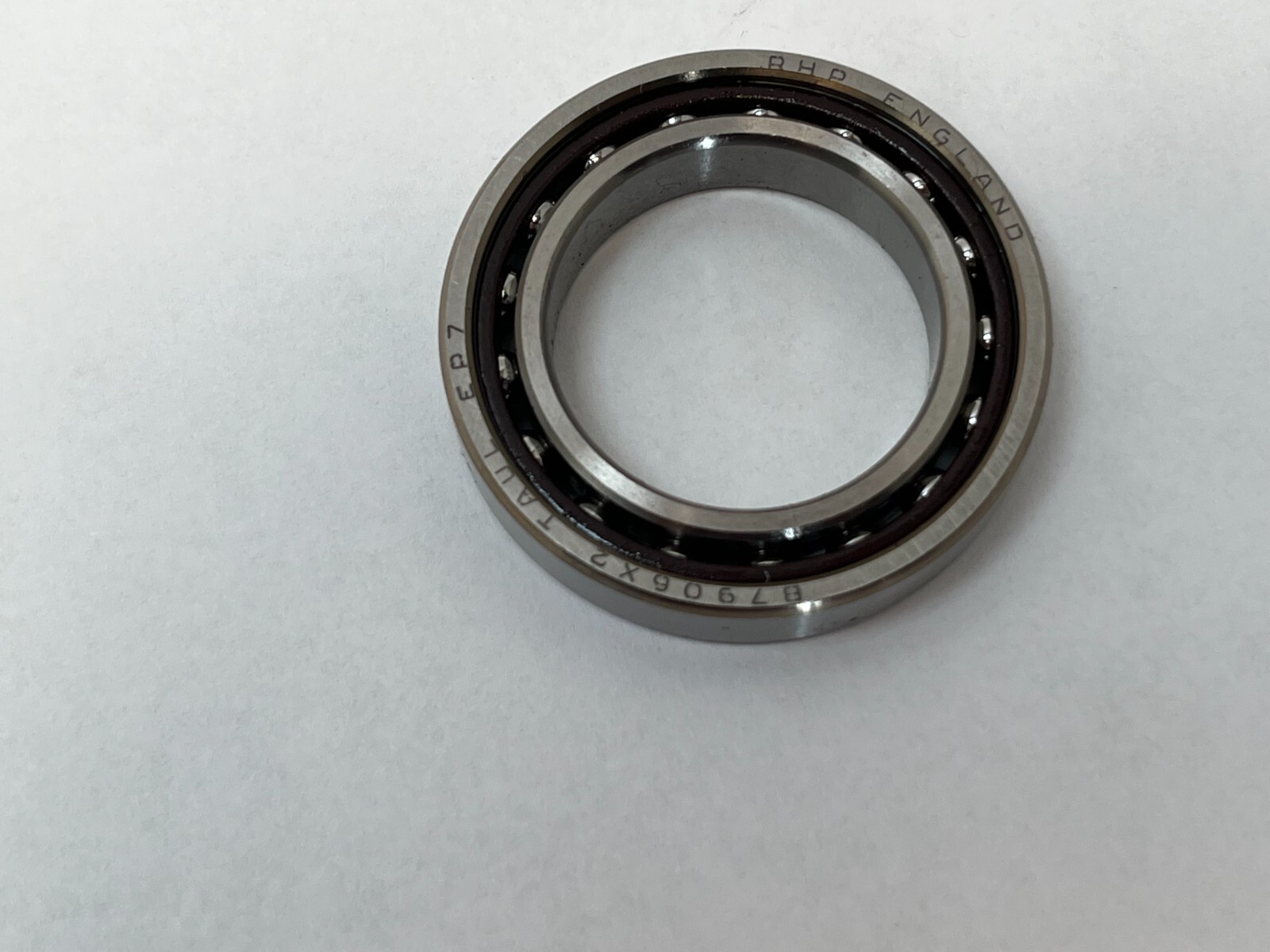

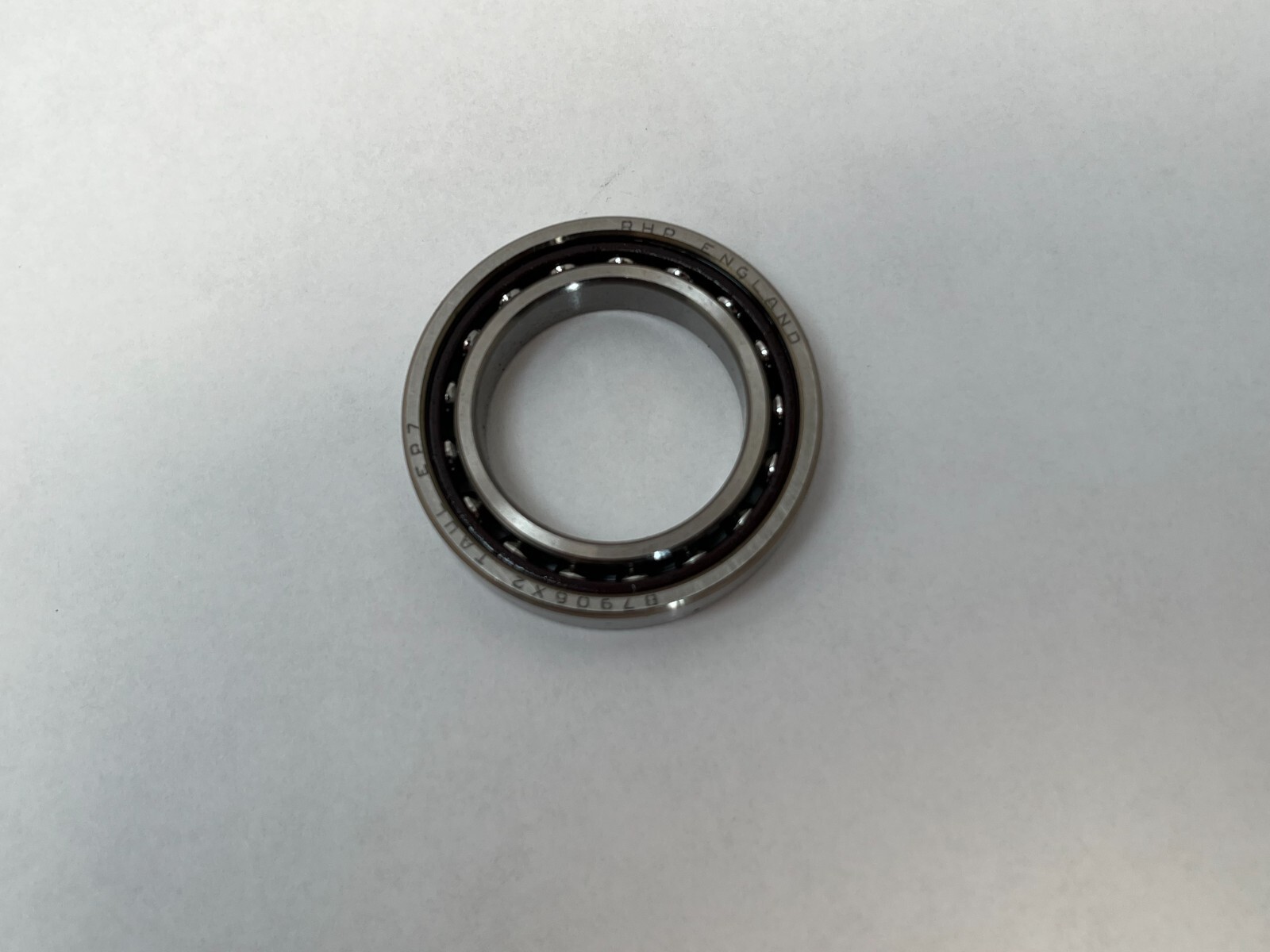

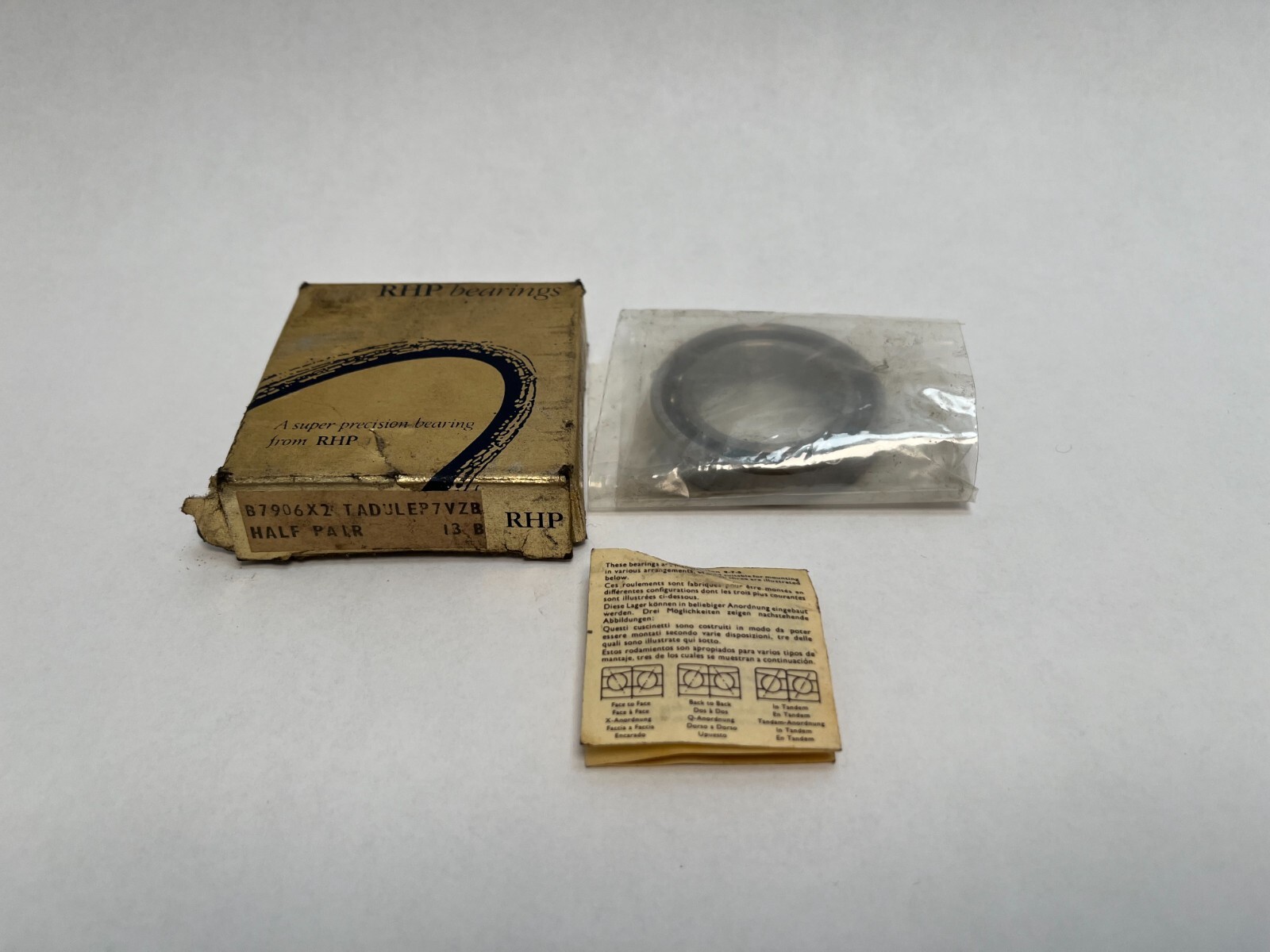

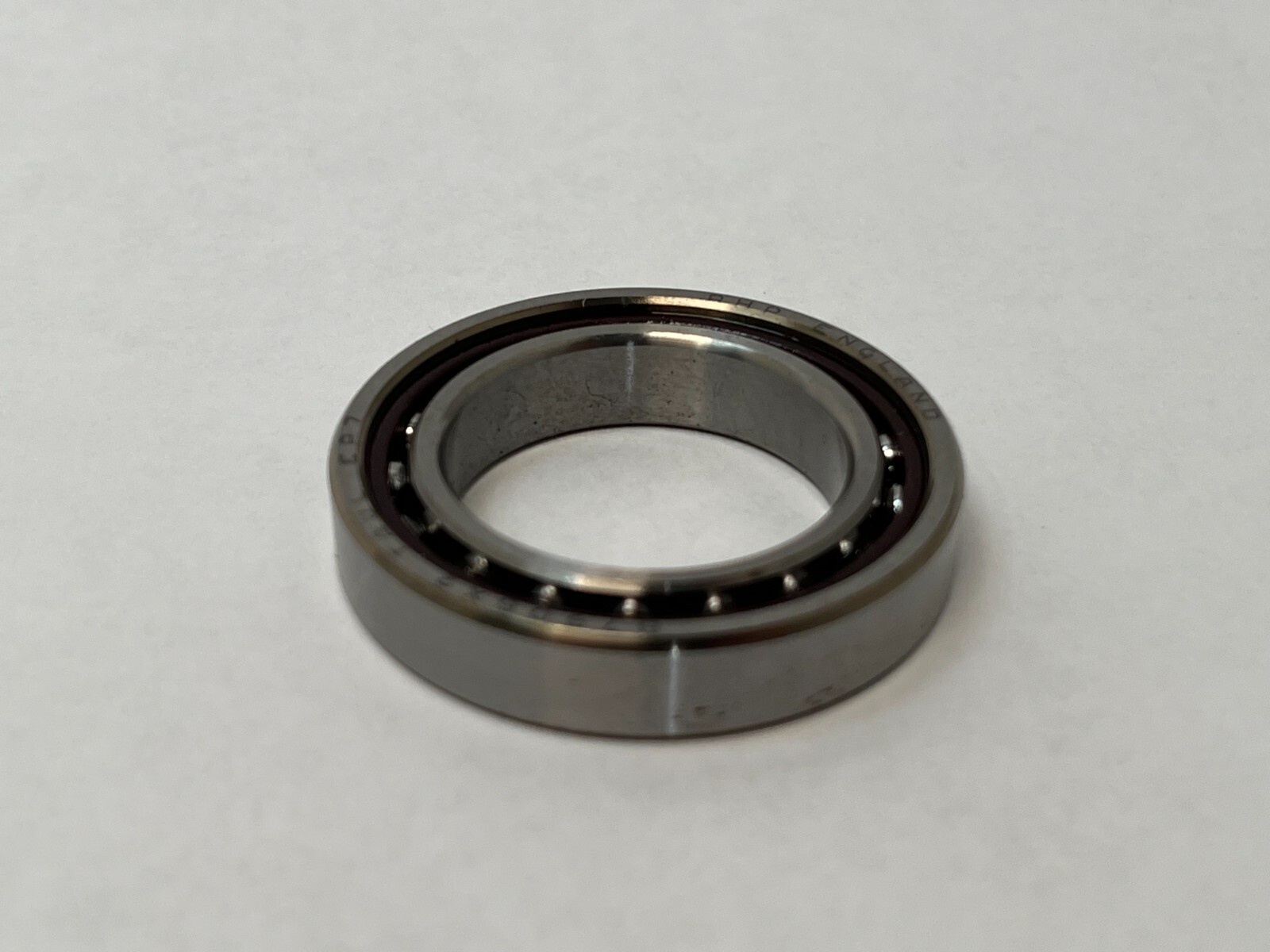

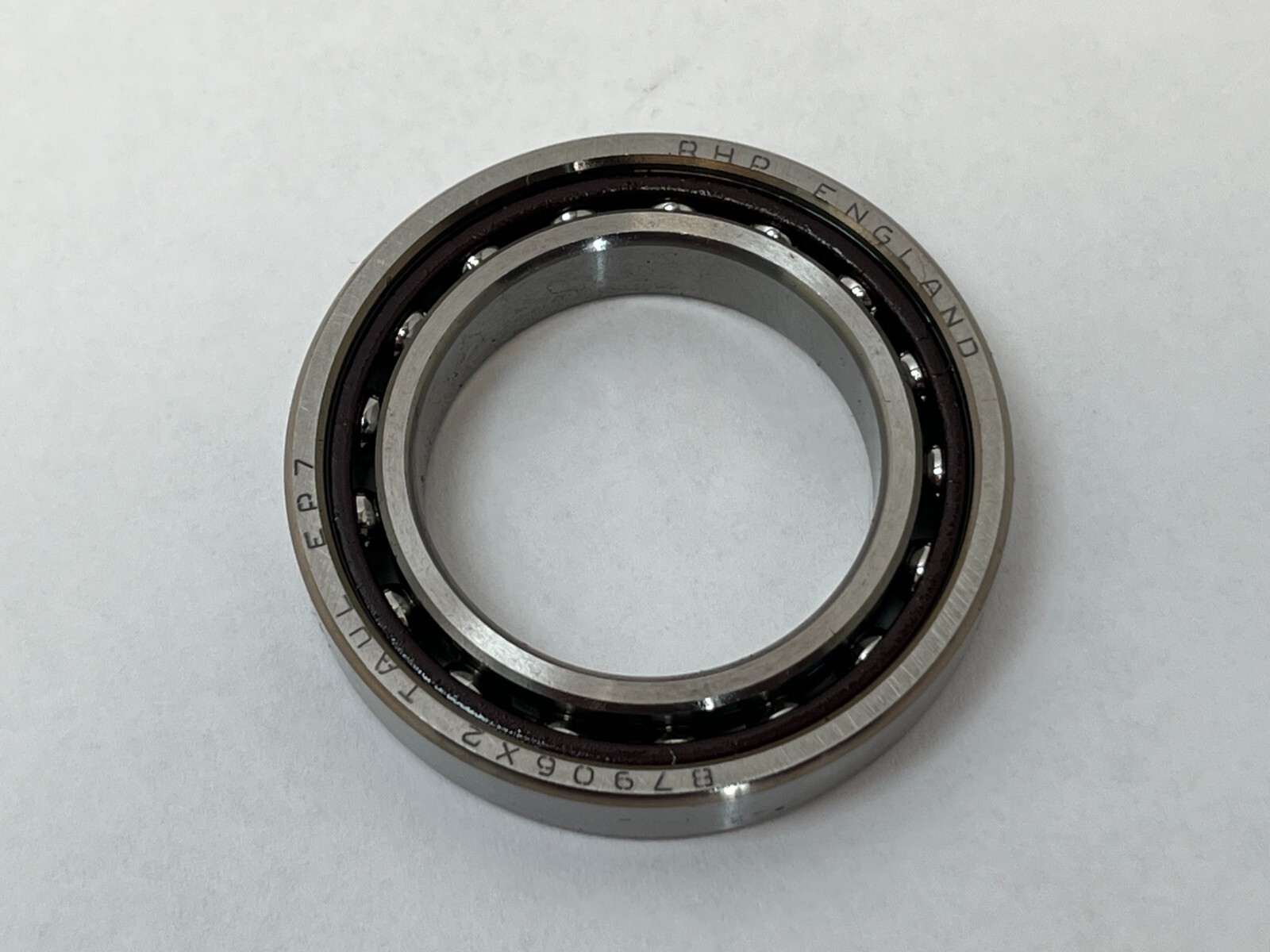

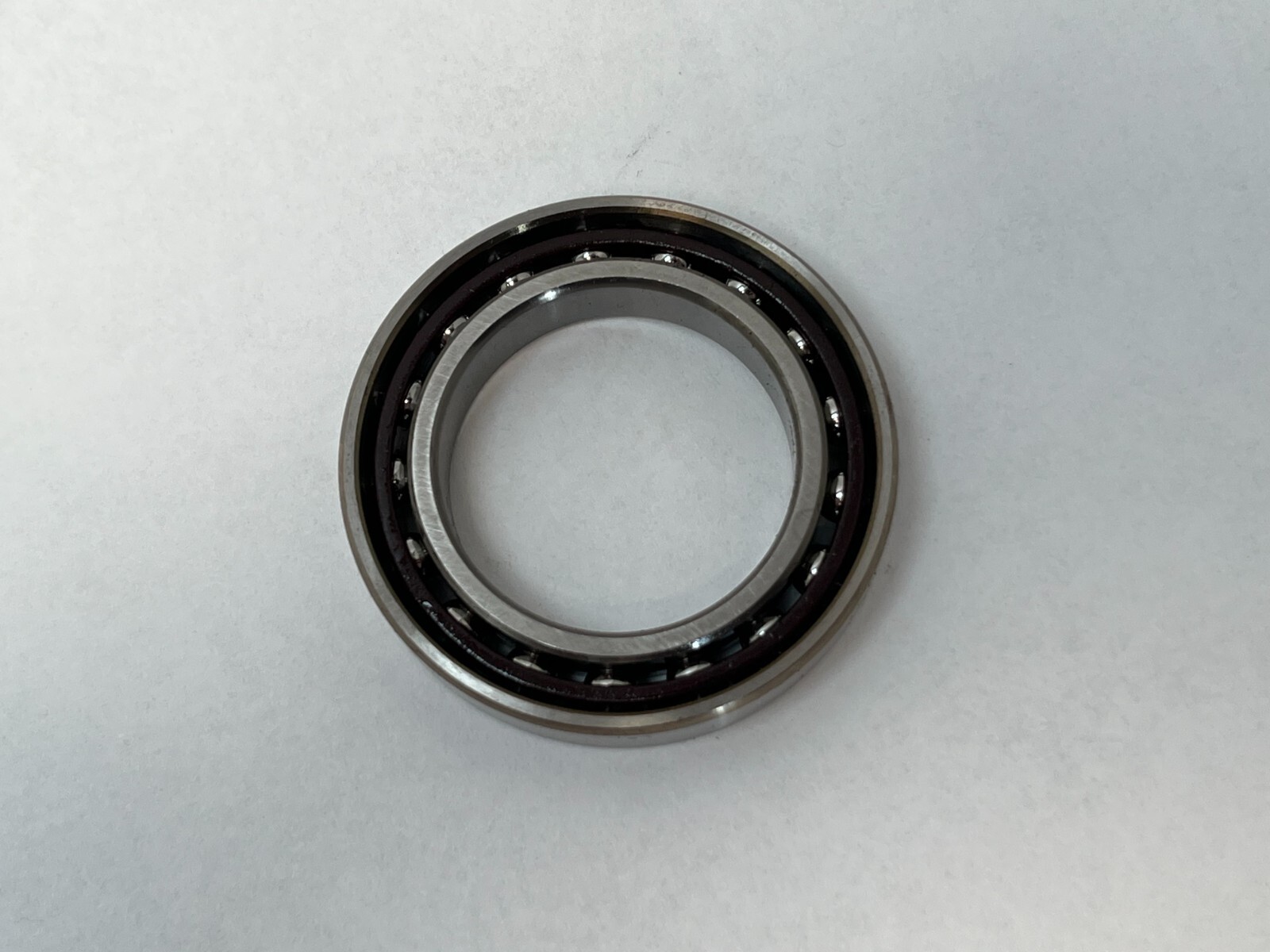

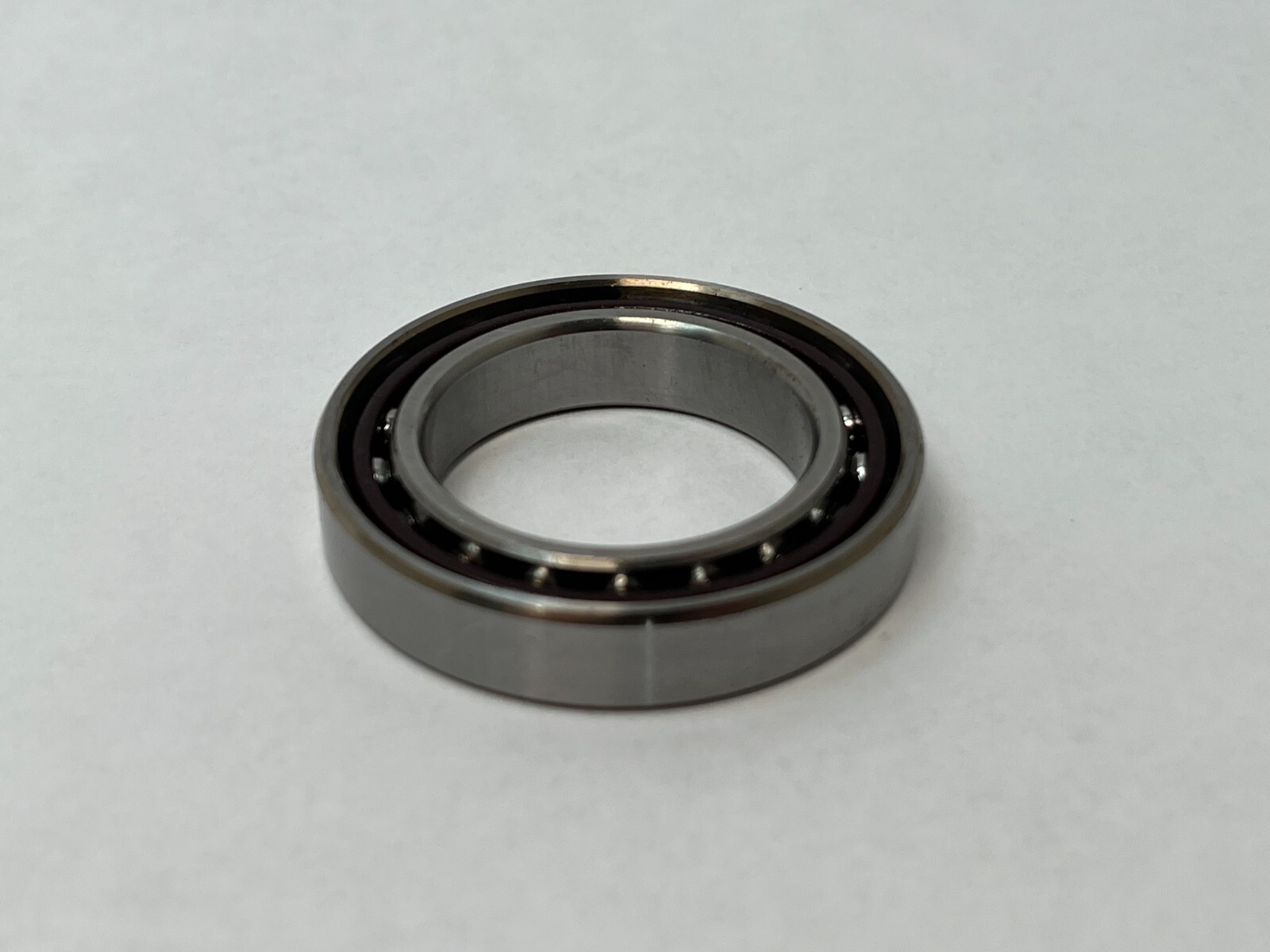

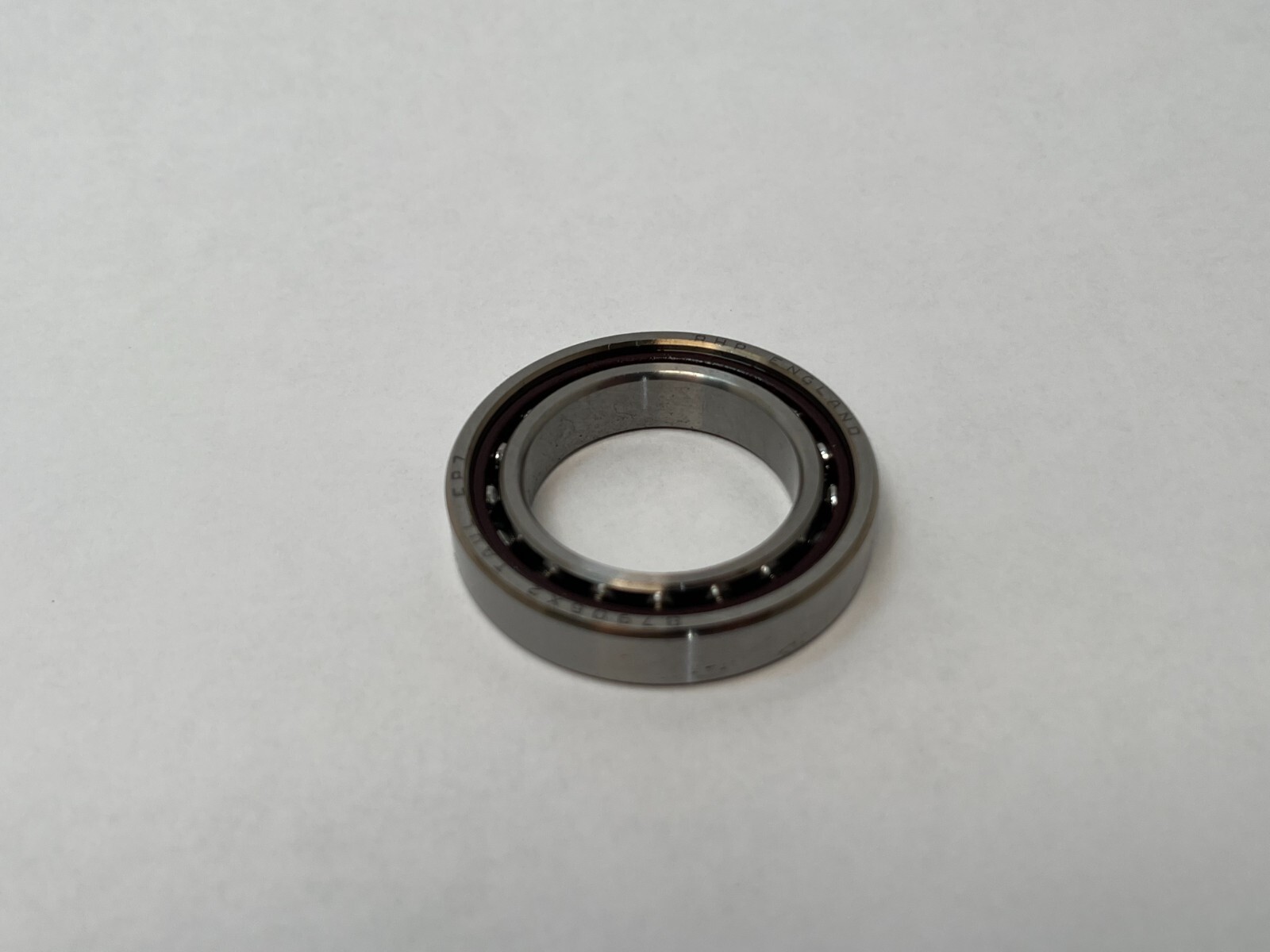

RHP 7906CTSULP4 angular contact ball bearing, 30 mm bore, 47 mm OD, 9 mm width, 15° contact angle, ABEC 7 / P4, phenolic cage, single universal light preload.
List Price
$33.98
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7906CTDULP4 |
| Model | 7906 C T DUL P4 / 71906C / 2MM9306WI CR DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 30 mm |
| OD | 47 mm |
| Width | 9 mm |
| Material | Steel |
|---|---|
| Series | 7900 |
| Lubricant | Oil |
| Preload | Light |
| Precision Class | ABEC 7 / P4 |
| Dynamic Load Rating | 8,300 N |
| Static Load Rating | 6,250 N |
| Rolling Elements | Ball |
| Item Weight | 0.049 kg (0.11 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Limiting Speed | 27,900 rpm grease; 45,200 rpm oil |
| Contact Angle | 15° |
Angular contact ball bearing, single row, series 19 dimension series. Bore 30 mm, outside diameter 47 mm, width 9 mm.
7906 — ISO size code for the 30 x 47 x 9 mm series-19 envelope.
C — 15° contact angle.
T — generic phenolic cage.
SUL — single universal, light preload. Ground for universal mounting in any duplex or triplex combination.
P4 — RHP’s ABEC 7 precision grade.
Bore Diameter: 30 mm. Outside Diameter: 47 mm. Overall Width: 9 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Preload: Light. Dynamic Load Rating: 8,300 N. Static Load Rating: 6,250 N. Limiting Speed: 27,900 rpm grease; 45,200 rpm oil. Item Weight: 0.049 kg (0.11 lb).
Unit Quantity: 1 Pc.
$141.11
255 in stock
