RHP7319CTSULP4Super-Precision Angular Contact Ball Bearing – Straight Bore, 95 mm ID, 200 mm OD, 45 mm Width, Open, 15° Contact Angle, Light Preload, Single Universal, ABEC 7

Product Description

What this part is:

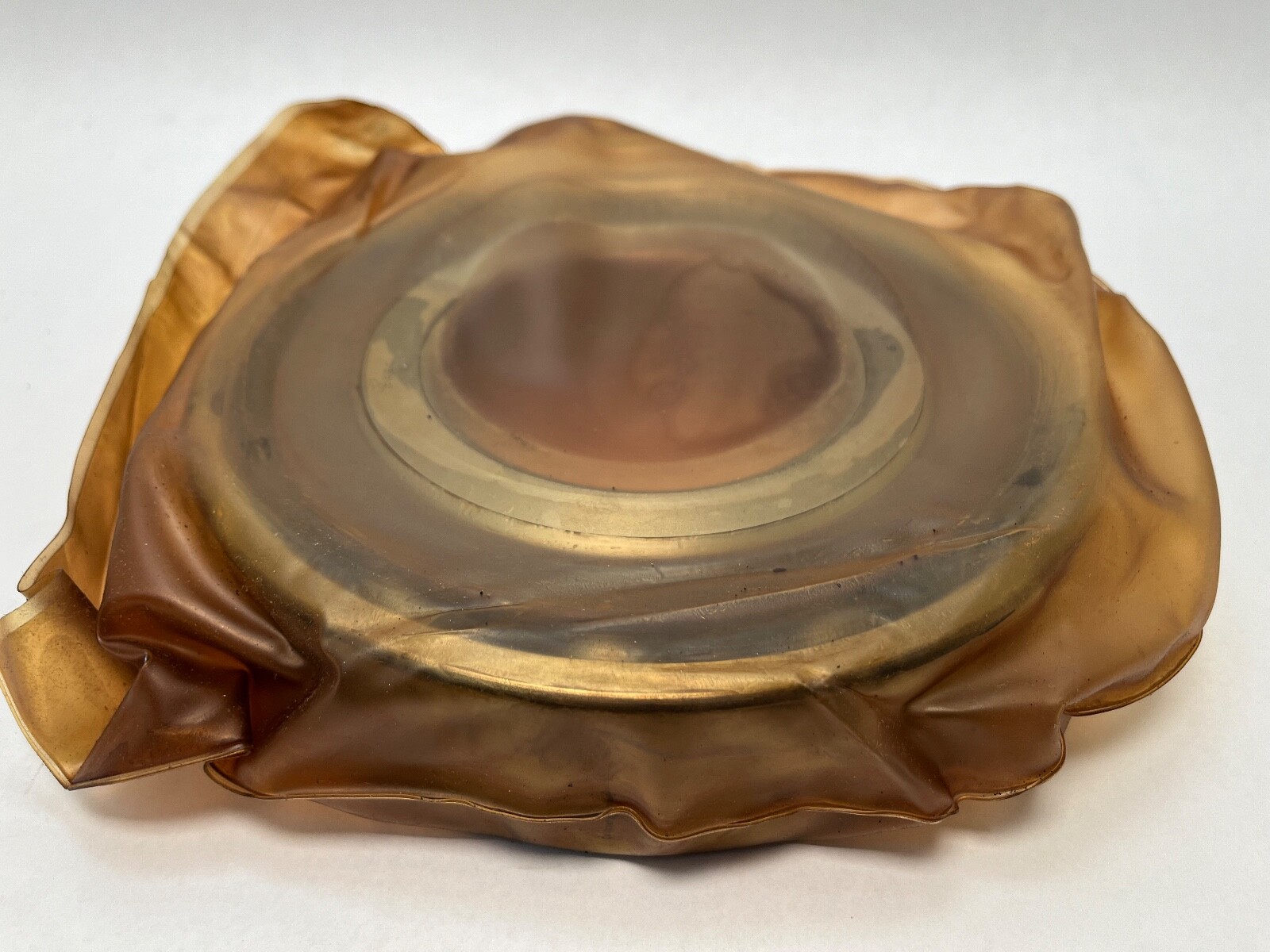

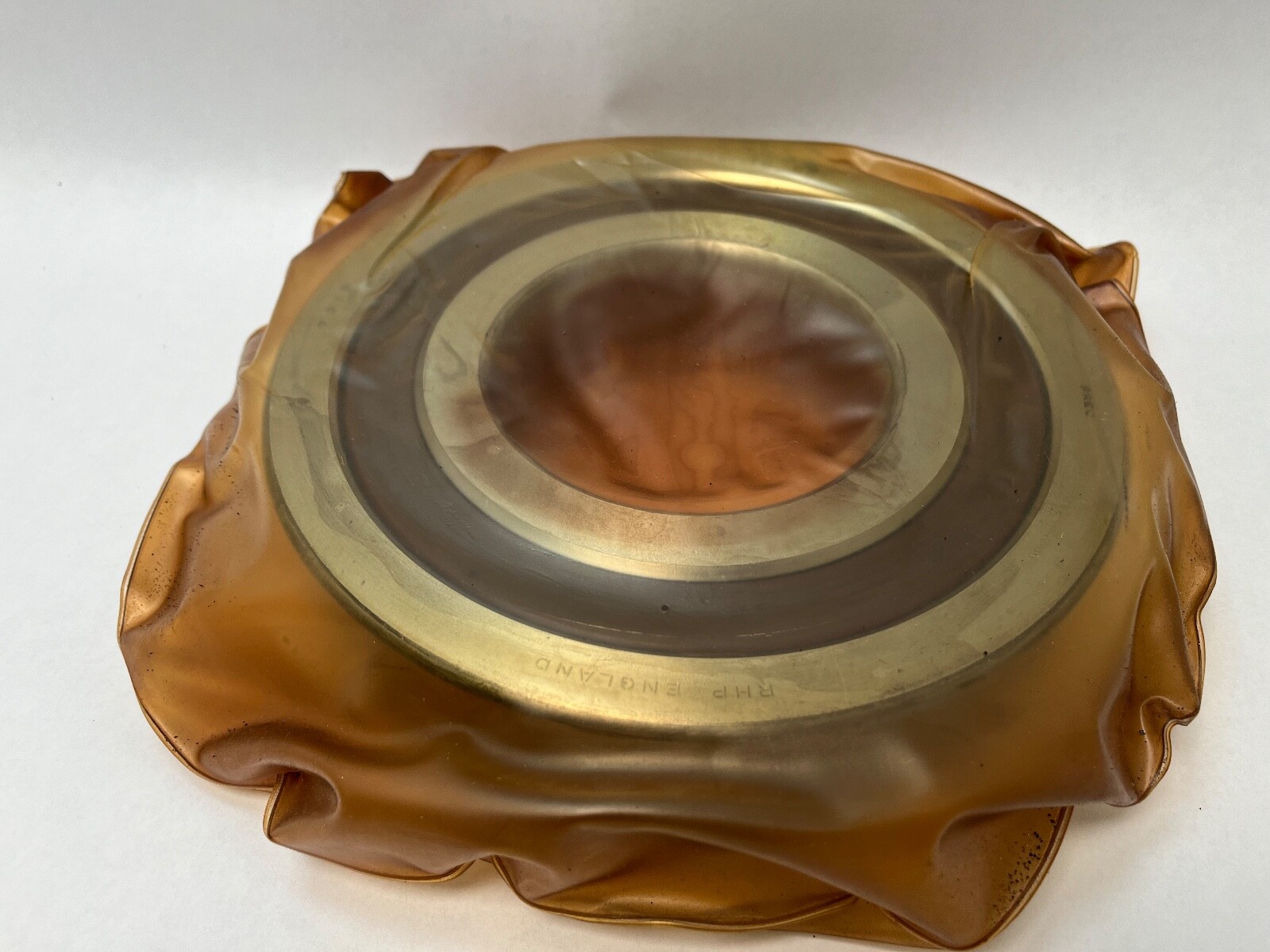

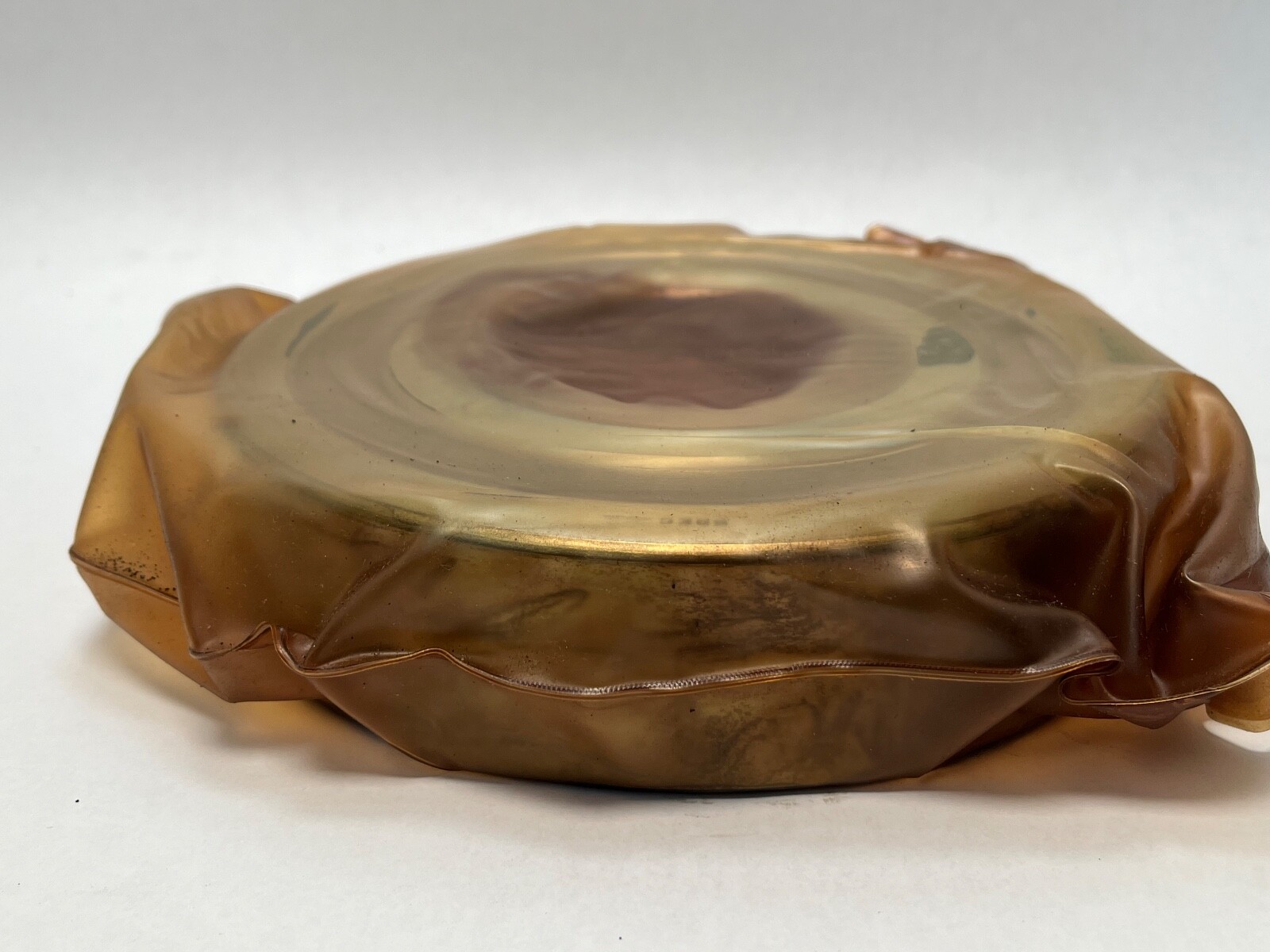

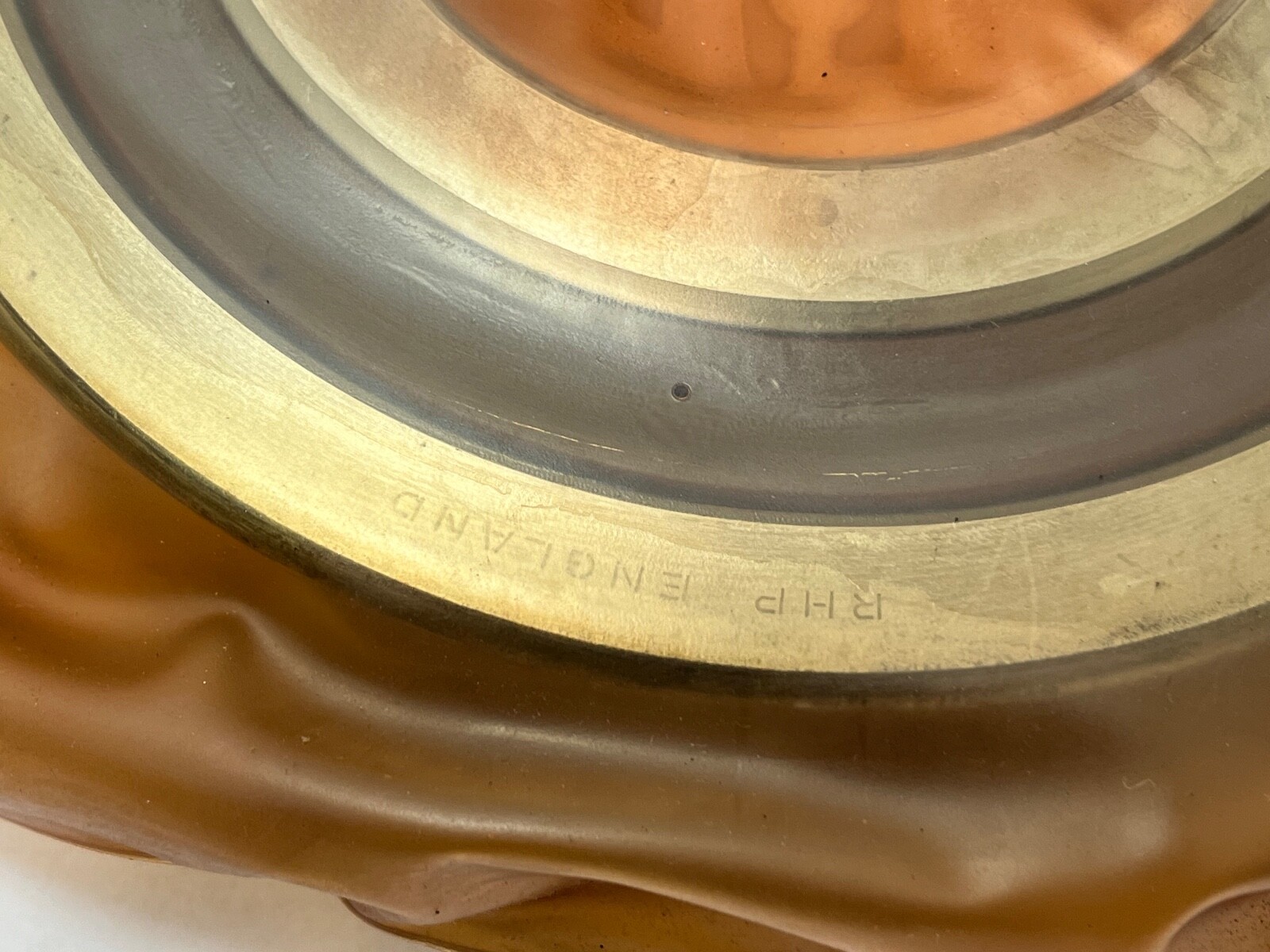

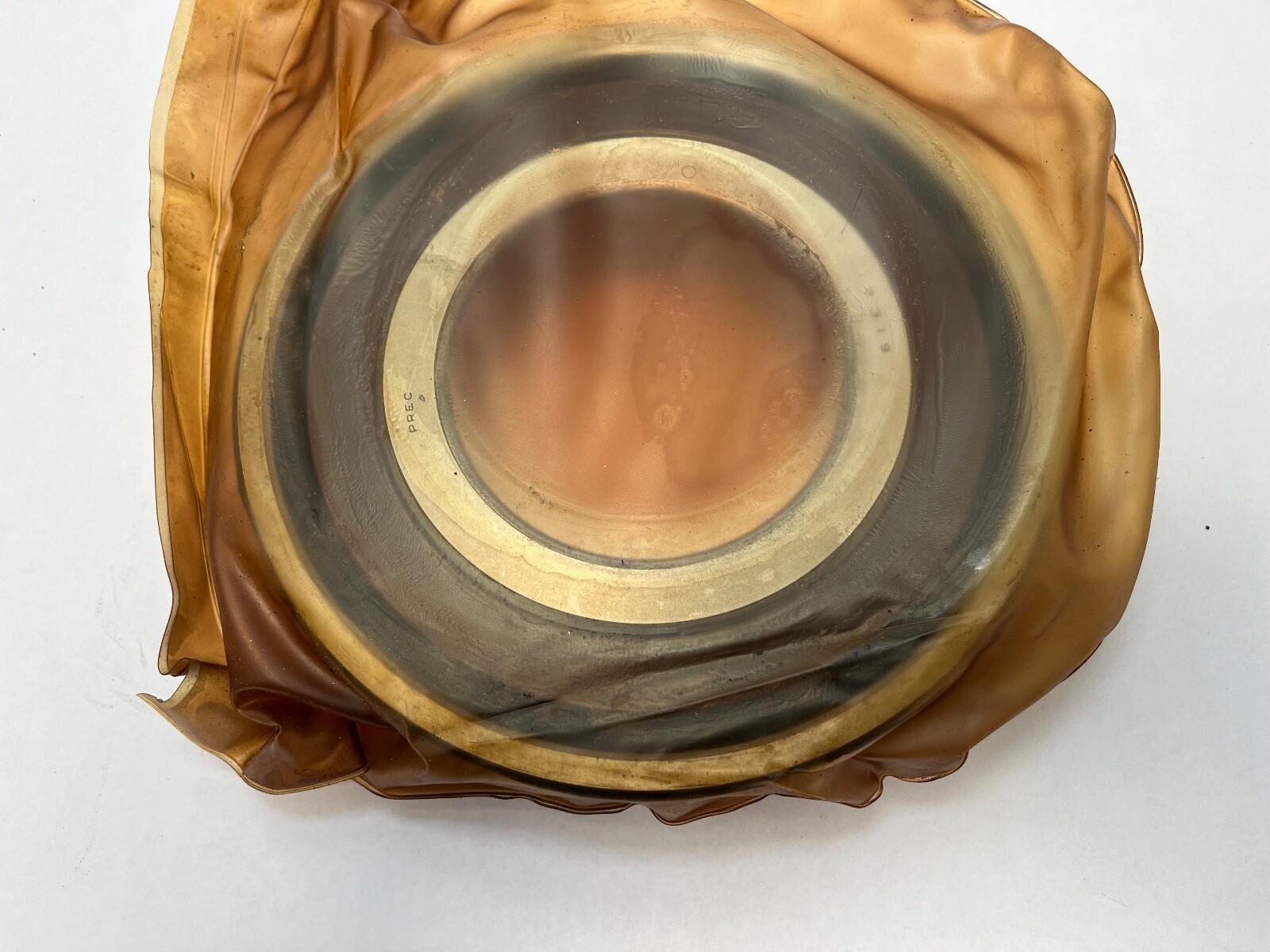

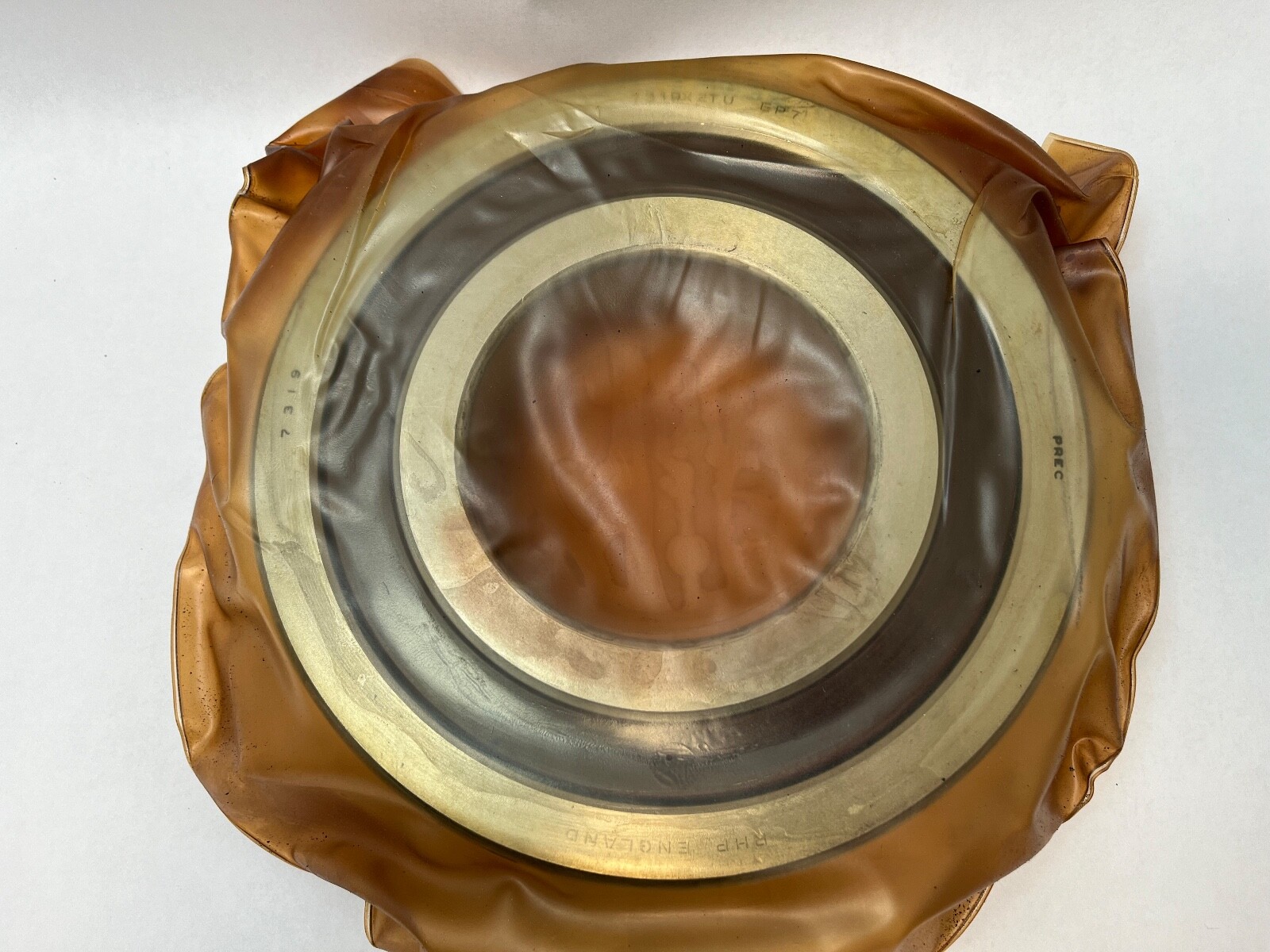

RHP 7319CTSULP4 is a single-row super-precision angular contact ball bearing in the ISO 73 heavy series, 95 x 200 x 45 mm, with a 15° contact angle, machined phenolic cage, light preload and P4 precision. Straight bore, open on both faces, single universally ground bearing. Unit Quantity: 1 Pc.

Decoding the designation:

73 — ISO 73 heavy dimension series; 19 = bore code for a 95 mm bore.

C — 15° contact angle.

T — fabric-base laminate phenolic cage.

SU — single bearing, universally ground.

L — light preload.

P4 — ISO Class 4 precision, equivalent to ABEC 7.

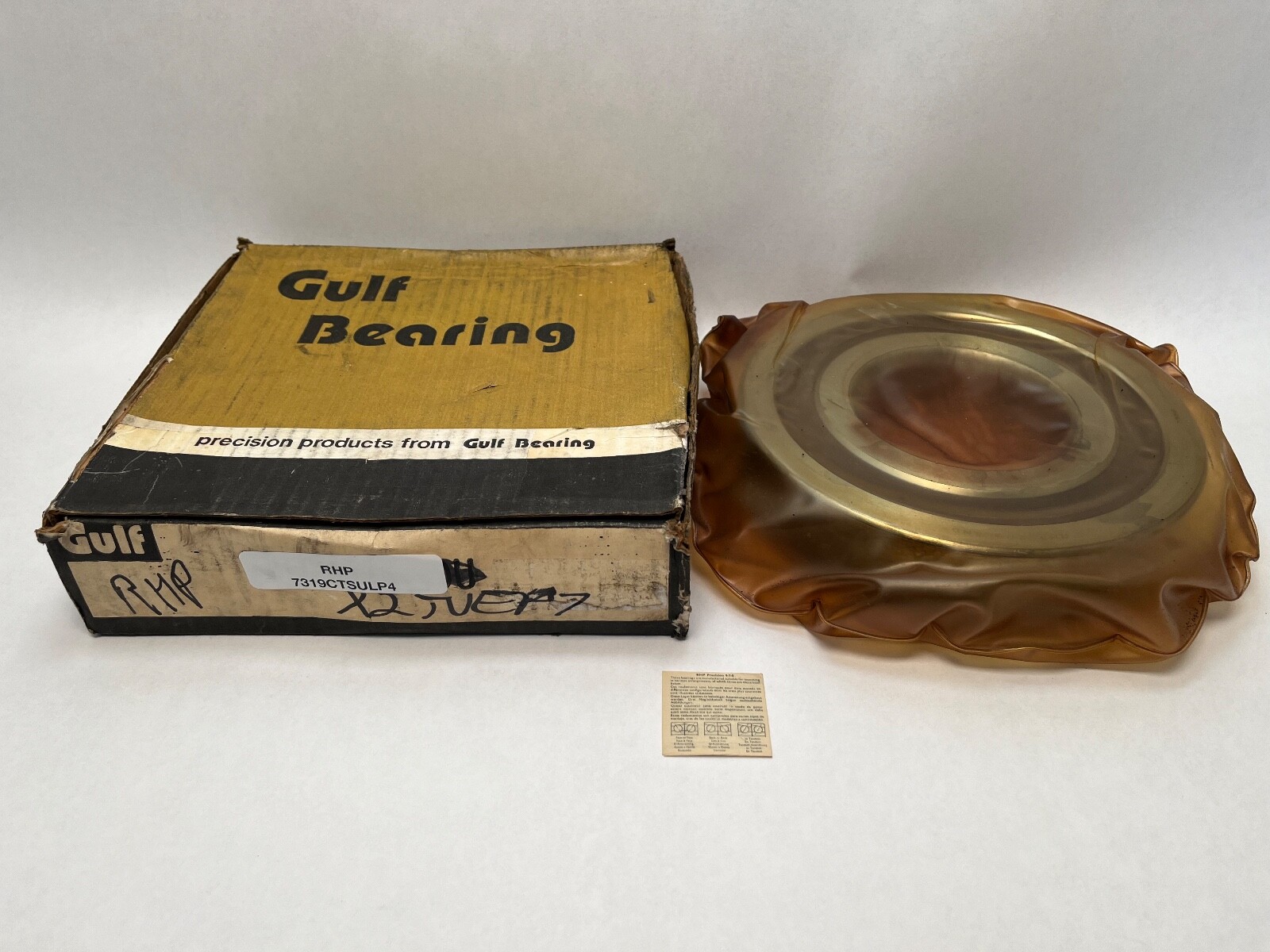

2MM319WICRSUL — Fafnir designation carried on the carton: 2MM = 15° contact angle, CR = phenolic cage.

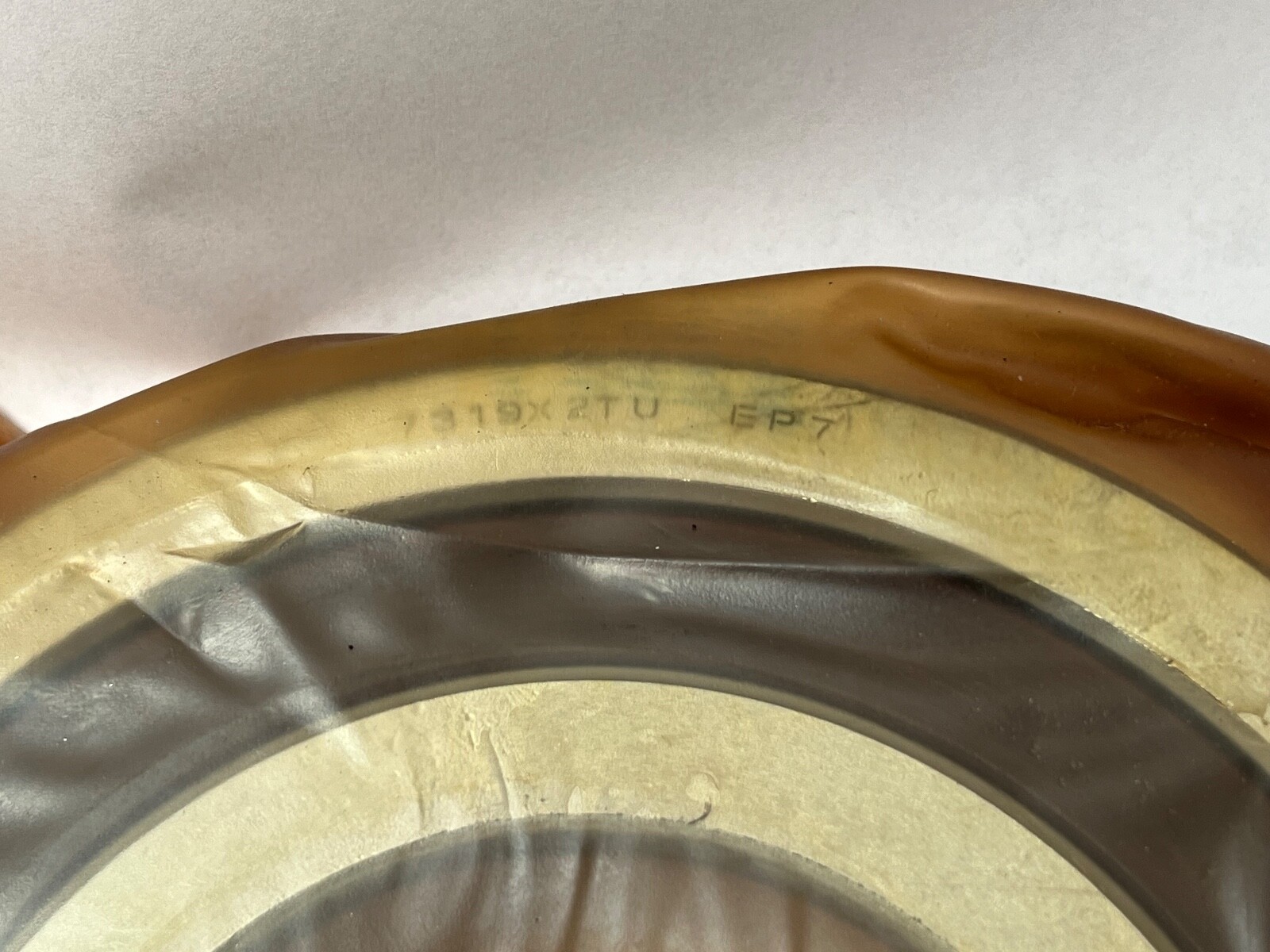

7319X2TUEP7 — RHP designation carried on the carton: X2 = 15° contact angle, EP7 = ABEC 7.

Specifications:

Bore Diameter: 95 mm (3.7402 in). Outside Diameter: 200 mm. Width: 45 mm. Contact Angle: 15°. Cage Material: Phenolic. Cage Type: Machined, outer ring guided. Preload: Light. Precision Class: ABEC 7 / P4. Closure Type: Open. Bore Type: Straight. Number of Rows: 1. Rolling Elements: Ball. Mounting Arrangement: Universal. Country of Origin: United Kingdom.

Dimensions and mounting:

Envelope: 95 mm bore, 200 mm outside diameter, 45 mm width, ISO 73 series. Series: 7300.

Compatibility and replacement:

Cross-references: NSK 7319CTRSULP4 (light preload); FAG B7319-C-T-P4S-UL (light preload); SKF 7319 CD/P4ADGB (light preload); Fafnir 2MM319WICRSUL (light preload). Also written 7319C, 7319-C-T-SUL-P4 and 7319 C T SUL P4.

Frequently asked questions:

What are the dimensions of the RHP 7319CTSULP4?

Bore 95 mm, outside diameter 200 mm, width 45 mm, ISO 73 series.

What contact angle, preload and precision class does it have?

15° contact angle (C), light preload (L) and P4 precision, equivalent to ABEC 7.

What other designations are marked on the carton?

Fafnir 2MM319WICRSUL and RHP 7319X2TUEP7, both 15° designations for the same size.
