Matched duplex pair of 15° super-precision angular contact ball bearings, 12 mm bore x 32 mm OD x 10 mm wide each (20 mm stacked), ABEC 7 with a phenolic cage and light preload — for small high-speed spindles and precision screw drives. Sold as the pair, 2 pieces.
List Price
$106.22
2 in stock
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | RHP |
|---|---|
| MPN | 7201CTDULP4V |
| Model | 7201 C T DUL P4V / 2MM201WI CR DUL / B7201X2TADULEP7 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 12 mm |
| OD | 32 mm |
| Width | 10 mm |
| Material | 52100 Chrome Steel |
|---|---|
| Series | 7200 |
| Condition | New |
| Preload | Light |
| Base Number | 7201 |
| Industry Terms | Spindle bearing, machine tool bearing, precision duplex pair, matched set angular contact |
| Common Misspellings | RPH, R.H.P., 7201CTDUL P4V, 7201-CT-DUL-P4V, 7201CTDULP4Y |
| Application Types | High-speed grinding spindles, instrument spindles, small ball screw supports, precision indexing heads |
| Total Width | 20 mm as a duplex pair |
| Bore Shaft Size | 12 mm |
| Mpn Variants | 7201CTDULP4V, 7201CTDULP4, 7201-C-T-DUL-P4, 7201 C T DUL P4 V, 7201CTDULP4-V |
| Arrangement Configuration | Duplex universally ground, mountable DB, DF or DT |
| Precision Class | P4 / ABEC 7 |
| Additional Attributes | Universally ground rings; do not split the matched pair |
| Cage Type | Caged |
| Dynamic Load Rating | 7.7 kN / 1731 lbf |
| Static Load Rating | 4.15 kN / 933 lbf |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.08 lbs |
| Cage Material | Phenolic |
| Limiting Speed | 40000 rpm |
| Number Of Rows | 1 per bearing (duplex pair) |
| Bore Type | Straight |
| Harmonization Code | 8482.10.5028 |
| Contact Angle | 15 degrees |
| Design Units | Metric |
| Part Number | 7201CTDULP4V |
| Cross Reference 1 | NSK 7201CTYDULP4 |
|---|---|
| Cross Reference 2 | B7201C-T-P4S-DUL |
| Cross Reference 3 | 7201C |
| Cross Reference 4 | 2MM201WI-DUL (Fafnir 15 degree equivalent envelope) |

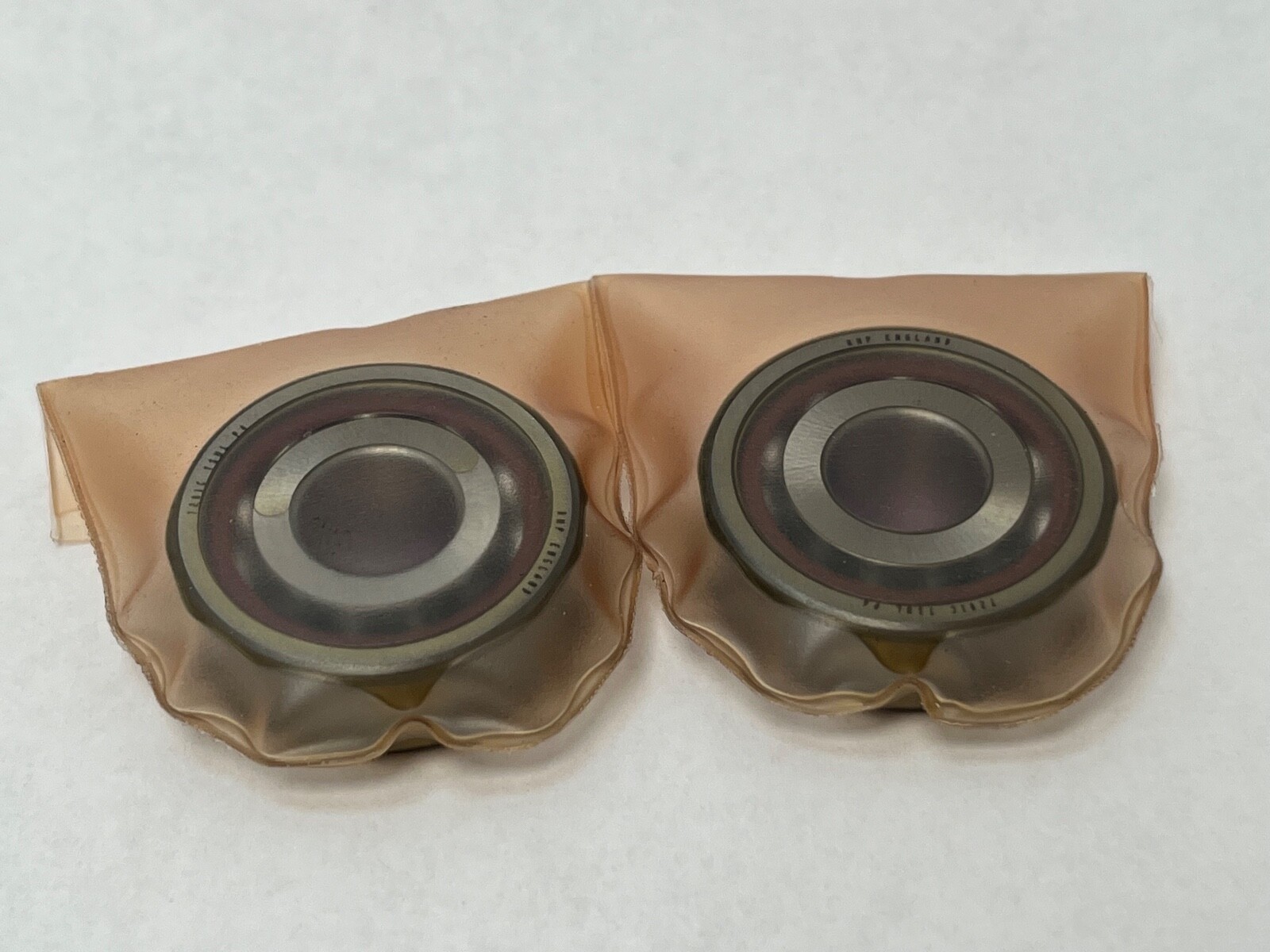

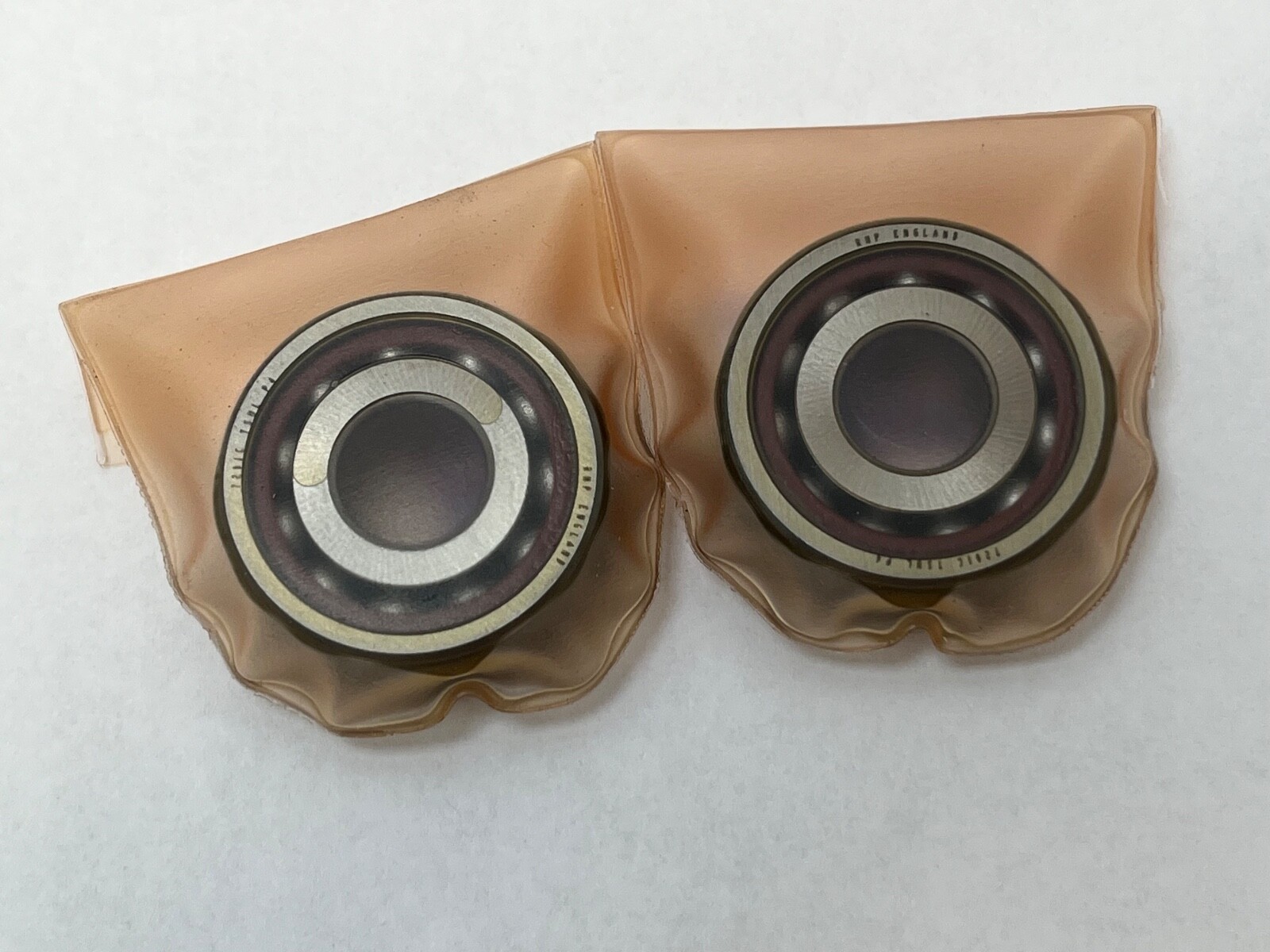

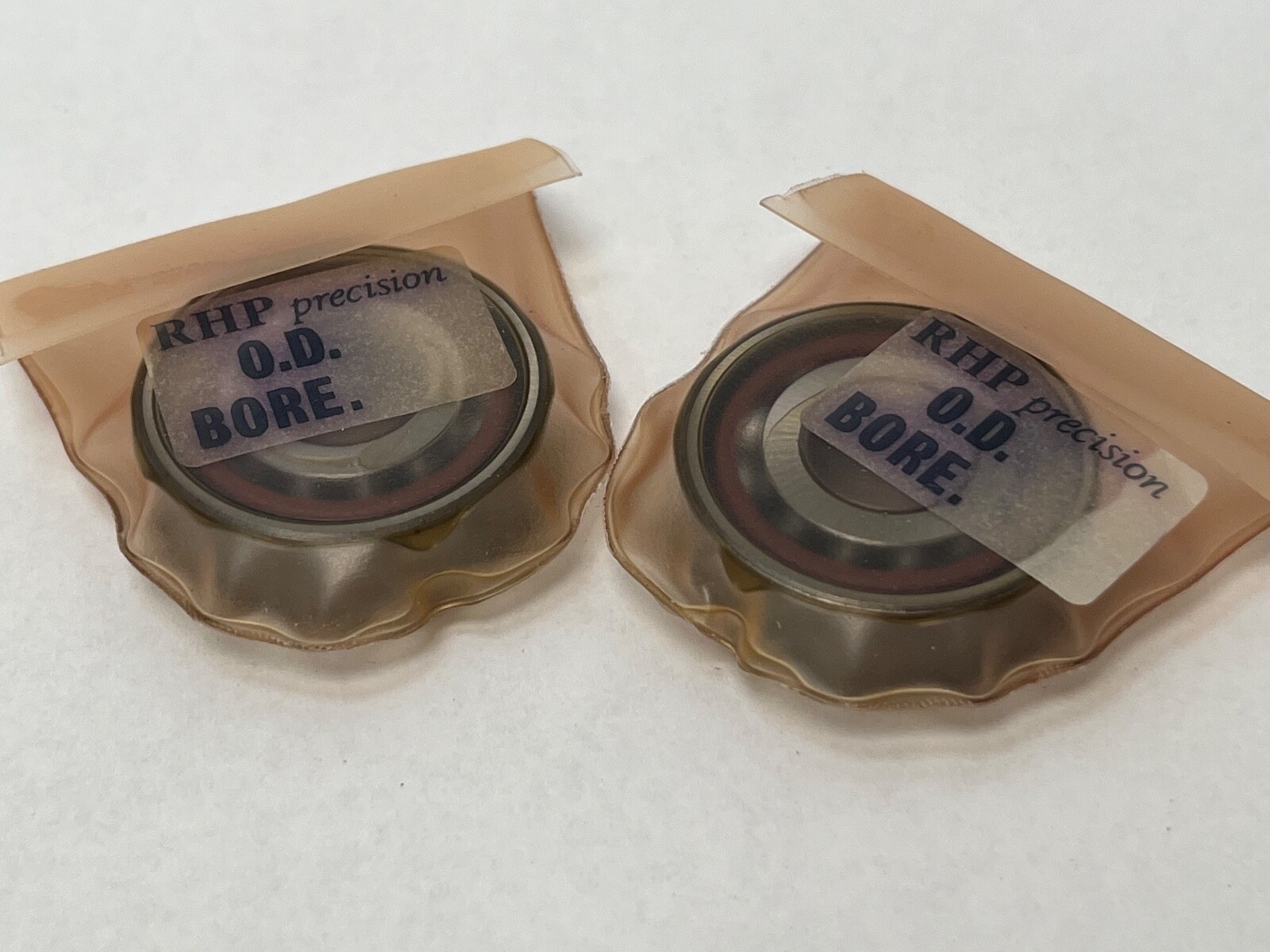

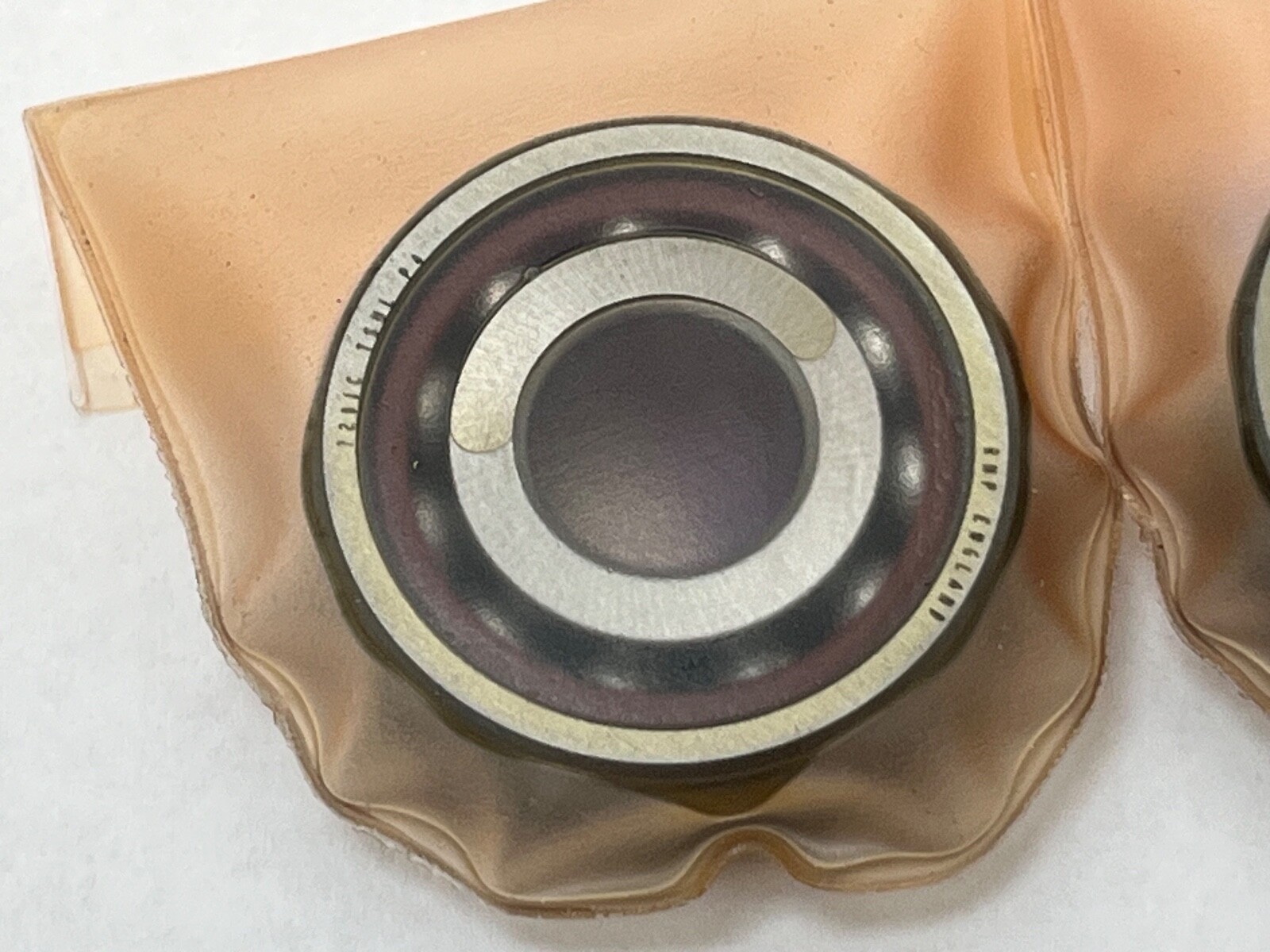

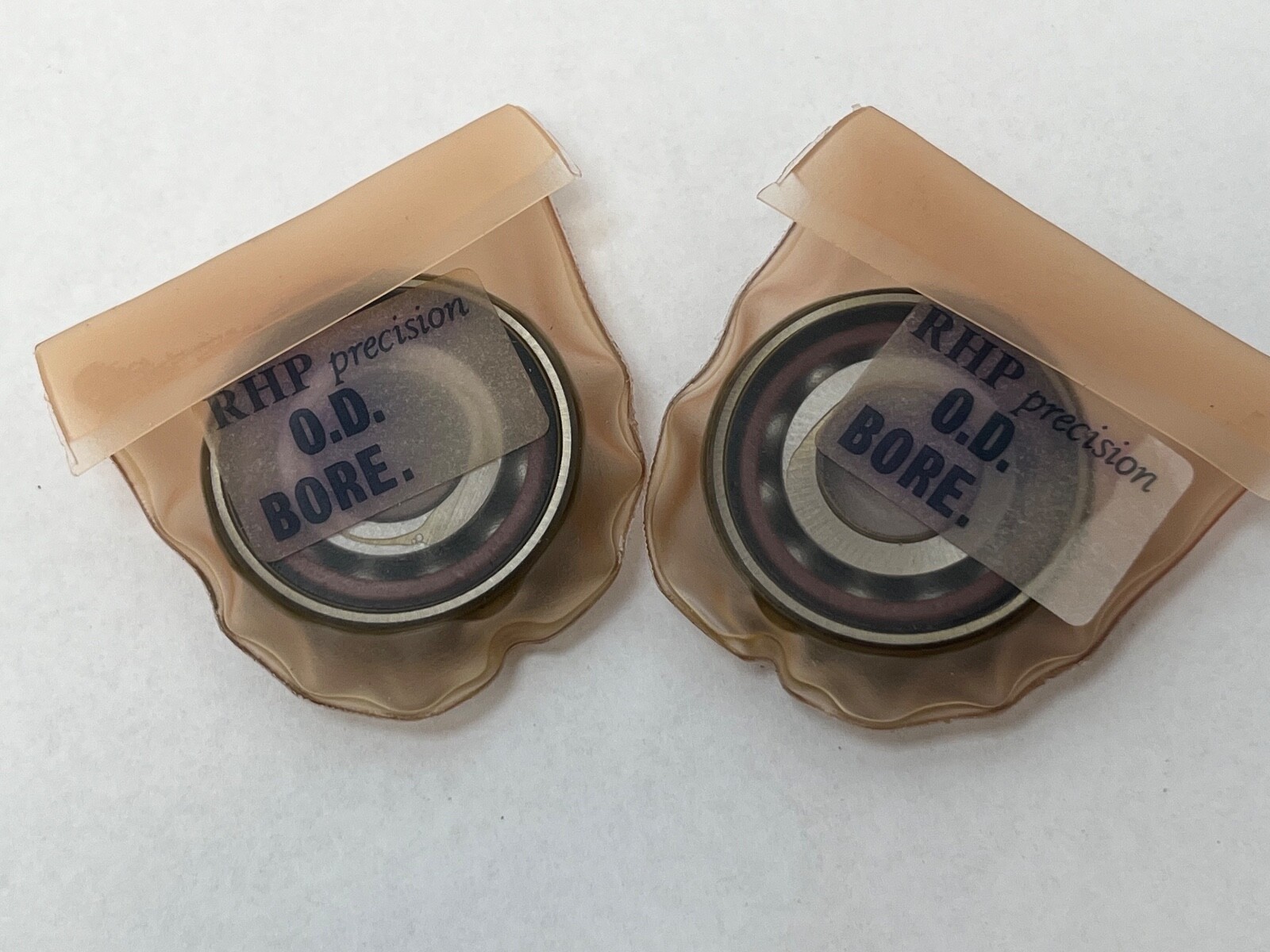

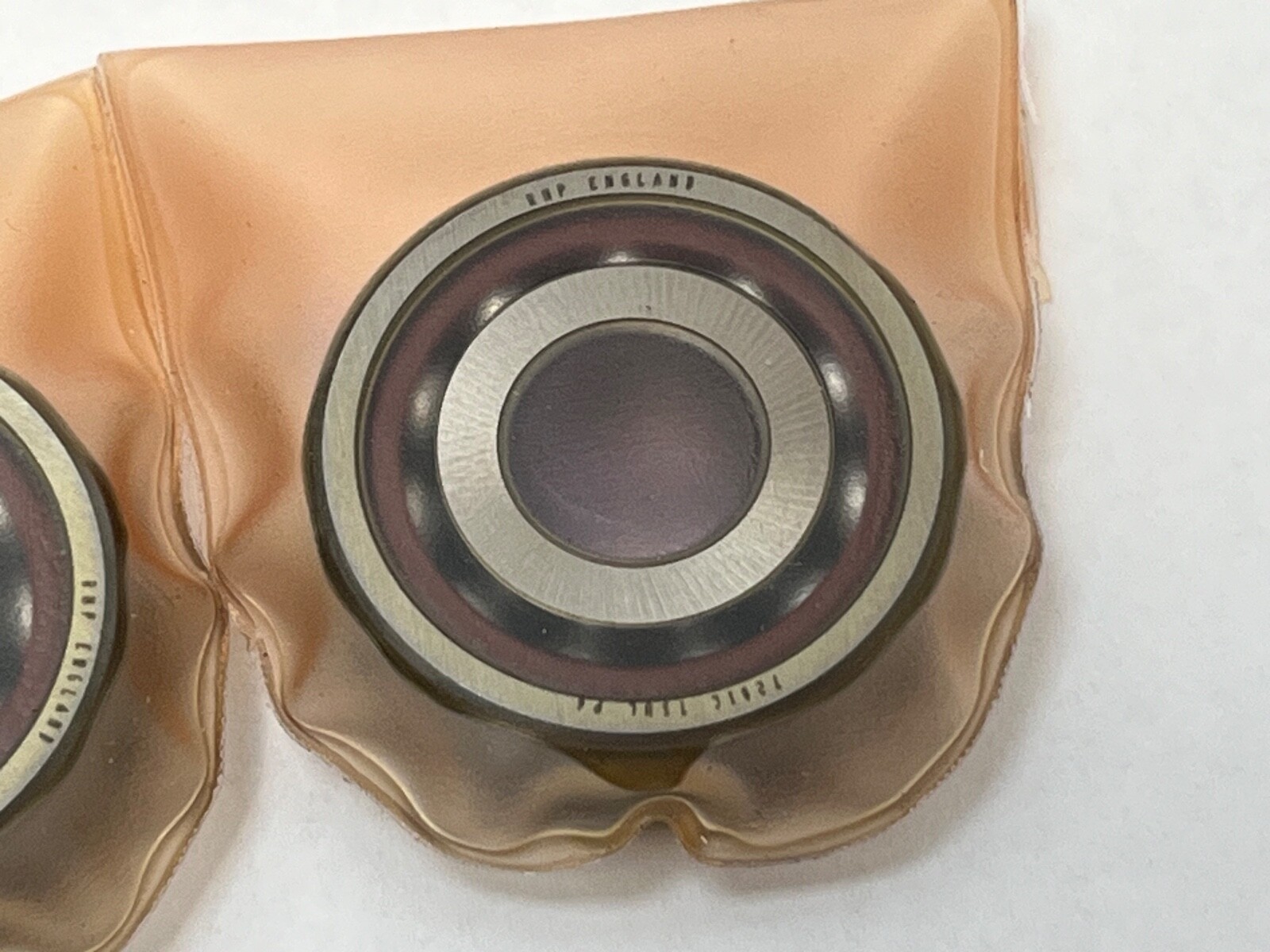

A matched duplex pair of RHP 7201 super-precision angular contact ball bearings, 15° contact angle, phenolic cage, universally ground for light preload. Each bearing is 12 mm bore x 32 mm OD x 10 mm wide, so the pair stacks to 20 mm overall. Small-bore super-precision like this goes into high-speed grinding spindles, instrument spindles, small ball screw ends and precision indexing heads.
7201 is the ISO angular contact envelope, 12 x 32 x 10 mm. C is the 15° contact angle in the RHP / Timken scheme. T is a phenolic cage. DUL is duplex, universally ground, light preload. P4 is ABEC 7 tolerance class. V is an RHP variant suffix carried on the carton and kept as a search term.
15° is the high-speed, low-thrust end of the angular contact range: excellent for speed and radial load, modest axial capacity compared with a 25° or 30° bearing of the same size. Light preload keeps friction and heat down, which is what a small bearing running fast needs. The phenolic cage is light, quiet and self-lubricating.
Bore: 12 mm. Outside diameter: 32 mm. Width: 10 mm each bearing. Total width mounted as a pair: 20 mm. Contact angle: 15°. Tolerance class: P4 / ABEC 7. Preload: light. Cage: phenolic. Rows: single row each, mounted as a duplex pair. Closure: open. Dynamic load rating: 7.7 kN / 1731 lbf. Static load rating: 4.15 kN / 933 lbf. Limiting speed: 40000 rpm. Mass: 0.08 lbs.

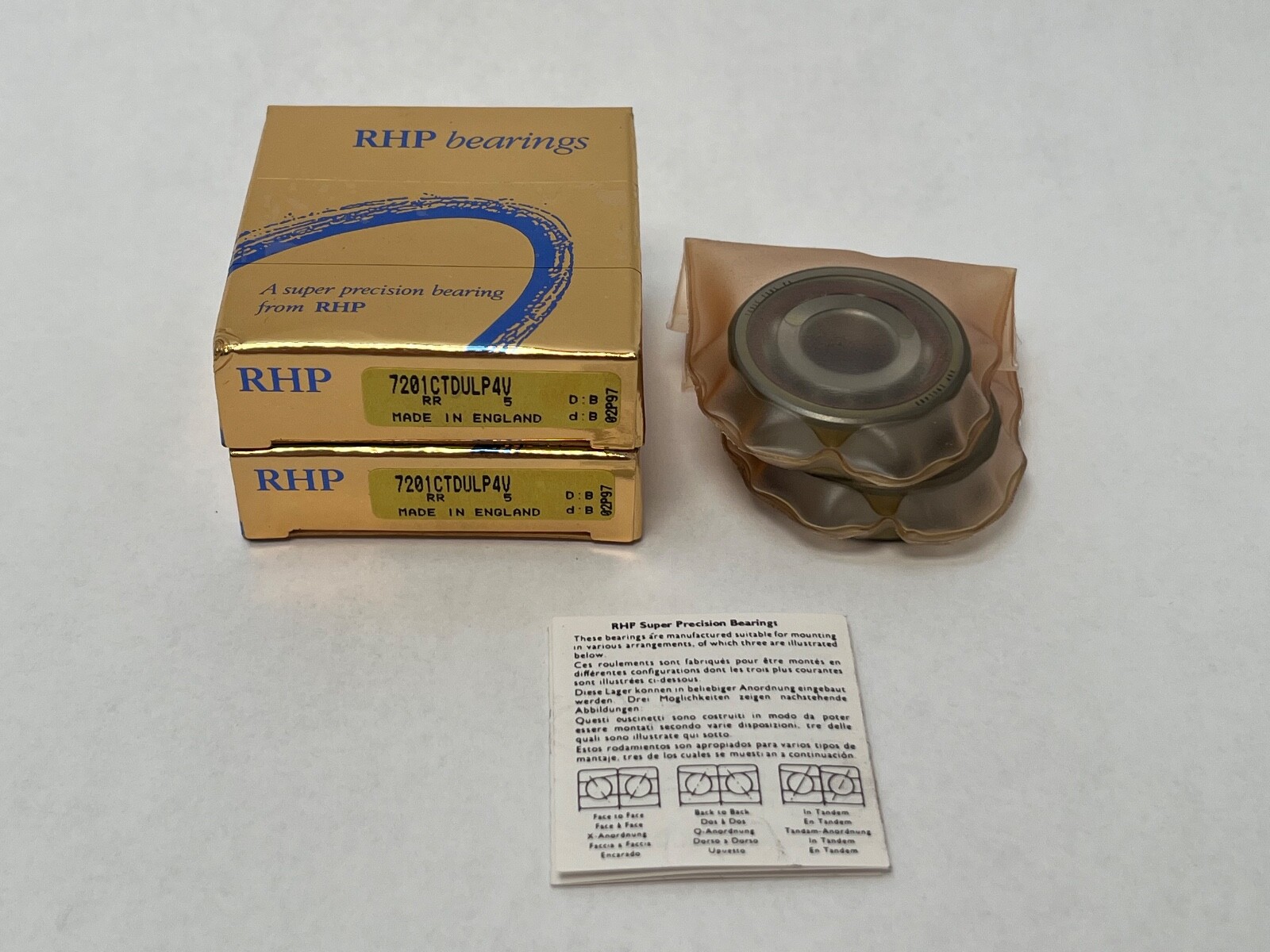

Two bearings, supplied as the matched set. Universally ground rings mean the pair can be arranged back-to-back (DB), face-to-face (DF) or in tandem (DT) and still produce the intended light preload with no spacer.
Direct equivalents are 7201 15° ABEC 7 light-preload universally ground duplex pairs, including the NSK 7201CTYDULP4 and B7201 forms and RHP’s own 7201-C-T-DUL-P4. Related but NOT interchangeable: 7201A5 (25°) and 7201A (30°) in the NSK scheme, and DUM / DUH medium and heavy preload variants.
