Availability:
1 in stock
Super-precision angular contact spindle bearing, 25° contact angle, 100 mm bore x 150 mm OD x 24 mm wide, phenolic cage, ABEC 7, single universally ground for light preload. Sold as 1 Pc.
List Price
$162.54
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| Model | 7020E-T-SUL-P4 / 3MM9120WI CR SUL / 7020A 7020A5 7020ACD |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 100 mm |
| OD | 150 mm |
| Width | 24 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Preload | Light |
| Base Number | 7020E |
| Industry Terms | spindle bearing, super precision angular contact, phenolic cage bearing, ABEC 7 bearing, 25 degree angular contact, large bore spindle bearing |
| Common Misspellings | RHP 7020ETSULP-4, 7020E TSUL P4, RPH 7020ETSULP4, 7020ETSULPA, RHP 702OETSULP4 |
| Application Types | Machine tool spindles, boring and milling spindles, large rotary tables, precision gearboxes |
| Bore Shaft Size | 100 mm (3.9370 in) |
| Mpn Variants | 7020ETSULP4, 7020-E-T-SUL-P4, 7020 E T SUL P4, 7020ETSUL, 7020E, B7020TAULEP7 |
| Manufacturer Status | RHP brand now supplied under NSK |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Part Number | 7020ETSULP4 |

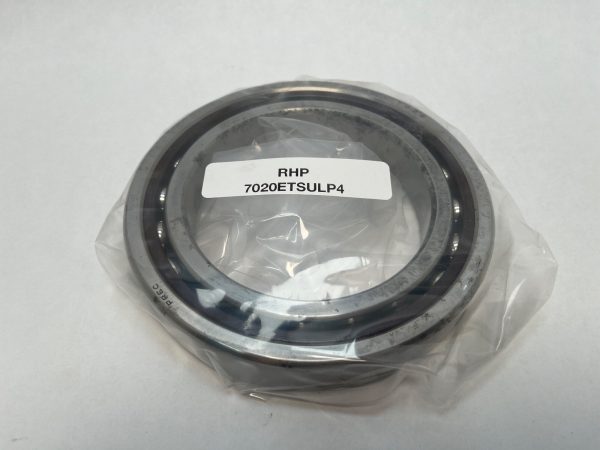

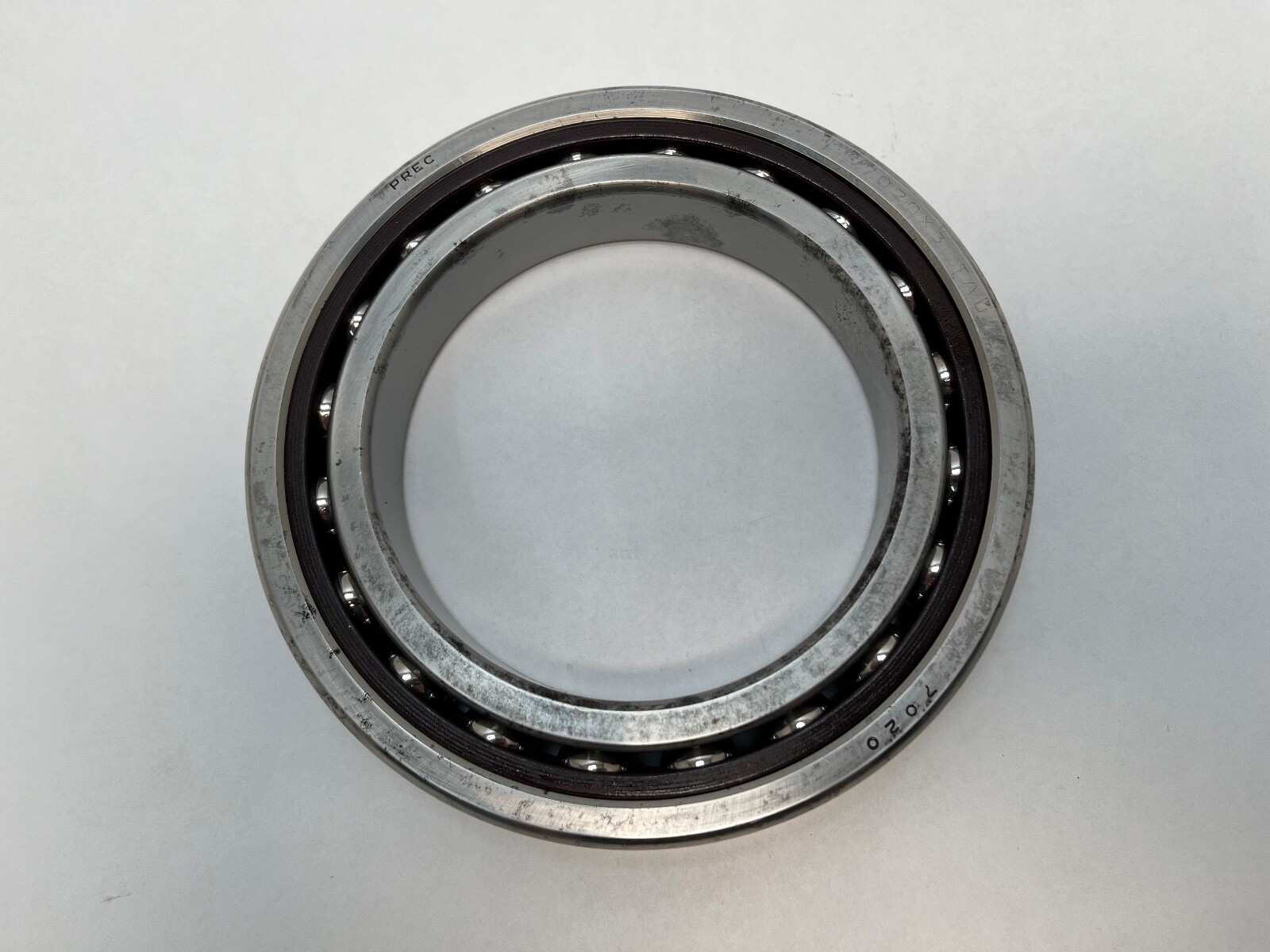

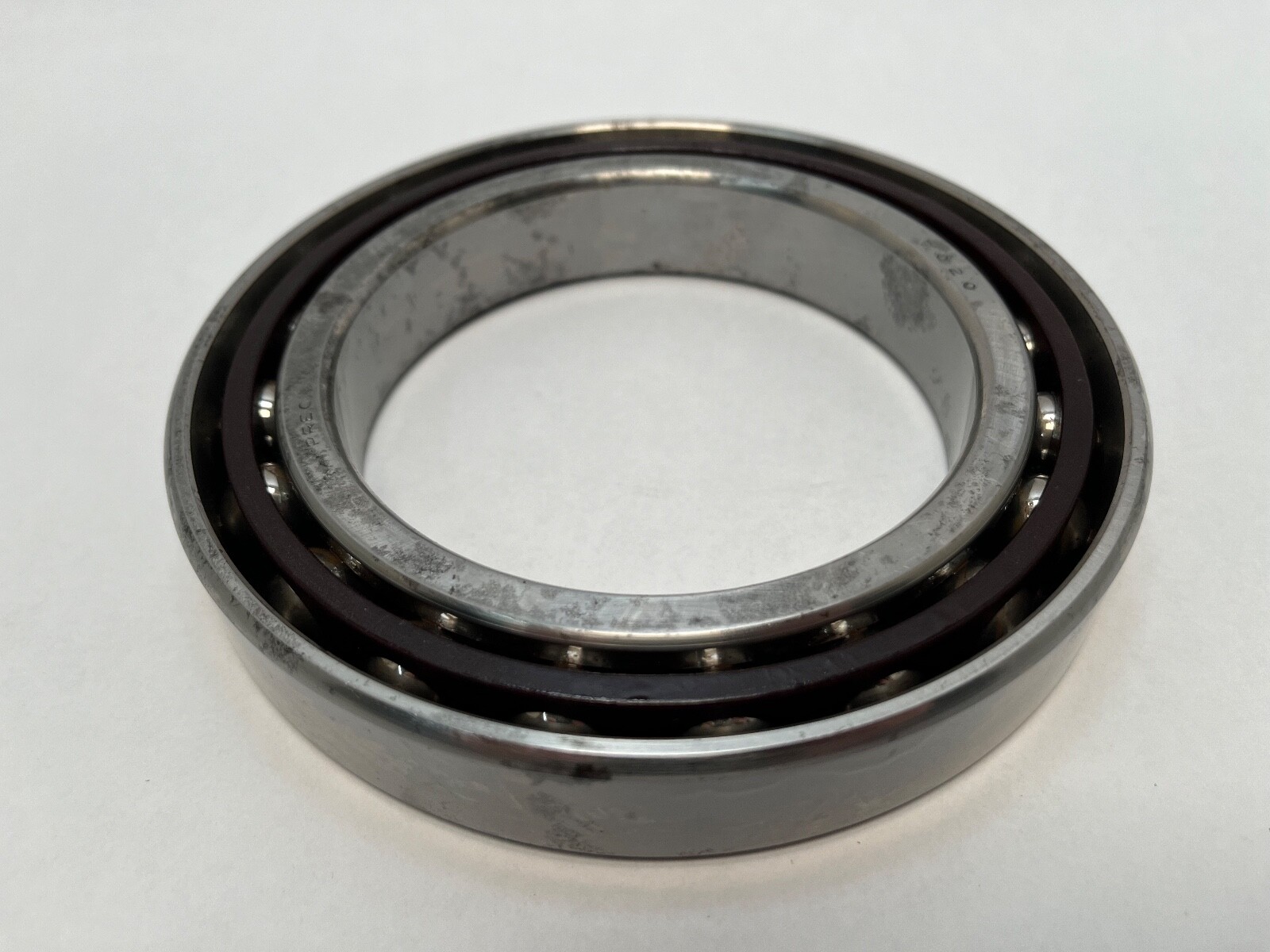

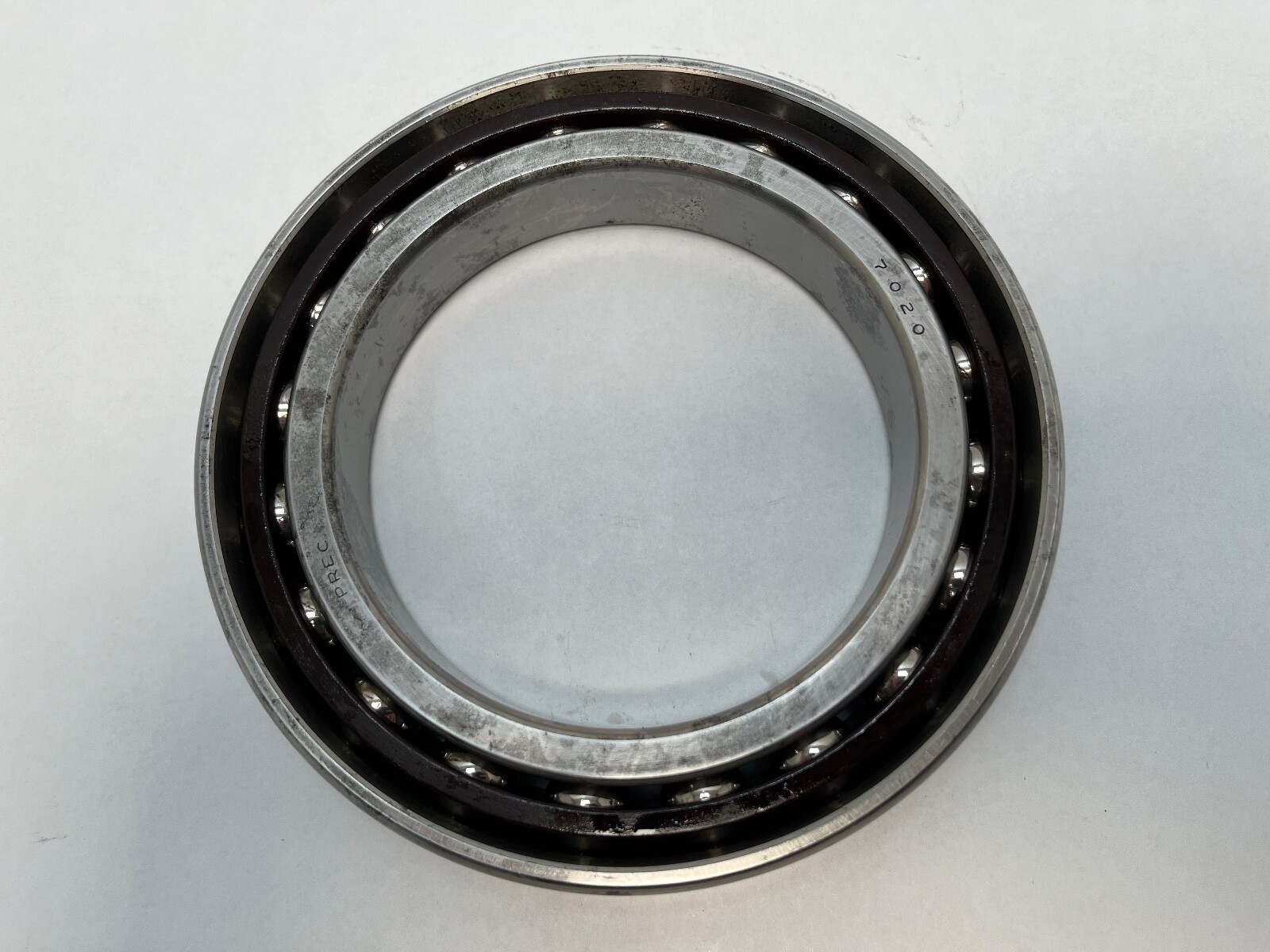

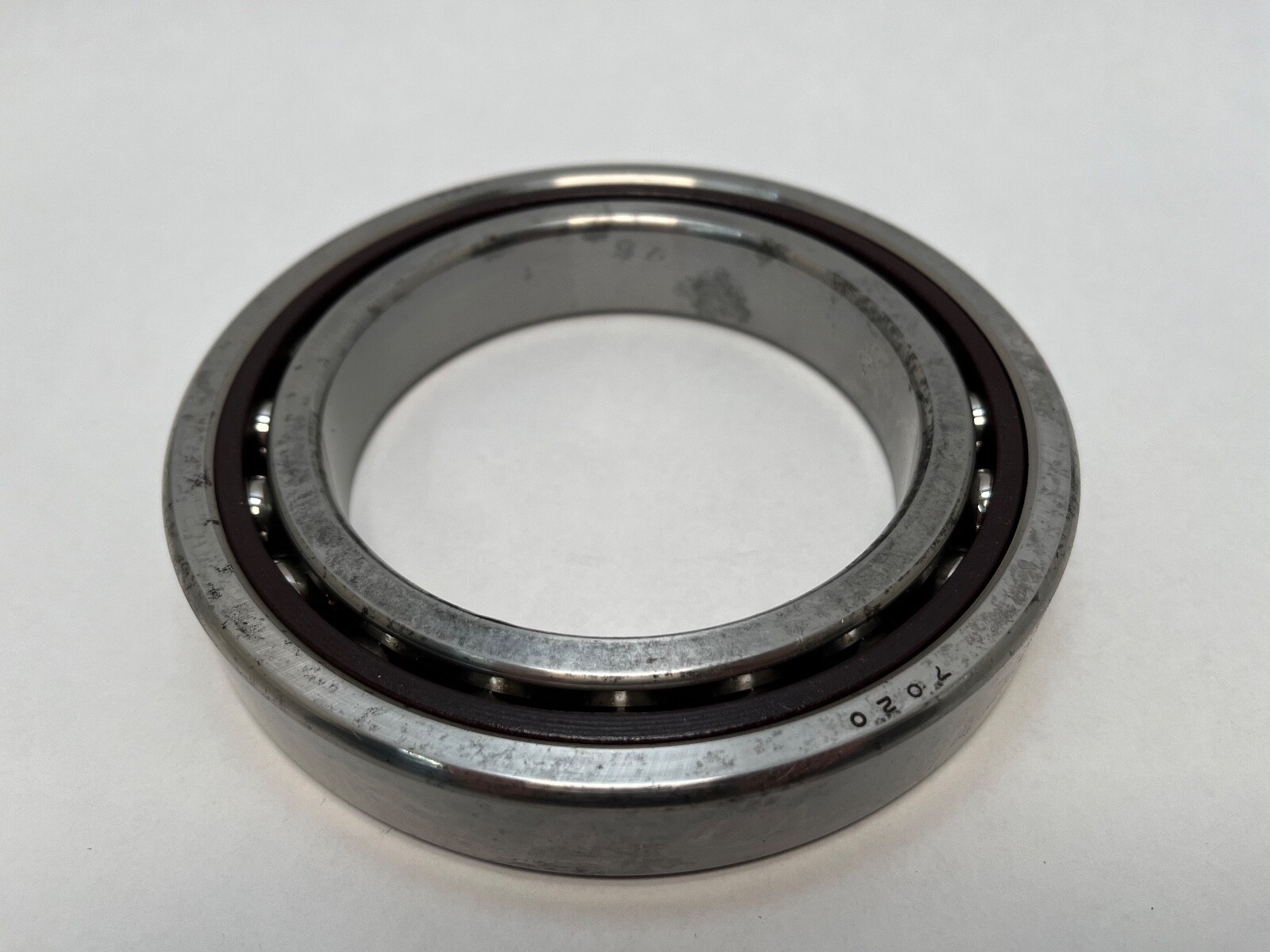

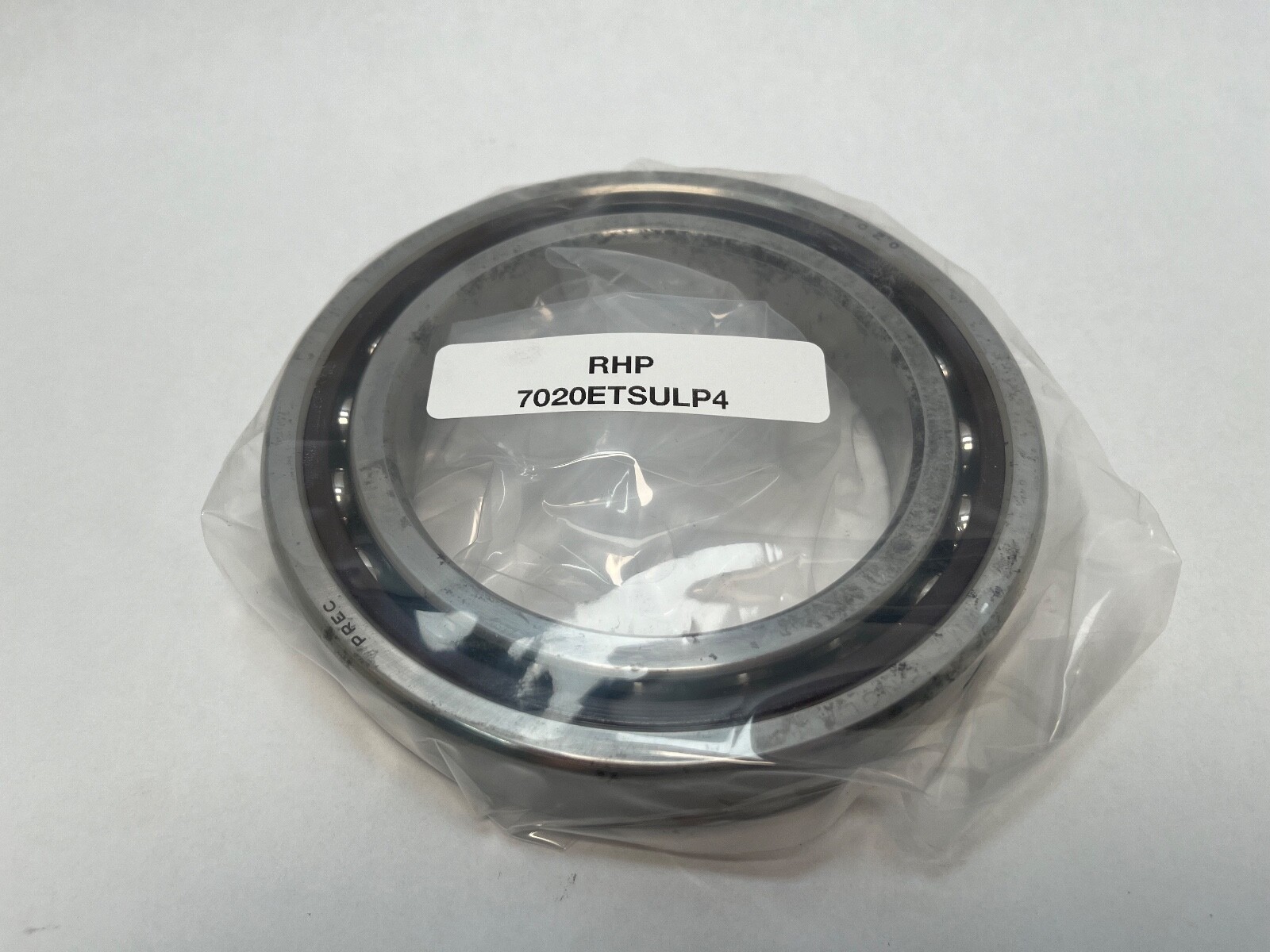

An RHP 7020E-T-SUL-P4 super-precision angular contact ball bearing with a 100 mm bore, a 150 mm outside diameter and a 24 mm width. It has a phenolic cage and is single universally ground for light preload.
7020: 70 angular contact series, 100 mm bore, 150 mm OD, 24 mm width. E: 25° contact angle in the RHP scheme. T: phenolic cage. SUL: single universally ground, light preload. P4: precision class 4, equivalent to ABEC 7.
A 25° contact angle carries substantially more thrust and gives higher axial rigidity than a 15° bearing of the same envelope, which is what a large boring or milling spindle needs when the cut pushes along the axis; the trade is a lower speed ceiling. Light preload keeps friction and heat generation down, so a large-bore spindle stays thermally stable over long cycles. Universal grinding means the ring faces are finished so any two bearings of this designation clamp into a light-preload set without shimming, back-to-back, face-to-face or in tandem. The phenolic cage is light and self-lubricating and quiet at speed, with a lower temperature ceiling than brass.
Bore: 100 mm (3.9370 in). Outside diameter: 150 mm (5.9055 in). Width: 24 mm (0.9449 in). Contact angle: 25°. Preload: light (L). Precision class: P4, ABEC 7. Cage material: phenolic. Number of rows: 1. Rolling elements: steel balls. Closure: open. Grinding: single universally ground.

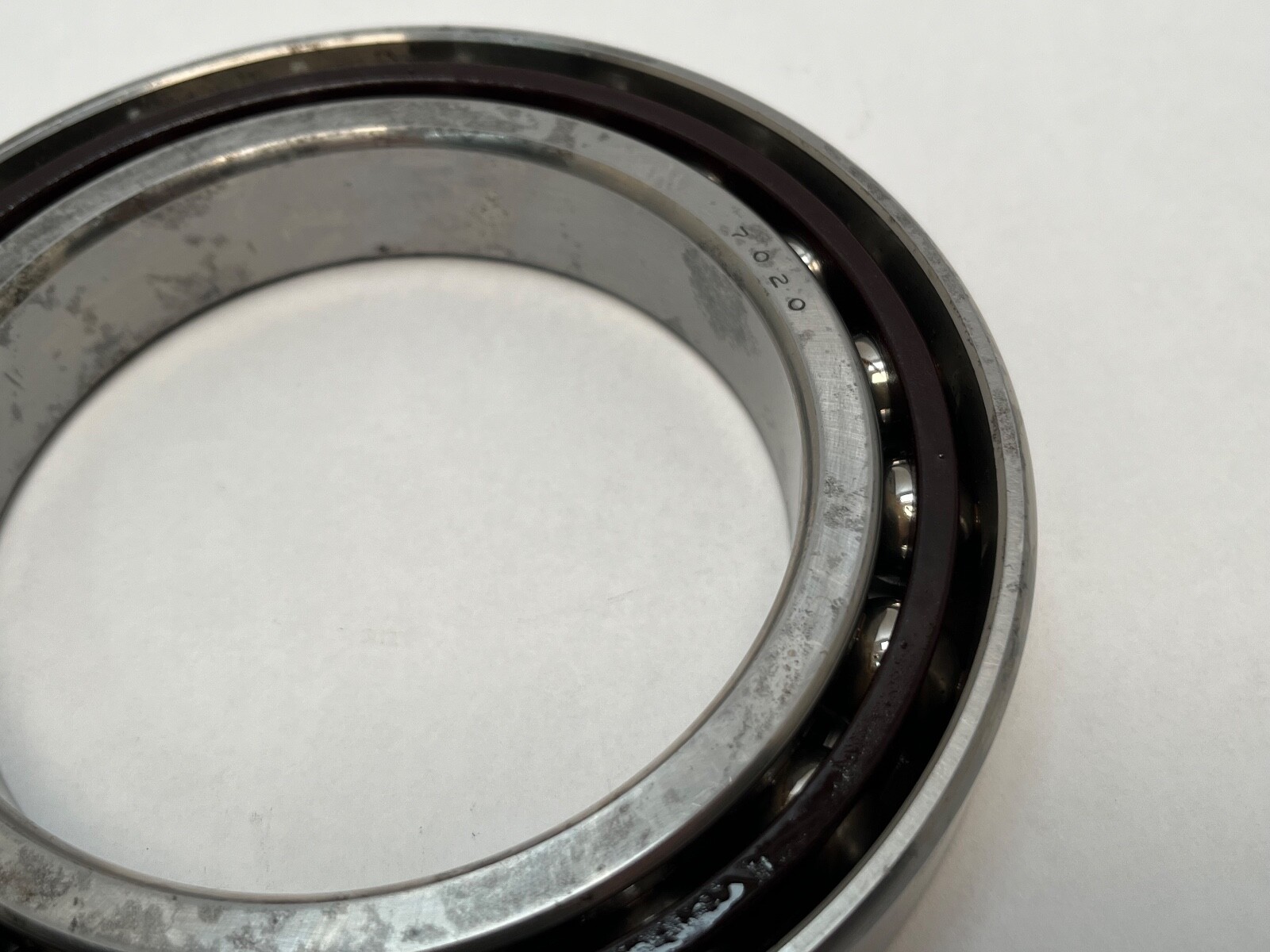

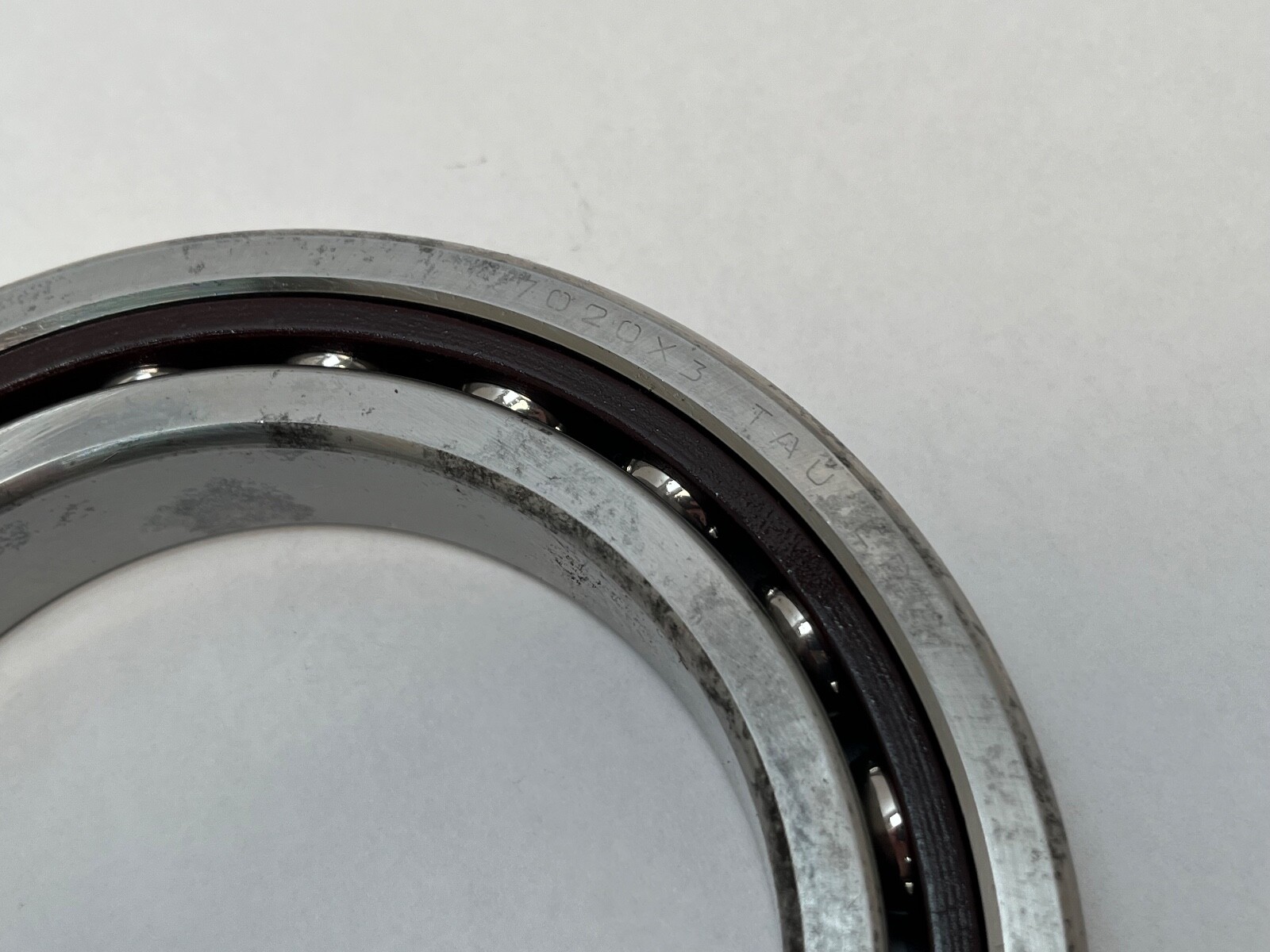

The bearing is new old stock with staining on the ring surfaces from storage.
Supplied as 1 Pc, a single universally ground bearing.
Genuine equivalents are 25° ABEC 7 universally ground light-preload bearings in the same 100x150x24 mm envelope: FAG B7020-E-T-P4S-UL, NSK 7020A5TRSULP4, SKF 7020 ACD/P4A in light preload and Fafnir 3MM9120WI-SUL. The 15° build of this size, coded C by RHP and NSK, is a related size rather than an interchange, and medium or heavy preload versions change spindle stiffness and running temperature.
