Availability:
2 in stock

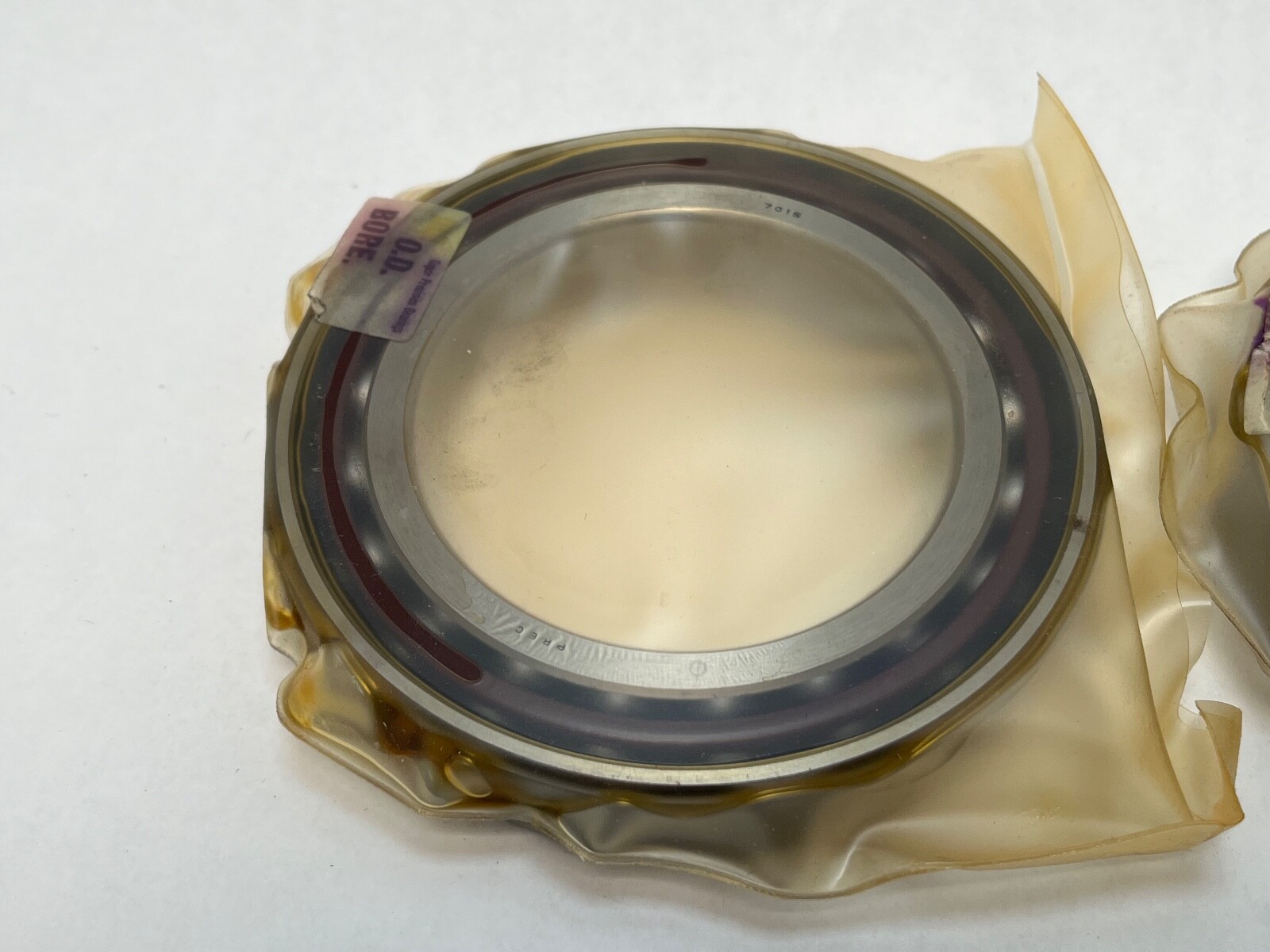

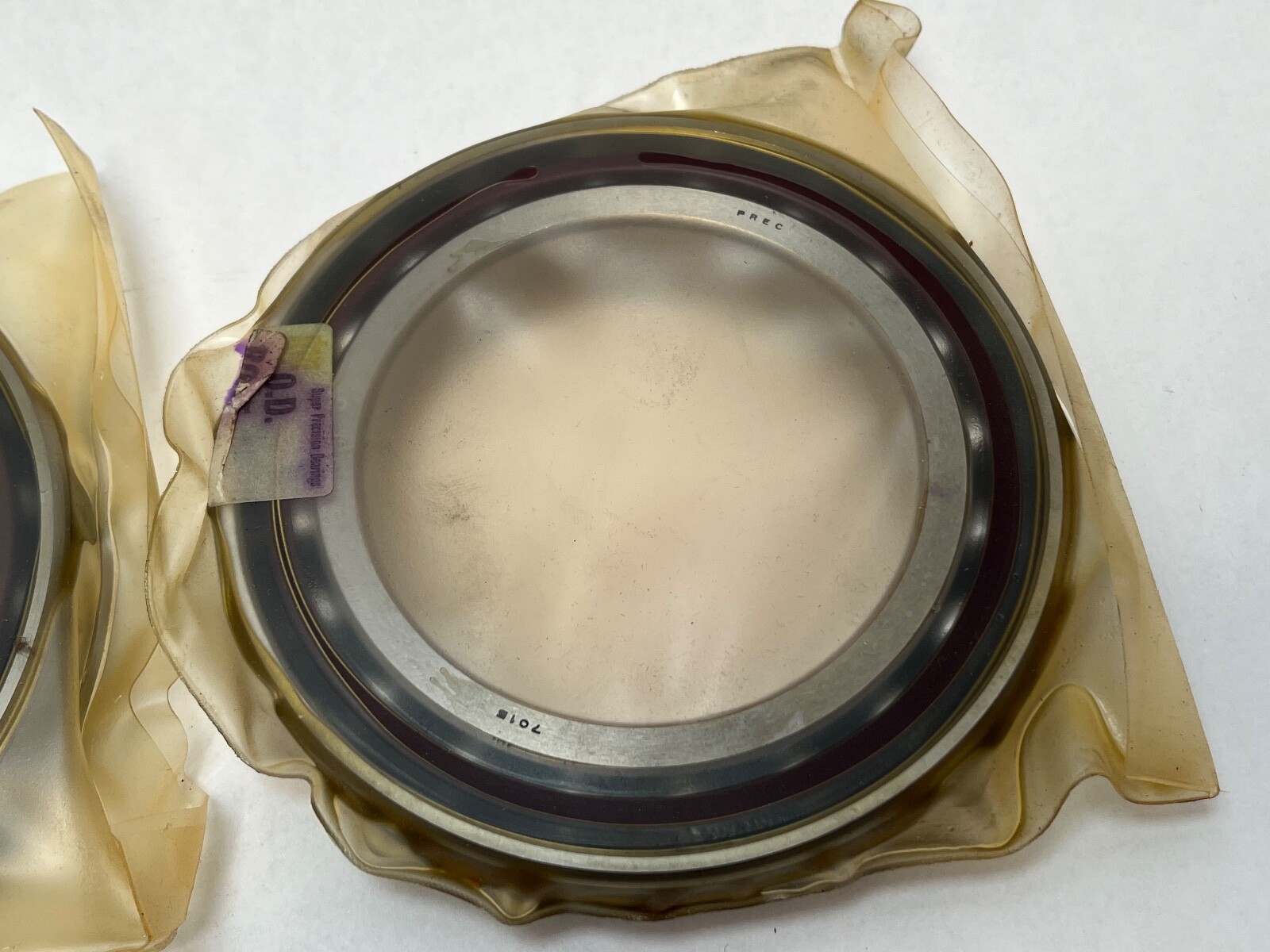

Matched duplex pair of angular contact ball bearings, 75 x 115 x 20 mm, 25° contact angle, light preload, laminated phenolic cage, open.
List Price
$374.26
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7015ETDULP4 |
| Model | 7015 E T DUL P4 / B7015X3 TA DUL EP7 / 3MM9115WI CR DUL / 7015ACD |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 75 mm |
| OD | 115 mm |
| Width | 20 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Lubricant | Oil |
| Base Number | 7015 |
| Bore Shaft Size | 75 mm |
| Mpn Variants | 7015ETDULP4, 7015-E-T-DUL-P4, 7015 E T DUL P4, 7015E, B7015X3TADULEP7, 3MM9115WICR-DUL |
| Rolling Elements | Ball |
| Number Of Rows | 1 per bearing |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50.28 |
| Part Number | 7015ETDULP4 |
| Cross Reference 6 | RHP 7015CTDULP4 (related size, 15° contact angle) |
|---|

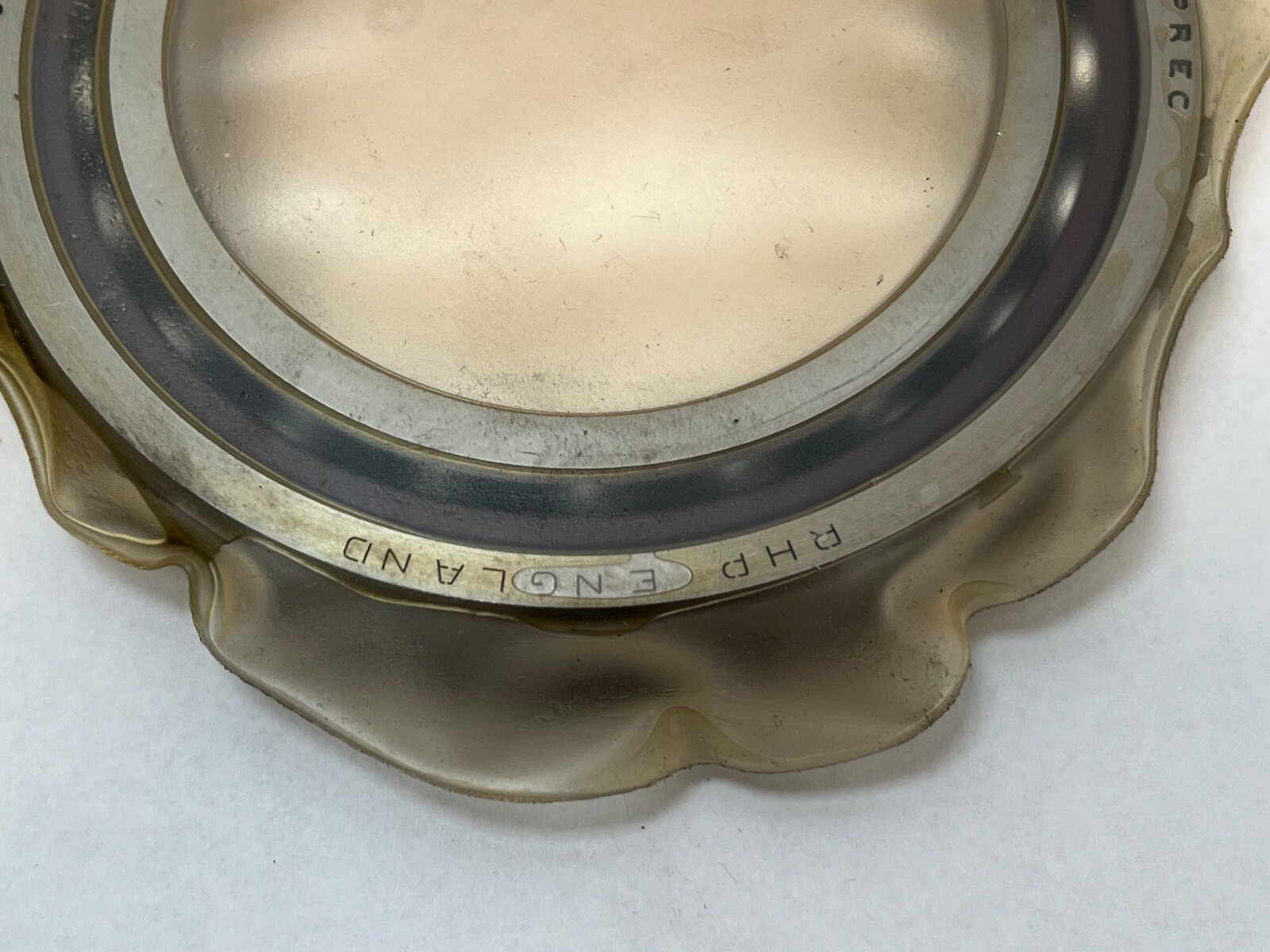

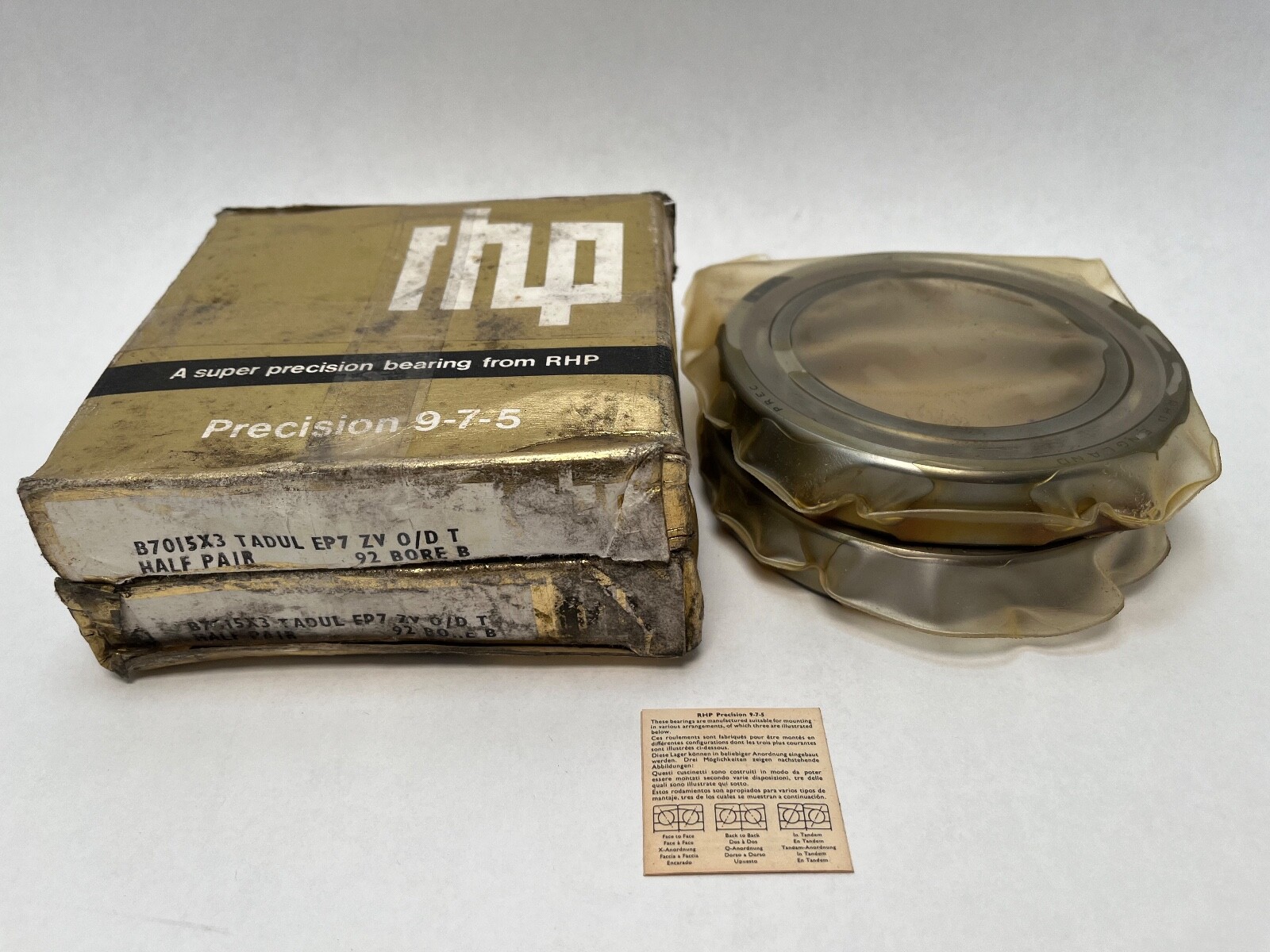

RHP 7015ETDULP4 super precision angular contact ball bearings, supplied as a matched duplex pair. Series: 7000, ISO dimension series 10. Bore: 75 mm. Outside diameter: 115 mm. Width: 20 mm each bearing, 40 mm assembled. Straight bore, open on both faces, ball rolling elements in chrome bearing steel to SAE 52100. Country of origin as recorded: United Kingdom.

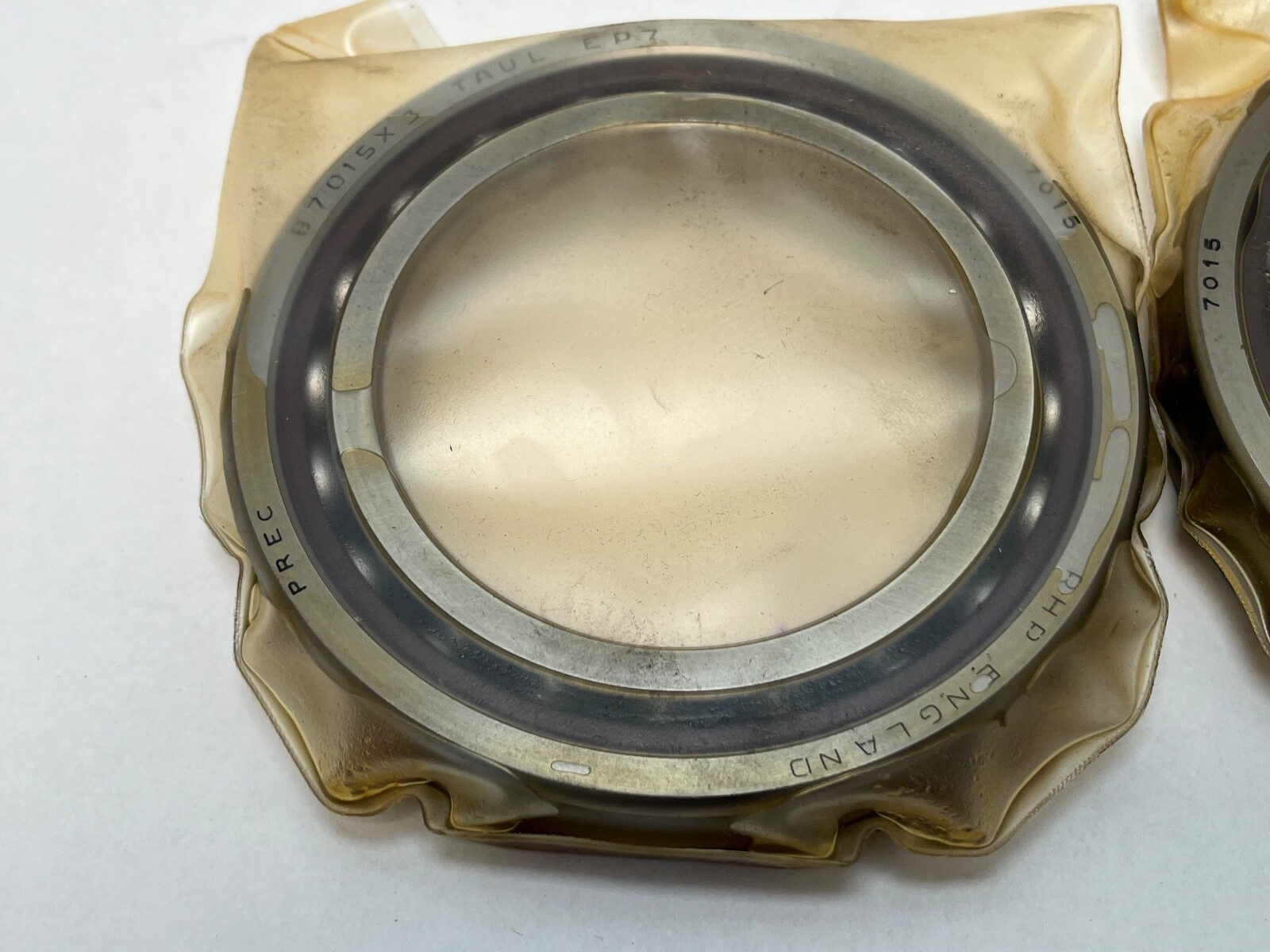

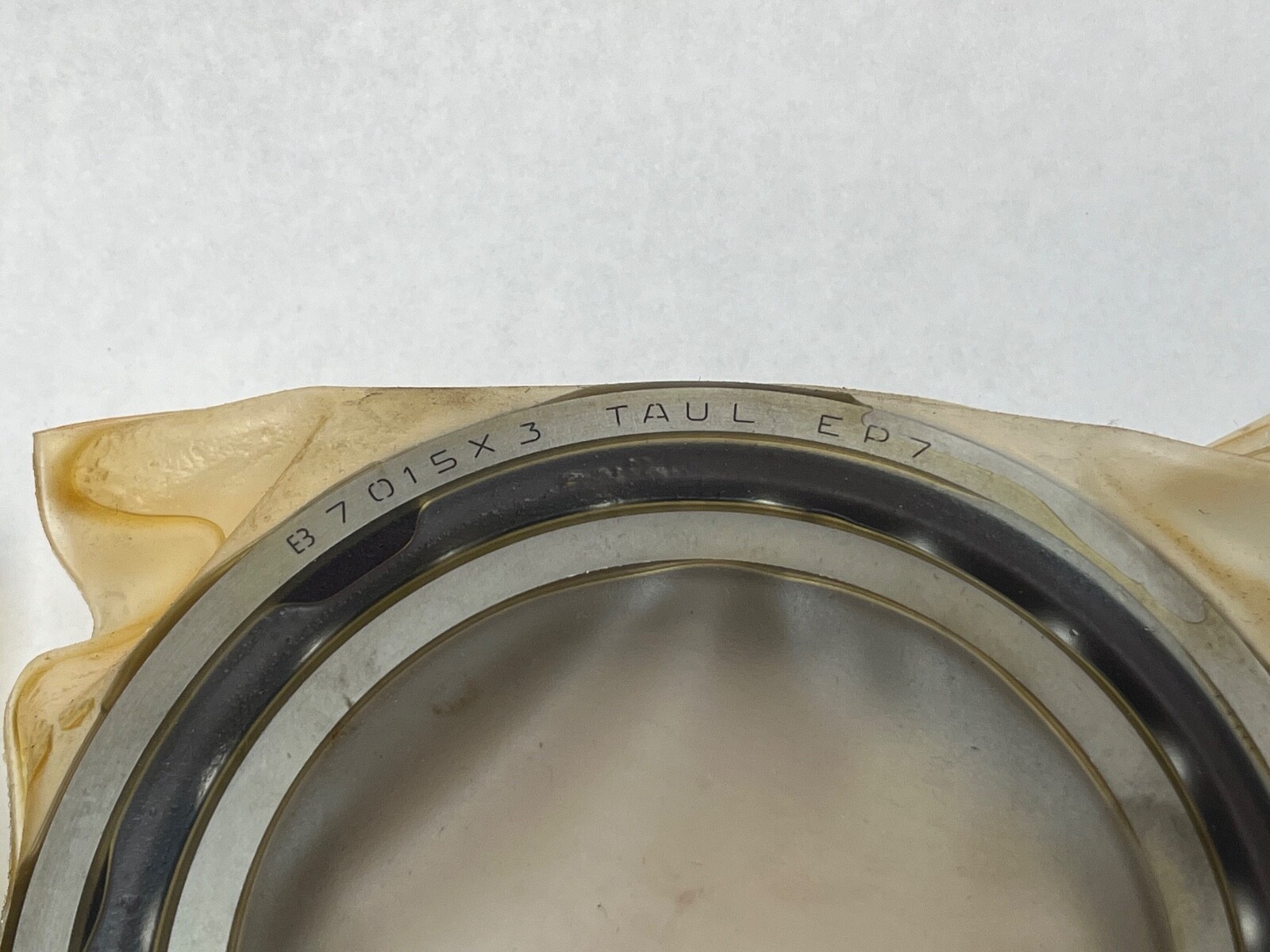

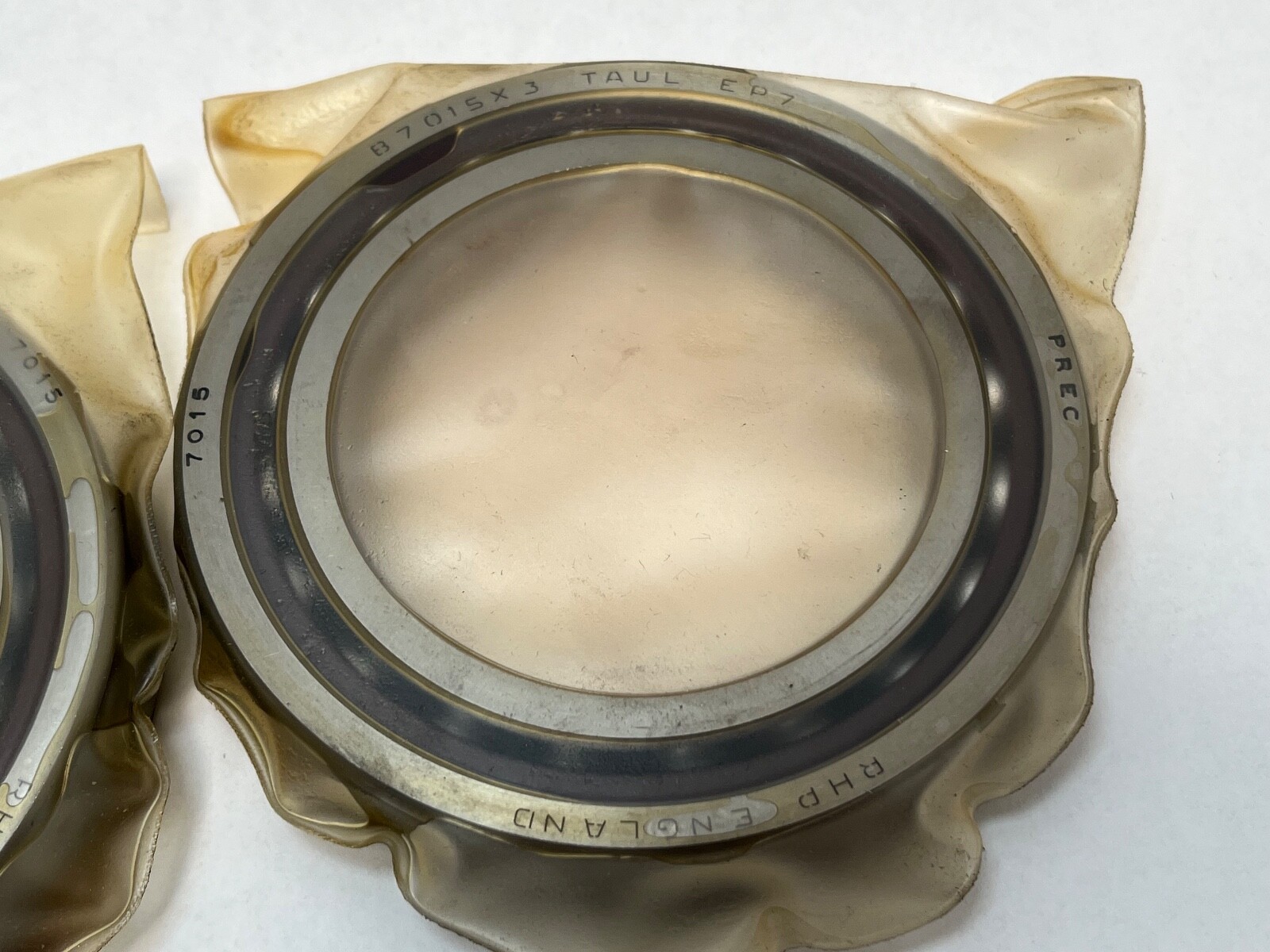

Contact Angle: 25°. Cage: laminated phenolic resin, machined and outer-ring guided. Grouping: DU, paired unit. Preload: L, light. Precision Grade: P4, equal to RHP EP7 and ABEC 7. Searchable forms include 7015ETDULP4, 7015-E-T-DUL-P4, 7015 E T DUL P4, the RHP B-series form B7015X3TADULEP7 and the Fafnir cross 3MM9115WICR-DUL.
Dynamic Load Rating: 45.5 kN per bearing. Static Load Rating: 43.5 kN per bearing. Limiting speed for a single bearing: 10,000 rpm with grease, 15,100 rpm with oil/air. As a light-preload back-to-back pair those figures carry a 0.80 factor, giving 8,000 rpm and 12,080 rpm. A 25° contact angle carries more thrust and less speed than a 15° bearing on the same envelope. Axial preload across the pair: 490 N. Axial stiffness: 229 N/µm. The outer-ring guided phenolic cage runs to 120 °C continuously.

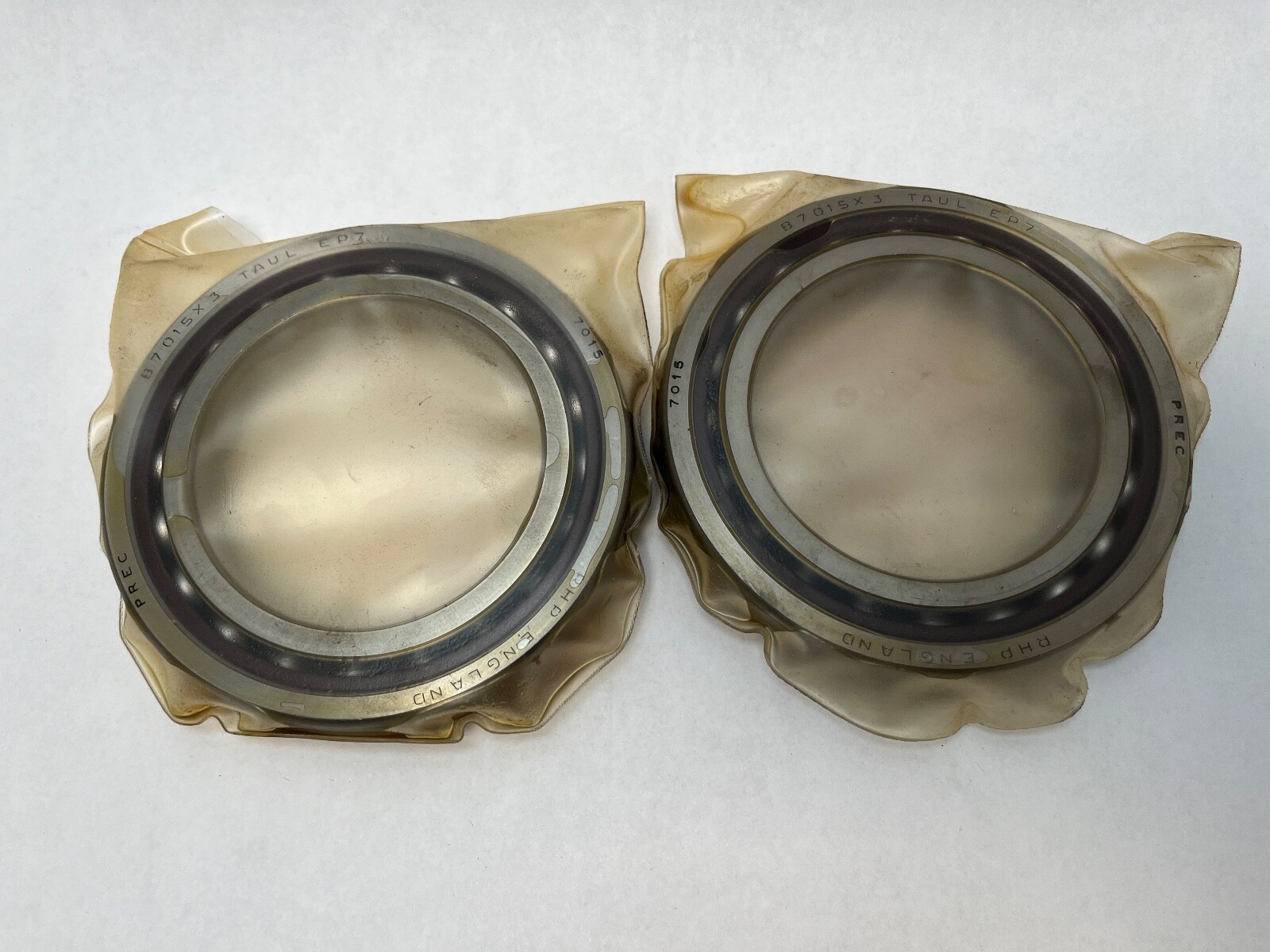

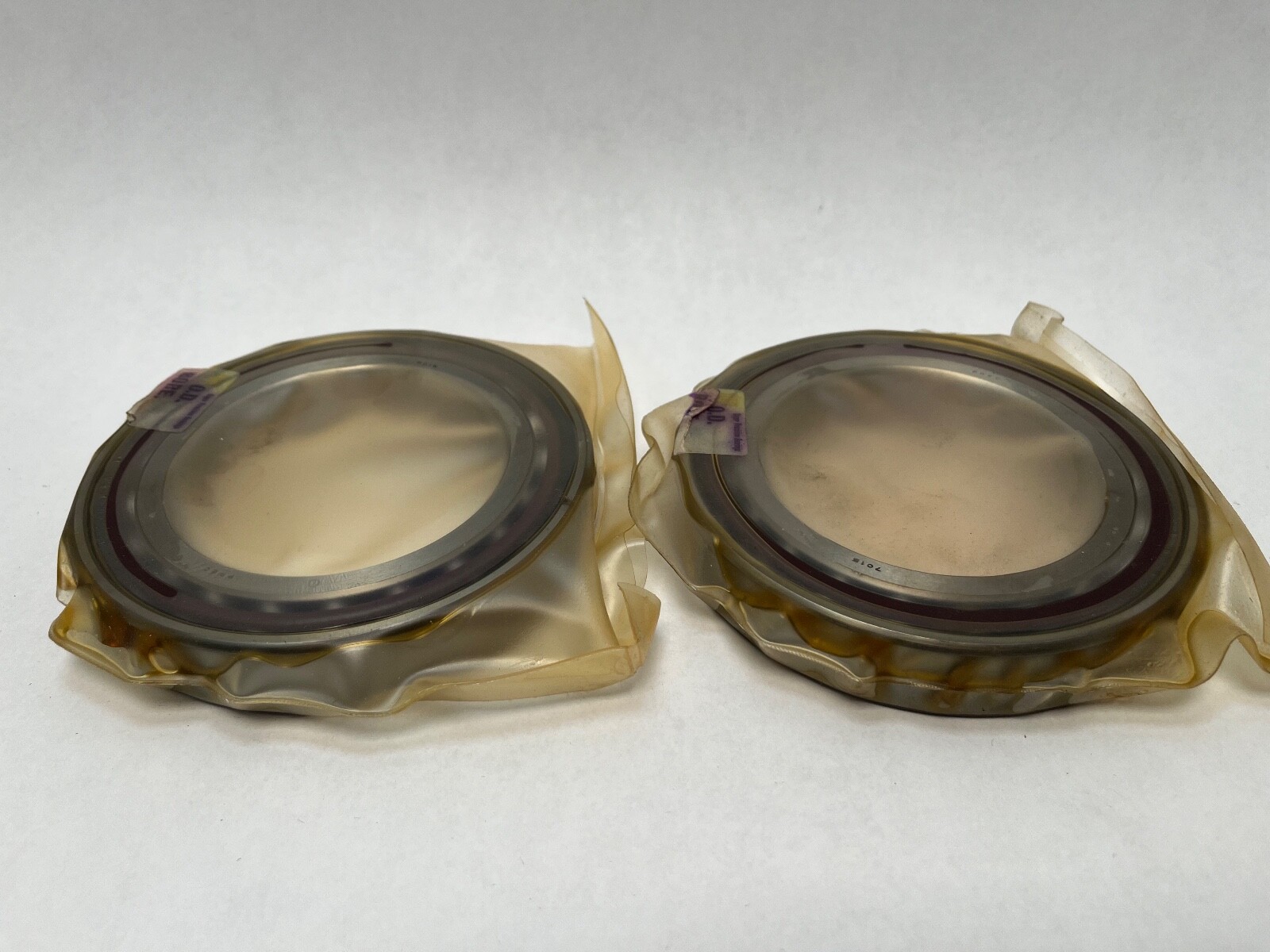

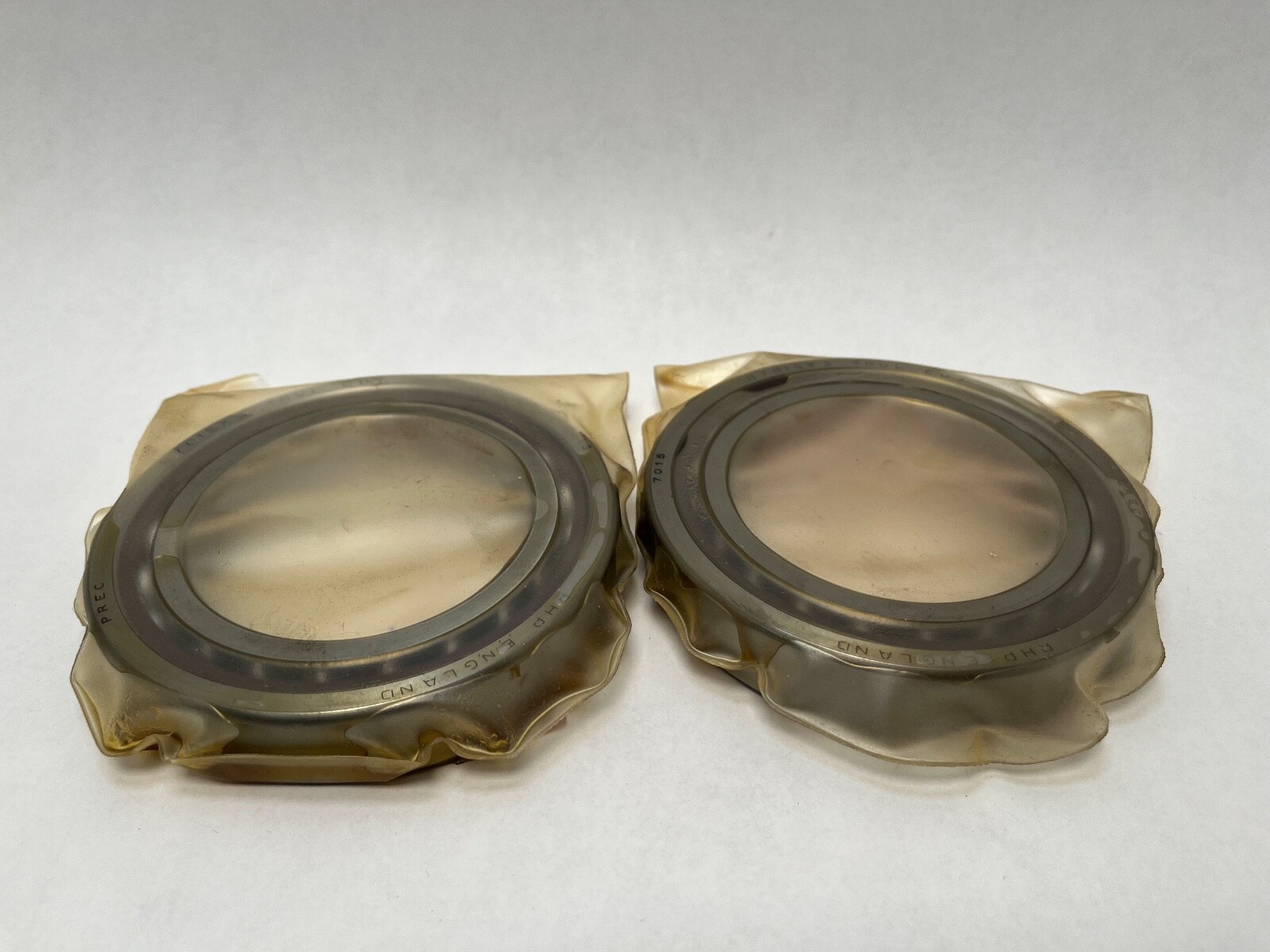

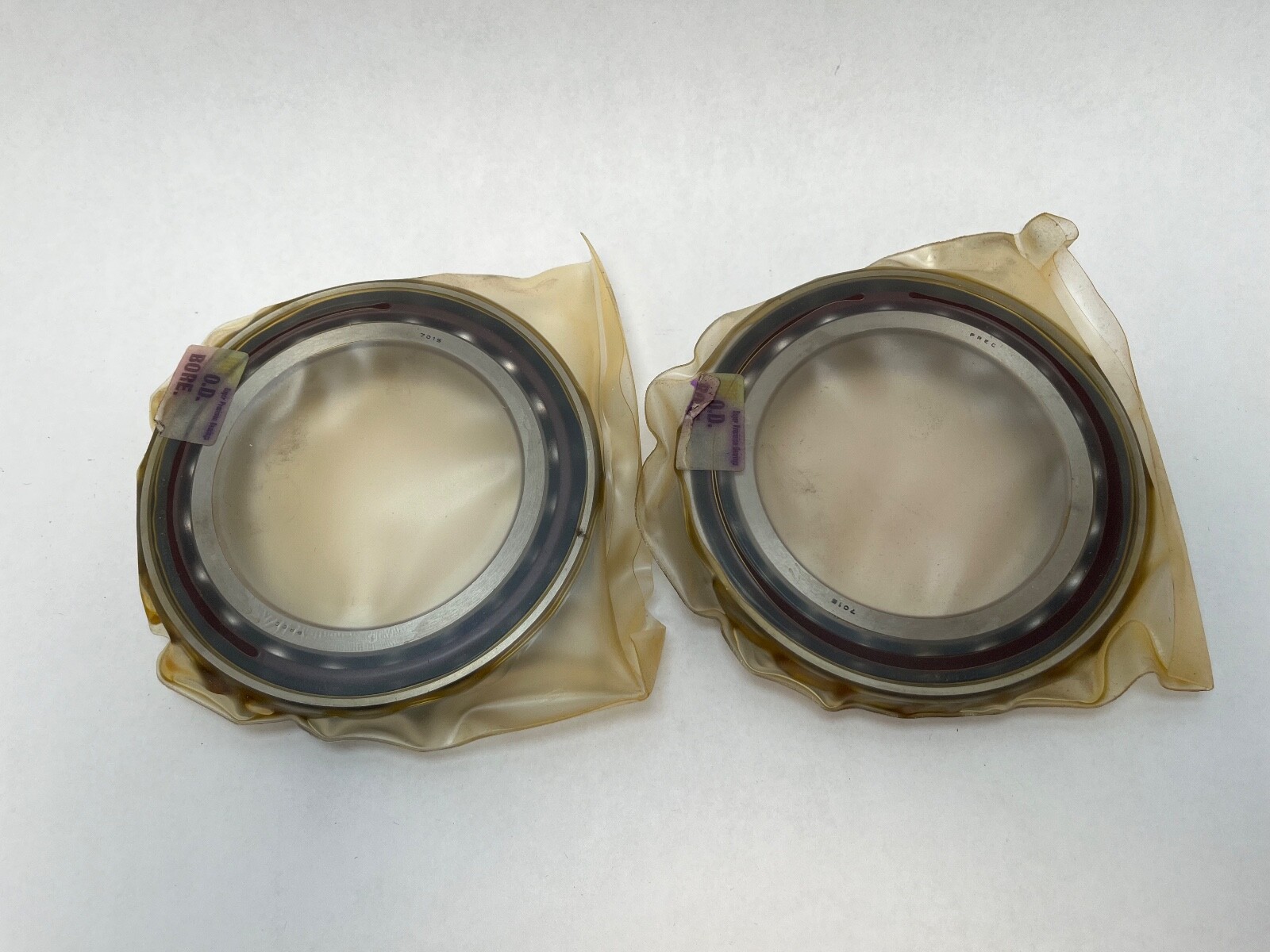

Two bearings, a matched duplex pair. Universal face control means they mount back-to-back, face-to-face or in tandem at the same light preload, which is set at manufacture. The high point of radial runout is marked with a burnished spot on the inner ring face and a V line on the outer diameter.
Abutment diameters from the RHP super precision tables: shaft shoulder d1 minimum 82 mm, housing shoulder D1 maximum 108 mm, D2 maximum 110 mm. Fillet radius r minimum 1.1 mm, r1 minimum 0.6 mm. Effective load centre a = 32.1 mm. Internal free volume 27.8 cm³ per bearing. Lubrication jet pitch circle 89.4 mm. Mass 0.639 kg per bearing, 1.278 kg for the pair.
Same-specification equivalents at 25° and light preload: Fafnir 3MM9115WICR-DUL, FAG B7015-E-T-P4S-UL, NSK 7015A5TRDULP4, SKF 7015 ACD/P4A with light preload. RHP 7015CTDULP4 is a related size at 15°.
