Super-precision angular contact ball bearing, 30 x 55 x 13 mm, straight bore, open. Outer-ring guided laminated phenolic cage, P6 / ABEC 3 precision.
List Price
$92.84
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
RHP 7006TDULP4 Matched Duplex Angular Contact Ball Bearing Pair 30 x 55 x 13 mm ABEC 7 Light Preload$151.54
Angular Contact Ball Bearing - 30 mm ID, 55 mm OD, 13 mm Width, Open, 25° Contact Angle, ABEC 7 / P4, Medium Preload$38.17
Super-Precision Angular Contact Ball Bearing 30 x 55 x 13 mm, 15 Degree Contact Angle, P4 ABEC 7, Phenolic Cage, Heavy Preload Duplex Half, Open, 1 Pc$40.72
Super-Precision Angular Contact Ball Bearing - 30 mm ID, 55 mm OD, 13 mm Width, 15 Degree, Phenolic Cage, Light Preload$75.77| MFR / Brand | RHP |
|---|---|
| MPN | 7006TUEP3 |
| Model | 7006 TU EP3 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 30 mm |
| OD | 55 mm |
| Width | 13 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Preload | Light |
| Base Number | 7006 |
| Bore Shaft Size | 30 mm |
| Mpn Variants | 7006TUEP3; 7006-TU-EP3; 7006 TU EP3; 7006TU |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Part Number | 7006TUEP3 |

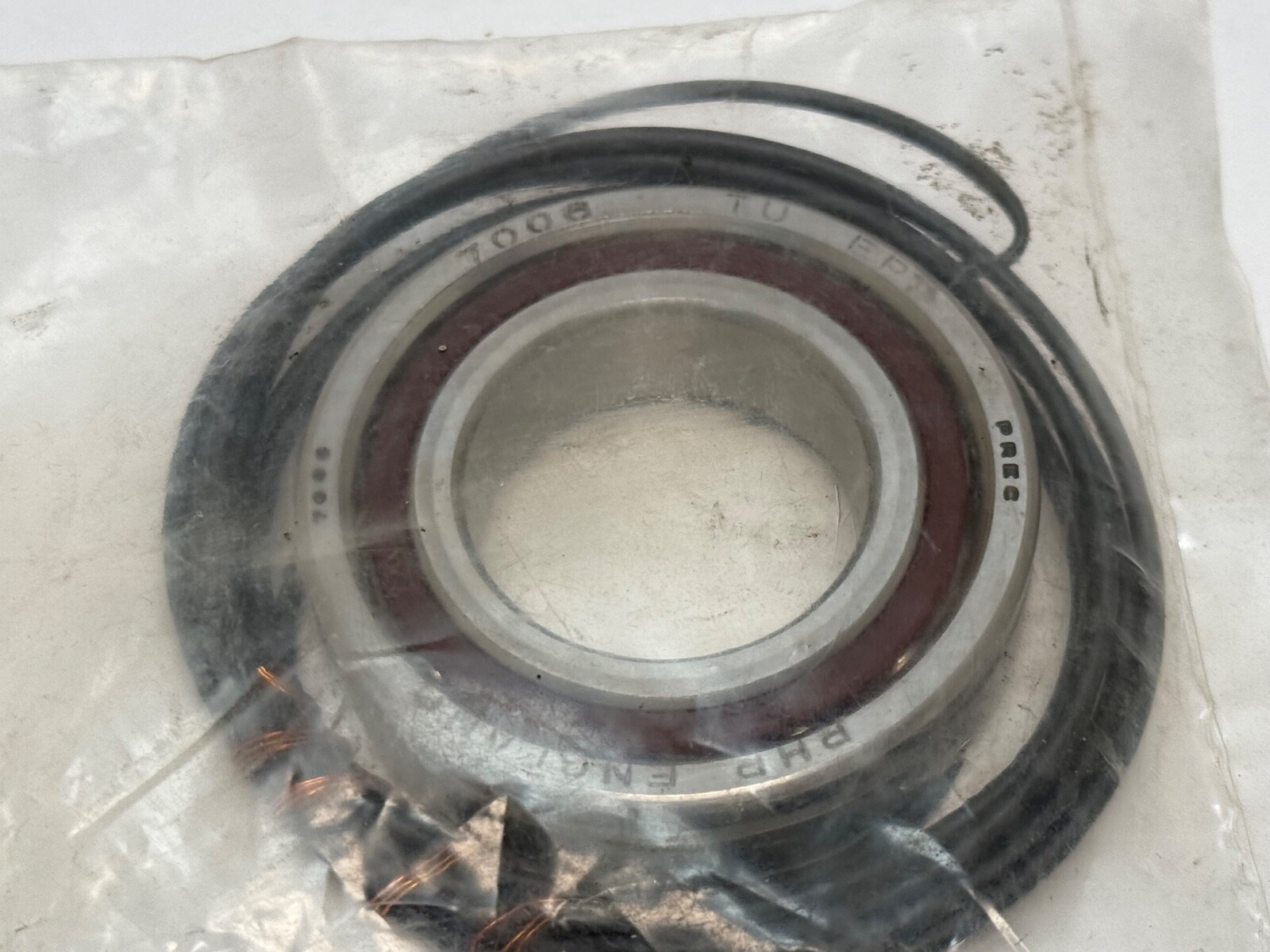

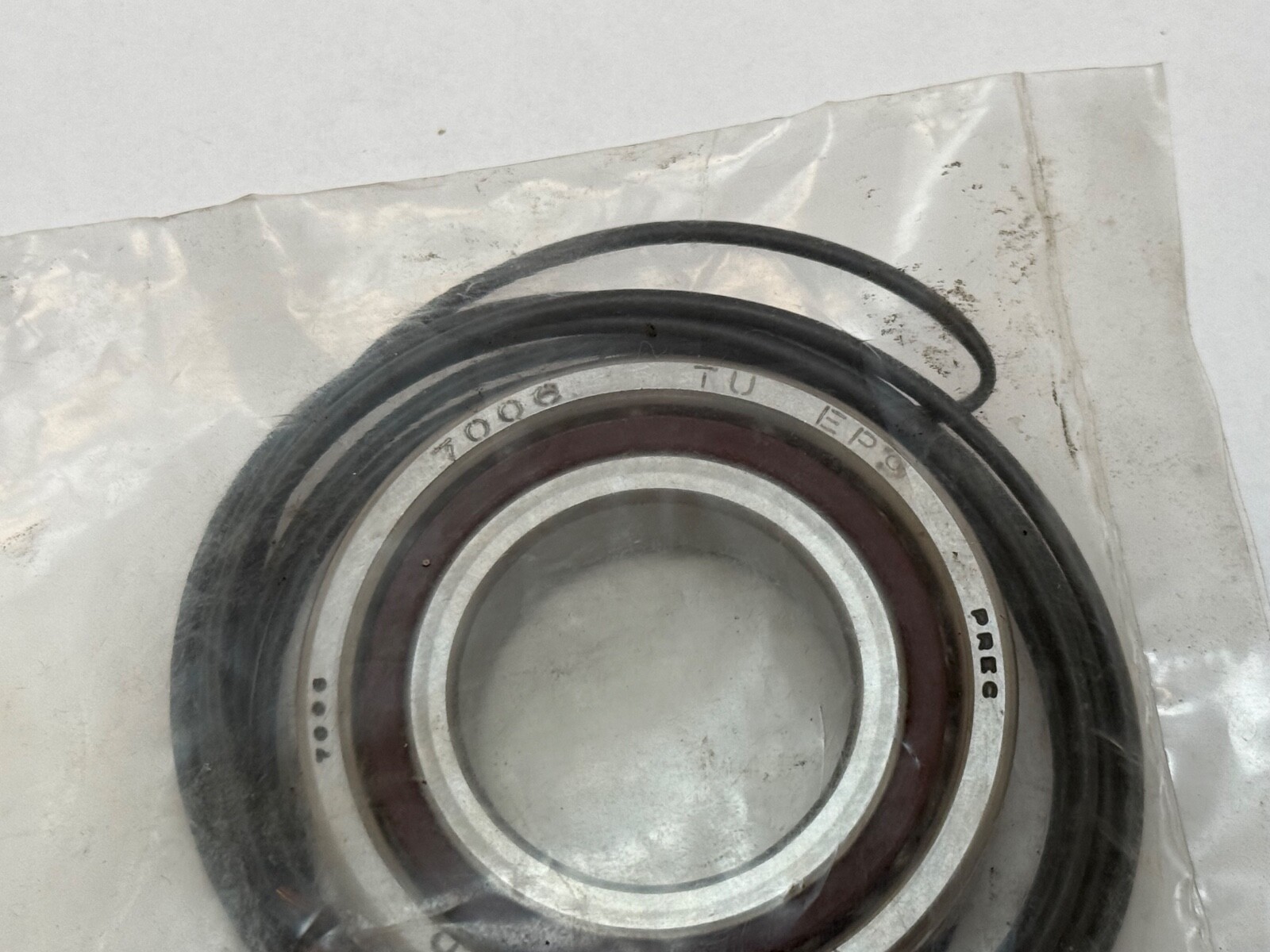

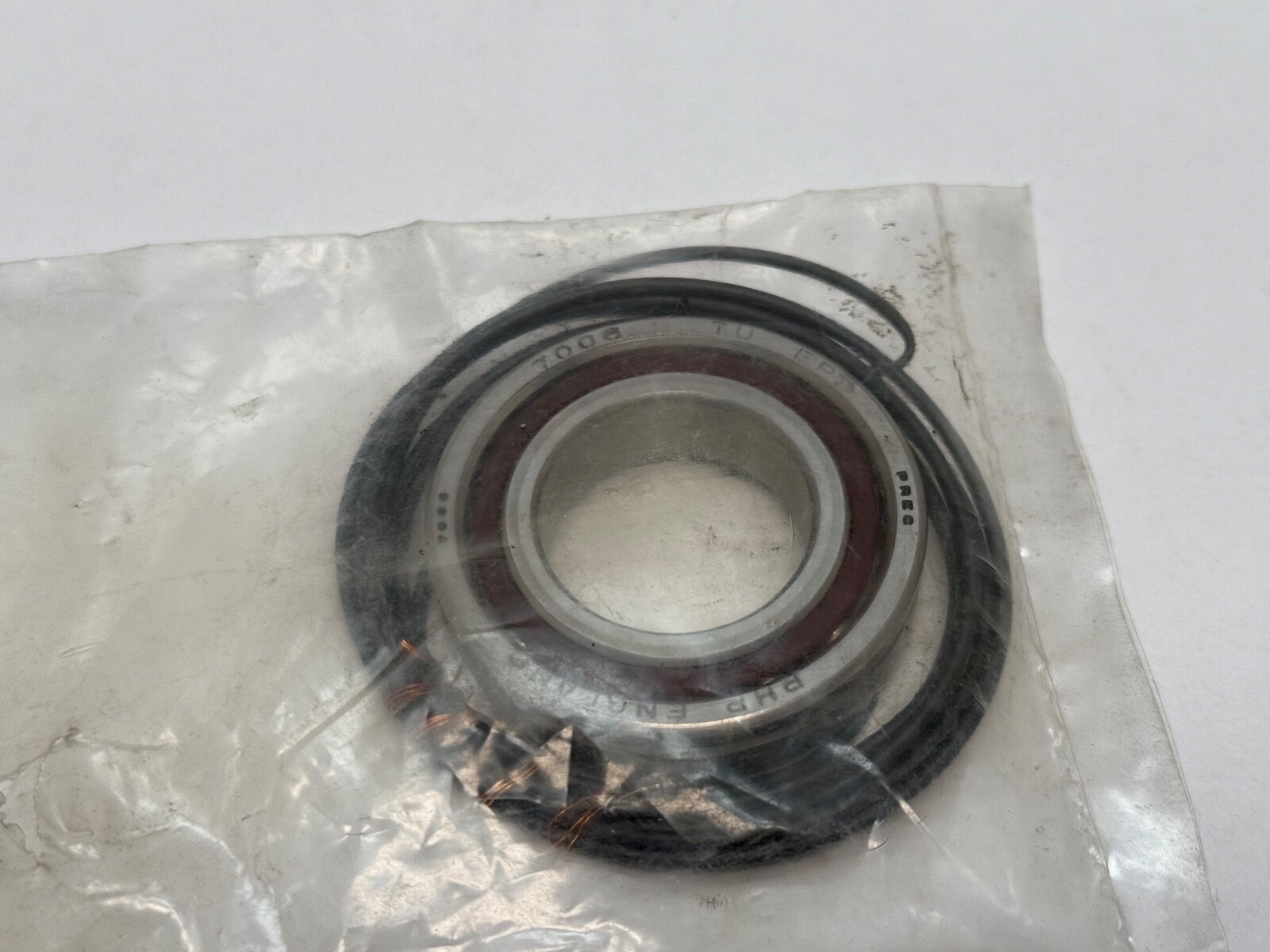

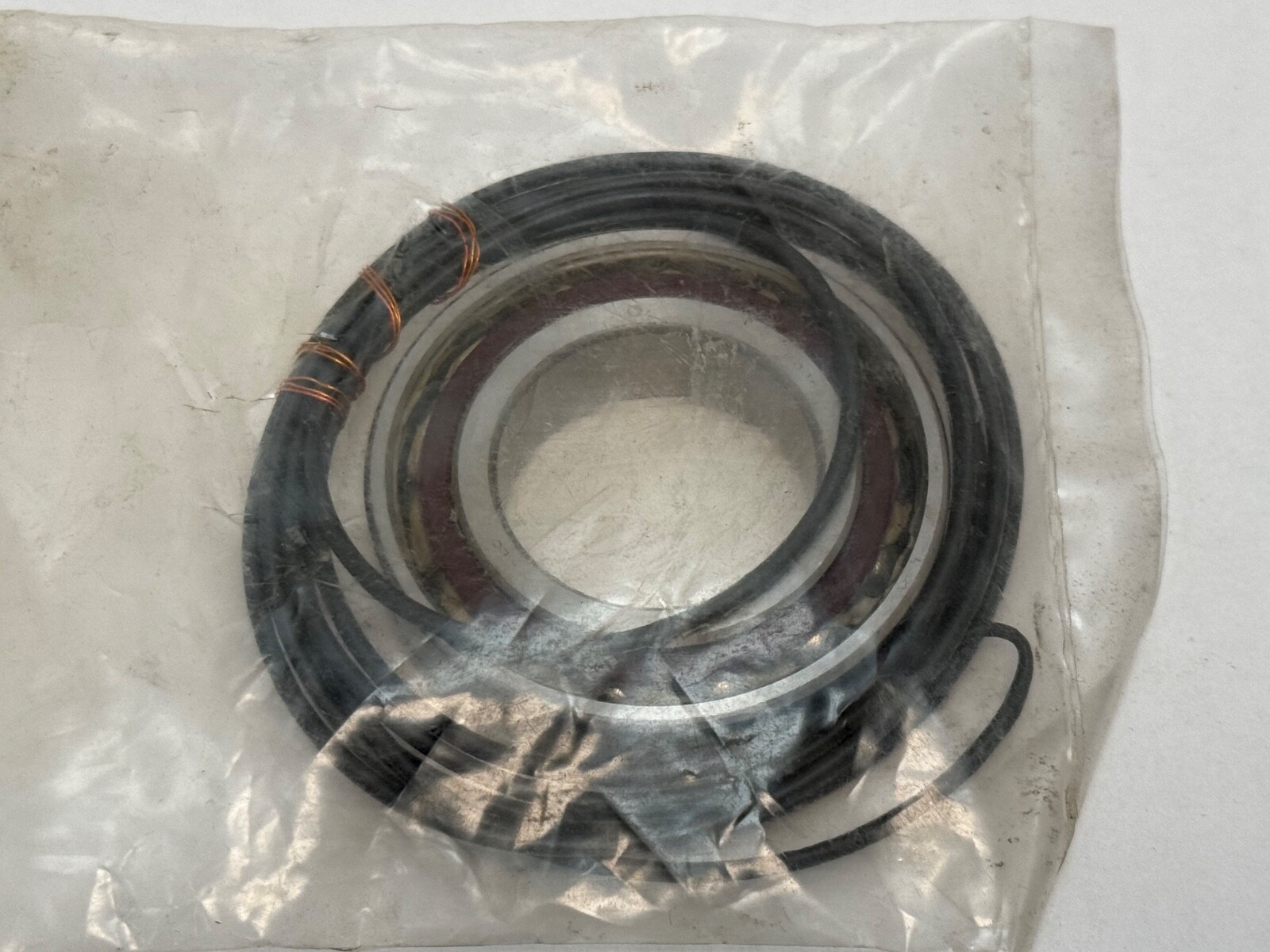

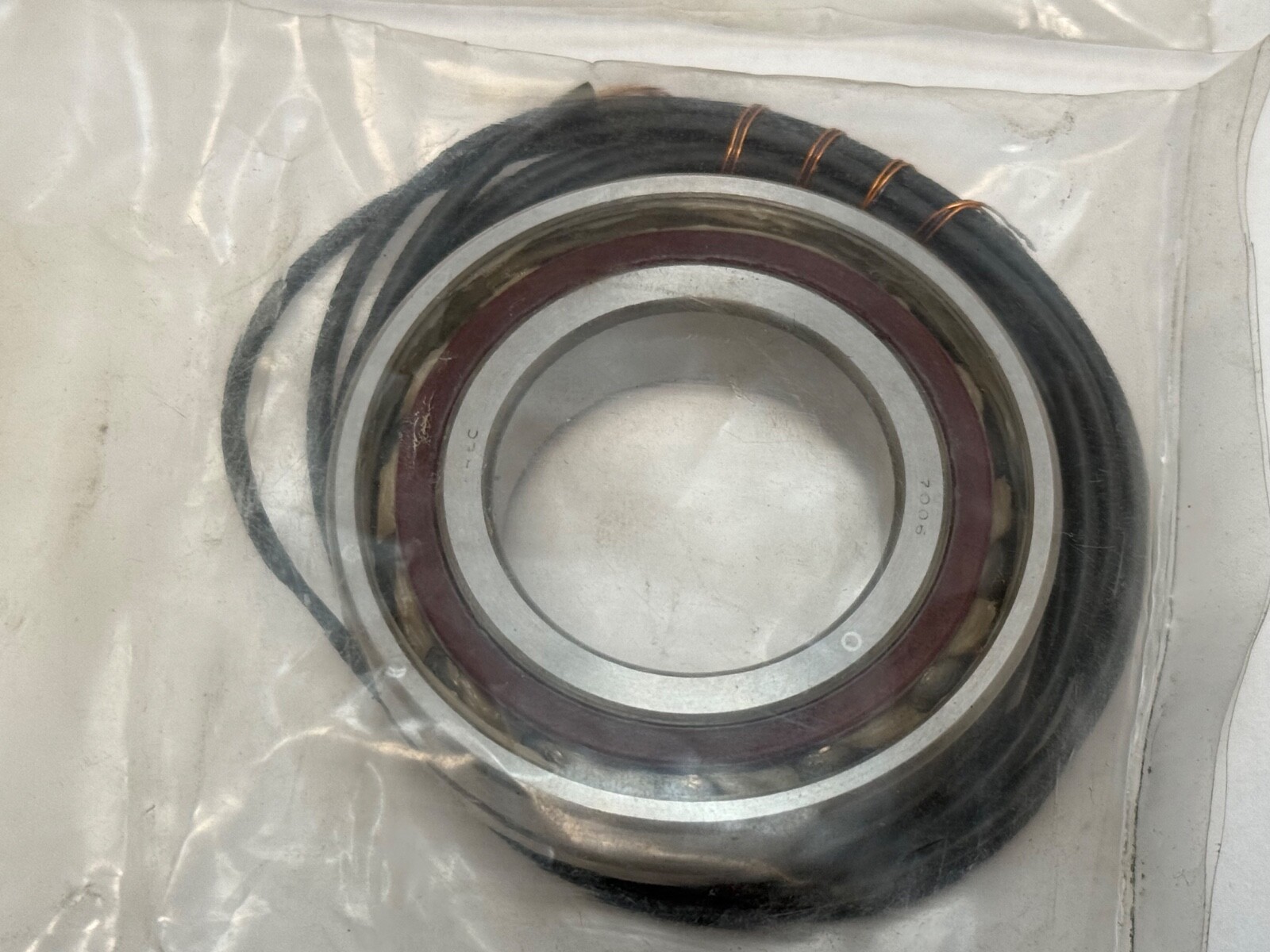

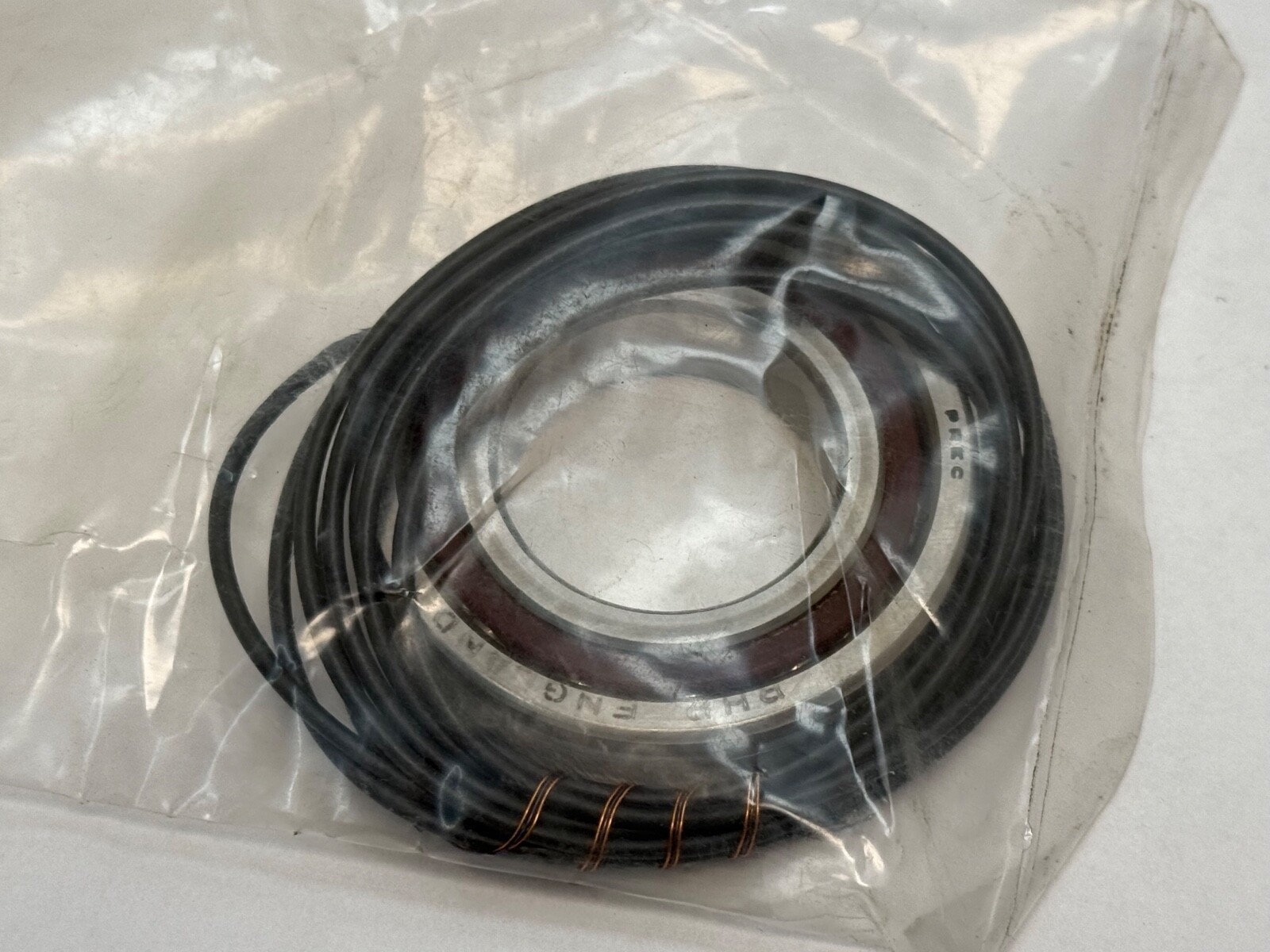

RHP 7006TUEP3 super-precision single-row angular contact ball bearing. Brand: RHP, part of the NSK Group. Manufacturer Part Number: 7006TUEP3. Bearing Type: Angular Contact Ball Bearing. Number Of Rows: 1. Rolling Elements: Ball. Bore: 30 mm. Outside Diameter: 55 mm. Width: 13 mm. Bore Type: Straight. Closure Type: Open. Series: 70, ISO dimension series 10. Bore Code: 06. Country of Origin: United Kingdom. Bearing Material: carbon chrome bearing steel to BS970 534A99 / 535A99, equivalent to SAE 52100, through hardened and heat treated for dimensional stability.
Precision Class: P6, written EP3 in the British Standard BS292 scheme and equal to ABEC 3. Cage Material: laminated phenolic resin. Cage Type: machined, outer-ring guided. Face Control: universal. Universal face control means the inner and outer rings are ground to the same width and the relative positions of the faces are adjusted at manufacture, so the bearing mounts back-to-back or face-to-face without altering the set value and shares load equally when mounted in tandem.
Maximum Operating Temperature: 120 °C, set by the laminated phenolic cage. Mass: 0.114 kg per bearing. Internal Free Volume: 5.3 cm³. An outer-ring guided laminated phenolic cage is light and self-lubricating, so it runs quieter and generates less heat at spindle speeds than a steel or brass cage, and the low cage mass keeps centrifugal loading on the pockets down. The internal free volume is the figure grease quantity is calculated from.

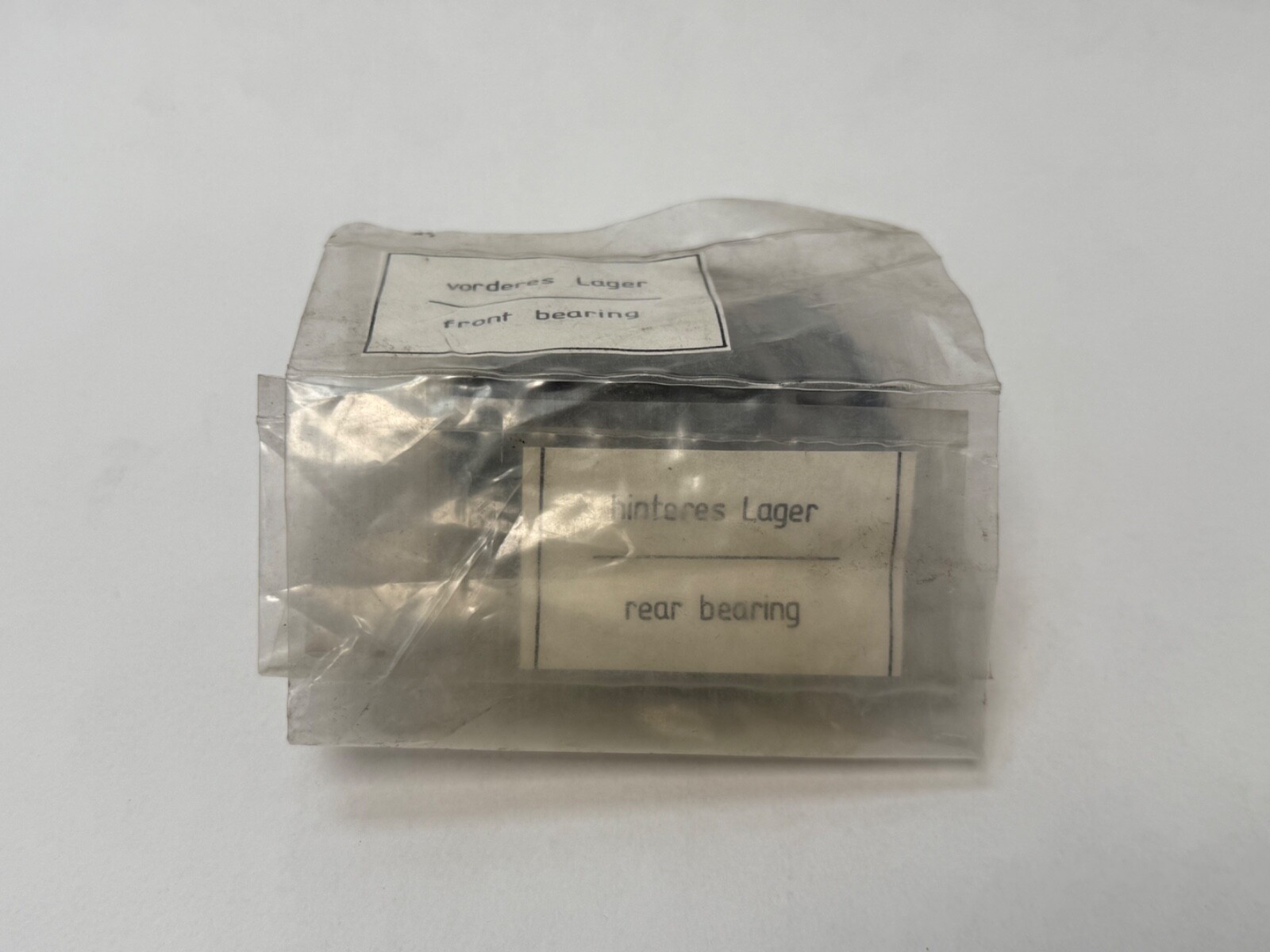

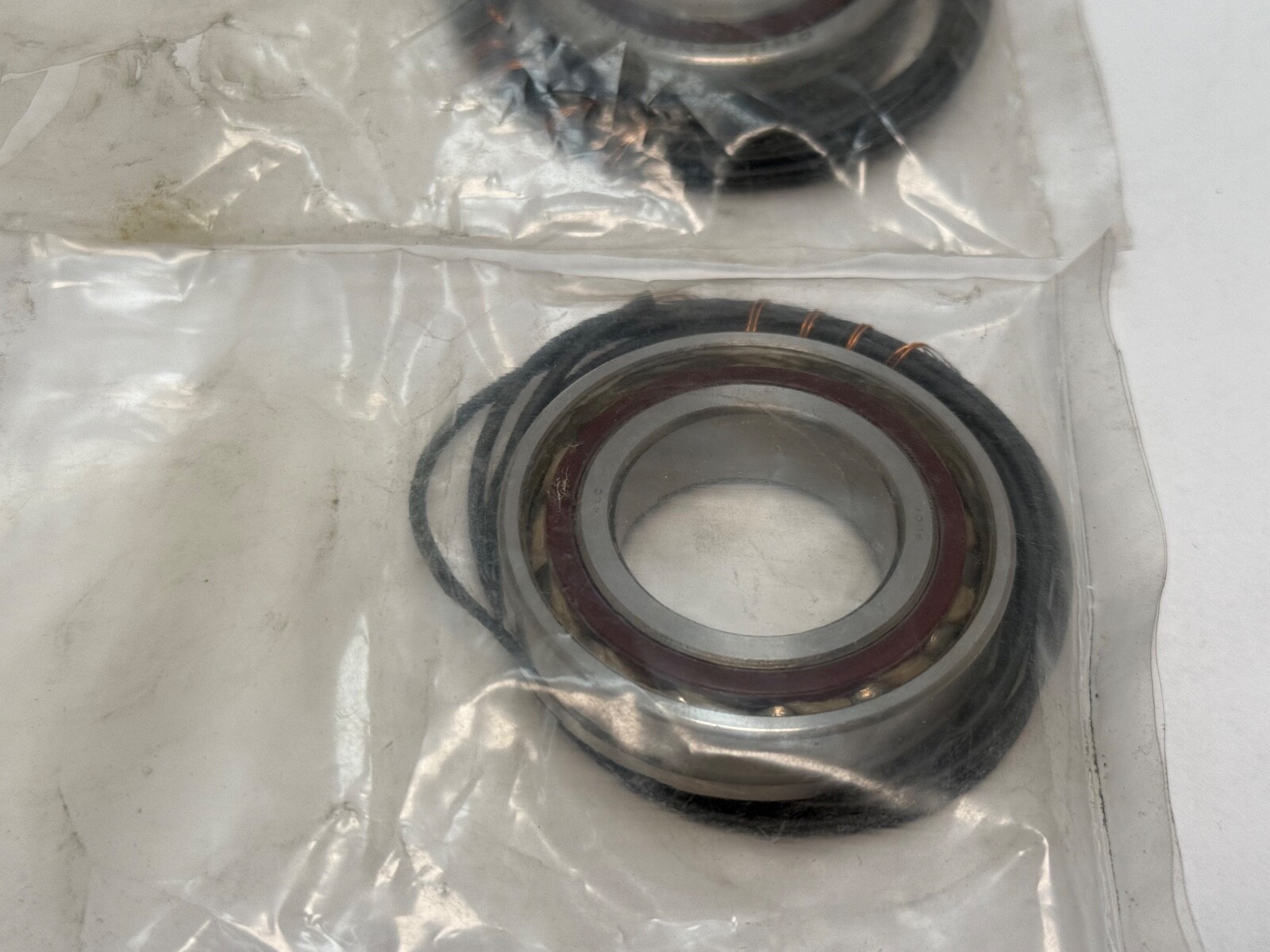

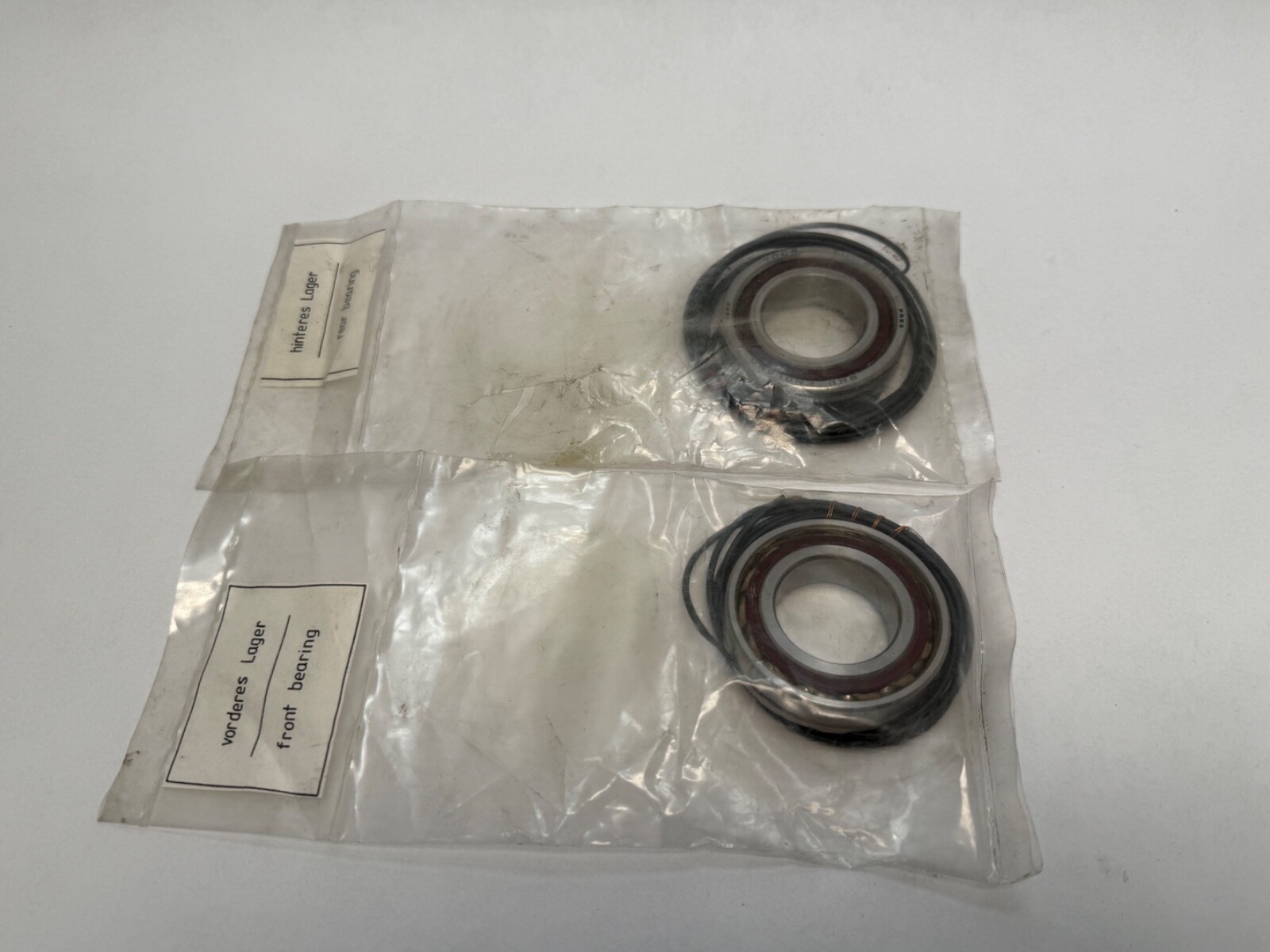

Unit Quantity: 2 Pcs. Two universally faced single bearings.
Inner Ring Abutment Diameter (d1 min): 36 mm. Outer Ring Abutment Diameter (D1 max): 49 mm. Housing Abutment Diameter (D2 max): 50 mm. Bearing Fillet Radius (r min): 1.0 mm. Secondary Fillet Radius (r1 min): 0.6 mm. Lubrication Jet Pitch Circle Diameter (dT, DIN 628-6): 39.5 mm.
Envelope Equivalent: ISO 7006, 30 x 55 x 13 mm. MPN Variants: 7006TUEP3, 7006-TU-EP3, 7006 TU EP3, 7006TU.
