Availability:
2 in stock
Angular contact ball bearing, 12 x 28 x 8 mm, 15° contact angle. Open, phenolic cage, P6 / ABEC 3 precision, CN clearance, straight bore, single row.
List Price
$30.13
2 in stock
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | RHP |
|---|---|
| MPN | 7001CTBP6 |
| Model | 7001-C-TB-P6 / 2M9101WI / B 7001 2X T EP3 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 12 mm (0.4724 in) |
| OD | 28 mm (1.1024 in) |
| Width | 8 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Condition | New |
| Base Number | 7001 |
| Industry Terms | angular contact ball bearing, 15 degree contact angle bearing, spindle bearing, phenolic cage bearing, P6 ABEC 3 bearing, 7000 series bearing |
| Overall Width | 8 mm (0.3150 in) |
| Bore Shaft Size | 12 mm (0.4724 in) |
| Mpn Variants | 7001CTBP6, 7001 C TB P6, 7001-C-TB-P6, 7001CTB, 7001C, 7001, B70012XTEP3, B 7001 2X T EP3, 7001X2TEP3, 2M9101WI, 2MM9101WI, 9101WI |
| Precision Class | P6 (ABEC 3, BS292 EP3) |
| Additional Attributes | Shaft abutment d1 14.5 mm min; housing abutment D1 25.5 mm max; D2 26.8 mm max; chamfer r 0.3 mm min, r1 0.15 mm min; internal volume 1.0 cm3; lubrication jet PCD 18.3 mm |
| Min Temp | -30°C |
| Cage Type | Machined phenolic |
| Dynamic Load Rating | 5.4 kN |
| Static Load Rating | 2.6 kN |
| Precision Rating | ABEC 3 / P6 |
| Rolling Elements | Ball |
| Max Temp | 120°C |
| Item Weight | 0.05 lbs |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Internal Clearance | CN |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 15° |
| Preload | Not specified |
| Design Units | Metric |
| Part Number | 7001CTBP6 |
| Cross Reference 1 | SKF 7001 CD/P6 |
|---|---|
| Cross Reference 2 | FAG 7001-C-T-P6 |
| Cross Reference 3 | NSK 7001A5TYNDBLP6 (related size, 25 degree angle, polyamide cage, back-to-back matched pair) |
| Cross Reference 4 | 2M9101WI (Fafnir designation, same carton, 15 degree) |

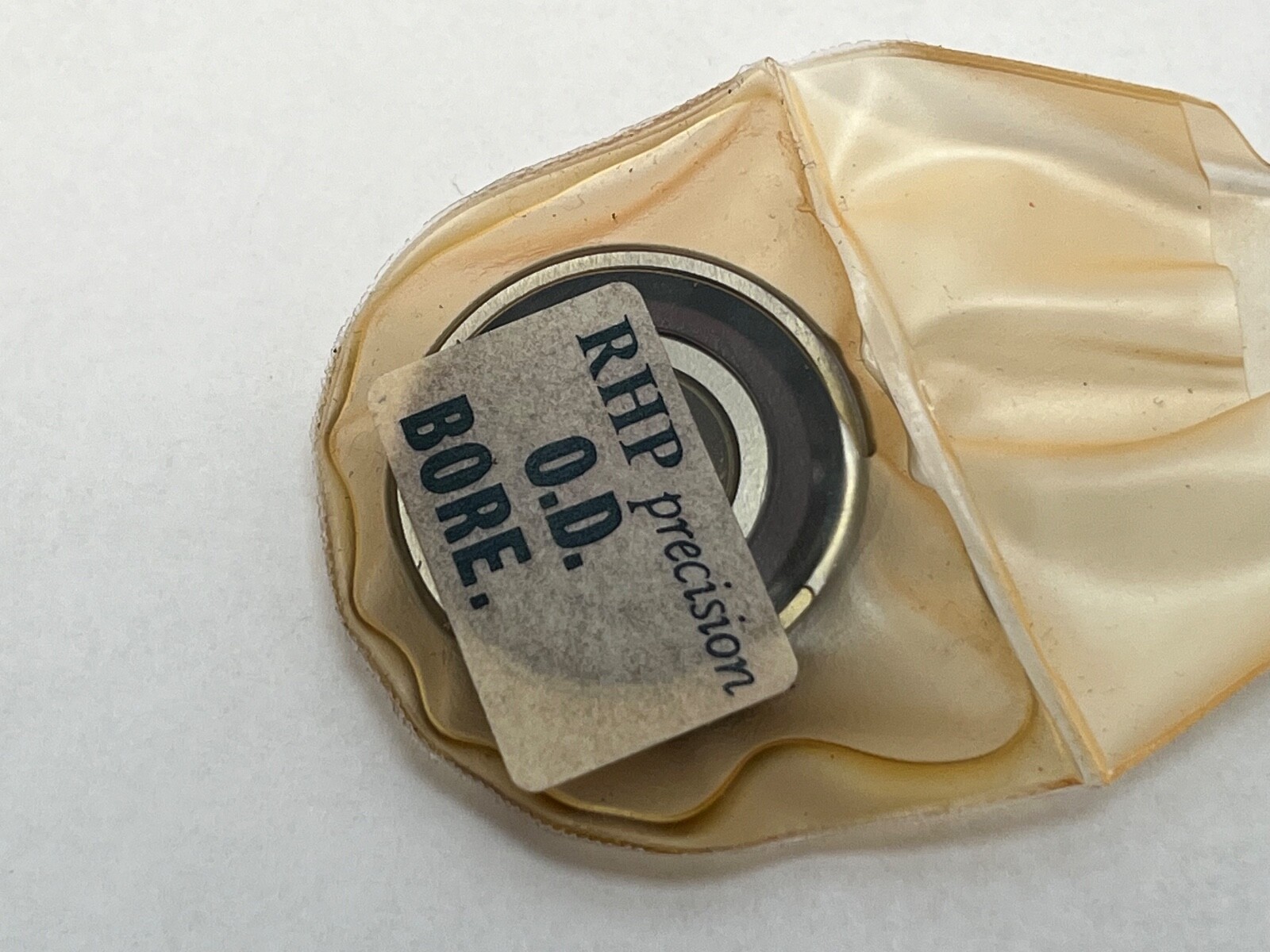

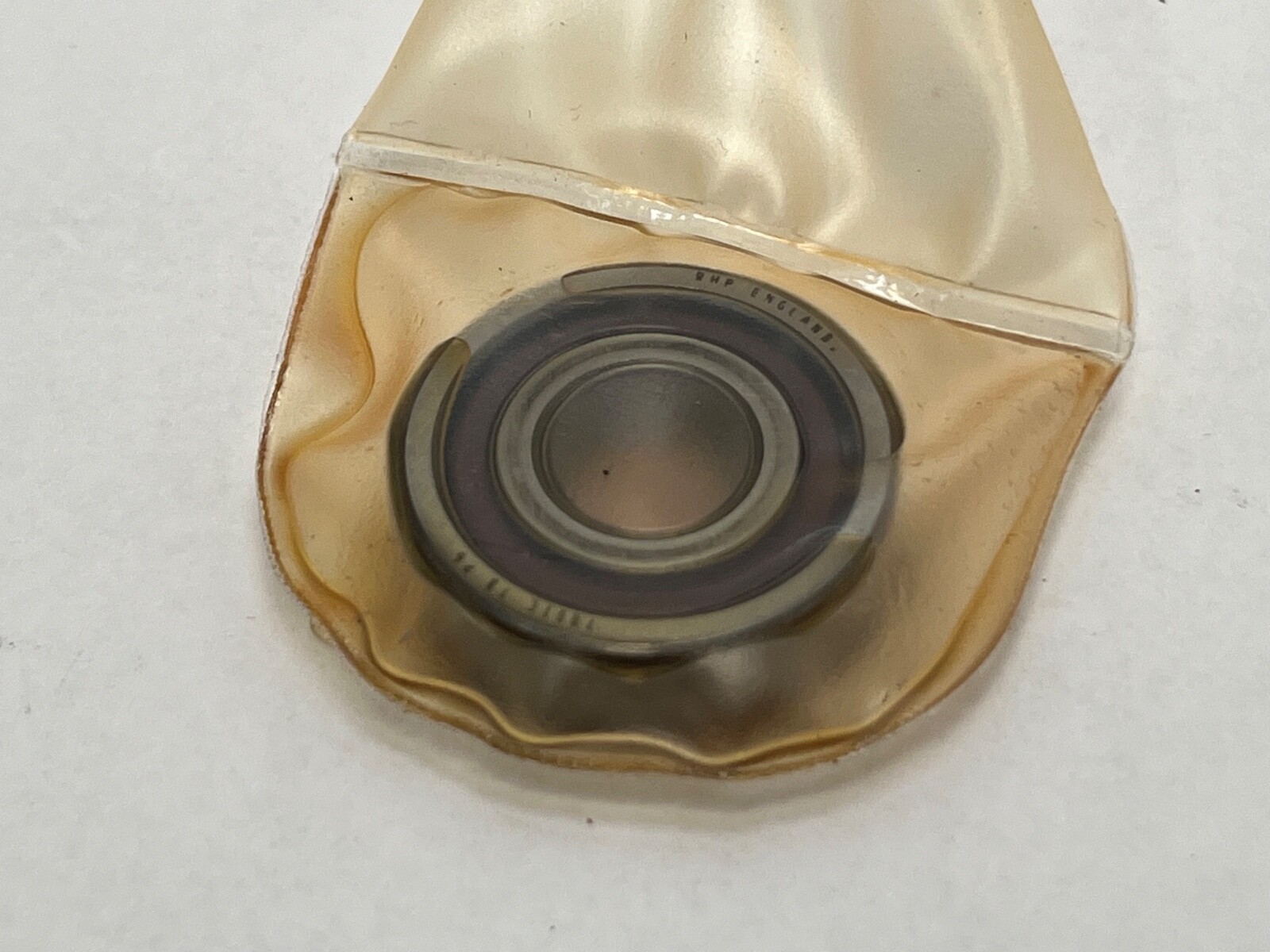

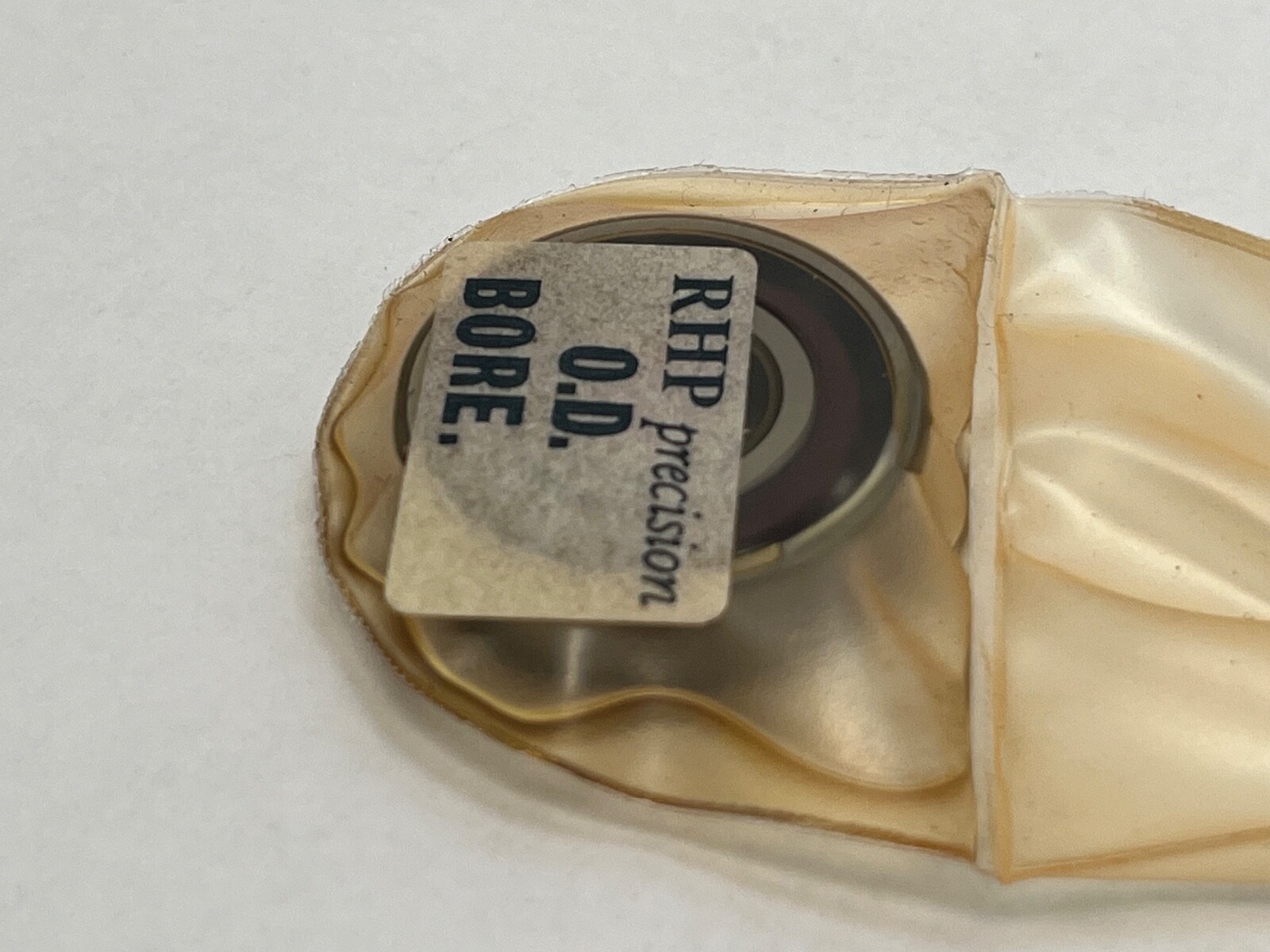

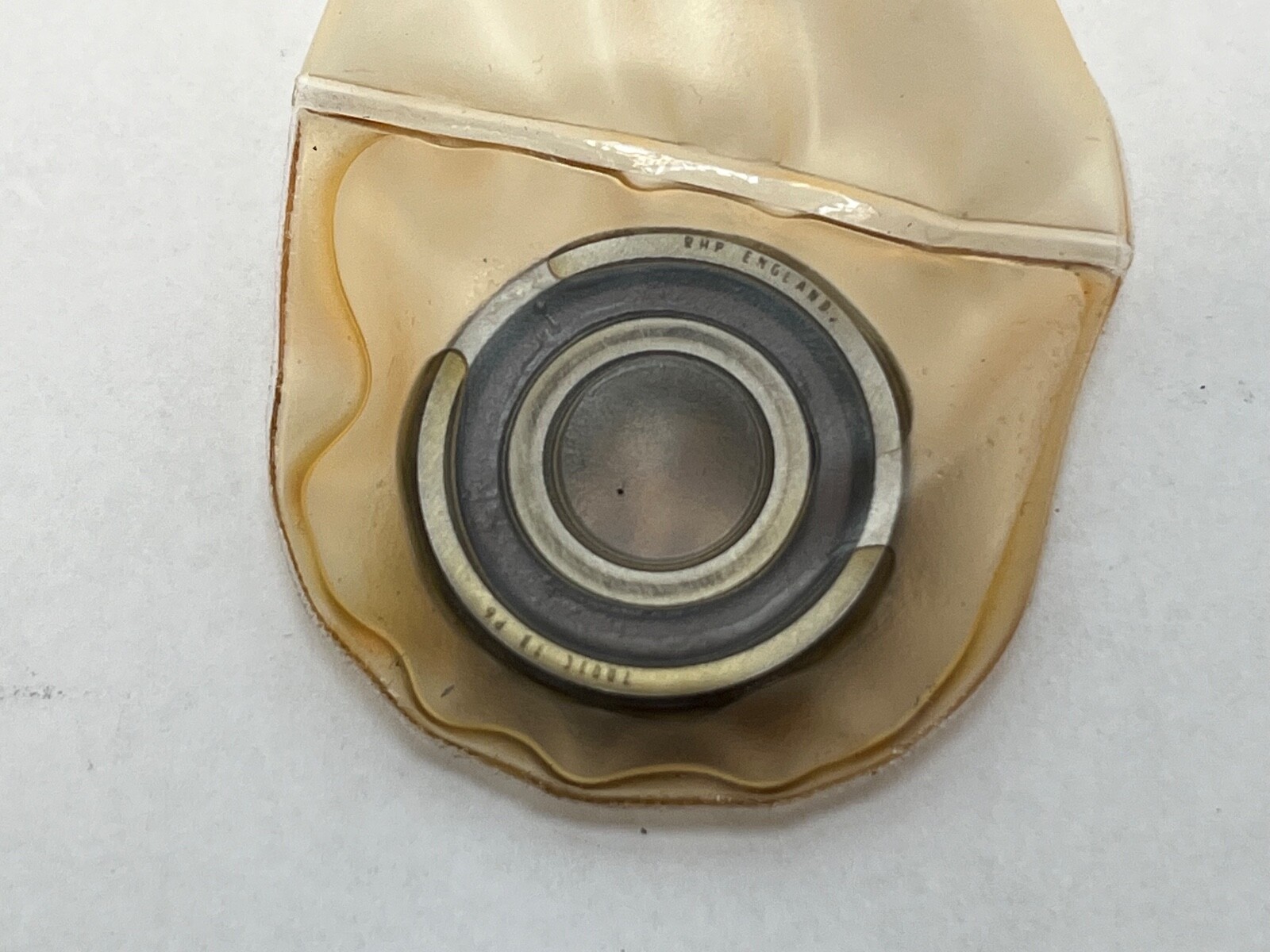

RHP 7001CTBP6 is a single-row angular contact ball bearing with a 12 mm bore, 28 mm outside diameter and 8 mm width. Series: 7000 (ISO dimension series 10). Base Number: 7001. Contact Angle: 15°. Cage Material: phenolic. Precision Class: P6, equivalent to ABEC 3 and to BS292 EP3. Bore Type: straight. Closure: open on both faces.

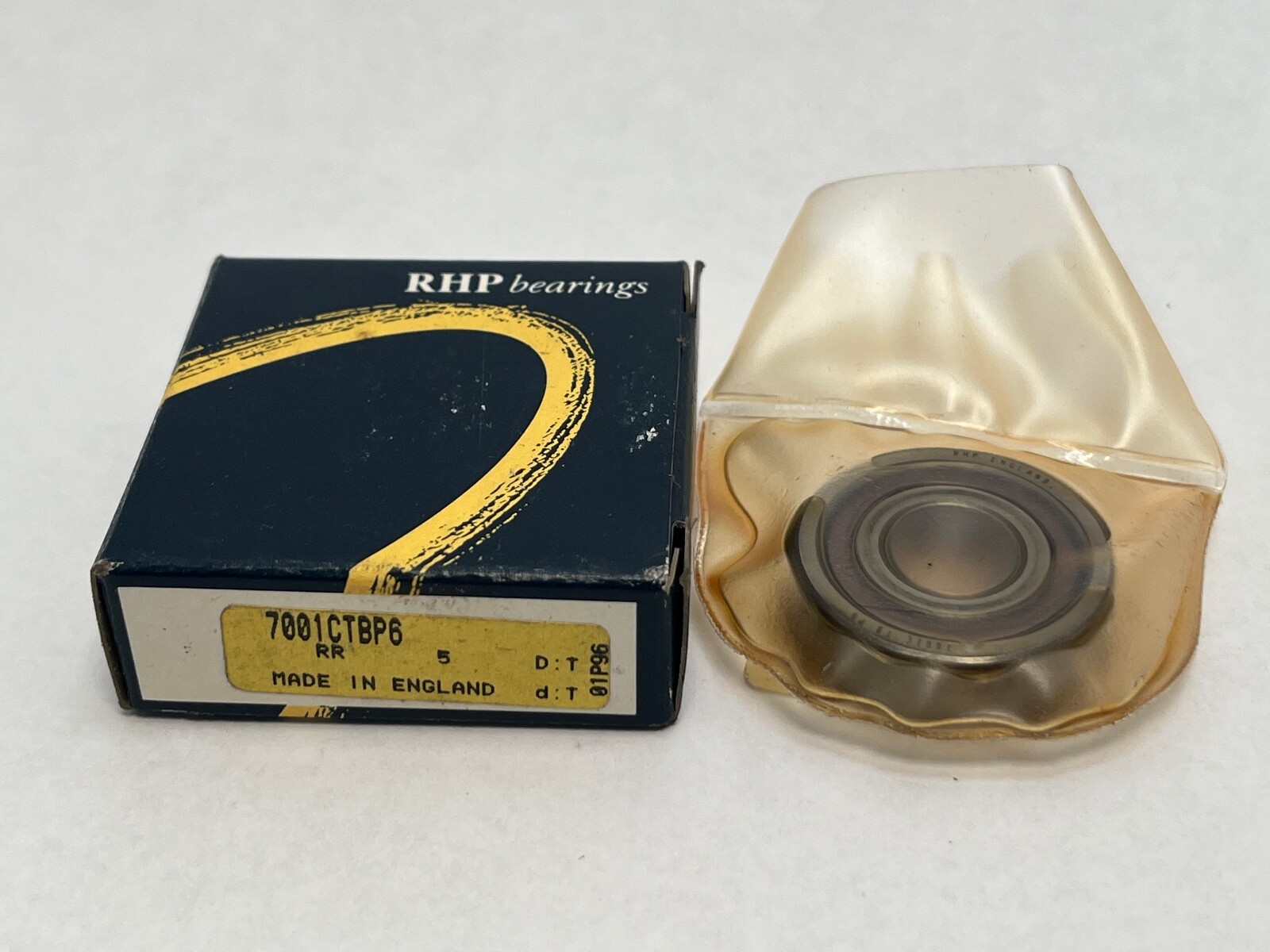

Contact Angle: 15°. Precision Class: P6 – ABEC 3 – EP3. Cage: phenolic. Internal Clearance: CN, normal. The carton also carries the designations 2M9101WI and B 7001 2X T EP3, both of which are 15° markings for this same bearing.
A 15° contact angle runs faster and carries less axial load than a 25° or 40° bearing of the same envelope. It is the angle chosen for high-speed spindle work where thrust is moderate. P6 precision is one step tighter than normal class, which gives closer shaft location and lower running vibration. A phenolic cage is light, absorbs oil and runs quietly at speed. Maximum recommended operating temperature for a phenolic cage is 120 °C.
Internal Clearance: CN, normal radial clearance. This bearing carries no preload code, so it is supplied clearance-set rather than preload-set and the preload is established by the mounting.
Unit Quantity: 1 Pc. A single-row angular contact ball bearing takes axial load in one direction, so two are mounted opposed where thrust reverses.
Shaft abutment diameter d1: 14.5 mm minimum. Housing abutment diameter D1: 25.5 mm maximum. D2: 26.8 mm maximum. Chamfer r: 0.3 mm minimum. Chamfer r1: 0.15 mm minimum. Internal volume: 1.0 cm³. Pitch circle diameter for lubrication jets: 18.3 mm.
Same-envelope 15° P6 equivalents are SKF 7001 CD/P6 and FAG 7001-C-T-P6. NSK 7001A5TYNDBLP6 is a 25° polyamide-cage back-to-back matched pair in the same 12 x 28 x 8 mm envelope and is a related size. A 7001A5 is a 25° bearing in this envelope and is a related size.
Country of Origin: United Kingdom. RHP bearings are manufactured in England and RHP is part of the NSK group.
