Availability:
3 in stock

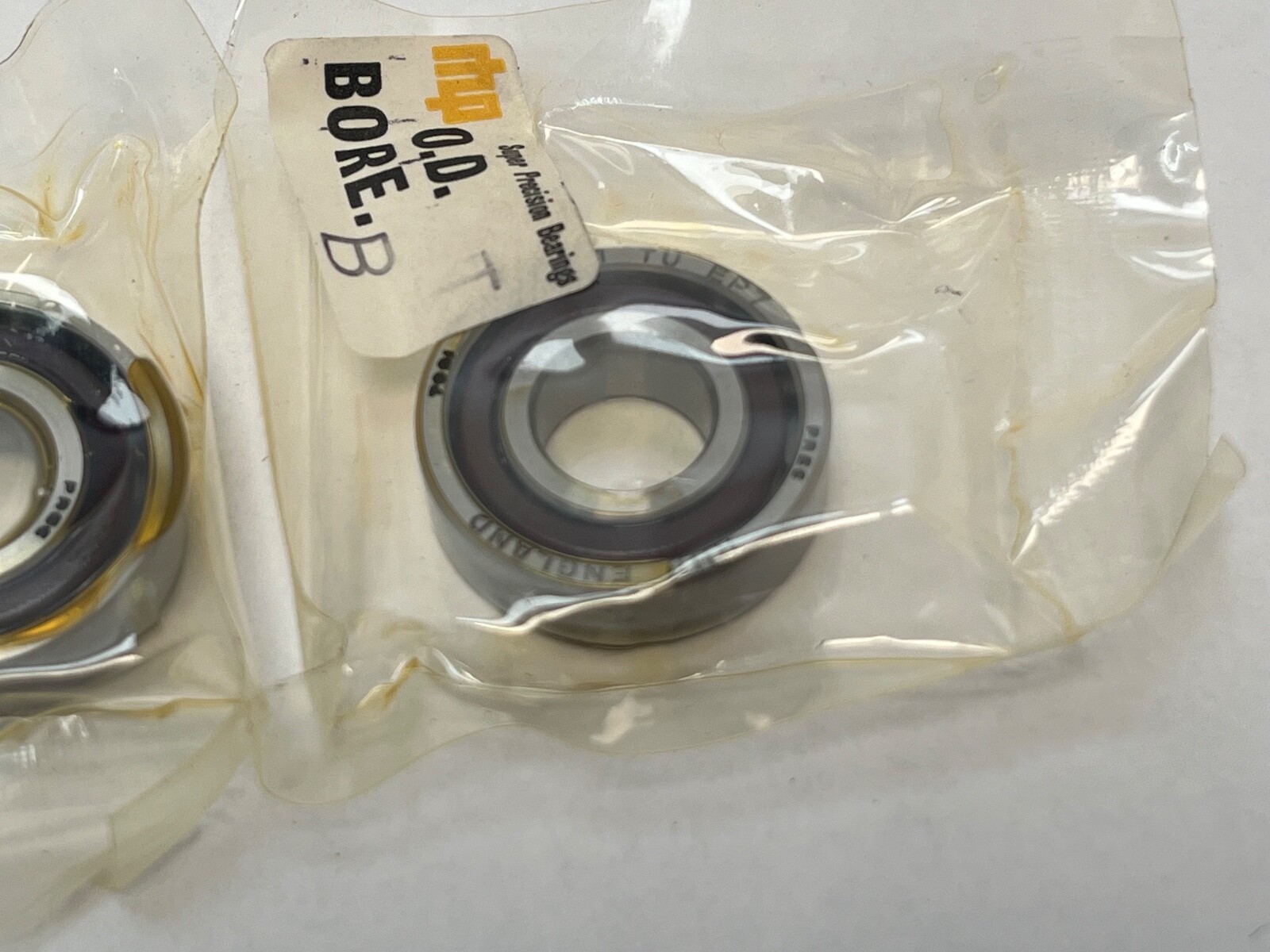

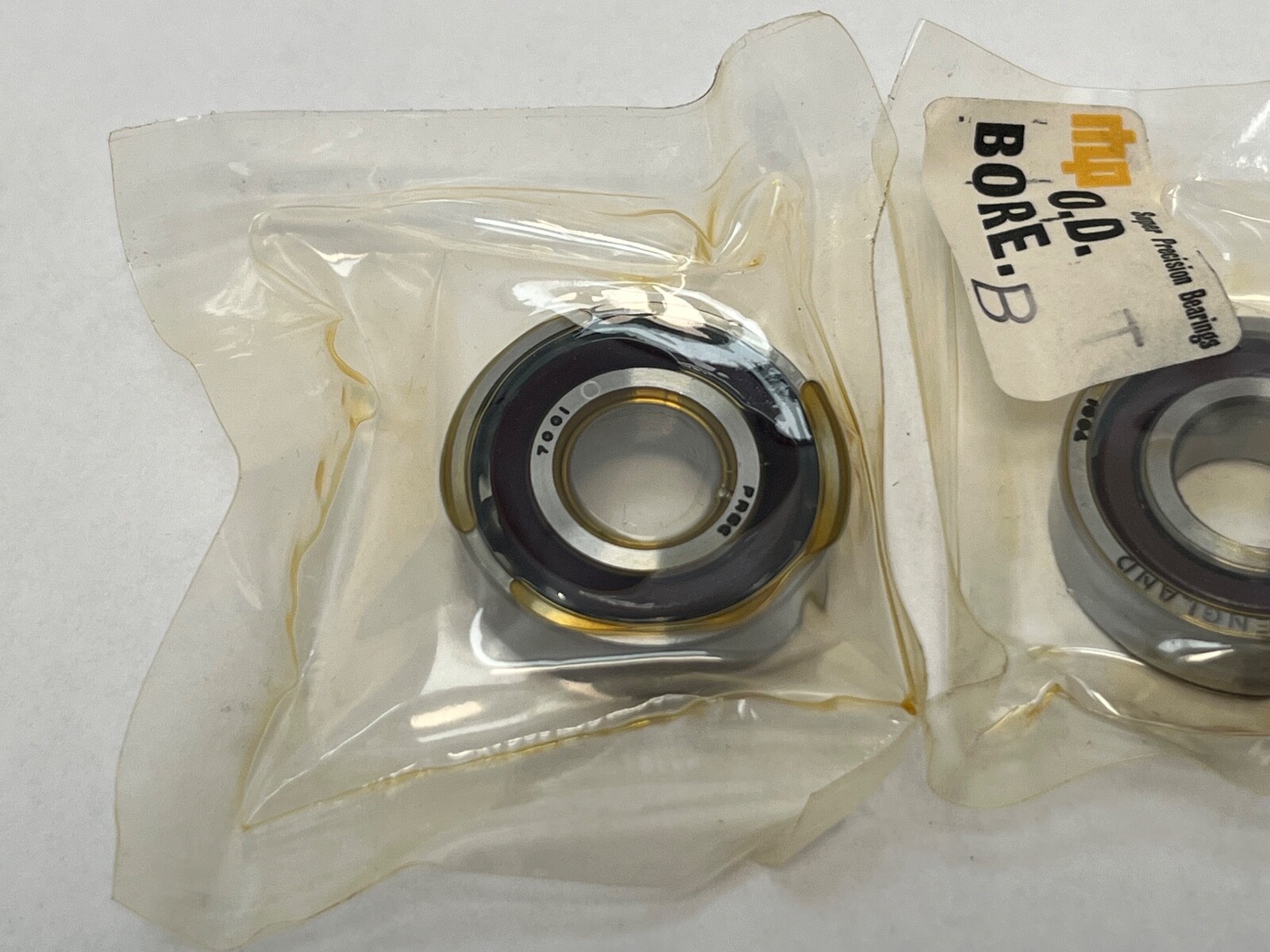

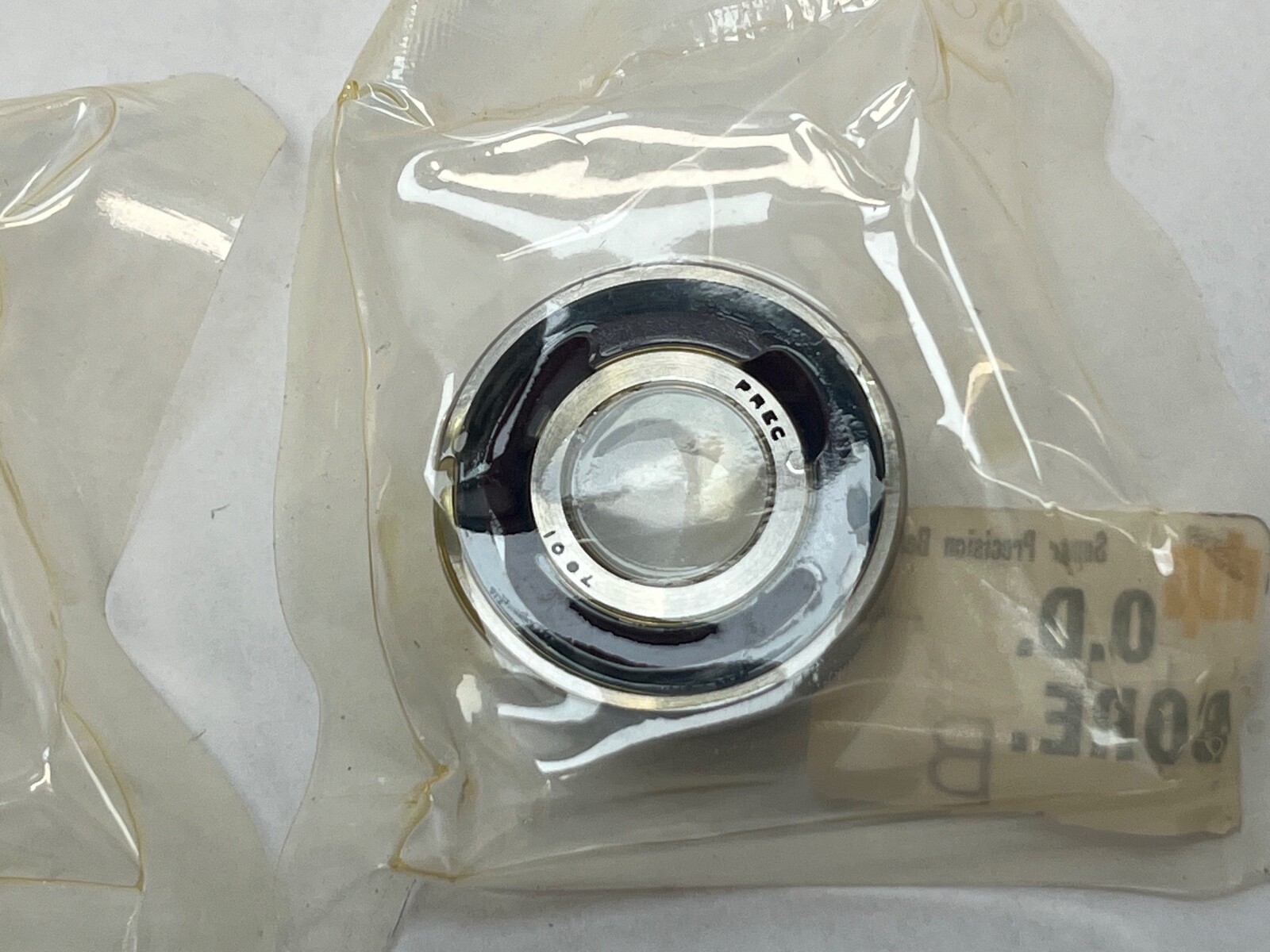

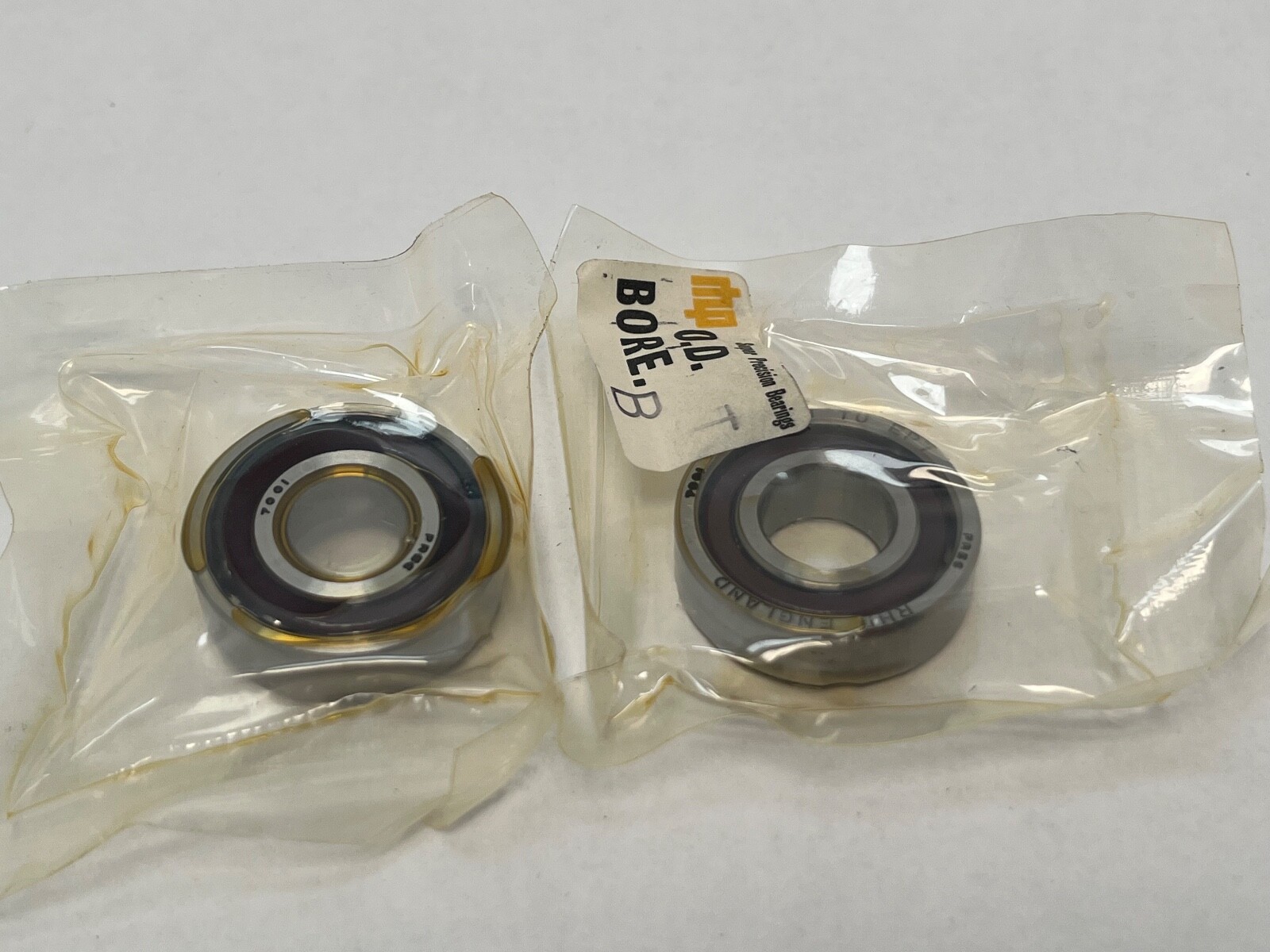

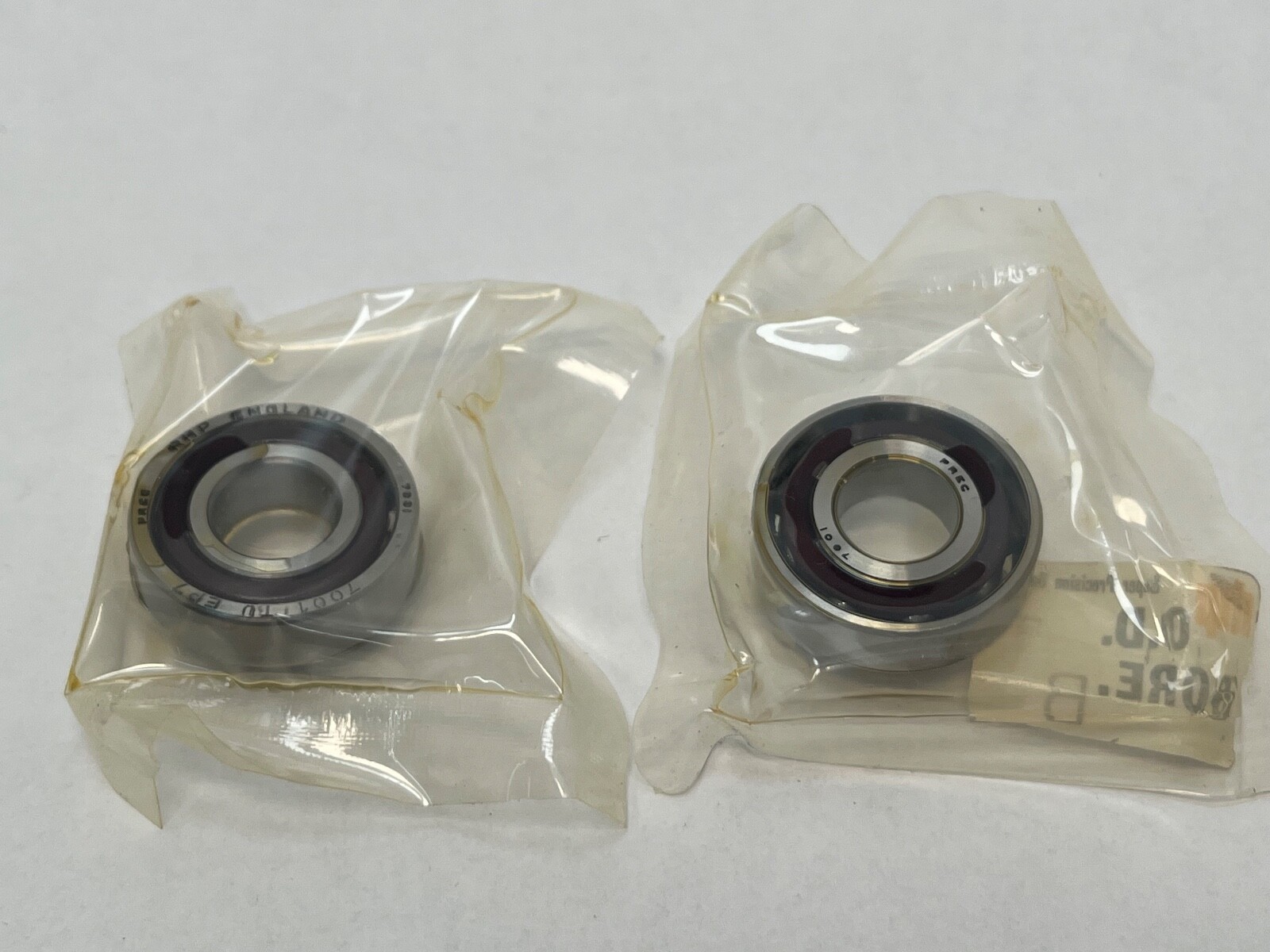

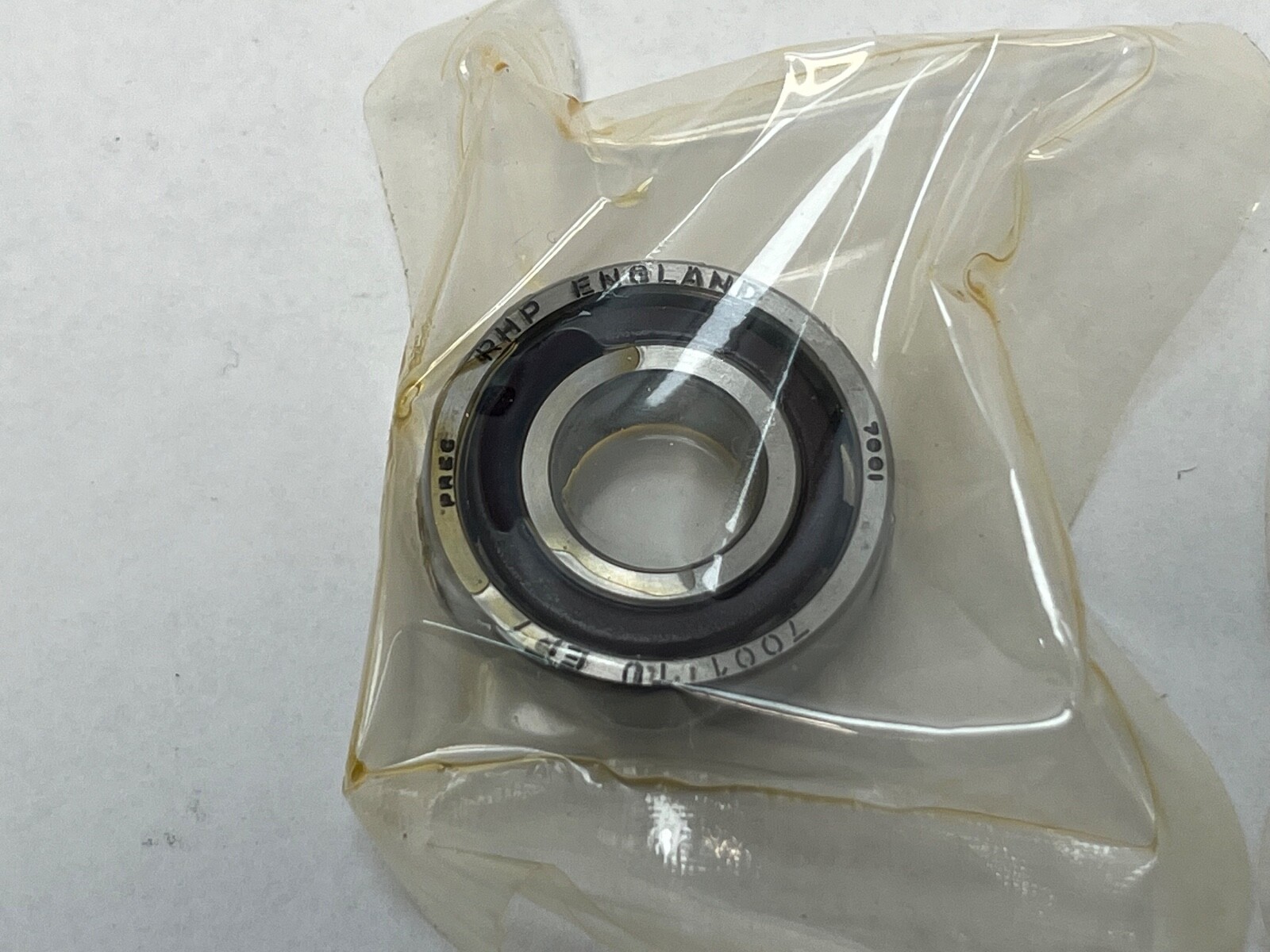

Paired universal unit of 12 x 28 x 8 mm super precision angular contact ball bearings, ABEC 7, laminated phenolic cage, straight bore, open, metric.
List Price
$93.31
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7001TDUP4 |
| Model | 7001 T DUL P4 / MM9101WI DUL / 7001 T DU EP7 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| OD | 28 mm |
| Width | 8 mm |
| Base Number | 7001 |
|---|---|
| Total Width | 16 mm |
| Overall Width | 8 mm |
| Bore Shaft Size | 12 mm |
| Mpn Variants | 7001-T-UL-P4; 7001TDUEP7 |
| Arrangement Configuration | Paired universal unit, duplex universal grind (DU) |
| Precision Class | P4 |
| Additional Attributes | Chamfer r min 0.3 mm; chamfer r1 min 0.15 mm; abutment d1 min 14.5 mm; abutment D1 max 25.5 mm; abutment D2 max 26.8 mm; internal volume 1.0 cm3 per bearing; lubrication-jet pitch circle diameter dT 18.3 mm |
| Material | High Carbon Chrome Steel |
| Cage Type | Laminated |
| Precision Rating | ABEC 7 / RHP EP7 |
| Series | 7000 |
| Rolling Elements | Ball |
| Item Weight | 0.020 kg per bearing |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Lubricant | Grease or oil |
| Mounting Arrangement | Back-to-back, face-to-face or tandem |
| Design Units | Metric |
| Part Number | 7001TDUP4 |
The RHP 7001TDUP4 is a super precision single-row angular contact ball bearing supplied as a paired universal unit. Bore / Shaft Size: 12 mm. Outside Diameter: 28 mm. Overall Width: 8 mm per bearing. Total Width: 16 mm across the assembled pair. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open.
70 / 7001 — the ISO 7001 size in dimension series 10, 12 x 28 x 8 mm.
T — laminated phenolic cage.
DU — paired universal unit; the two bearings are ground so they can be set back-to-back, face-to-face or in tandem.
P4 — RHP EP7, ISO Class 4, ABEC 7.
Precision Class: P4. Precision rating: ABEC 7 / RHP EP7. Cage Material: Phenolic. Cage Type: Laminated. Material: High Carbon Chrome Steel. Lubricant: Grease or oil. Design Units: Metric. Series: 7000. Item weight: 0.020 kg per bearing. Internal volume: 1.0 cm³ per bearing. The laminated phenolic cage runs quietly and carries oil in its surface, and the ABEC 7 class holds the tight form and running tolerances used for small high-speed spindles, instrument drives and precision gearheads.
Chamfer r min: 0.3 mm. Chamfer r1 min: 0.15 mm. Abutment d1 min: 14.5 mm. Abutment D1 max: 25.5 mm. Abutment D2 max: 26.8 mm. Lubrication-jet pitch circle diameter dT: 18.3 mm. These abutment figures set the shaft shoulder and housing shoulder diameters that clear the bearing faces and support the rings.

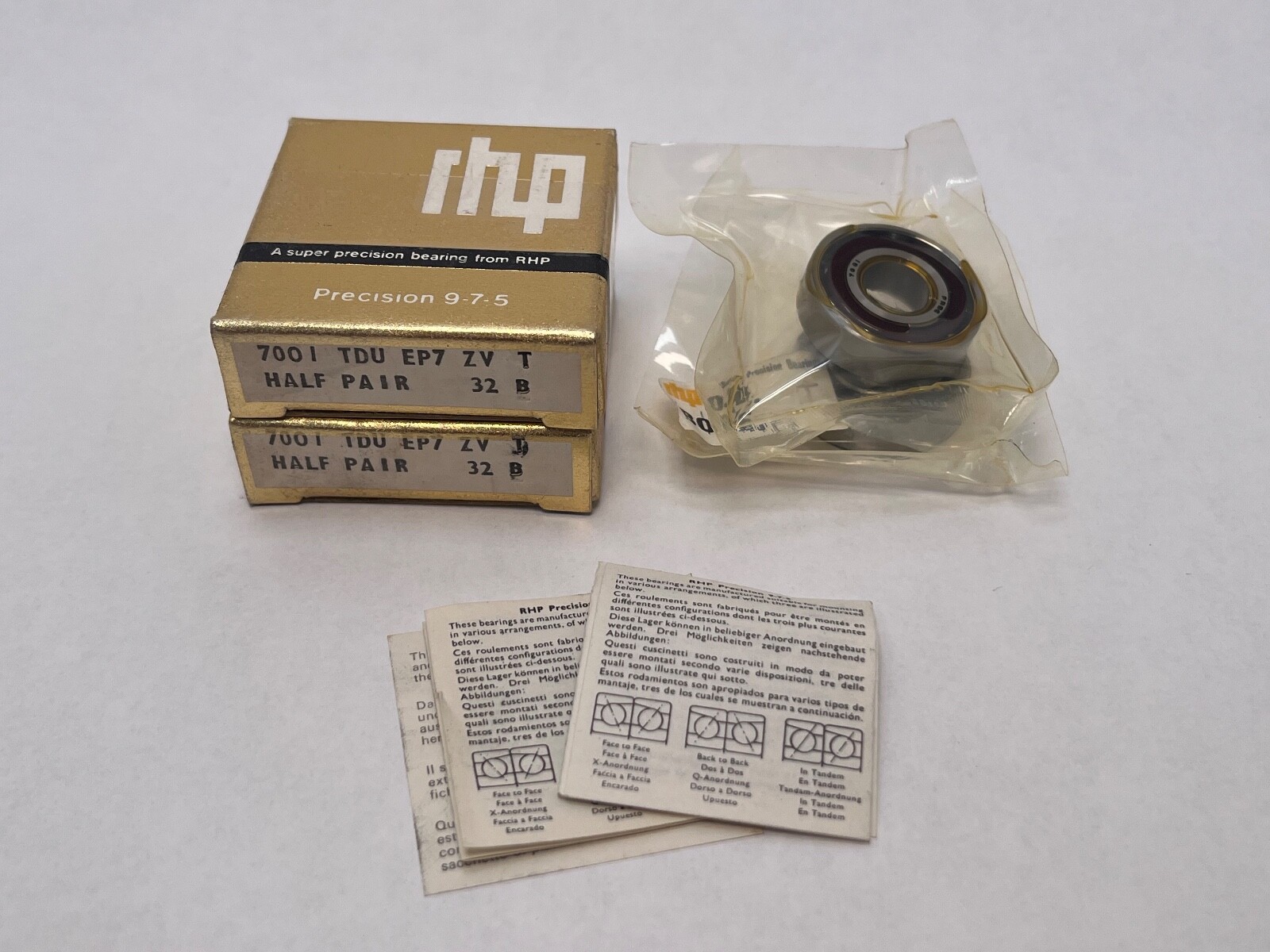

Unit Quantity: 2 Pcs. Arrangement / Configuration: paired universal unit, duplex universal grind. The faces are ground as a set, so the pair may be assembled back-to-back for moment stiffness, face-to-face for shaft alignment tolerance, or in tandem for shared thrust in one direction.
MPN Variants: 7001-T-UL-P4, 7001TDUEP7. Part Number: 7001TDUP4. Base Number: 7001. These forms all describe the same ISO 7001 boundary dimensions in dimension series 10 with a laminated phenolic cage and duplex universal grinding at ABEC 7.
