Availability:
1 in stock
Ball screw support bearing pair, 25 mm bore x 62 mm OD x 15 mm per bearing, 60° contact angle, back-to-back DB, ABEC 7 / P4, 29.2 kN dynamic (pair).
List Price
$35.66
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | BST25X62-1BDBP4 |
| Model | BST 25X62 1B DB P4 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 25 mm |
| OD | 62 mm |
| Width | 15 mm |
| Material | Steel |
|---|---|
| Series | BST |
| Lubricant | Grease |
| Total Width | 30 mm (pair) |
| Overall Width | 15 mm |
| Mpn Variants | BST25X62-1BDBP4, BST-25X62-1B-DB-P4, BST 25X62 1B DB P4, BST25X62-1B |
| Precision Class | ABEC 7 / P4 |
| Min Temp | -40 °C |
| Dynamic Load Rating | 29,200 N (pair) |
| Static Load Rating | 59,000 N (pair) |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Cage Material | Glass-fibre reinforced polyamide |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Contact Angle | 60° |
| Mounting Arrangement | Back-to-back (DB) matched pair |
| Cross Reference 1 | SKF BSD 2562 CDB |
|---|

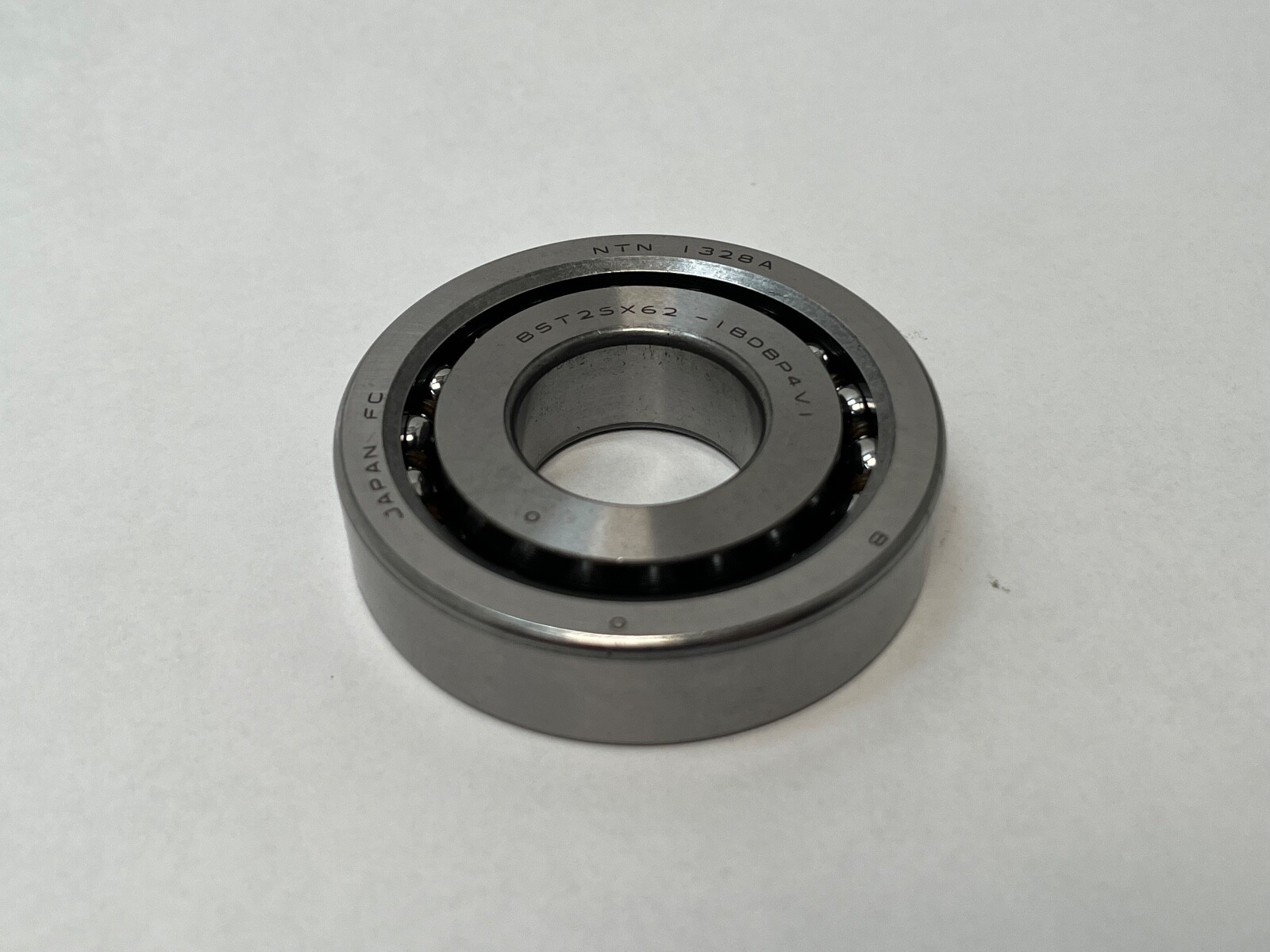

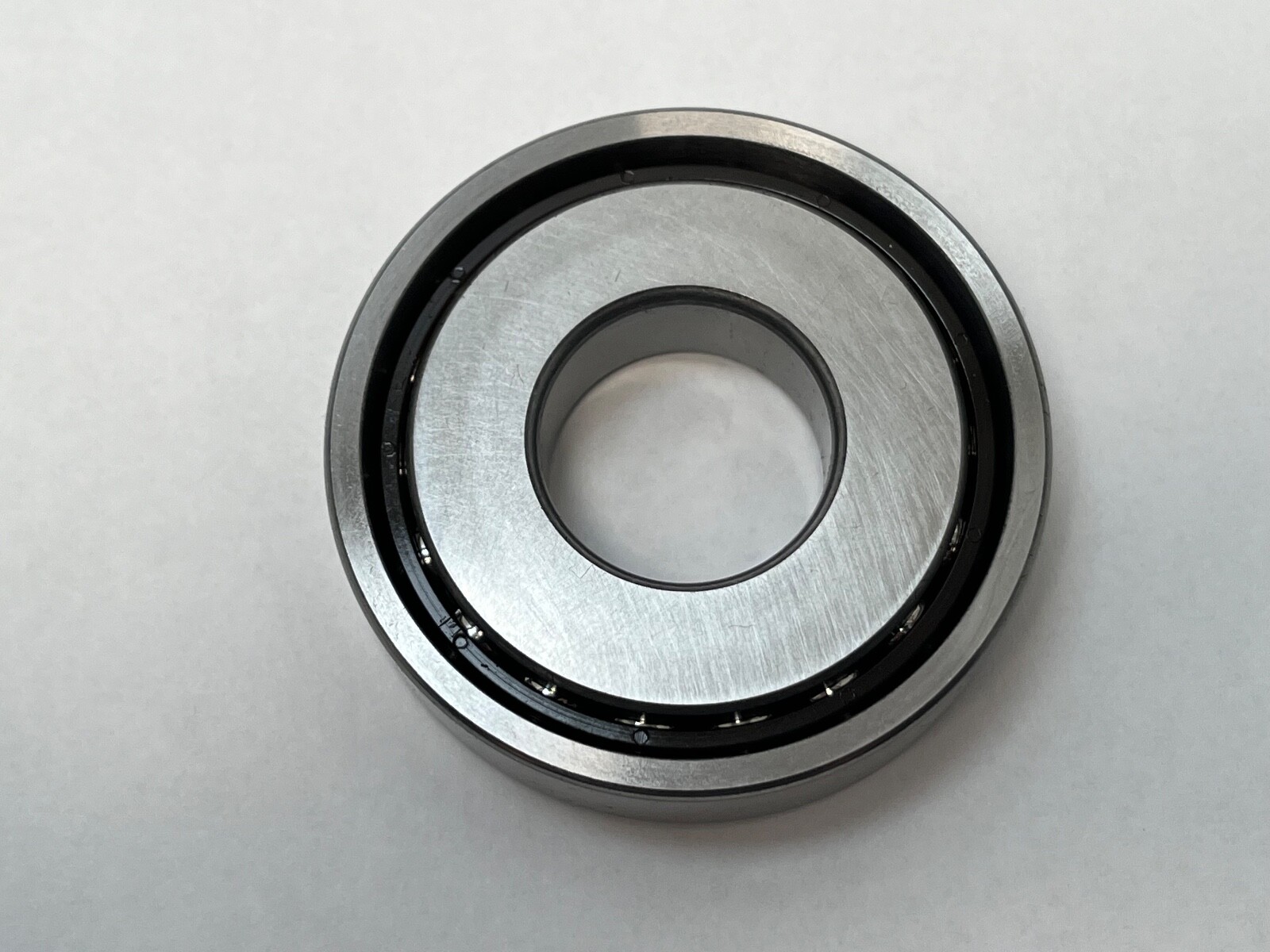

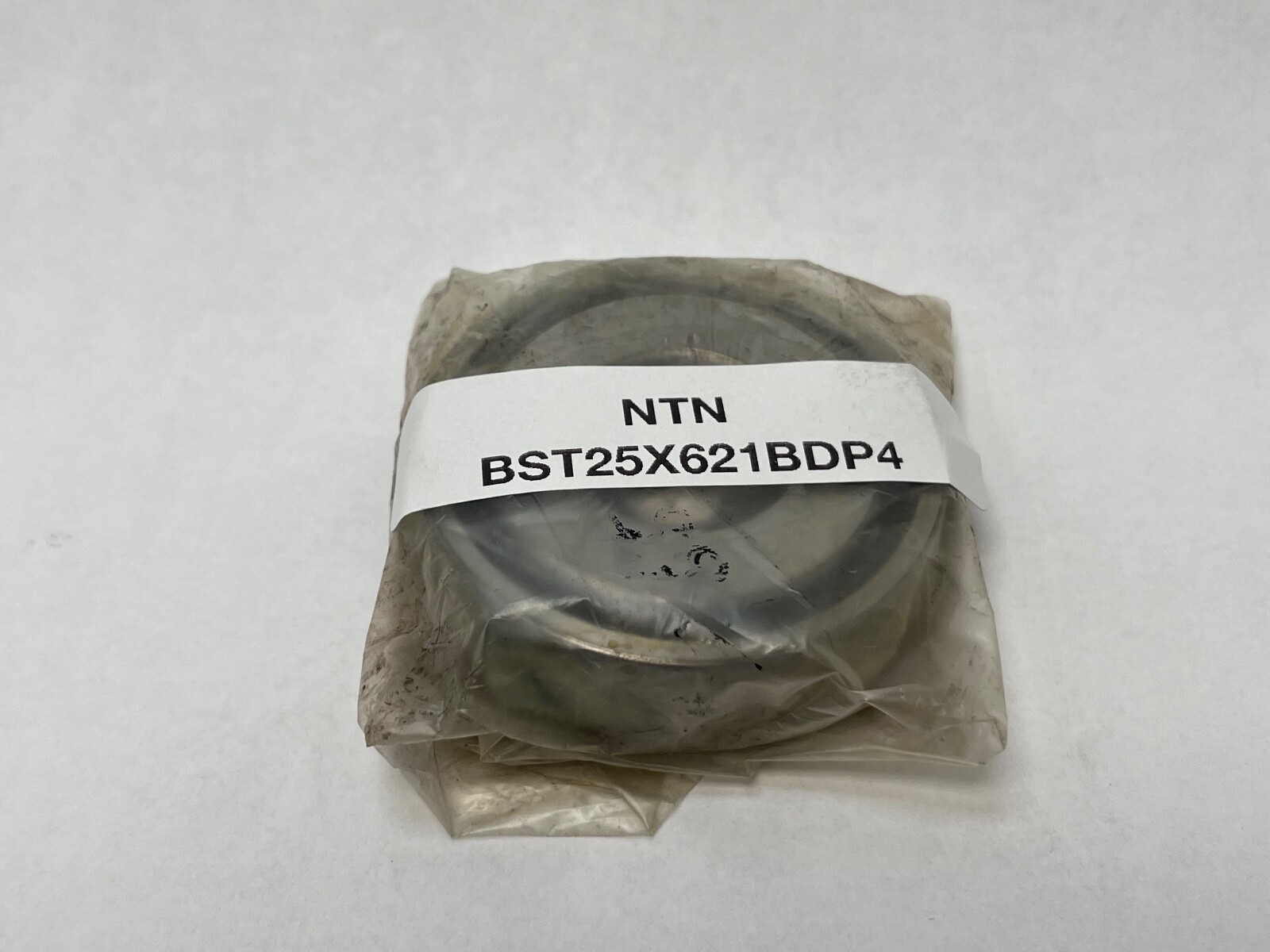

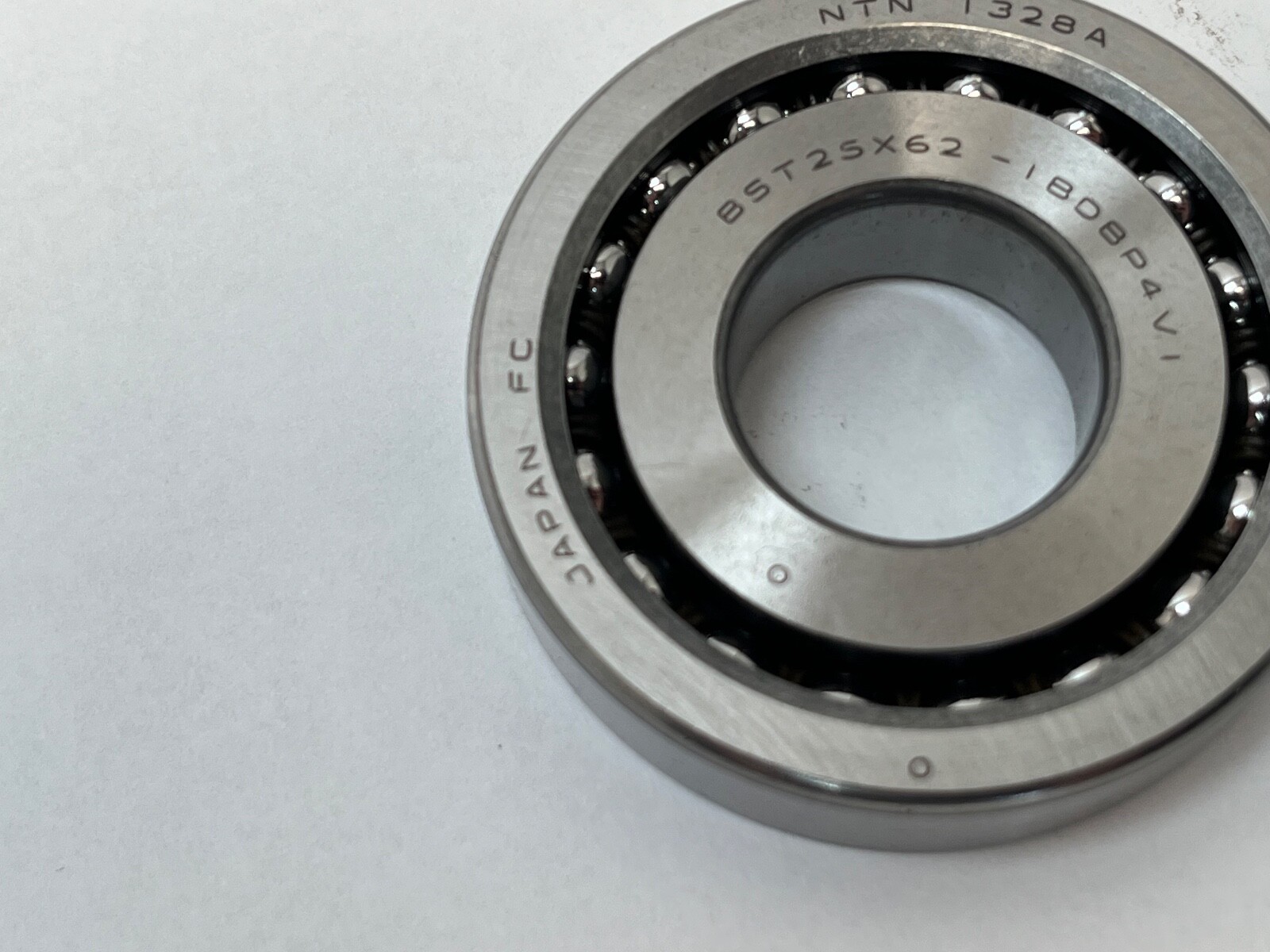

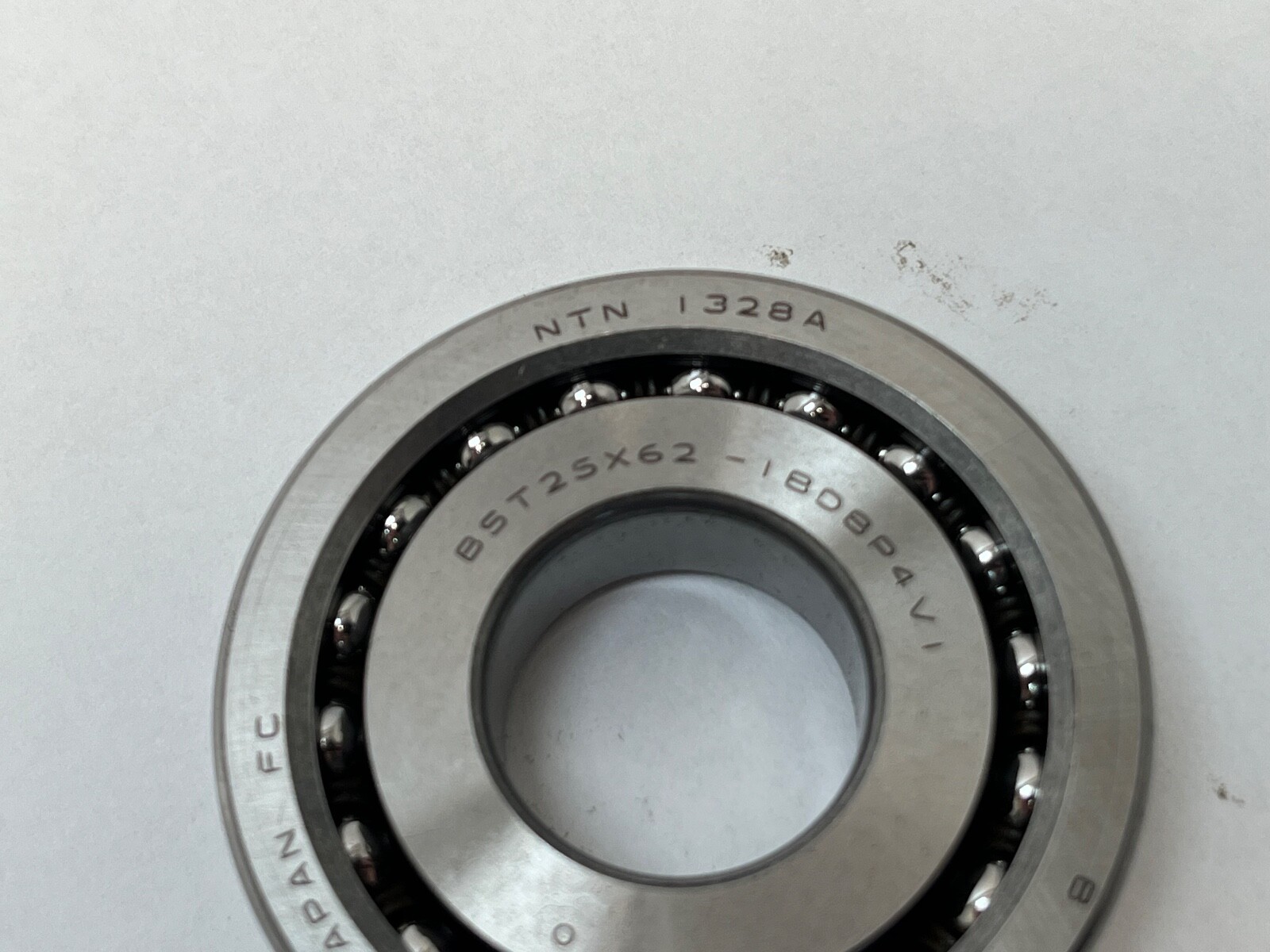

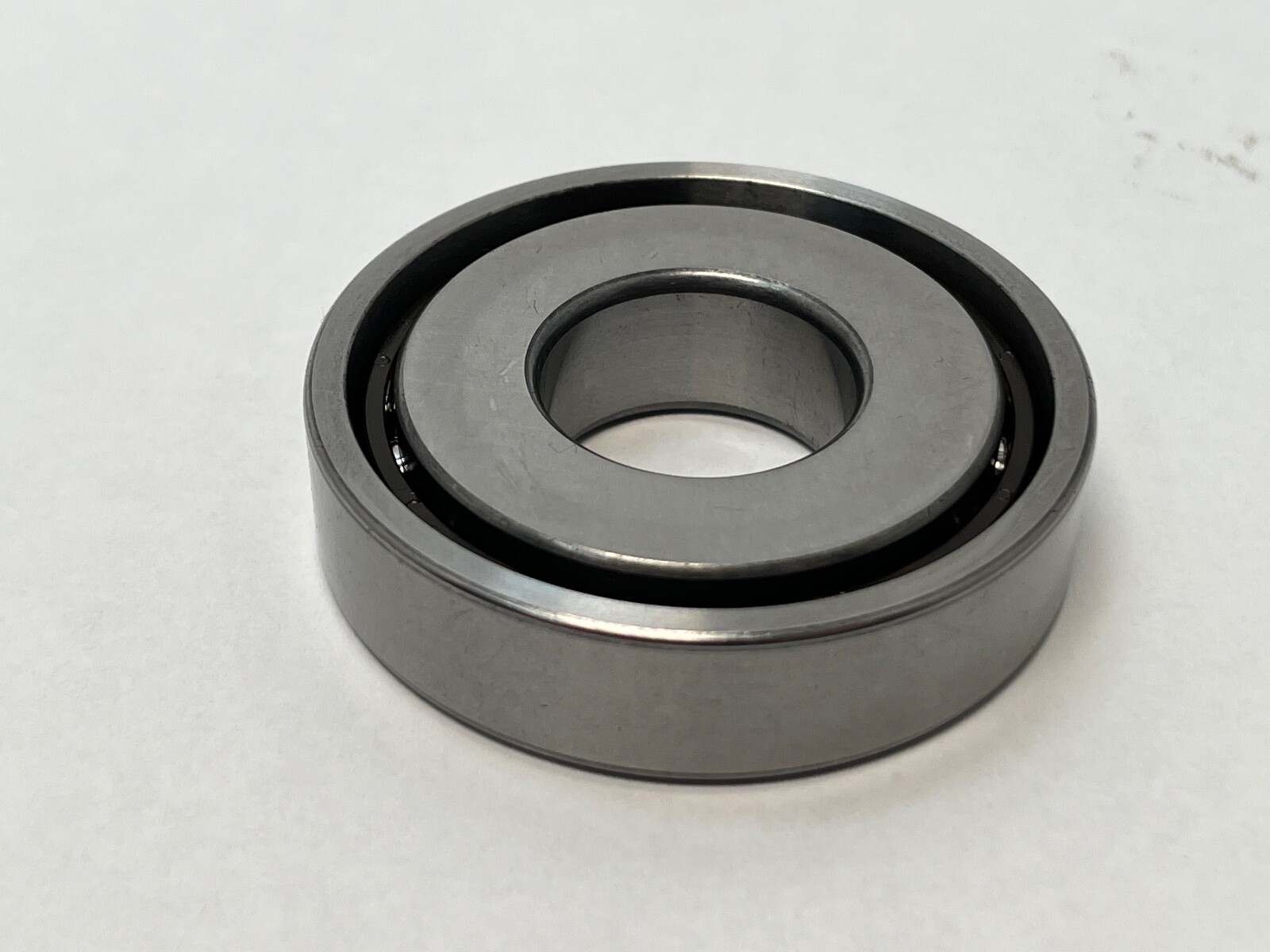

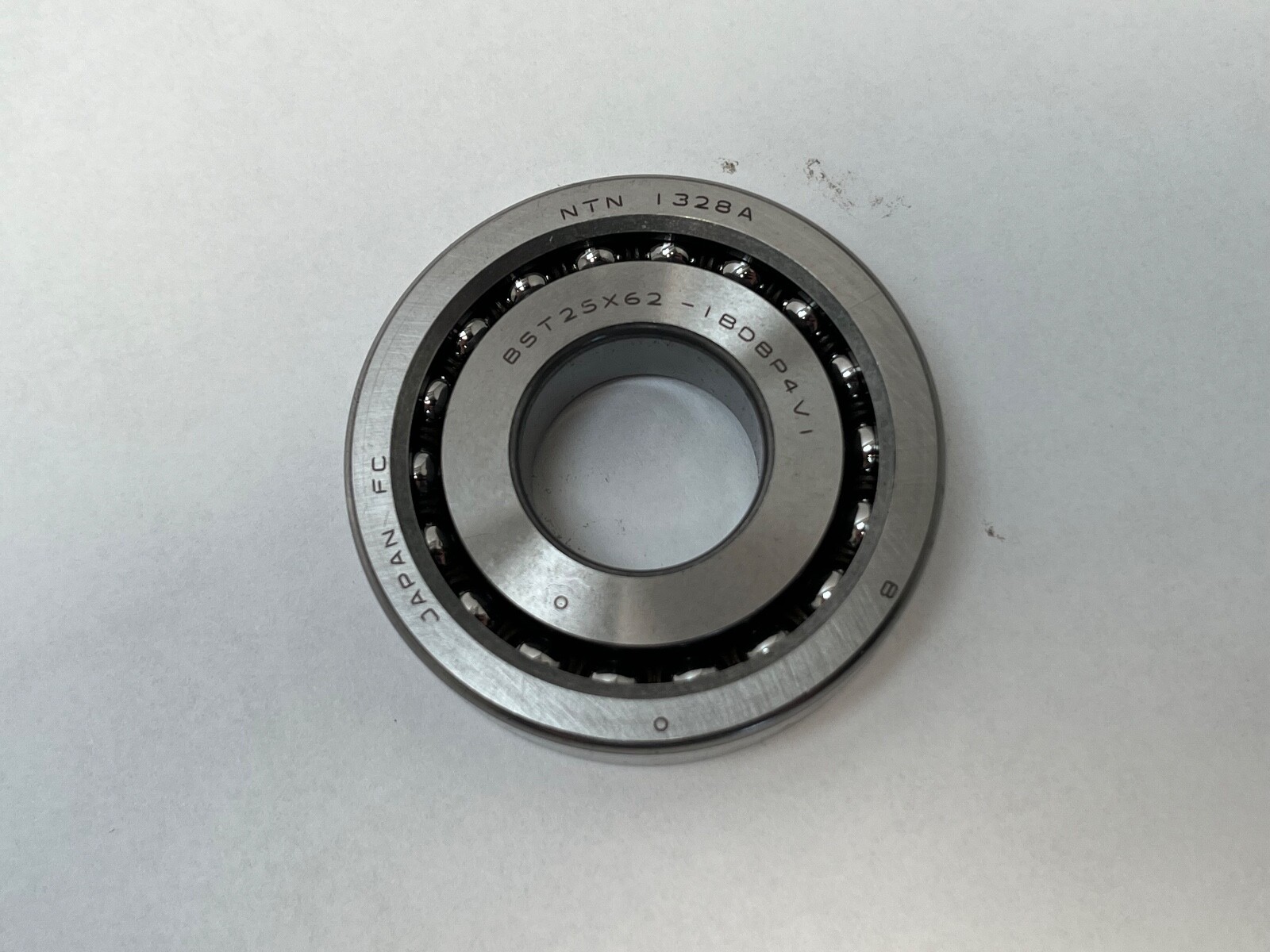

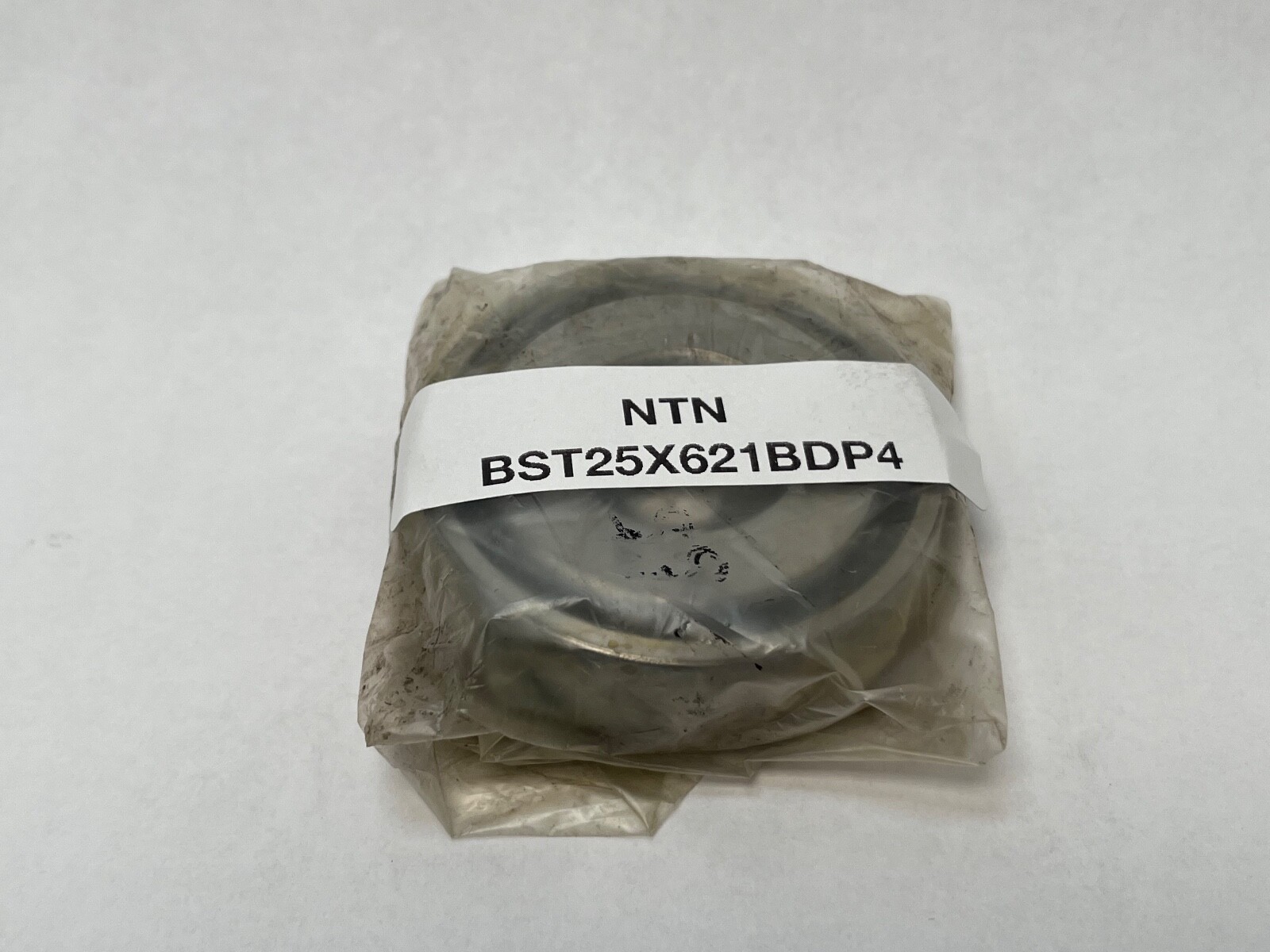

NTN BST25X62-1BDBP4 is a matched pair of angular contact thrust ball bearings for ball screw support, ground for back-to-back mounting. Bore Diameter: 25 mm. Outside Diameter: 62 mm. Width: 15 mm per bearing. Total Width: 30 mm (pair). Contact Angle: 60°.
BST — NTN ball screw support bearing, 60° contact angle.
25X62 — 25 mm bore, 62 mm outside diameter.
DB — back-to-back matched pair.
P4 — ISO Class 4 precision, equivalent to ABEC 7.
Dynamic Load Rating: 29,200 N (pair). Static Load Rating: 59,000 N (pair). Precision Class: ABEC 7 / P4. Cage Material: Glass-fibre reinforced polyamide. Seal Type: Open. The 60° contact angle gives high axial stiffness; the back-to-back pair carries thrust in both directions.
Fillet Radius r min: 1.0 mm. Fillet Radius r1 min: 0.6 mm. Inner Ring Shoulder Diameter d1: 44.4 mm. Outer Ring Shoulder Diameter D1: 51.6 mm.
Unit Quantity: 2 Pcs. Mounting Arrangement: Back-to-back (DB) matched pair.
Same 25 x 62 x 15 mm 60° back-to-back pair: SKF BSD 2562 CDB.
