Availability:
2 in stock

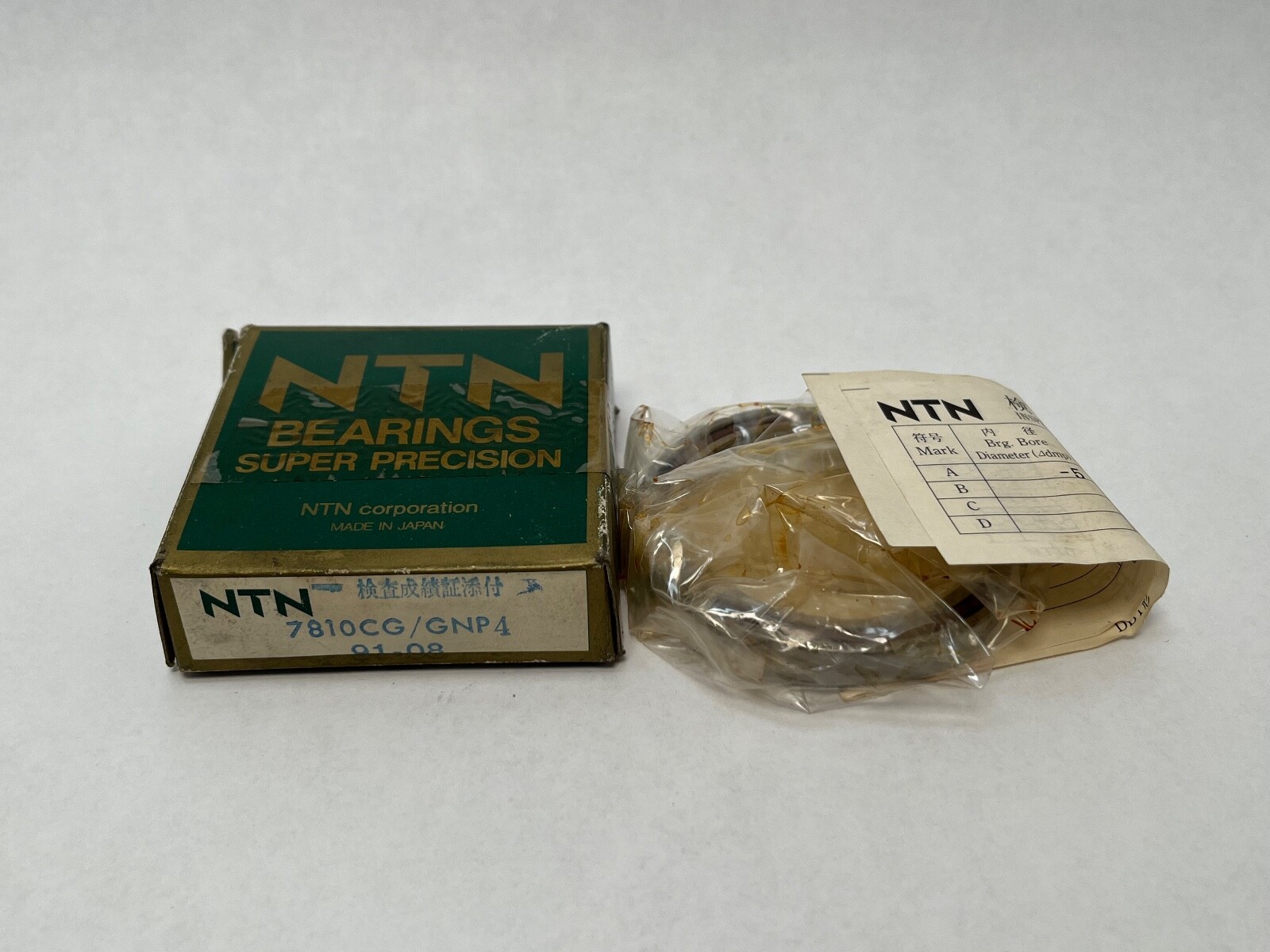

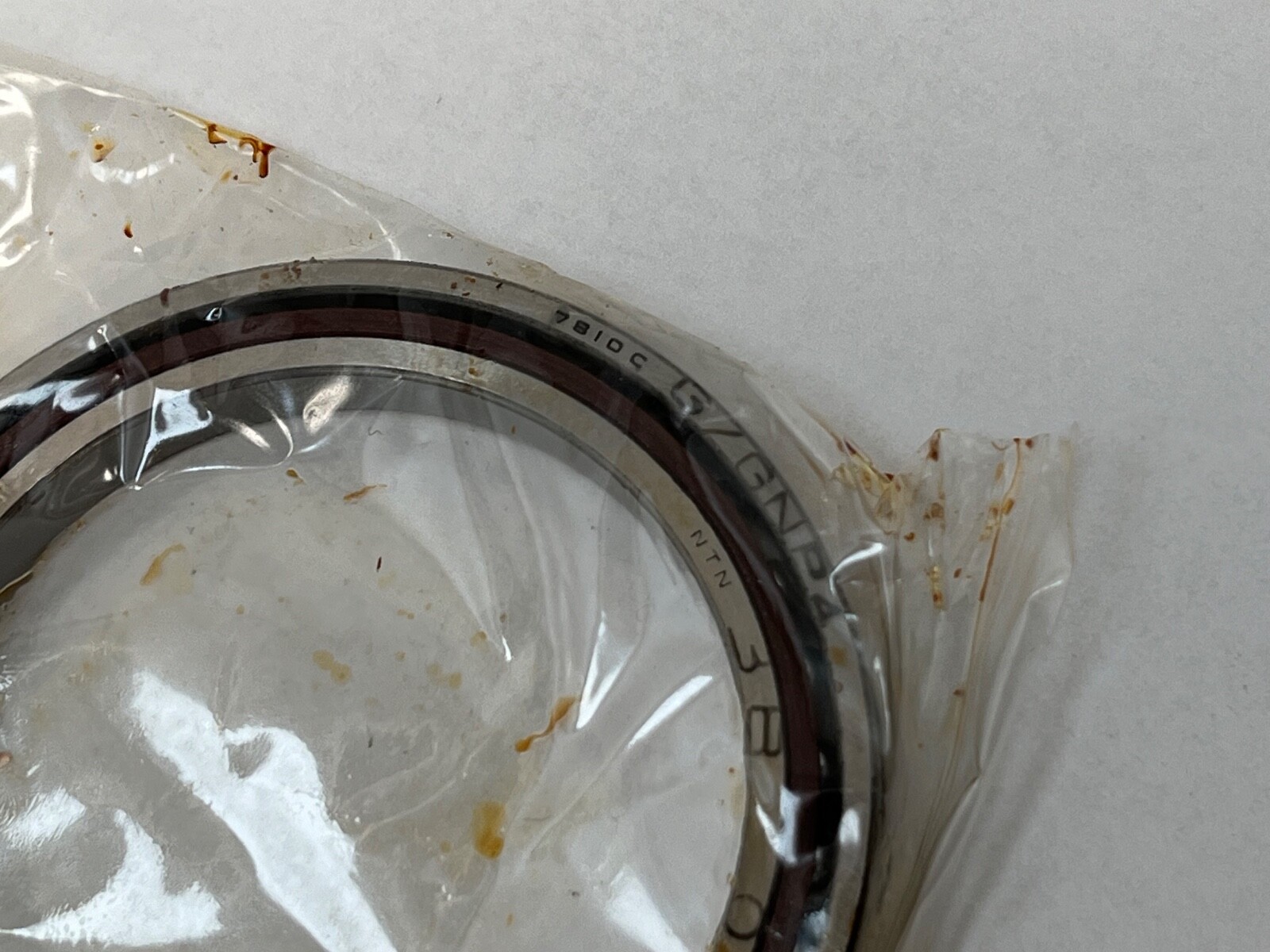

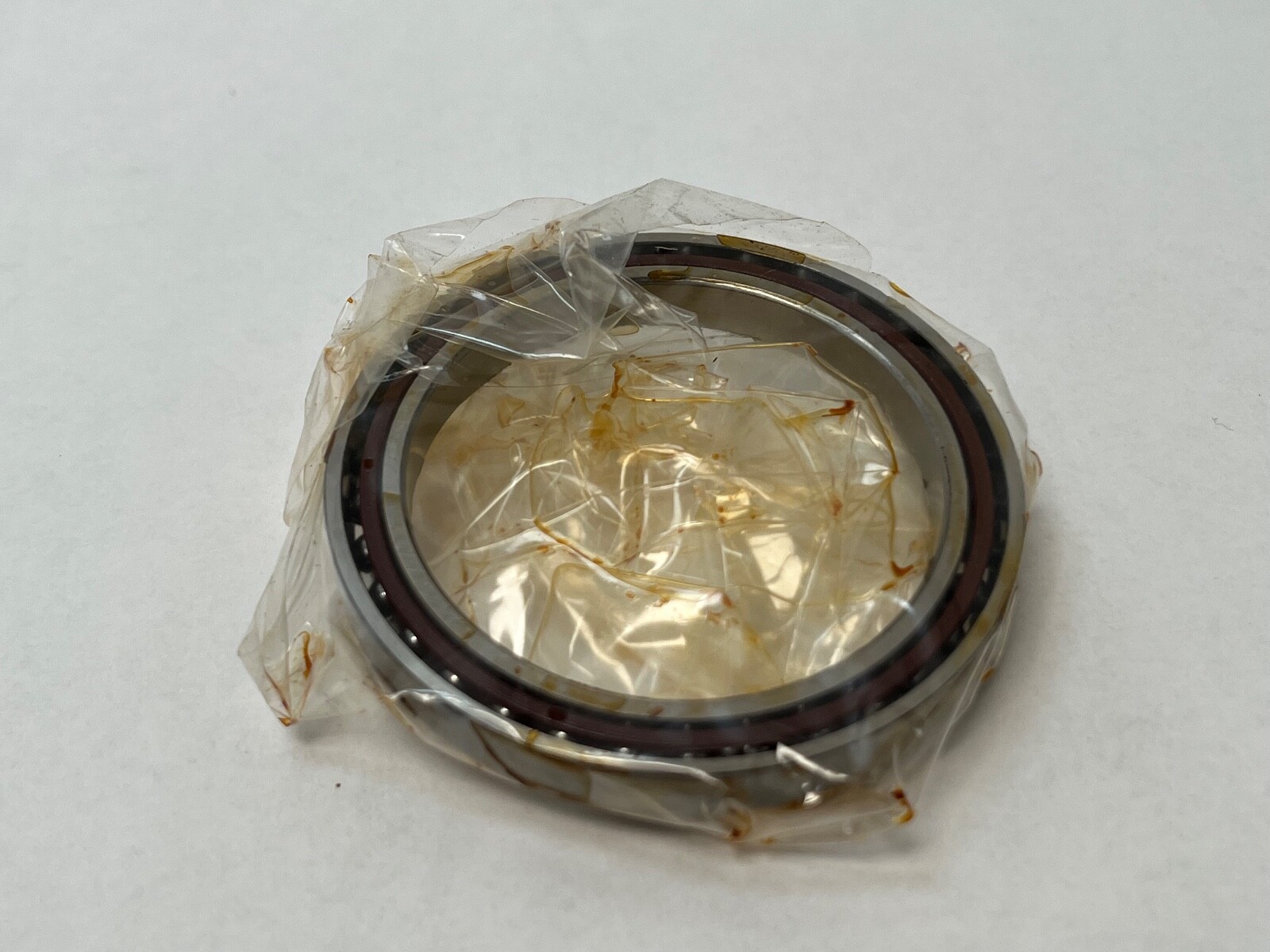

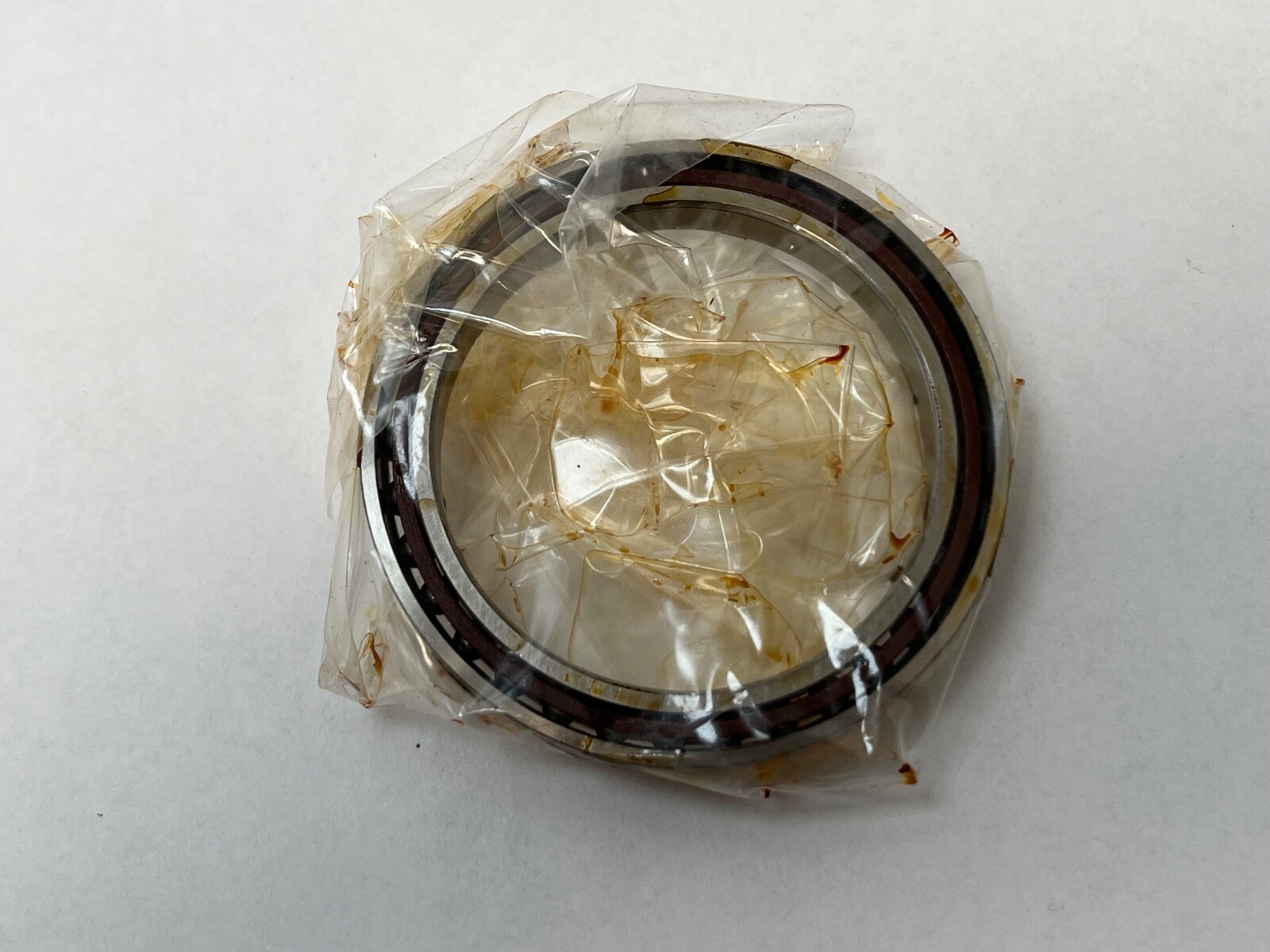

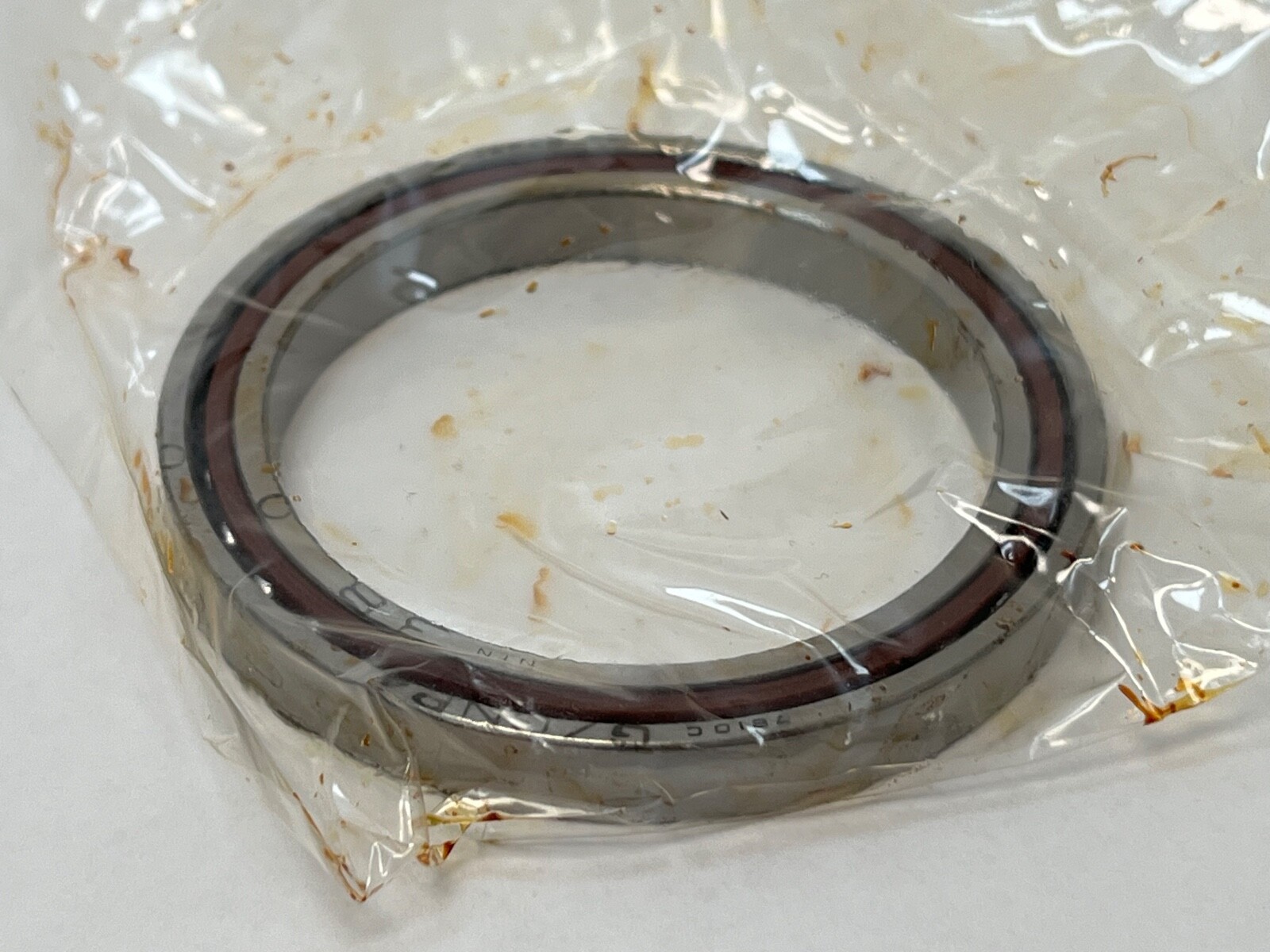

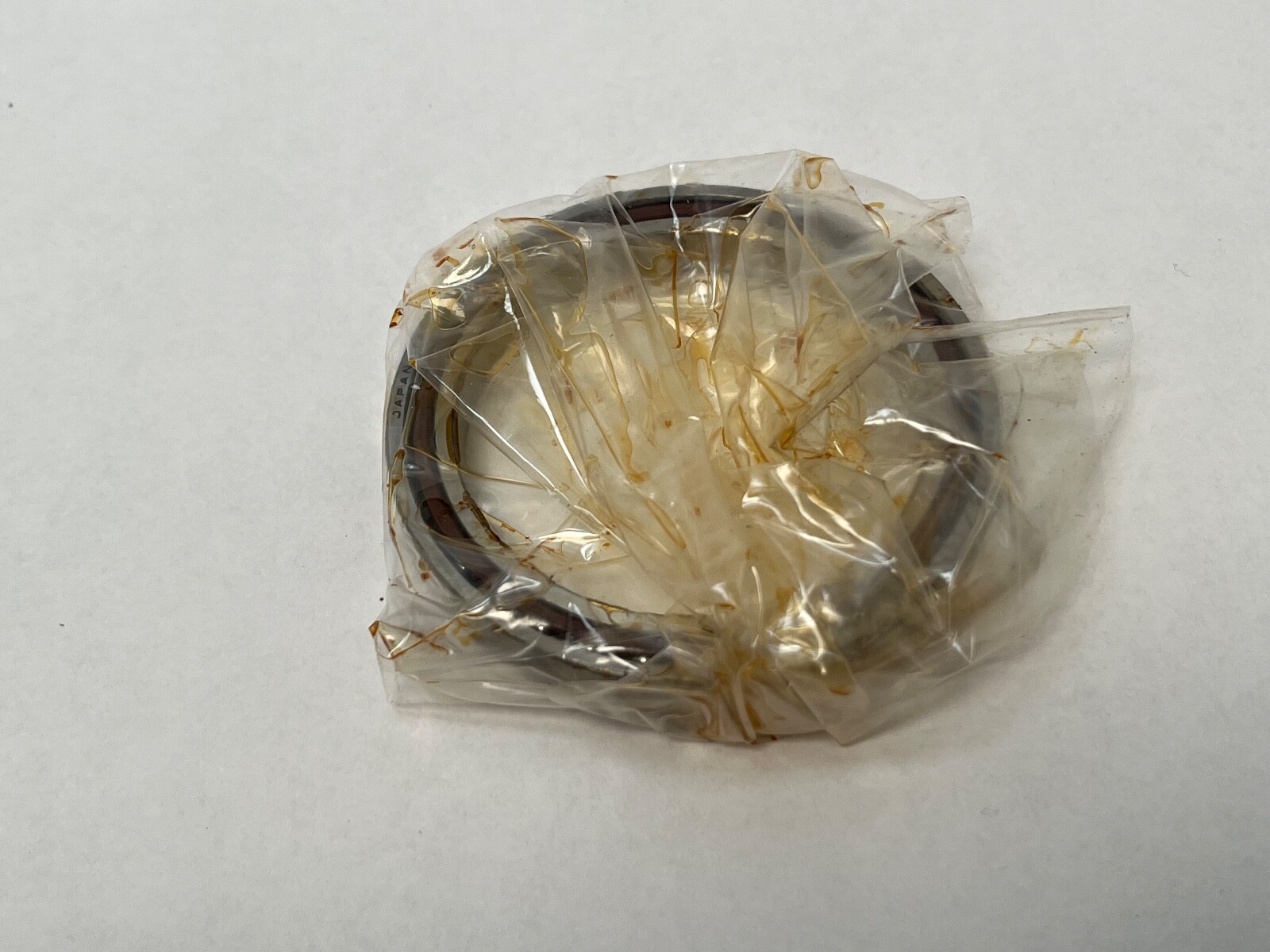

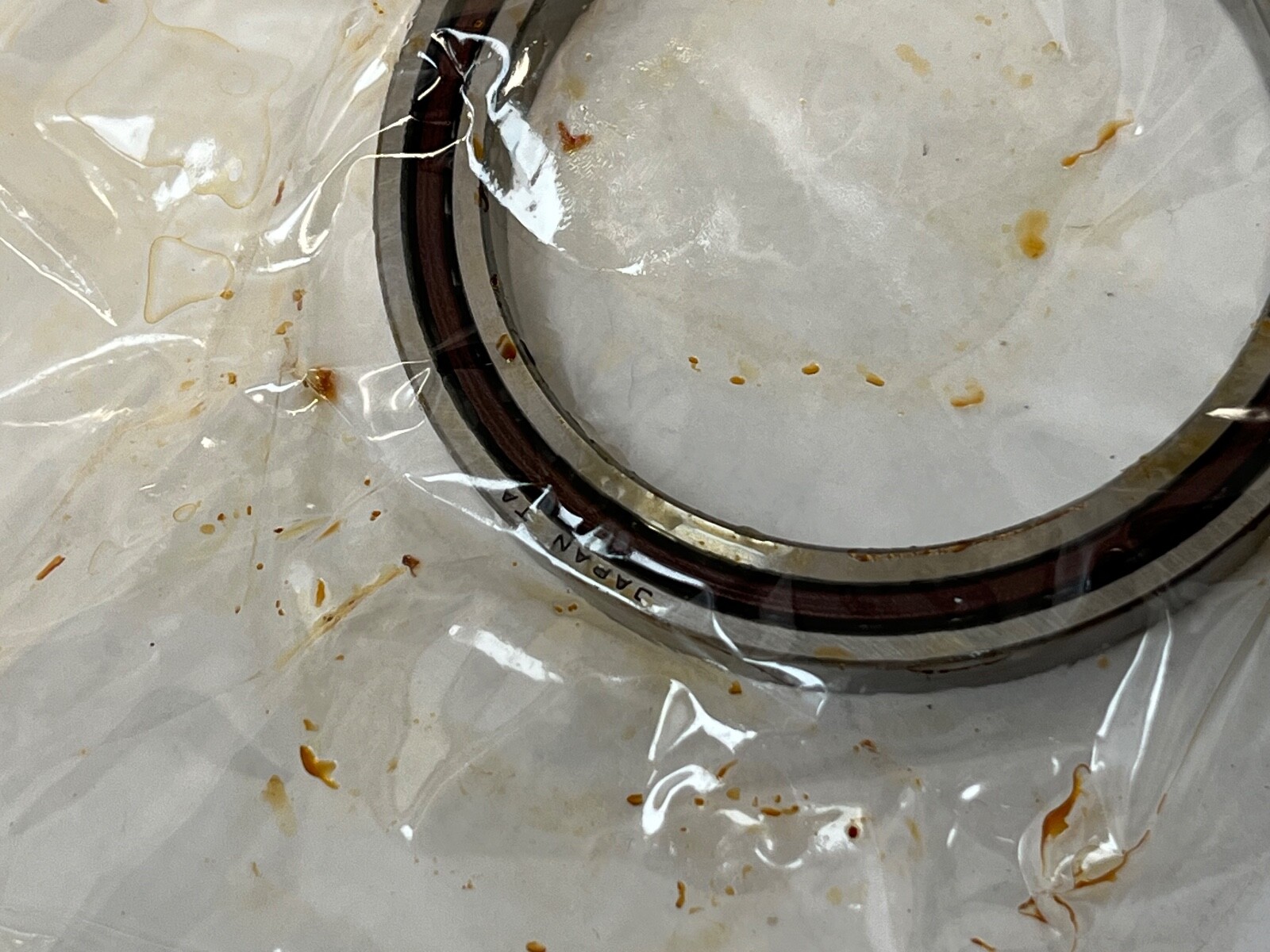

Thin-section angular contact ball bearing, 50 x 65 x 7 mm, 15° contact angle, ISO P4. NTN 7810CG/GNP4 universal single with machined phenolic cage.
List Price
$206.50
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 7810CGGNP4 |
| Model | 7810 C G GN P4 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 50 mm |
| OD | 65 mm |
| Width | 7 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Series | 7800 |
| Lubricant | Grease or oil |
| Mpn Variants | 7810CGGNP4, 7810CG/GNP4, 7810-C-G-GN-P4, 7810C |
| Precision Class | ABEC 7 / P4 |
| Min Temp | -40 °C |
| Cage Type | Machined |
| Dynamic Load Rating | 7,900 N |
| Static Load Rating | 8,050 N |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.05 kg (0.11 lb) |
| Cage Material | Phenolic |
| Limiting Speed | 14,600 rpm grease; 19,500 rpm oil |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Cross Reference 1 | SKF 71810 CD/P4 (15°, P4) |
|---|---|
| Cross Reference 2 | FAG B71810-C-T-P4S (15°, P4) |
| Cross Reference 3 | Koyo 7810C P4 (15°, P4) |
NTN 7810CG/GNP4 super-precision angular contact ball bearing, ISO 18 (thin) section. Bore Diameter: 50 mm. Outside Diameter: 65 mm. Width: 7 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4.
7810 — NTN 78 series (ISO 18 dimension series, very thin section), 50 mm bore.
C — 15° contact angle.
G — universal flush-ground single bearing, matchable in DB, DF or DT with another G bearing.
P4 — ISO Class 4 precision, equivalent to ABEC 7.
Dynamic Load Rating: 7,900 N. Static Load Rating: 8,050 N. Limiting Speed: 14,600 rpm grease; 19,500 rpm oil. Item Weight: 0.05 kg (0.11 lb). Cage Material: Phenolic. Cage Type: Machined. Operating Temperature: -40 °C to 120 °C. The very thin section saves radial space and mass on compact spindles and rotary tables.
Load centre a: 11.2 mm. Shaft abutment da min: 52.5 mm. Housing abutment Da max: 62.5 mm. Fillet ras max: 0.3 mm; r1as max: 0.15 mm.
Interchanges with SKF 71810 CD/P4, FAG B71810-C-T-P4S and Koyo 7810C P4 at 15°, P4 class.
