Availability:
1 in stock

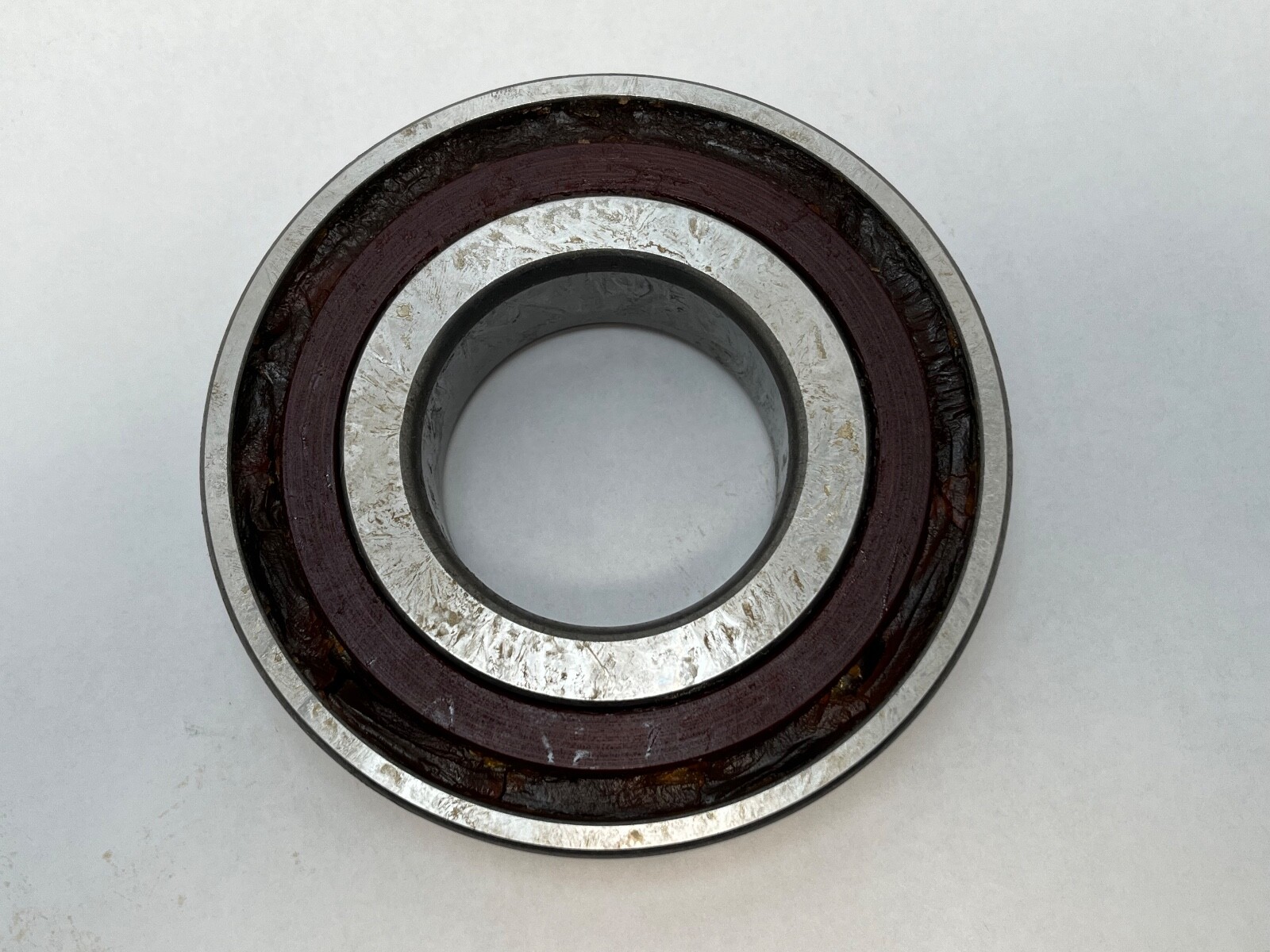

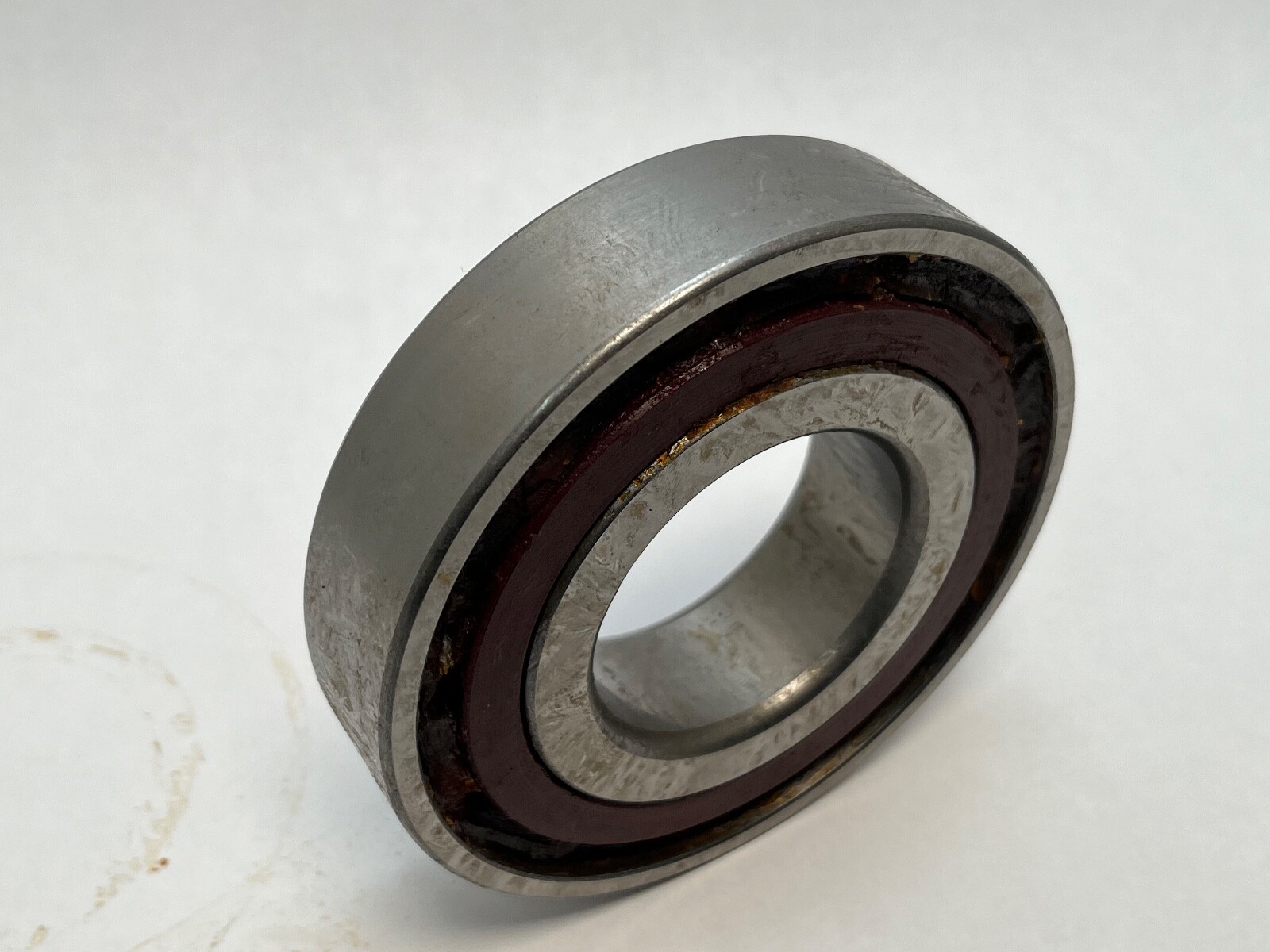

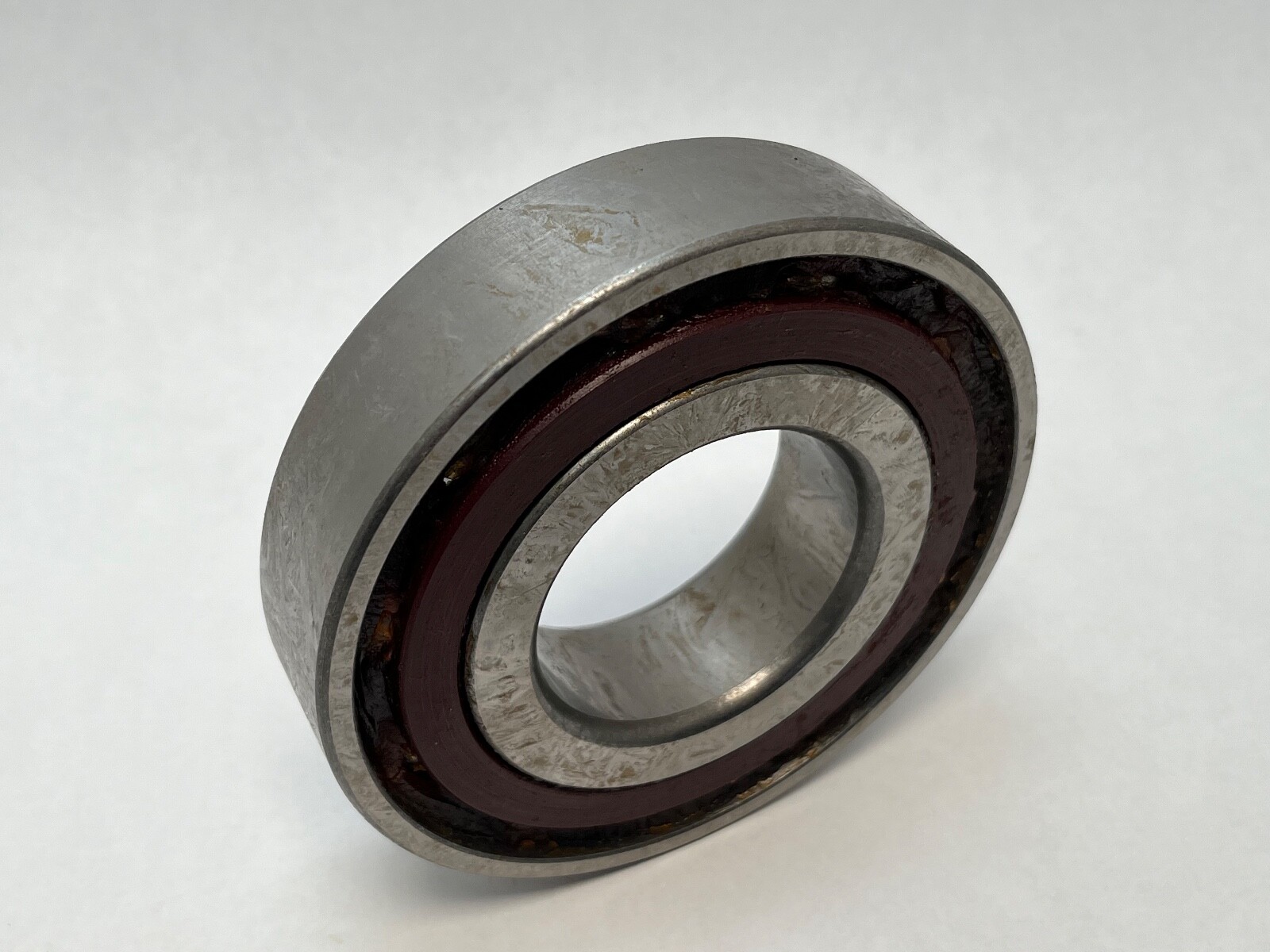

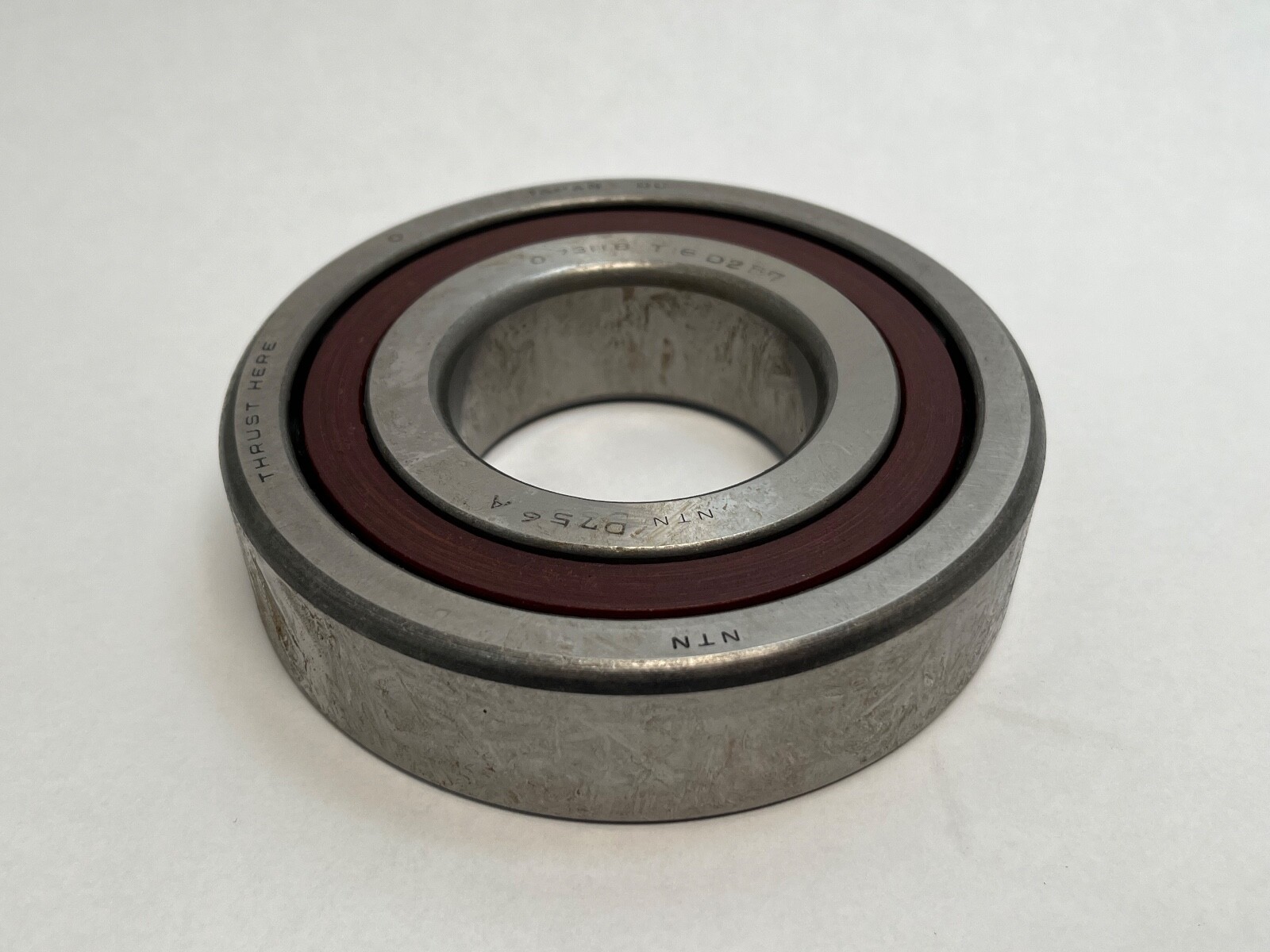

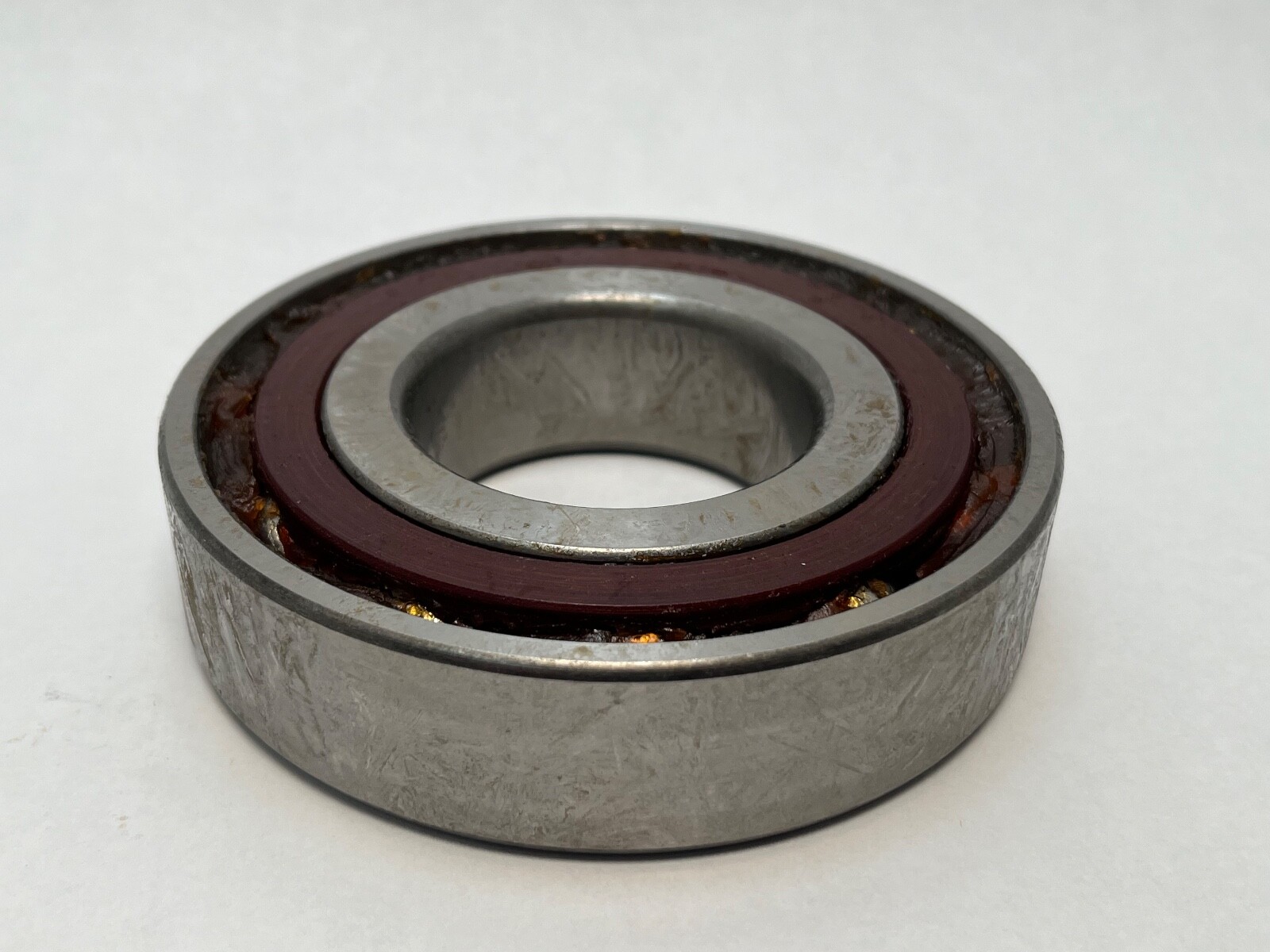

Angular contact ball bearing pair, 55 mm bore x 120 mm OD x 29 mm wide, 30° contact angle, phenolic cage. NTN 7311T1GD2B7 universally matched set of two.
List Price
$74.17
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 7311T1GD2B7 |
| Model | 7311 T1 G D2 B7 / 2MM311 WI CR DU / 7311 T DU PA7 |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 55 mm |
| OD | 120 mm |
| Width | 29 mm |
| Mpn Variants | 7311T1GD2B7, 7311-T1-GD2-B7, 7311 T1 G D2 B7, 7311 T DU P4, 7311T1GD2 |
|---|---|
| Series | 7300 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Contact Angle | 30° |
| Mounting Arrangement | Universal matched pair |
| Industry Terms | angular contact ball bearing pair; universal matched pair bearings; 30 degree angular contact; duplex angular contact bearing; 55mm bore bearing; phenolic cage bearing |
| Common Misspellings | NTN7311T1GD2B7; 7311T1GD2 B7; 7311 TIGD2B7; NTM 7311T1GD2B7 |
| Application Types | Machine tool spindles; pump and compressor shafts; gearboxes; combined radial and axial load shaft supports |
| Cross Reference 1 | NSK 7311A (single bearing, 30 deg angle) |
|---|---|
| Cross Reference 2 | Koyo 7311 (single bearing, 30 deg angle) |

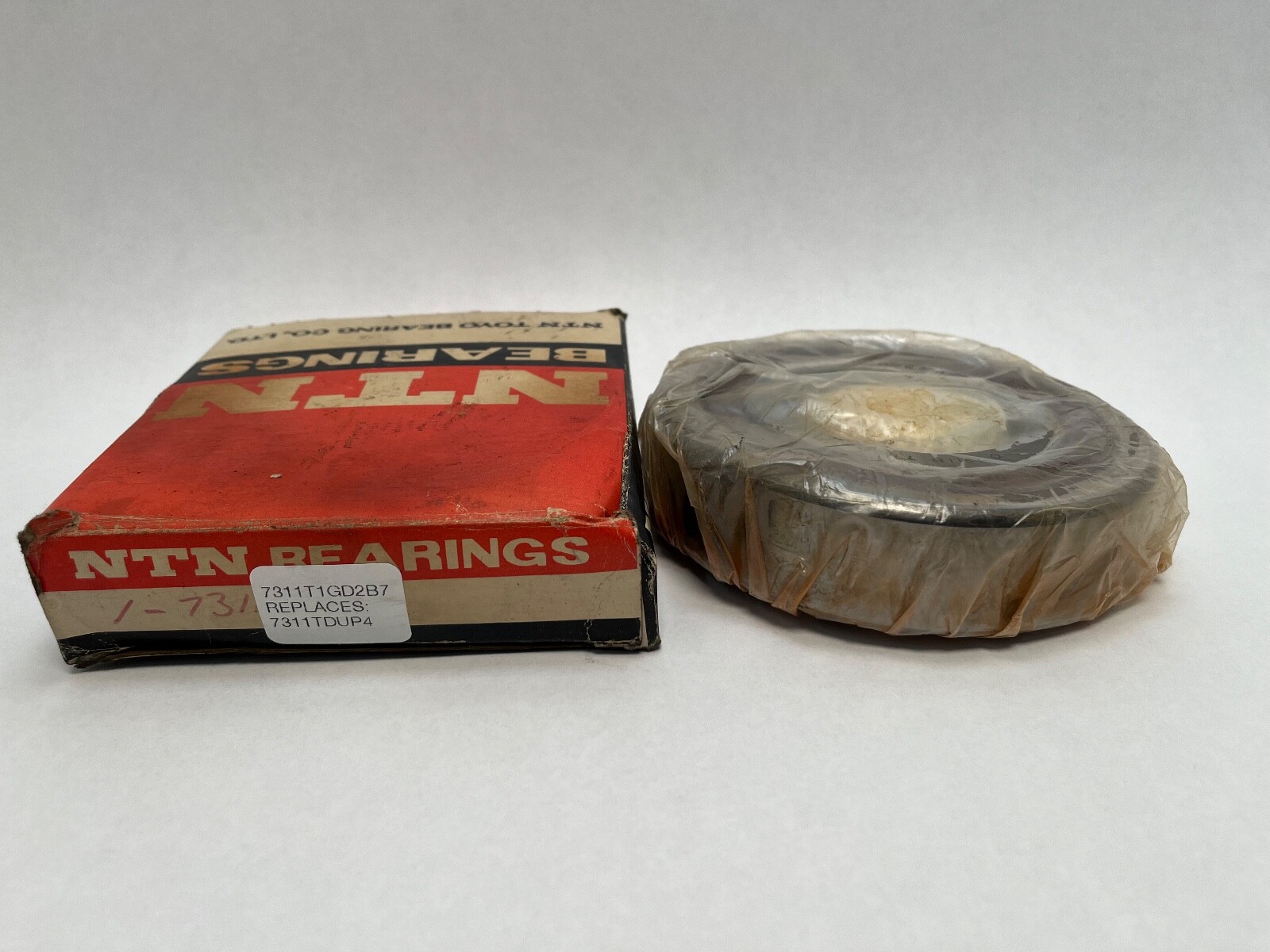

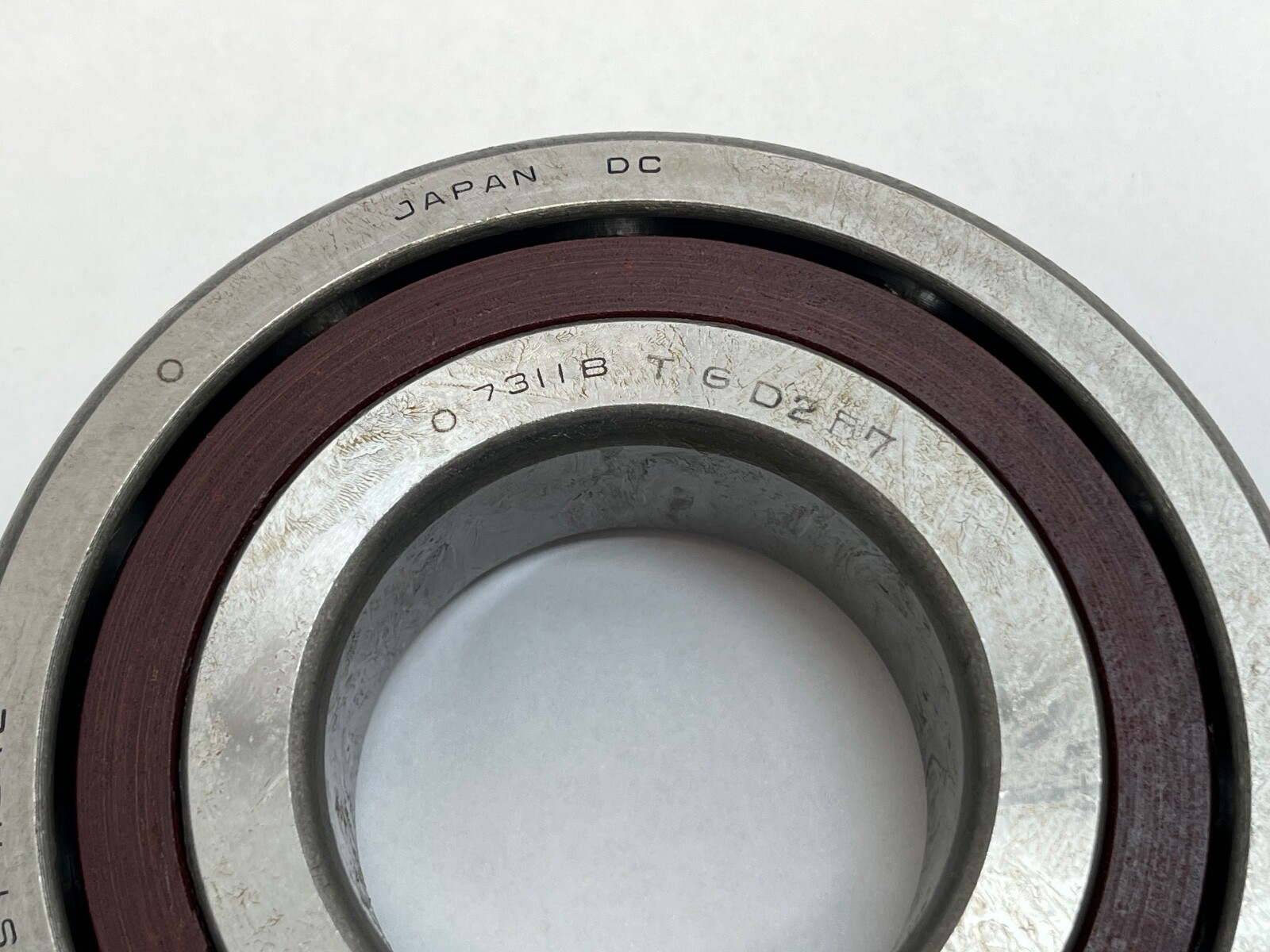

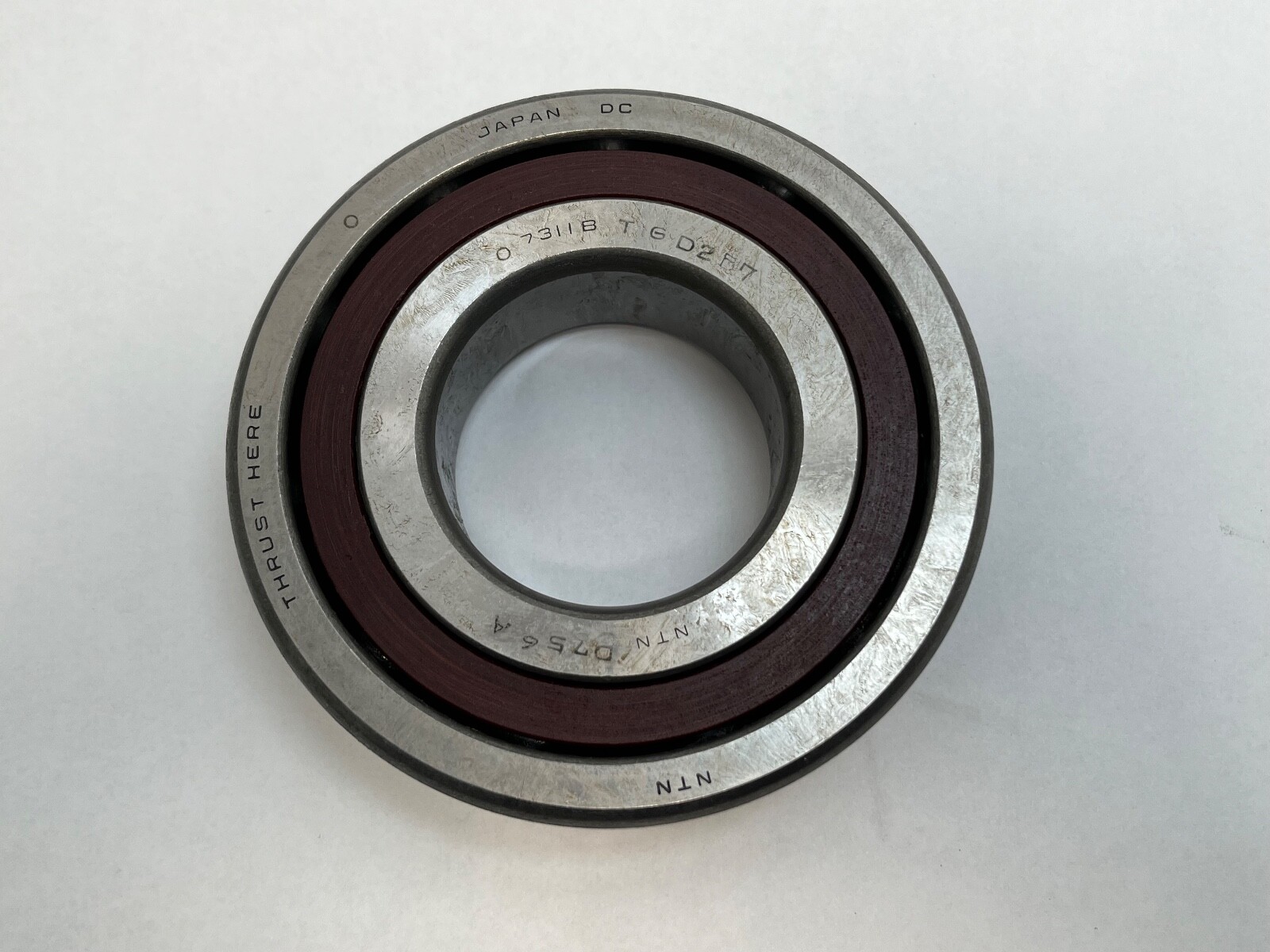

NTN 7311T1GD2B7 single row angular contact ball bearings supplied as a universally matched pair. Unit Quantity: 2 Pcs. Carton and catalogue markings: 7311T1GD2B7, 7311-T1-GD2-B7, 7311 T DU P4.
7311 — single row angular contact ball bearing, 73 medium series, bore code 11 = 55 mm bore. No angle letter = 30° contact angle.

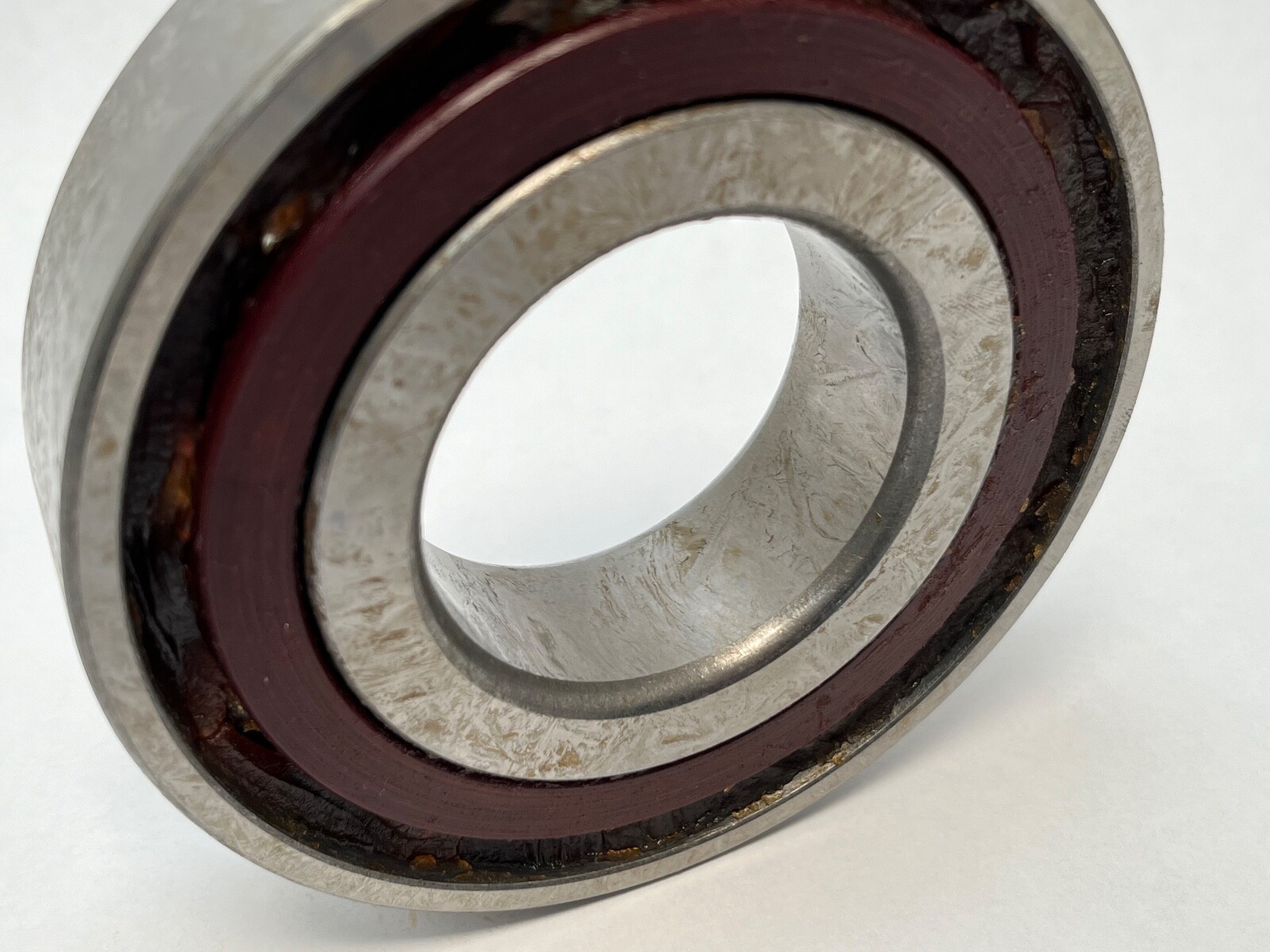

T1 — phenolic resin cage.
GD2 — a pair of universally mountable bearings with flush-ground faces, for back-to-back, face-to-face or tandem arrangement.
Bore Diameter: 55 mm. Outside Diameter: 120 mm. Overall Width: 29 mm per bearing. Contact Angle: 30°. Cage Material: Phenolic. Mounting Arrangement: Universal matched pair. Rolling Elements: Ball. Number Of Rows: 1 per bearing. Series: 7300.
Envelope: 55 x 120 x 29 mm per bearing. Mounting Arrangement: Universal matched pair, flush-ground faces for back-to-back, face-to-face or tandem arrangement.
Cross-references: NSK 7311A (single bearing, 30 deg angle); Koyo 7311 (single bearing, 30 deg angle). Other forms of the number: 7311-T1-GD2-B7, 7311 T1 G D2 B7, 7311 T DU P4.
Bore Diameter: 55 mm. Outside Diameter: 120 mm. Overall Width: 29 mm per bearing.
Contact Angle: 30°. Cage Material: Phenolic.
GD2 is a pair of universally mountable bearings with flush-ground faces. Unit Quantity: 2 Pcs.
$137.64
92 in stock
