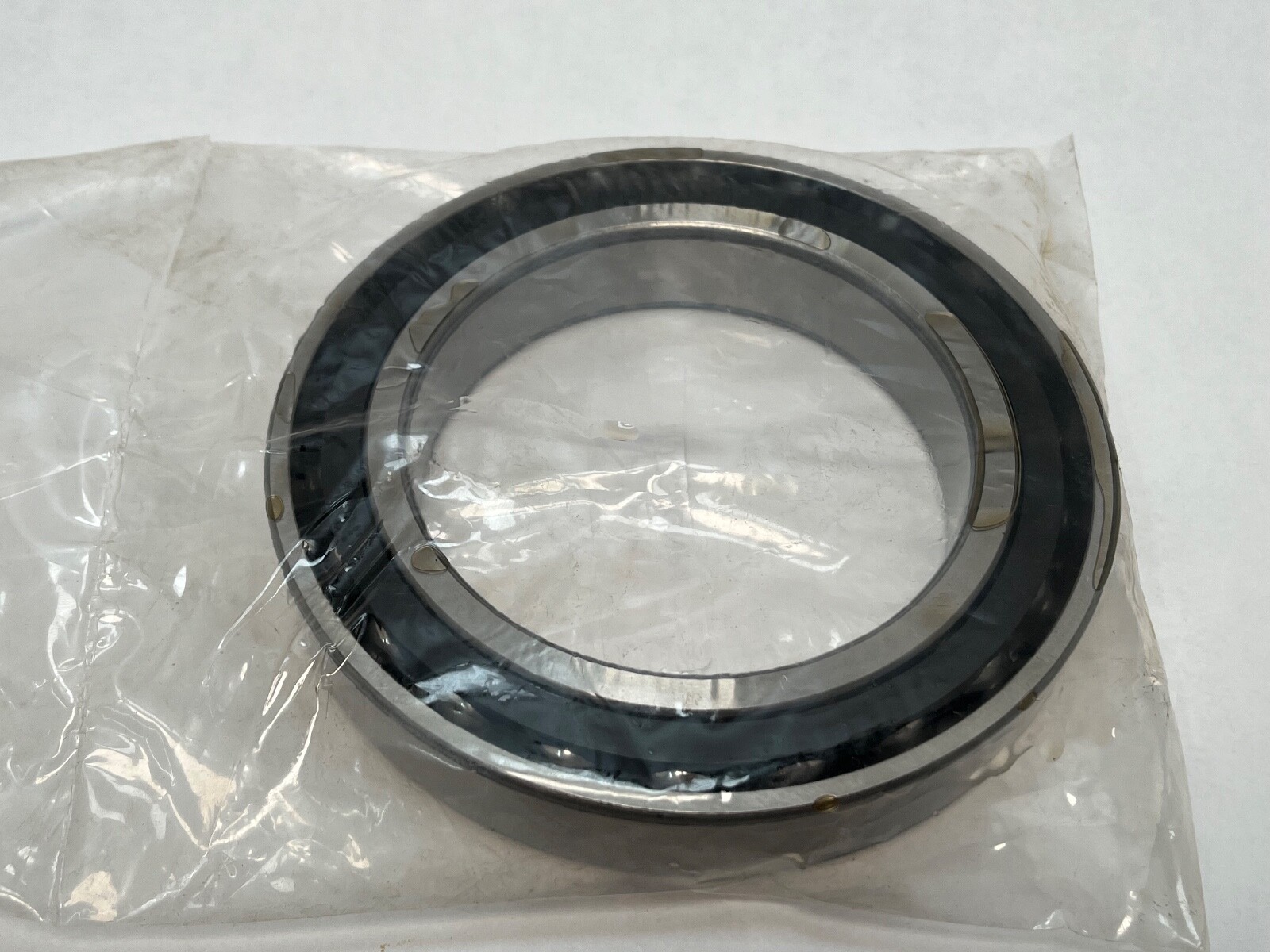

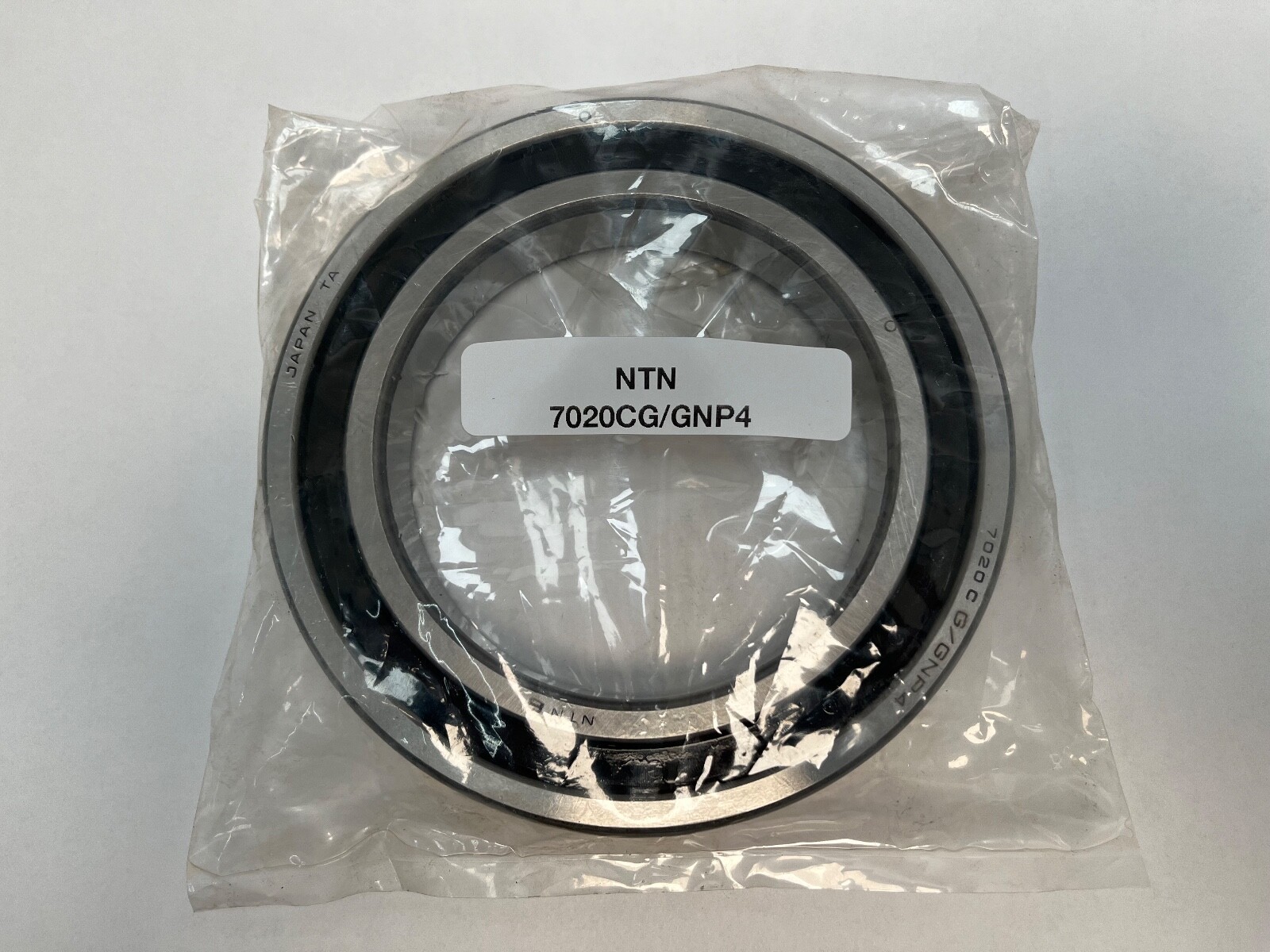

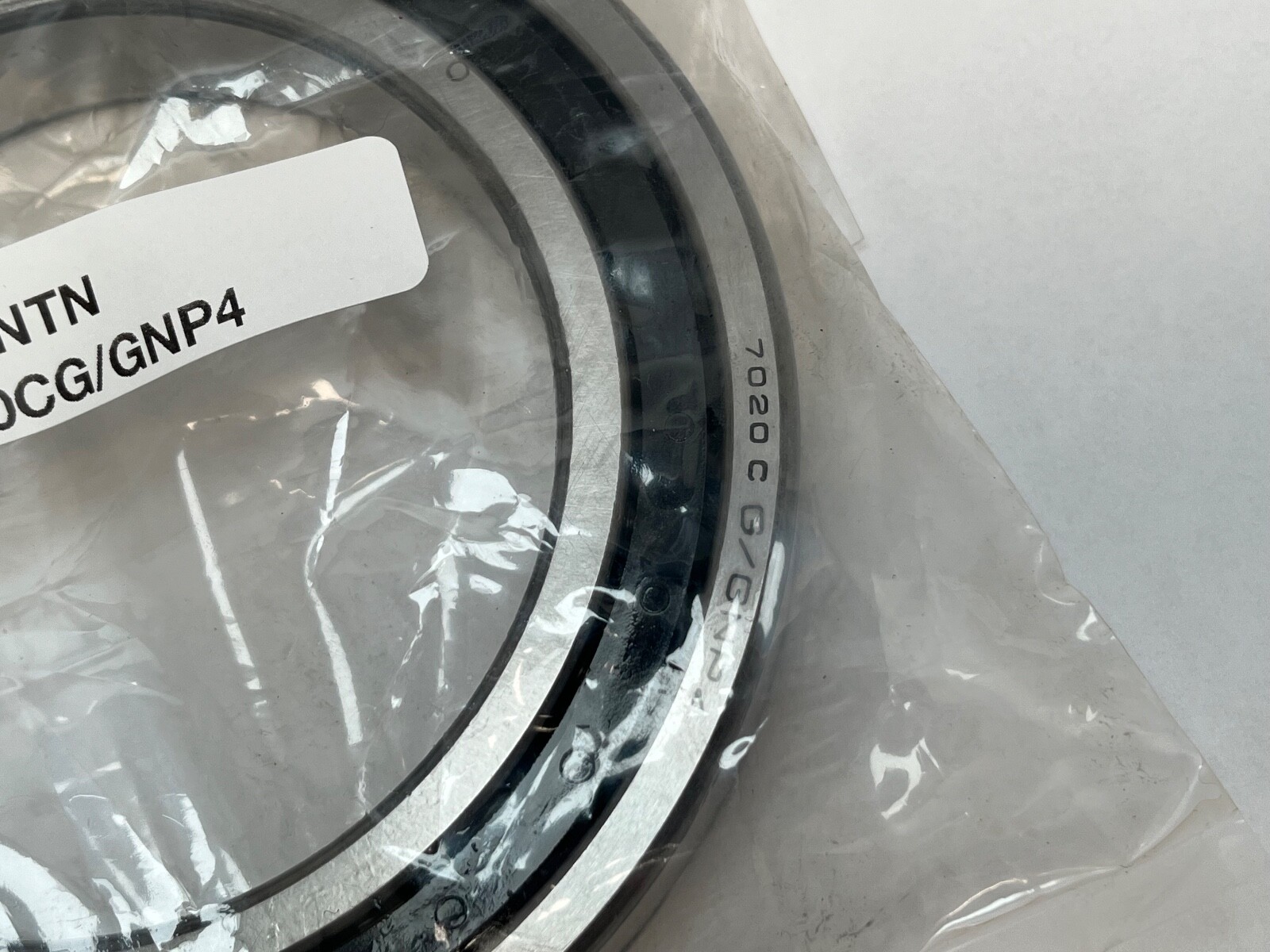

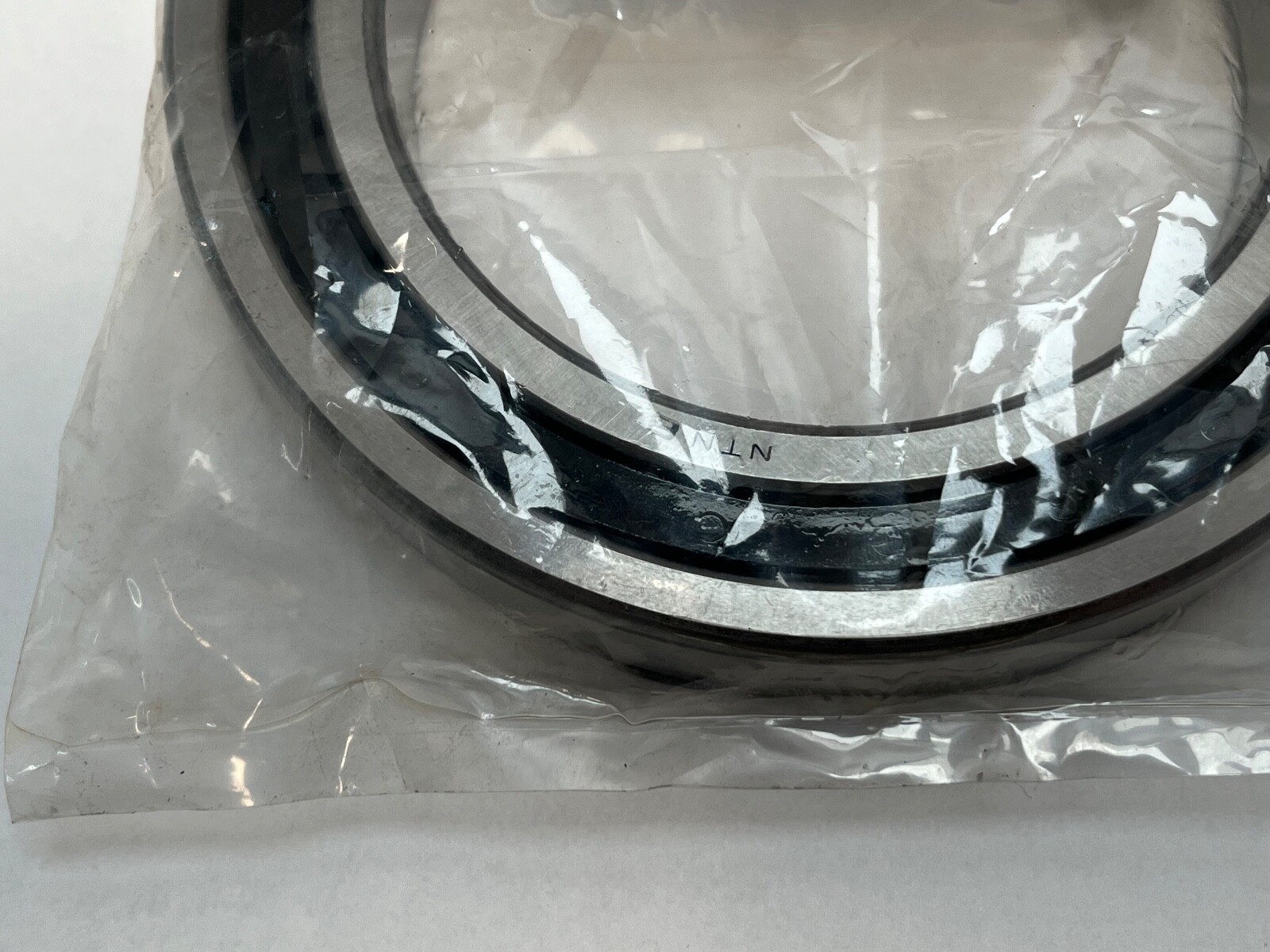

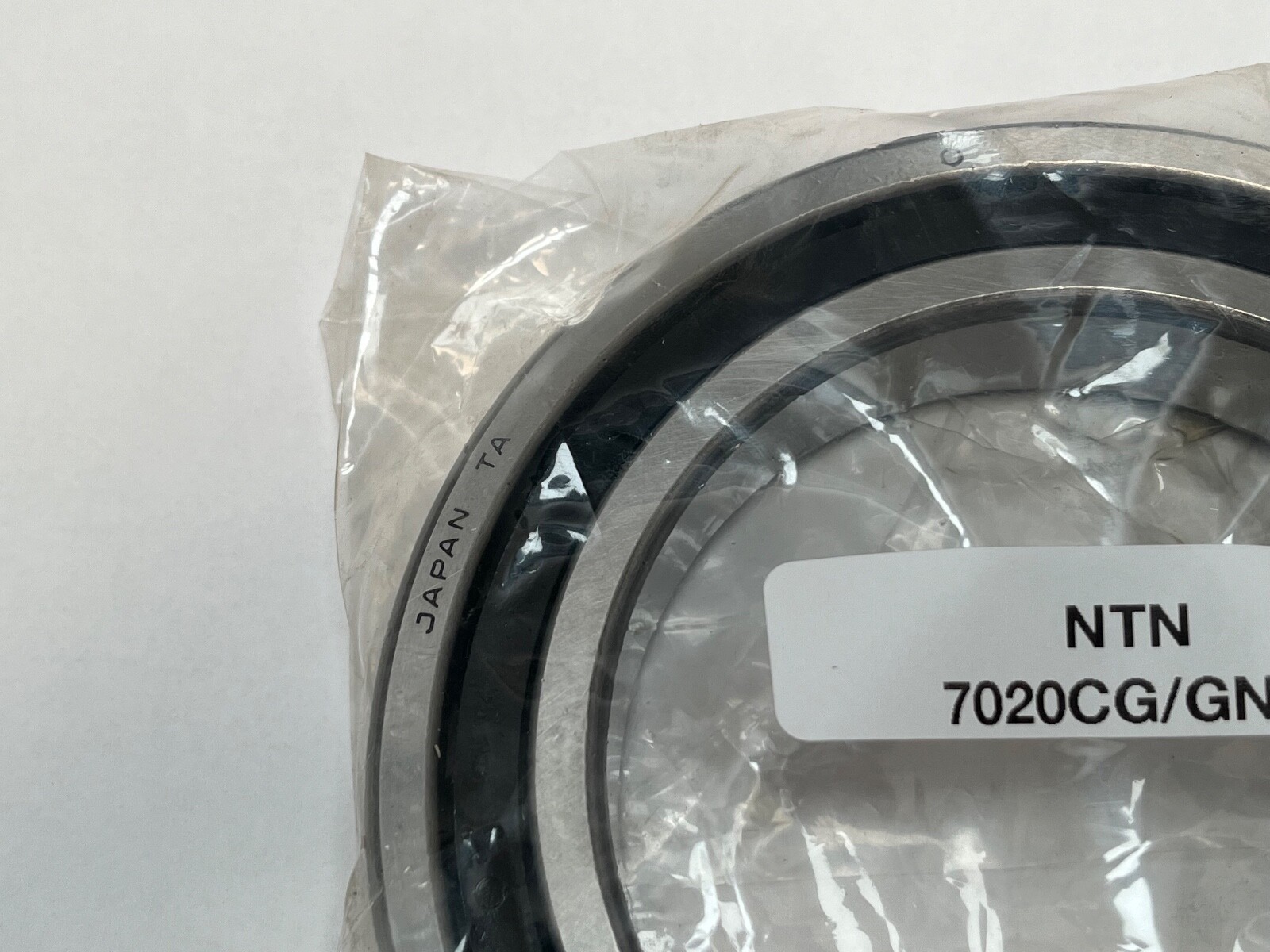

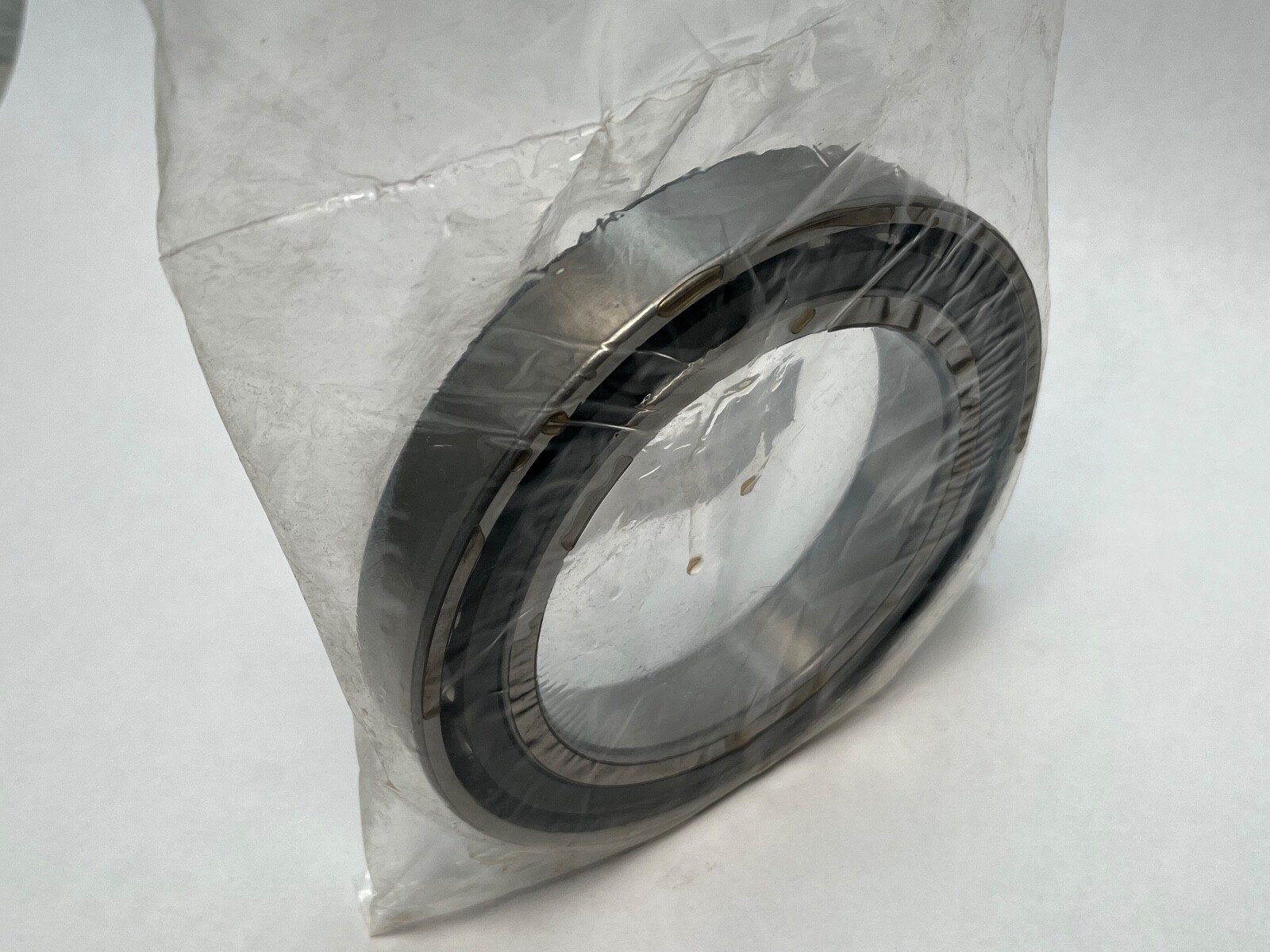

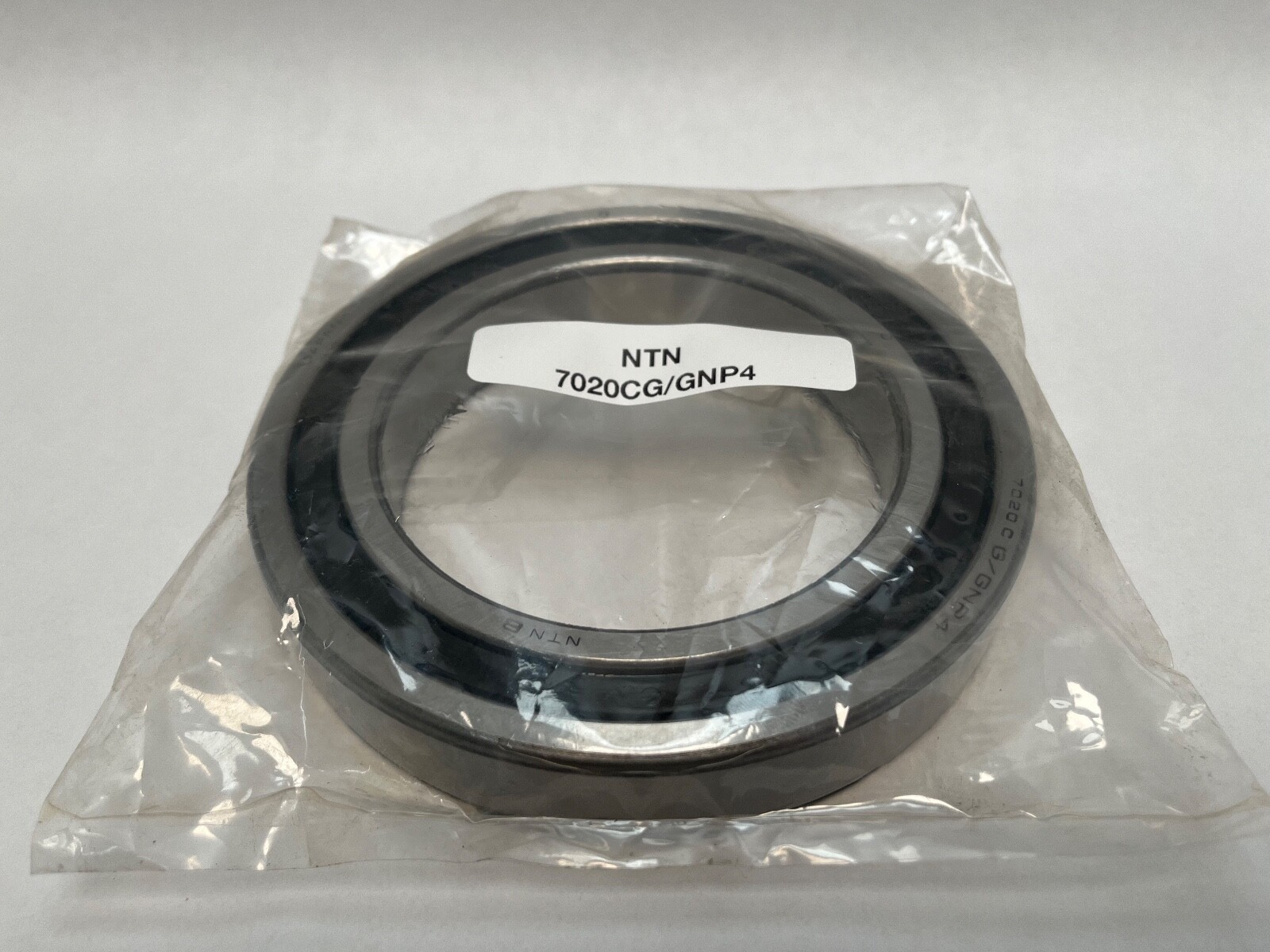

Super-precision angular contact ball bearing, 100 x 150 x 24 mm, 15° contact angle, ISO P4. NTN 7020CG/GNP4 universal flush-ground single for spindles.
List Price
$328.89
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Angular Contact Ball Bearing - 100 mm ID, 150 mm OD, 24 mm Width, Open, 15° Contact Angle, Light Preload.$351.68
Super-Precision Angular Contact Ball Bearing - 100 mm ID, 150 mm OD, 24 mm Width, 15° Contact Angle, P4S, Light Preload$351.68
Angular Contact Spindle Bearing - 100 mm ID, 150 mm OD, 24 mm Width, 15° Contact Angle, ABEC 7 / P4, Phenolic Cage, Light Preload$351.68
Super Precision Angular Contact Ball Bearing - Straight Bore, 100 mm ID, 150 mm OD, 24 mm Width, Open, 15° Contact Angle, Light Preload$386.27| MFR / Brand | NTN |
|---|---|
| MPN | 7020CGGNP4 |
| Model | 7020 C G GN P4 / 2MM9120 WI CR DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 100 mm |
| OD | 150 mm |
| Width | 24 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Lubricant | Oil/Grease |
| Mpn Variants | 7020CGGNP4, 7020CG/GNP4, 7020-C-G-GN-P4, 7020C |
| Precision Class | ABEC 7 / P4 |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal single (DB, DF or DT) |
| Cross Reference 1 | Fafnir 2MM9120WI |
|---|---|
| Cross Reference 2 | SKF 7020 CD/P4A |
| Cross Reference 3 | FAG B7020-C-T-P4S |
| Cross Reference 4 | NSK 7020CTYNSULP4 |
NTN 7020CG/GNP4 super-precision angular contact ball bearing, ISO 70 (light) section. Bore Diameter: 100 mm. Outside Diameter: 150 mm. Width: 24 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4.
7020 — ISO 70 series, 100 mm bore.
C — 15° contact angle.
G — universal flush-ground single bearing, matchable in DB, DF or DT with another G bearing.
P4 — ISO Class 4 precision, equivalent to ABEC 7.
The 15° angle favours radial stiffness and high speed, the standard choice for machine-tool spindle sets. Universal grinding lets the bearing be combined with any other G-coded 7020CG bearing of the same preload code.
Shaft abutment da min: 108.5 mm. Housing abutment Da max: 141.5 mm. Fillet ras max: 1.5 mm; r1as max: 1.0 mm.
Same envelope, 15°, P4 class: Fafnir 2MM9120WI, SKF 7020 CD/P4A, FAG B7020-C-T-P4S, NSK 7020CTYNSULP4, Koyo 7020C P4.
