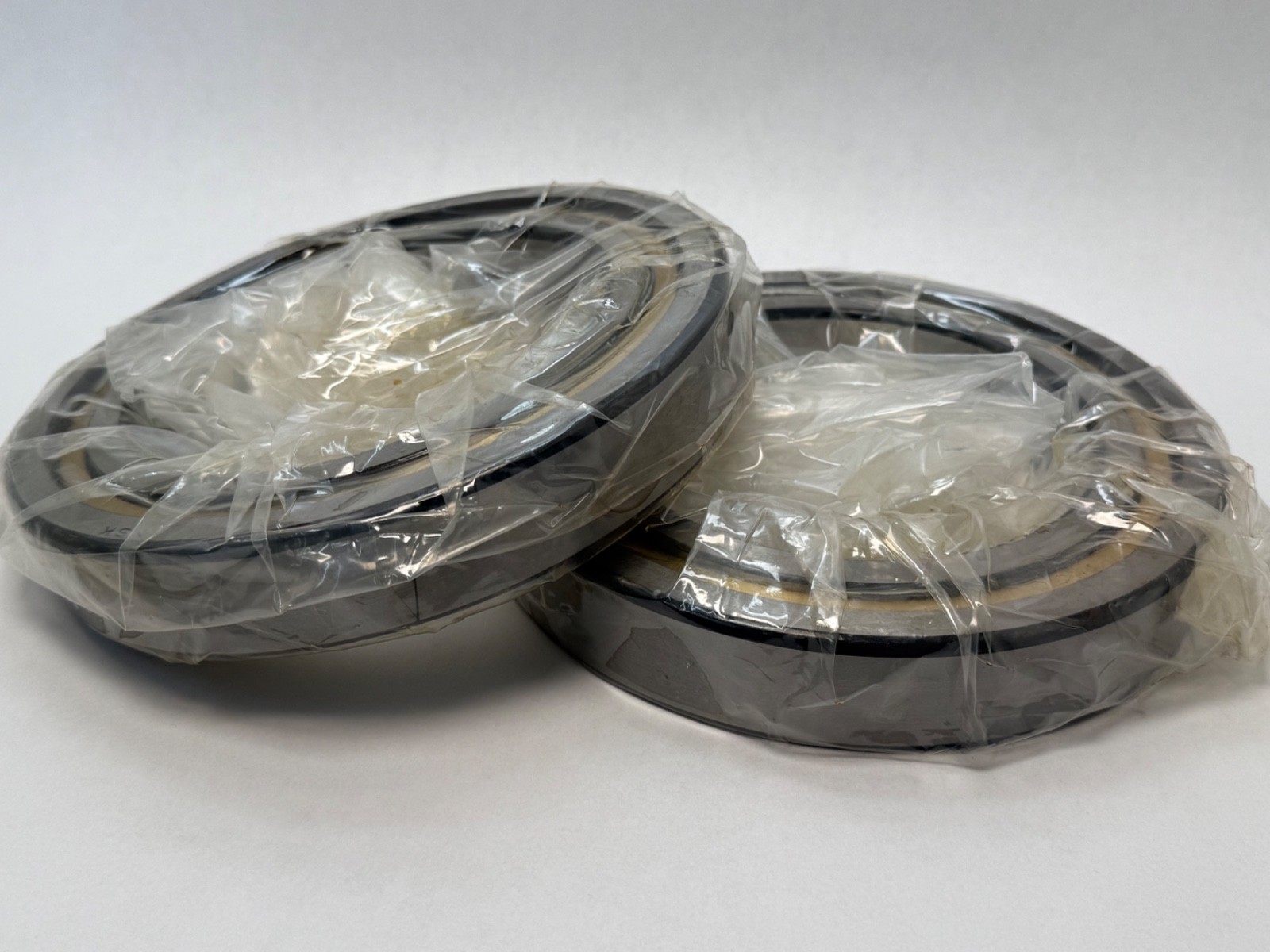

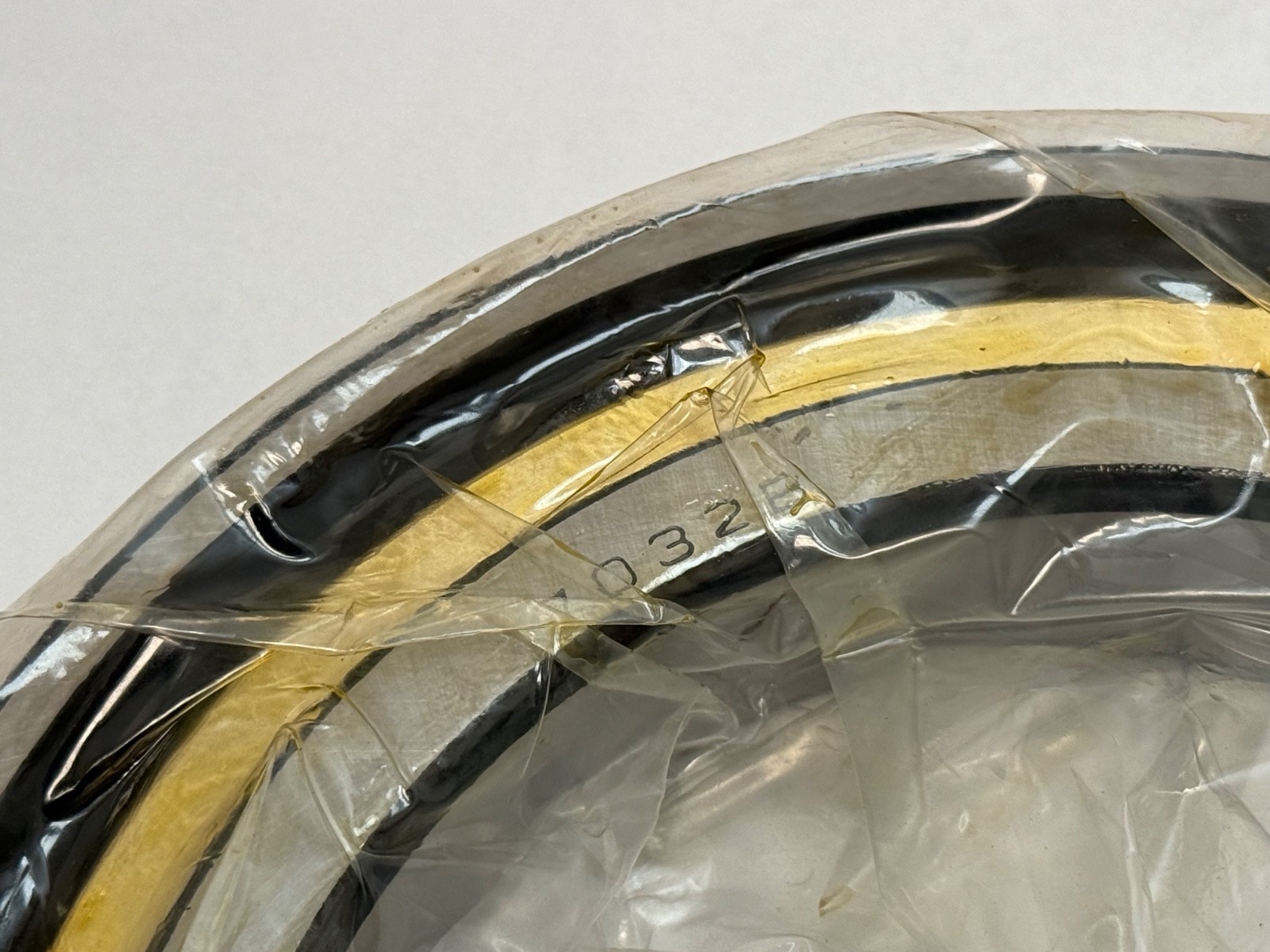

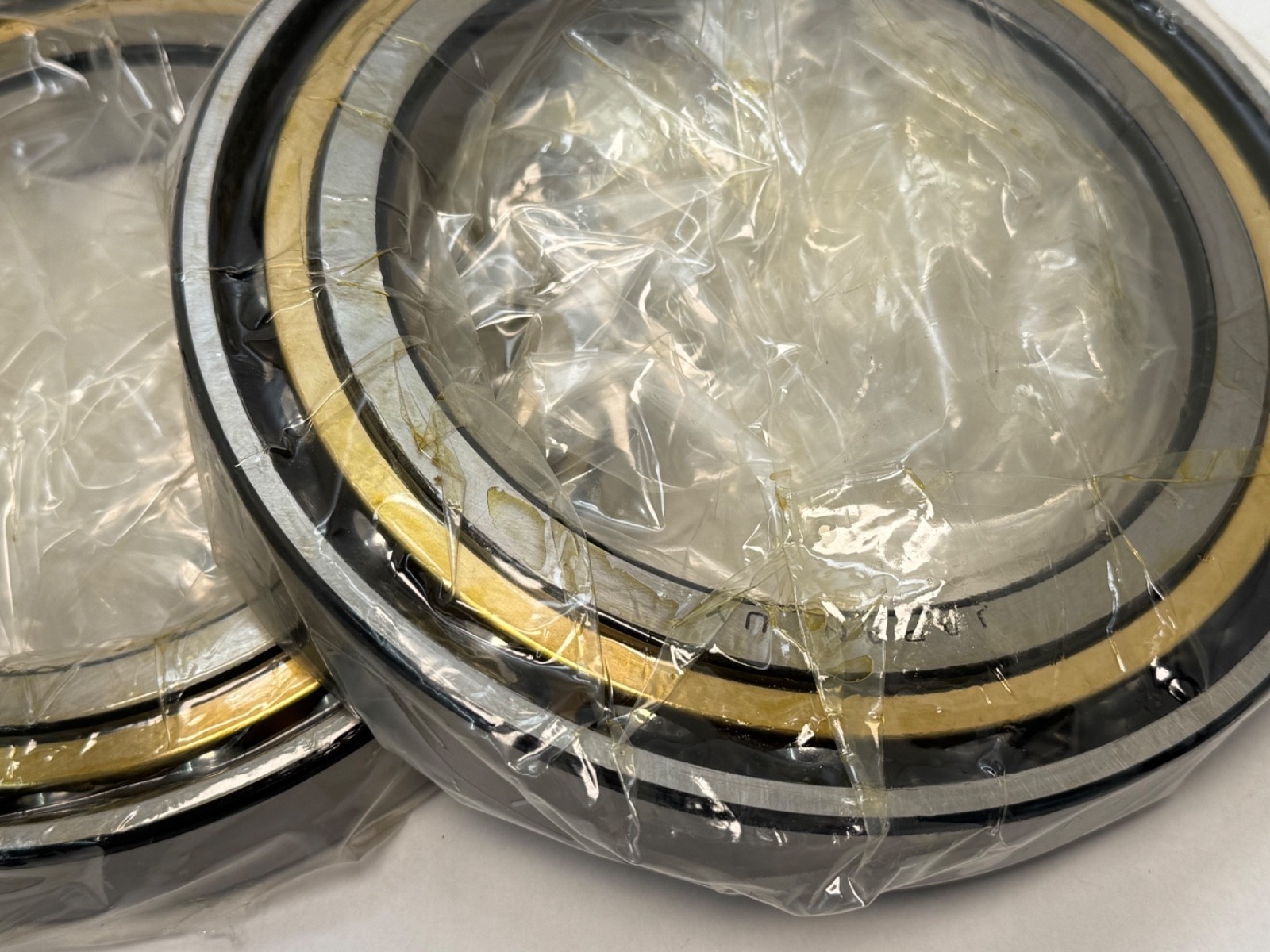

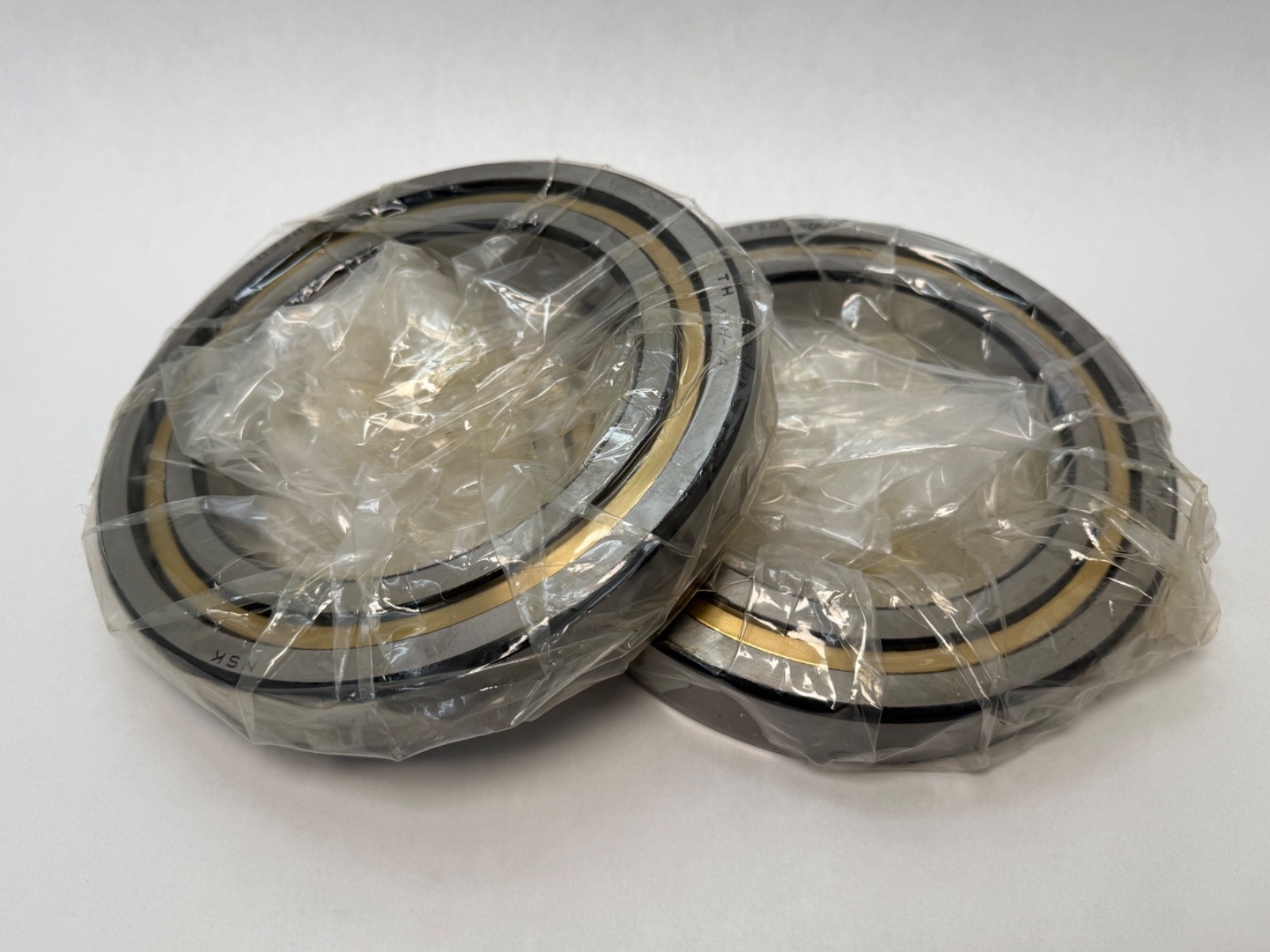

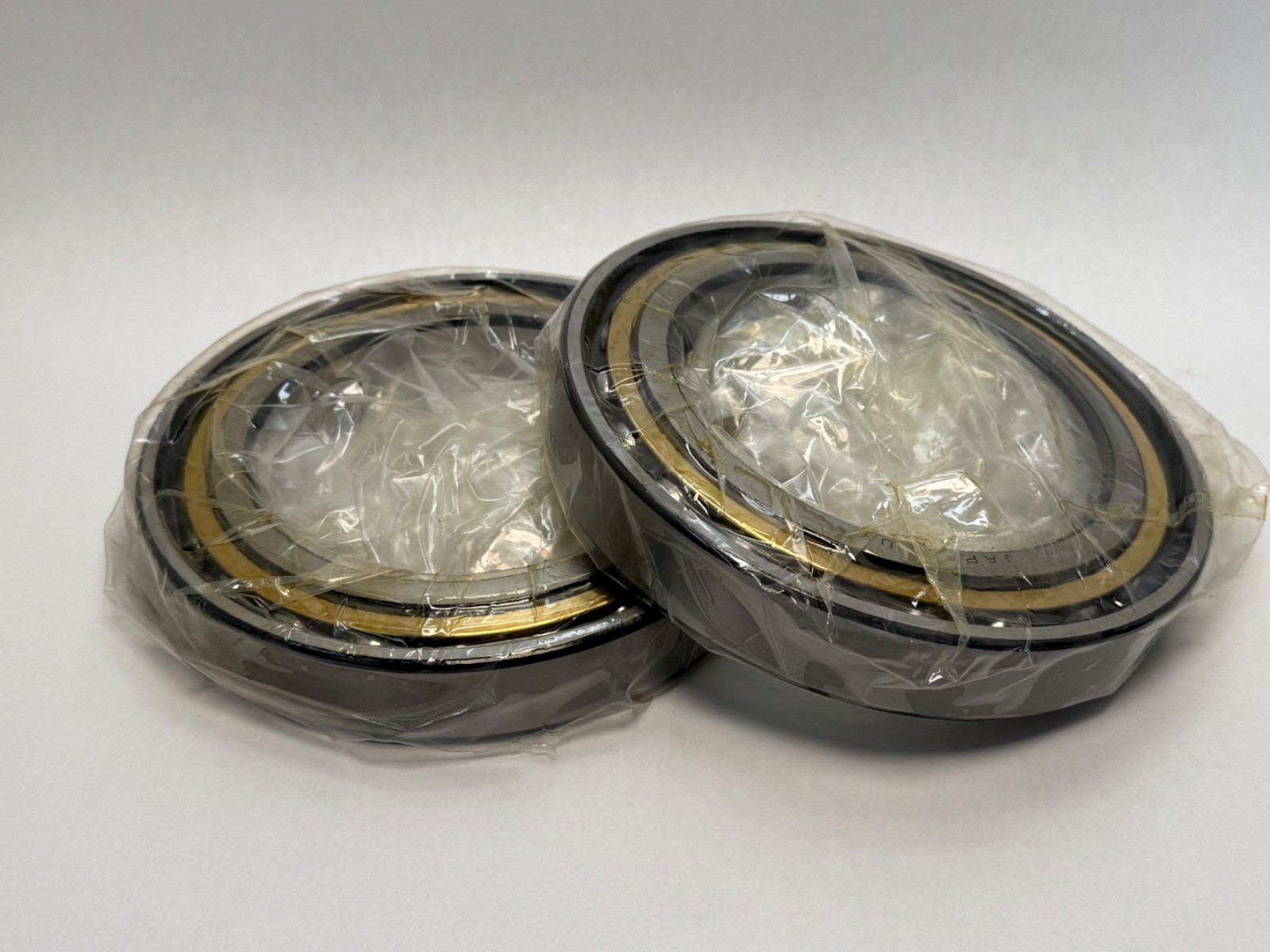

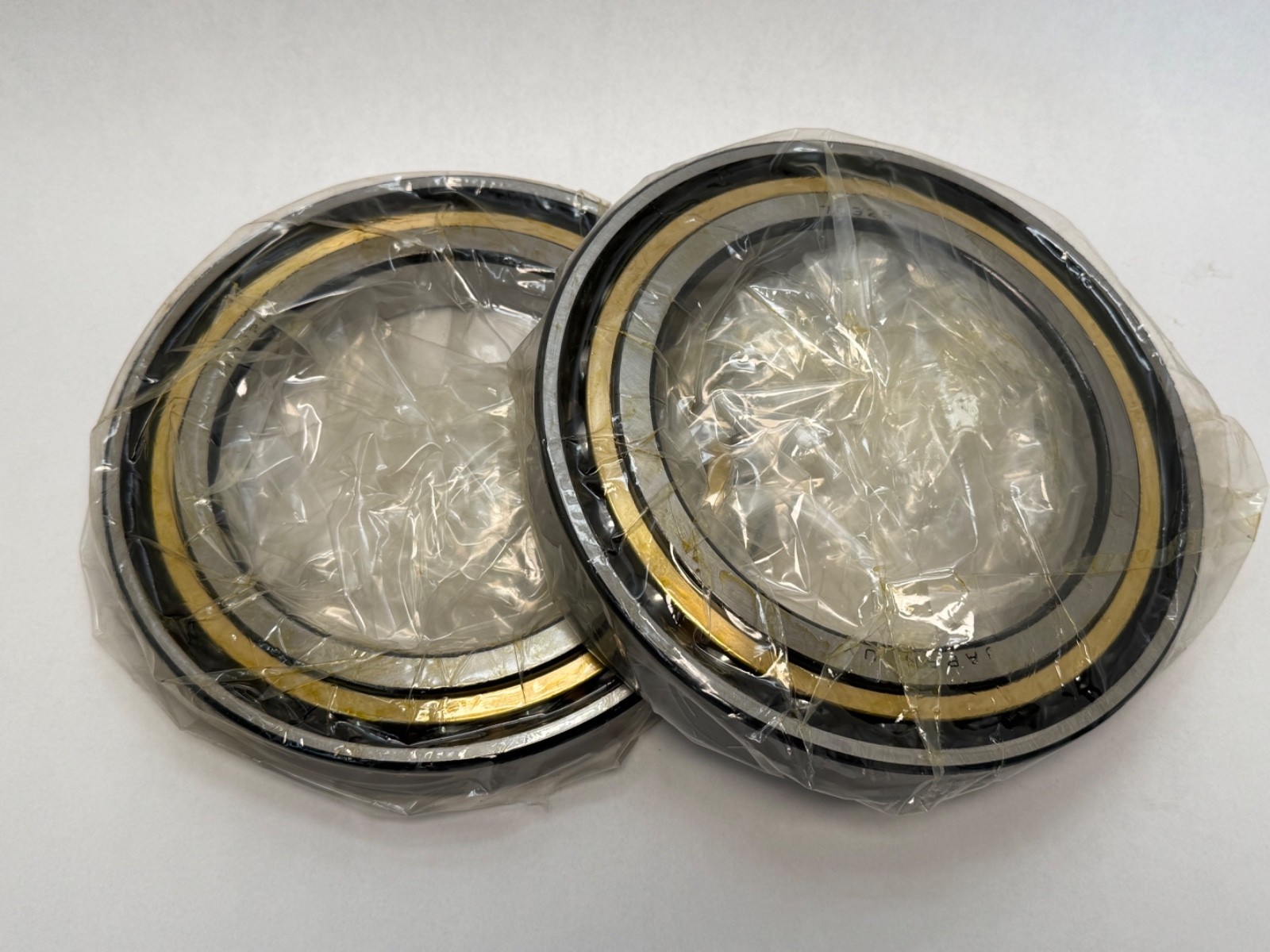

Angular contact ball bearing pair, 160 x 240 x 38 mm each, 40 degree contact angle. Back-to-back matched duplex set, straight bore, open, single row each.
List Price
$763.93
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Angular Contact Ball Bearing — 160 mm ID, 240 mm OD, 38 mm Width, 15° Contact Angle, ABEC 7, Light Preload$1,124.52
Angular Contact Bearing - 160 mm ID, 240 mm OD, 38 mm Width, Open, 15° Contact Angle$758.85
Super Precision Angular Contact Ball Bearing 160 x 240 x 38 mm, 15° Contact Angle, P4S Tolerance, Phenolic Cage, Universal Light Preload$1,253.92
Spindle Angular Contact Ball Bearing - 160 mm ID, 240 mm OD, 38 mm Width, Open, 25° Contact Angle, Phenolic Cage, P4S$1,253.92| MFR / Brand | NSK |
|---|---|
| MPN | 7032B |

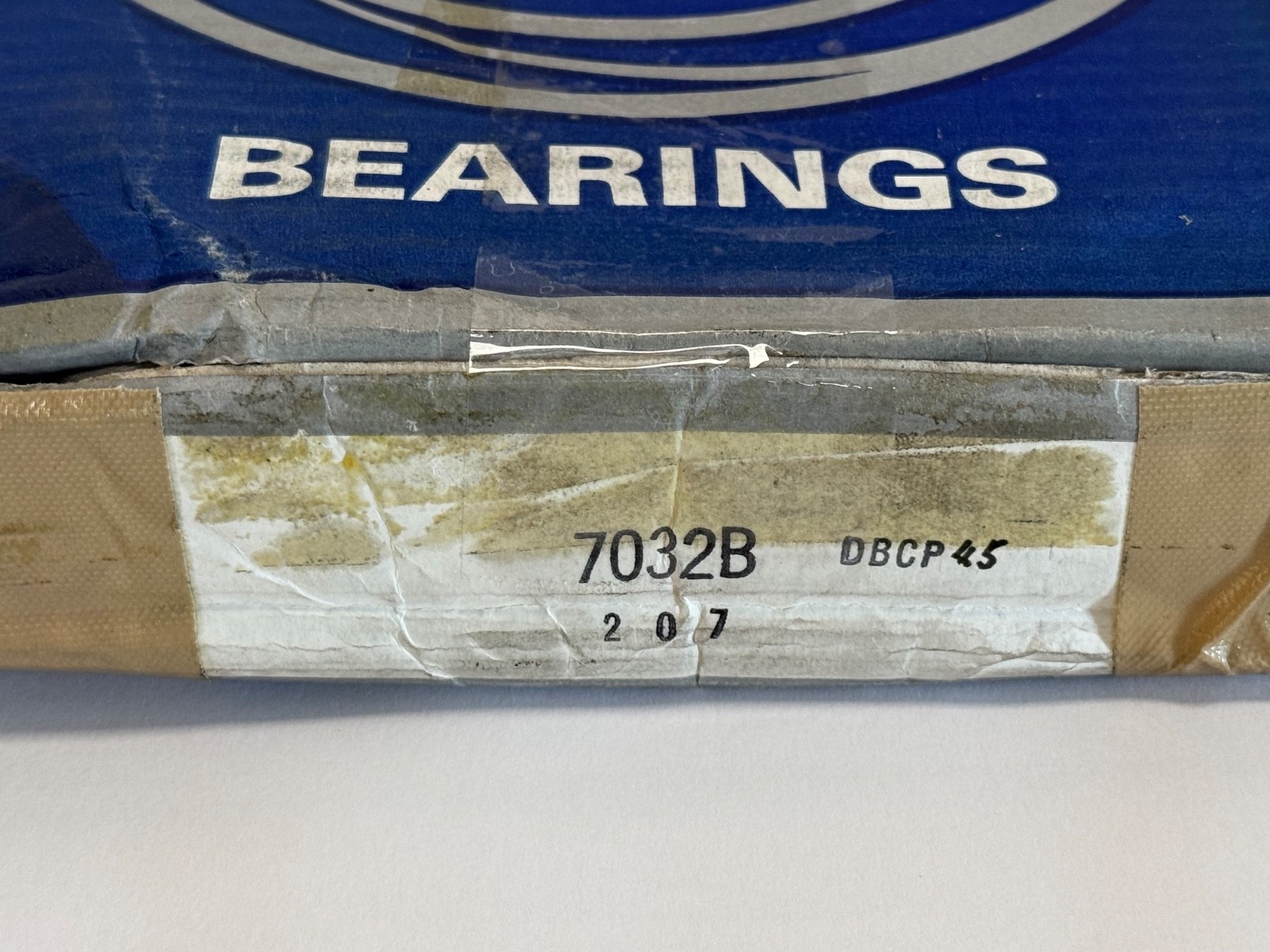

| Model | 7032B-DBCP45 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 160 mm |
| OD | 240 mm |
| Width | 38 mm |
| Base Number | 7032 |
|---|---|
| Industry Terms | angular contact ball bearing; matched duplex pair; back-to-back bearing set; large bore spindle bearing; 40 degree angular contact bearing; new old stock bearing |
| Common Misspellings | 7032B DB CP45; 7O32B; 7032-B; 7032BBD; 7032B DBCP45; 7032BDBCP4S |
| Application Types | large machine tool spindles; vertical turning and boring mills; gearboxes; rotary tables; pumps and compressors |
| Overall Width | 38 mm |
| Mpn Variants | 7032B; 7032BDB; 7032B-DBCP45; 7032-B-DB-CP45; 7032B DB CP45; 7032BDBCP45; CP45 |
| Additional Attributes | Shaft abutment da min: 172 mm; housing abutment Da max: 228 mm; abutment fillet ra max: 2 mm; bearing chamfer r min: 2.1 mm; r1 min: 1.1 mm |
| Material | Bearing Steel |
| Series | 7000 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 40° |
| Mounting Arrangement | Back-to-back (DB) |
| Bearing Material | Bearing steel |
| Cross Reference 1 | NTN 7032B |
|---|---|
| Cross Reference 2 | Koyo 7032B |
| Cross Reference 3 | FAG 7032-B-MP |

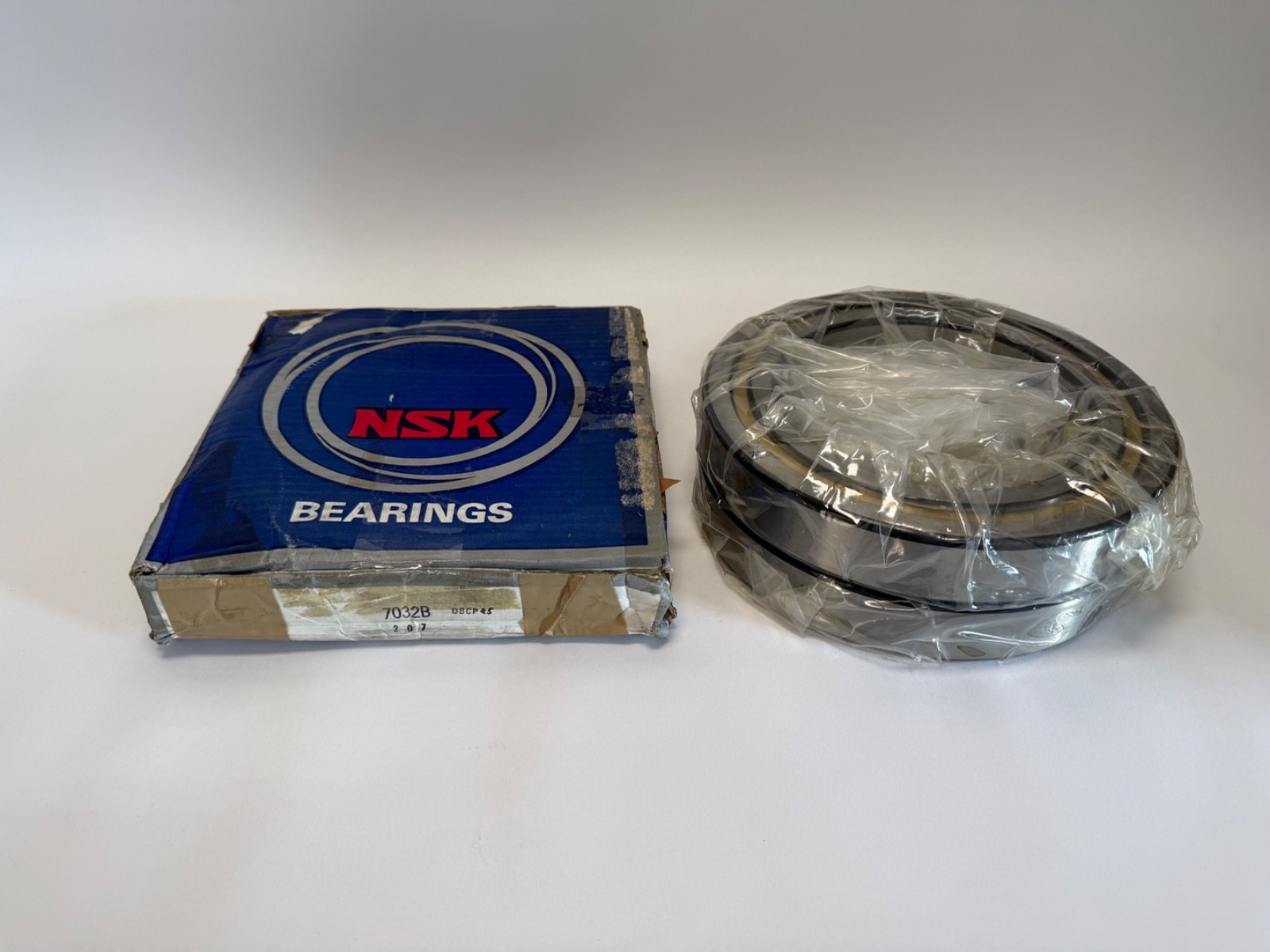

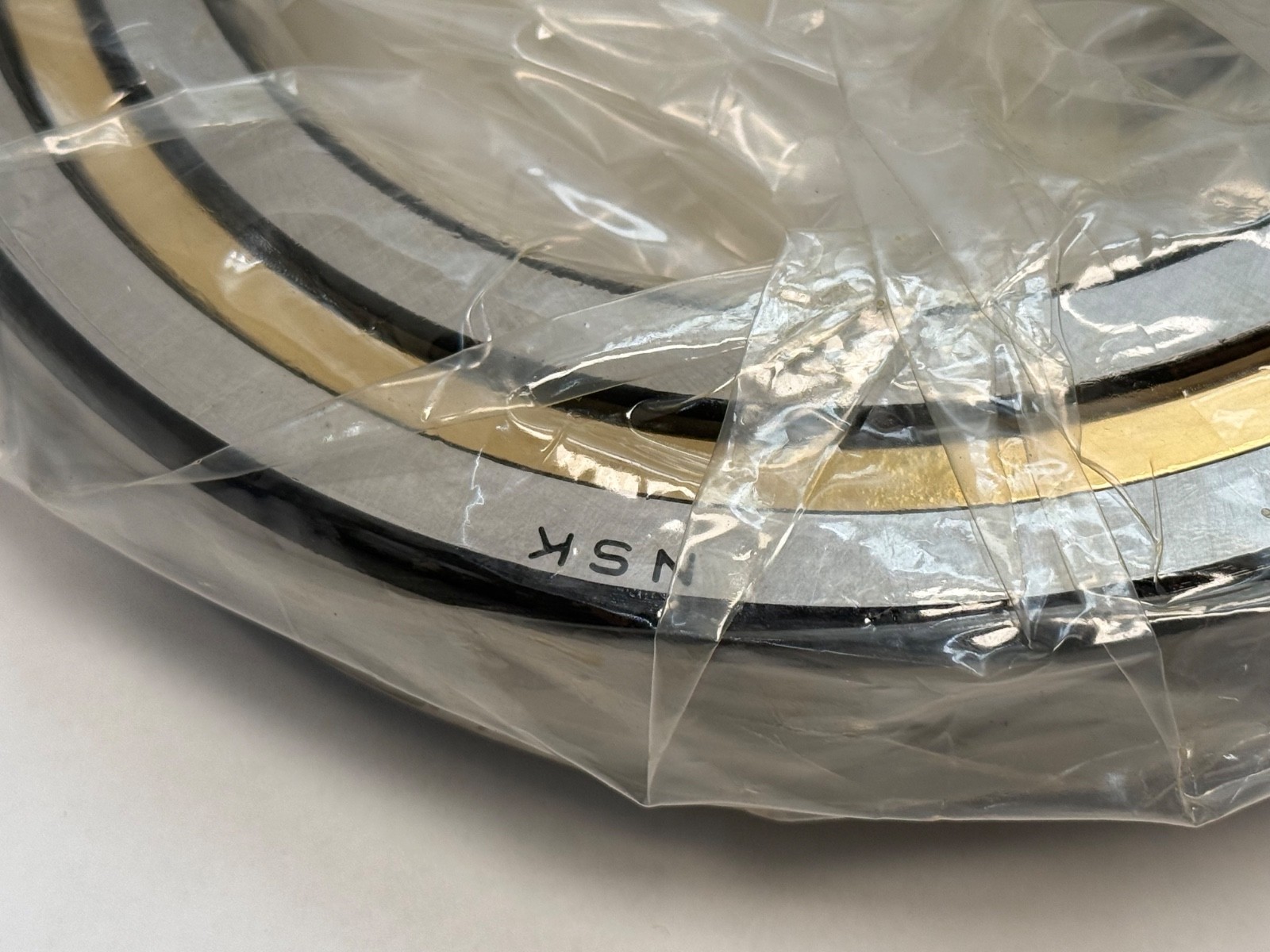

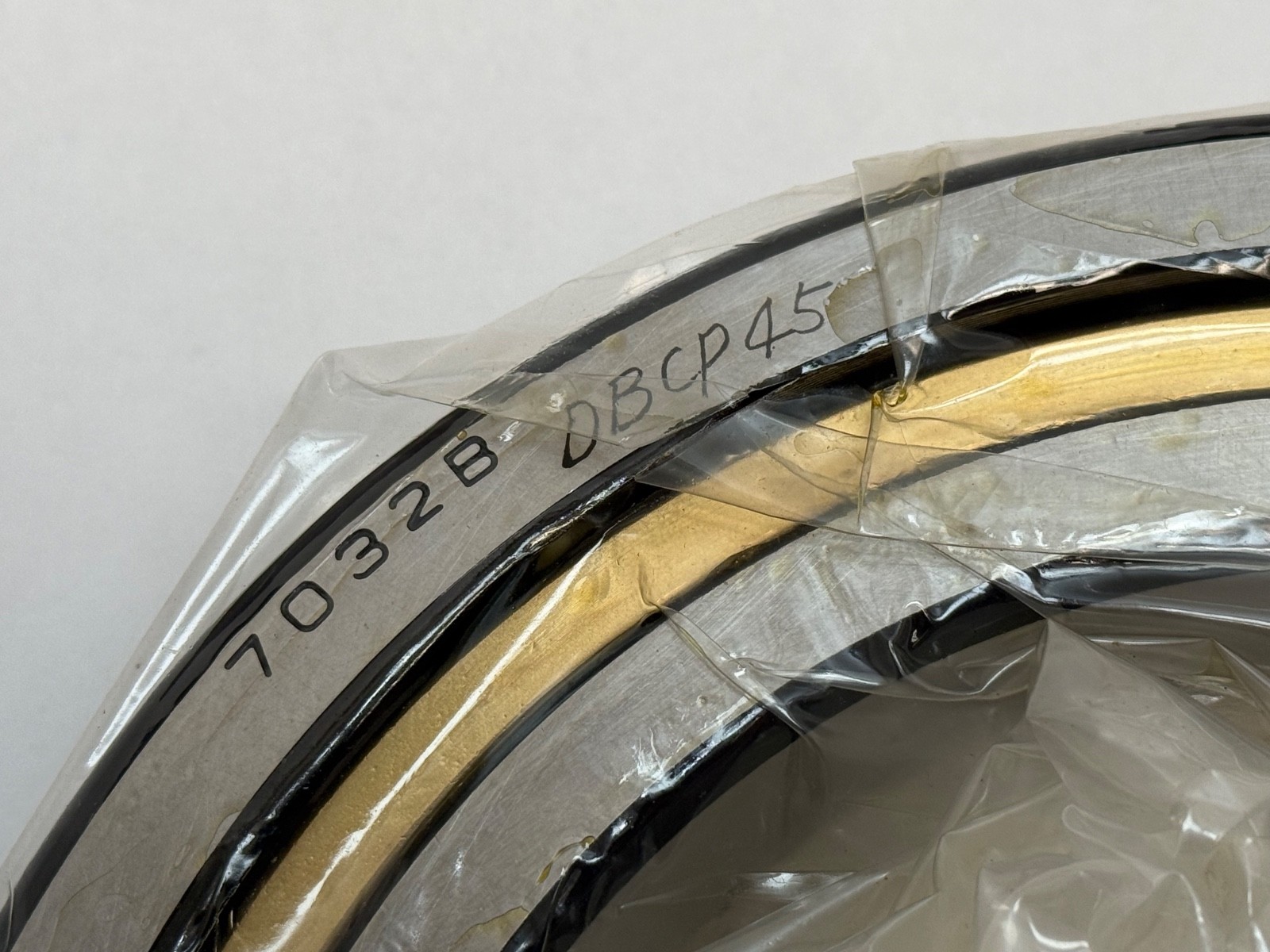

NSK 7032B angular contact ball bearings, supplied as a back-to-back matched pair. Bore Diameter: 160 mm. Outside Diameter: 240 mm. Overall Width: 38 mm per bearing. Contact Angle: 40°. Closure Type: Open. Rolling Elements: Ball. Bore Type: Straight. Number Of Rows: 1 per bearing. Series: 7000. Base Number: 7032. Mounting Arrangement: Back-to-back.
7032 — NSK’s number for the ISO 70-series size, 160 x 240 x 38 mm.
B — 40° contact angle.
DB — duplex back-to-back. Two single-row bearings ground as a matched set and mounted with their outer ring back faces together.
A 40° contact angle is the highest of the NSK angular contact range and carries the most axial load for a given size, at the lowest speed ceiling. Lubricant: grease or oil.
A back-to-back arrangement sets the two load lines diverging outward, which gives the pair a wide effective support span and high resistance to tilting moments.
Shaft abutment diameter da min: 172 mm. Housing abutment diameter Da max: 228 mm. Abutment fillet radius ra max: 2 mm.
Bearing chamfer r min: 2.1 mm. Bearing chamfer r1 min: 1.1 mm.
Unit Quantity: 2 Pcs. A matched back-to-back duplex pair.
Bearings sharing the 160 x 240 x 38 mm envelope at 40°: NTN 7032B, Koyo 7032B, FAG 7032-B-MP.
