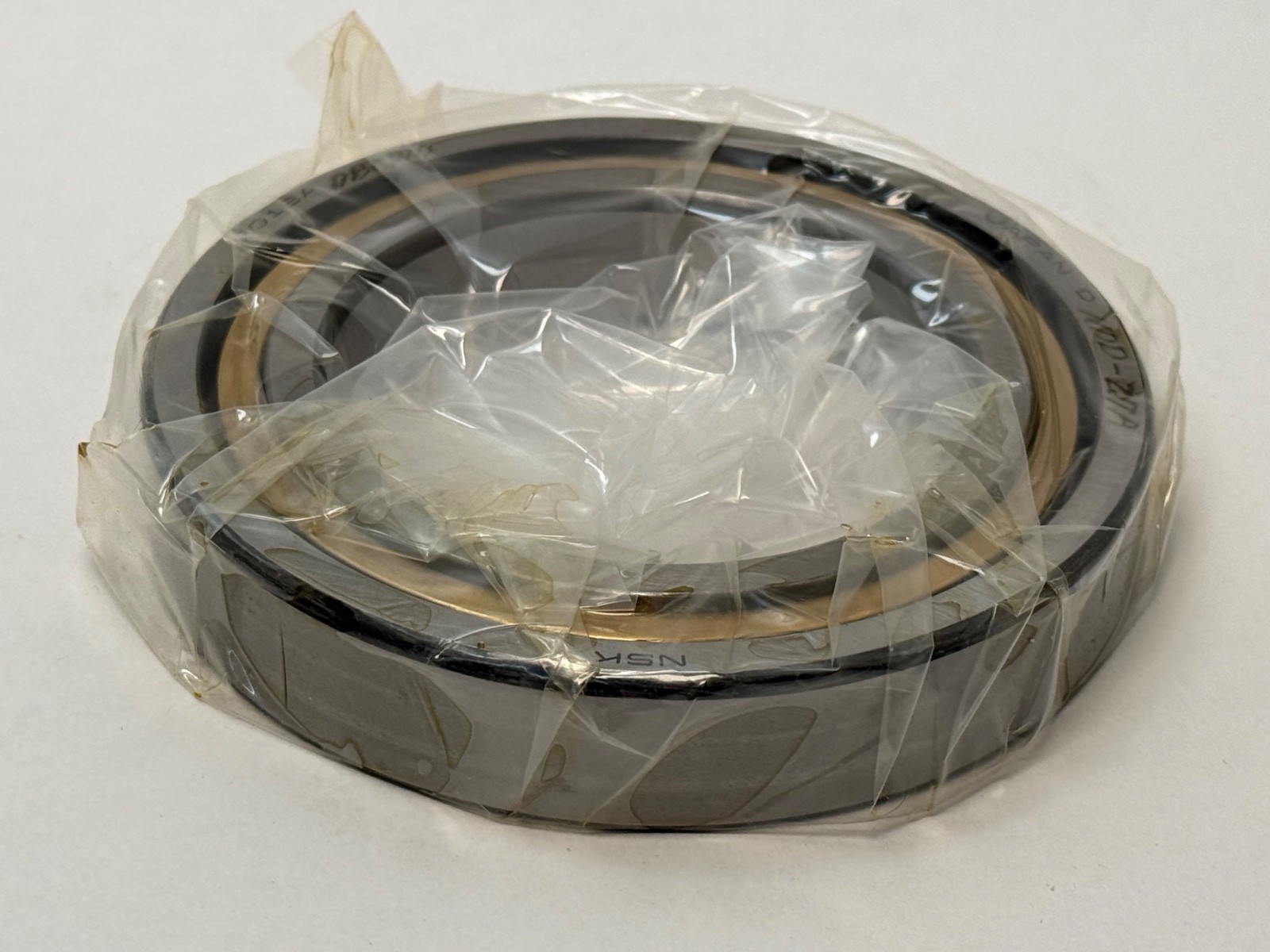

Single-Row Angular Contact Ball Bearing 80 x 125 x 22 mm, 30 Degree Contact Angle, Slim 70-Series Section, Open

What this part is:

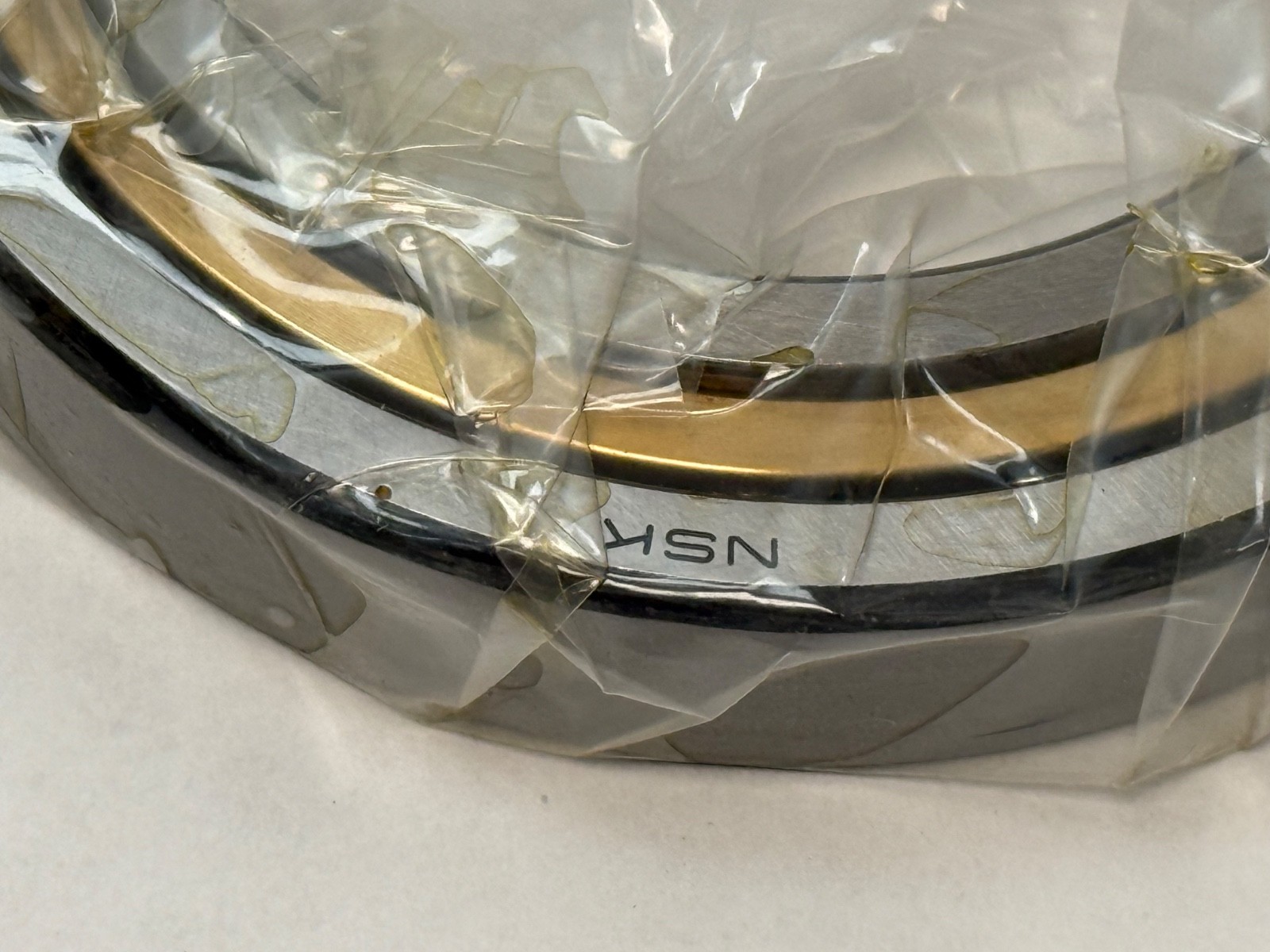

A single-row angular contact ball bearing in the 7000 (ISO dimension series 10) envelope: 80 mm bore, 125 mm outside diameter, 22 mm width. This is the slim, large-bore family — only 22.5 mm of radial wall for an 80 mm bore — chosen where the shaft has to be big for torsional stiffness but the housing bore is constrained.

Decoding the designation:

70 – single-row angular contact ball bearing, dimension series 10 (extra-light section).
16 – bore code; 16 x 5 = 80 mm bore.
A – 30° nominal contact angle in NSK’s scheme. The 15° version of this same envelope is 7016C; the heavier 40° sections are in the 72 series, not this one.

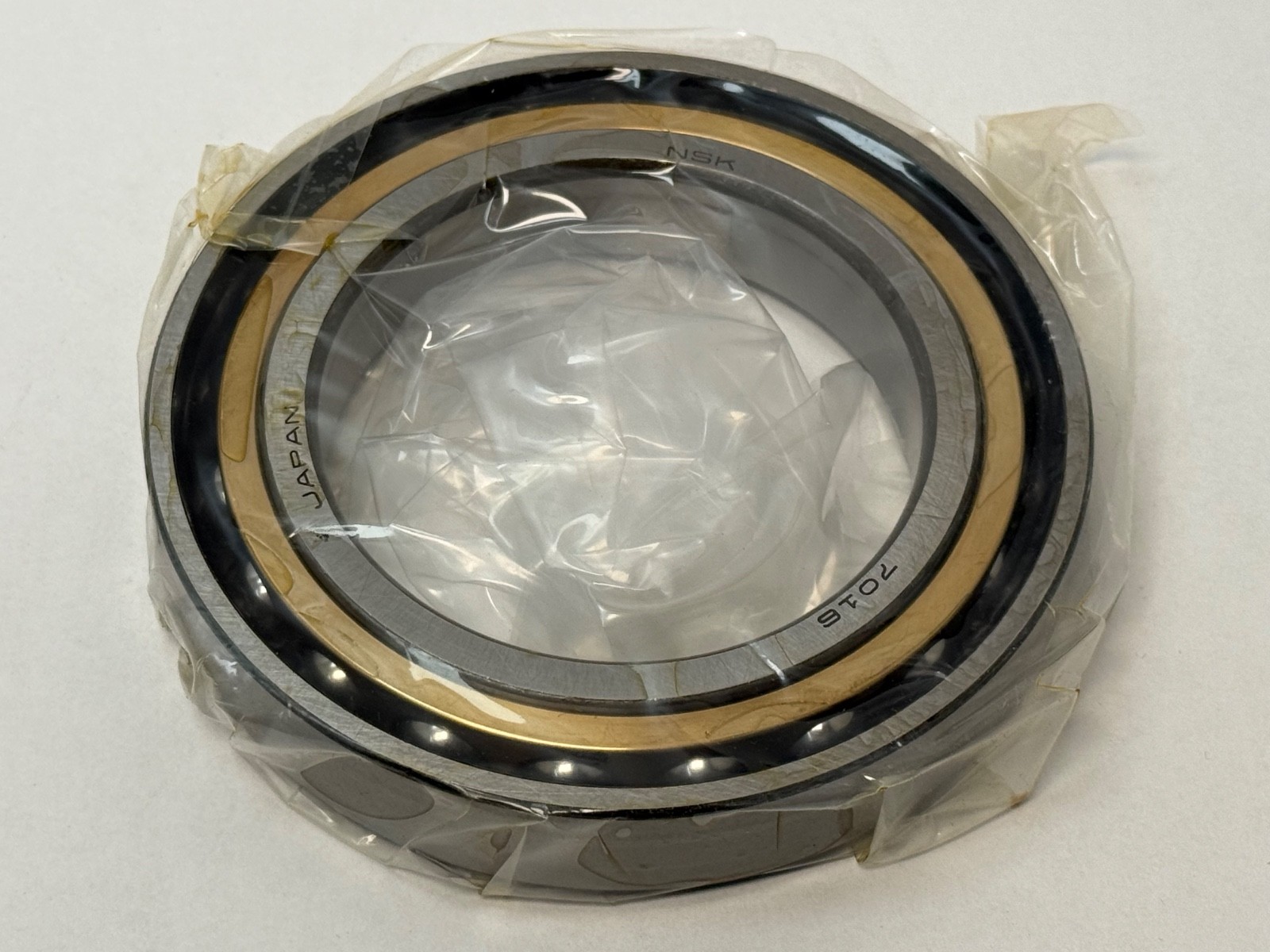

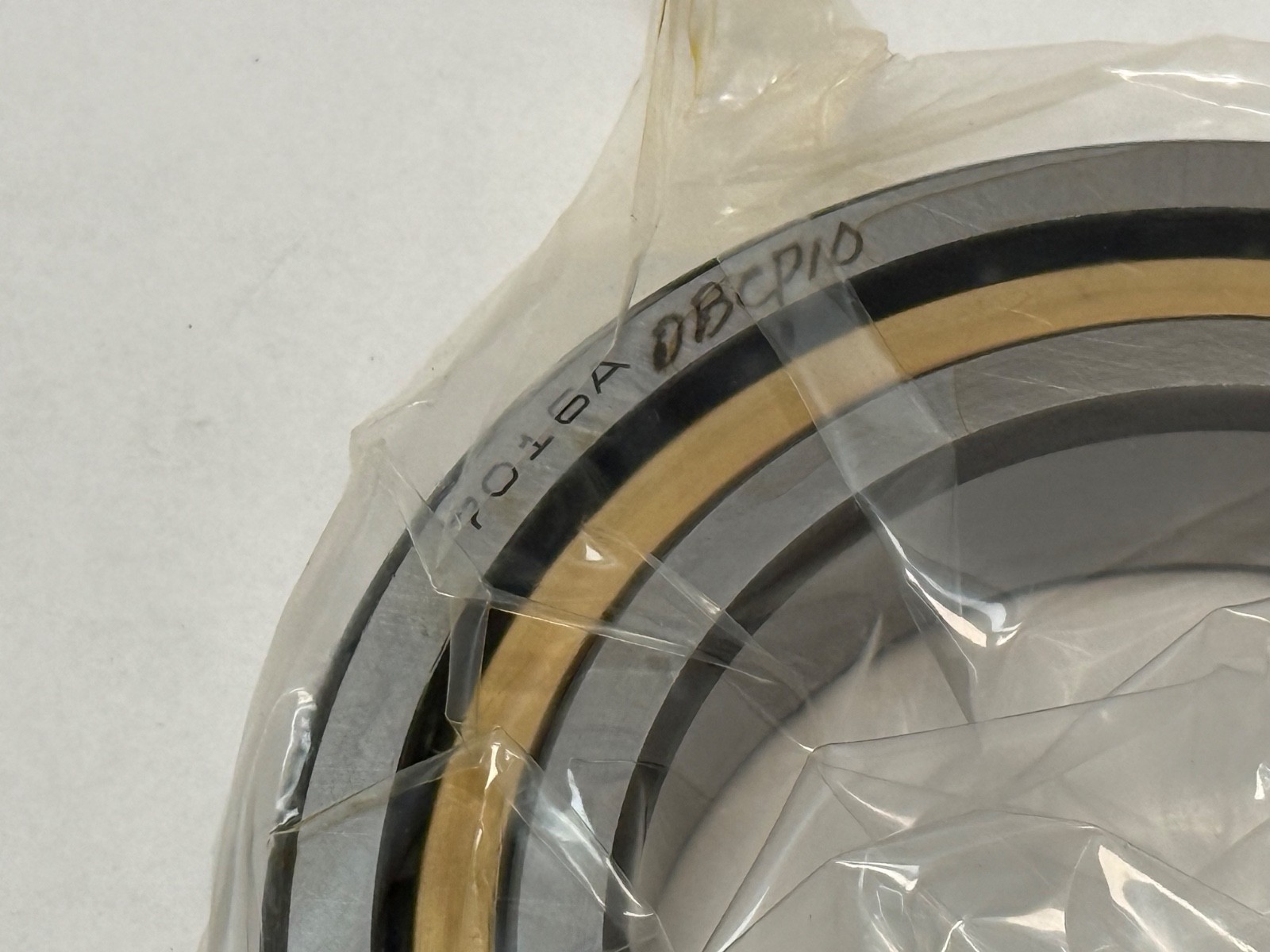

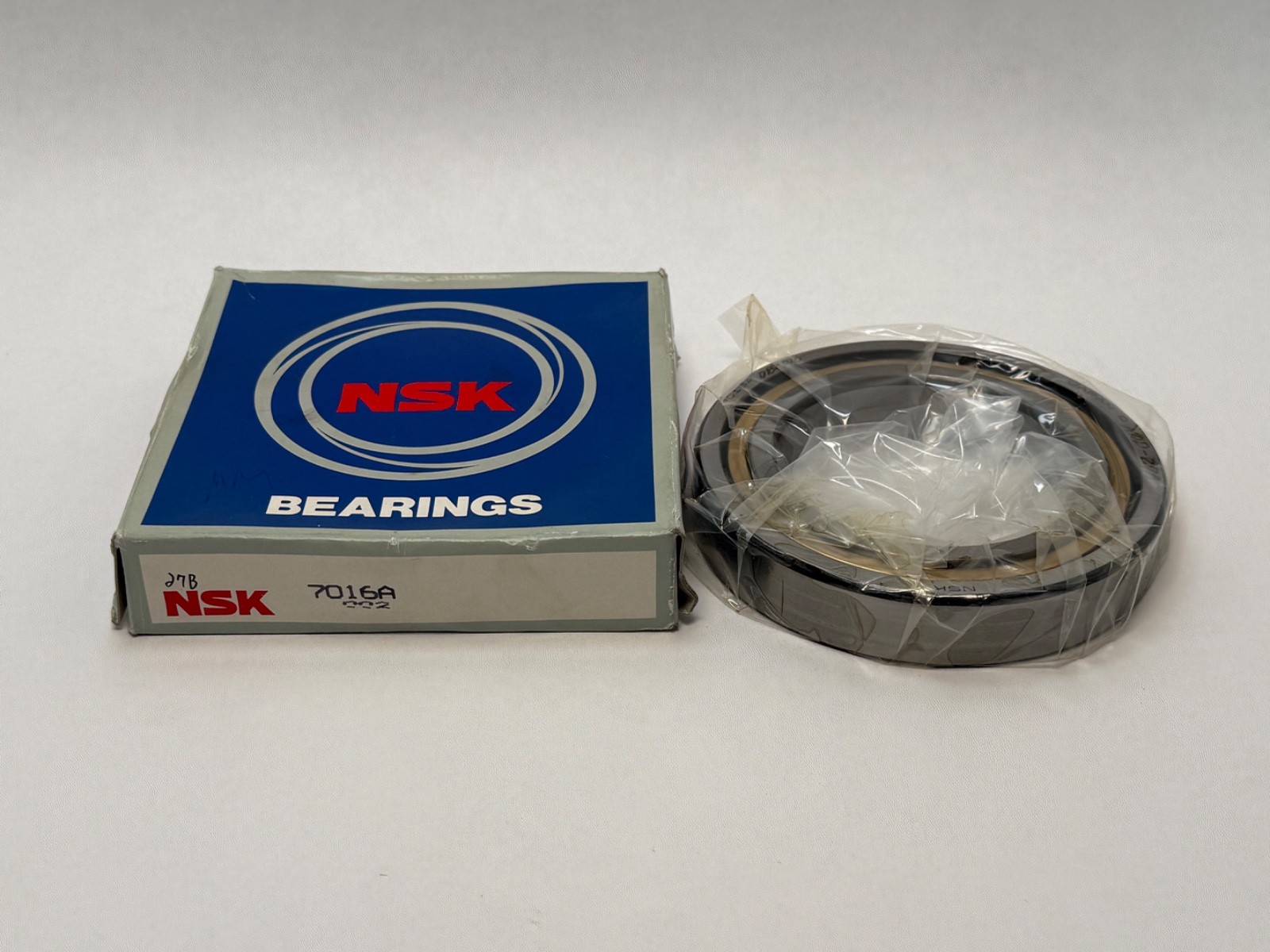

DB (from the carton designation 7016ADBCP10) – back-to-back duplex arrangement, the stiffest of the duplex options against overturning moment.

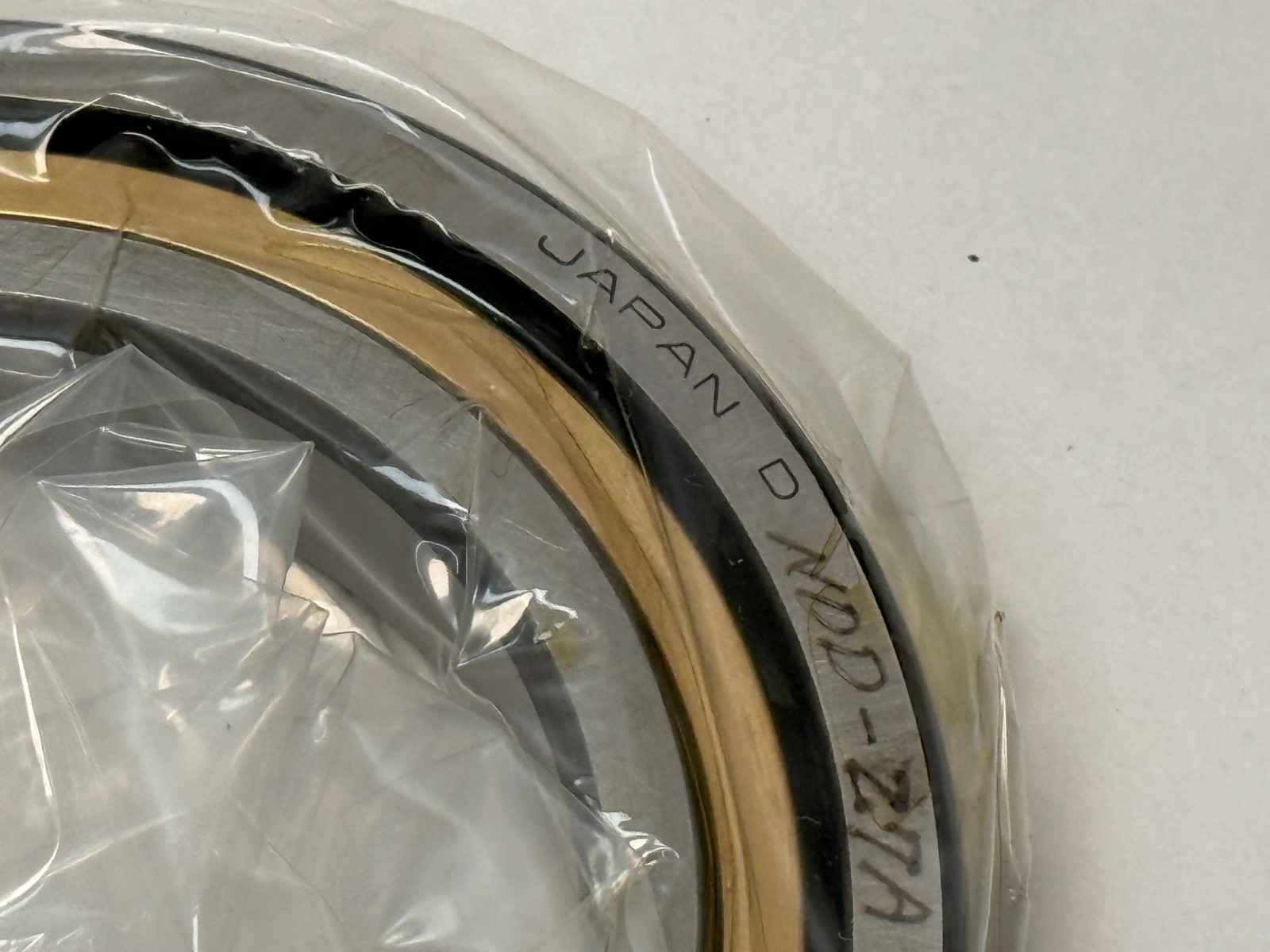

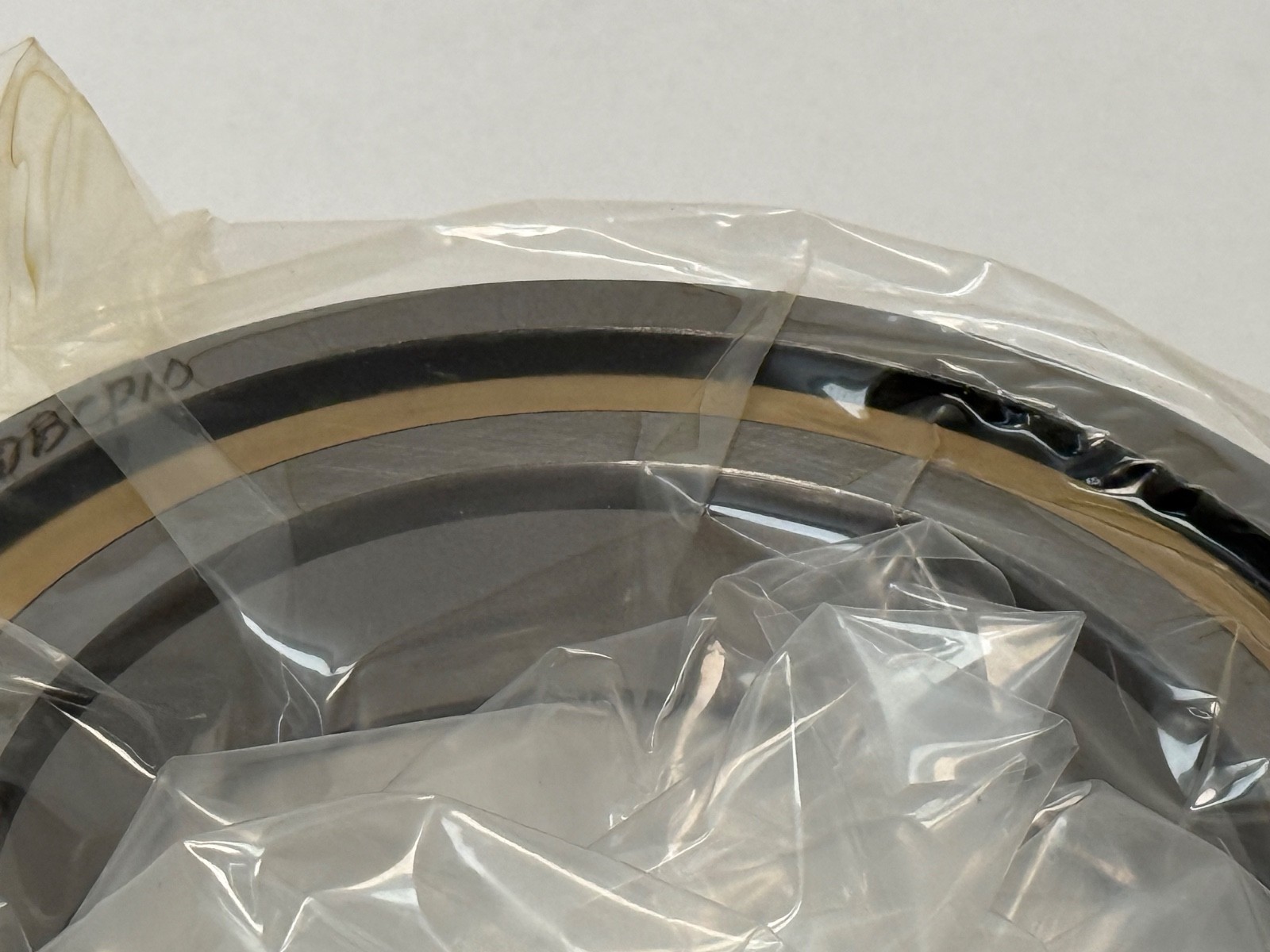

CP10 – an NSK supplementary code carried on the carton for this lot. It is retained as a searchable cross-reference only. We do not publish a preload or clearance value for it, because NSK’s own definition of this specific code is not available to us and inventing a preload figure on a preload-sensitive product would mislead a spindle rebuilder.

Correcting the source data:
Earlier copy for this item listed the width as 24 mm. The NSK 7016A is 22 mm wide. If you were sizing a spacer or a stack height off the old figure, use 22 mm.

What the 30 degree angle and the thin section mean in practice:
Two things are going on here. The 30° contact angle steepens the load line through the balls, so the bearing takes considerably more one-direction thrust and deflects less axially than a 15° equivalent — at the cost of top speed, because a steeper angle increases ball spin and cage load. Separately, the 70-series thin section means the raceways sit in relatively thin rings. That makes the bearing sensitive to housing and shaft geometry: an out-of-round housing bore or a heavy-handed interference fit will distort the raceway far more readily than it would on a chunky 72- or 73-series bearing. Bore and housing to the recommended tolerance, and check roundness.

Published ratings and mounting data:

Basic dynamic radial load rating Cr: 55,000 N (5,650 kgf), per ISO 281 at one million revolutions.
Basic static radial load rating C0r: 53,000 N (5,400 kgf).
Limiting speed: 5,600 rpm grease, 7,500 rpm oil — single bearing values, de-rate for preloaded and duplex mountings.
Effective load centre a: 40.6 mm from the ring face — use this, not the physical bearing spacing, when calculating the span between load lines.
Shaft abutment (backing shoulder) diameter da: 87.0 mm. Housing abutment diameter Da: 118.0 mm. Maximum shaft/housing fillet radius ra: 1.0 mm.
Ring chamfers: r min 1.1 mm (inner), r1 min 0.60 mm (outer).
Mass: approximately 0.880 kg (1.94 lb) per bearing.

Quantity and configuration:

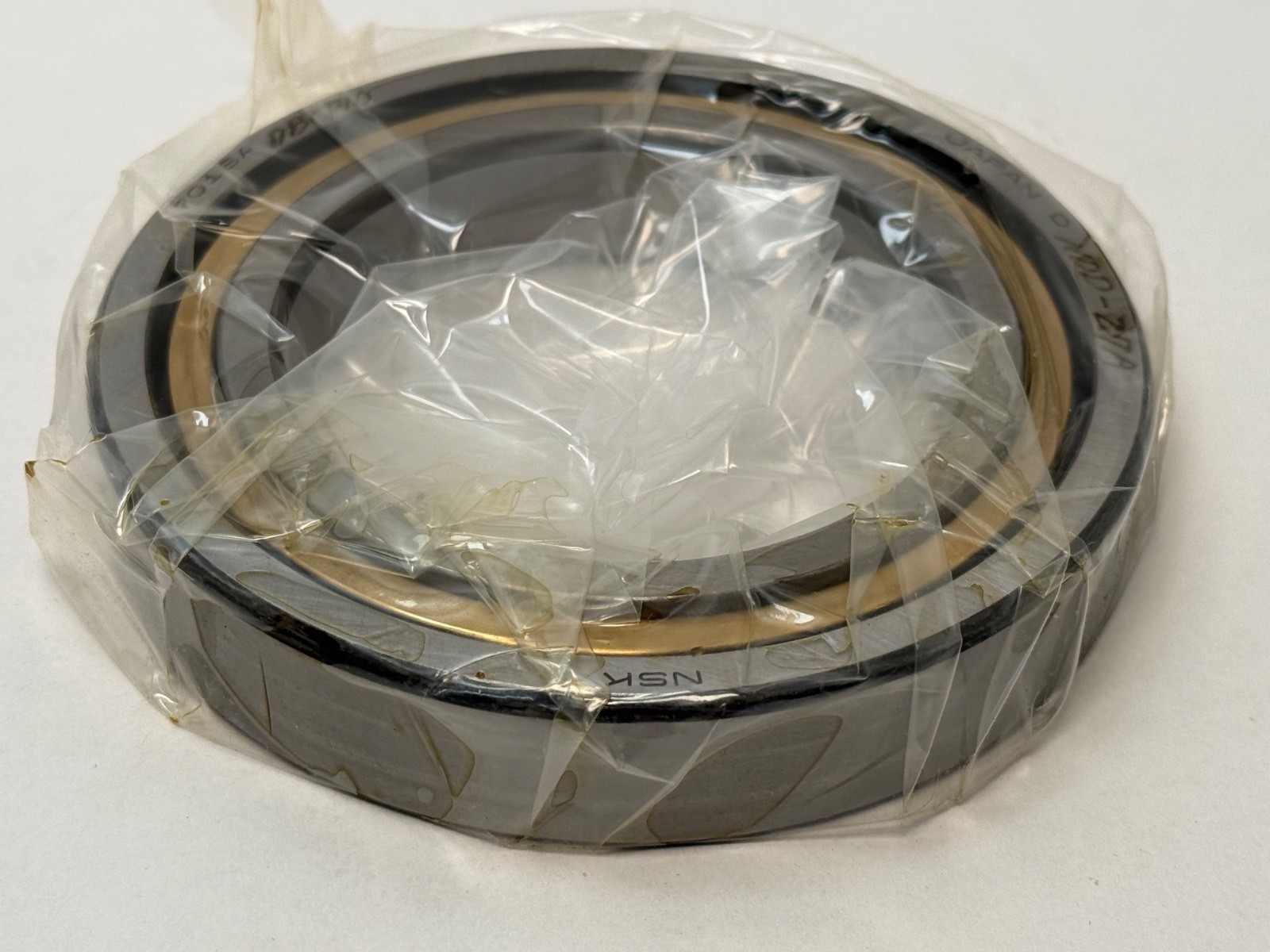

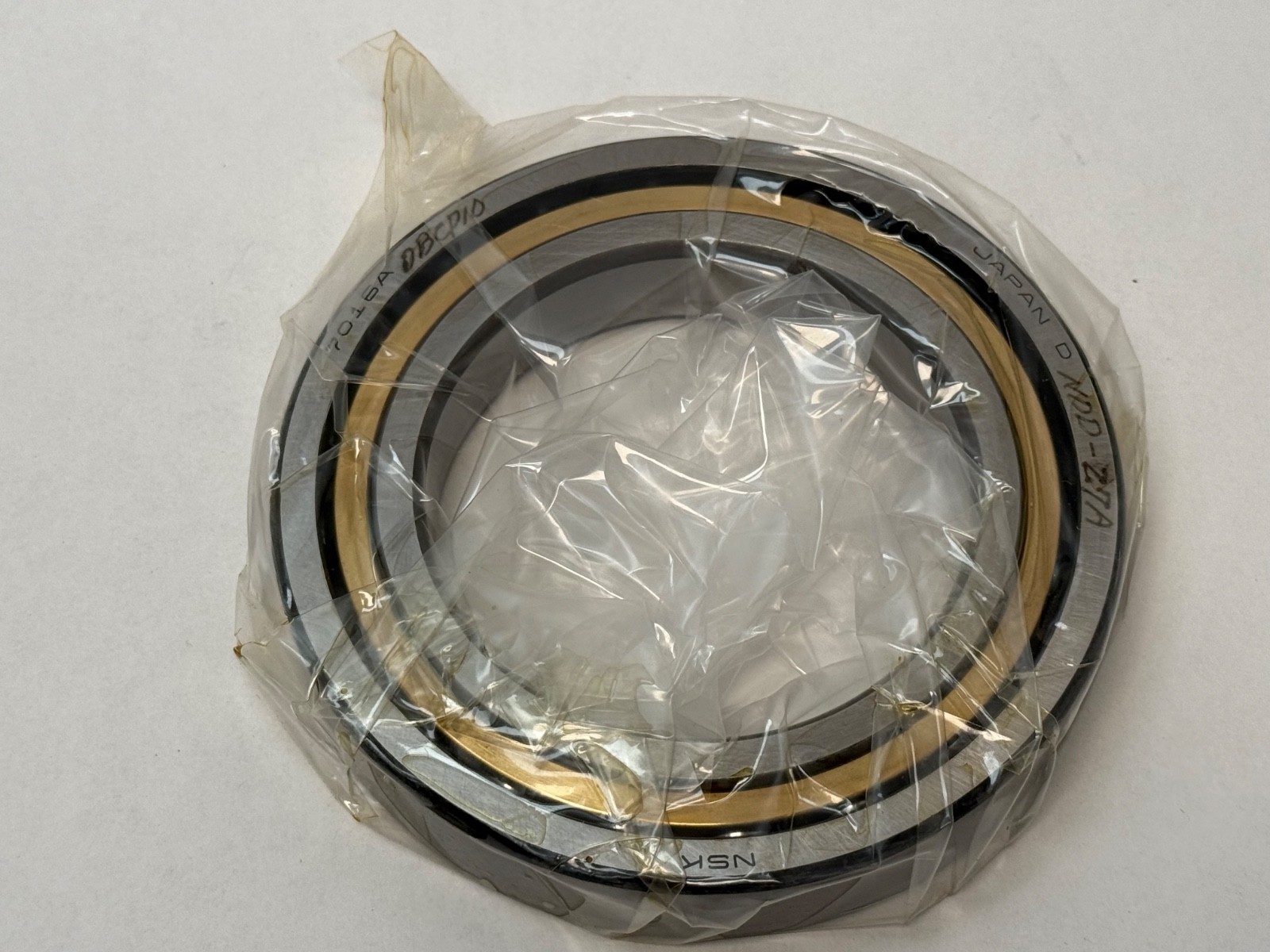

Each unit is one single bearing. The carton designation for this lot carries a DB duplex reference because the original packaging described a back-to-back pair, but these are held and sold as loose singles from a larger quantity. Treat them as singles: they are not a factory-matched, ground-to-preload set unless we confirm the markings on your specific pieces. Two unmatched singles clamped back-to-back will not deliver a predictable preload, which on a precision spindle is the difference between a rebuild that works and one that runs hot.

Fitting notes:
A single angular contact bearing takes thrust in one direction only and must be axially opposed — by a second angular contact bearing, a deep groove bearing, or a shoulder and locknut. Respect the abutment diameters above; clamping past them onto the raceway shoulder will pinch the rings. Rings and balls are matched at assembly, so do not swap inner and outer rings between bearings.

Interchange guidance:
The 80x125x22 mm angular contact envelope is common, but the contact angle is where substitutions go wrong. Same boundary dimensions: NSK 7016A (30°), NSK 7016C (15°), SKF 7016 ACD/P4A and 7016 ACDGA (25°), SKF 7016 CD (15°), FAG/Schaeffler B7016-E-T-P4S and 7016-B, NTN 7016, Koyo 7016, NACHI 7016. The 7016ACD designation that also appears on this listing is SKF nomenclature, where AC denotes 25°, not 30° — it is carried here as a dimensional cross-reference because buyers search it, but confirm the angle before you substitute in either direction. Some suppliers list this size as 7016E; that too is a dimensional reference only.
