Availability:
3 in stock
Angular contact ball bearing with a 29° contact angle, 50 mm bore x 110 mm OD x 27 mm wide, universally ground for duplex mounting. Sold as 1 Pc.
List Price
$151.75
3 in stock
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | MRC |
|---|---|
| Model | 7310-DU 7310E 7310A |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 50 mm |
| OD | 110 mm |
| Width | 27 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7300-D |
| Condition | New |
| Lubricant | Oil |
| Preload | Light Preload |
| Base Number | 7310 |
| Industry Terms | angular contact ball bearing, 29 degree contact angle, universally ground bearing, duplexable bearing, thrust ball bearing |
| Common Misspellings | MRC 7310-DU, MCR 7310DU, MRC 731ODU, MRC 7310 D U, 7310DUU |
| Application Types | Pump and compressor shafts, gearboxes, machine tool feed screws, vertical shaft drives |
| Bore Shaft Size | 50 mm (1.9685 in) |
| Mpn Variants | 7310DU, 7310-DU, 7310 DU, 7310, 7310A |
| Manufacturer Status | MRC brand absorbed by SKF; series discontinued |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Part Number | 7310DU |

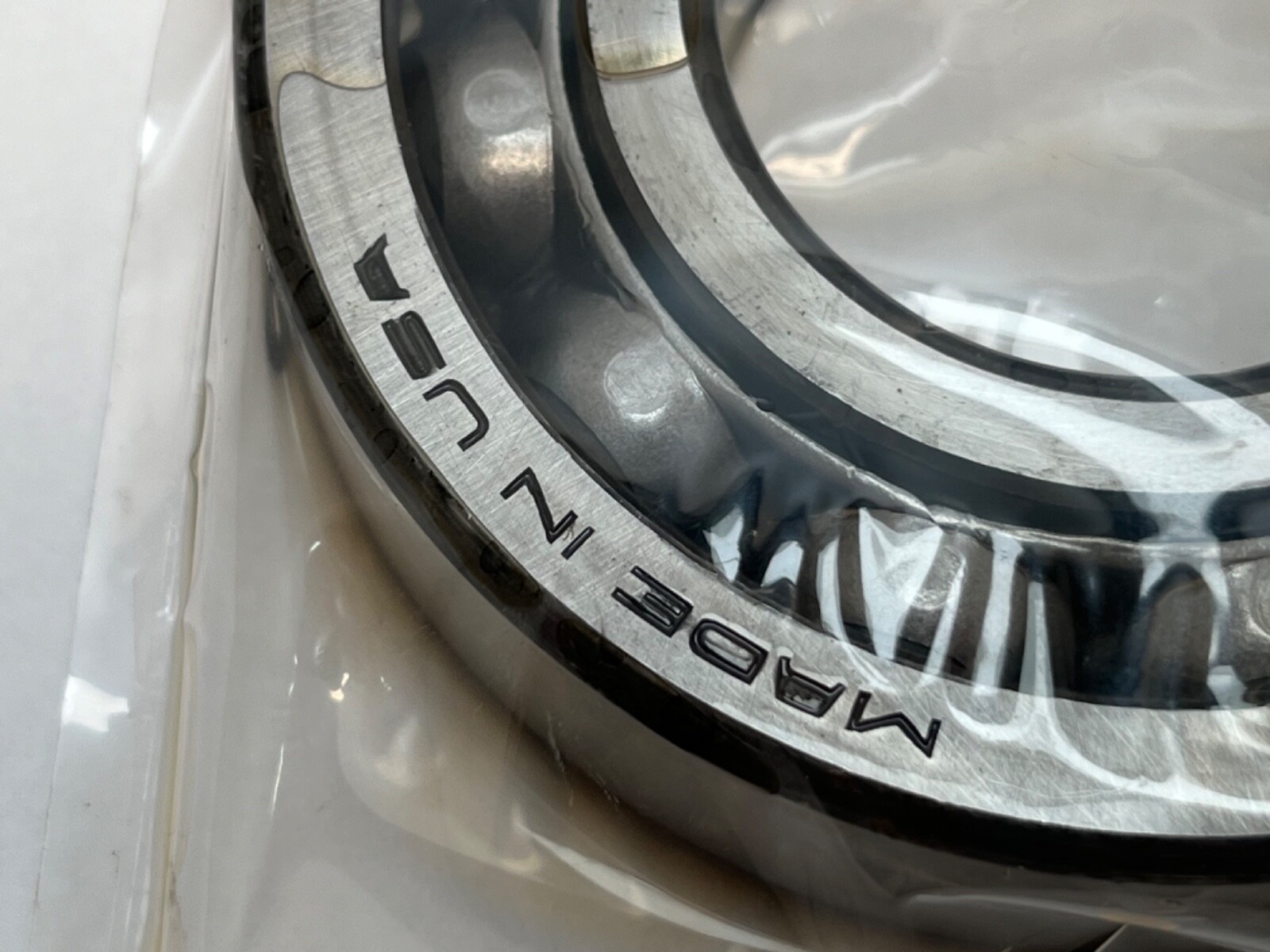

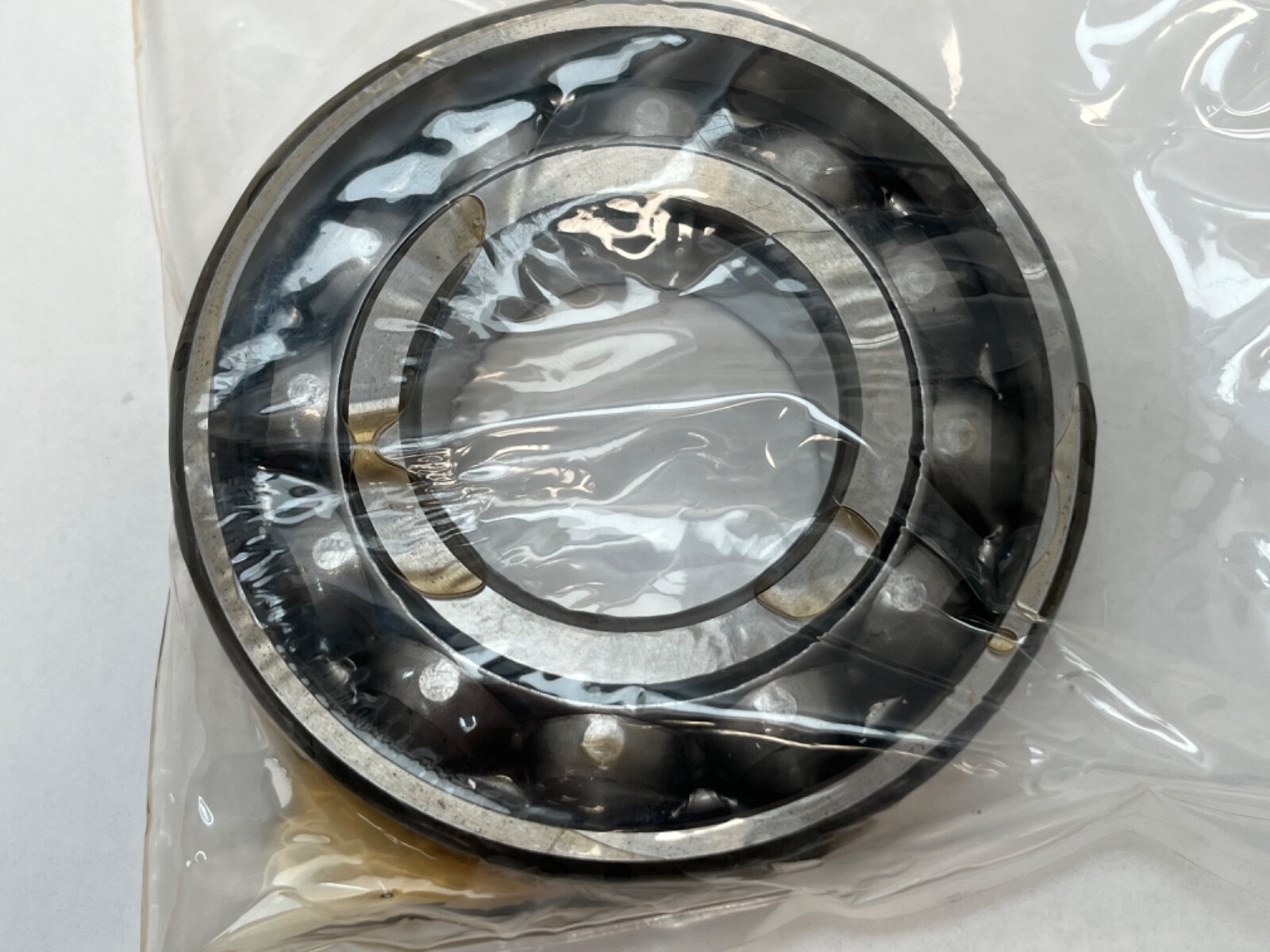

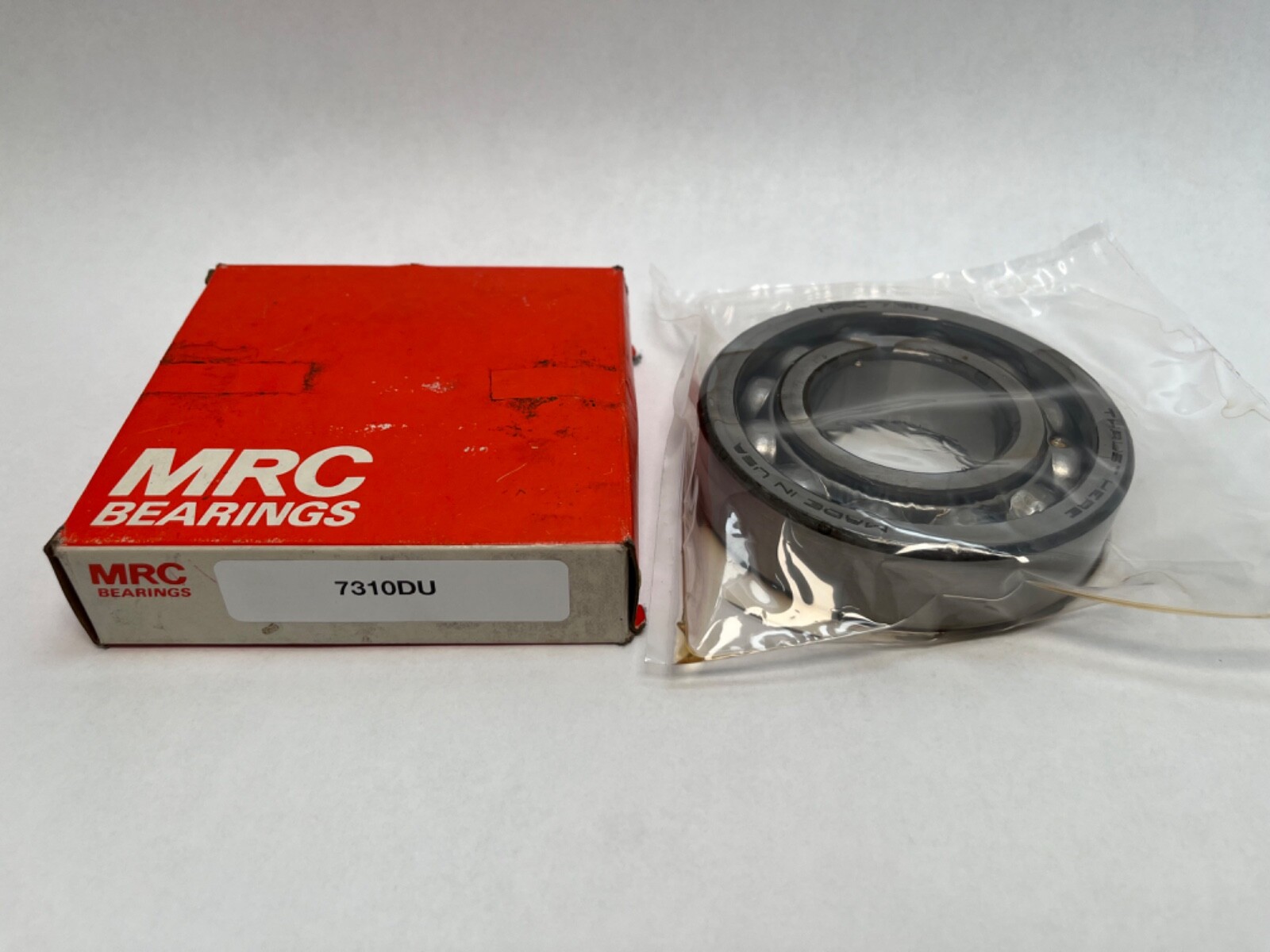

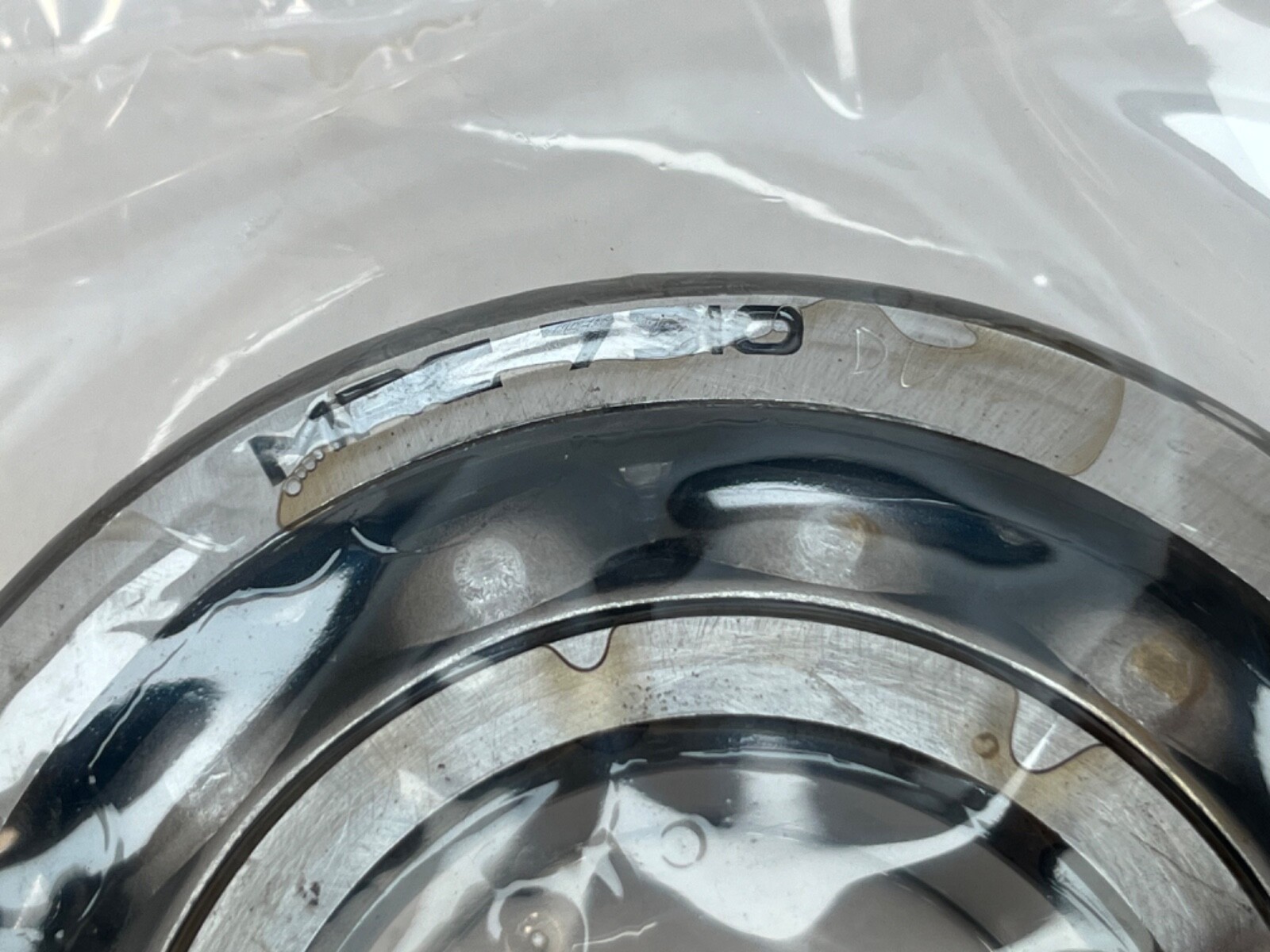

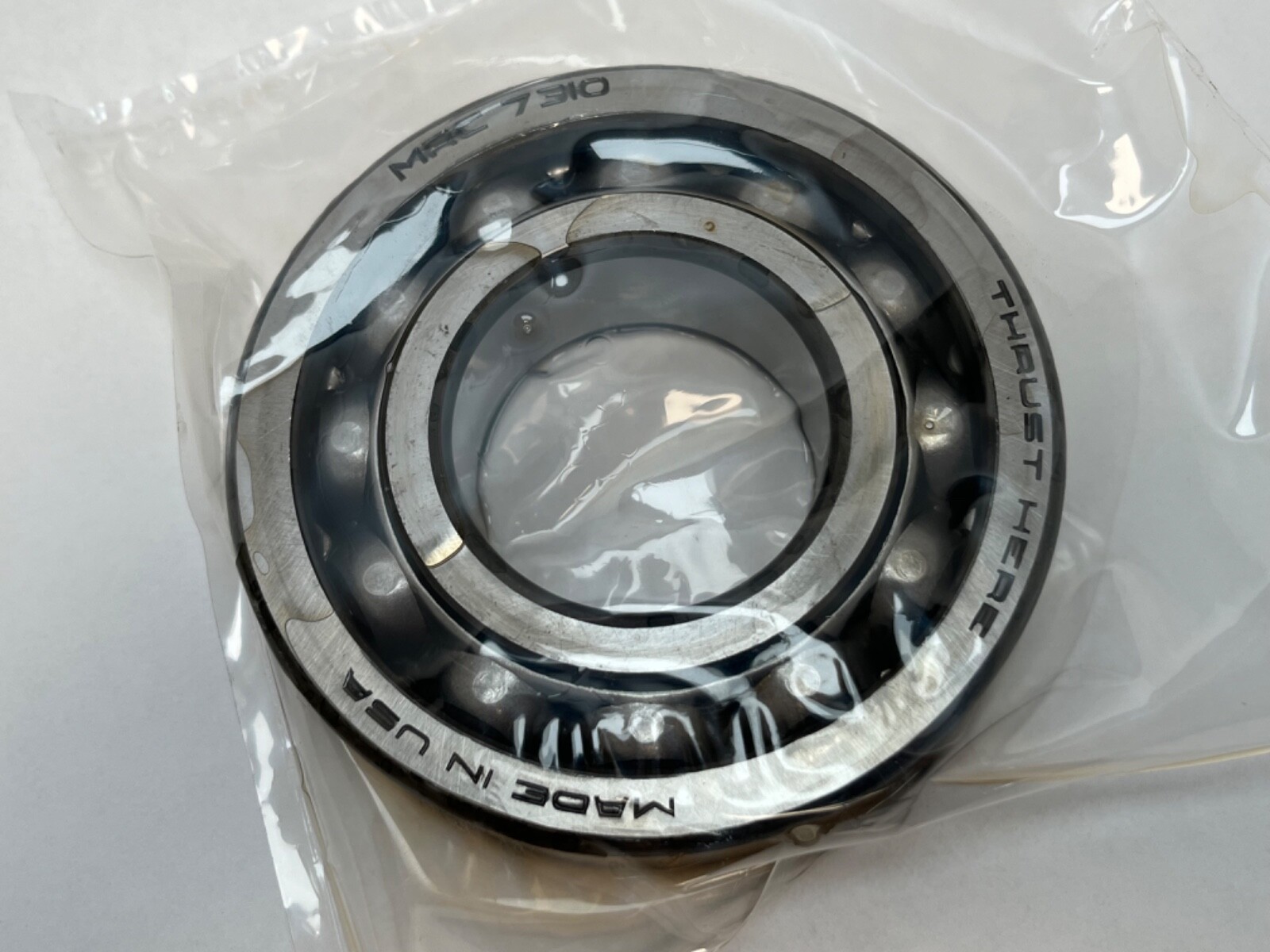

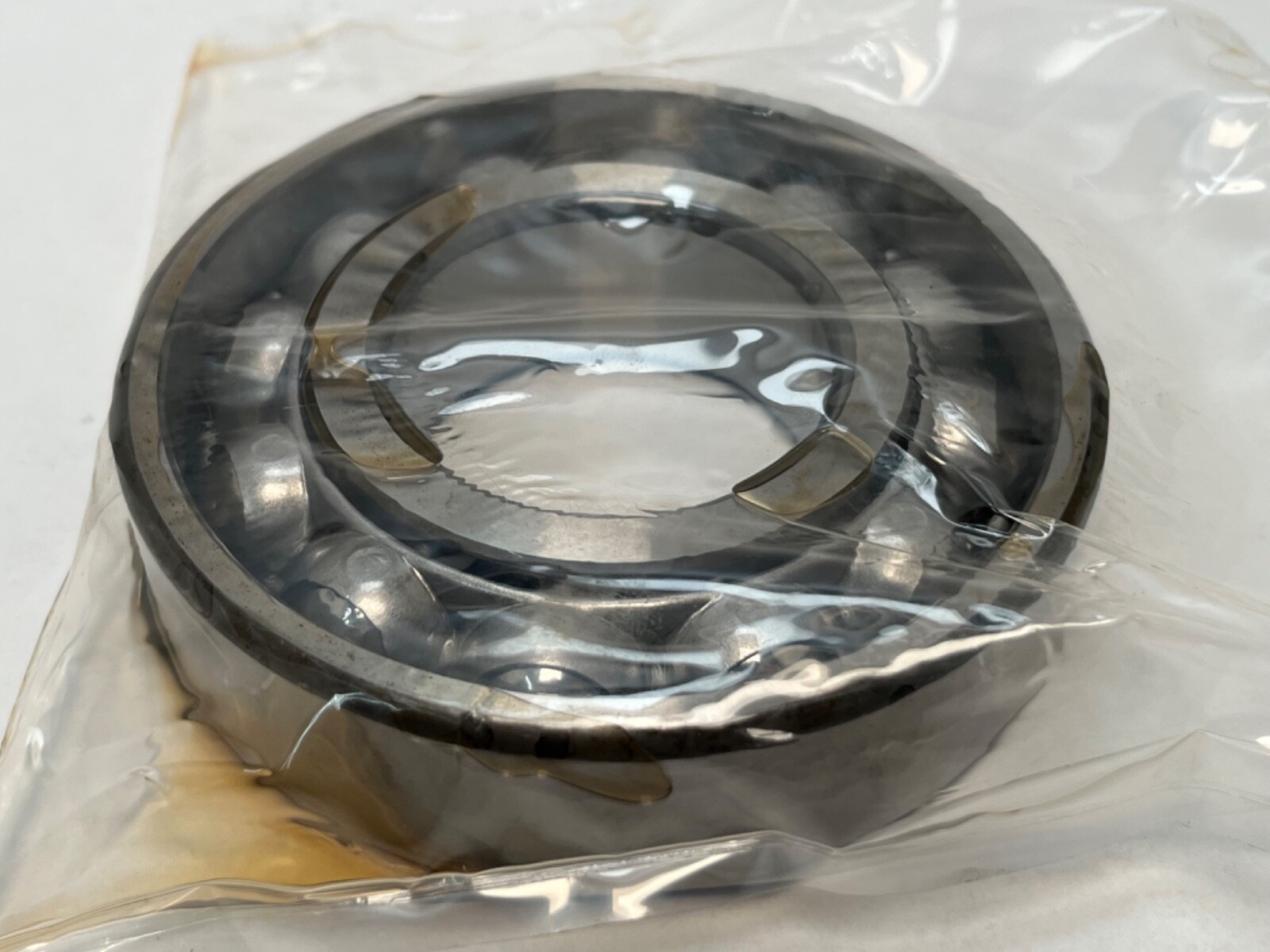

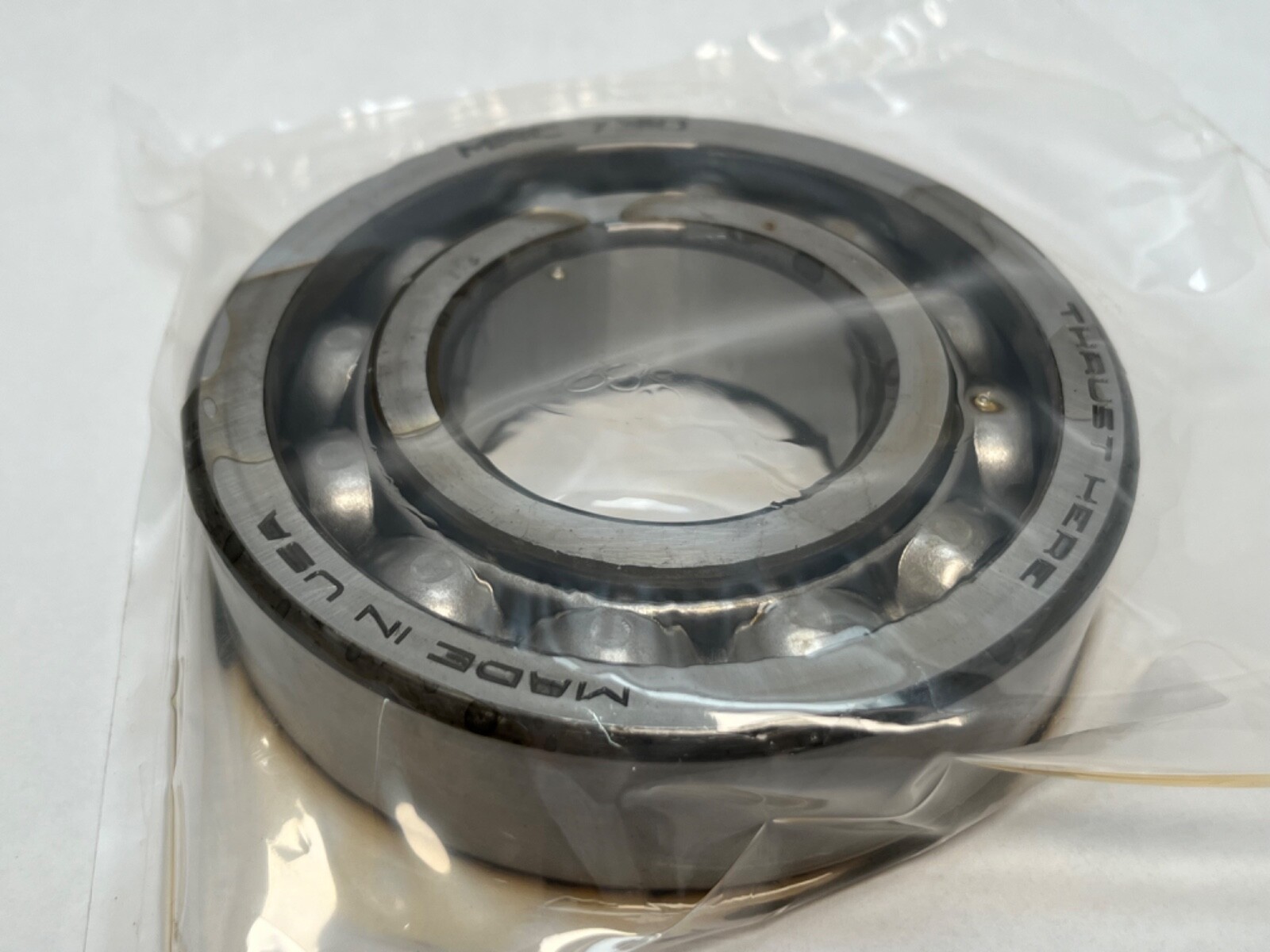

An MRC 7310DU angular contact ball bearing with a 50 mm bore, a 110 mm outside diameter and a 27 mm width. It is universally ground, so it can be mounted as a single bearing or paired into a duplex set.
7310: 73 angular contact series, 50 mm bore, 110 mm OD, 27 mm width. MRC 7000-series contact angle: 29°. DU: duplex universally ground faces.
The MRC 7000 series is ground to a 29° contact angle. That figure sits between the common 25° and 30° values other manufacturers use, so a bearing chosen on envelope alone will not reproduce the same axial stiffness or thrust distribution. A 29° angle carries substantial thrust alongside its radial load and gives high axial rigidity, at a lower speed ceiling than a 15° bearing of the same size.
Universal grinding means the ring faces are finished so any two bearings of this designation clamp together into a duplex set with the designed preload, in back-to-back, face-to-face or tandem orientation, without shims. Mounted singly, the bearing takes thrust in one direction only and needs an opposing bearing to locate the shaft both ways.
Bore: 50 mm (1.9685 in). Outside diameter: 110 mm (4.3307 in). Width: 27 mm (1.0630 in). Contact angle: 29°. Number of rows: 1. Rolling elements: steel balls. Closure: open. Grinding: universal, suitable for duplex mounting.
Supplied as 1 Pc, a single bearing.
Interchange requires the same 29° contact angle in the same 50x110x27 mm envelope, which in practice means another MRC 7310. Same-size bearings from other schemes carry different angles: a 7310B is 40°, a 7310AC is 25° and a 7310C is 15°. Those are related sizes and each changes axial rigidity and load sharing, so they are listed here as alternatives to specify deliberately rather than as drop-in equivalents.
$53.53
48 in stock
