1 in stock

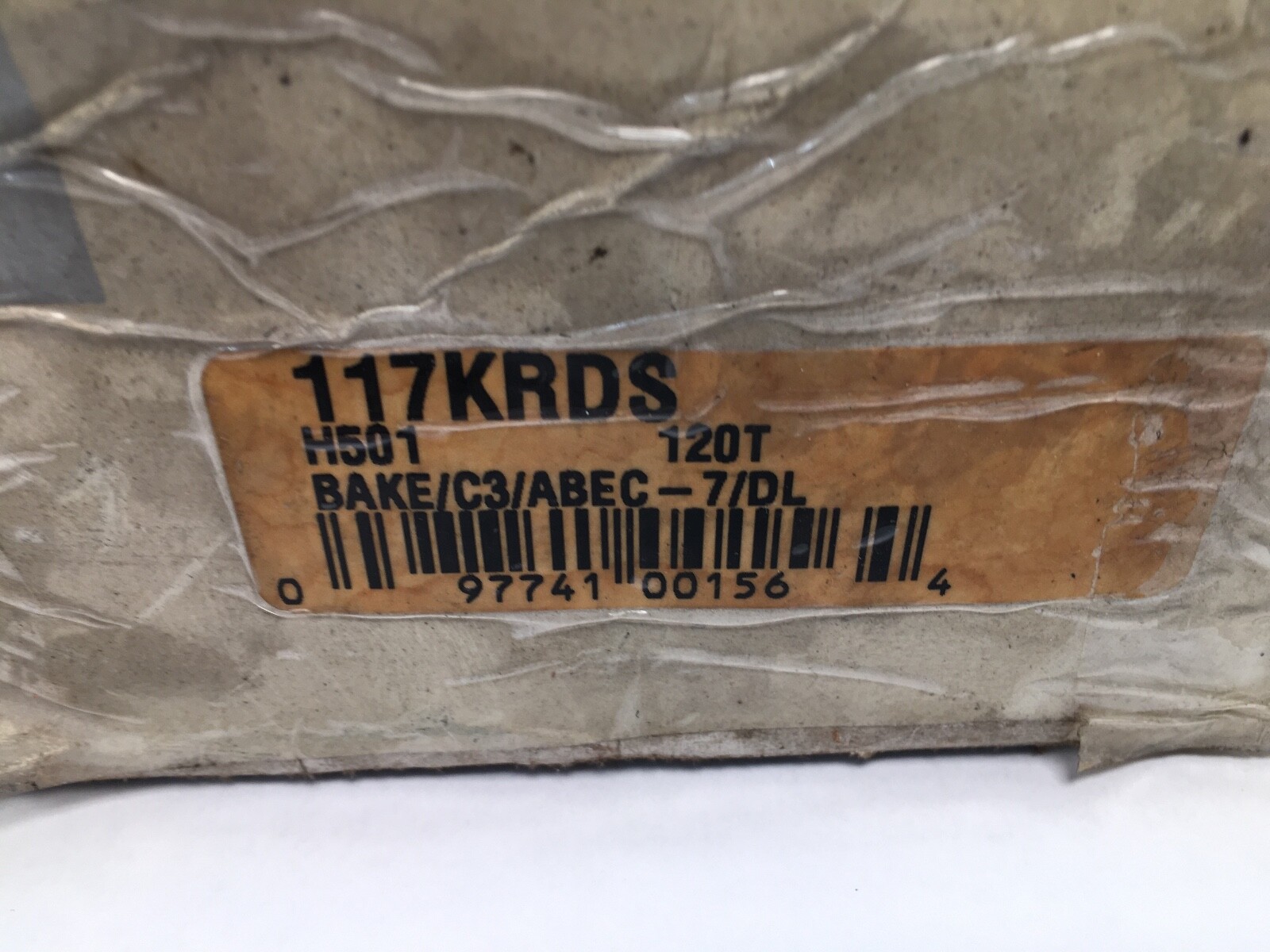

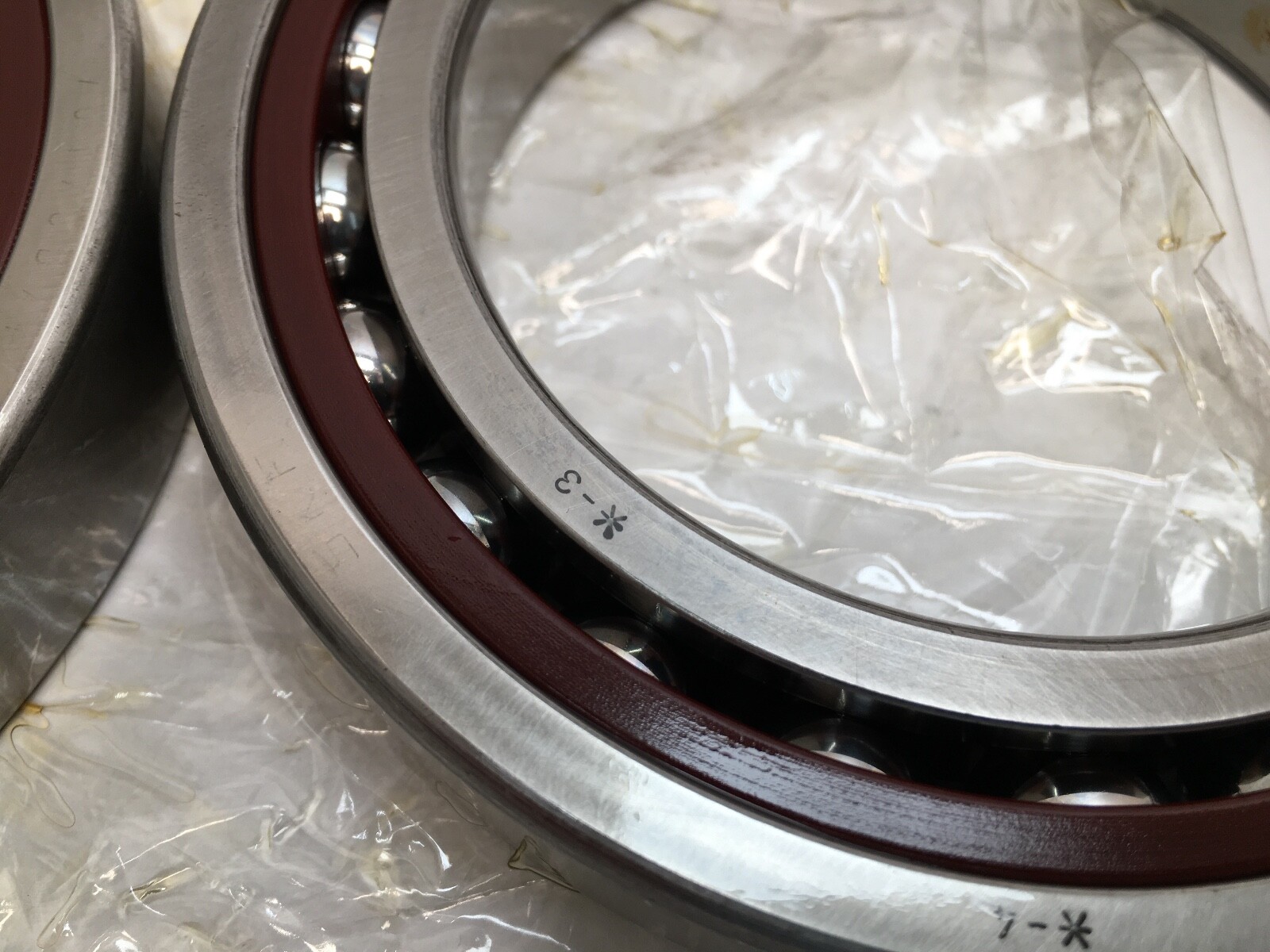

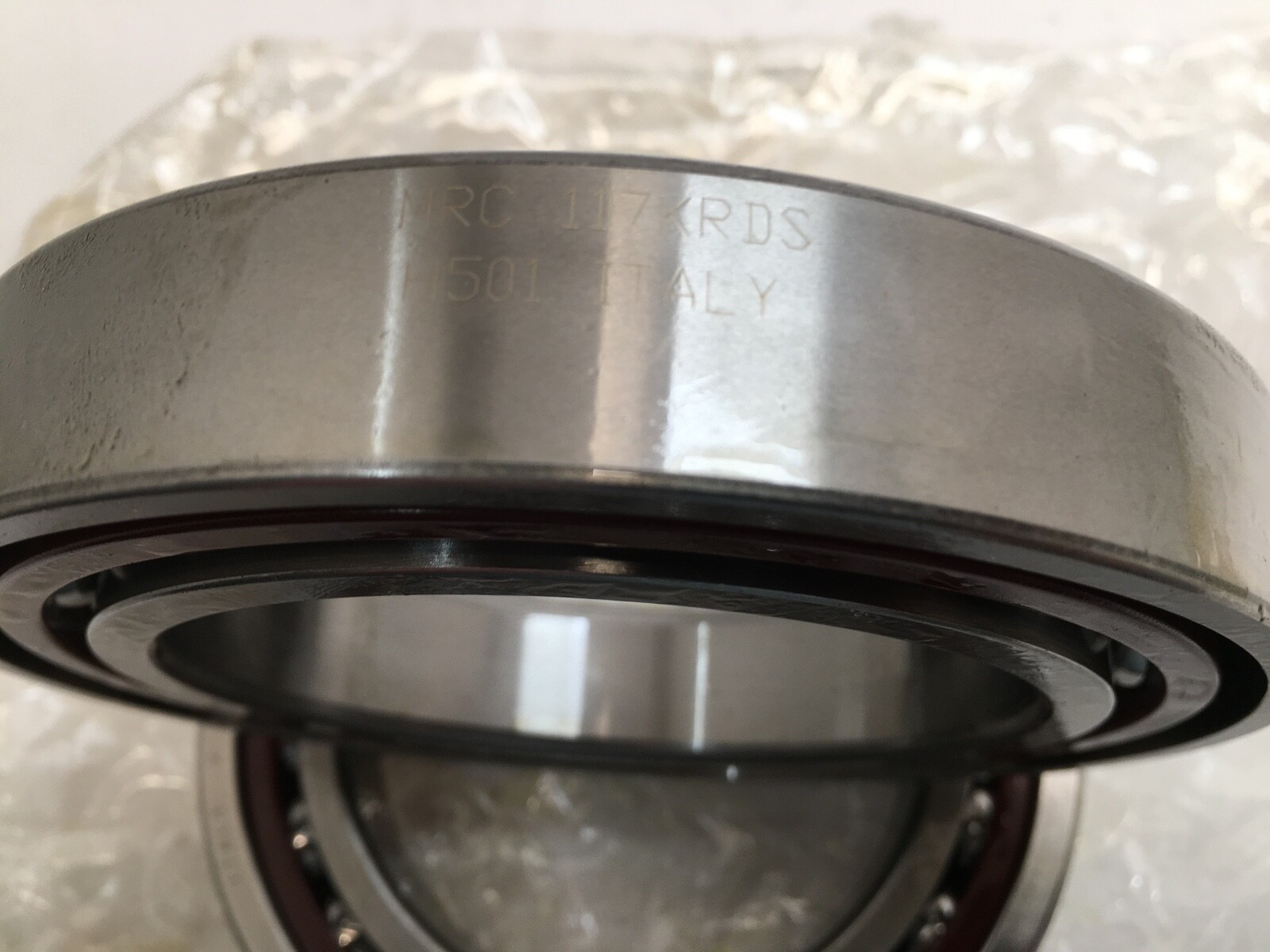

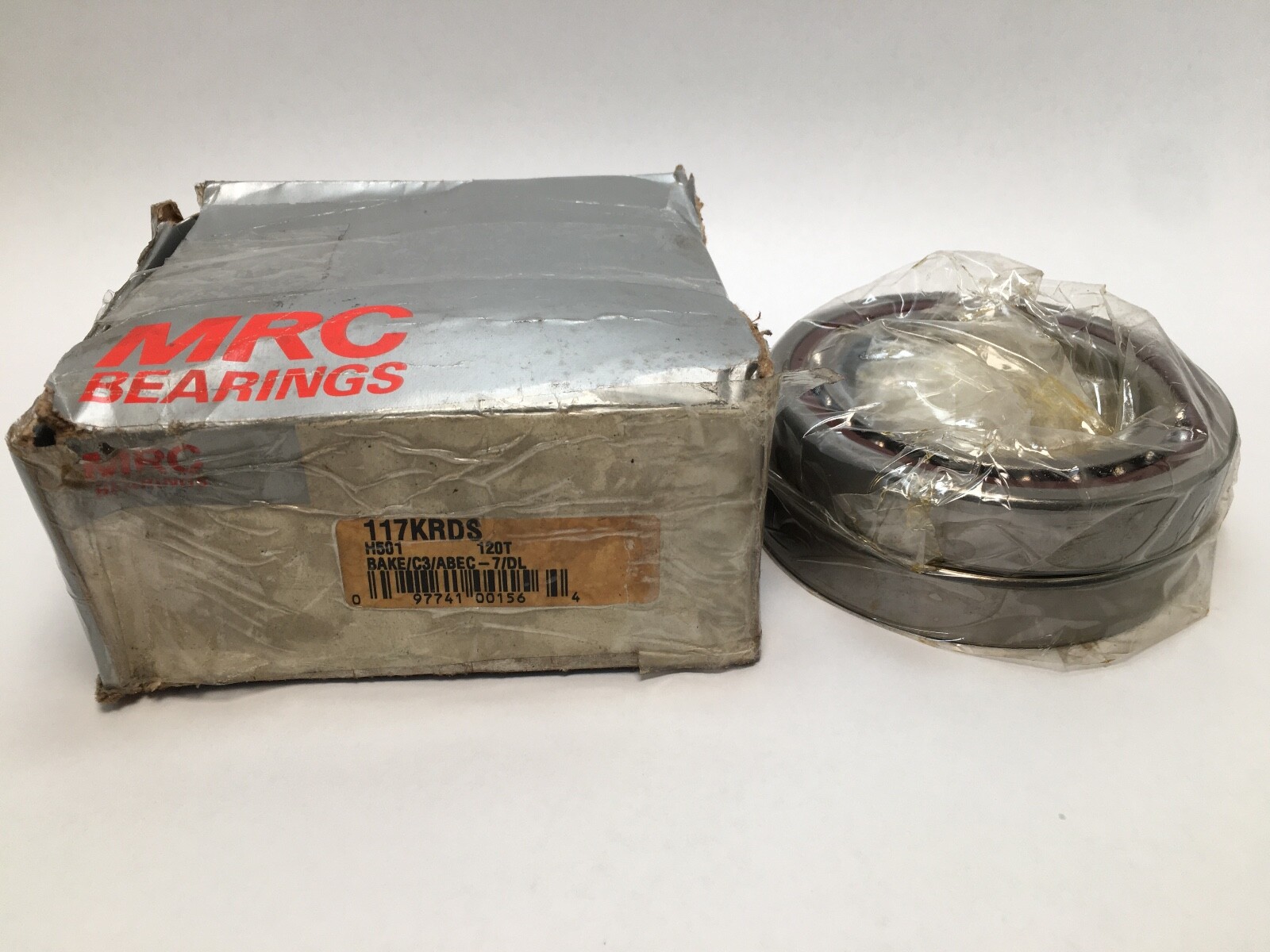

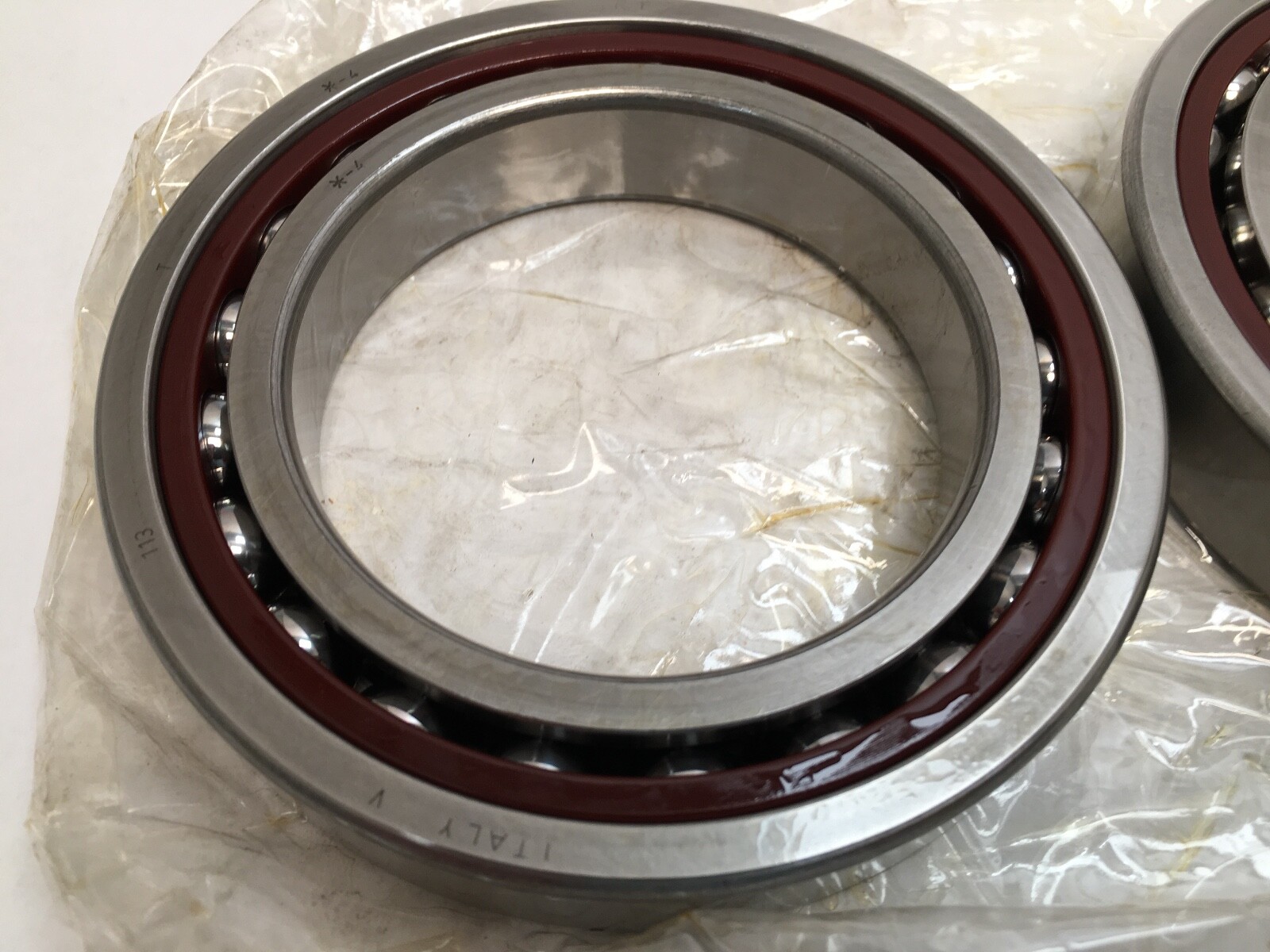

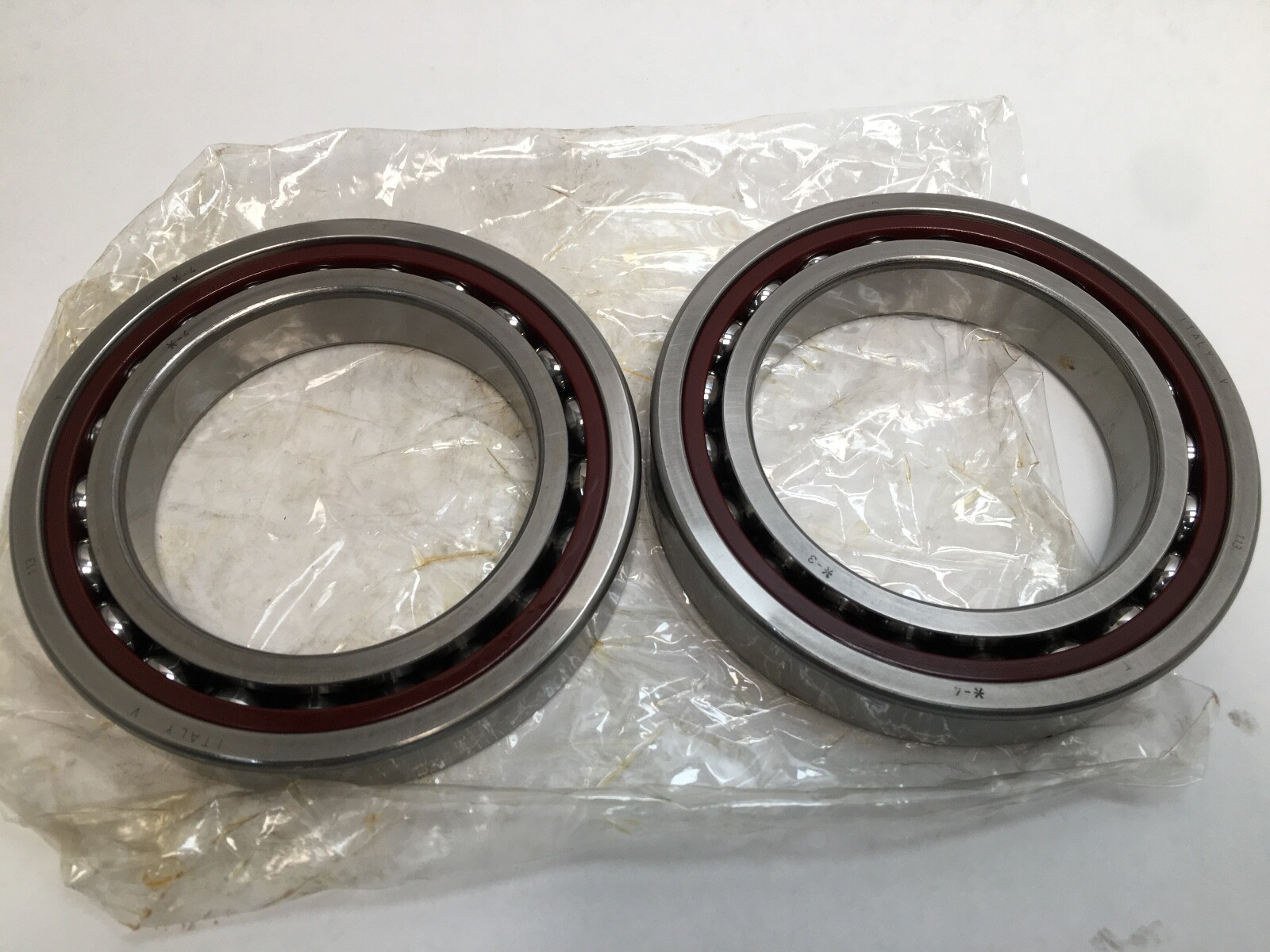

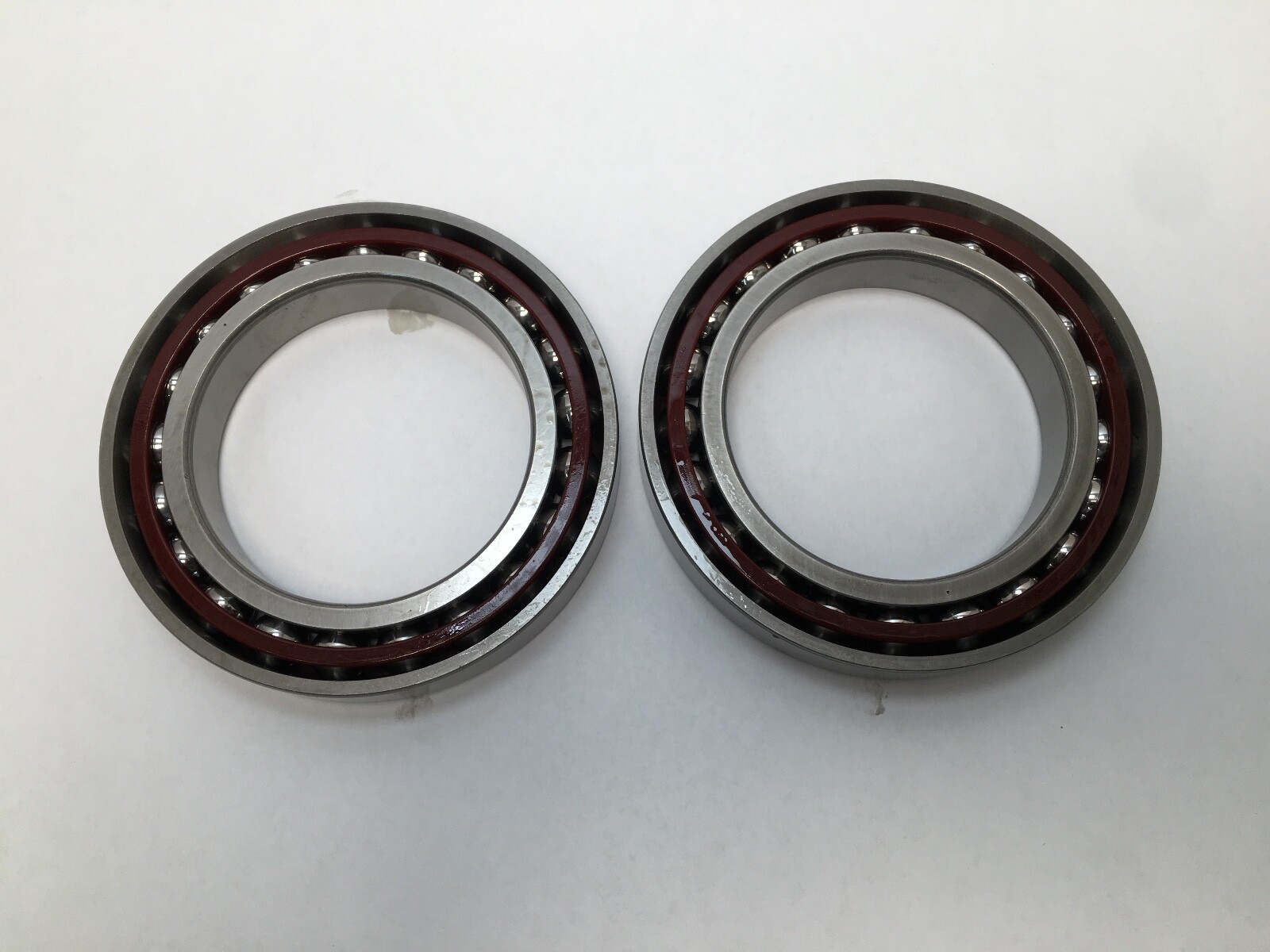

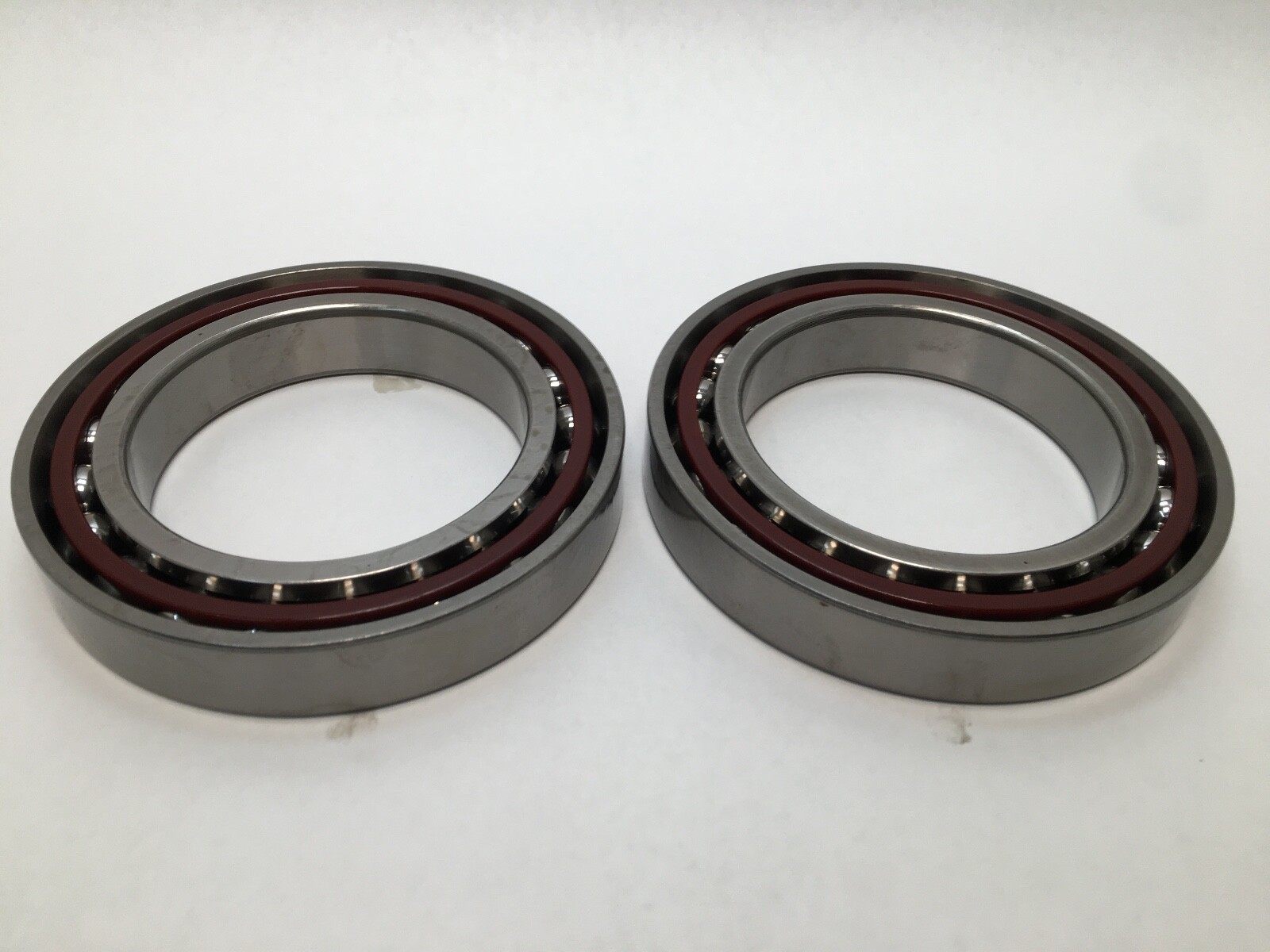

MRC 117KRDS angular contact ball bearing, 85 mm bore, 130 mm OD, 22 mm width, 15° contact angle, ABEC 7, open. One half of a preloaded matched pair.
List Price
$420.73
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | MRC |
|---|---|
| MPN | 117KRDS |
| GTIN | 097741001564 |
| Model | 117KR DS |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 85 mm |
| OD | 130 mm |
| Width | 22 mm |
| Series | 100K (MRC extra-light section) |
|---|---|
| Base Number | 117KR |
| Bore Shaft Size | 85 mm |
| Mpn Variants | 117KRDS, 117 KR DS, 117-KR-DS, 117KR |
| Compatible With Replaces | ISO 7017 envelope, 85 x 130 x 22 mm |
| Precision Rating | ABEC 7 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Part Number | 117KRDS |
| Precision Class | ABEC 7 |
| Industry Terms | angular contact ball bearing; precision spindle bearing; matched duplex bearing half pair; 7017 size angular contact; 85 mm bore angular contact |
| Common Misspellings | MRC 117 KRDS; MRC 117KDRS; MRC 117KR-DS; MCR 117KRDS; M R C 117KRDS |
| Application Types | Machine tool spindles; precision screw drives; high-speed rotating equipment |
| Cross Reference 1 | FAG B7017-C-T-P4S |
|---|---|
| Cross Reference 2 | NSK 7017CTR |
| Cross Reference 3 | SKF 7017 CD/P4A |
| Cross Reference 4 | Fafnir 2MM9117WI |
| Cross Reference 5 | RHP 7017CT |
| Cross Reference 6 | MRC 7117KR – 7100K section |

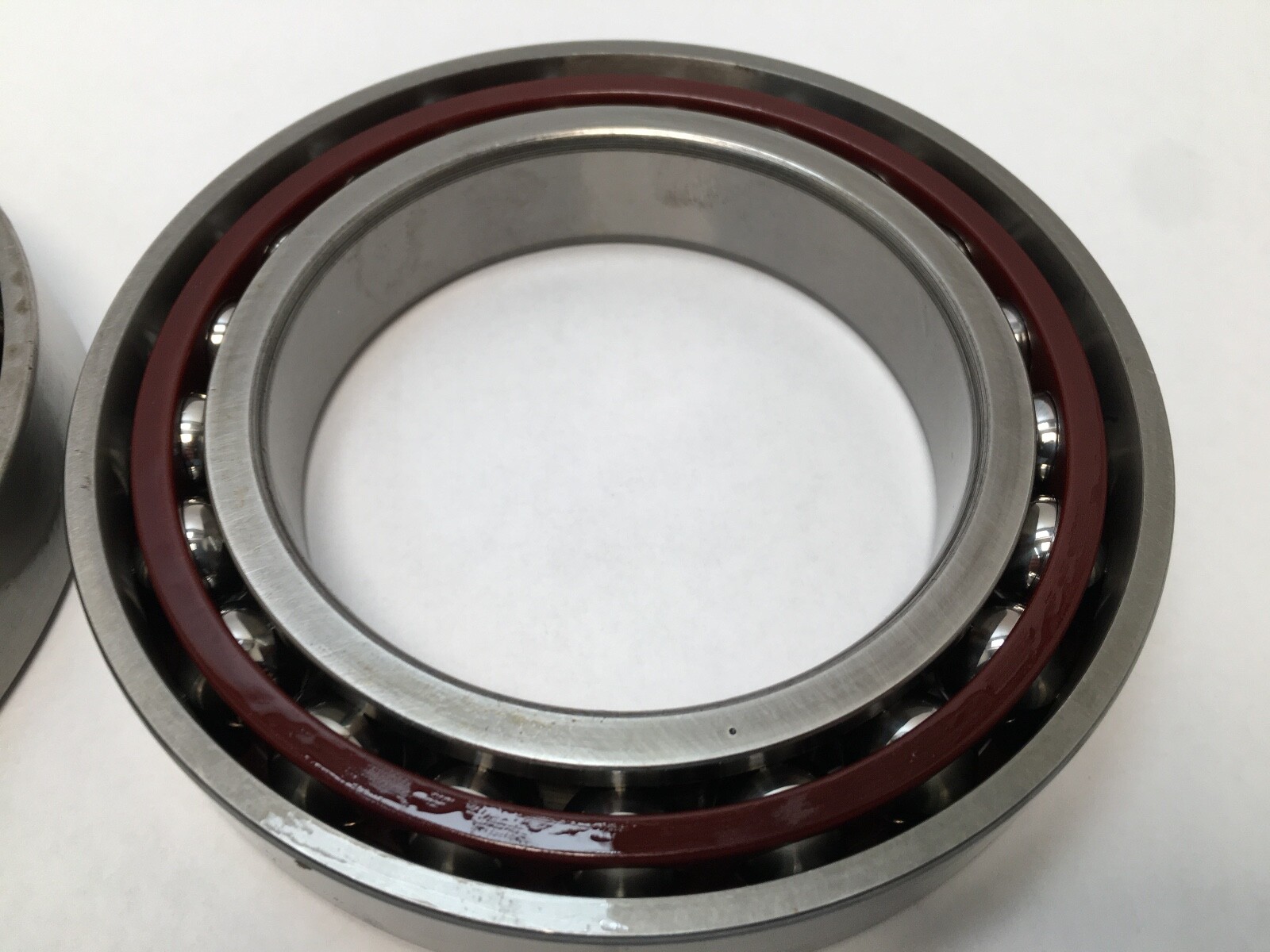

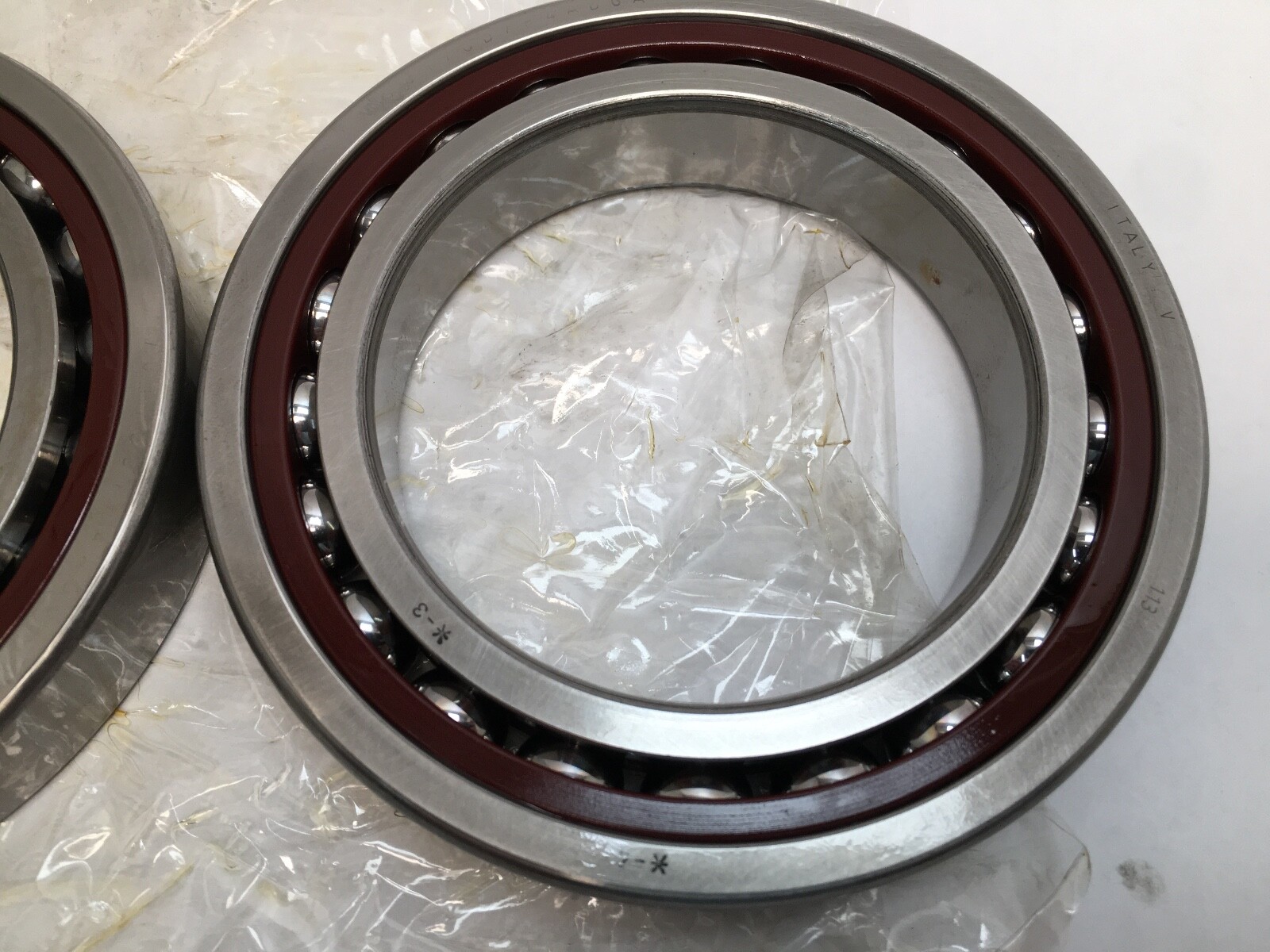

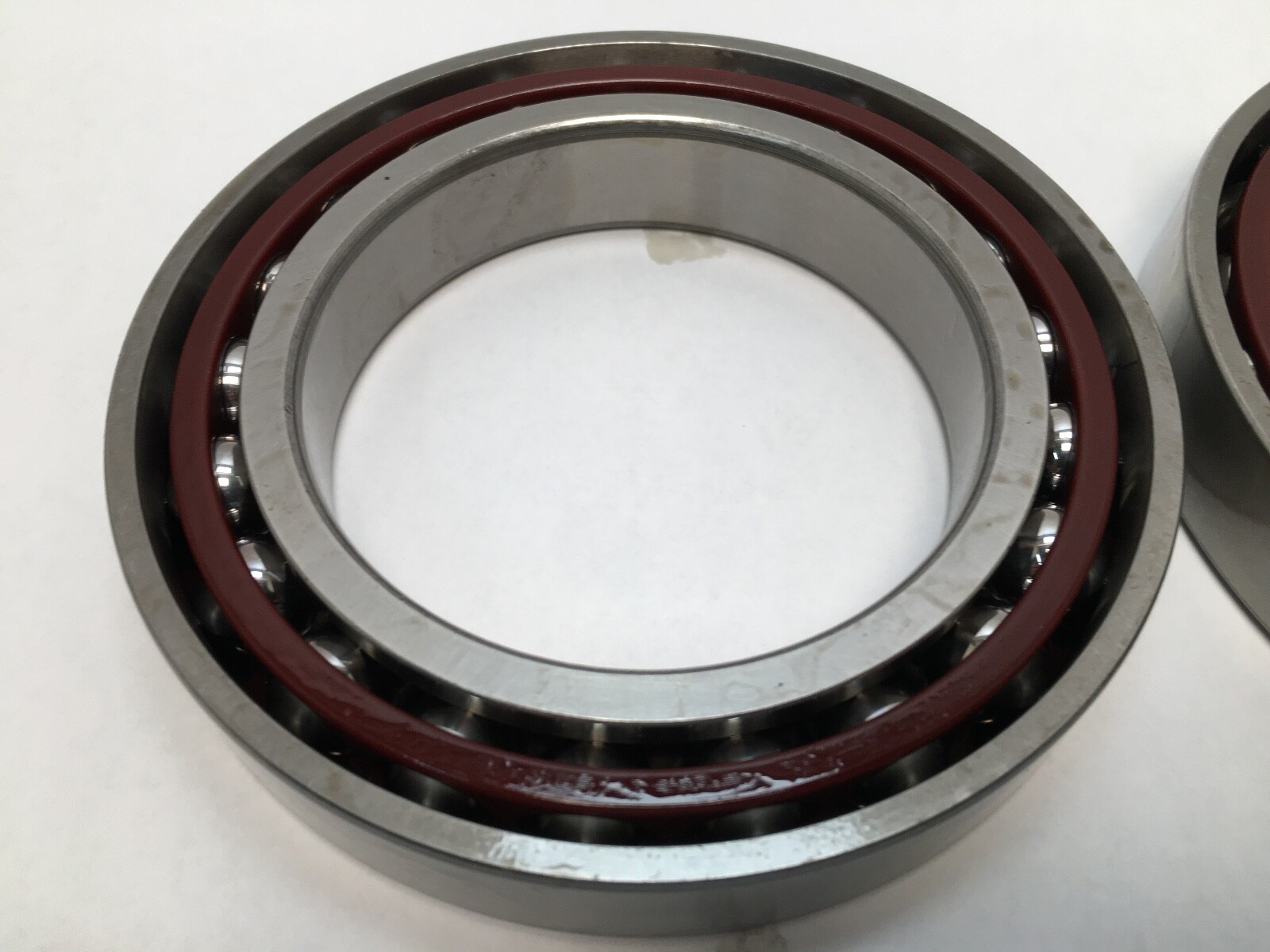

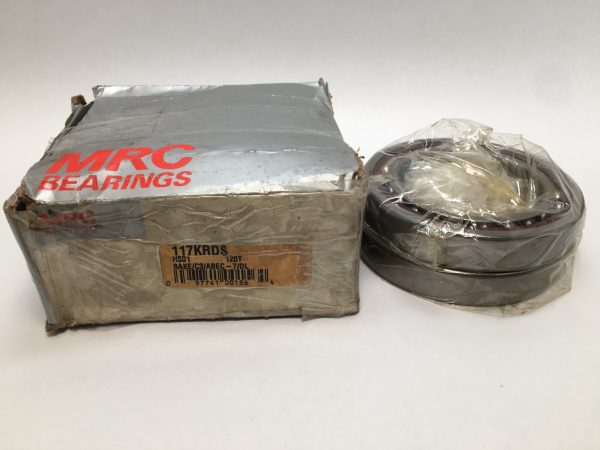

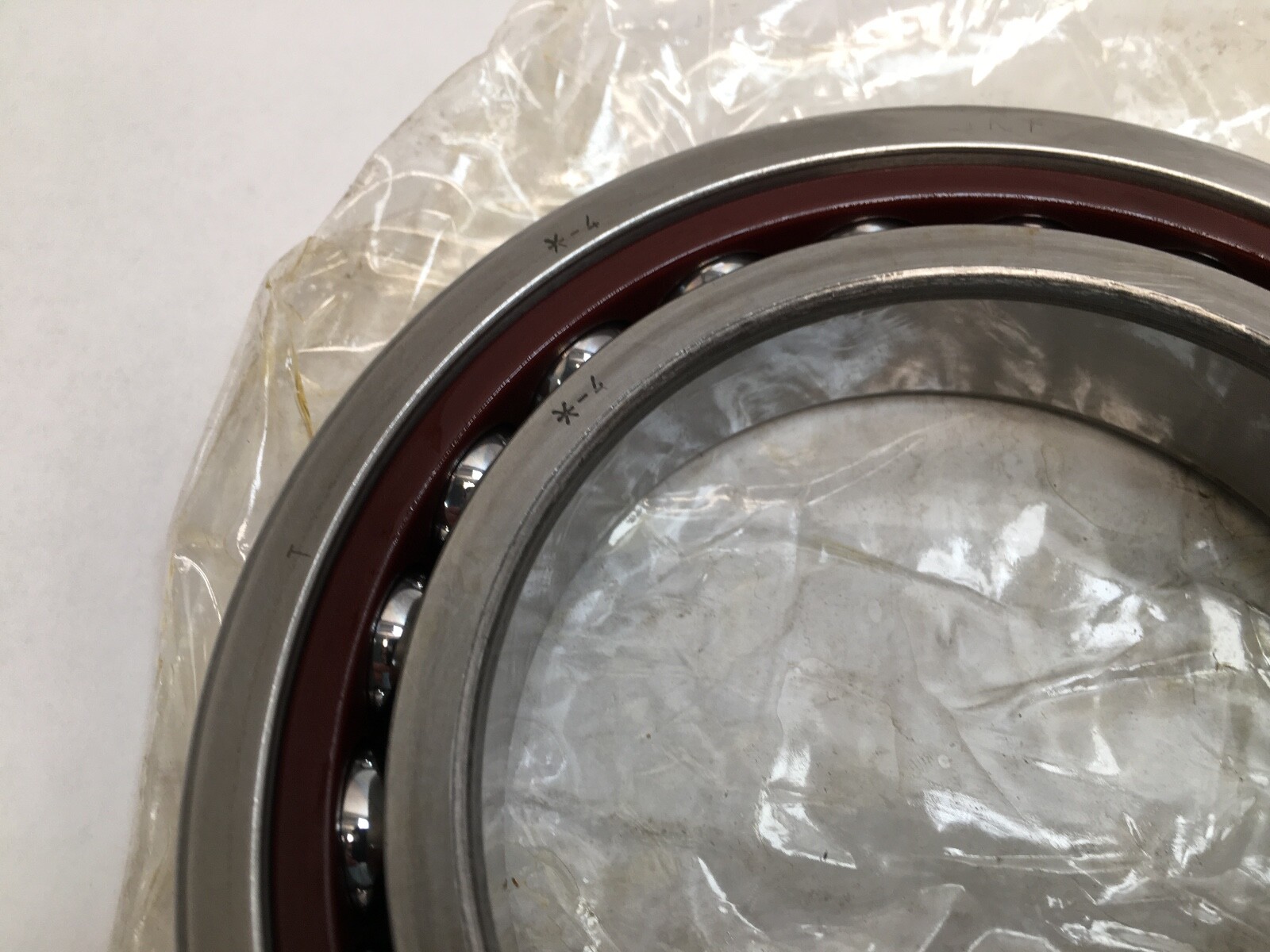

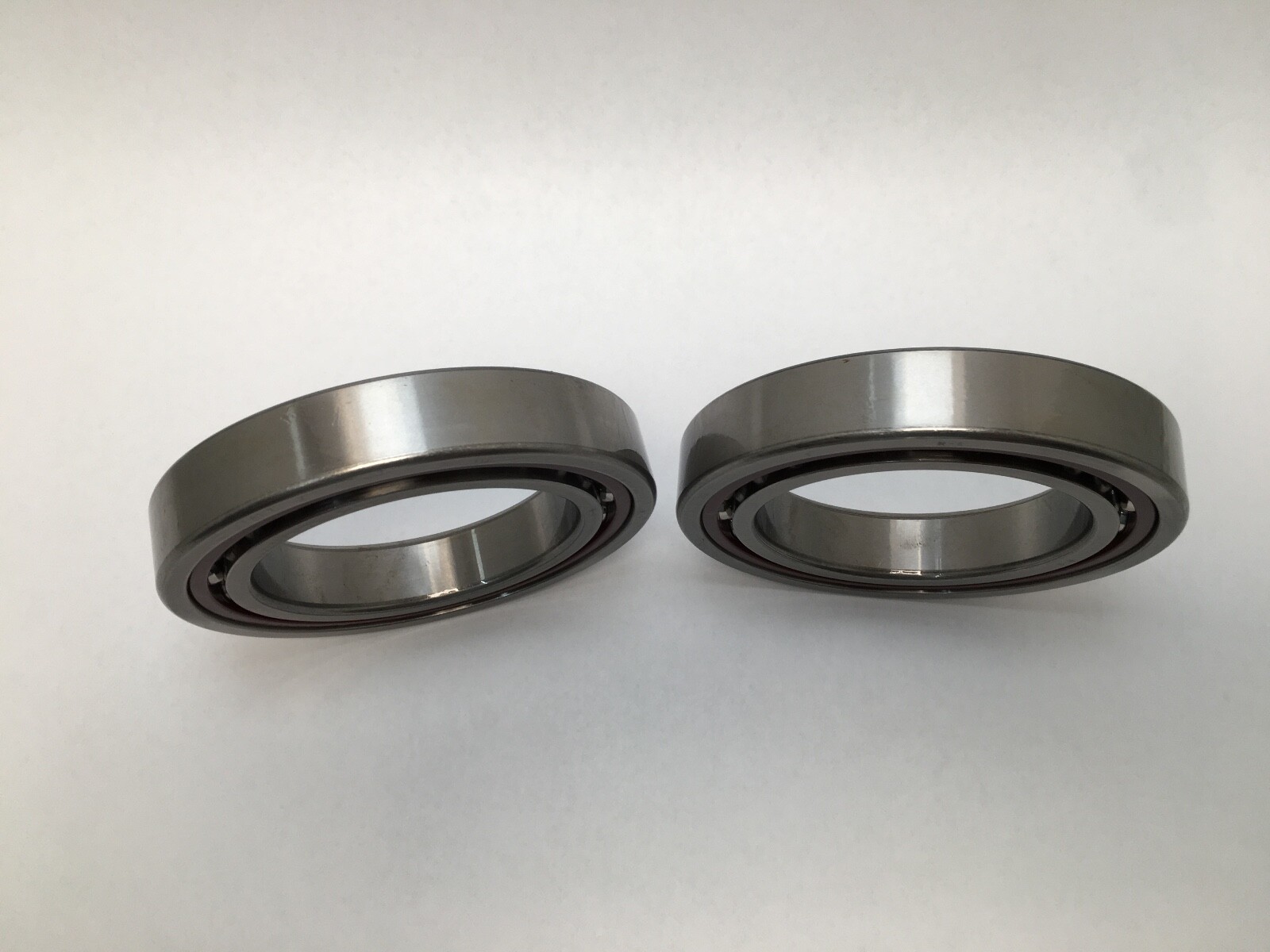

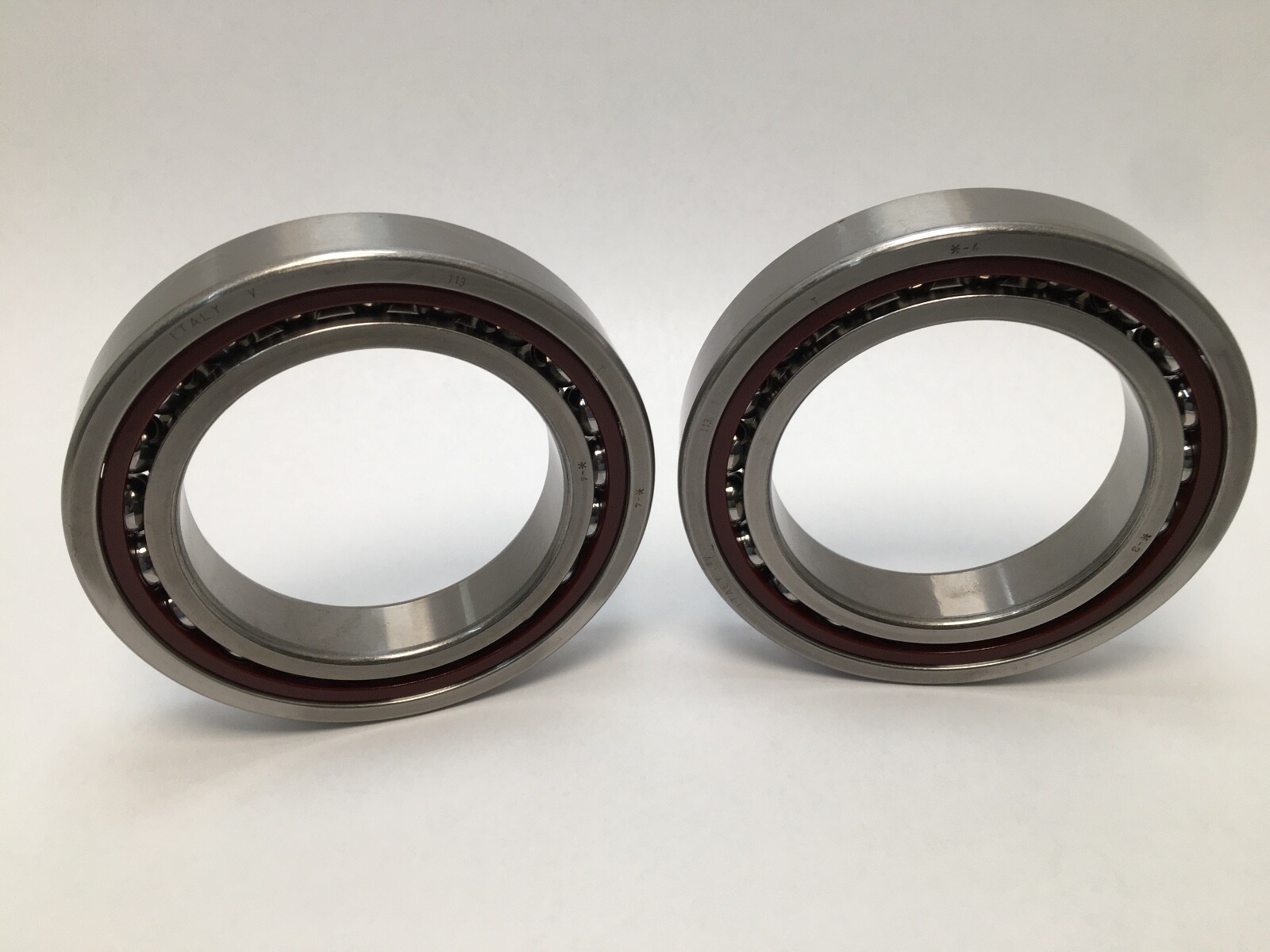

MRC 117KRDS is a precision angular contact ball bearing, one half of a preloaded matched pair, sold as a matched set. Bore Diameter: 85 mm. Outside Diameter: 130 mm. Width: 22 mm. Contact Angle: 15°. Precision Class: ABEC 7. Closure Type: Open. Number Of Rows: 1. Series: 100K (MRC extra-light section). ISO size: 7017.
117 — MRC bore code for 85 mm.
R — 15° contact angle, counterbored outer ring.
K — extra-light section (MRC 100K series).
DS — one half of a duplex pair, supplied with preload.
Bearing Type: Angular Contact Ball Bearing. Bore Diameter: 85 mm. Outside Diameter: 130 mm. Width: 22 mm. Contact Angle: 15°. Precision Class: ABEC 7. Rolling Elements: Ball. Bore Type: Straight.
Envelope: 85 x 130 x 22 mm. Counterbored outer ring. Open on both faces. MPN Variants: 117KRDS, 117 KR DS, 117-KR-DS, 117KR.
15° crosses: FAG B7017-C-T-P4S, NSK 7017CTR, SKF 7017 CD/P4A, Fafnir 2MM9117WI and RHP 7017CT. MRC 7117KR has the same 85 x 130 x 22 mm size in the 7100K angular contact section.
85 mm bore, 130 mm outside diameter and 22 mm width.
15°. The R in the designation denotes a 15° contact angle with a counterbored outer ring.
DS denotes one half of a duplex pair supplied with preload.
