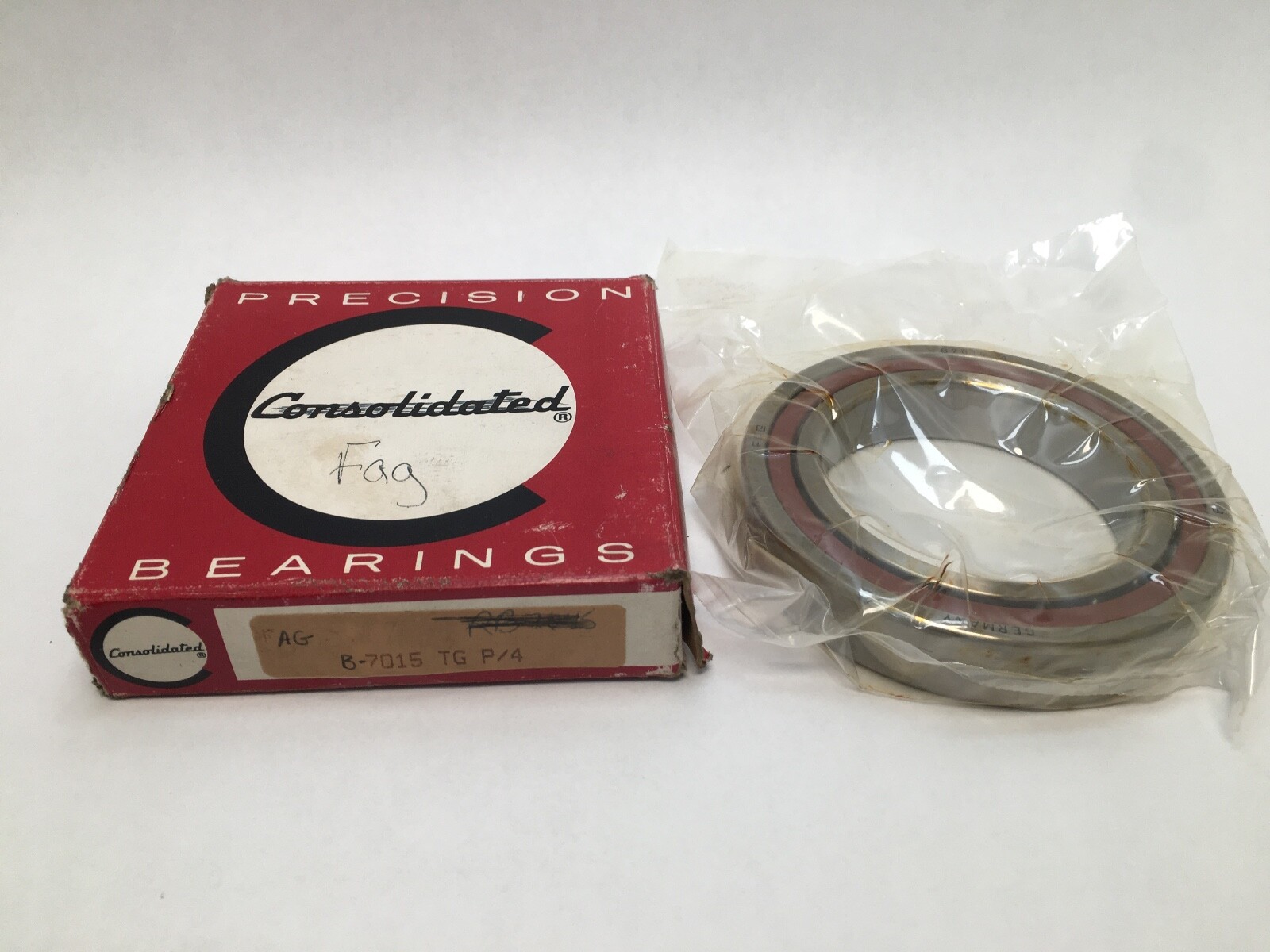

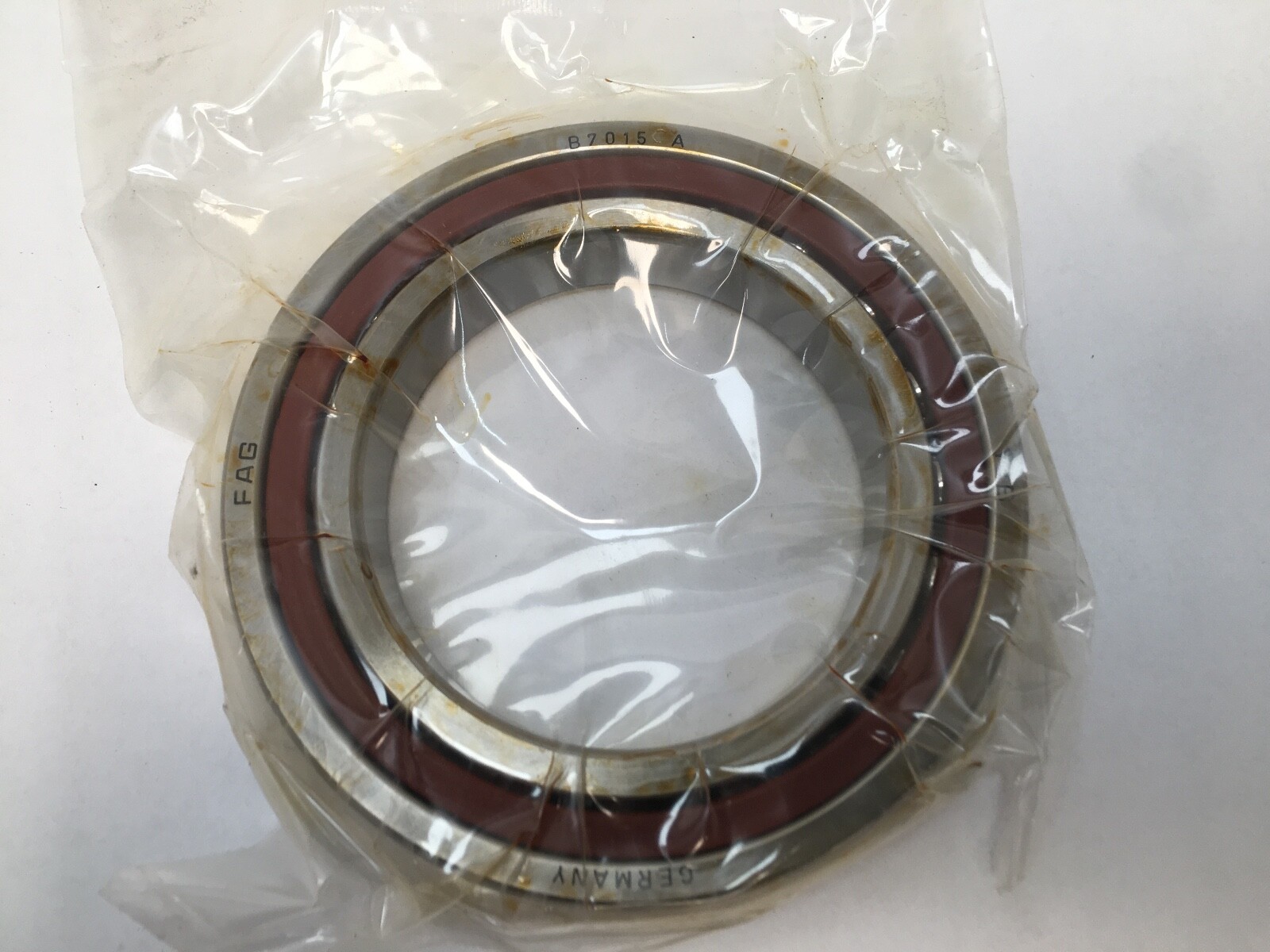

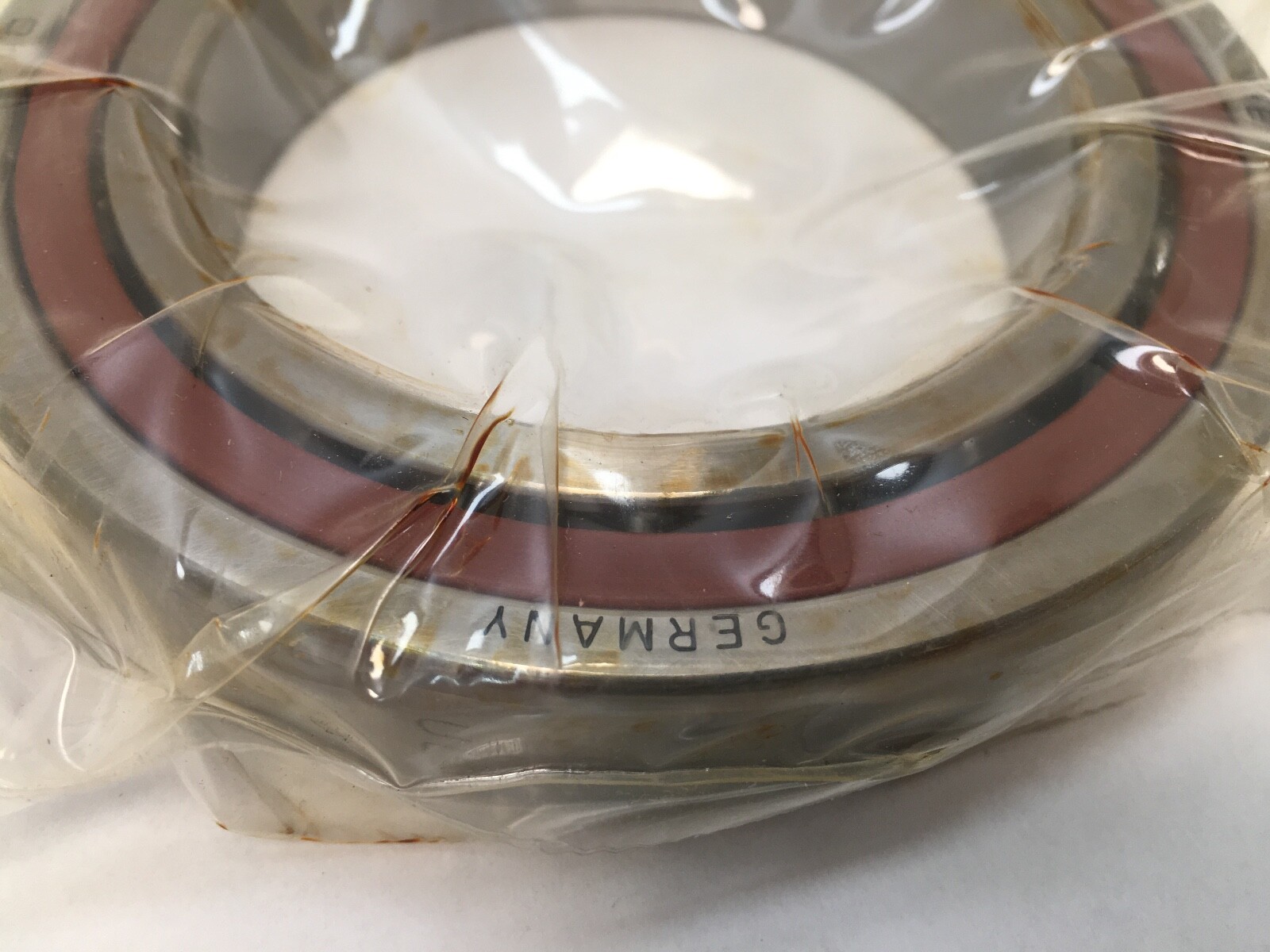

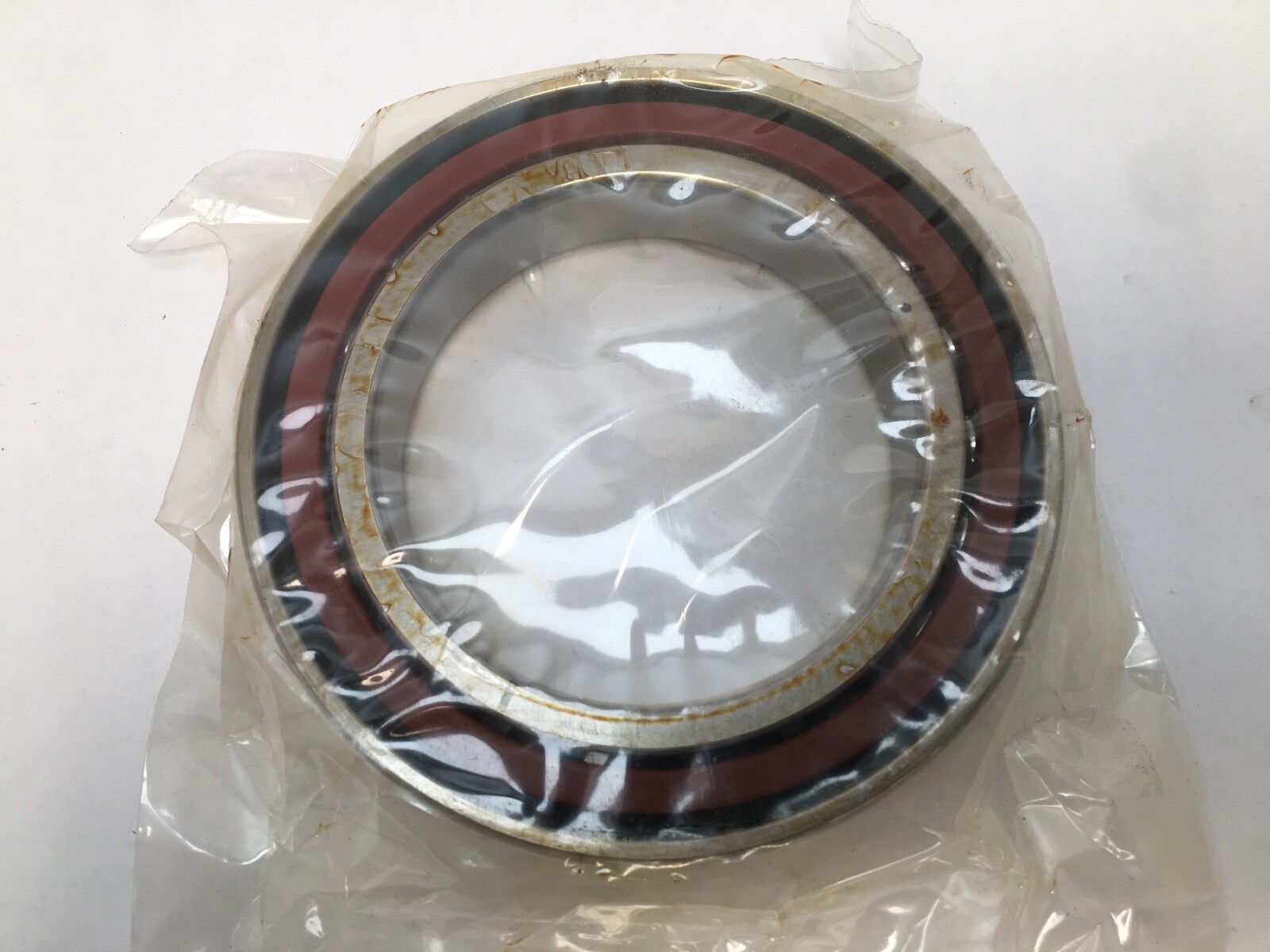

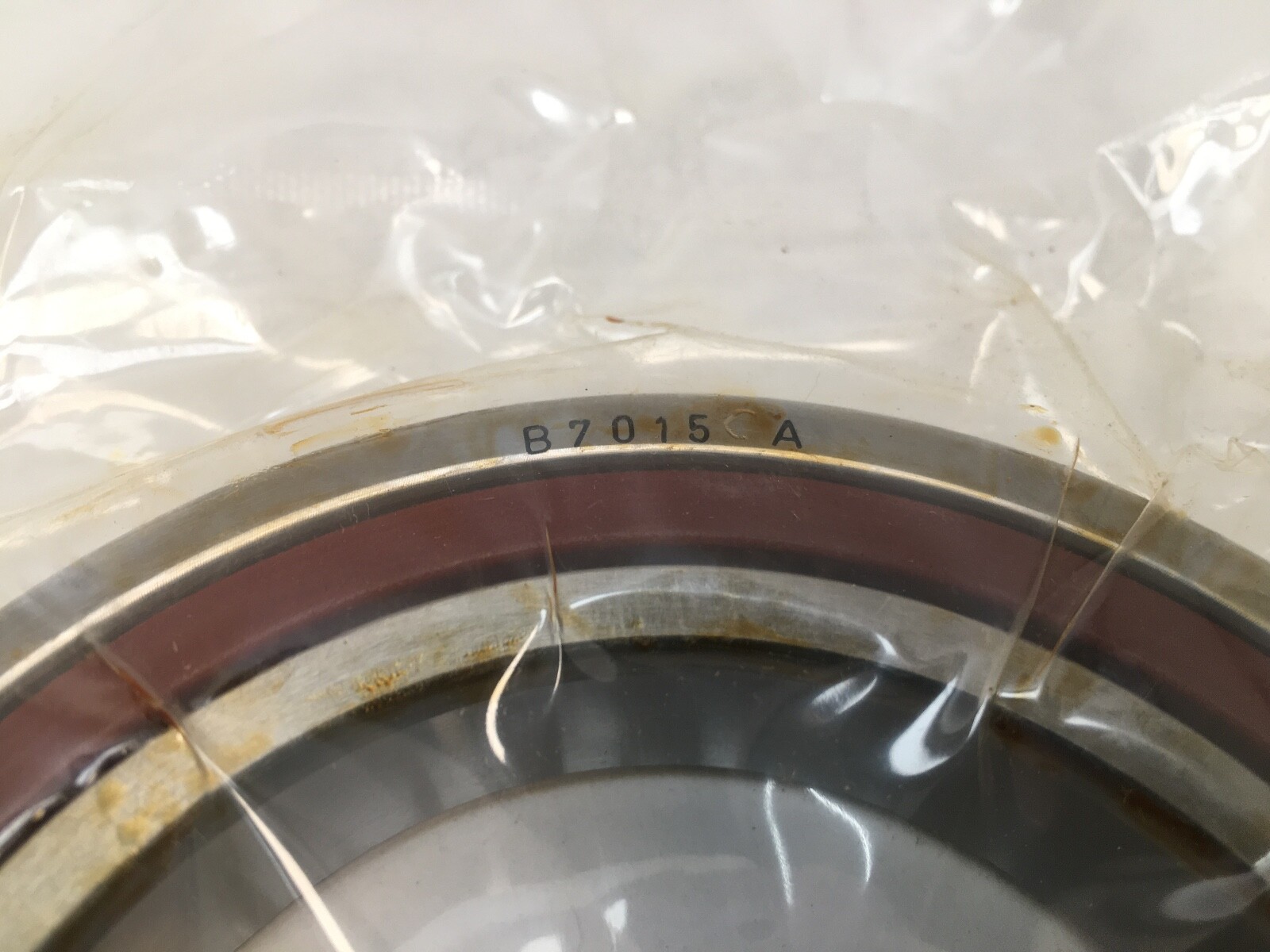

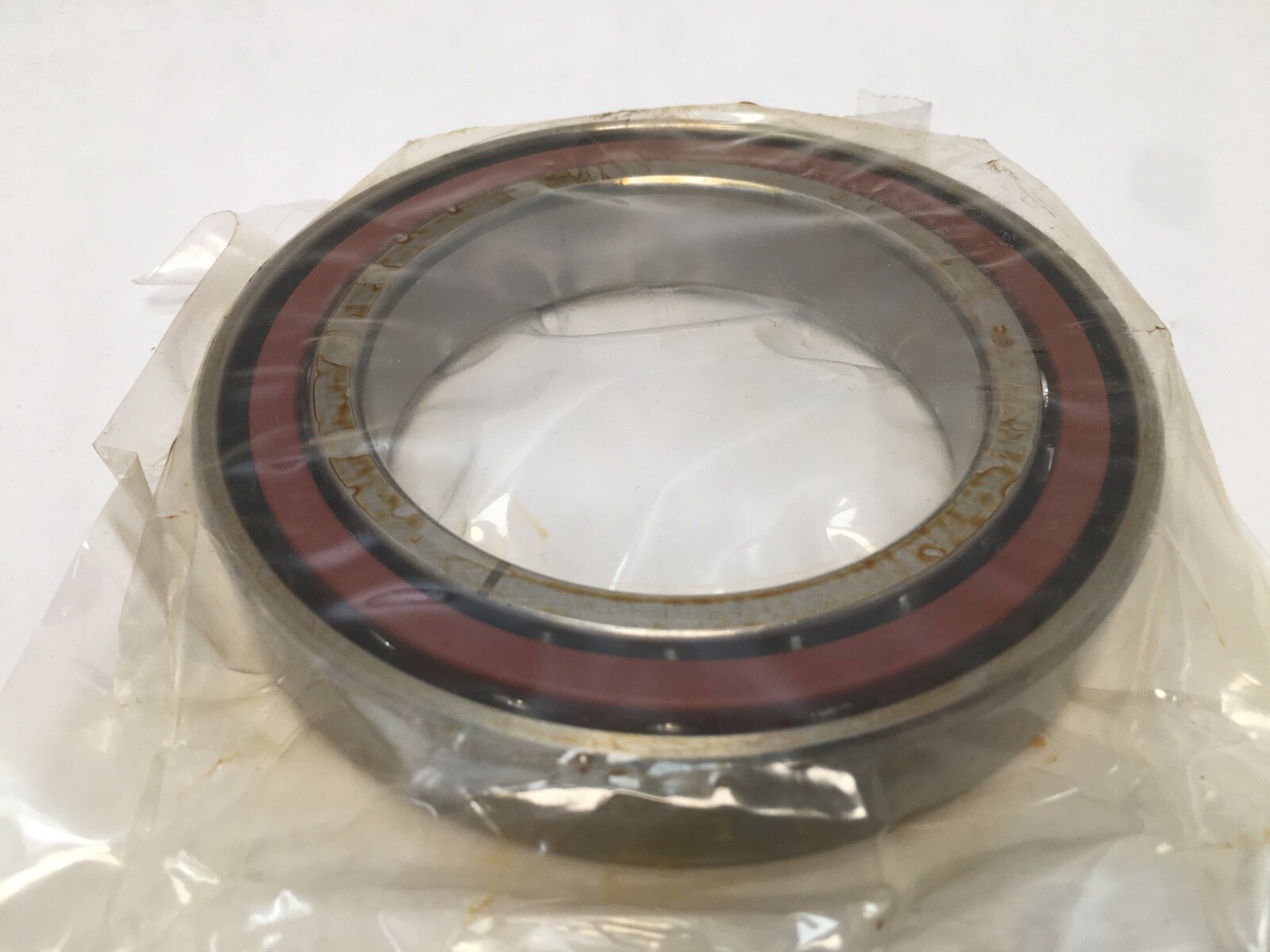

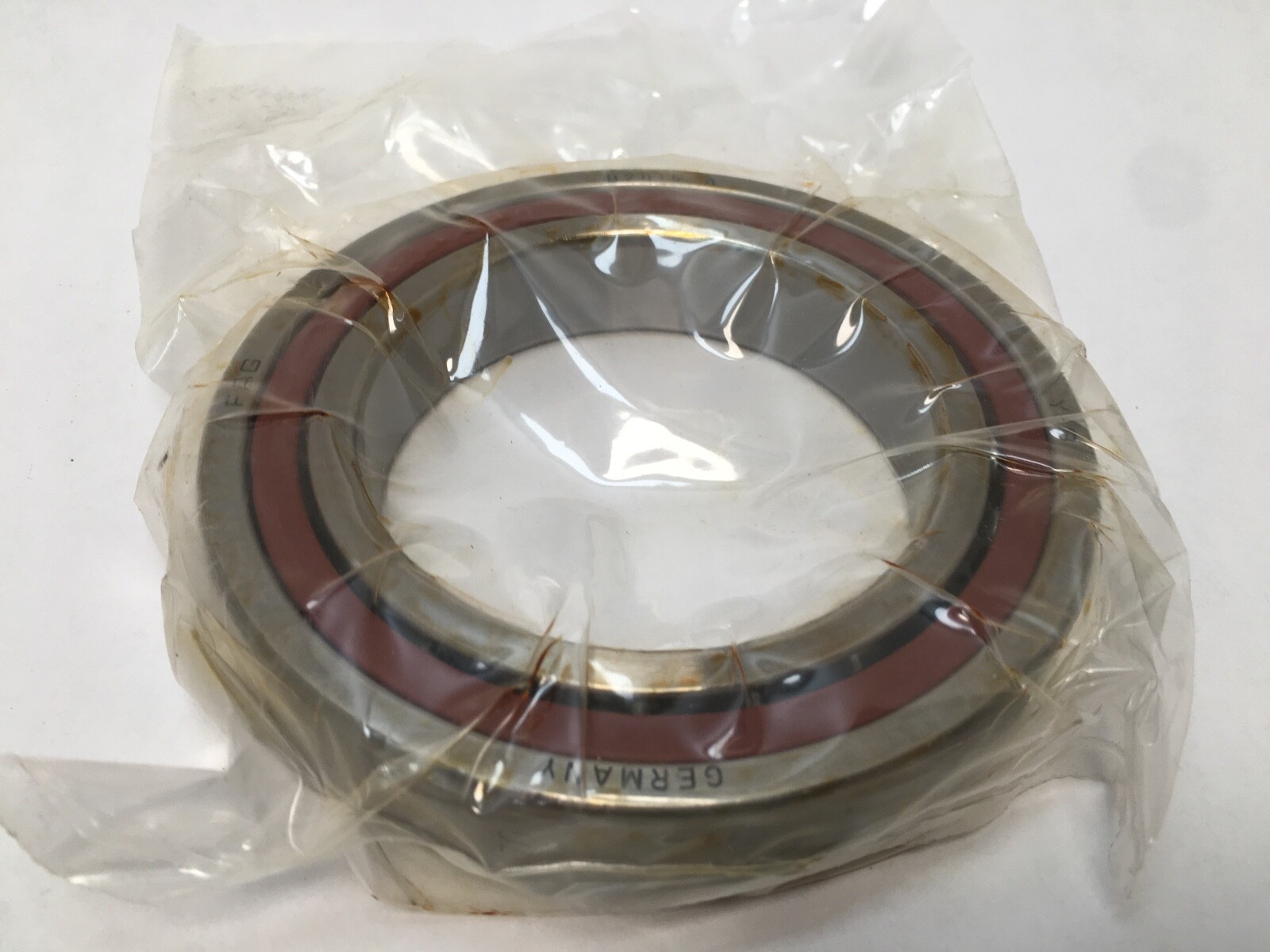

FAGB7015C.TPA.P4.ULAngular Contact Spindle Bearing, 75 x 115 x 20 mm, 15° Contact Angle, ABEC 7, Open, Light Preload

Product Description

What this part is:

FAG B7015-C-TPA-P4-UL super-precision angular contact spindle bearing, single row, open, universally ground for light preload. 75 mm bore, 115 mm outside diameter, 20 mm width. Contact angle 15°, precision class P4 (ABEC 7). Sold as 1 Pc.

Decoding the designation:

B7 — FAG super-precision spindle bearing series.

015 — bore code; 75 mm bore, 115 mm OD, 20 mm width.

C — 15° contact angle in the FAG B7 scheme.

P4 — precision class 4, equivalent to ABEC 7.

UL — universally ground, light preload.

Specifications:

Bore Diameter: 75 mm (2.9528 in). Outside Diameter: 115 mm (4.5276 in). Width: 20 mm (0.7874 in). Contact Angle: 15°. Preload: light (L). Precision Class: P4, ABEC 7. Number Of Rows: 1. Rolling Elements: steel balls. Closure Type: open. Grinding: universal. Unit Quantity: 1 Pc.

Dimensions and mounting:

Envelope: 75 x 115 x 20 mm, ISO 7015 size. Universally ground ring faces; single bearing.

Compatibility and replacement:

Cross-references at 15° contact angle, ABEC 7, universally ground, light preload, same 75 x 115 x 20 mm envelope: NSK 7015CTRSULP4; Fafnir 2MM9115WI-SUL; RHP 7015CTSULP4; SKF 7015 CD/P4A in light preload.

Frequently asked questions:

What are the dimensions of the FAG B7015-C-TPA-P4-UL?

75 mm bore, 115 mm outside diameter and 20 mm width.

What contact angle and precision class does the B7015-C-TPA-P4-UL have?

15° contact angle (C) and precision class P4, equivalent to ABEC 7.

What does UL mean in B7015-C-TPA-P4-UL?

UL is universally ground with light preload. The bearing is supplied as 1 Pc.
