FAGB7006CTPAP4ULSuper Precision Angular Contact Spindle Bearing 30x55x13 mm, 15° Contact Angle, P4 / ABEC 7, Phenolic Cage, Light Preload Universal

Product Description

What this part is

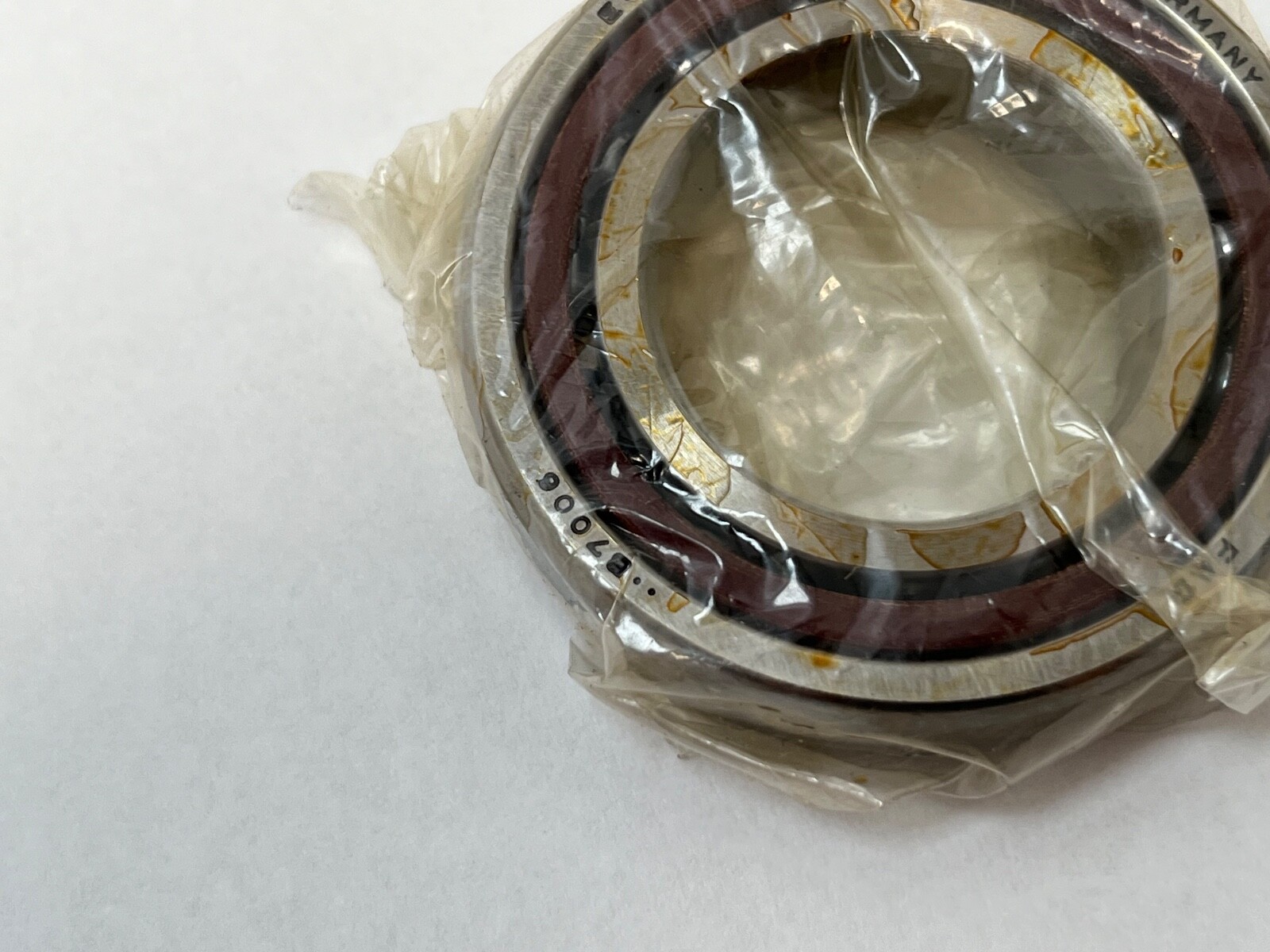

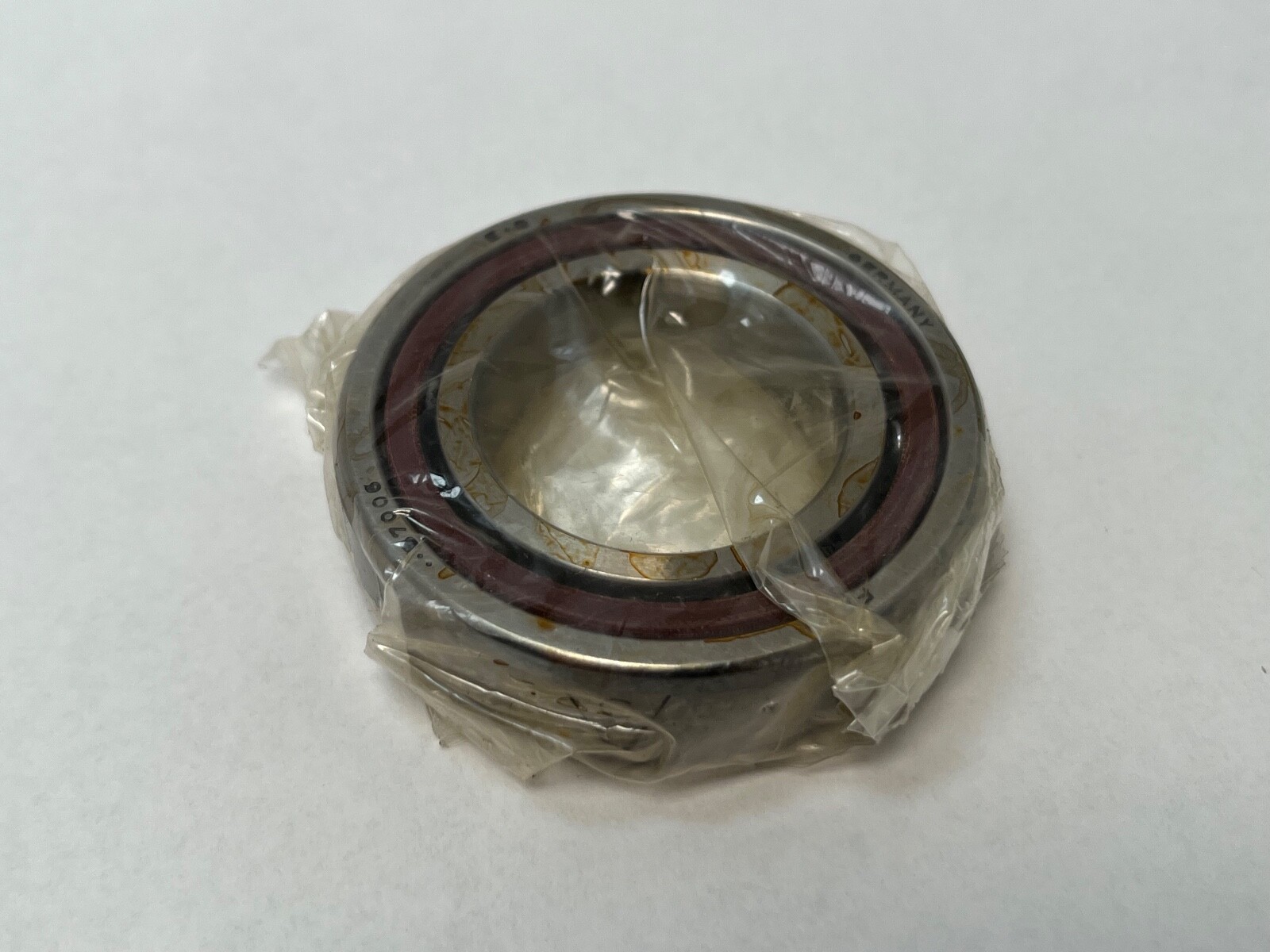

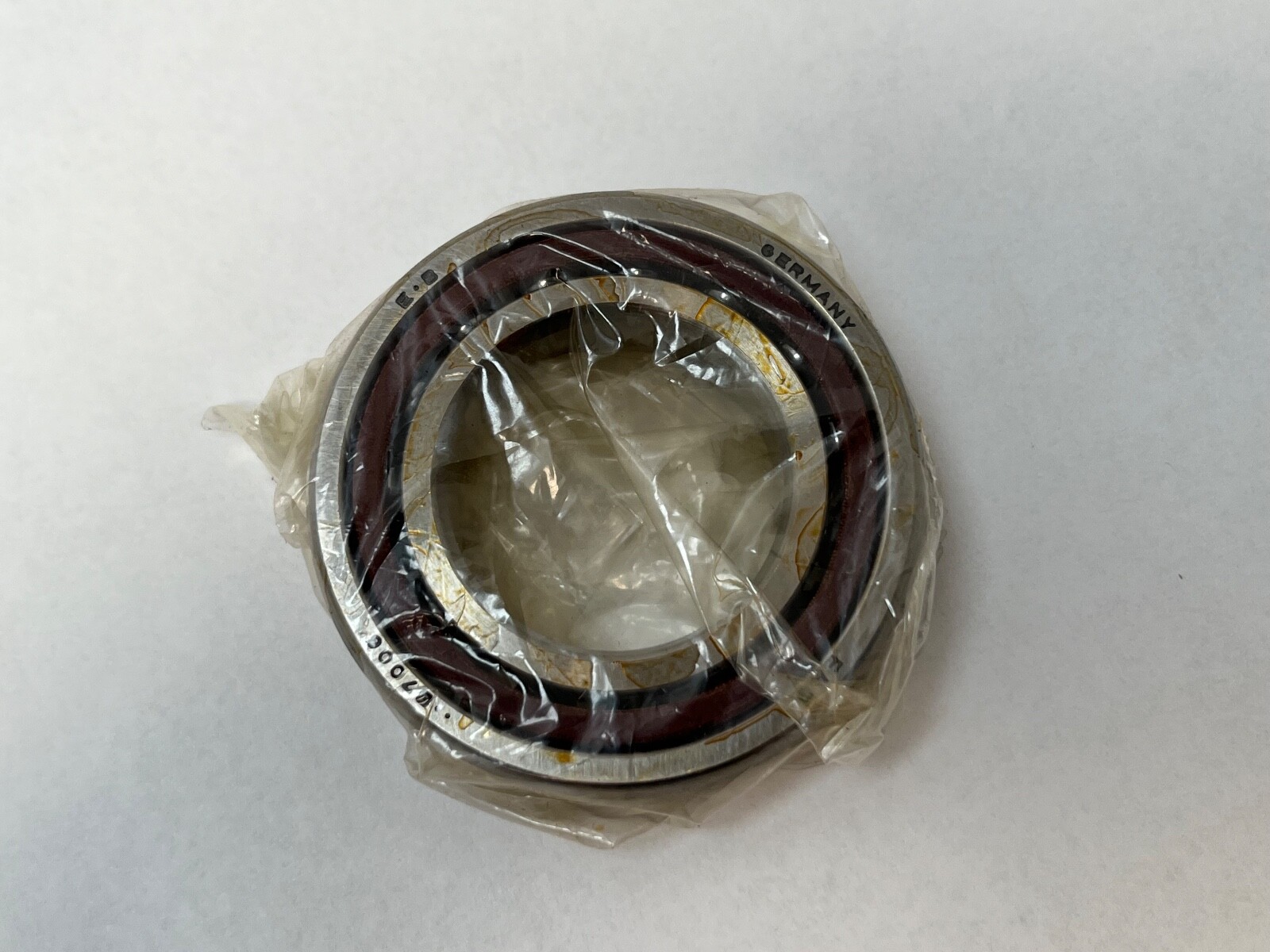

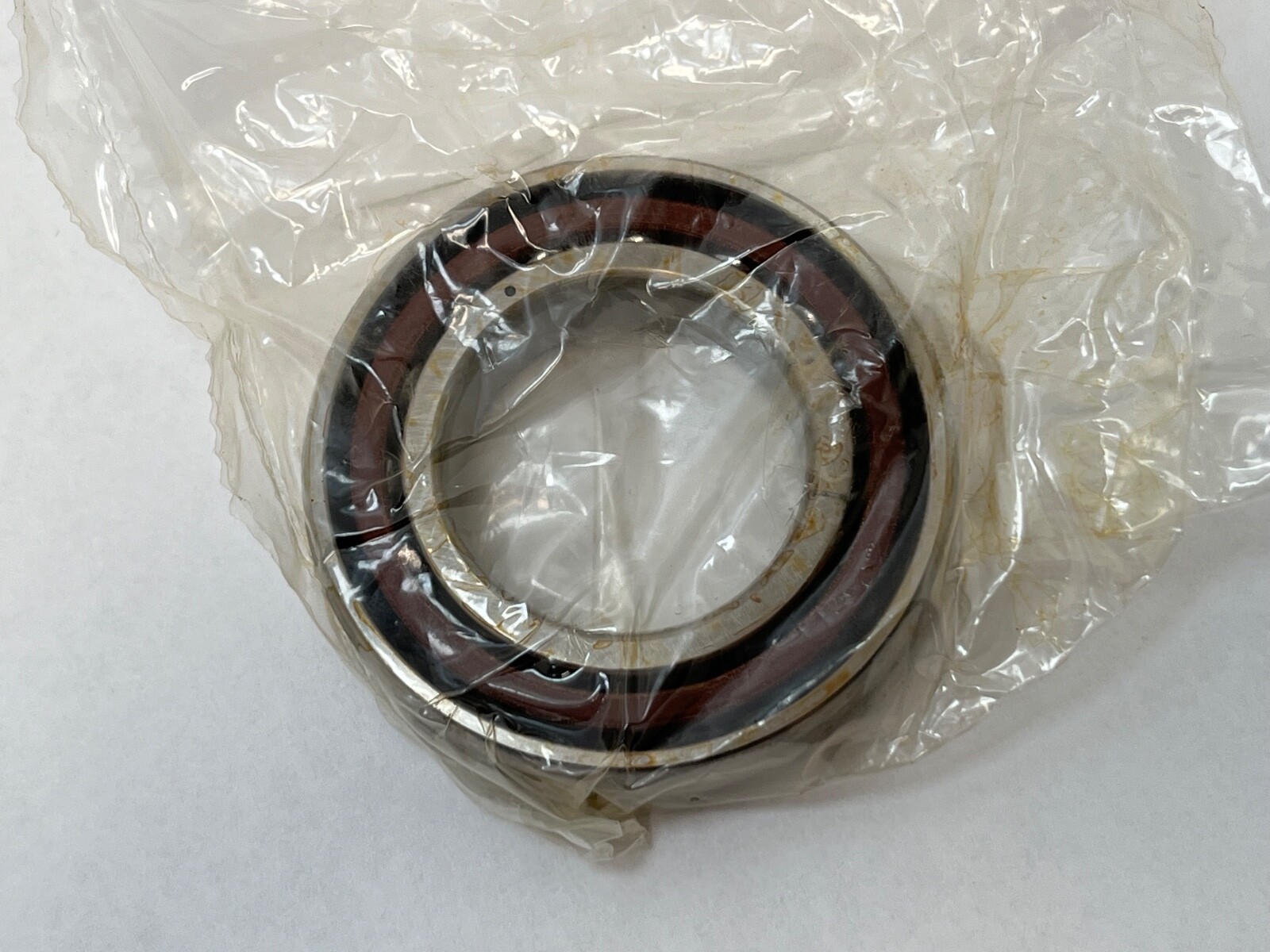

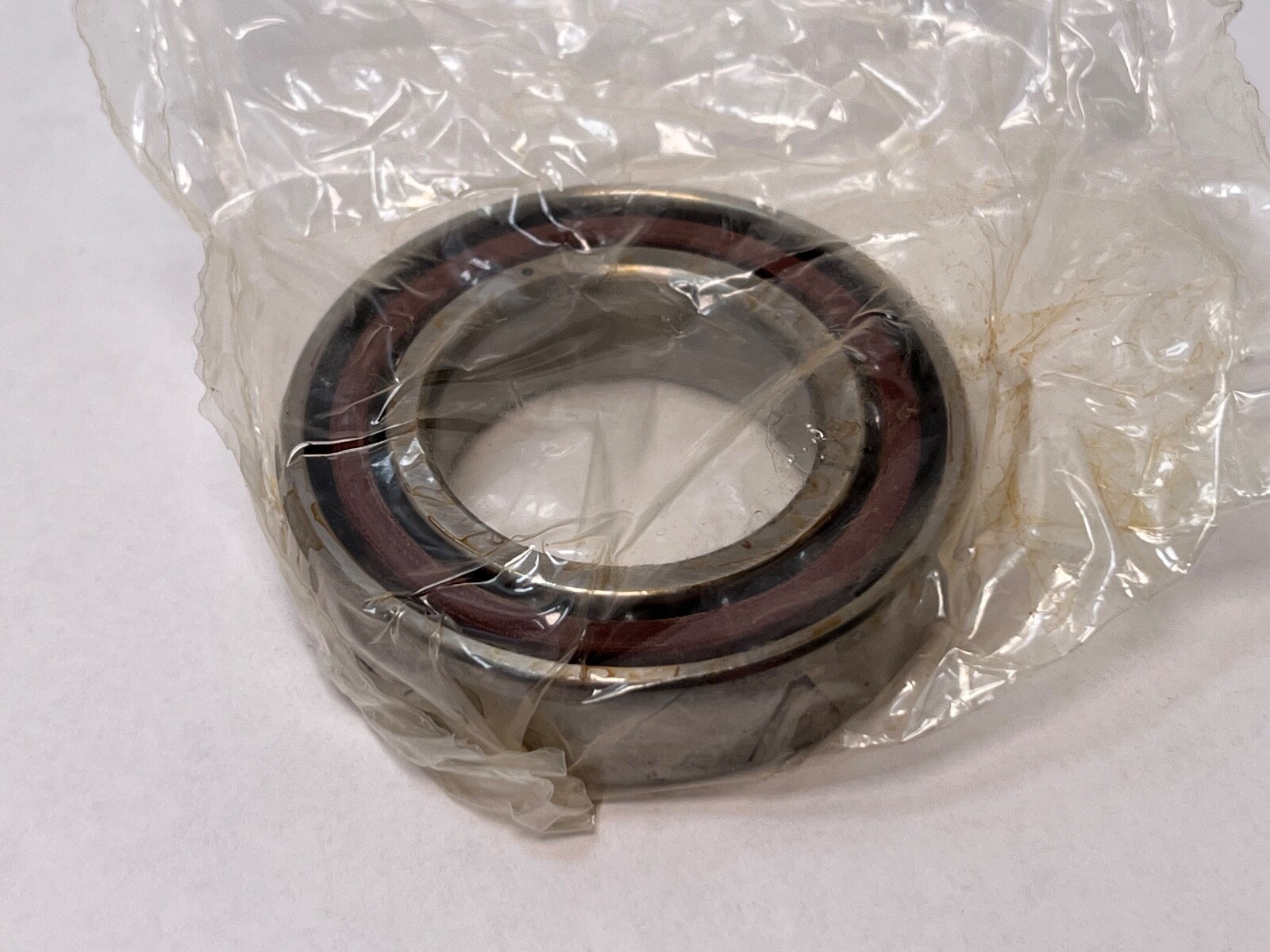

A FAG B7006C.TPA.P4.UL super-precision angular contact ball bearing — 30 mm bore, 55 mm outside diameter, 13 mm width. This is a spindle bearing: 15° contact angle, P4 tolerance class, a fabric-reinforced phenolic cage, and rings universally ground so that any two bearings of this designation can be mounted together at light preload in back-to-back, face-to-face or tandem arrangement.

Decoding the designation

B – FAG super-precision spindle bearing range
7006 – single-row angular contact ball bearing, 30 mm bore, 55 mm OD, 13 mm width
C – 15° contact angle in the FAG scheme
TPA – fabric-reinforced phenolic resin cage, outer ring guided
P4 – tolerance class P4, equivalent to ABEC 7
UL – universally ground for light preload; any two of the same designation pair in any arrangement

What these specs mean in practice

A 15° contact angle favours speed and radial stiffness over thrust capacity, which is why it is the standard angle for high-speed machine tool spindles; a 25° bearing in the same envelope trades speed for axial stiffness. P4 tolerance controls bore, outside diameter and, most importantly, raceway runout, so the spindle holds its geometry through a rotation. The phenolic cage is light and self-lubricating, tolerates high speed and momentary lubricant starvation better than steel or brass, and is the reason this bearing suits oil-air and grease-for-life spindle systems. Universal grinding means the ring faces are ground so a pair clamps up to a defined light preload without shims: the preload is built into the bearing, not set at assembly.

Published specifications

Bore: 30 mm (1.1811 in)
Outside diameter: 55 mm (2.1654 in)
Width: 13 mm (0.5118 in)
Rows: 1
Contact angle: 15°
Tolerance class: P4 (ABEC 7)
Cage: fabric-reinforced phenolic resin, outer ring guided
Preload class: light (L)
Matching: universal (UL) — back-to-back, face-to-face or tandem
Closure: open both faces

Quantity and configuration

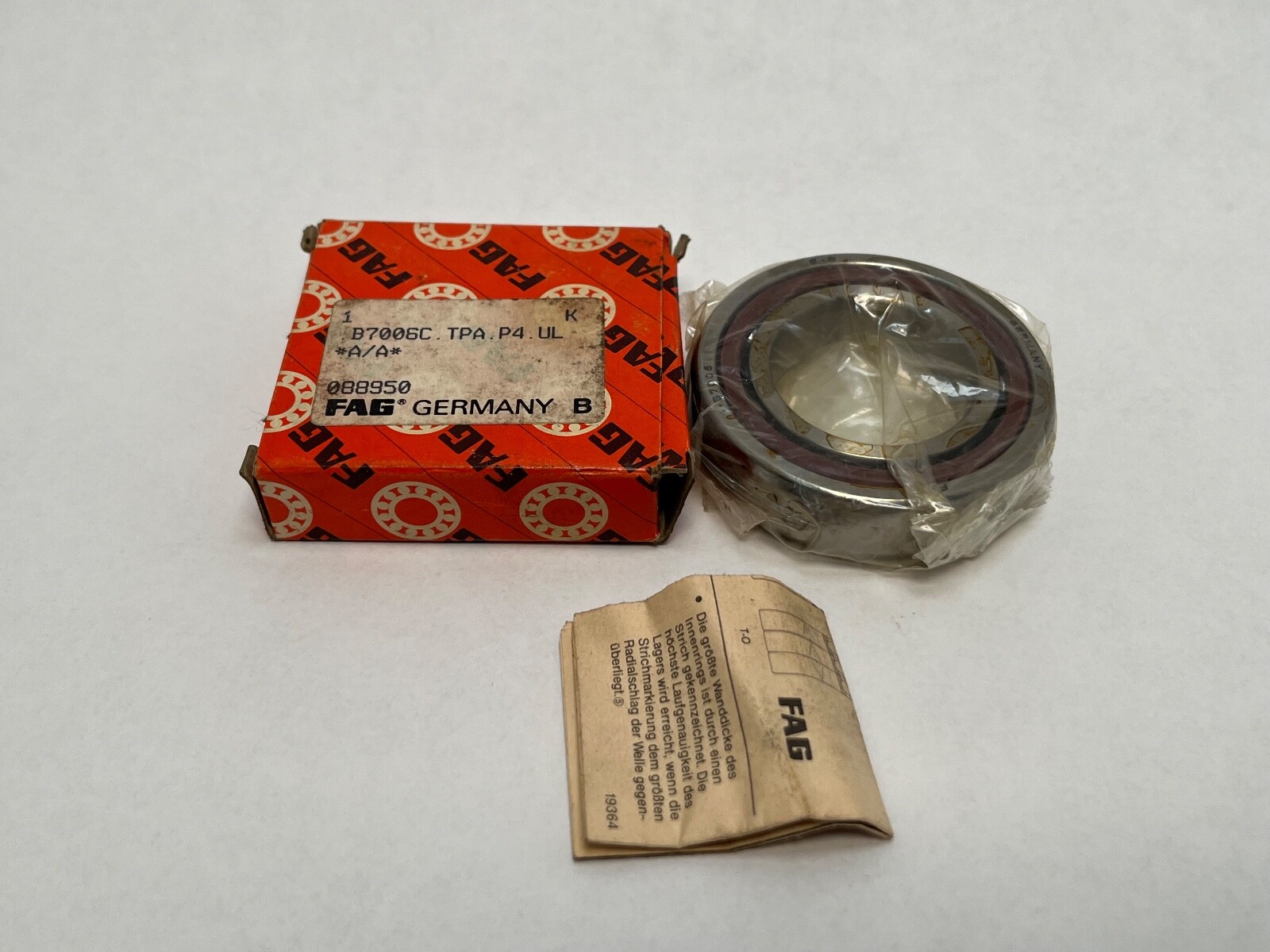

Sold as 1 Pc, a single universally ground bearing. A second bearing is required to form a preloaded pair and is not included. No spacers, lock nut, shims or seals are included.

Fitting notes

The bearing is directional: the wide outer ring land takes the thrust. In a back-to-back set the two wide lands face outward; in face-to-face they face each other; in tandem both face the same way. Because the faces are ground for preload, the inner rings are clamped solidly against each other or against ground spacers, and no shimming is used to adjust preload. Cleanliness governs the result on a P4 bearing, so mounting is done with clean tools, force applied only to the ring being fitted, and the phenolic cage kept clear of any press load. Oil-air or a light grease charge suits the phenolic cage.

Interchange guidance

An interchange must match envelope, contact angle, tolerance class and preload class: a 15°, P4, light-preload universally ground 7006 in the 30 x 55 x 13 mm envelope, such as SKF 7006 CD/P4A, NSK 7006C-TYNSULP4, or Timken/Fafnir 2MM9106WI-CR-SUL. A 25° version (FAG B7006-E, NSK 7006A5, Fafnir 3MM9106WI) shares the envelope but has a different stiffness and speed behaviour, so it is a related size rather than an equivalent. Medium and heavy preload versions (UM, UH) are likewise different parts, and a standard-precision 7006 in P0 tolerance is not a spindle bearing substitute.
