Double-row angular contact ball bearing, 20 x 47 x 20.6 mm, 30° contact angle. Open, one-piece polyamide snap cage, CN clearance, 20.6 kN dynamic.
List Price
$31.29
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 3204-BD-XL-TVH |
| GTIN | 4012802632866 |
| Model | 5204 3204BDXLTVH |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 20 mm |
| OD | 47 mm |
| Width | 20.6 mm |
| Material | Steel |
|---|---|
| Base Number | 3204 |
| Total Width | 20.6 mm |
| Bore Shaft Size | 20 mm |
| Mpn Variants | 3204BDXLTVH, 3204 BD XL TVH, 3204B, 5204, 3204-BD-XL-TVH-L285 |
| Additional Attributes | Fatigue load limit 870 N; X-life execution |
| Dynamic Load Rating | 20.6 kN |
| Static Load Rating | 12.9 kN |
| Rolling Elements | Steel balls |
| Cage Material | Glass-fibre reinforced polyamide |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Lubricant | Grease or oil |
| Contact Angle | 30° |
| Design Units | Metric |
| Bearing Material | Chrome steel |
| Series | 32-BD |
| Part Number | 3204-BD-XL-TVH |
| Closure Type | Open |
| Cross Reference 1 | SKF 3204 A-2Z (shielded version) |
|---|---|
| Cross Reference 2 | NSK 3204B-TV |
| Cross Reference 3 | NTN 5204 |
| Cross Reference 4 | Koyo 5204 |

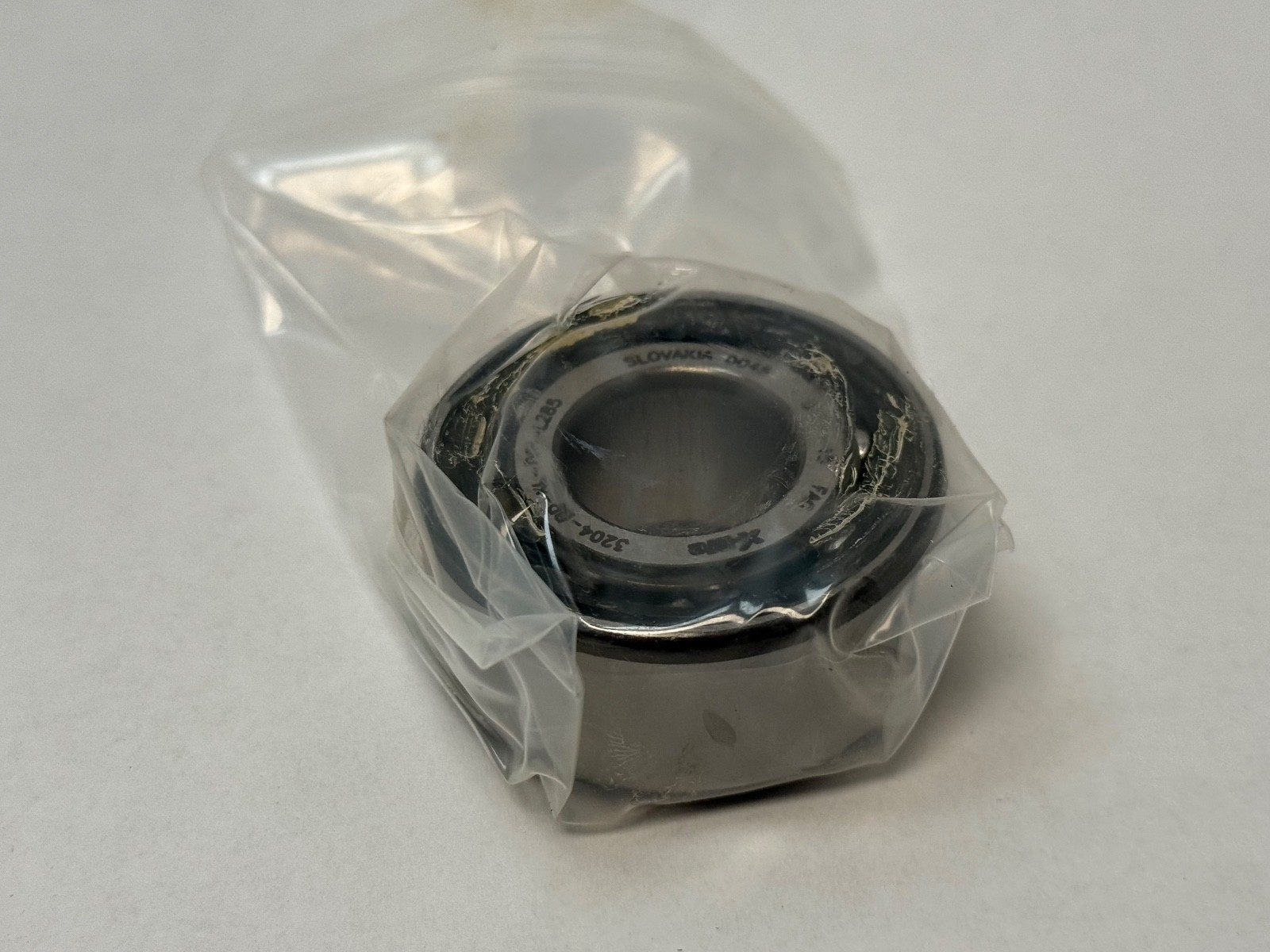

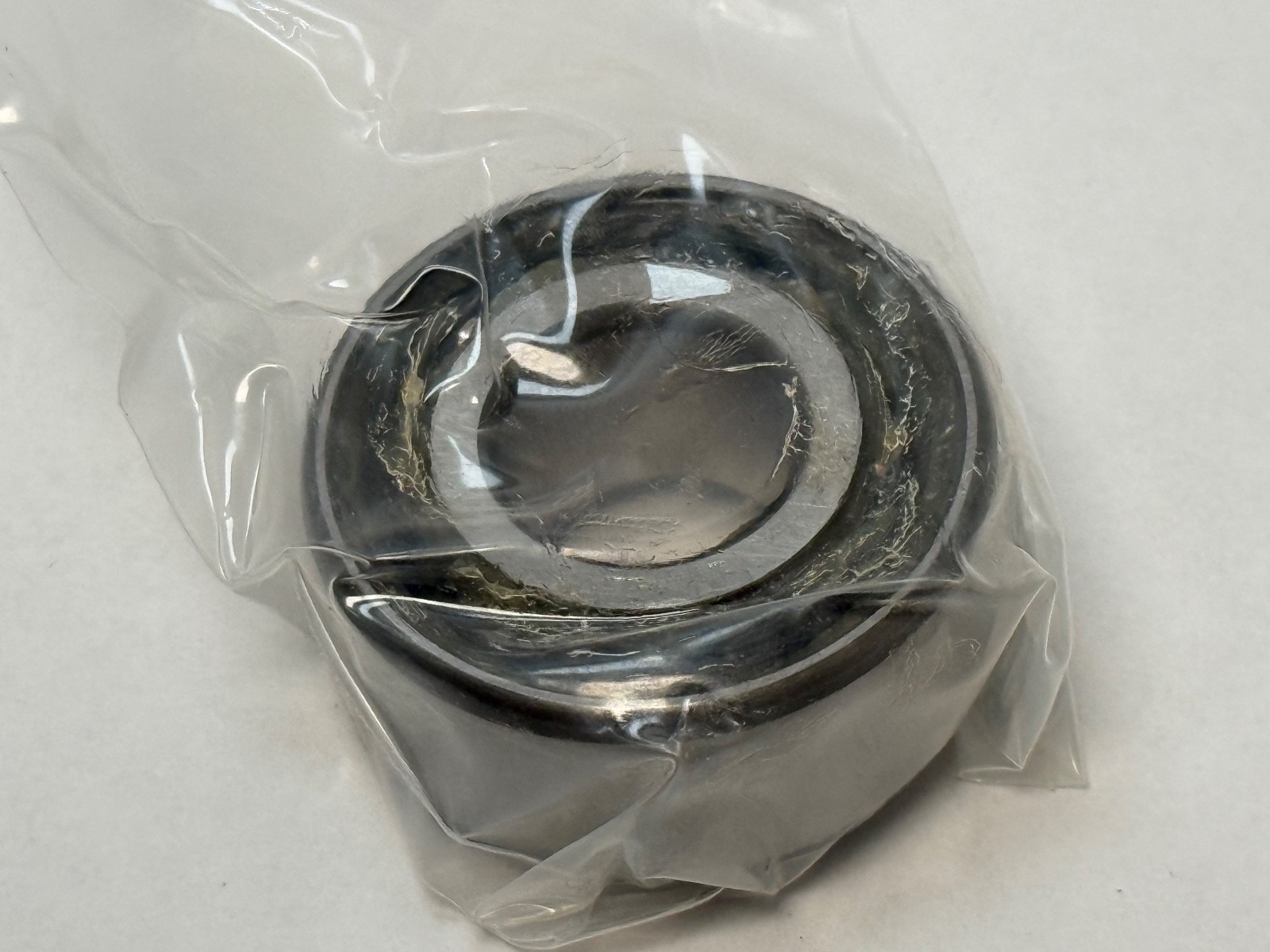

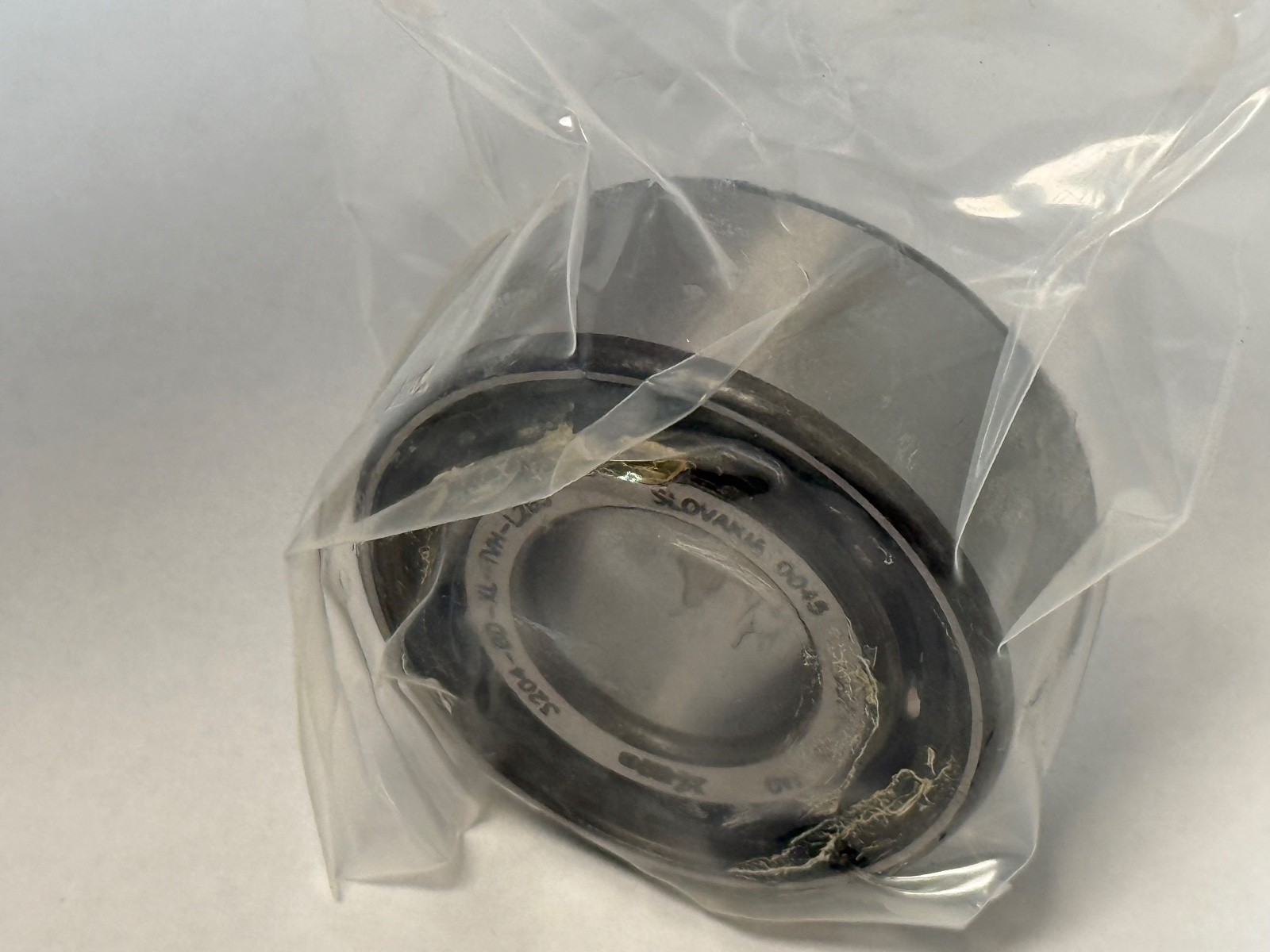

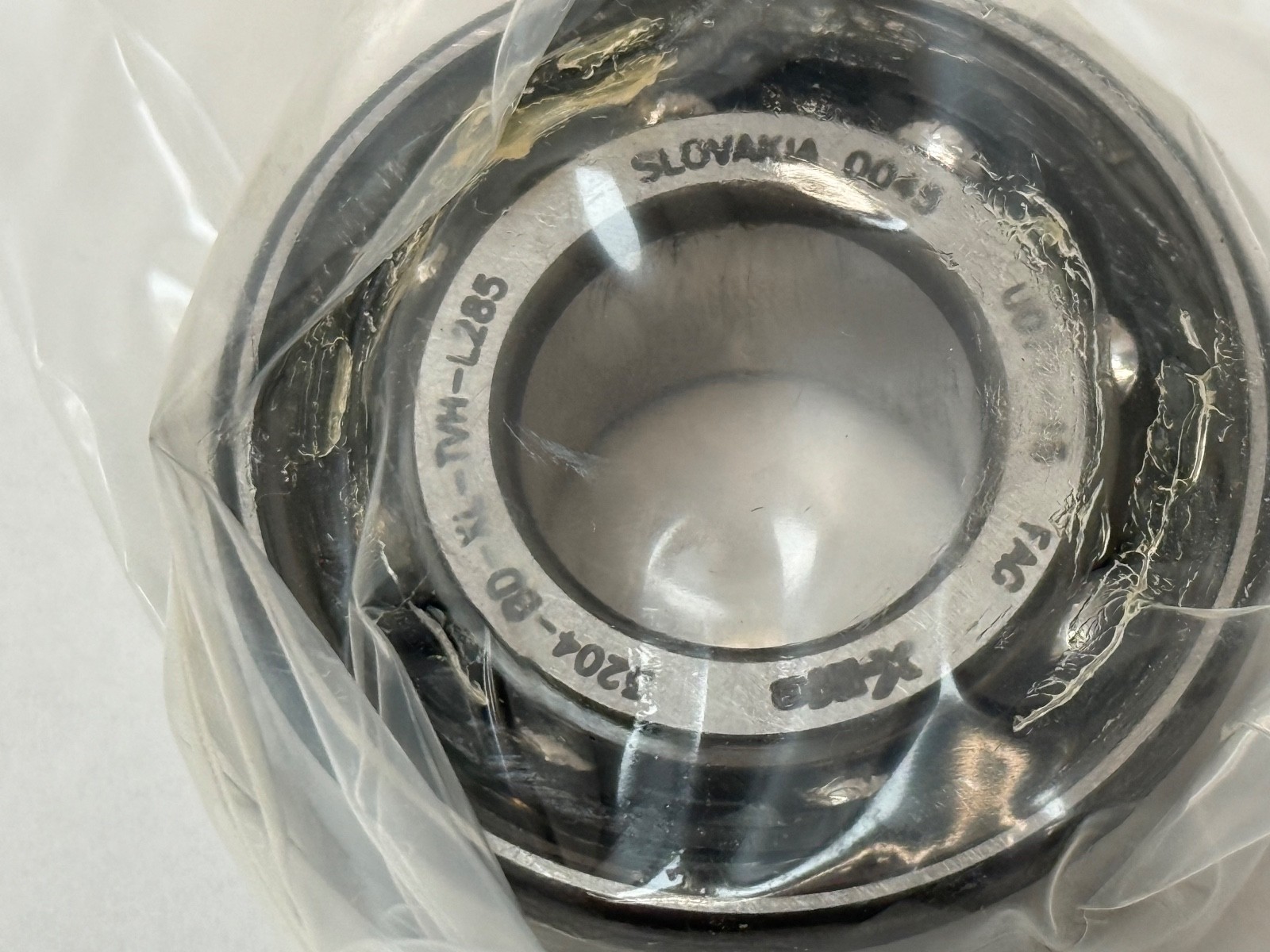

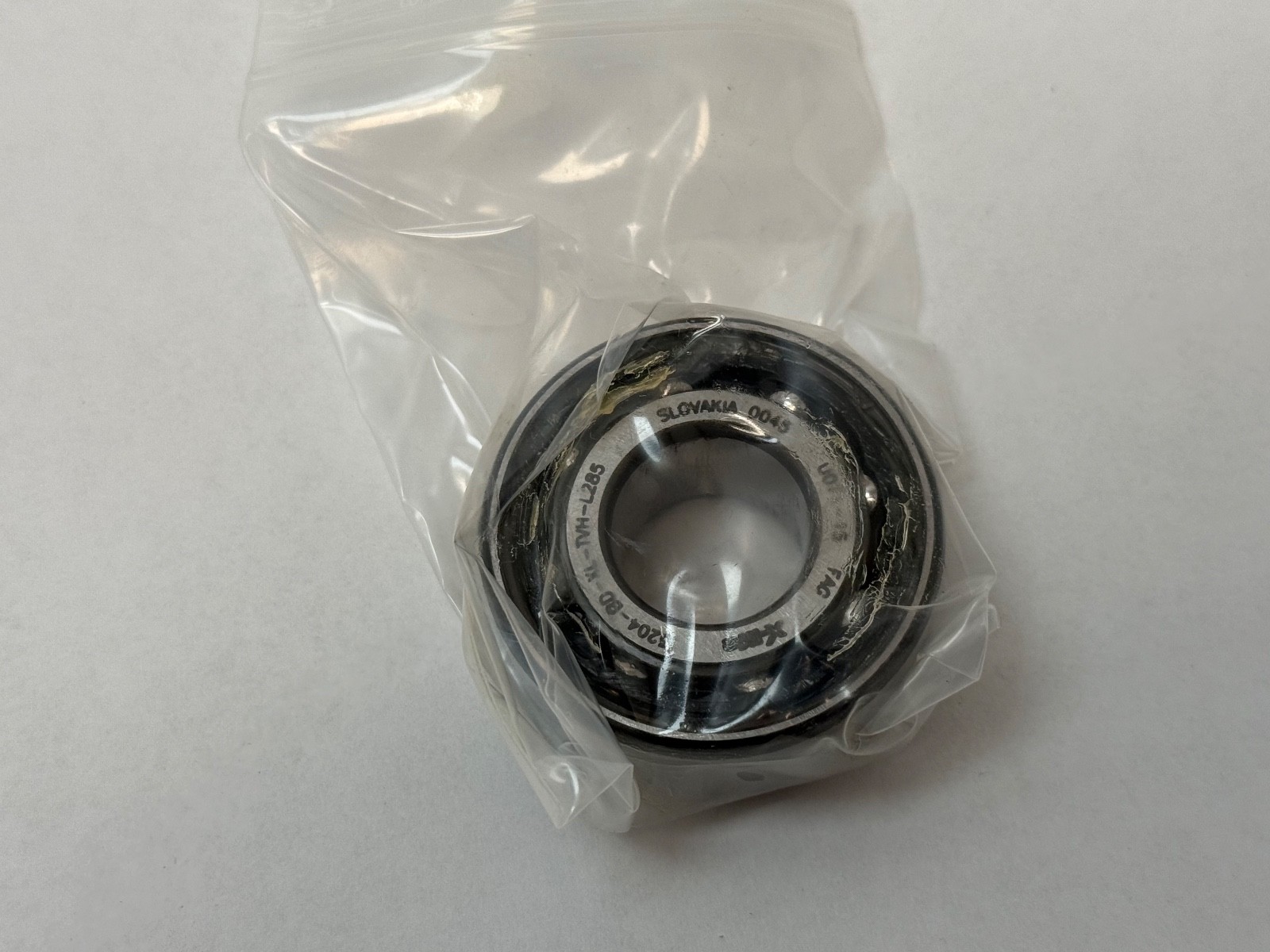

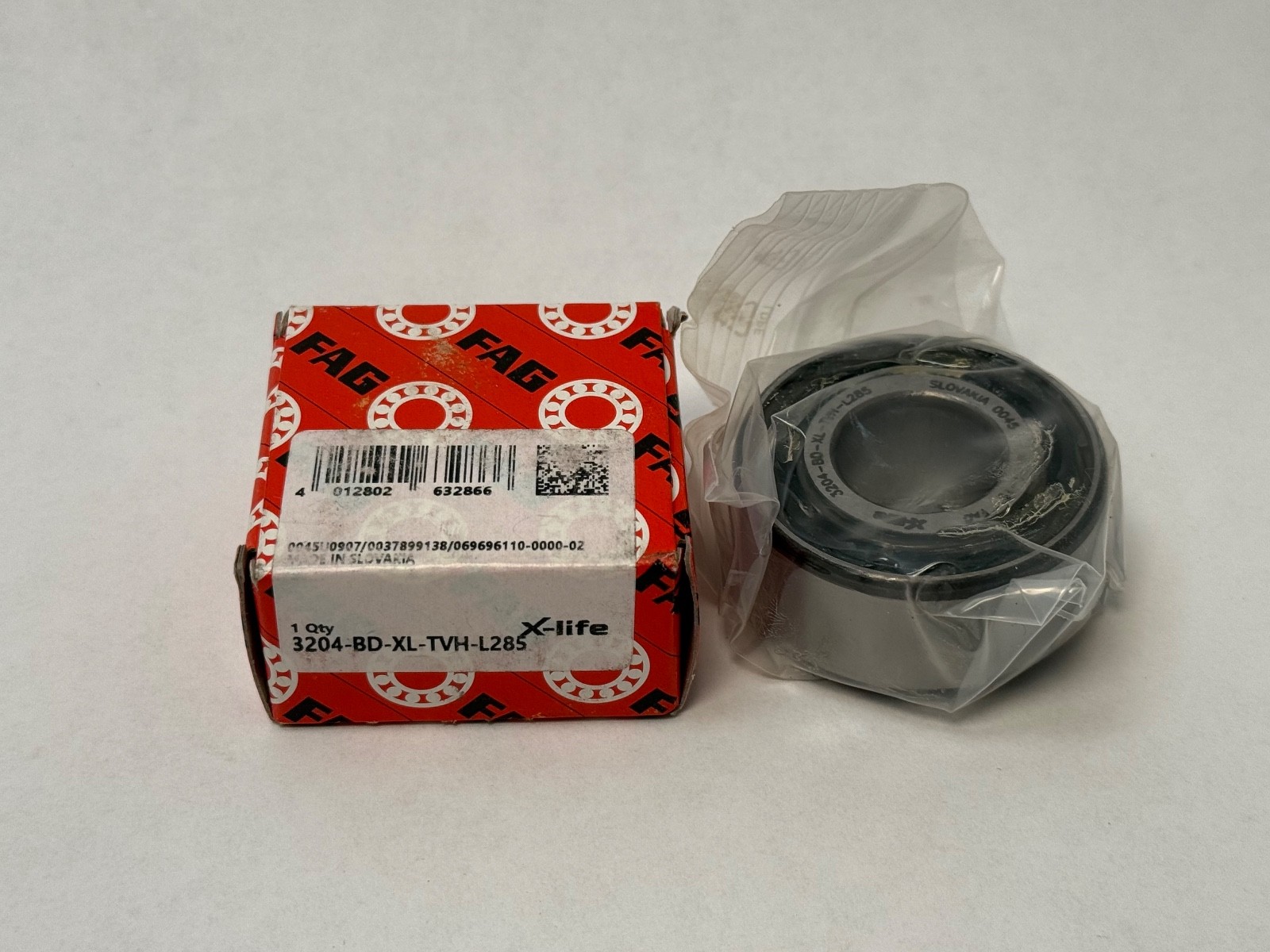

FAG 3204-BD-XL-TVH is a double-row angular contact ball bearing. Bore Diameter: 20 mm. Outside Diameter: 47 mm. Width: 20.6 mm (13/16 in). Contact Angle: 30°. Number Of Rows: 2. Closure Type: Open.
3204 — FAG’s number for the 32 double-row angular contact series, 20 x 47 x 20.6 mm.
B — the 30° contact angle design in this series.
XL — X-life execution, with raceway and surface quality raised over the earlier build at the same envelope.
TVH — glass-fibre reinforced polyamide one-piece snap cage.
5204 — the widely used industry equivalent number for this envelope and configuration.
Series: 32-BD. Base Number: 3204. Bore Type: Straight. Cage Material: Glass-fibre reinforced polyamide. Cage Type: One-piece snap cage. Internal Clearance: CN. Rolling Elements: Steel balls. Material: Chrome steel. Lubricant: Grease or oil. Dynamic Load Rating: 20.6 kN. Static Load Rating: 12.9 kN. Fatigue Load Limit: 870 N. Design Units: Metric. Unit Quantity: 1 Pc.
Bore Diameter: 20 mm. Outside Diameter: 47 mm. Overall Width: 20.6 mm (13/16 in). Straight bore and straight outside diameter. Two ball rows set at opposing 30° contact angles take radial load and thrust in both directions from a single bearing position.
Cross-References: SKF 3204 A-2Z (shielded version), NSK 3204B-TV, NTN 5204, Koyo 5204. Part number variants: 3204BDXLTVH, 3204 BD XL TVH, 3204B, 3204-B-TVH, 5204, 3204-BD-XL-TVH-L285.
Bore Diameter is 20 mm, Outside Diameter is 47 mm and Width is 20.6 mm (13/16 in).
Contact Angle is 30°. The cage is a one-piece snap cage in glass-fibre reinforced polyamide.
Dynamic Load Rating is 20.6 kN, Static Load Rating is 12.9 kN and Fatigue Load Limit is 870 N.
