Double direction axial angular contact ball bearing, 180 x 280 x 120 mm, 60° contact angle, brass cages. Dynamic axial 237 kN, static axial 880 kN.
List Price
$4,044.16
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 234436-M-SP |
| GTIN | 644075207805 |
| Model | 234436M.SP 234436M1/SP 180TAD20 234436MSP 234436BMSP DT136 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 180 mm |
| OD | 280 mm |
| Width | 120 mm |
| Series | 2344 (axial angular contact, double direction) |
|---|---|
| Base Number | 234436 |
| Application Types | Machine tool ball screw and lead screw supports, CNC axis drives, vertical turning and boring spindles, press and injection moulding screw drives, heavy positioning axes |
| Bore Shaft Size | 180 mm (7.0866 in) |
| Mpn Variants | 234436-M-SP, 234436M-SP, 234436MSP, 234436.M.SP, 234436 M SP, 234436-MS-P, 234436M, 234436, 234436-M-SP-FAG |
| Manufacturer Status | FAG is a Schaeffler Group brand; the 2344 axial angular contact range remains in current production |
| Compatible With Replaces | Machine tool ball screw support and vertical spindle thrust positions specified for a 234436 envelope double direction axial angular contact bearing |
| Precision Class | SP, restricted tolerances |
| Cage Type | Machined solid |
| Dynamic Load Rating | 237,000 N |
| Static Load Rating | 880,000 N |
| Rolling Elements | Ball |
| Item Weight | 23.549 kg |
| Cage Material | Brass |
| Number Of Rows | 2, opposed (double direction) |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 60° |
| Part Number | 234436-M-SP |
| Limiting Speed | 2,000 rpm grease; 3,000 rpm oil |
| Common Misspellings | FAG 234436 MSP; FAG 234436M-SP; Fag 234436-MS-P; FAG 234 436 M SP |

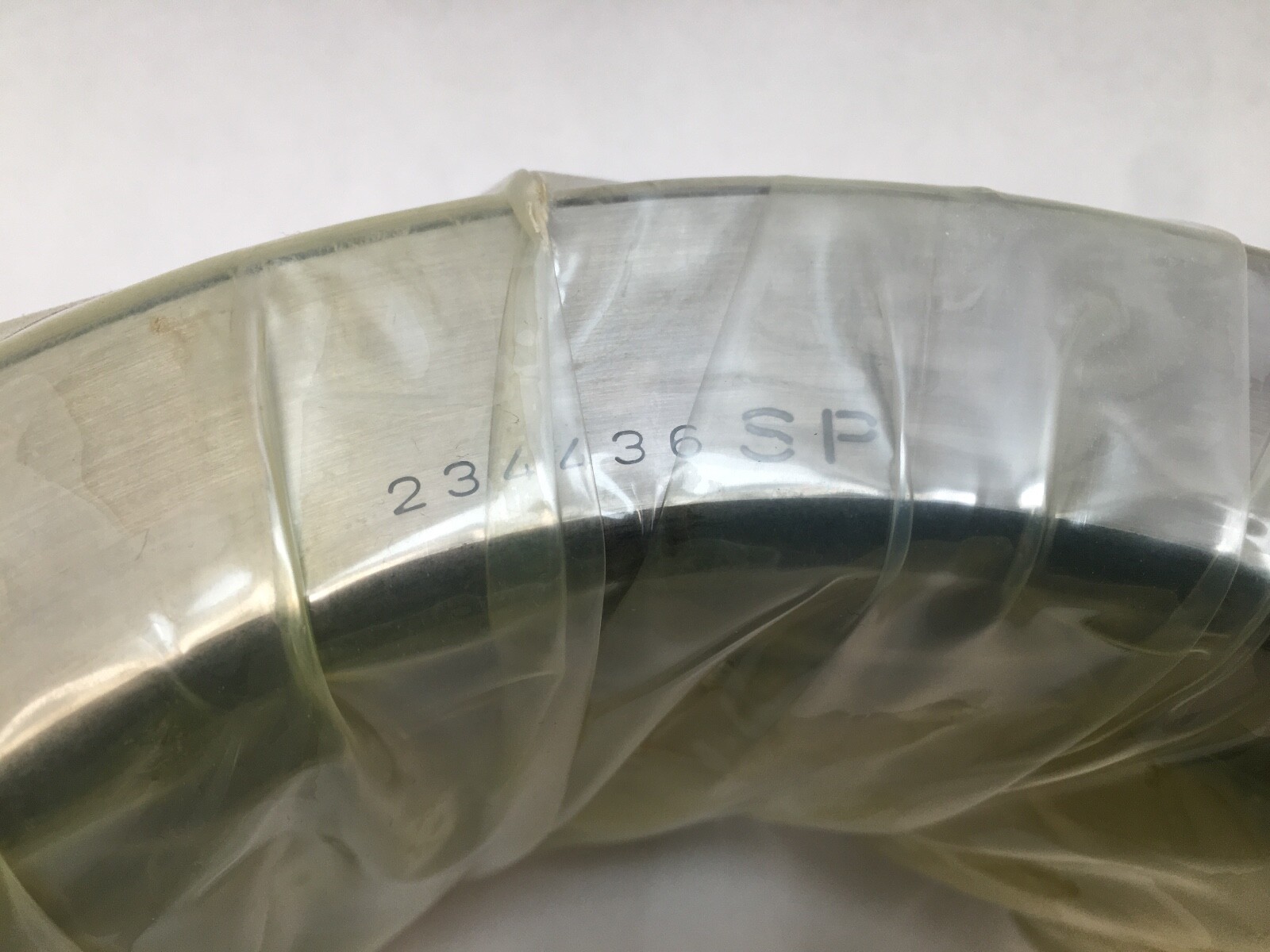

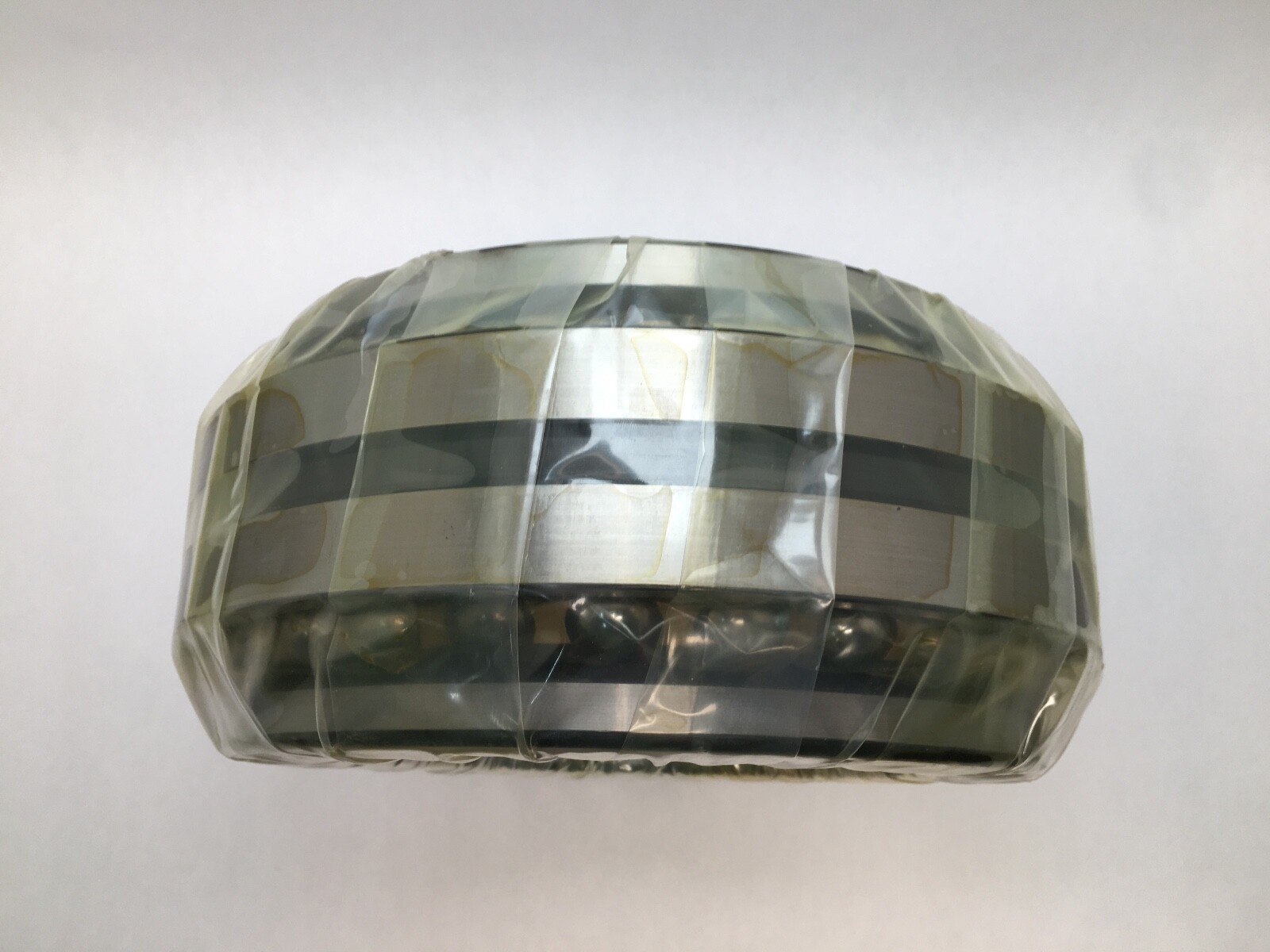

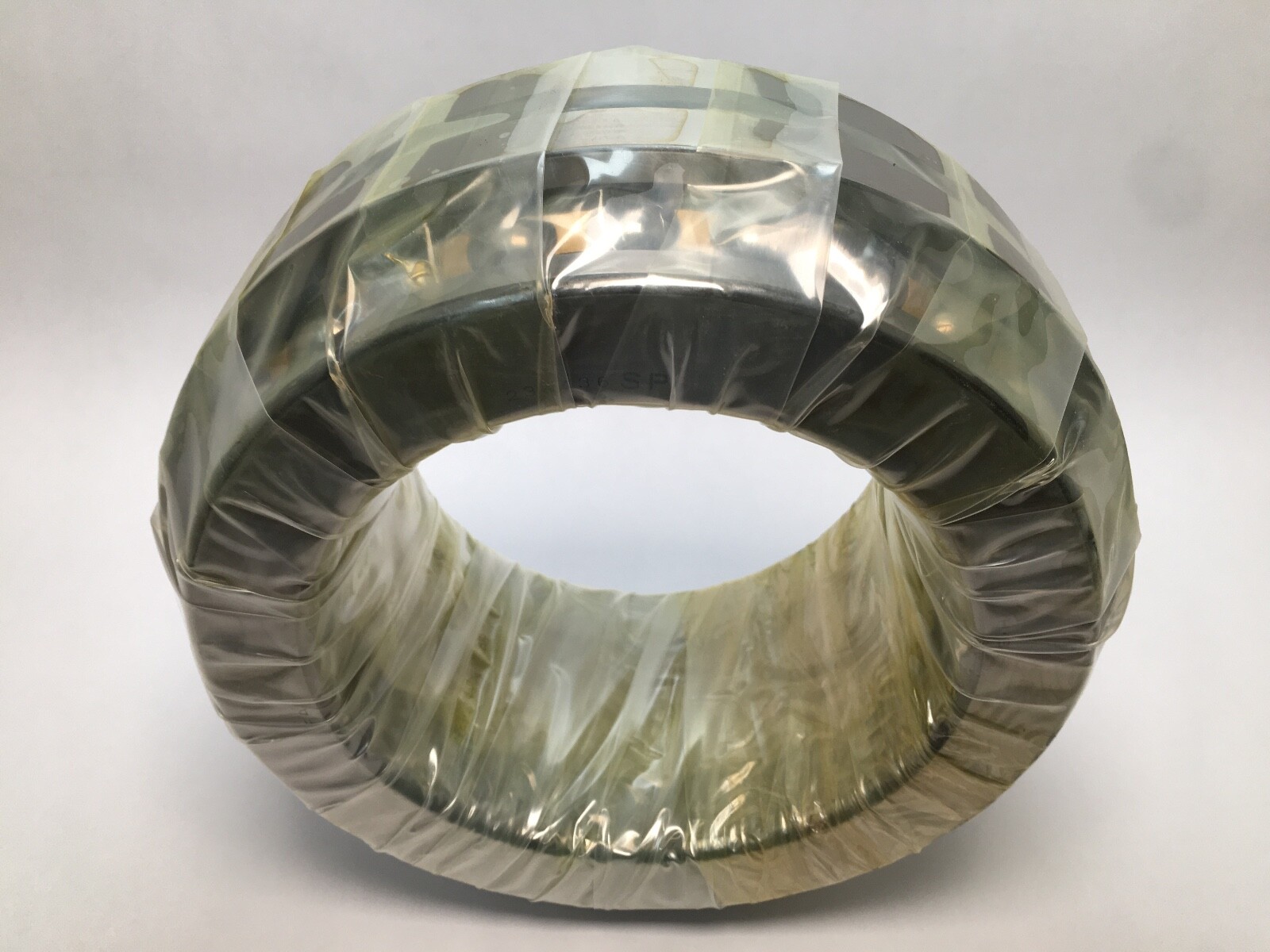

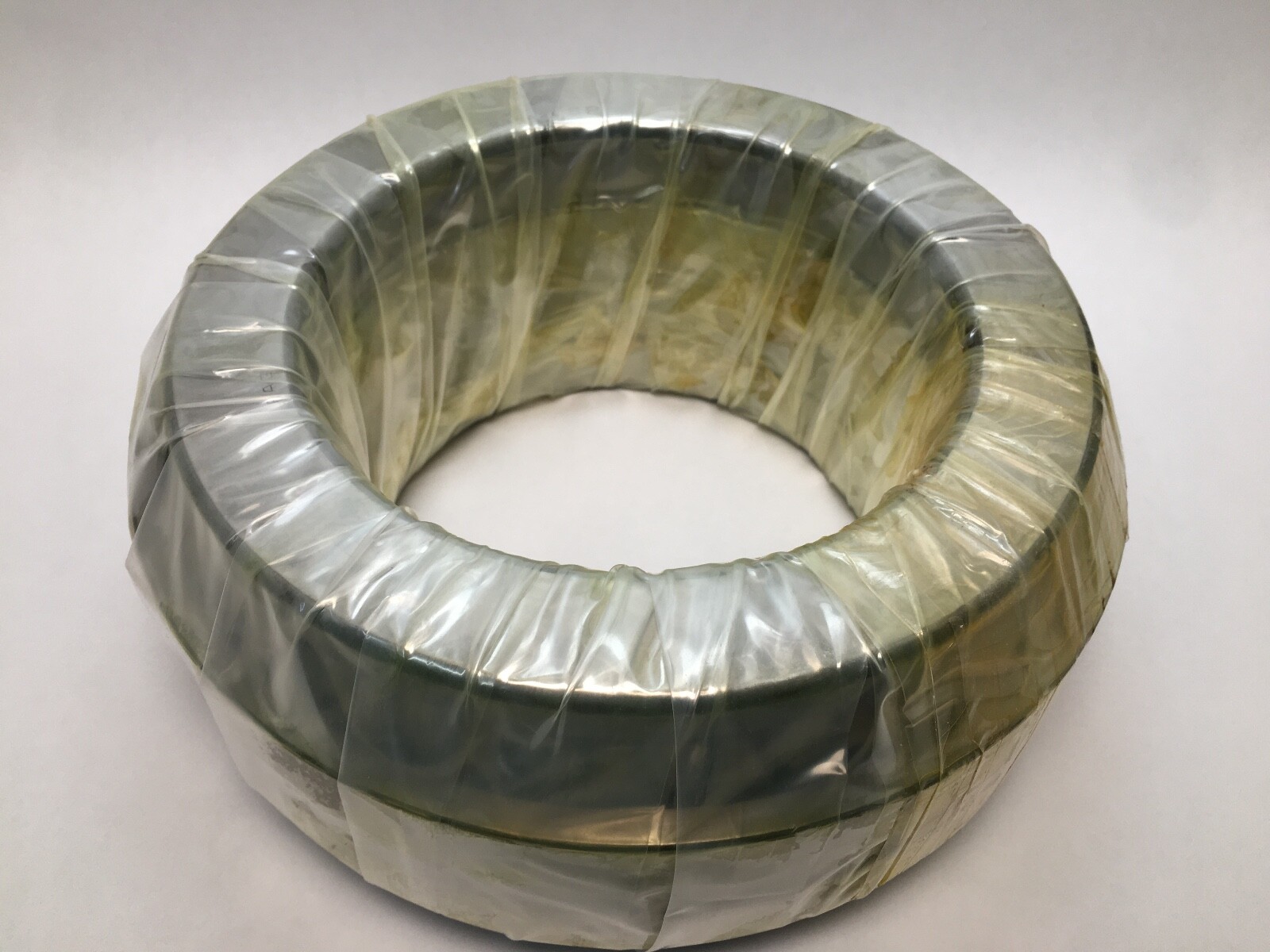

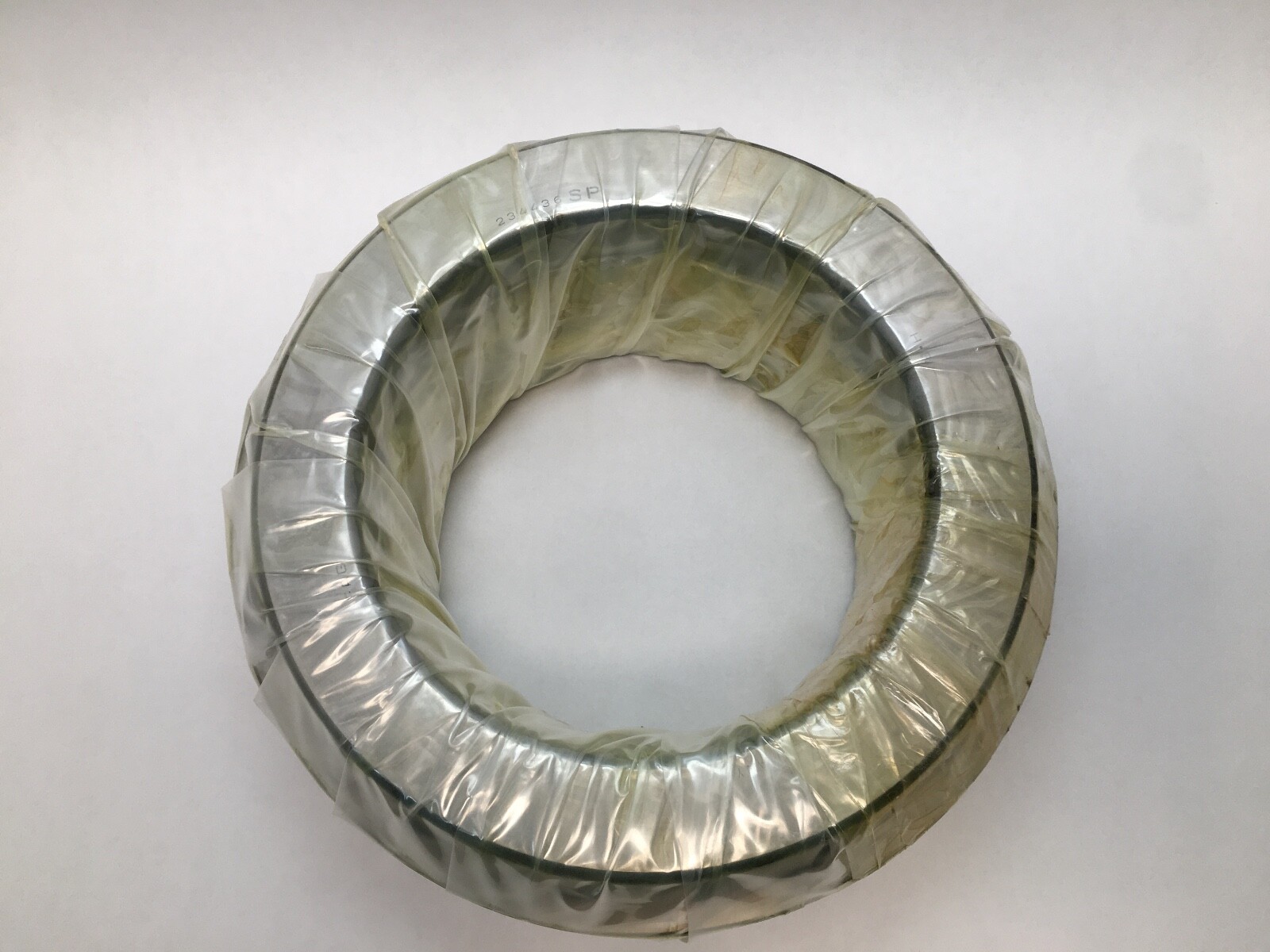

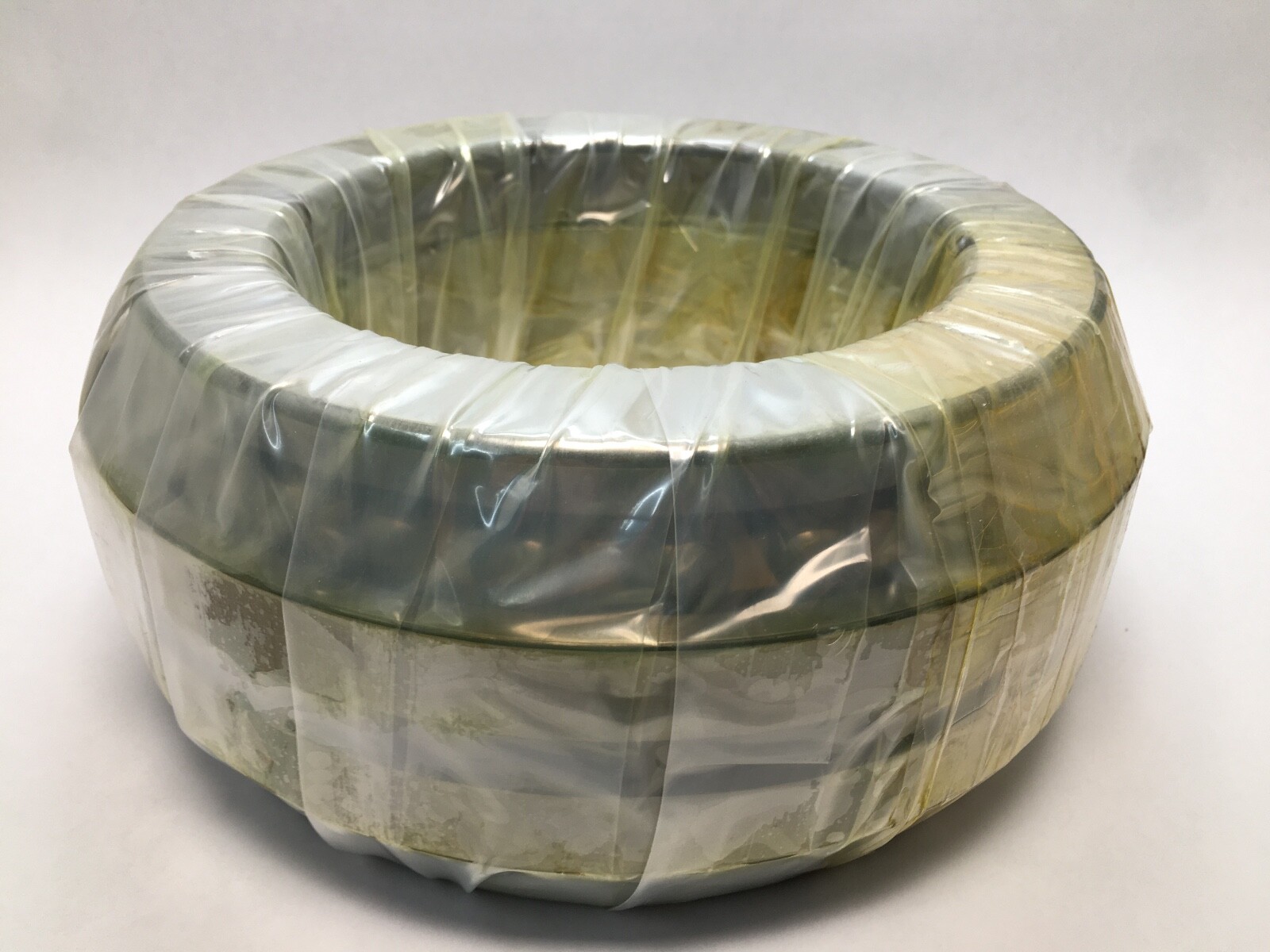

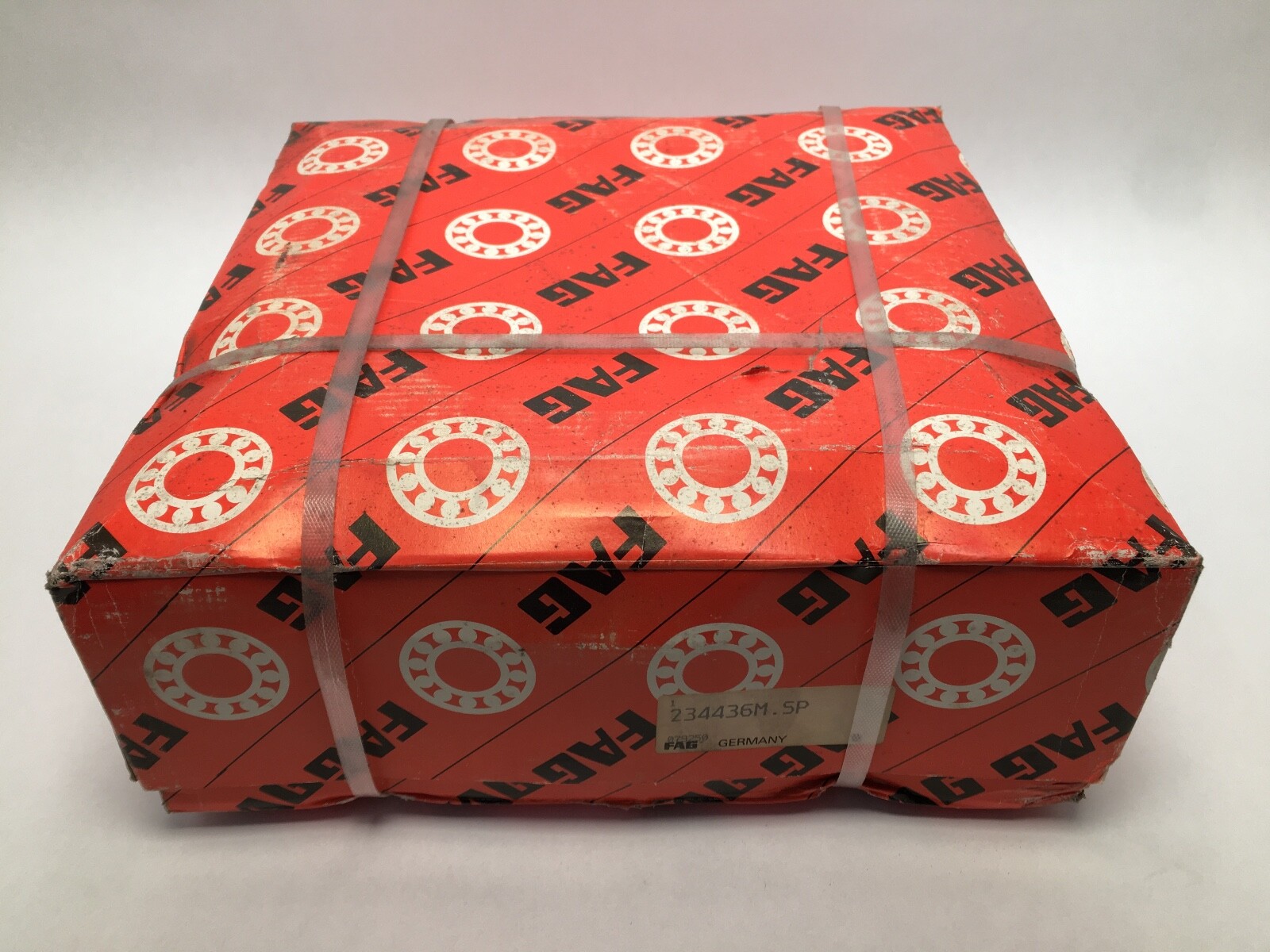

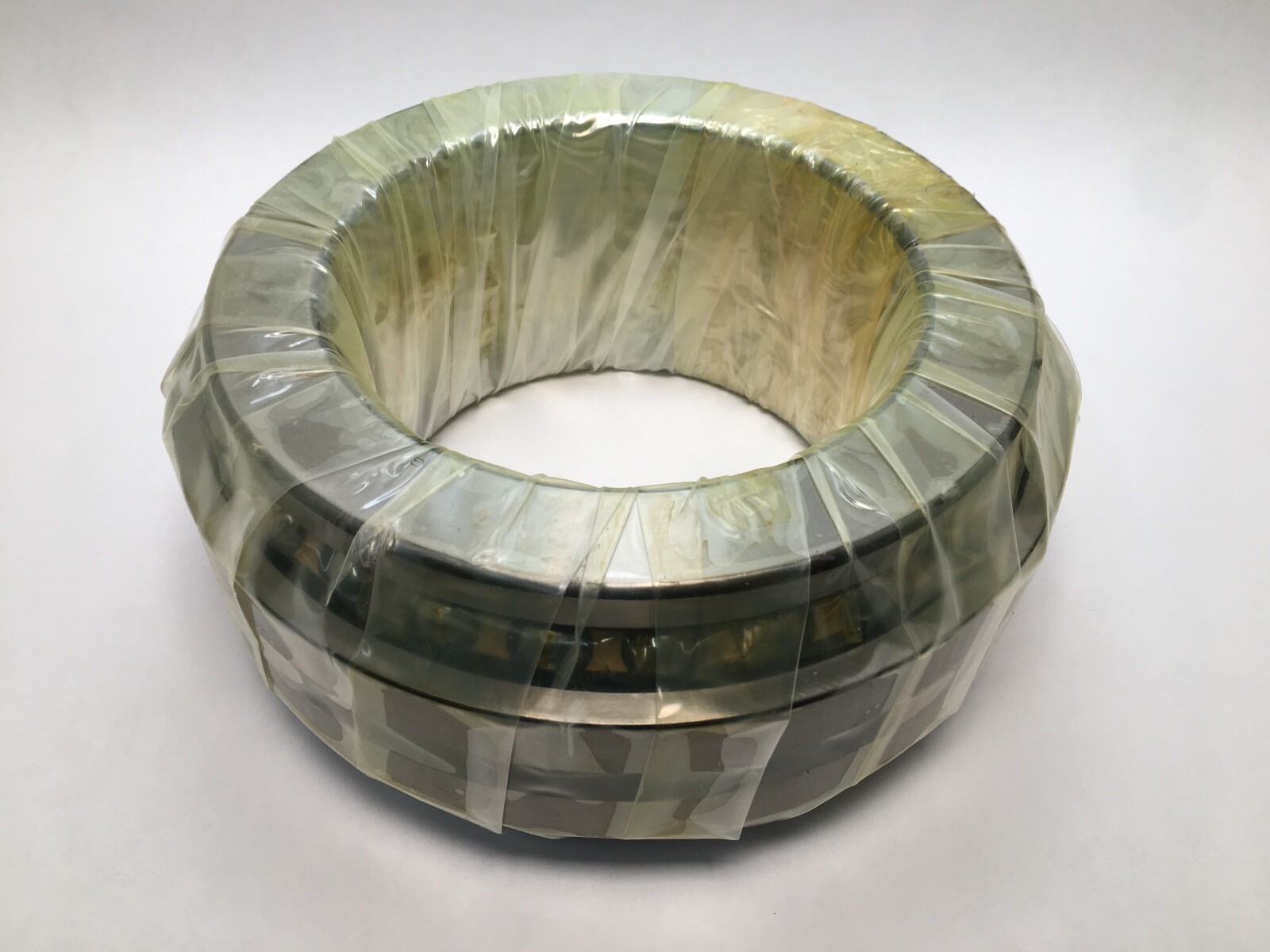

FAG 234436-M-SP double direction axial angular contact ball bearing, separable, restricted tolerances (SP). Bore 180 mm, outside diameter 280 mm, overall height 120 mm. Two opposed rows of balls at a 60° contact angle with machined solid brass cages. One complete bearing unit: two shaft locating washers, a spacer ring, a housing locating washer and two ball and cage assemblies. Unit Quantity: 1 Pc. Used for ball screw supports and main spindle thrust positions.
2344 — FAG double direction axial angular contact ball bearing series.
36 — bore code, 36 x 5 = 180 mm.
M — machined solid brass cages.
SP — special precision, restricted tolerances.
Bore Diameter: 180 mm. Outside Diameter: 280 mm. Overall Height: 120 mm. Contact Angle: 60°. Number Of Rows: 2, opposed. Rolling Elements: Ball. Cage Material: Brass. Cage Type: Machined solid. Precision Class: SP, restricted tolerances. Dynamic Load Rating (axial): 237,000 N. Static Load Rating (axial): 880,000 N. Fatigue Load Limit (axial): 53,000 N. Limiting Speed: 2,000 rpm grease; 3,000 rpm oil. Item Weight: 23.549 kg. GTIN: 4012801487924. Country of Origin: Germany.
Bore 180 mm, outside diameter 280 mm, height 120 mm. Both axial load directions are carried inside the one unit by the opposed rows. The washers and spacer are ground as a set.
Within FAG, 234436-BM1-SP and 234436-M-SP-2Z are execution variants on the same envelope. Searchable variants of the designation: 234436-M-SP, 234436M-SP, 234436MSP, 234436.M.SP, 234436 M SP. CAD model and data sheet: available from Schaeffler (FAG).
Bore 180 mm, outside diameter 280 mm, overall height 120 mm.
60° contact angle with machined solid brass cages.
Dynamic axial load rating 237,000 N and static axial load rating 880,000 N (FAG data via authorised distributor Acorn Industrial).
