Availability:
3 in stock

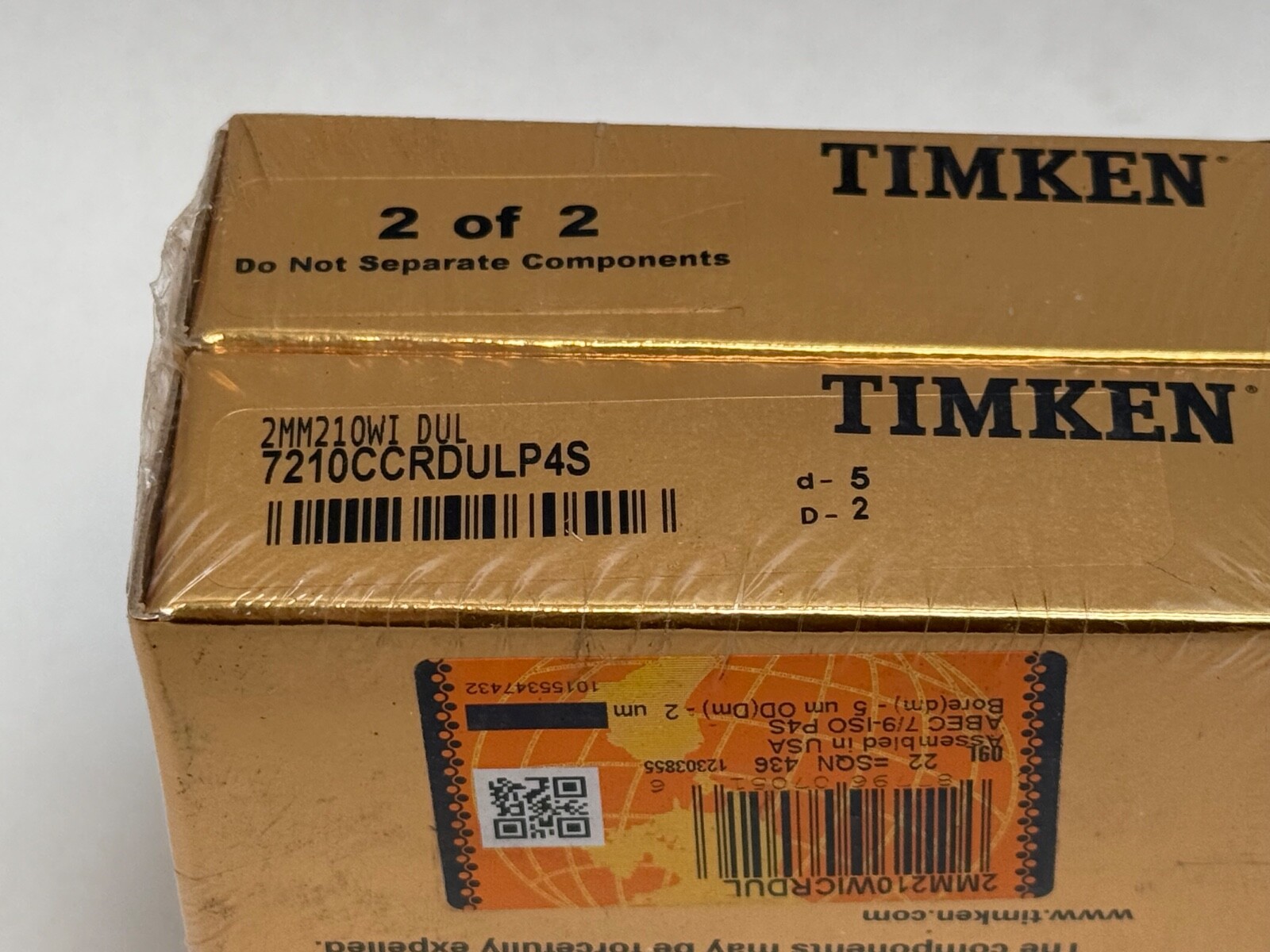

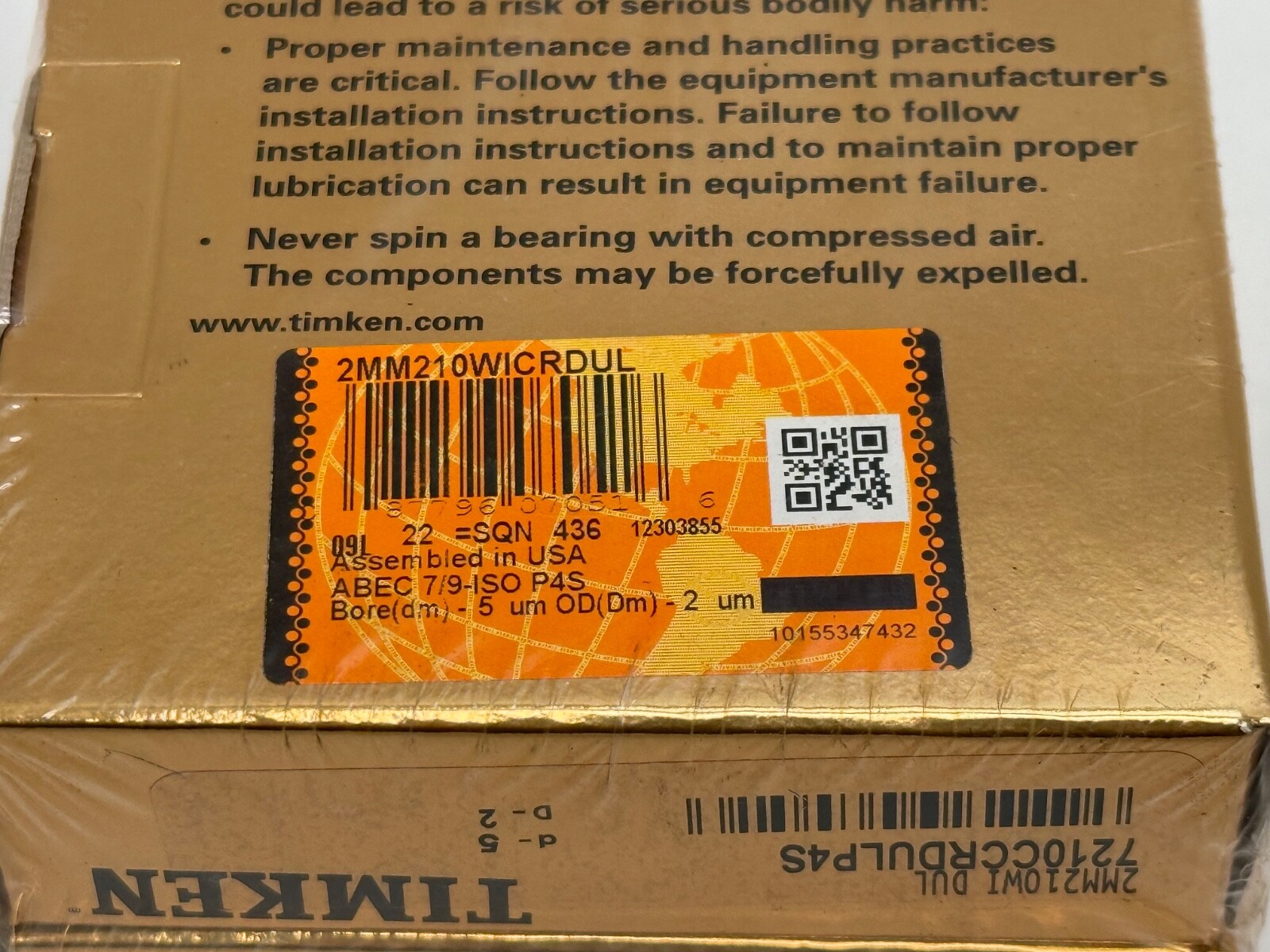

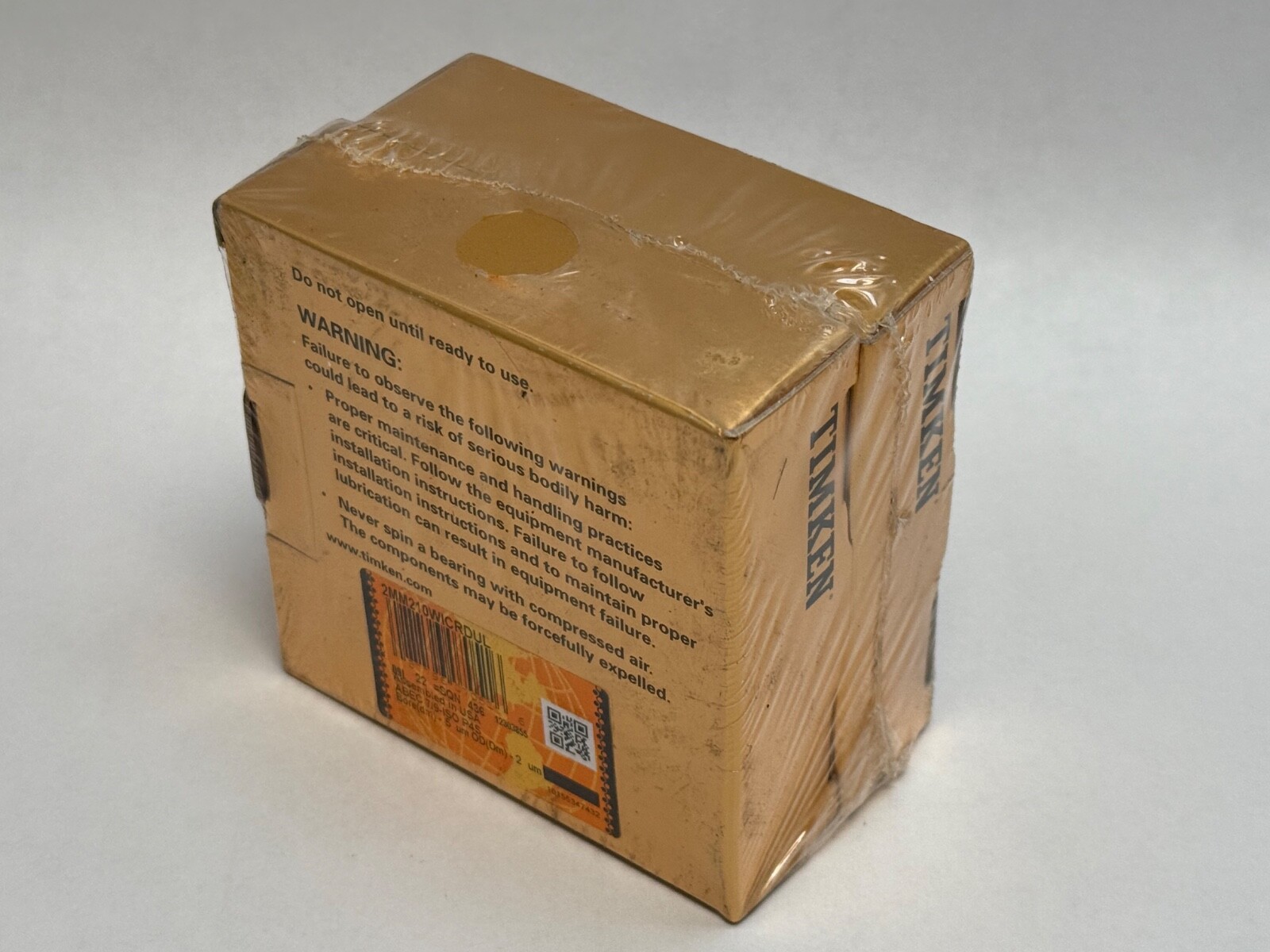

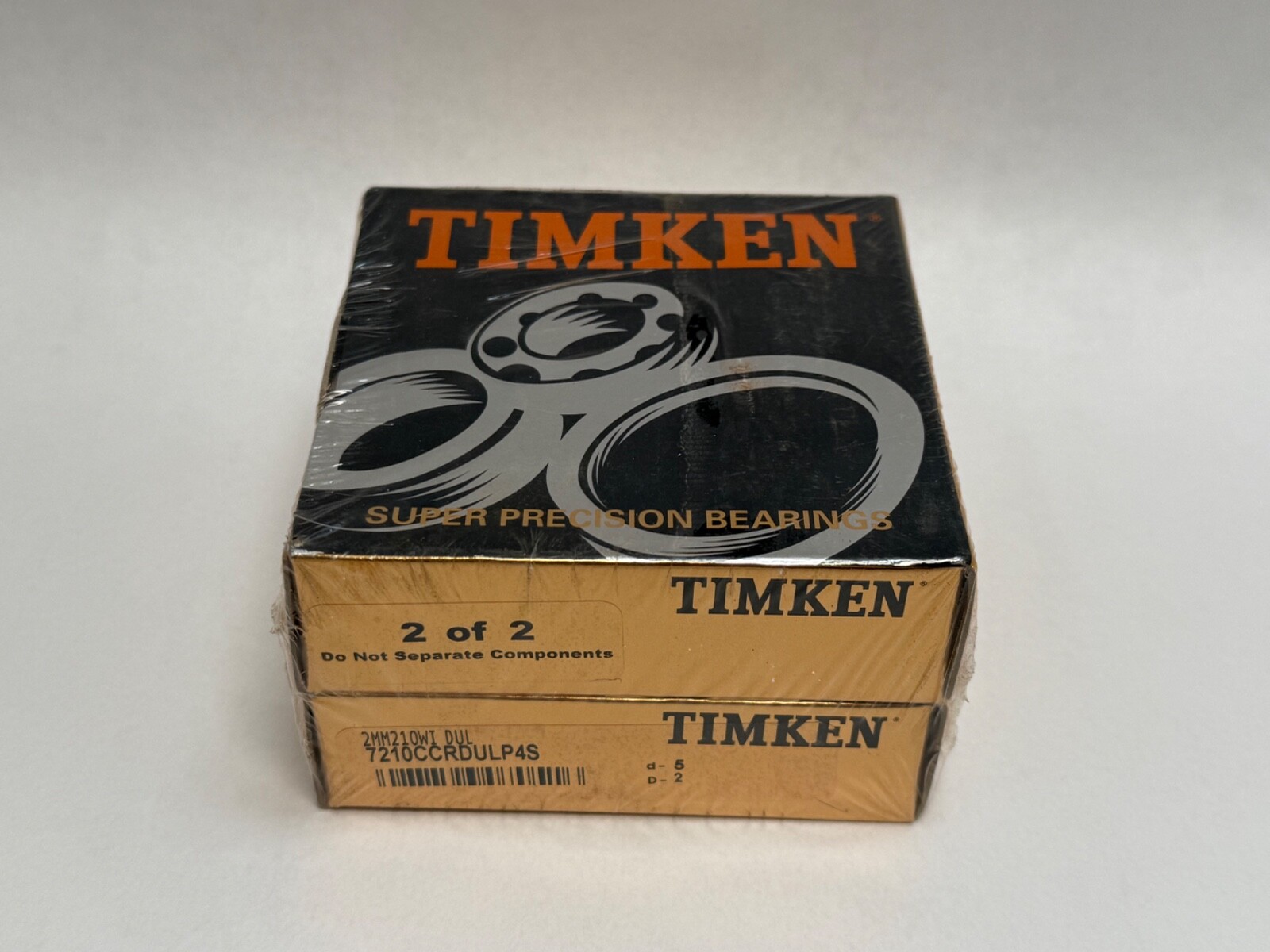

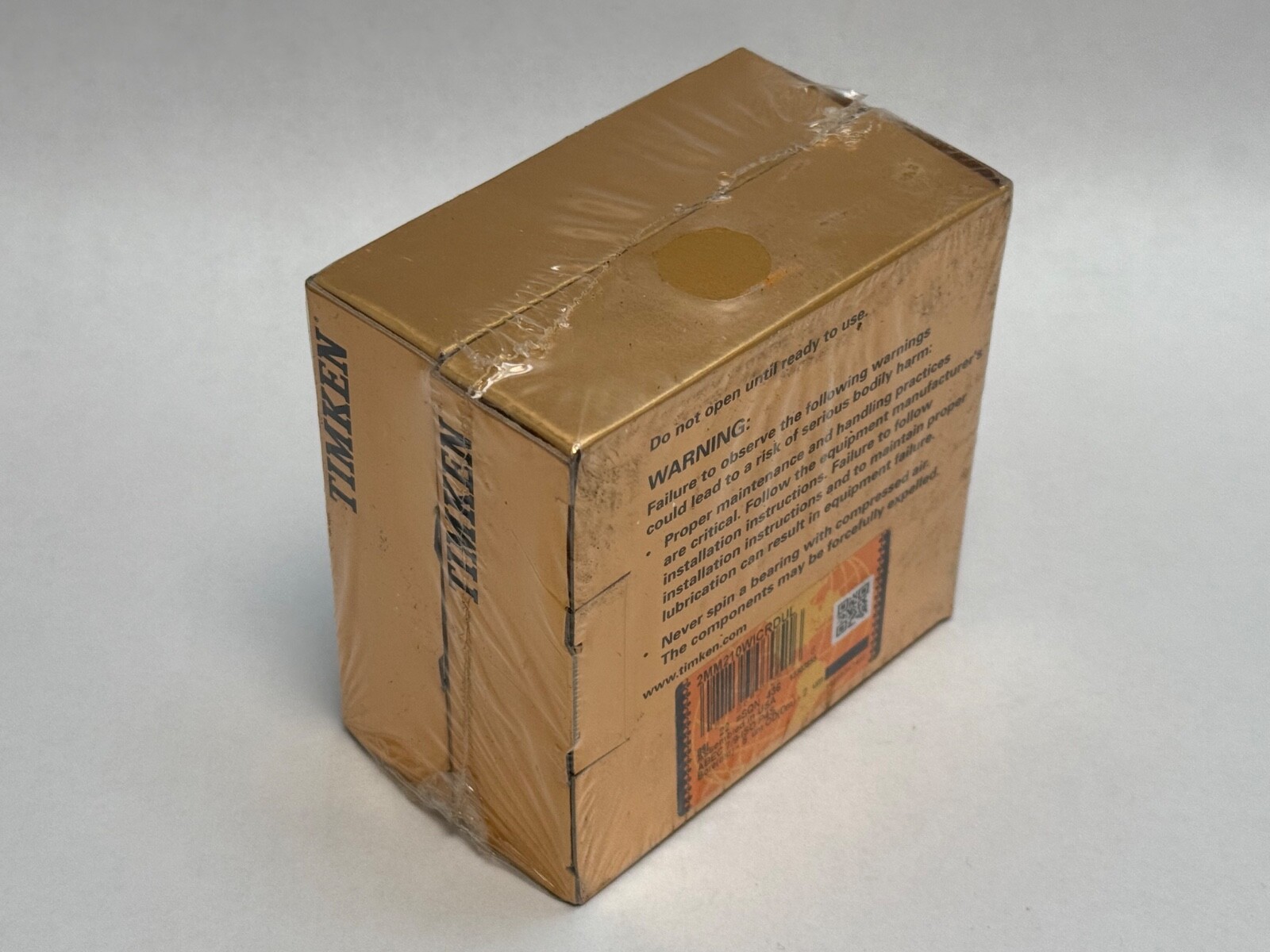

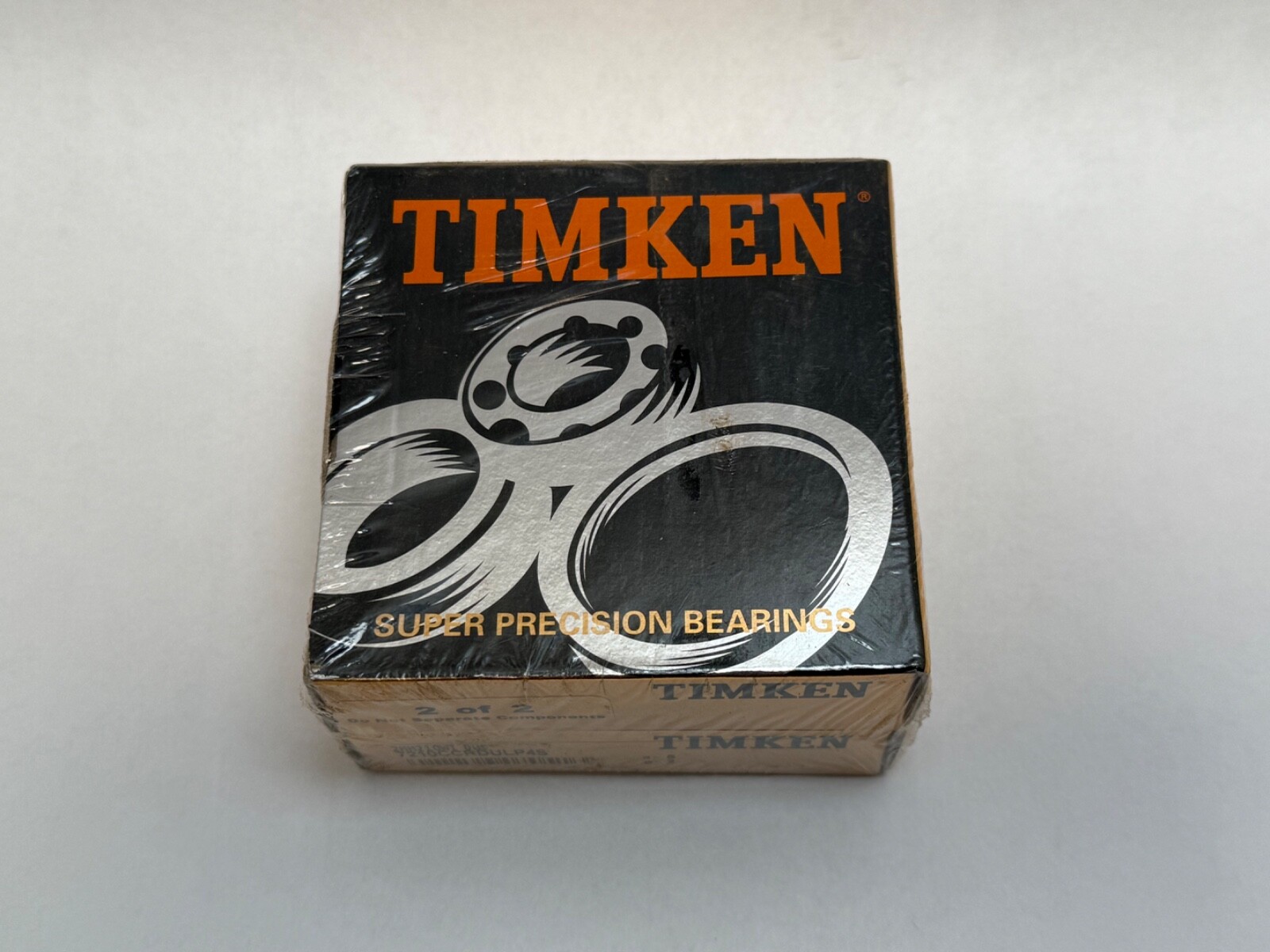

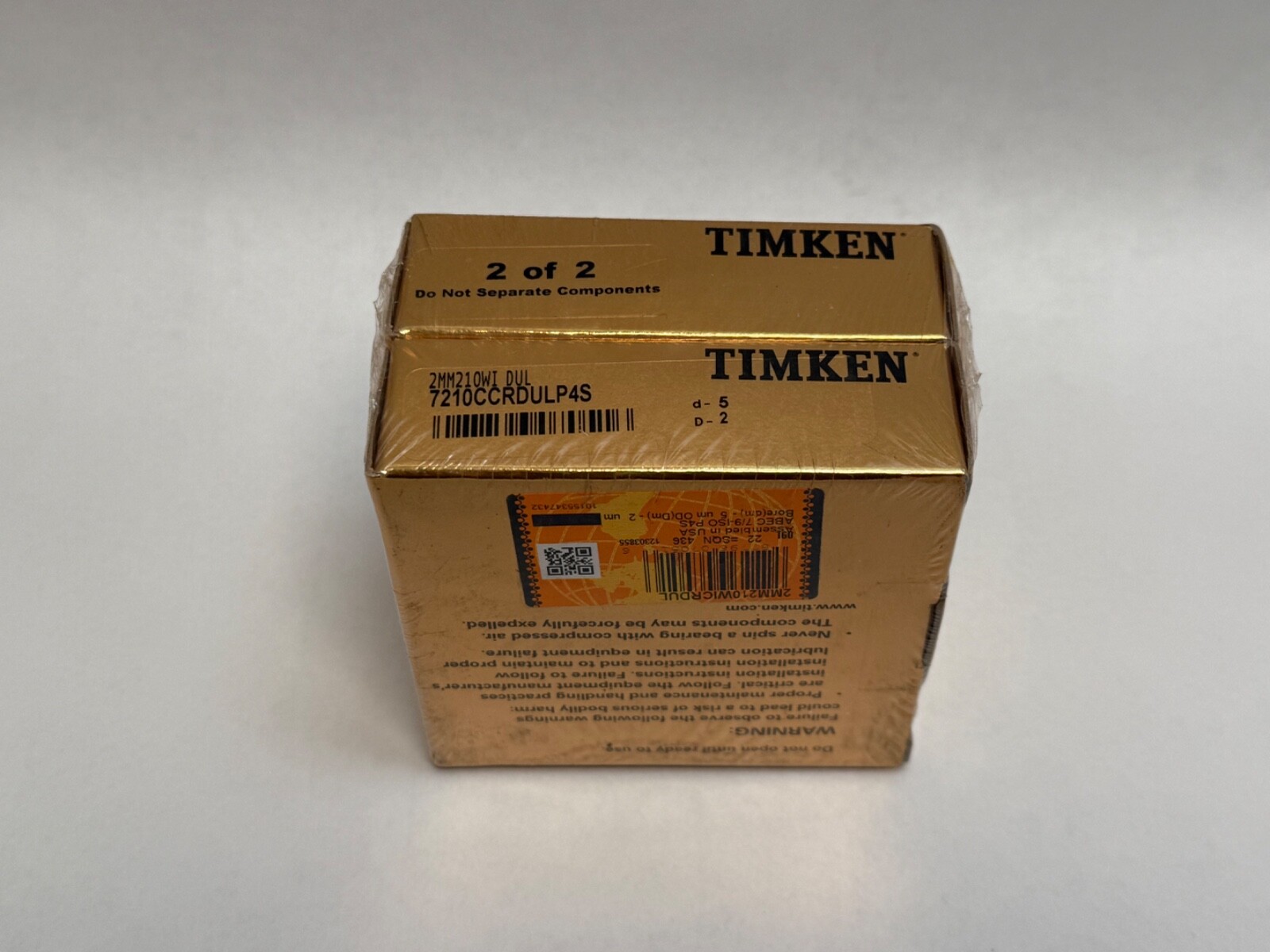

Angular contact ball bearing pair, 50 x 90 x 20 mm, 15°, Light preload, ABEC 7 / P4. Timken Fafnir 2MM210WIDUL duplex set, phenolic cage, C1 47,400 N.
List Price
$264.87
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | 7210CCRDULP4S |
| Model | 7210 C CR DUL P4S / 2MM 210 WI CR DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 50 mm |
| OD | 90 mm |
| Width | 20 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Series | 7200 Series |
| Condition | New |
| Lubricant | Preserved |
| Preload | Light |
| Overall Width | 20 mm |
| Mpn Variants | 2MM210WIDUL, 2MM210WICRDUL, 2MM 210 WI CR DUL, 7210CCRDULP4S, 7210-C-CR-DUL-P4S |
| Precision Class | ABEC 7 / P4 |
| Closure Type | Open |
| Dynamic Load Rating | 47,400 N |
| Static Load Rating | 31,700 N |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Duplex universal (DU) |
| Cross Reference 1 | SKF 7210 CD/P4ADGA |
|---|---|
| Cross Reference 2 | NSK 7210CTYNDULP4 |
| Cross Reference 3 | FAG B7210-C-T-P4S-DUL |
Timken Fafnir 2MM210WIDUL super-precision angular contact ball bearing, matched duplex pair with Light preload. Bore Diameter: 50 mm. Outside Diameter: 90 mm. Overall Width: 20 mm per bearing. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Preload: Light. Cage Material: Phenolic. Closure Type: Open. Rolling Elements: Ball. Series: 7200 (ISO 7210 size).
2MM — Fafnir super-precision spindle bearing, 15° contact angle, ABEC 7 / ISO P4 tolerances.
210 — 200 series size, the ISO 7210 envelope, 50 x 90 x 20 mm.
WI — low shoulder on both rings, the Fafnir duplex construction.
CR — phenolic cage.
DU — duplex universal: two bearings flush-ground as a matched set, mountable back-to-back, face-to-face or tandem.
L — Light preload.
Dynamic Load Rating (C1): 47,400 N per bearing. Static Load Rating (C0): 31,700 N per bearing. The 15° contact angle favours speed and radial stiffness; Light preload keeps heat generation low at high spindle speeds.
Unit Quantity: 2 Pcs. One matched duplex pair, Light preload.
Cross-Reference 1: SKF 7210 CD/P4ADGA (15°, P4, light preload universal pair). Cross-Reference 2: NSK 7210CTYNDULP4 (15°, P4, light preload pair, polyamide cage). Cross-Reference 3: FAG B7210-C-T-P4S-DUL (15°, light preload pair, P4S class). MPN Variants: 2MM210WIDUL, 2MM210WICRDUL, 2MM 210 WI CR DUL, 7210CCRDULP4S, 7210-C-CR-DUL-P4S.
$760.47
16 in stock
