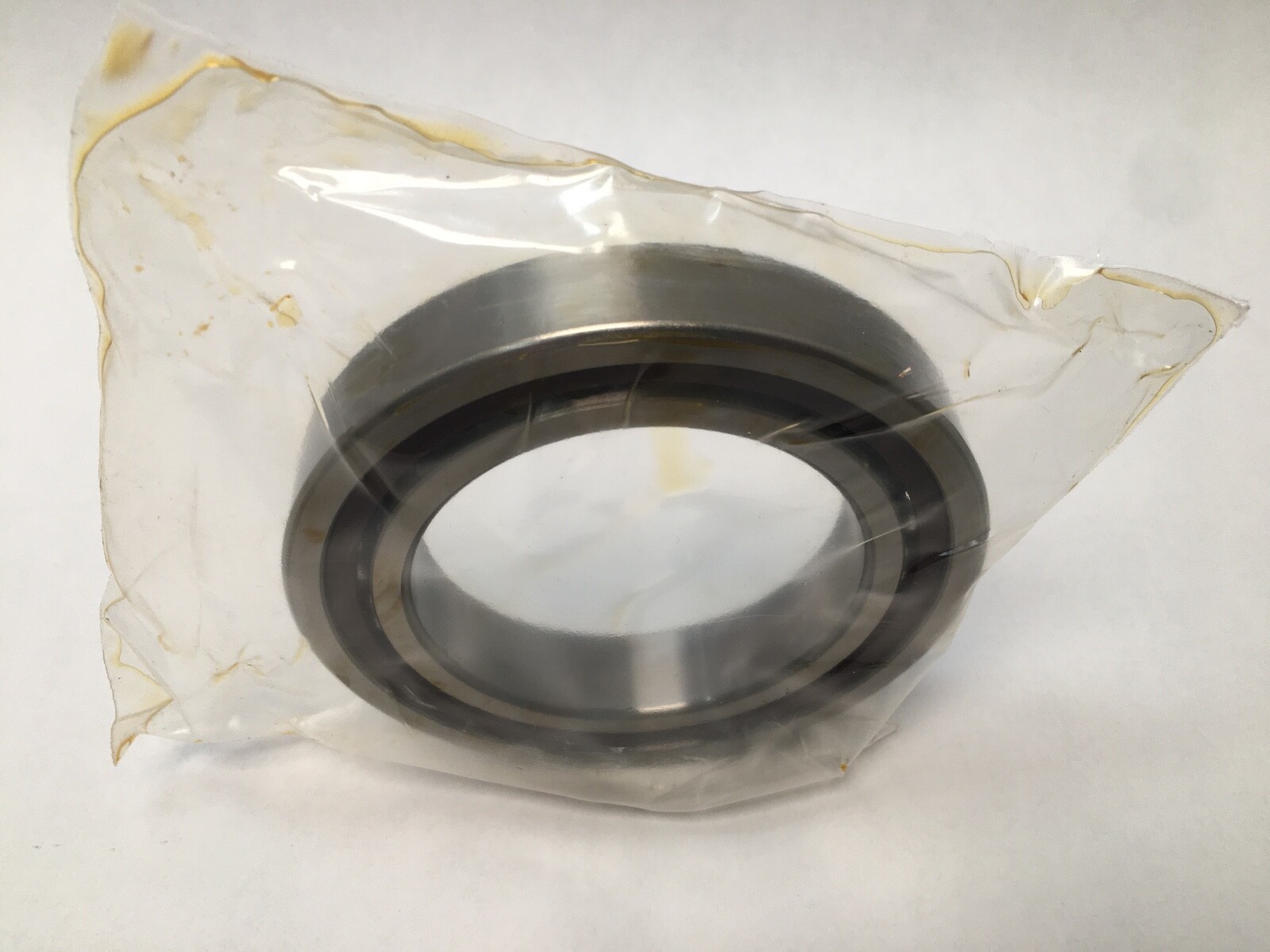

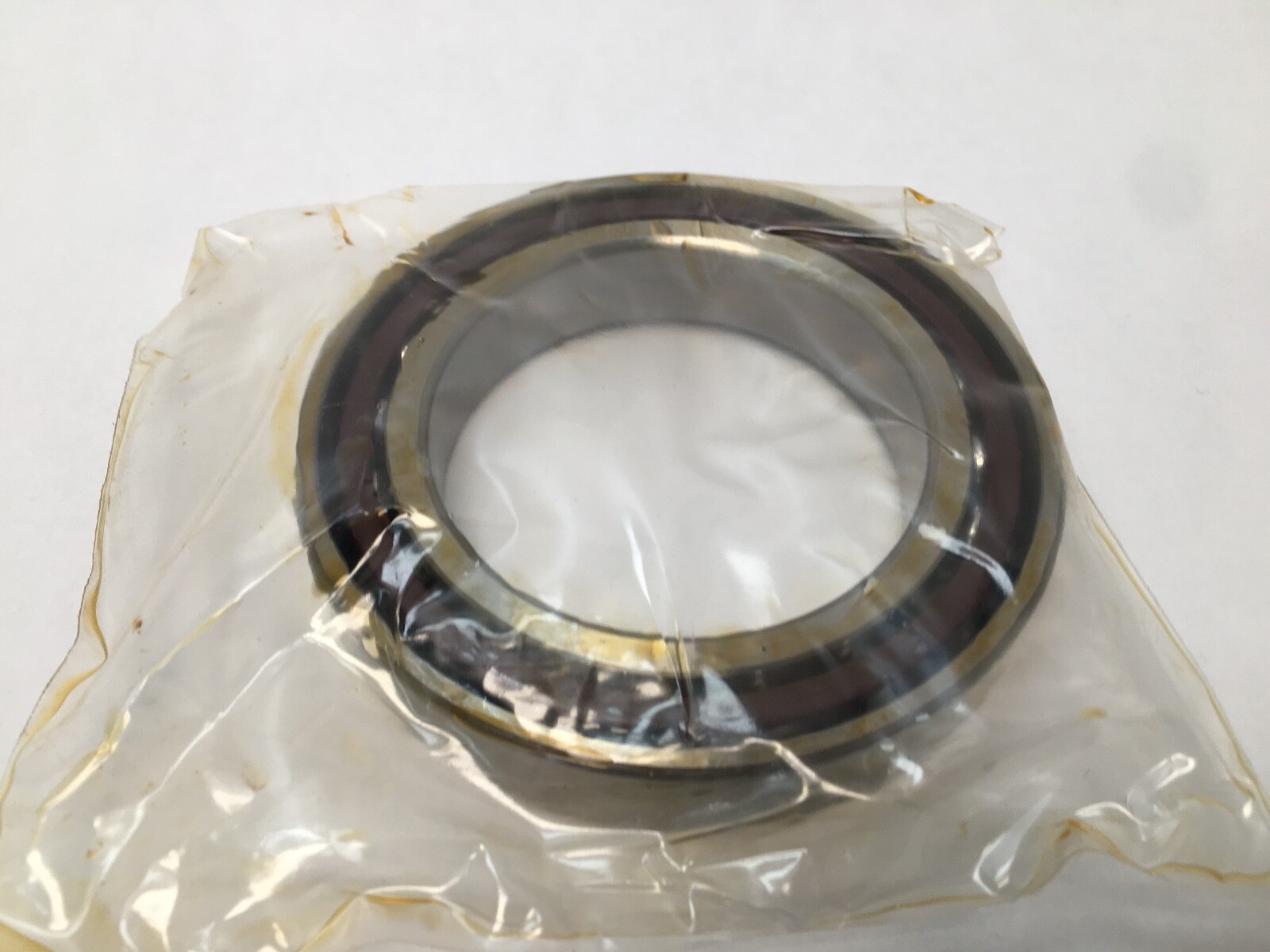

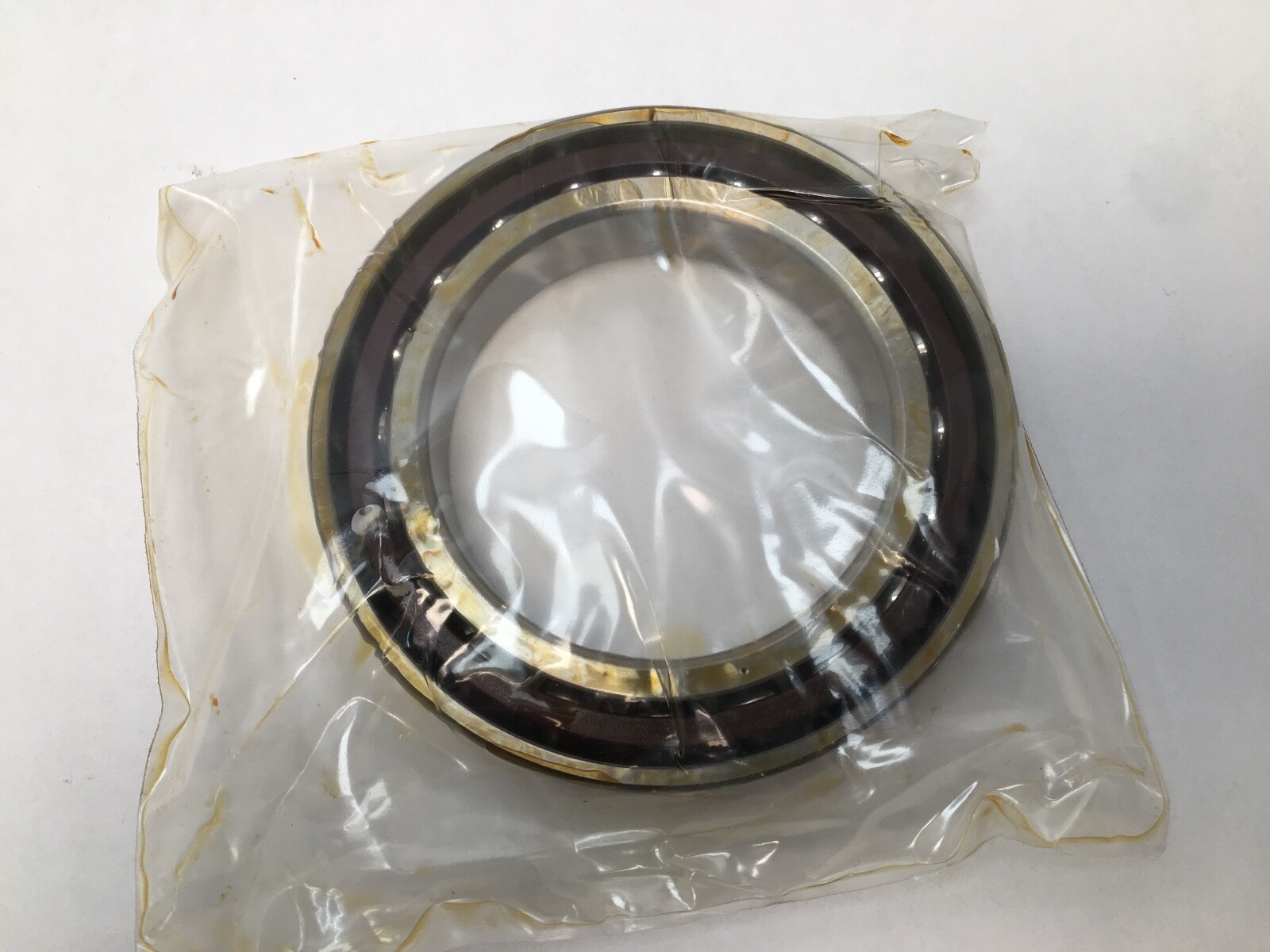

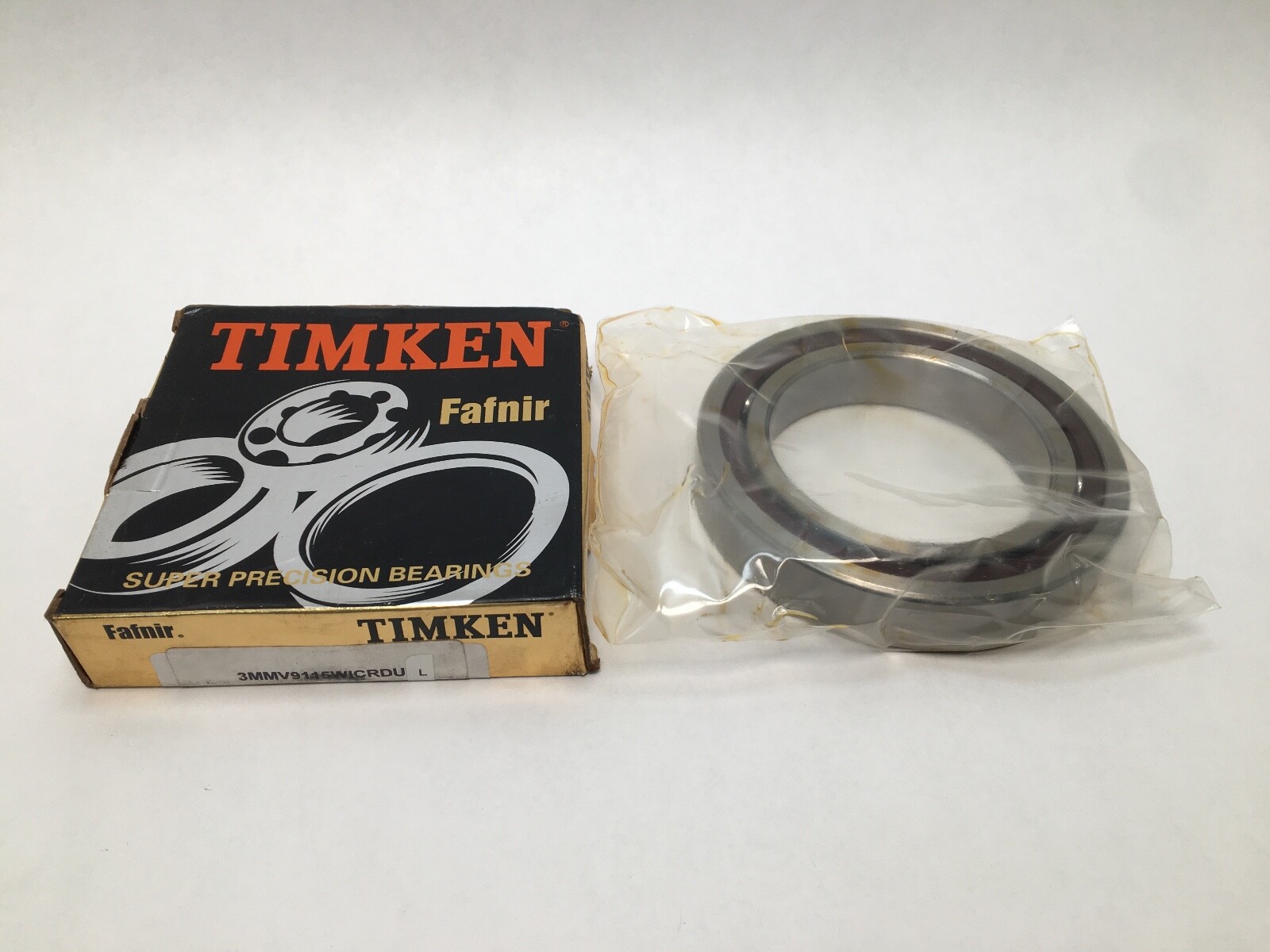

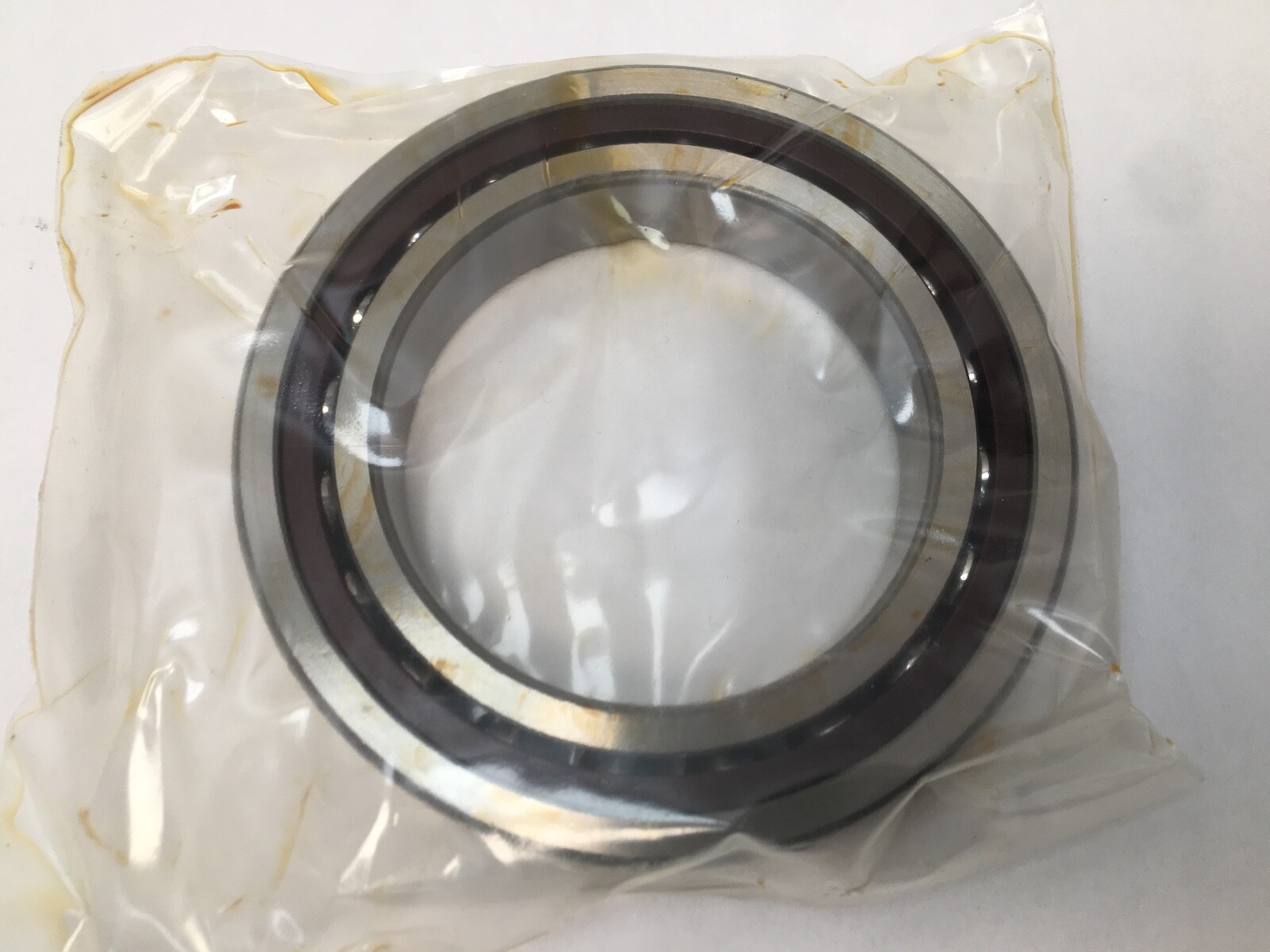

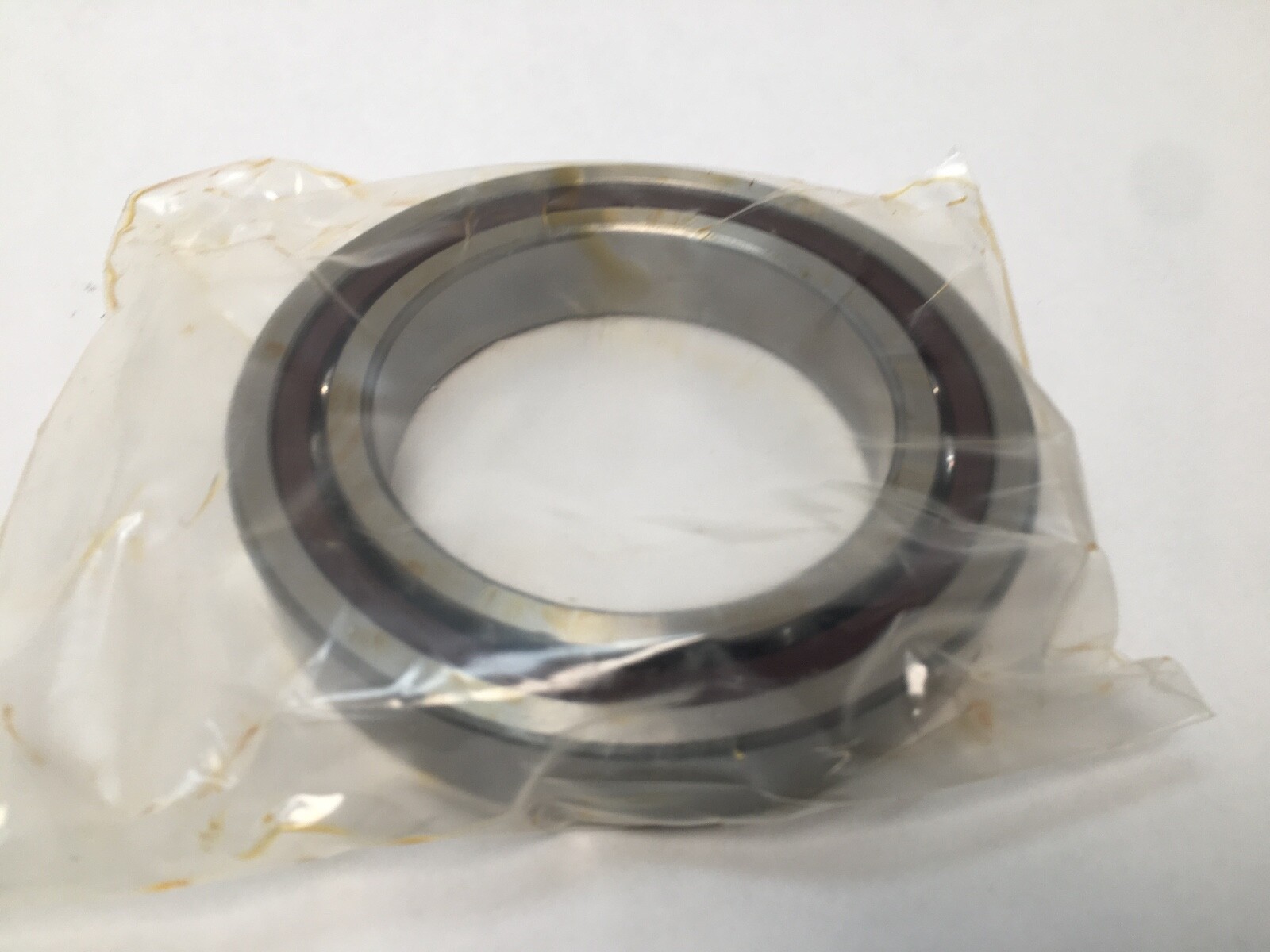

Super precision angular contact ball bearing, 75 x 115 x 20 mm, 25° contact angle, light preload, phenolic cage, ABEC 7/9. Universally matchable single.
List Price
$132.23
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | 3MMV9115WI SUL |
| Model | 7015-C 3MMV 9115 WI CR SUL ABEC7 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 75 mm |
| OD | 115 mm |
| Width | 20 mm |
| Material | Bearing Steel |
|---|---|
| Series | 9100WI |
| Preload | Light |
| Base Number | 9115 |
| Overall Width | 20 mm |
| Mpn Variants | 3MMV9115WI-CR-SUL; 3MMV9115WISUL; 3MMV-9115-WI-CR-SUL; 3MMV 9115 WI CR SUL; 3MM9115WICRSUL; 7015E-T-P4S-SUL |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Max Housing Fillet Radius: 1 mm; Shaft Backing Shoulder Diameter: 82.7 mm; Housing Backing Shoulder Diameter: 107.3 mm |
| Closure Type | Open |
| Dynamic Load Rating | 48,900 N |
| Static Load Rating | 41,200 N |
| Precision Rating | ISO P4S (ABEC 7/9) |
| Rolling Elements | Ball |
| Item Weight | 0.64 kg (1.41 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 11,000 rpm grease; 19,800 rpm oil |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 25° |
| Mounting Arrangement | Universal |
| Bearing Material | Chrome Steel |
| Cross Reference 1 | Timken 7015E-T-P4S-SUL |
|---|---|
| Cross Reference 2 | SKF 7015 ACD/P4A |
| Cross Reference 3 | FAG B7015-E-T-P4S-UL |
| Cross Reference 4 | NSK 7015A5TRSULP4 |
| Cross Reference 5 | RHP 7015X3TRSULP4 |
| Cross Reference 6 | SNFA VEX70 CE3 (25°, super precision) |
| Cross Reference 7 | SKF 7015 CD/P4A (related, 15° contact angle) |
Fafnir 3MMV9115WI-CR-SUL super precision angular contact ball bearing. Series: 9100WI. Base Number: 9115. Bore Diameter: 75 mm. Outside Diameter: 115 mm. Overall Width: 20 mm. Contact Angle: 25°. Precision Class: ABEC 7 / P4. Precision Rating: ISO P4S (ABEC 7/9). Cage Material: Phenolic. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Number Of Rows: 1. Preload: Light. Mounting Arrangement: Universal. Item Weight: 0.64 kg (1.41 lb). Unit Quantity: 1 Pc.
3MM — Fafnir super precision execution at a 25° contact angle.
V — the P4S tolerance class. Running accuracy and performance are held to ABEC 9 / ISO P2 while the remaining features are held at ABEC 7 / ISO P4, and the bore and outside diameter are micron-coded.
9115 — 9100WI dimension series at a 75 mm bore. The ISO equivalent is 7015.
WI — low shoulder on both rings, the form used for duplex mounting.
CR — phenolic cage.
SUL — a single bearing, universally ground so it pairs with another of the same designation, at light preload.
Dynamic Load Rating: 48,900 N. Static Load Rating: 41,200 N. Limiting Speed: 11,000 rpm grease; 19,800 rpm oil. Contact Angle: 25°. Cage Material: Phenolic. Preload: Light. Mounting Arrangement: Universal. Precision Class: ABEC 7 / P4. Item Weight: 0.64 kg (1.41 lb).
Bore Diameter: 75 mm. Outside Diameter: 115 mm. Overall Width: 20 mm. Max Housing Fillet Radius: 1 mm. Shaft Backing Shoulder Diameter: 82.7 mm. Housing Backing Shoulder Diameter: 107.3 mm.
The ISO designation for this envelope is 7015 at P4 precision. Cross-references: Timken 7015E-T-P4S-SUL; SKF 7015 ACD/P4A; FAG B7015-E-T-P4S-UL; NSK 7015A5TRSULP4; RHP 7015X3TRSULP4; SNFA VEX70 CE3 (25°, super precision). SKF 7015 CD/P4A is related, with a 15° contact angle.
Bore Diameter: 75 mm. Outside Diameter: 115 mm. Overall Width: 20 mm.
Contact Angle: 25°. Preload: Light. The bearing is universally ground, Mounting Arrangement: Universal.
Dynamic Load Rating: 48,900 N. Static Load Rating: 41,200 N. Limiting Speed: 11,000 rpm grease; 19,800 rpm oil.
