Availability:
2 in stock

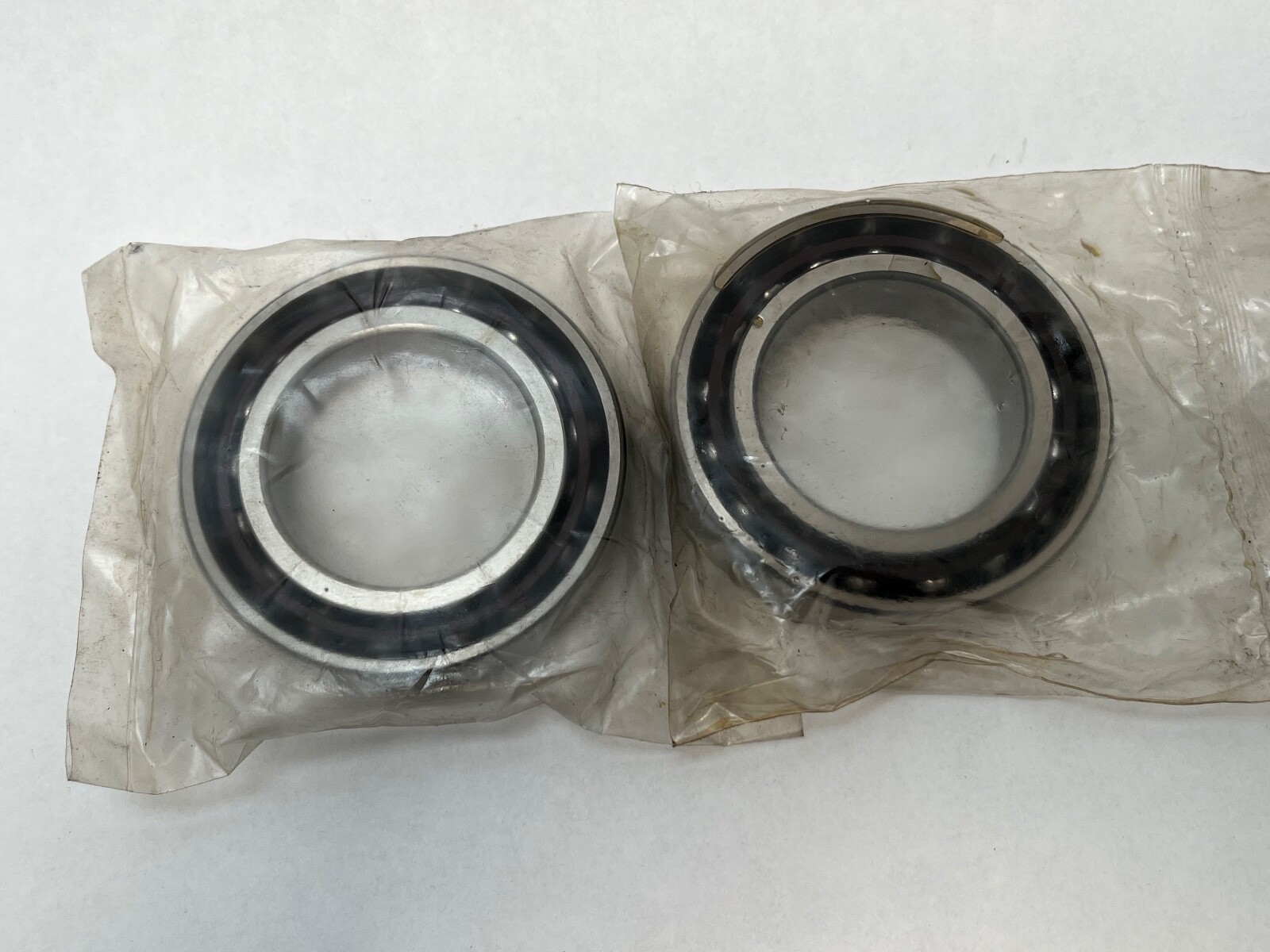

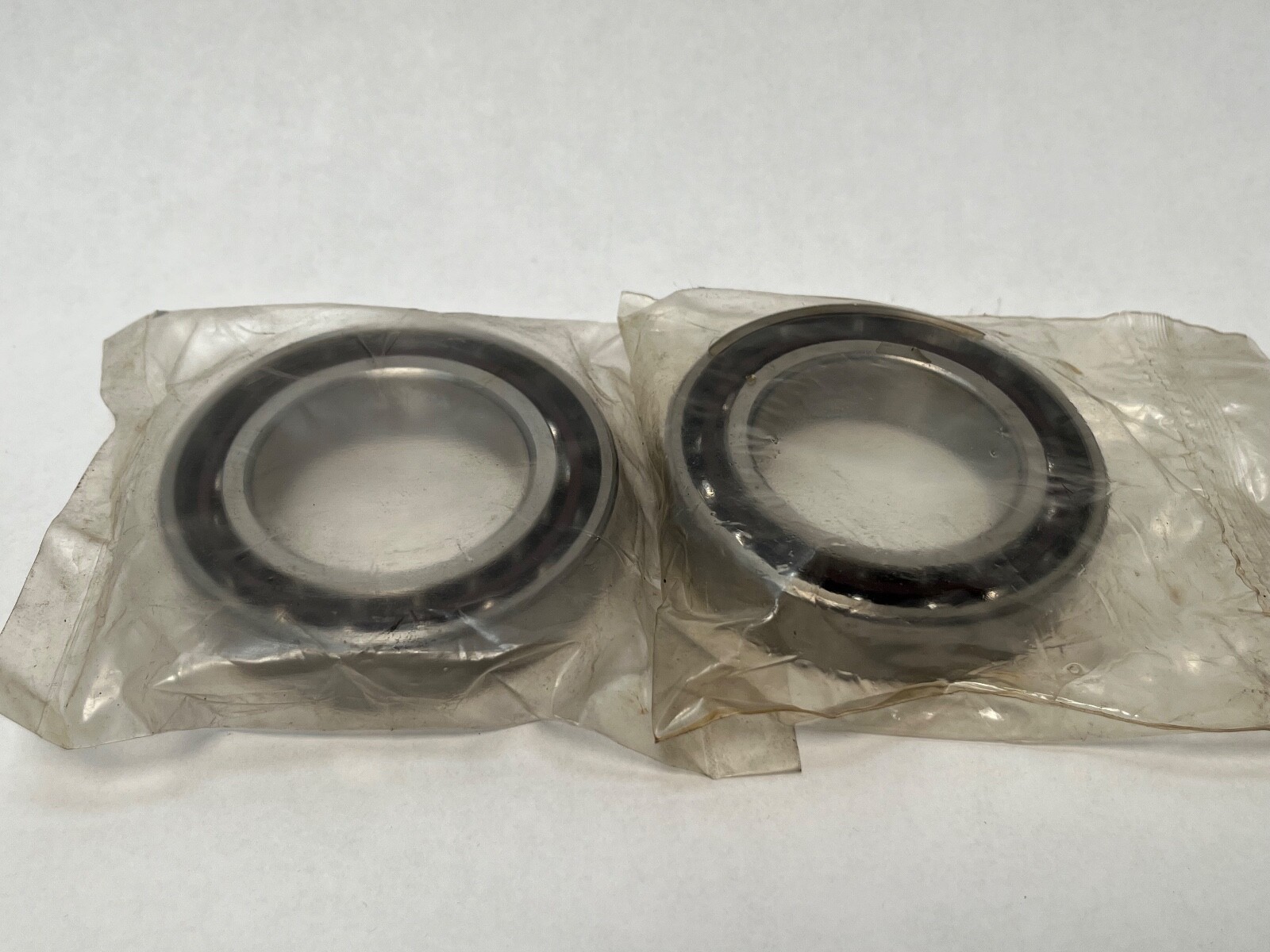

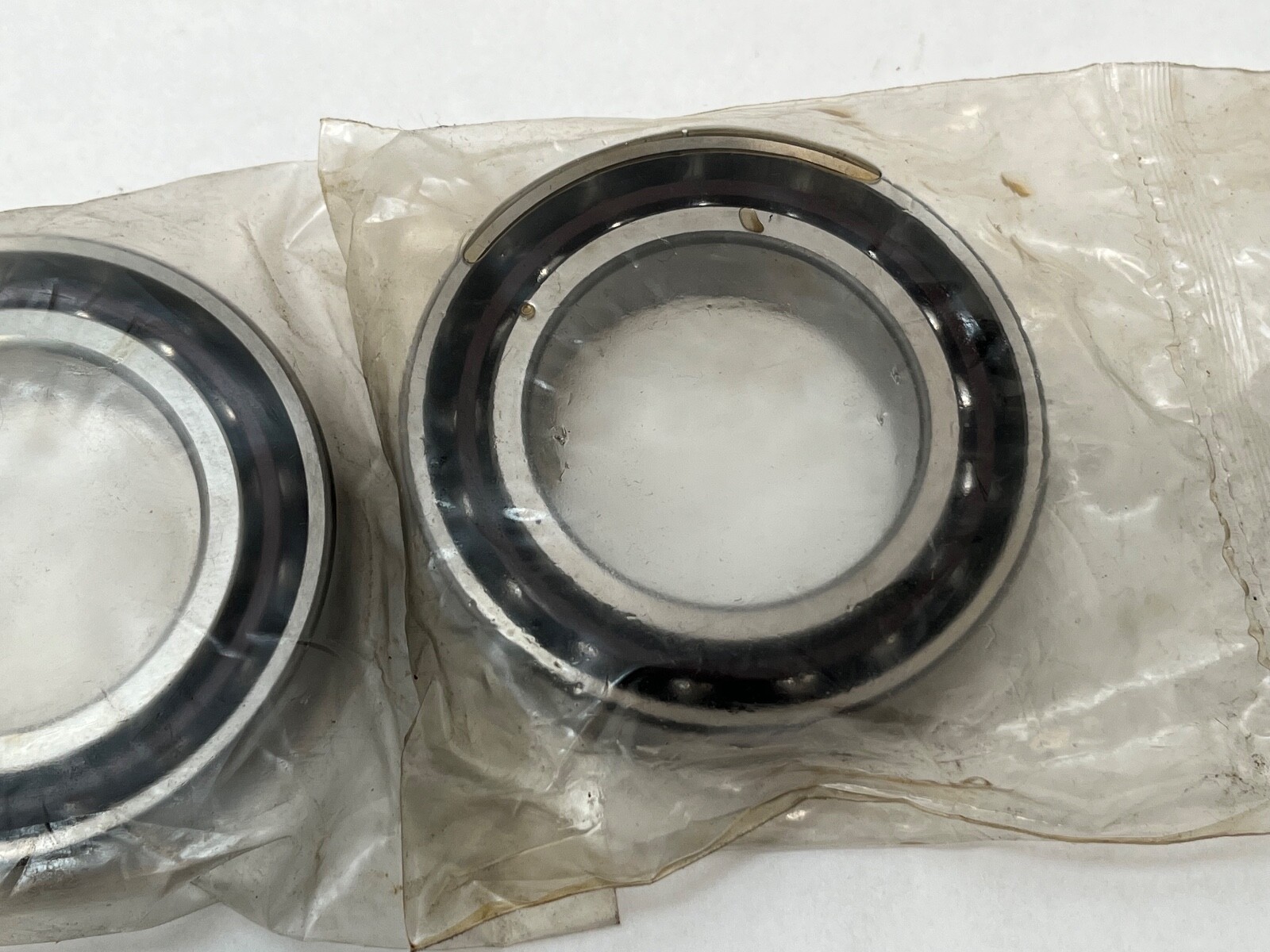

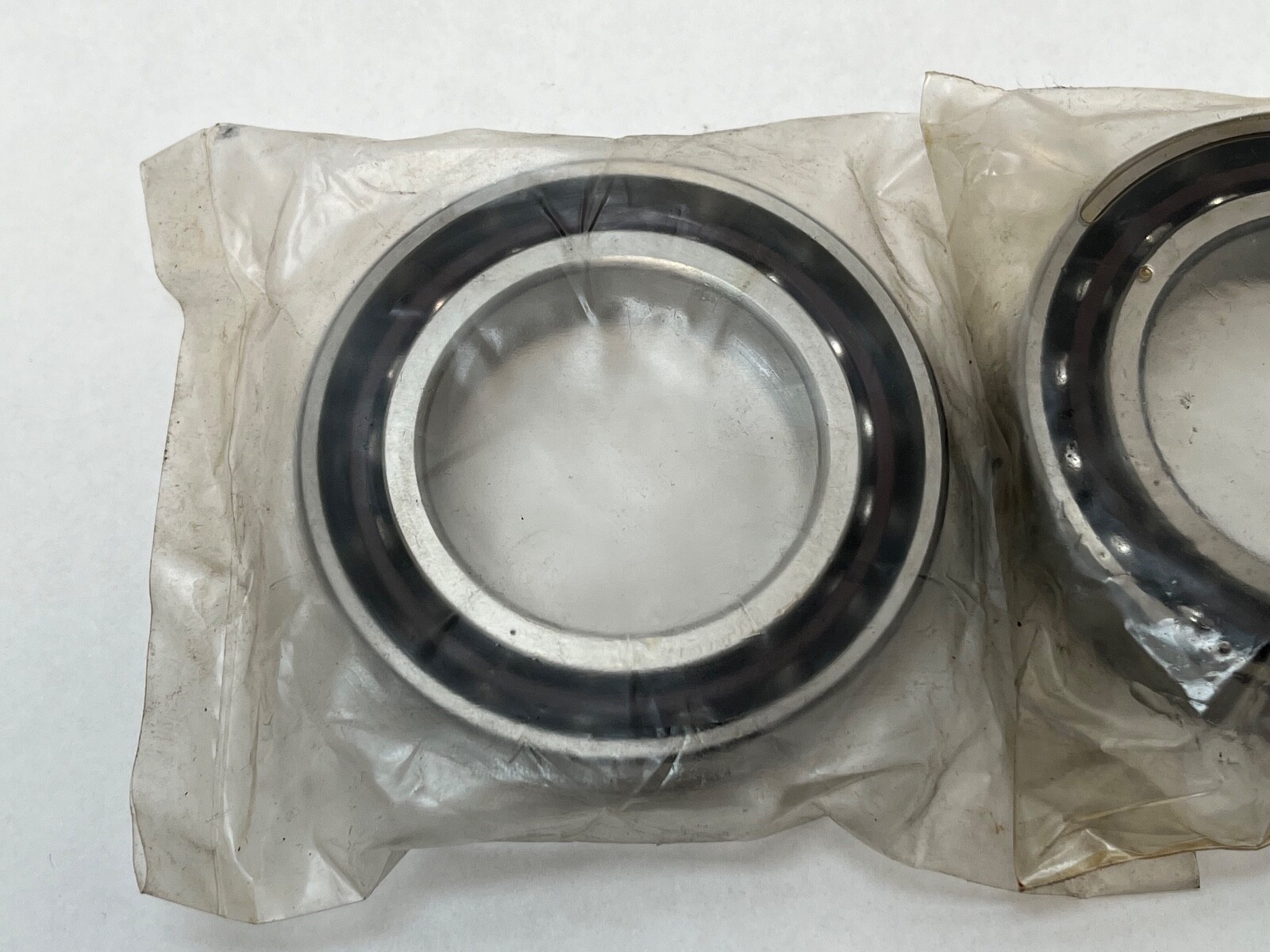

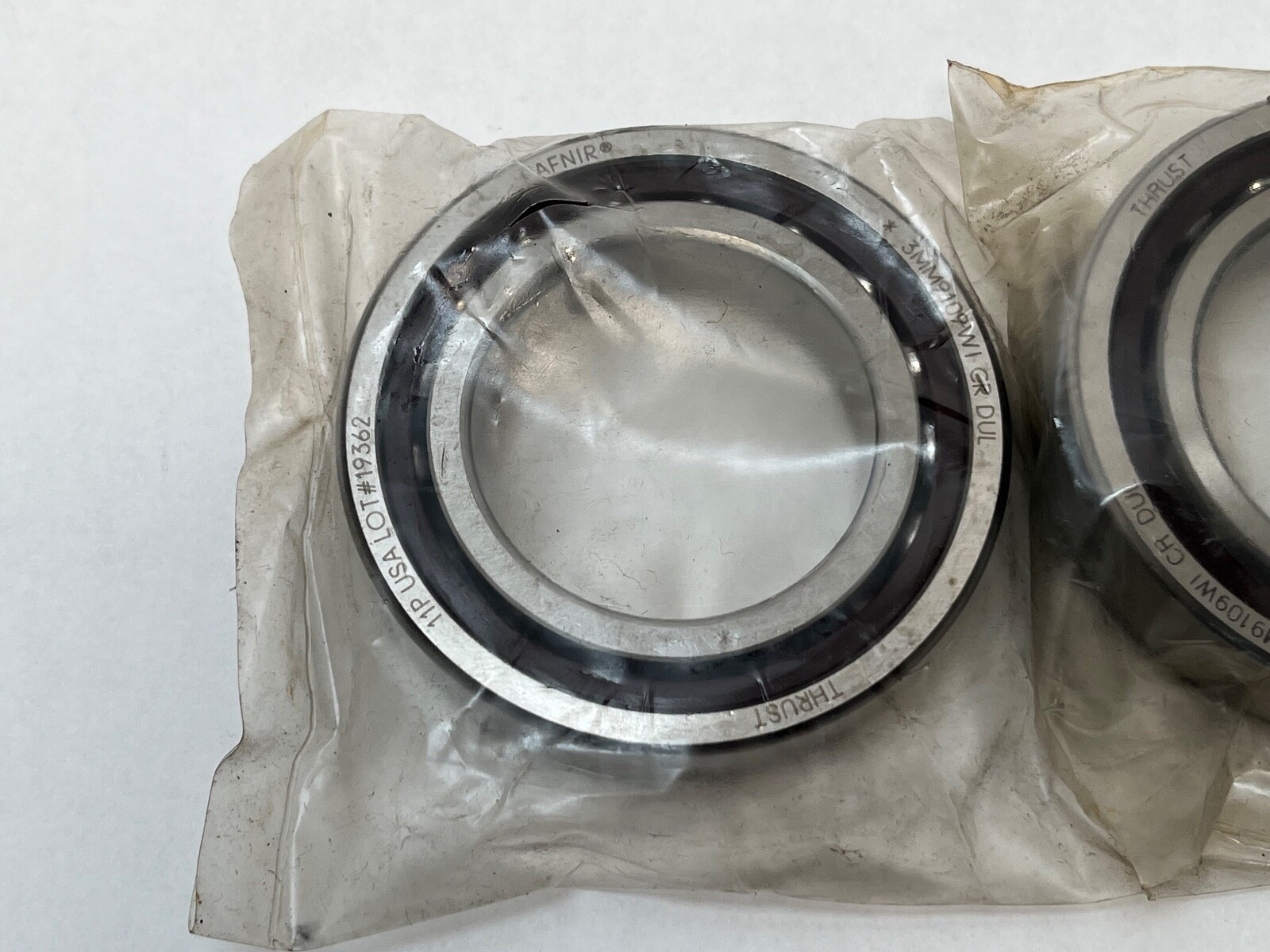

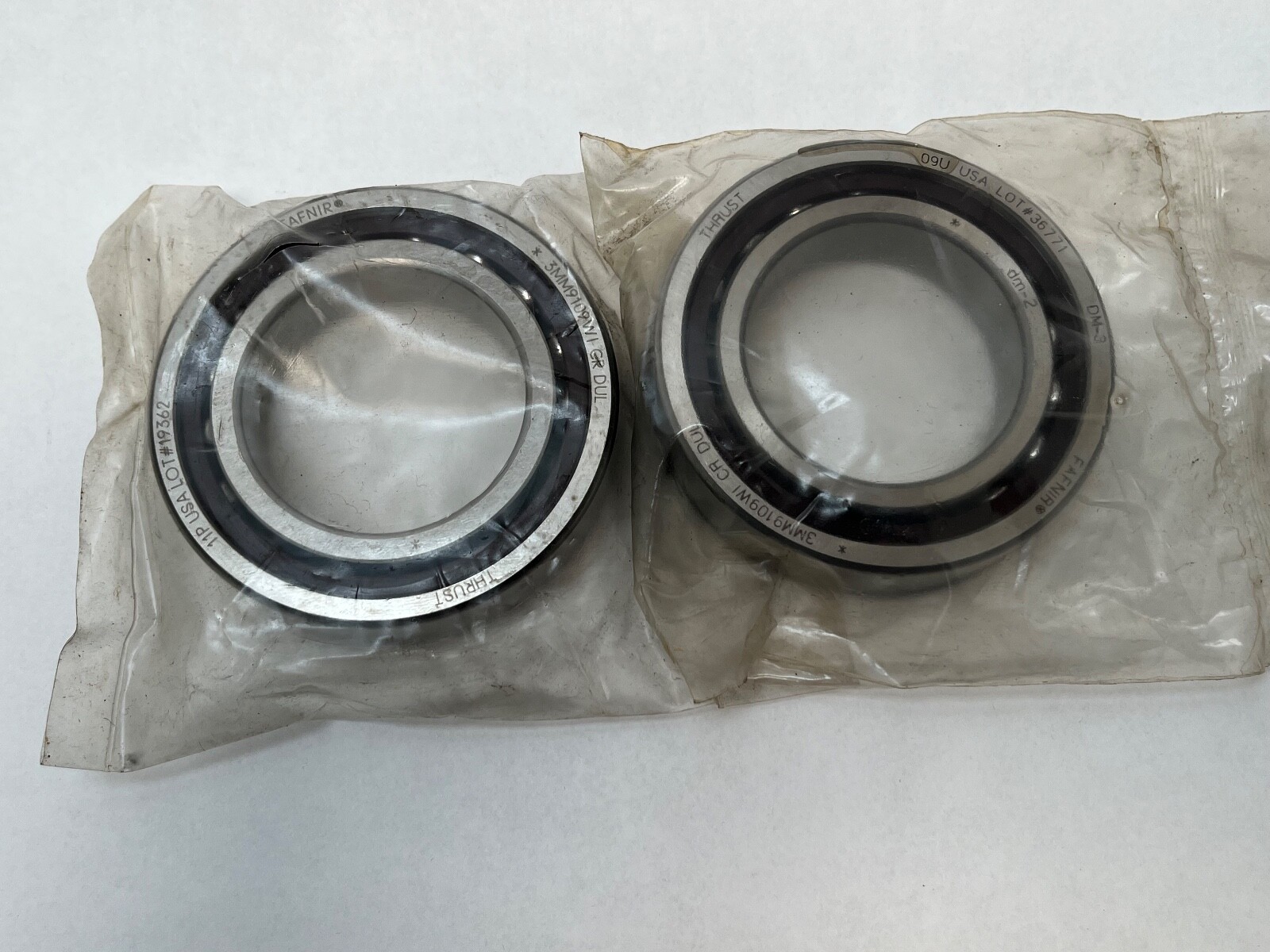

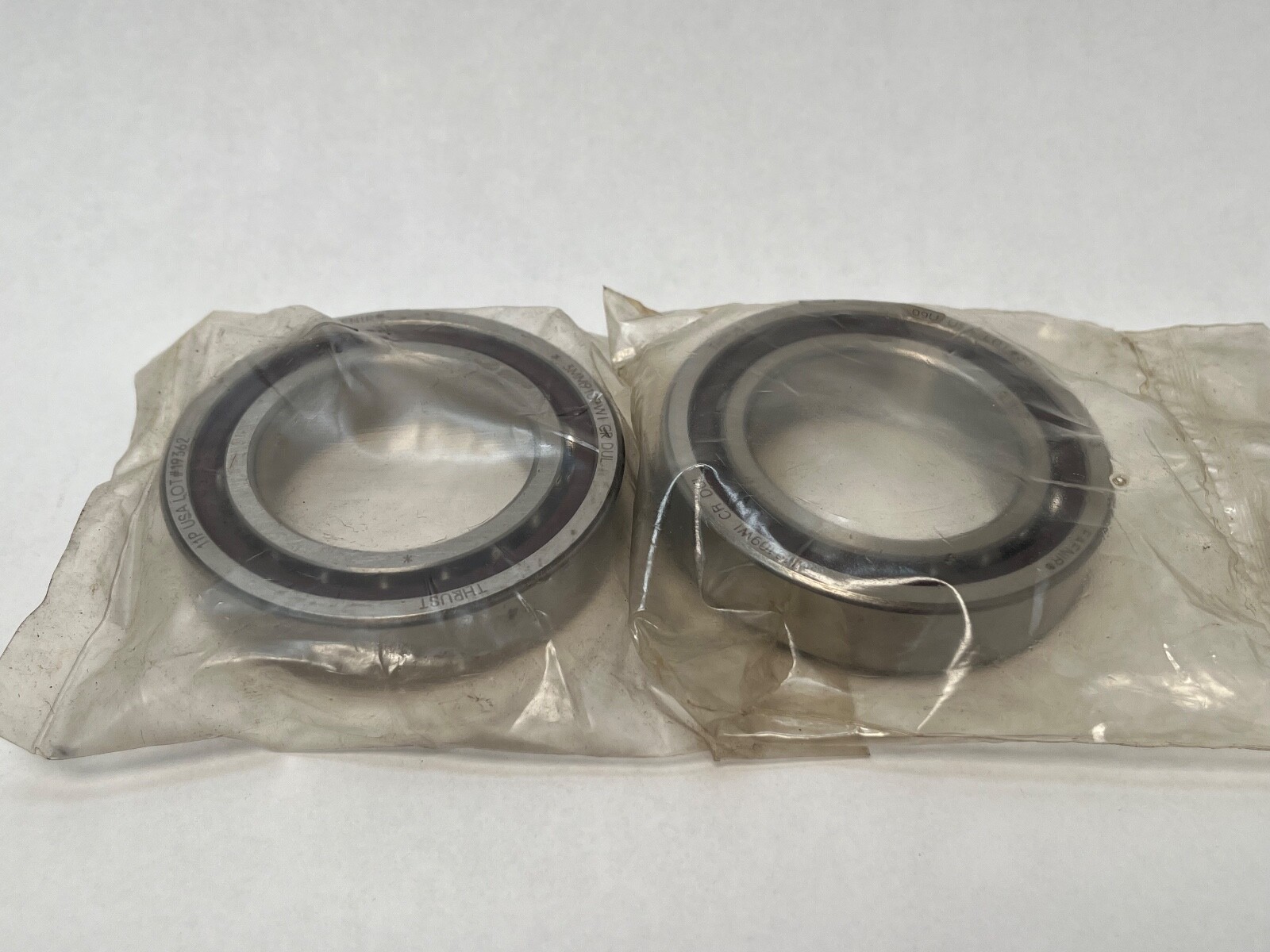

Matched duplex pair of super-precision angular contact ball bearings, 45 x 75 x 16 mm, 25° contact angle, phenolic cage, light preload.
List Price
$141.46
2 in stock
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | Fafnir |
|---|---|
| MPN | 3MM9109WIDUL |
| GTIN | 087796072404 |
| Model | 3MM 9109 WI CR DUL / 7009ECR DUL P4S / 7009 ACD P4A DGB / 7009-A5 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 75 mm |
| Width | 16 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Series | 9100 |
| Condition | New – Open box |
| Preload | Light Preload |
| Base Number | 3MM9109WI |
| Industry Terms | Spindle bearing, machine tool bearing, super precision angular contact, matched duplex pair, DUL set |
| Common Misspellings | Fafner, Faffnir, 3MM9109W1, 3MM 9109 WL, 3MM9109WI DUI |
| Total Width | 32 mm (pair, mounted) |
| Condition Note | Made In USA |
| Bore Shaft Size | 45 mm |
| Mpn Variants | 3MM9109WI-DUL, 3MM9109WIDUL, 3MM 9109 WI DUL, 3MM-9109-WI-CR-DUL, 7009ECR DUL P4S, 7009 ACD P4A DGB, 7009-A5, 3MM9109WI |
| Arrangement Configuration | Matched duplex pair, universally ground |
| Precision Class | P4S |
| Cage Type | Machined, outer-ring land-riding |
| Dynamic Load Rating | 25.6 kN / 5755 lbf |
| Static Load Rating | 18.3 kN / 4114 lbf |
| Precision Rating | ABEC 7/9 (P4S) |
| Rolling Elements | Ball |
| Item Weight | 0.53 lbs |
| Cage Material | Phenolic |
| Limiting Speed | 32200 rpm |
| Number Of Rows | 1 per bearing |
| Bore Type | Straight |
| Snap Ring Included | N/A |
| Internal Clearance | N/A |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Mounting Arrangement | Universal |
| Design Units | Metric |
| Bearing Material | High carbon chrome bearing steel |
| Part Number | 3MM9109WI-DUL |
| Cross Reference 1 | SKF 7009 ACD/P4ADGA |
|---|---|
| Cross Reference 2 | FAG B7009-E-T-P4S-DUL |
| Cross Reference 3 | NSK 7009A5TRDULP4 |
| Cross Reference 4 | Timken 7009AC |

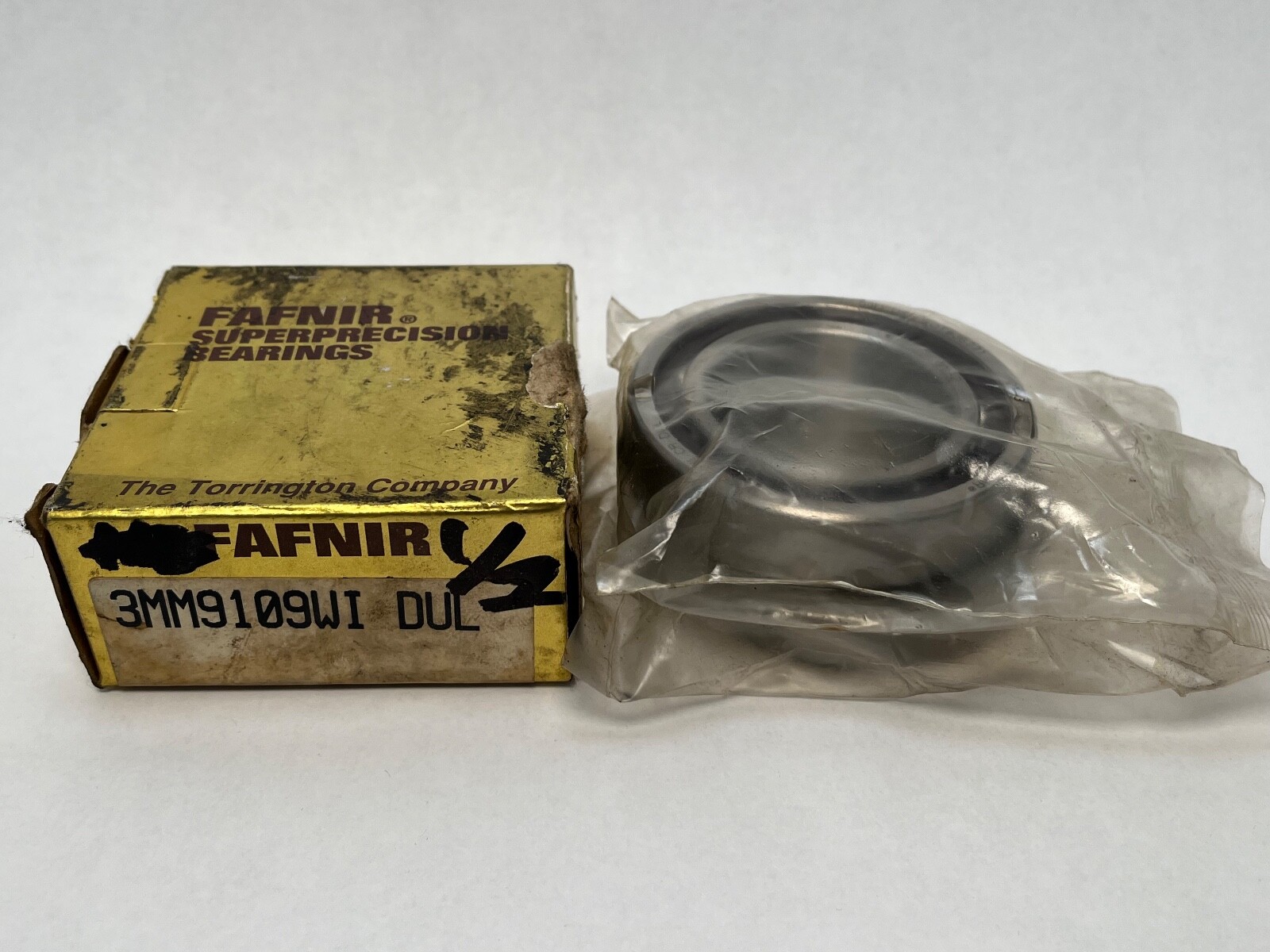

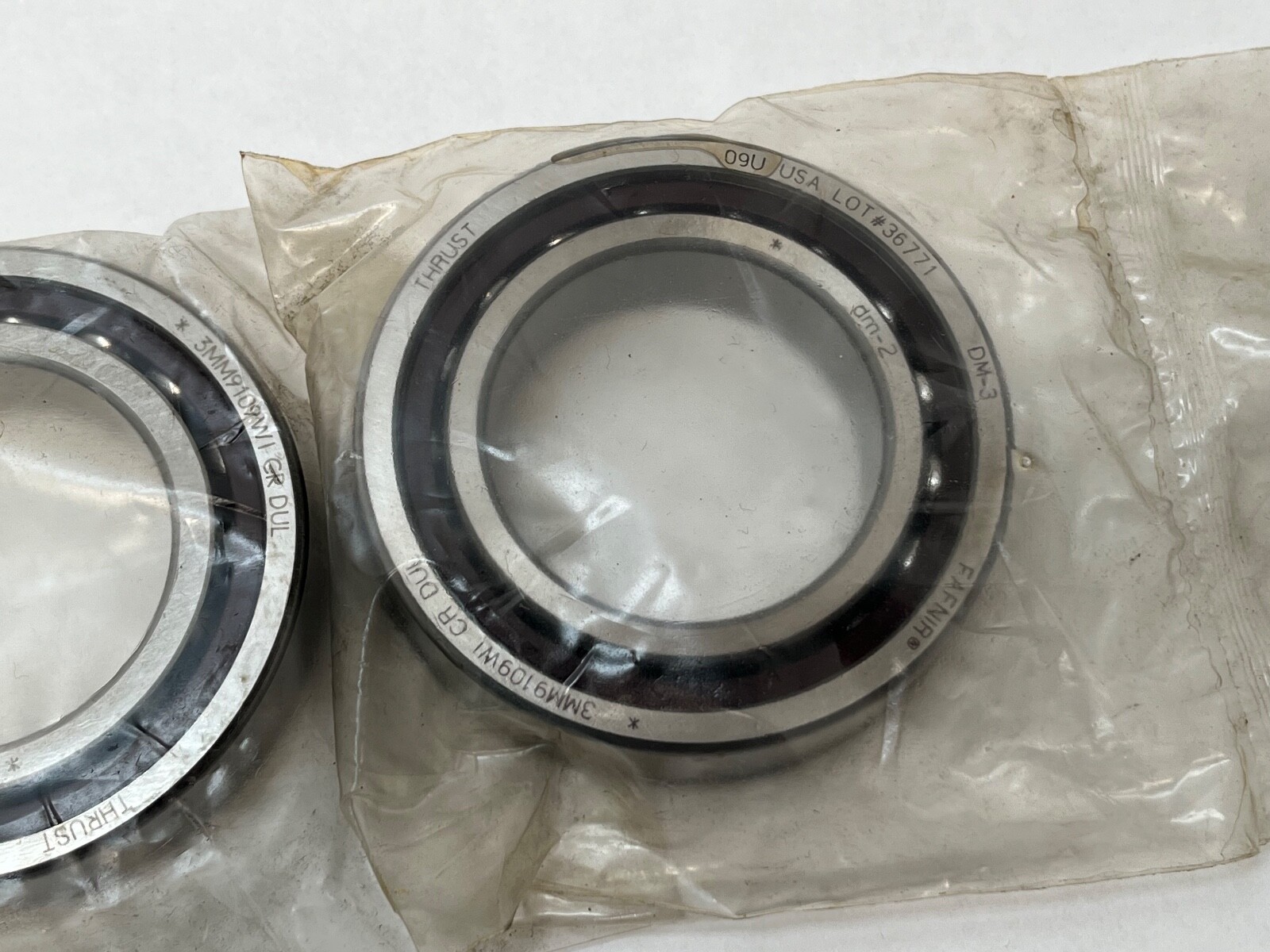

Fafnir 3MM9109WI-DUL matched duplex pair of super-precision angular contact ball bearings, ISO 70-series light section. Brand: Fafnir (Timken). Part Number: 3MM9109WI-DUL. Bore: 45 mm. Outside Diameter: 75 mm. Overall Width: 16 mm per bearing. Design Units: Metric. Number Of Rows: 1 per bearing. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Bearing Material: High carbon chrome bearing steel. Item Weight: 0.53 lbs.
Contact Angle: 25°. Precision Class: P4S. Precision Rating: ABEC 7/9. Cage Material: Phenolic. Cage Type: Machined, outer-ring land-riding. Preload: Light. Arrangement / Configuration: Matched duplex pair, universally ground. Series: 9100, Fafnir’s designation for the ISO 70xx light series — a 9109 carries the 7009 envelope.
A 25° contact angle carries more thrust load and locates the shaft more stiffly along its axis than a 15° bearing on the same envelope. Dynamic Load Rating: 25.6 kN / 5755 lbf. Static Load Rating: 18.3 kN / 4114 lbf. Limiting Speed: 32200 rpm. The machined phenolic cage rides on the outer ring land, staying centred at spindle speeds and holding lubricant against the ball pockets. Internal Clearance: N/A — the pair is set by preload rather than by clearance.
Unit Quantity: 2 Pcs. Mounting Arrangement: Universal. The two bearings are ground as a matched set, so mounting them against one another produces the light preload class directly, with no shims and no regrinding. Universal grinding also lets the pair be set back-to-back, face-to-face or in tandem. Total Width: 32 mm for the pair as mounted.
Cross-References: SKF 7009 ACD/P4ADGA, FAG B7009-E-T-P4S-DUL, NSK 7009A5TRDULP4, Timken 7009AC. Each is a 25° light-preload duplex set on the 45 x 75 x 16 mm envelope. Harmonization Code: 8482.10.50.
MPN Variants: 3MM9109WI-DUL, 3MM9109WIDUL, 3MM 9109 WI DUL, 3MM-9109-WI-CR-DUL, 7009ECR DUL P4S, 7009 ACD P4A DGB, 7009-A5, 3MM9109WI.
