Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock
Super precision angular contact ball bearing, 55 x 80 x 13 mm, 15° contact angle, phenolic cage, light preload, matched duplex pair.
List Price
$286.91
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM9311WICRDUL |
| GTIN | 087796206076 |
| Model | 2MM-9311-WI-CR-DUL |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 55 mm |
| OD | 80 mm |
| Width | 13 mm |
| Base Number | 2MM9311WI |
|---|---|
| Overall Width | 13 mm |
| Mpn Variants | 2MM9311WICRDUL / 2MM-9311-WI-CR-DUL / 2MM 9311 WI CR DUL / 71911C-T-P4S-DUL |
| Arrangement Configuration | Duplex pair (DUL), universally ground |
| Precision Class | ABEC 7/9 / P4S |
| Material | Bearing Steel |
| Dynamic Load Rating | 21,800 N |
| Static Load Rating | 18,500 N |
| Precision Rating | ABEC 7/9 / P4S |
| Series | 2MM9300 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Limiting Speed | 16,600 rpm grease; 33,200 rpm oil |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Internal Clearance | N/A |
| Lubricant | grease or oil |
| Contact Angle | 15° |
| Preload | Light |
| Design Units | Metric |
| Bearing Material | Bearing Steel |
| Cross Reference 1 | FAG B71911-C-T-P4S-DUL |
|---|---|
| Cross Reference 2 | NSK 7911CTRDULP4 |
| Cross Reference 3 | RHP 7911CTDULP4 |
| Cross Reference 4 | IBC 71911-C-TPA-P4-DUL |
| Cross Reference 5 | Koyo 7911CTRDULP4 |
| Cross Reference 6 | SKF 71911 CD/P4ADGA – extra light preload |
| Cross Reference 7 | NTN 7911UCDB/GNP4 |

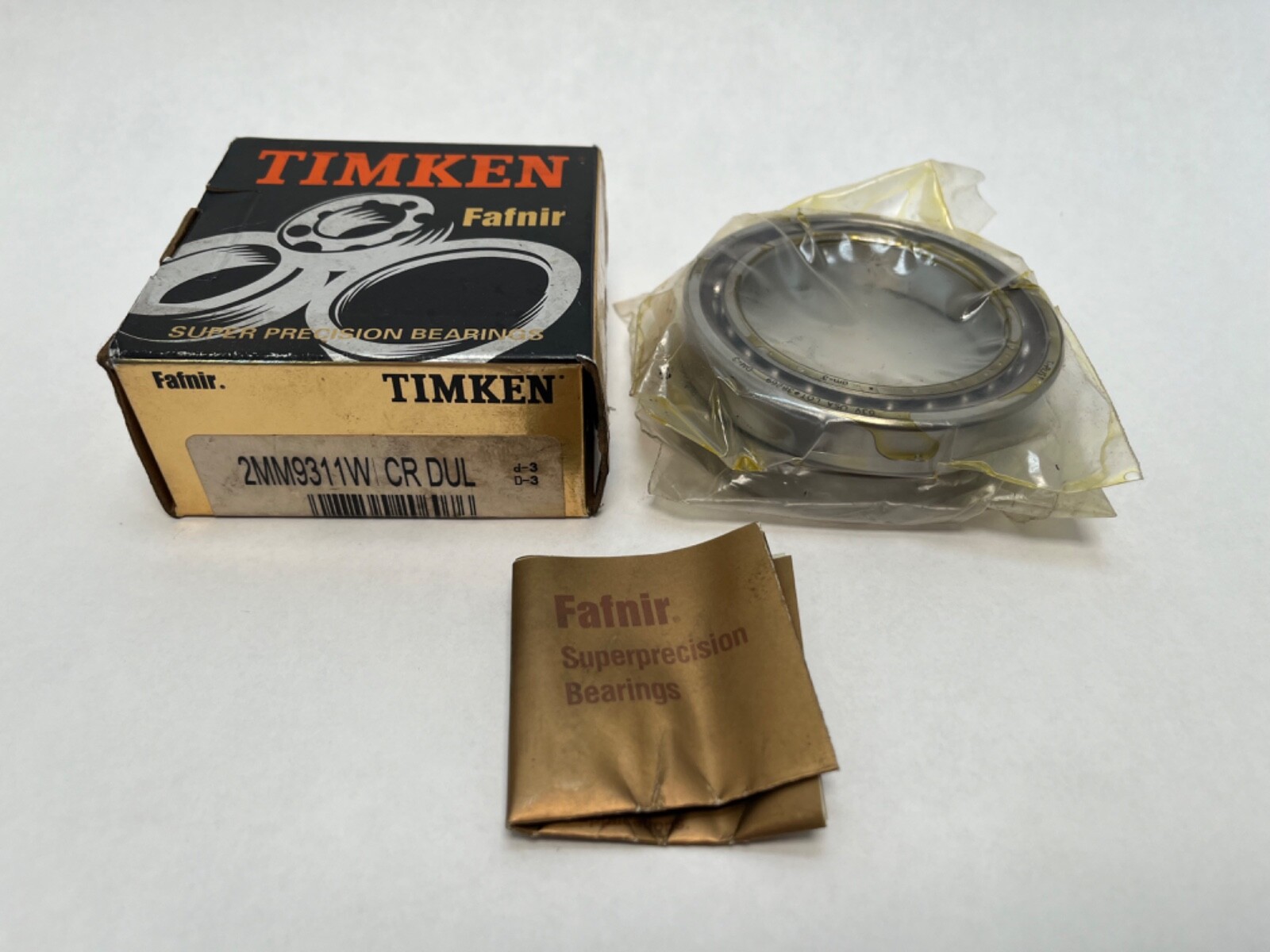

Fafnir 2MM9311WI-CR-DUL super precision angular contact ball bearing, supplied as a factory-matched duplex pair. Bore Diameter: 55 mm. Outside Diameter: 80 mm. Overall Width: 13 mm. Contact Angle: 15°. Precision Class: ABEC 7/9 / P4S. Cage Material: Phenolic. Rolling Elements: Ball. Bearing Material: Bearing Steel. Bore Type: Straight. Closure Type: Open. Number Of Rows: 1. Series: 2MM9300. Base Number: 2MM9311WI. GTIN: 087796206076.
2MM — 15° contact angle, Fafnir super precision range.
9311 — 9300WI series, ISO 719-series envelope, 55 mm bore.
WI — low shoulder on both rings.
CR — phenolic cage.
DU — duplex set, universally ground for flush faces.
L — light preload.
Dynamic Load Rating: 21,800 N. Static Load Rating: 18,500 N. A 15° contact angle favours speed and radial stiffness, carrying less thrust per row than a 25° execution and running cooler at the same shaft speed.
Limiting Speed: 16,600 rpm grease; 33,200 rpm oil. Lubricant: grease or oil. The phenolic cage is light and damps cage chatter, which is what supports those speeds on a 55 mm bore.
Precision Class: ABEC 7/9 / P4S gives tight raceway and face runout, for spindle work where shaft position has to hold under load. Internal Clearance: N/A — the set runs under preload.
Shaft Backing Shoulder Diameter: 60.4 mm (2.380 in). Housing Backing Shoulder Diameter: 75.2 mm (2.960 in). Maximum housing fillet radius the bearing corners clear: 1 mm (0.039 in).

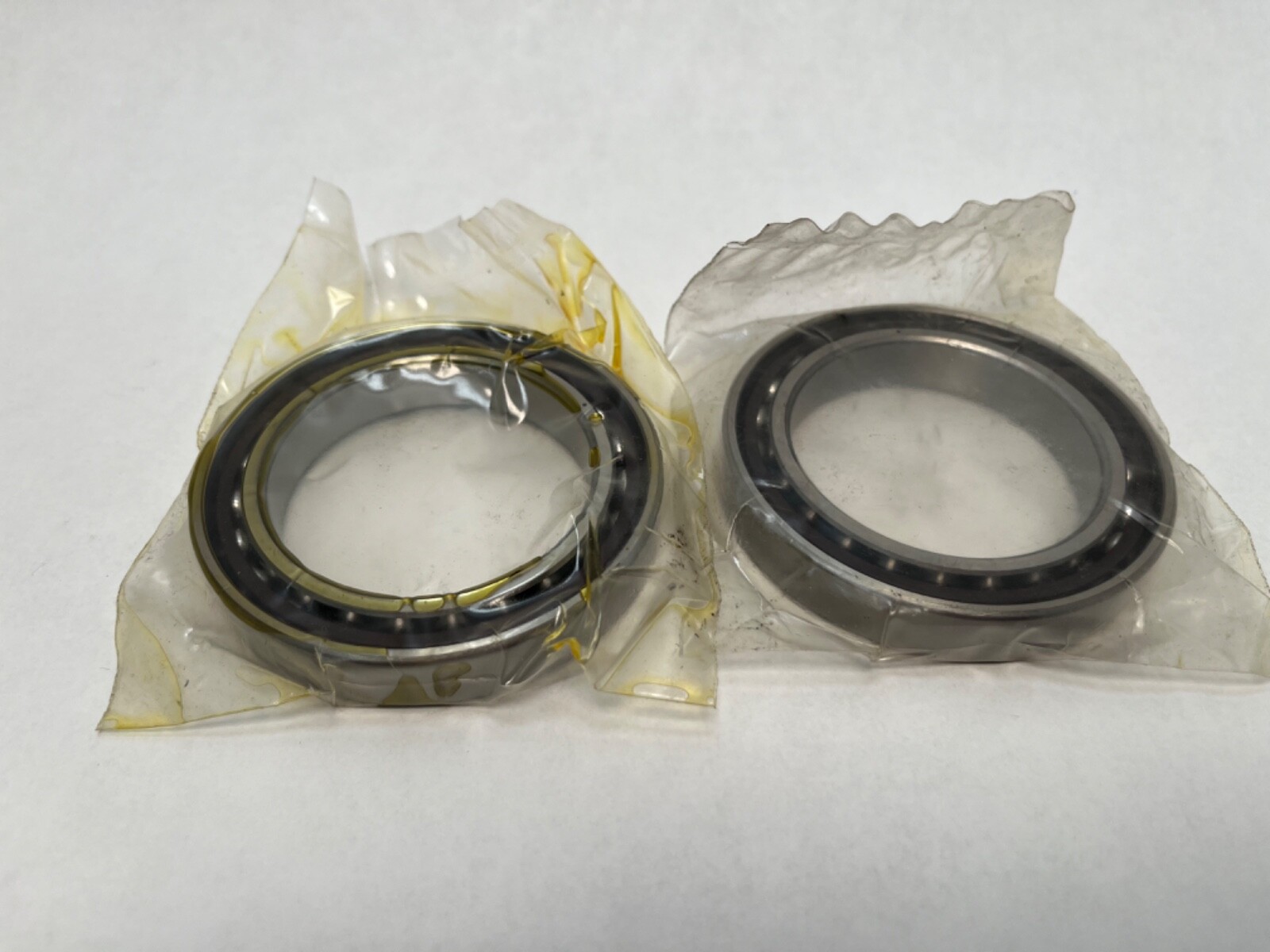

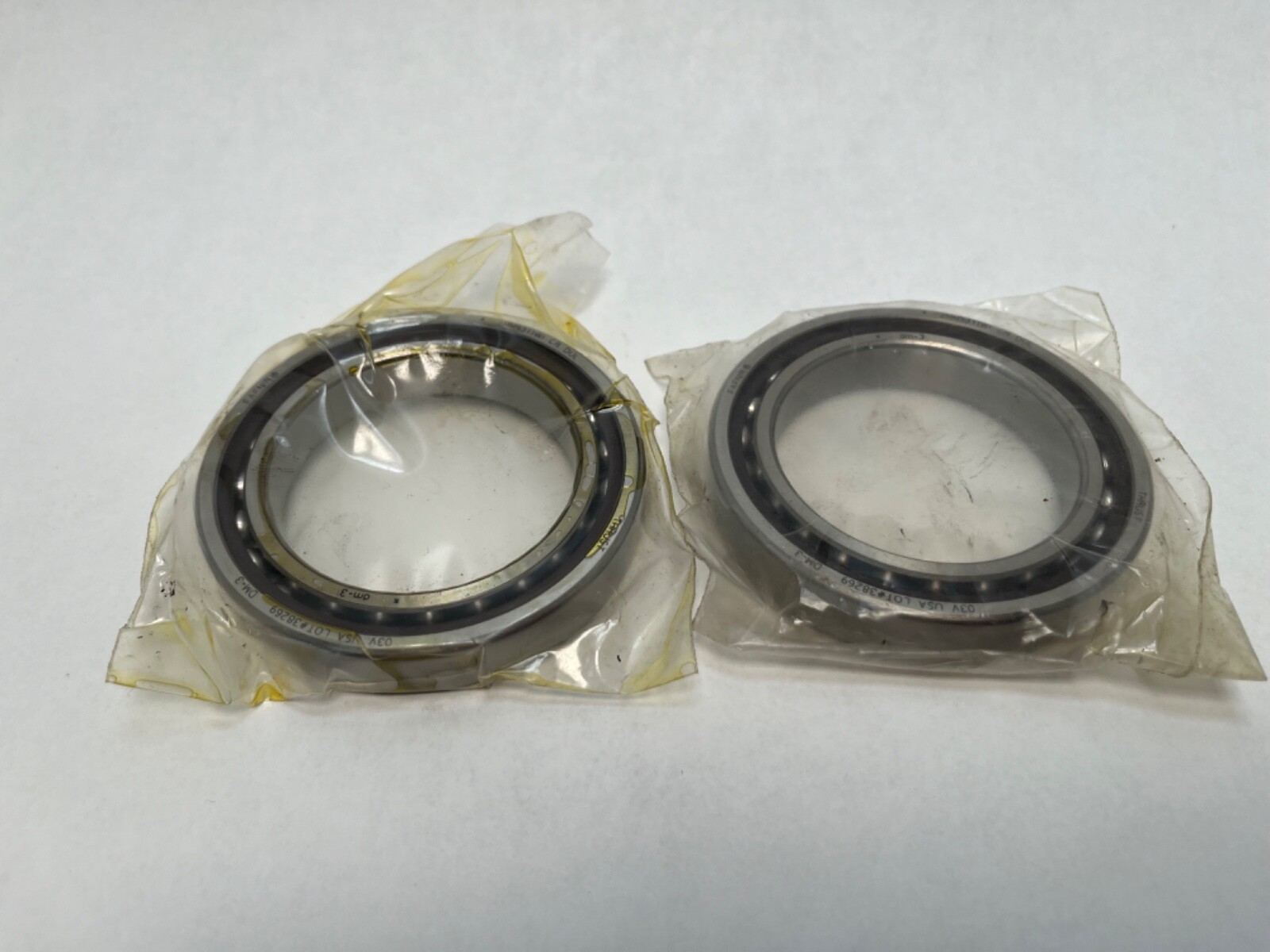

Unit Quantity: 2 Pcs. Arrangement: duplex pair, universally ground, light preload. Preload: Light.
Super precision executions on the same 55 x 80 x 13 mm envelope at 15°: SKF 71911 CD/P4ADGA, FAG B71911-C-T-P4S-DUL, NSK 7911CTRDULP4, NTN 7911UCDB/GNP4, RHP 7911CTDULP4, IBC 71911-C-TPA-P4-DUL and Koyo 7911CTRDULP4. Searchable forms of the Fafnir number: 2MM9311WICRDUL, 2MM-9311-WI-CR-DUL, 2MM 9311 WI CR DUL. Timken world part number: 71911C-T-P4S-DUL.
