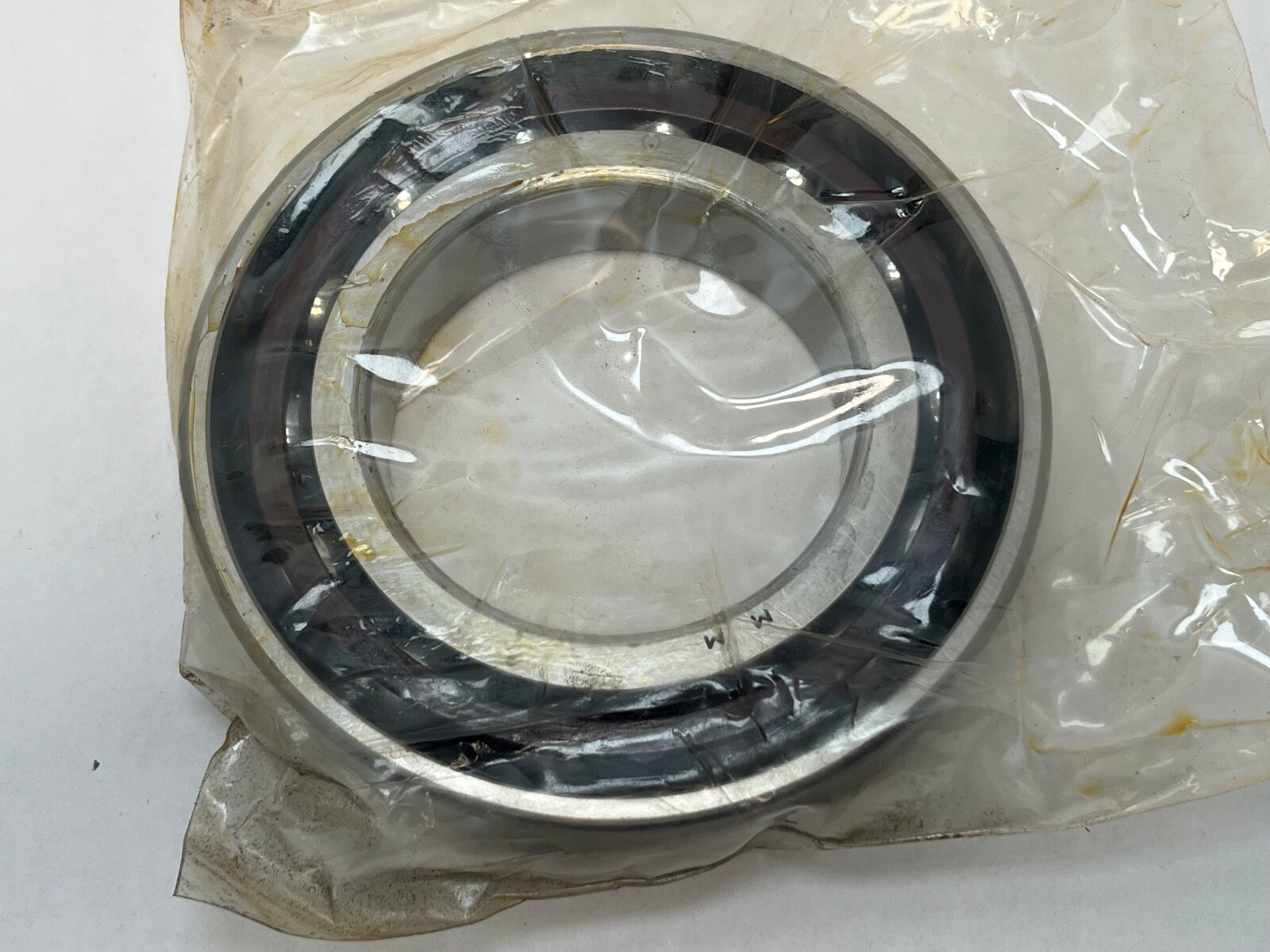

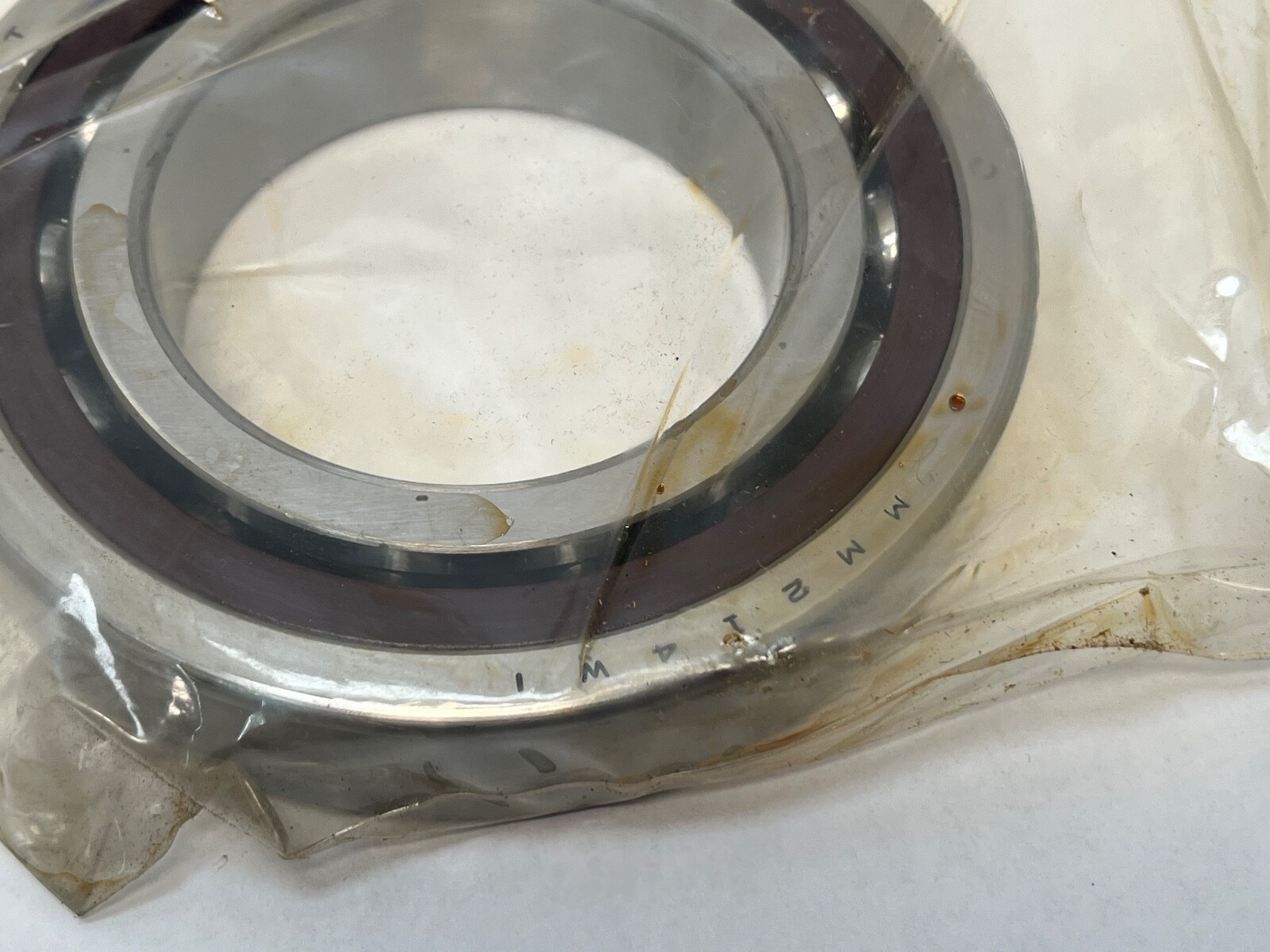

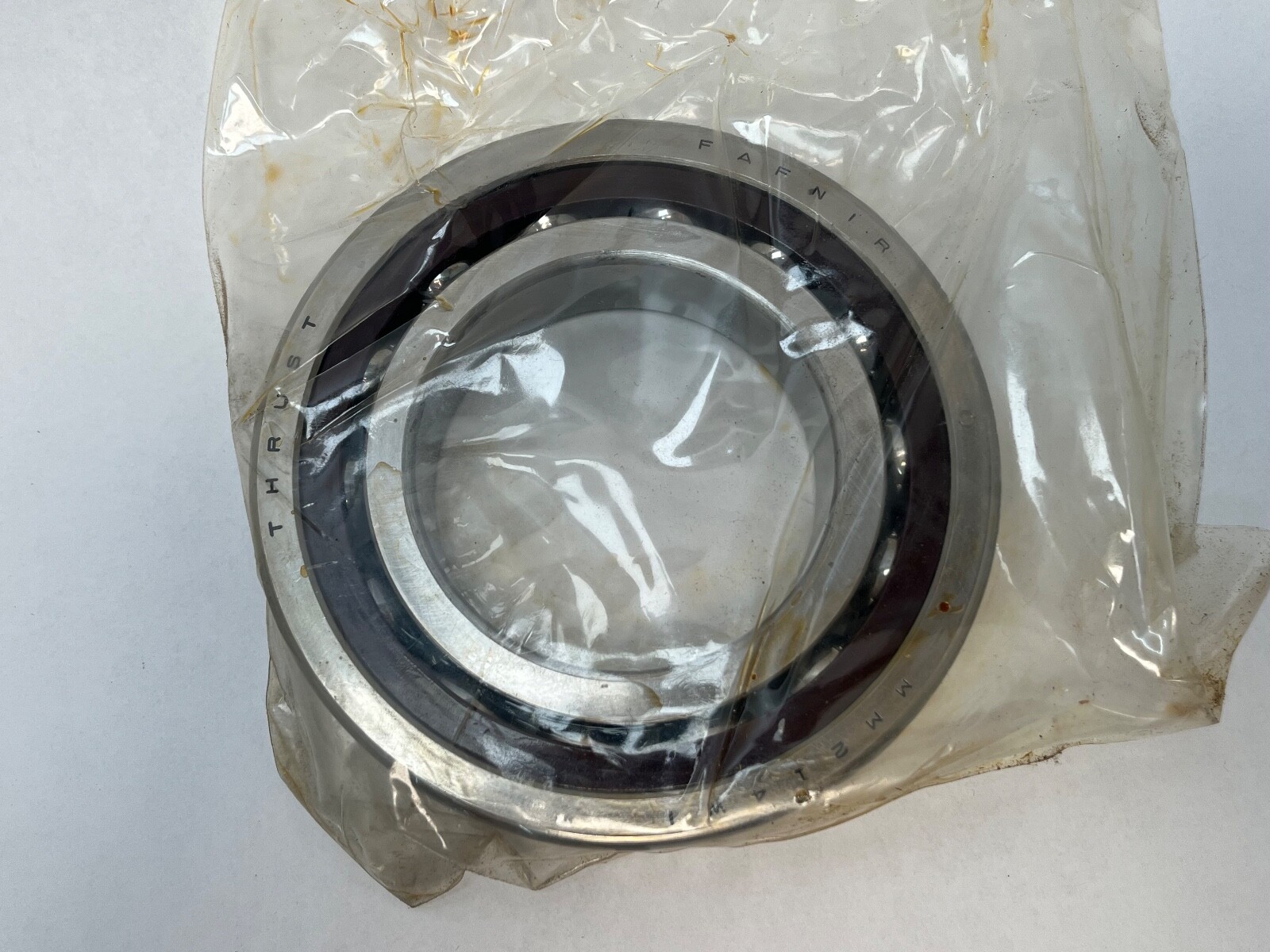

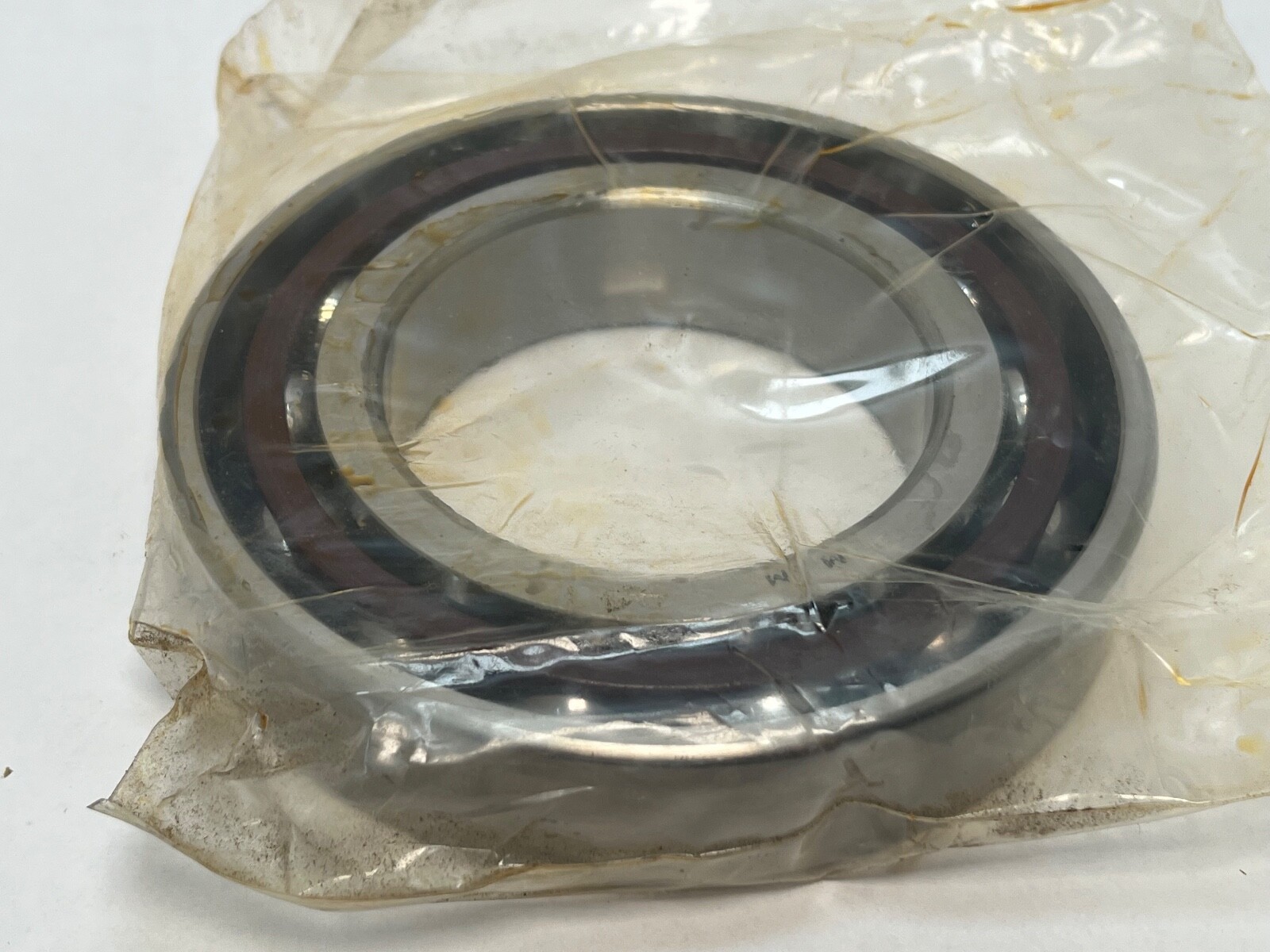

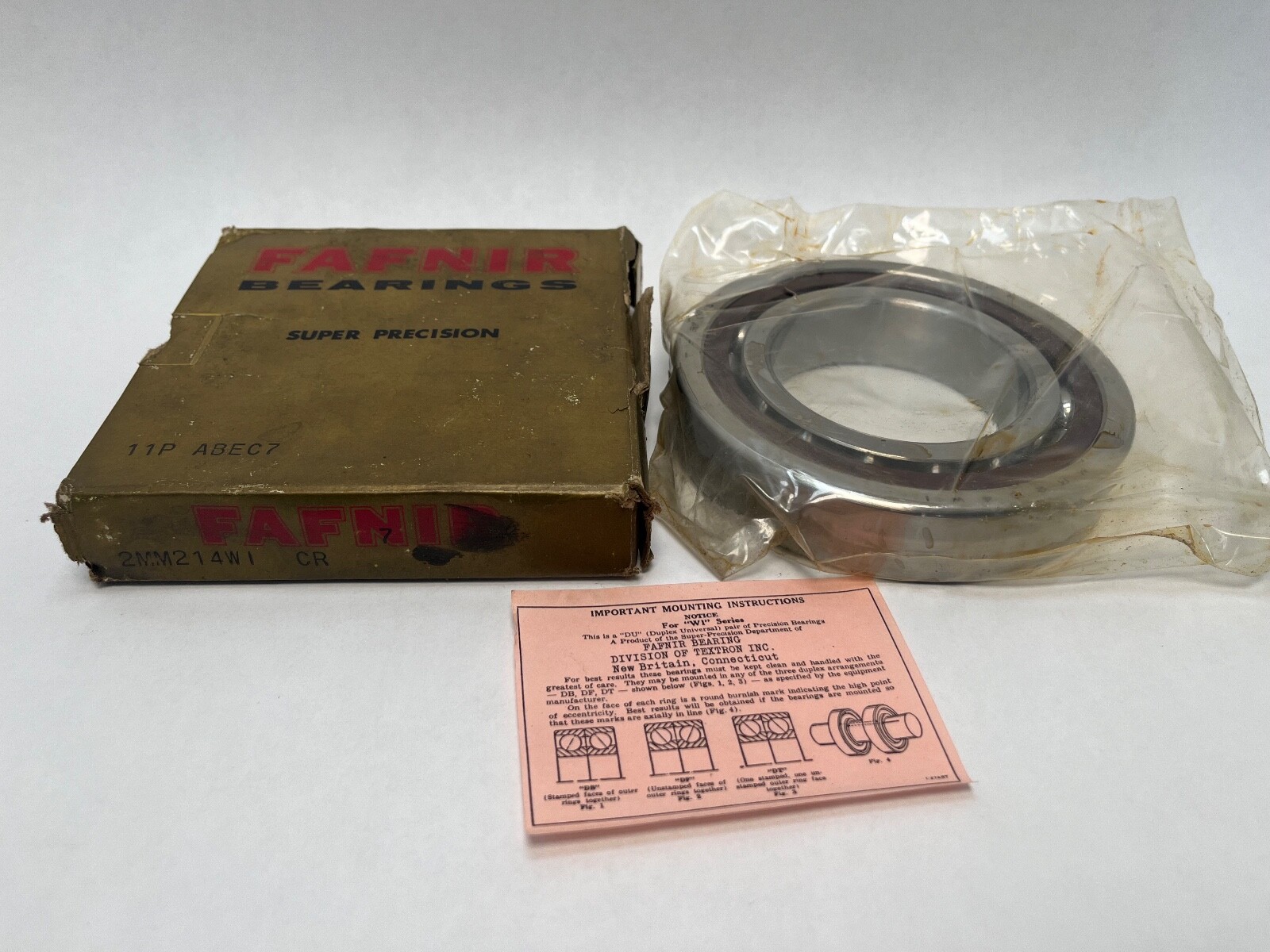

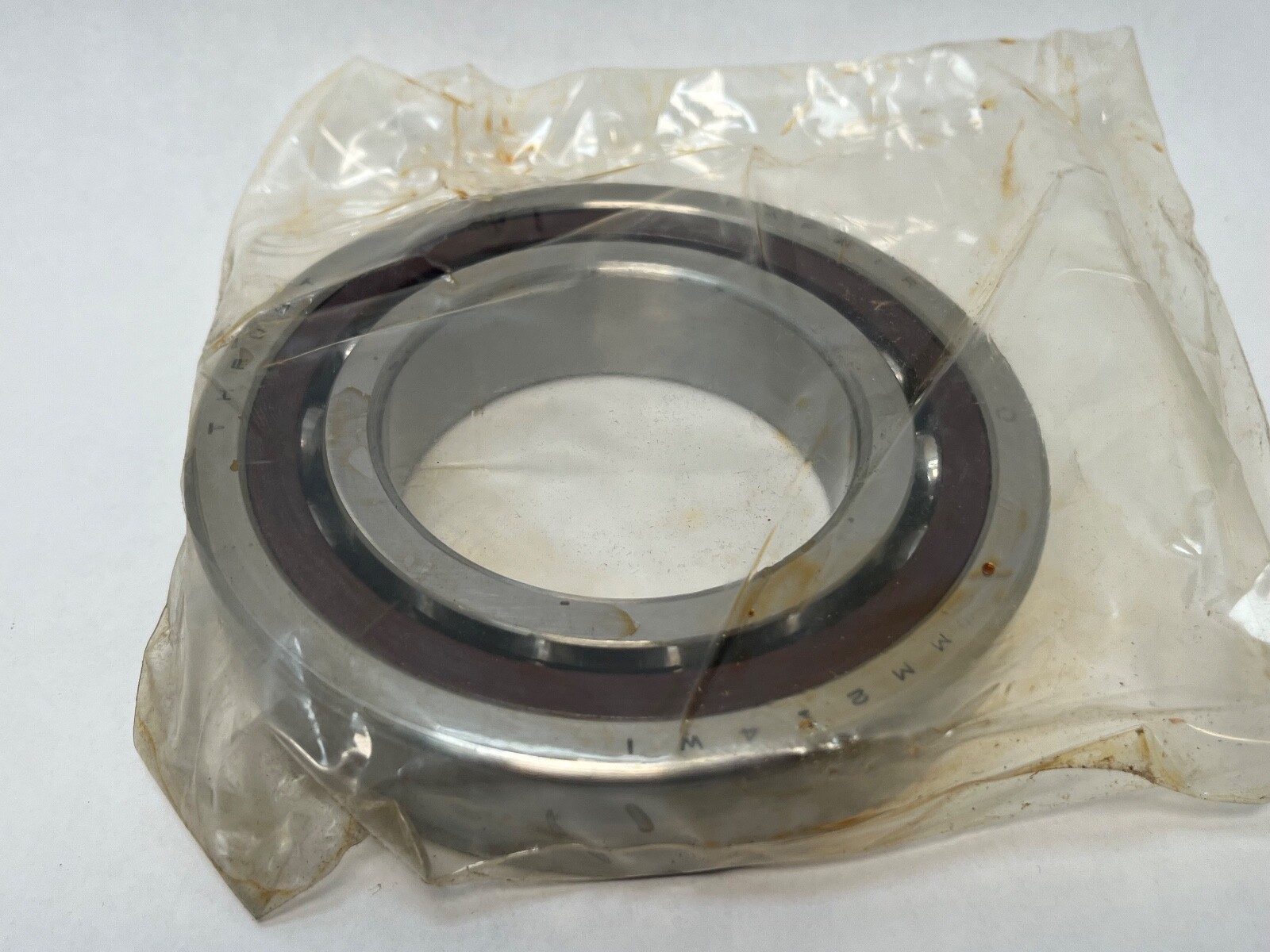

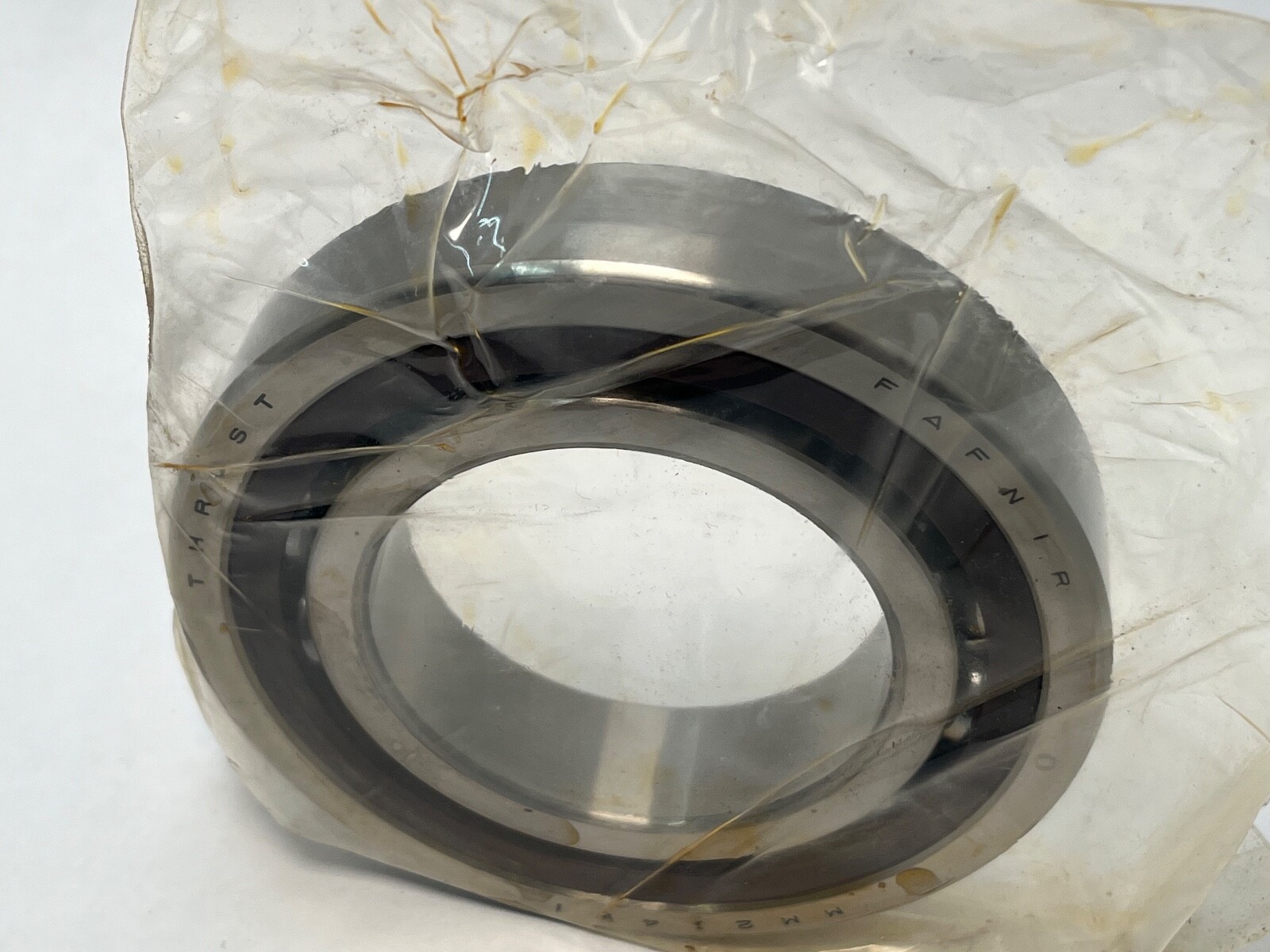

Super-precision angular contact ball bearing, 70 x 125 x 24 mm, 15° contact angle, zero preload, phenolic outer-land-riding cage, ISO P4S.
List Price
$112.33
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Angular Contact Ball Bearing — 70 mm ID, 110 mm OD, 20 mm Width, 15° Contact Angle, ABEC 7, Light Preload$168.28
Super Precision Angular Contact Ball Bearing — 70 mm ID, 110 mm OD, 20 mm Width, 15° Contact Angle, Light Preload, P4A$313.40
Angular Contact Ball Bearing - 70 mm ID, 125 mm OD, 24 mm Width, Open, 15° Contact Angle, Medium Preload.$84.13
Super Precision Angular Contact Ball Bearing - Straight Bore, 70 mm ID, 125 mm OD, 24 mm Width, Open, 15° Contact Angle, Light Preload, Universally Ground$197.73| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM214WICR |
| Model | 2 MM 214 WI CR / 7214 C T P4 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 70 mm |
| OD | 125 mm |
| Width | 24 mm |
| Material | Bearing Steel |
|---|---|
| Series | 200 |
| Base Number | 2MM214WI |
| Bore Shaft Size | 70 mm |
| Mpn Variants | 2MM214WI-CR · 2MM214WICR · 2MM214WI · 2 MM 214 WI CR · 7214C-T-P4S-SUL |
| Precision Class | ISO P4S (ABEC 7/9) |
| Dynamic Load Rating C1 | 84.2 kN (18,900 lbf) |
| Additional Attributes | Shaft backing shoulder diameter 80.3 mm; housing backing shoulder diameter 115.8 mm; maximum shaft fillet radius 1.5 mm; outer ring to-clear radius 1.5 mm |
| Min Temp | -30°C |
| Cage Type | CR – Phenolic Outer Land Riding Cage |
| Dynamic Load Rating | 84.2 kN (18,900 lbf) C1 |
| Static Load Rating | 60.0 kN (13,400 lbf) C0 |
| Precision Rating | ISO P4S (ABEC 7/9) |
| Rolling Elements | Ball |
| Max Temp | 120°C |
| Item Weight | 2.40 lbs |
| Cage Material | Phenolic |
| Limiting Speed | 11,400 rpm grease / 22,800 rpm oil |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Not applicable |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 15° |
| Preload | Zero |
| Mounting Arrangement | Universally ground single |
| Design Units | Metric |
| Part Number | 2MM214WICR |
| Cross Reference 1 | SKF 7214 CD/P4A |
|---|---|
| Cross Reference 2 | FAG B7214-C-T-P4S |
Fafnir 2MM214WI-CR super-precision angular contact ball bearing, made by The Timken Company. Series: 200WI. Bore: 70 mm. Outside Diameter: 125 mm. Bearing Width: 24 mm. Number of Rows: 1. Rolling Elements: Ball, steel. Bore Type: Straight. Closure Type: Open. Design Units: Metric.
Contact Angle: 15°. Precision Rating: ISO P4S (ABEC 7/9). Preload: Zero. Cage Type: CR – Phenolic Outer Land Riding Cage. Cage Material: Phenolic. World Part Number: 7214C-T-P4S-SUL. Searchable variants: 2MM214WICR, 2MM214WI, 2 MM 214 WI CR.
Dynamic Radial Load Rating (C1, one million revolutions): 84,200 N (18,900 lbf). C1 ISO Dynamic Radial Rating per row: 76,500 N (17,200 lbf). Static Radial Load Rating (C0): 60,000 N (13,400 lbf). Limiting Speed, grease: 11,400 rpm. Limiting Speed, oil: 22,800 rpm.
A 15° contact angle favours speed and radial stiffness over thrust capacity, so this execution suits high-speed machine tool spindles. A 25° bearing on the same envelope carries more thrust and turns slower. Zero preload leaves the preload to be set by the mounting, which gives the machine builder control over spindle stiffness and running temperature. The phenolic outer-land-riding cage is light and runs quietly at speed. ISO P4S is a tighter tolerance grade than P4, giving closer running accuracy and lower vibration. Lubricant: grease or oil.
Shaft Backing Shoulder Diameter: 80.3 mm. Housing Backing Shoulder Diameter: 115.8 mm. Maximum Shaft Fillet Radius: 1.5 mm. Outer Ring To Clear Radius: 1.5 mm.
Unit Quantity: 1 Pc. Universally ground single bearing, so it runs alone or stacks with matching 2MM214WI bearings in a duplex or triplex set.
SKF 7214 CD/P4A and FAG B7214-C-T-P4S share the envelope, the 15° contact angle and the super-precision tolerance grade. Timken’s own world designation for this bearing is 7214C-T-P4S-SUL. A 7214 AC or 7214 E part is the 25° execution on the same envelope, which makes it a related size rather than an interchange. A 7014 carries a 110 mm outside diameter and a 20 mm width, so it is a different bearing.
