Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

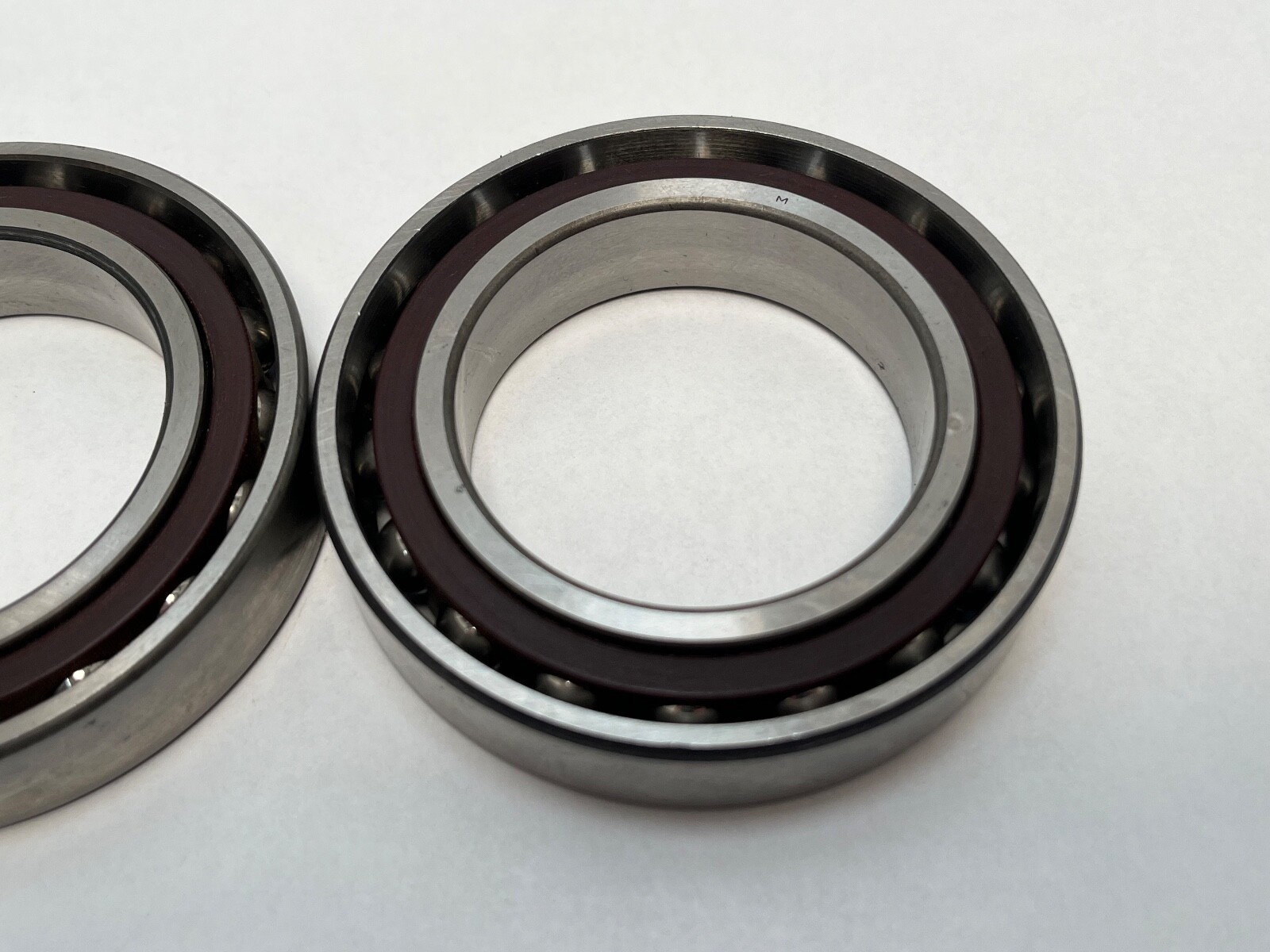

Super-precision angular contact ball bearing, 50 mm bore, 80 mm OD, 16 mm wide. 15 degree contact angle, light preload, phenolic cage, open. Supplied as a matched pair, 2 Pcs.
List Price
$89.90
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | 2M9110WICRDUL |
| Model | 7010C T DUL P5 / 2 M 9110 WI CR DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 50 mm |
| OD | 80 mm |
| Width | 16 mm |
| Series | 9100 |
|---|---|
| Material | Bearing Steel |
| Base Number | 7010 |
| Industry Terms | Spindle bearing; super precision bearing; machine tool bearing; matched pair; duplex set; phenolic cage bearing |
| Common Misspellings | Faffnir; Fafner; 2M9110W1-DUL; 2MM910WI-DUL |
| Application Types | Machine tool spindles; grinding spindles; high-speed precision rotation |
| Bore Shaft Size | 50 mm (1.9685 in) |
| Mpn Variants | 2M9110WI-DUL; 2M-9110-WI-CR-DUL; 2M9110WICRDUL; 2MM9110WI-DUL; 2M 9110 WI CR DUL |
| Manufacturer Status | Fafnir super-precision line, now branded Timken |
| Closure Type | Open |
| Rolling Elements | Balls |
| Number Of Rows | 1 per bearing, 2 rows as the mounted pair |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Part Number | 2M9110WI-DUL |

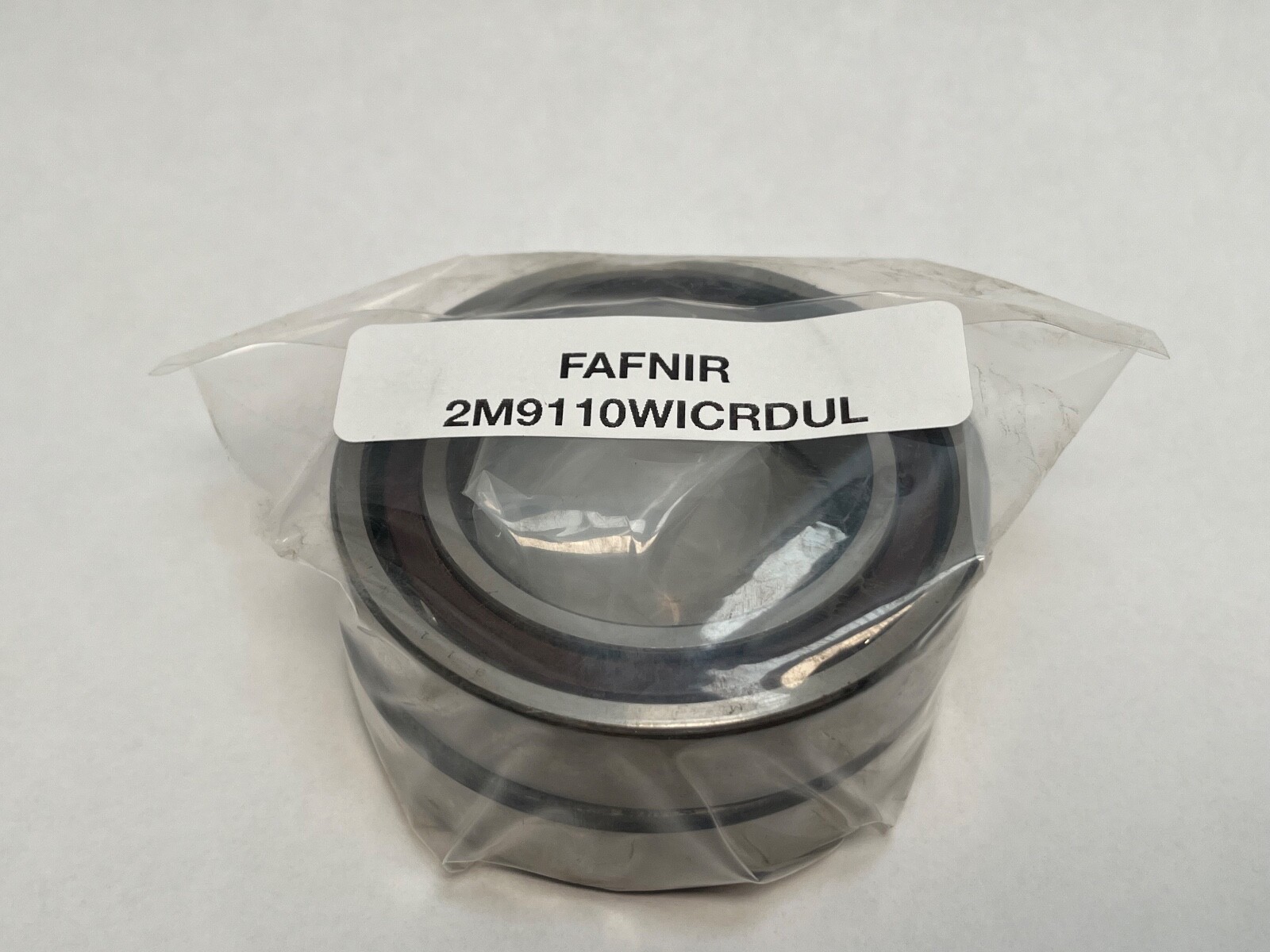

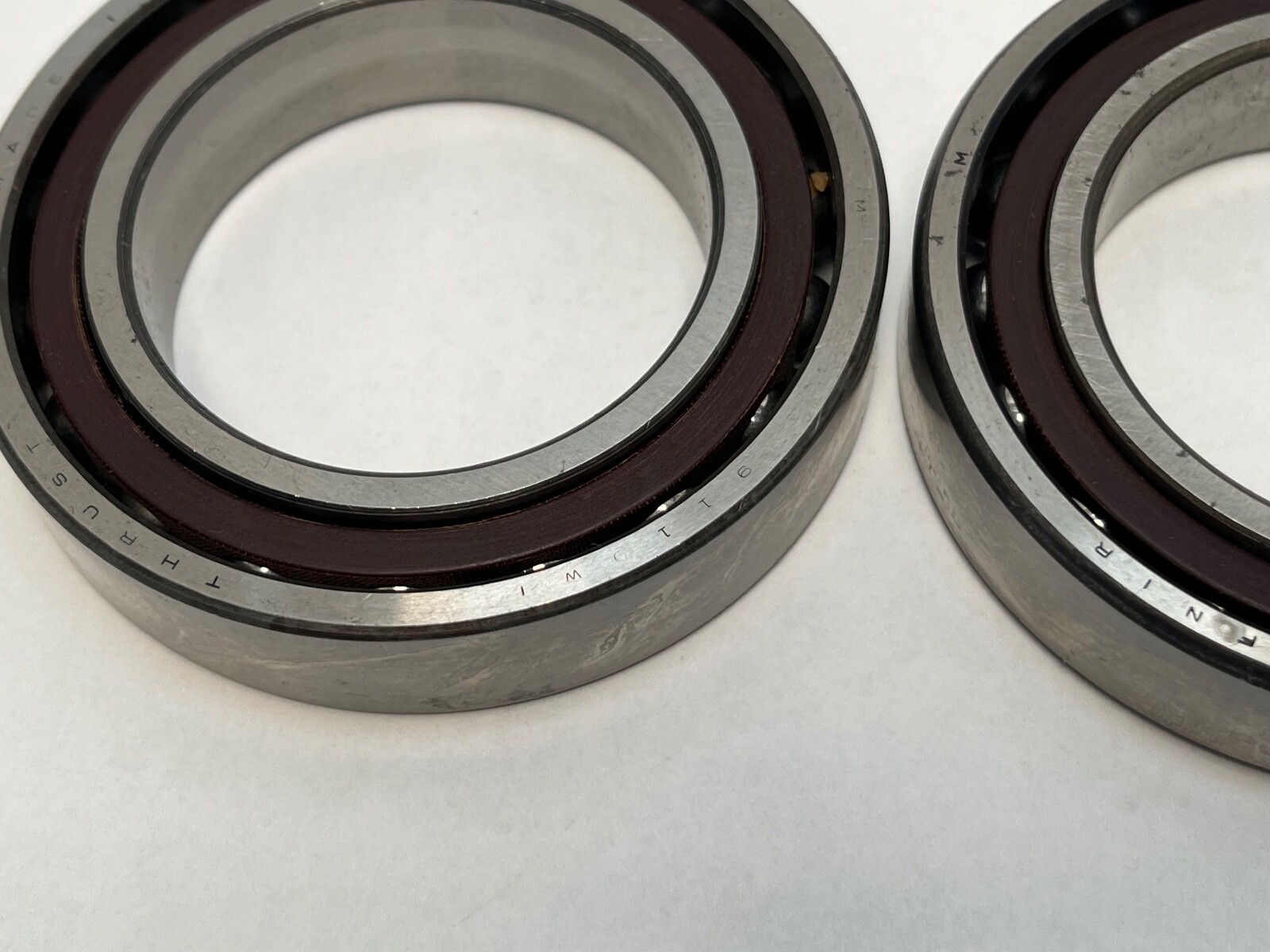

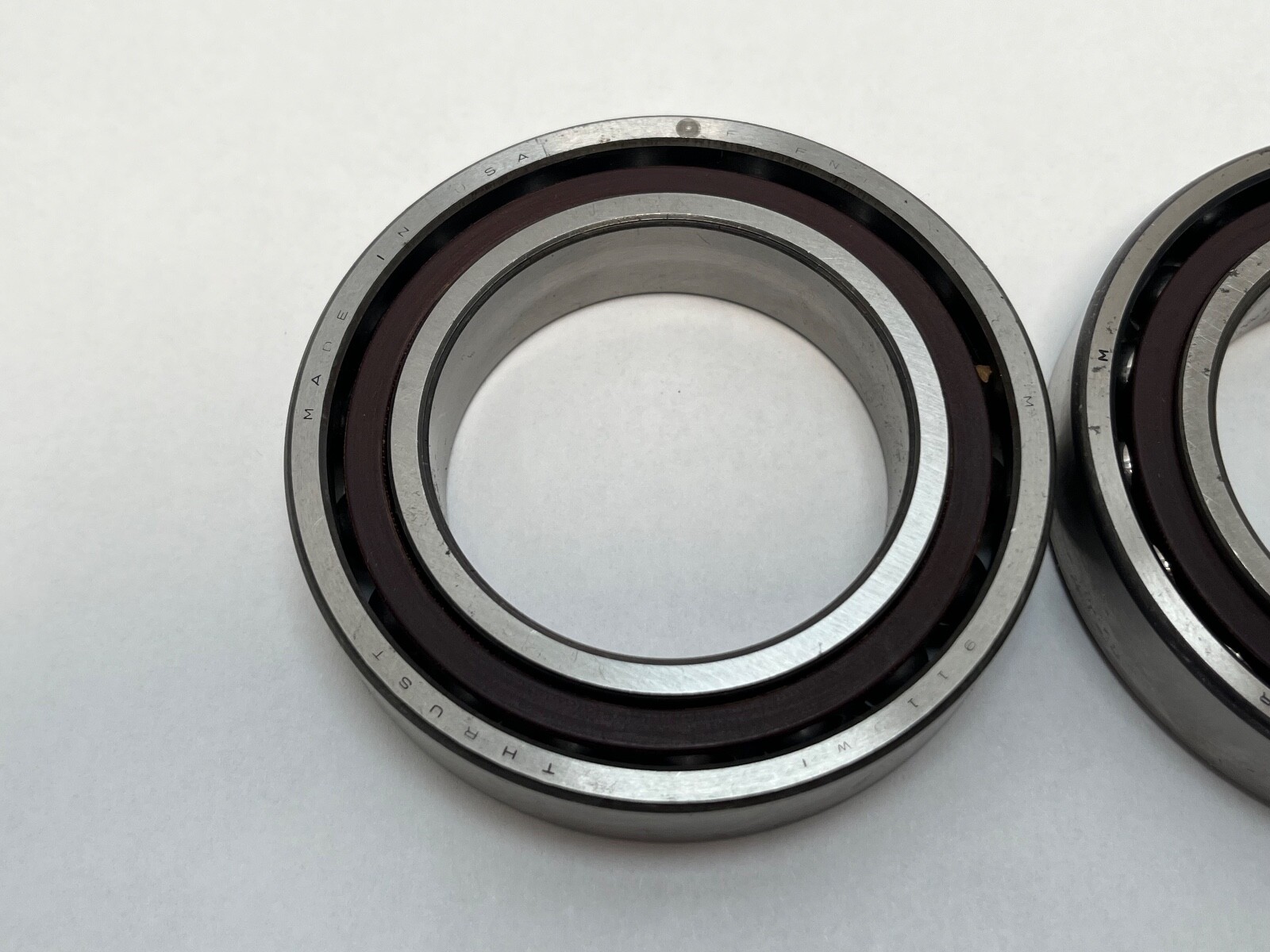

A Fafnir 2M9110WI-DUL super-precision angular contact ball bearing, 50 mm bore by 80 mm outside diameter by 16 mm wide, with a phenolic cage, supplied as a matched duplex pair. Fafnir is Timken’s super-precision line.

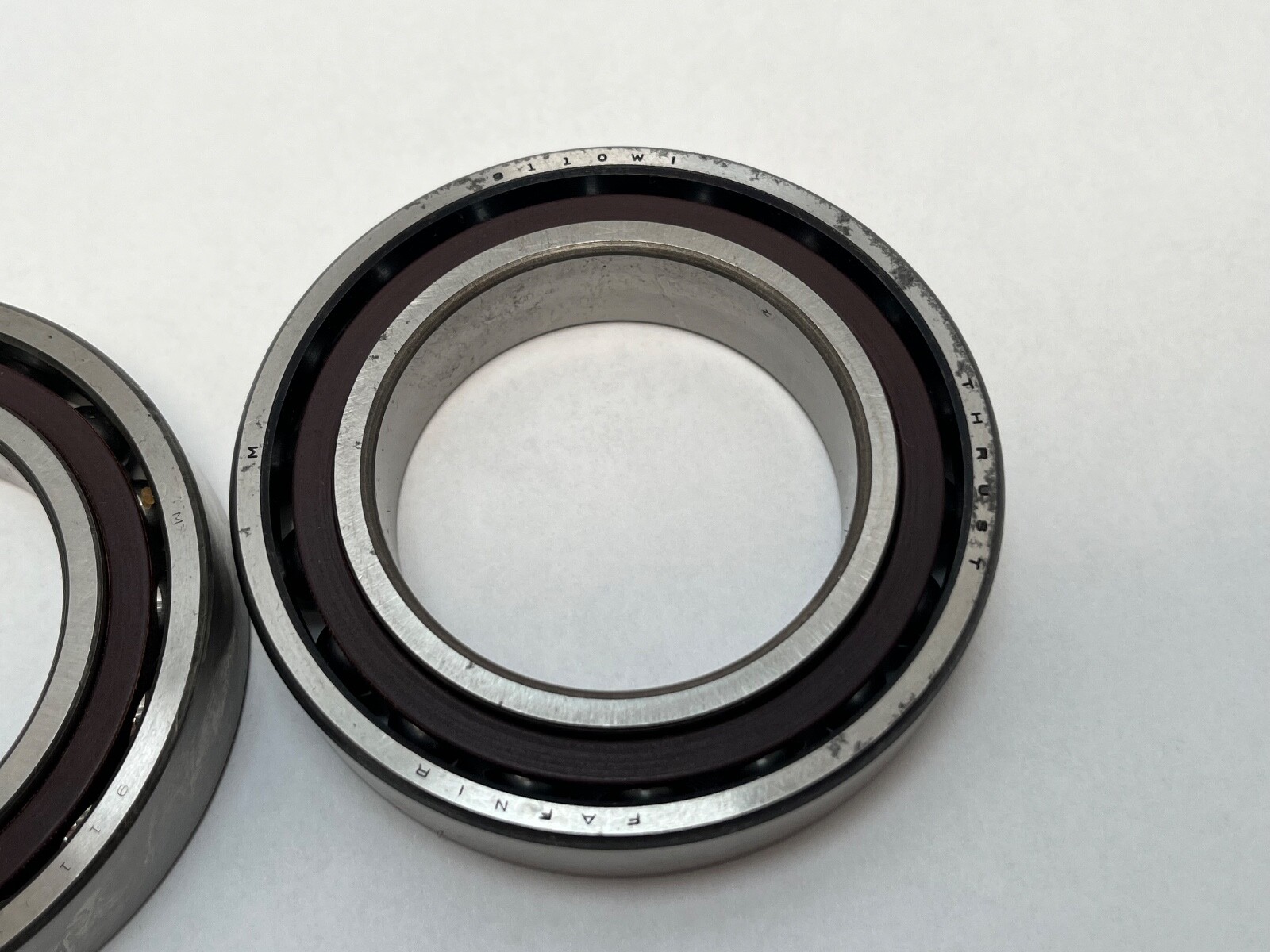

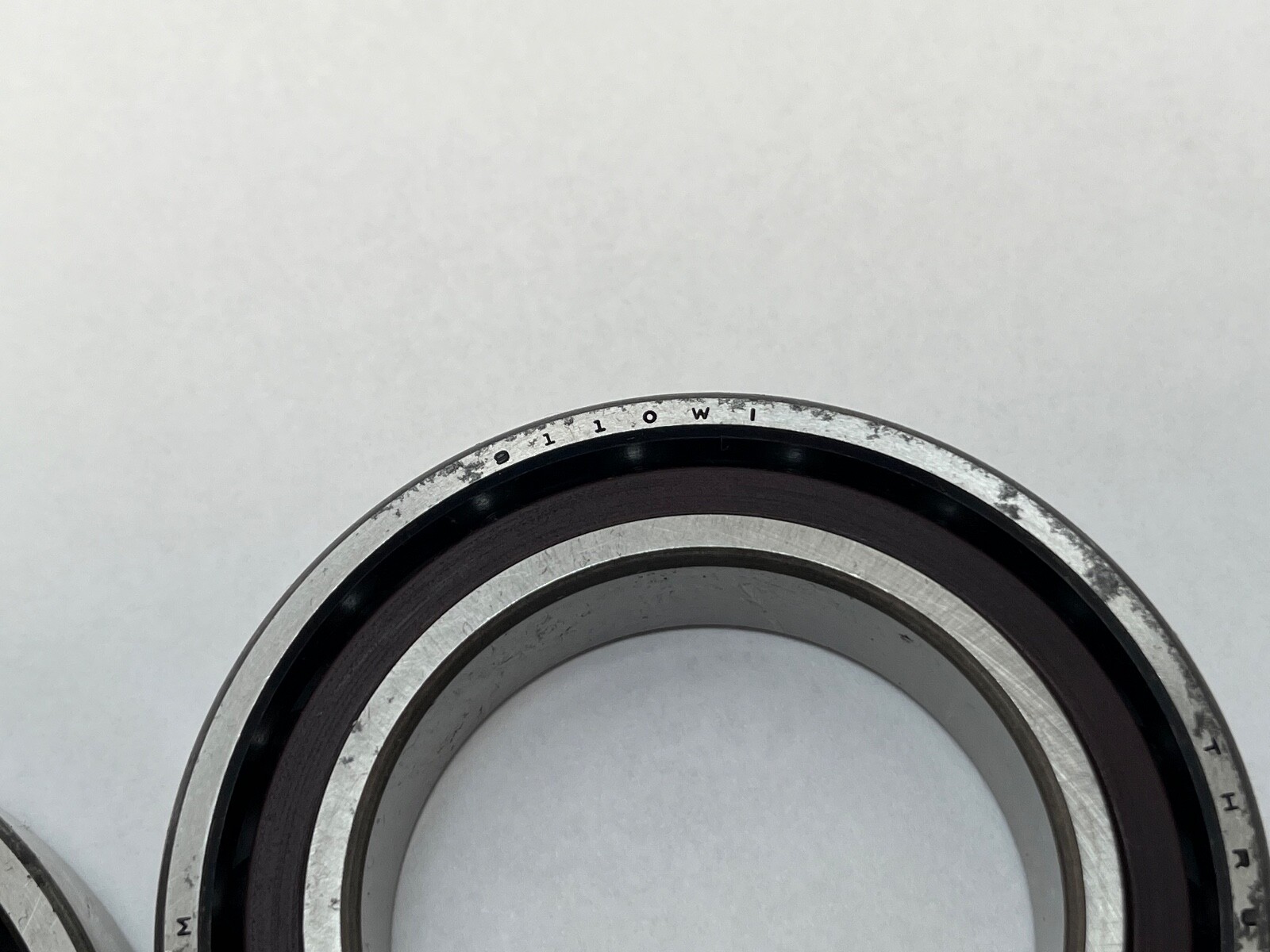

The 2M prefix sets a 15° contact angle, which the 7010-C designation on the carton confirms independently. The leading 9 in 9110 places the bearing in the ISO 70 light dimension series, giving an ISO base number of 7010, and the 10 size code gives a 50 mm bore. WI marks the super-precision angular contact family, CR the phenolic outer-land-riding cage, and DUL a duplex set at light preload.

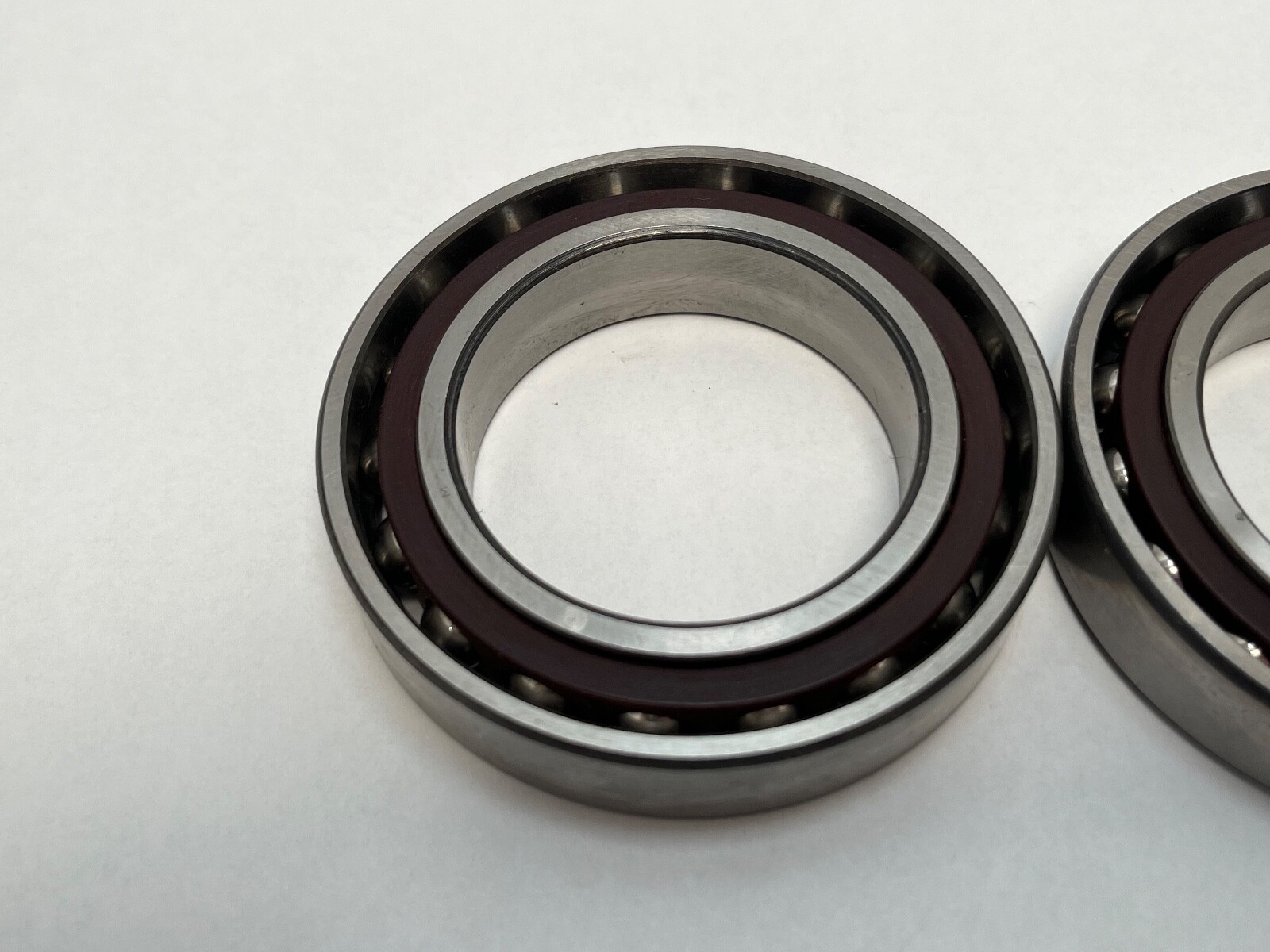

A 15° contact angle favours speed and radial stiffness over thrust capacity, the usual trade for machine tool spindle work. The ISO 70 light series keeps the outside diameter and section small for the bore, which lowers mass and raises attainable speed against a 72-series bearing of the same bore. The phenolic cage rides on the outer ring land and runs quiet and cool, with a lower temperature ceiling than steel or brass.

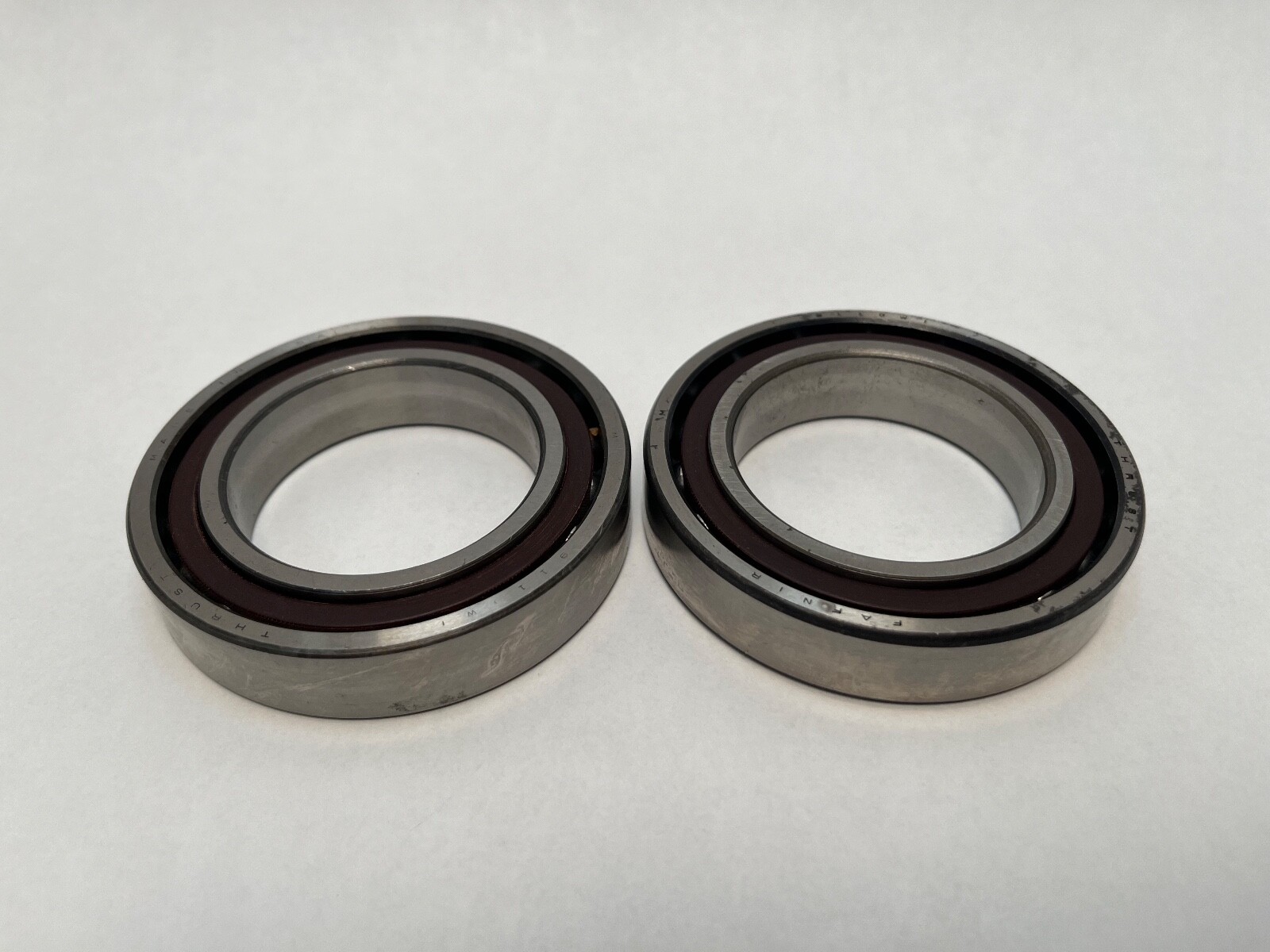

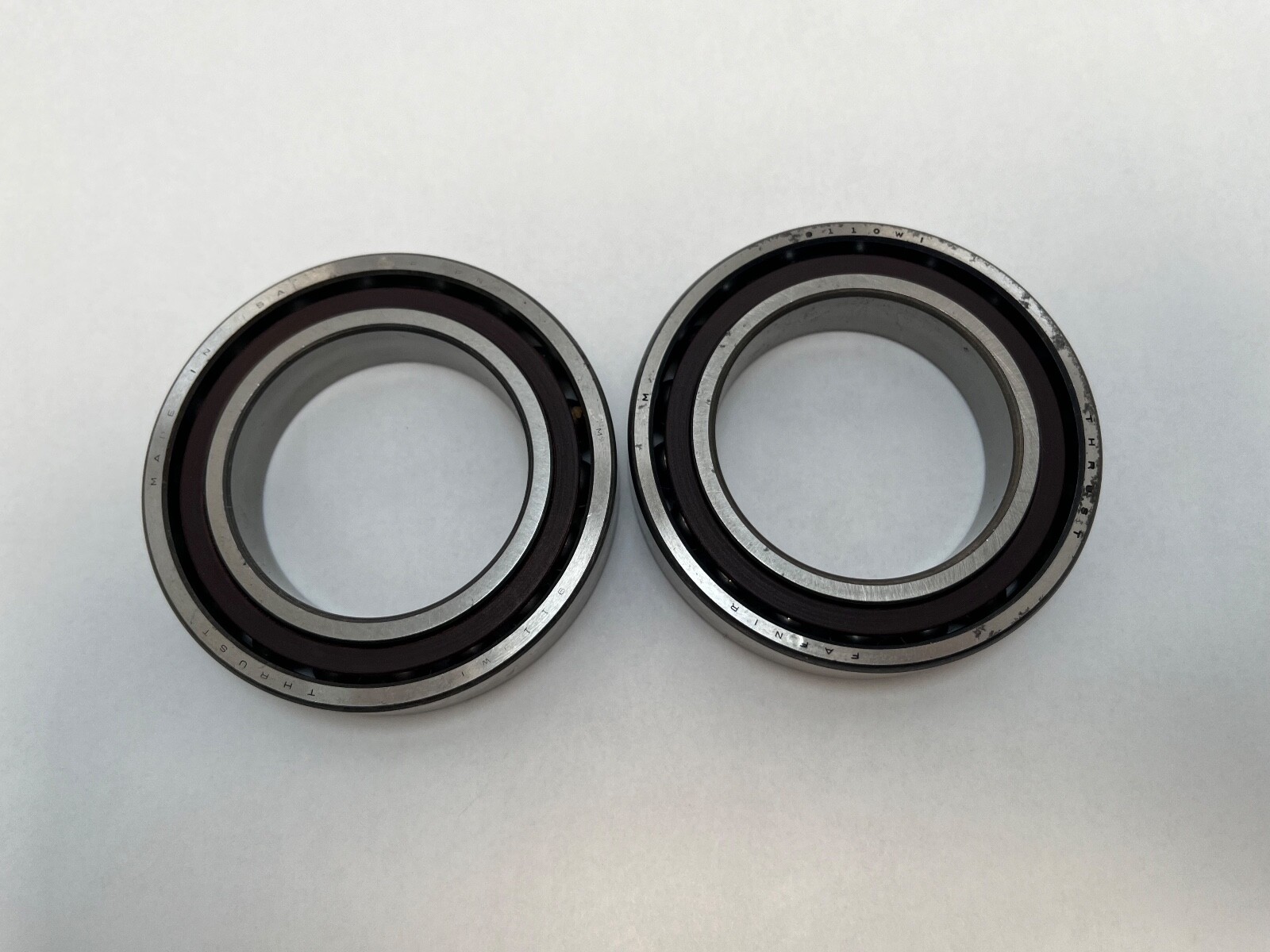

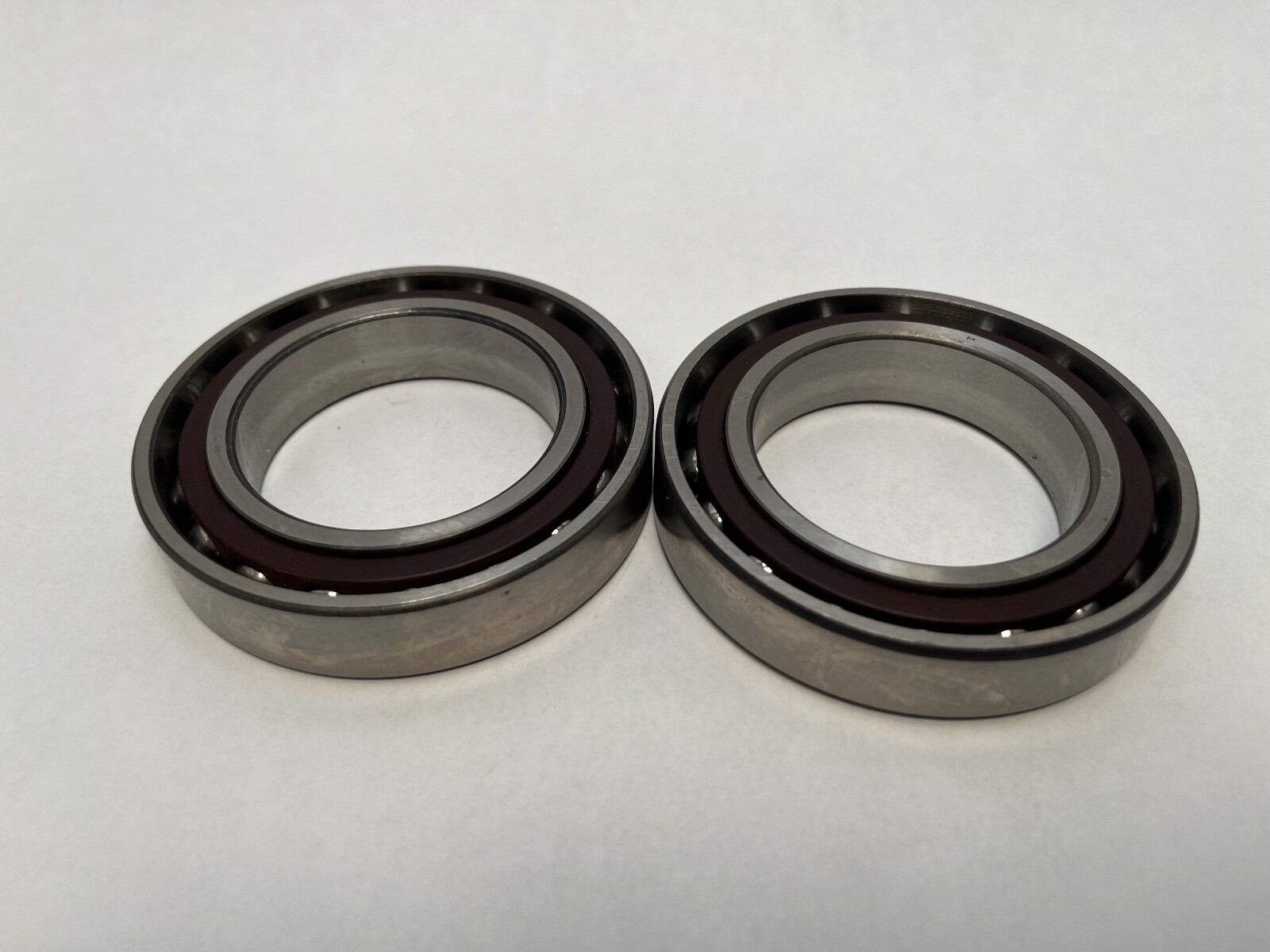

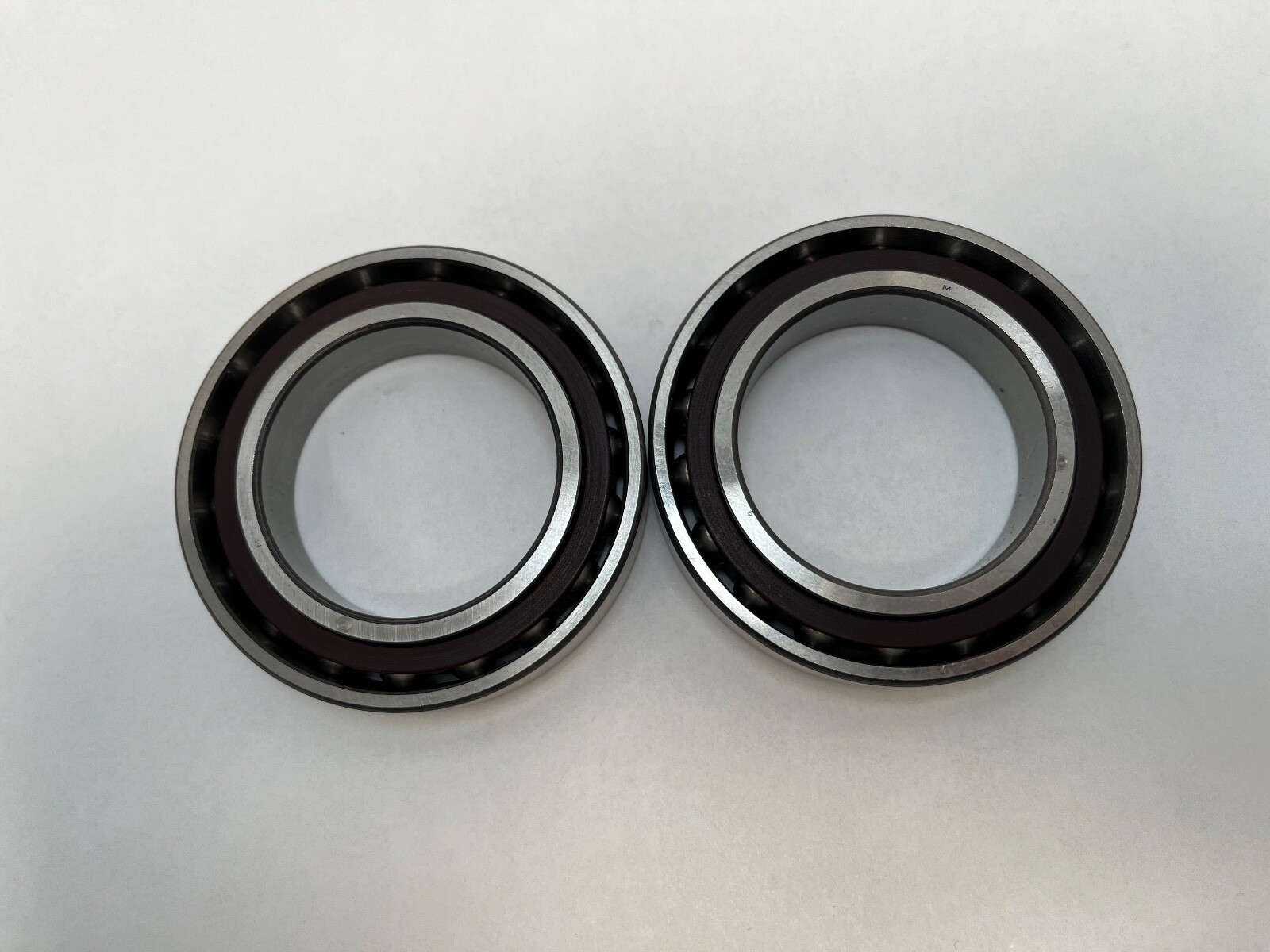

Two bearings, ground as a universal duplex set. The rings are relieved so the pair mounts back-to-back, face-to-face or in tandem and reaches light preload when clamped together without shims.
The pair is installed as a unit and not split between sets, since the ground offsets are matched within the pair. Mounting is onto a clean straight journal against a square shoulder, with the marked faces oriented to the chosen arrangement.
Same-envelope 15° precision equivalents include the SKF 7010 CD/P4ADGA and the FAG B7010-C-T-P4S-DUL. A 7010 at a 25° contact angle, in a different preload grade, or as a single rather than duplex grind is a related size and not an interchange.
