Availability:
Out of stock
Single row angular contact ball bearing, 75 mm bore, 130 mm OD, 25 mm wide, 15° contact angle. Open, straight bore, ISO 02 series, radial and one-way axial load.
List Price
$149.53
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Angular Contact Ball Bearing - 75 mm ID, 130 mm OD, 25 mm Width, 15° Contact Angle, Open$259.27
Angular Contact Ball Bearing Tandem Duplex Set 75x130x25 mm ABEC-5 Medium Preload Phenolic Separator$304.49
Super-Precision Angular Contact Ball Bearing - Straight Bore, 75 mm ID, 130 mm OD, 25 mm Width, Open, 15° Contact Angle, Phenolic Cage, Light Preload, Single Universally Ground$190.49
Super Precision Angular Contact Ball Bearing 75 x 130 x 25 mm 15 Degree ABEC 7 Light Preload Phenolic Cage$190.49| MFR / Brand | SKF |
|---|---|
| MPN | 7215CTCC78G1 |
| Model | 7215 CTC C78 G1 / 2M215WI CR |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 75 mm |
| OD | 130 mm |
| Width | 25 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Base Number | 7215 |
| Industry Terms | Spindle bearing; precision angular contact bearing; machine tool bearing; 72 series angular contact |
| Common Misspellings | 7215 CTC C78 GI; 7215CTCC78G-1; 7215 CTCC78 G1; 72 15 CTC C78; 7215CTCC7BG1 |
| Application Types | Machine tool spindles; gearbox shafts; pumps; screw drive supports |
| Overall Width | 25 mm |
| Mpn Variants | 7215CTCC78G1; 7215 CTC C78 G1; 7215-CTC-C78-G1; 7215CTC/C78G1; 7215C |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Bearing Material | Bearing steel |
| Cross Reference 1 | Timken/Fafnir 2MM215WICR |
|---|---|
| Cross Reference 2 | FAG B7215C.T.P4S |
| Cross Reference 3 | NSK 7215CTR |
| Cross Reference 4 | RHP B7215X2TA |

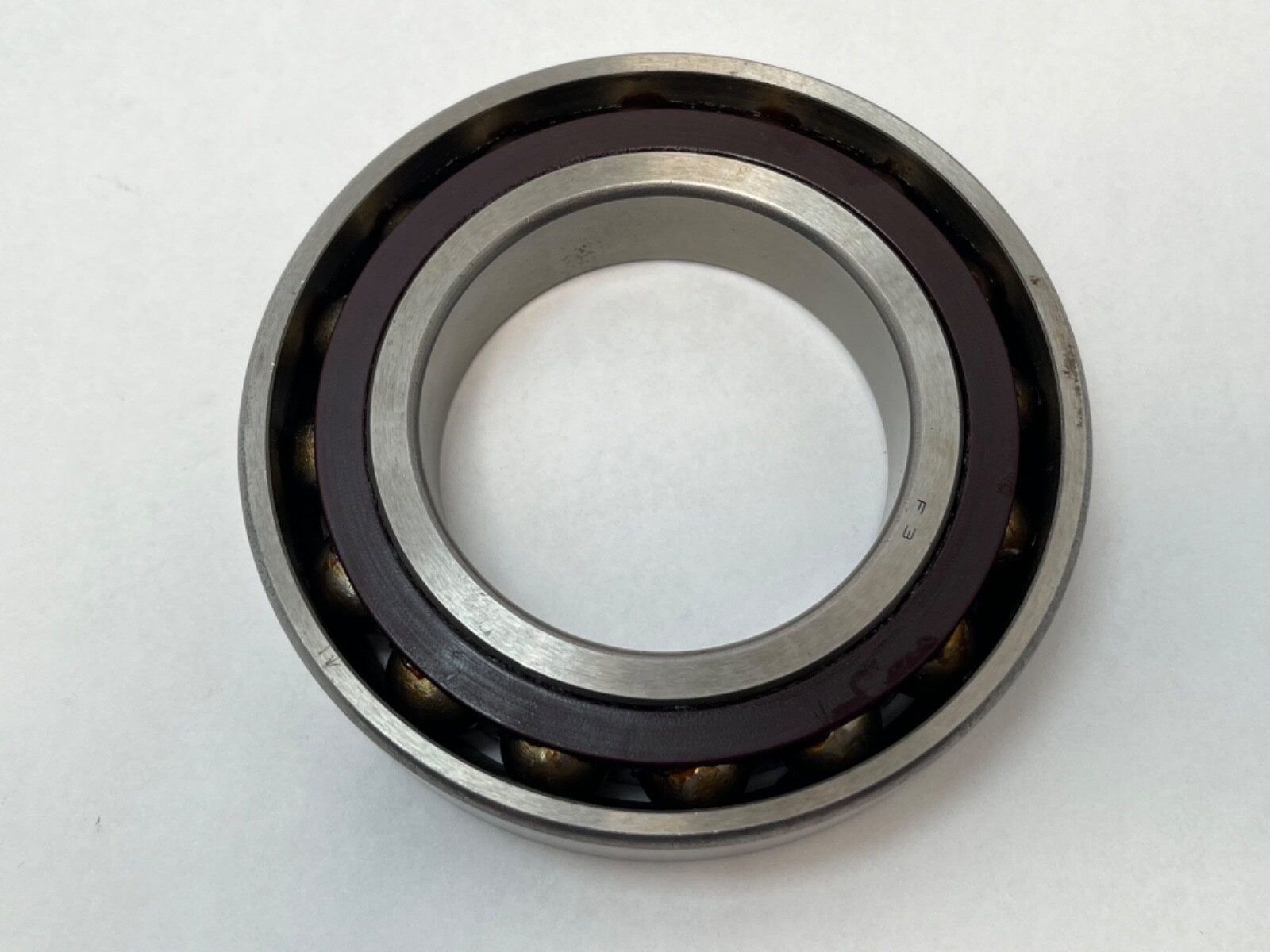

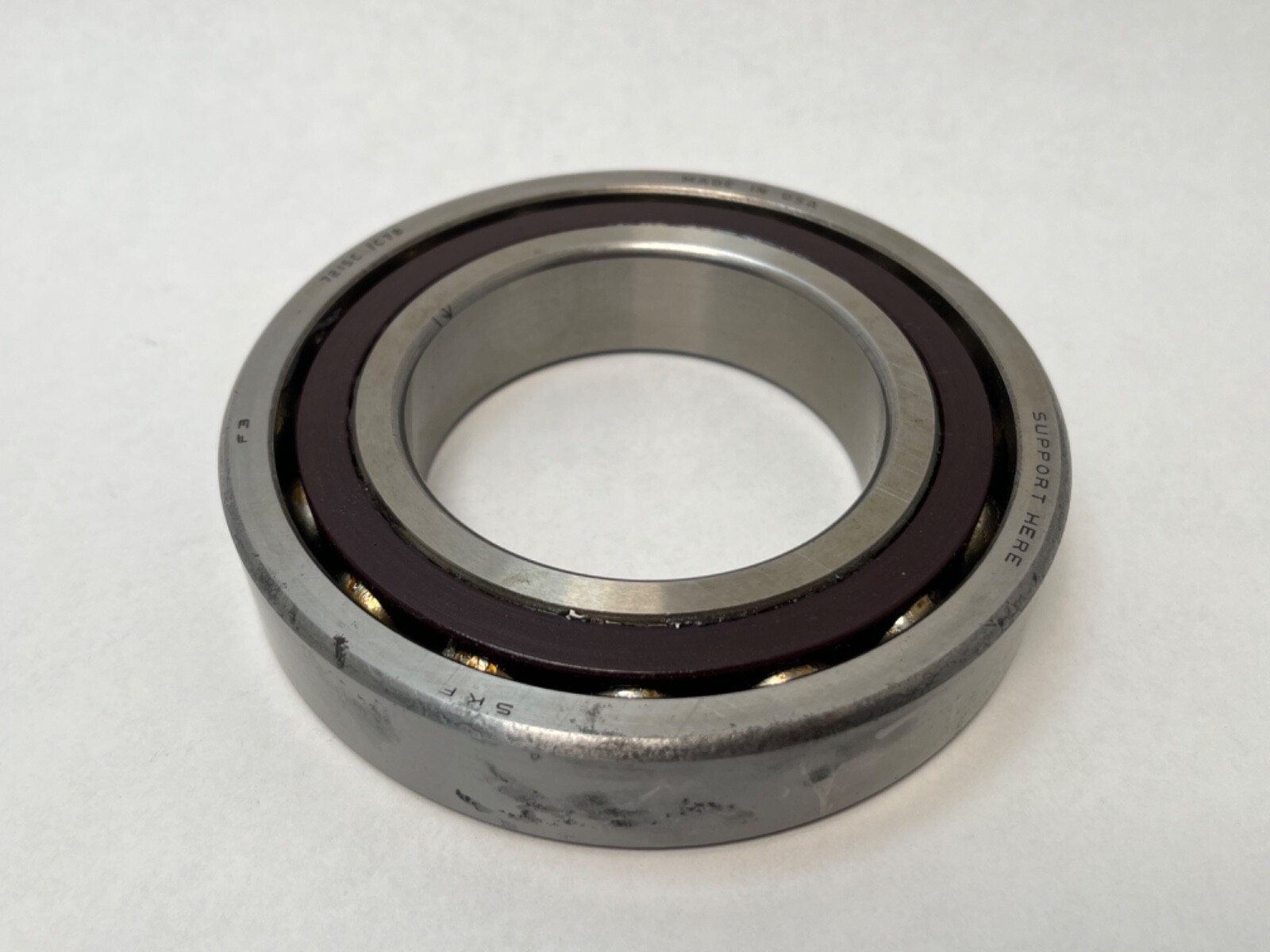

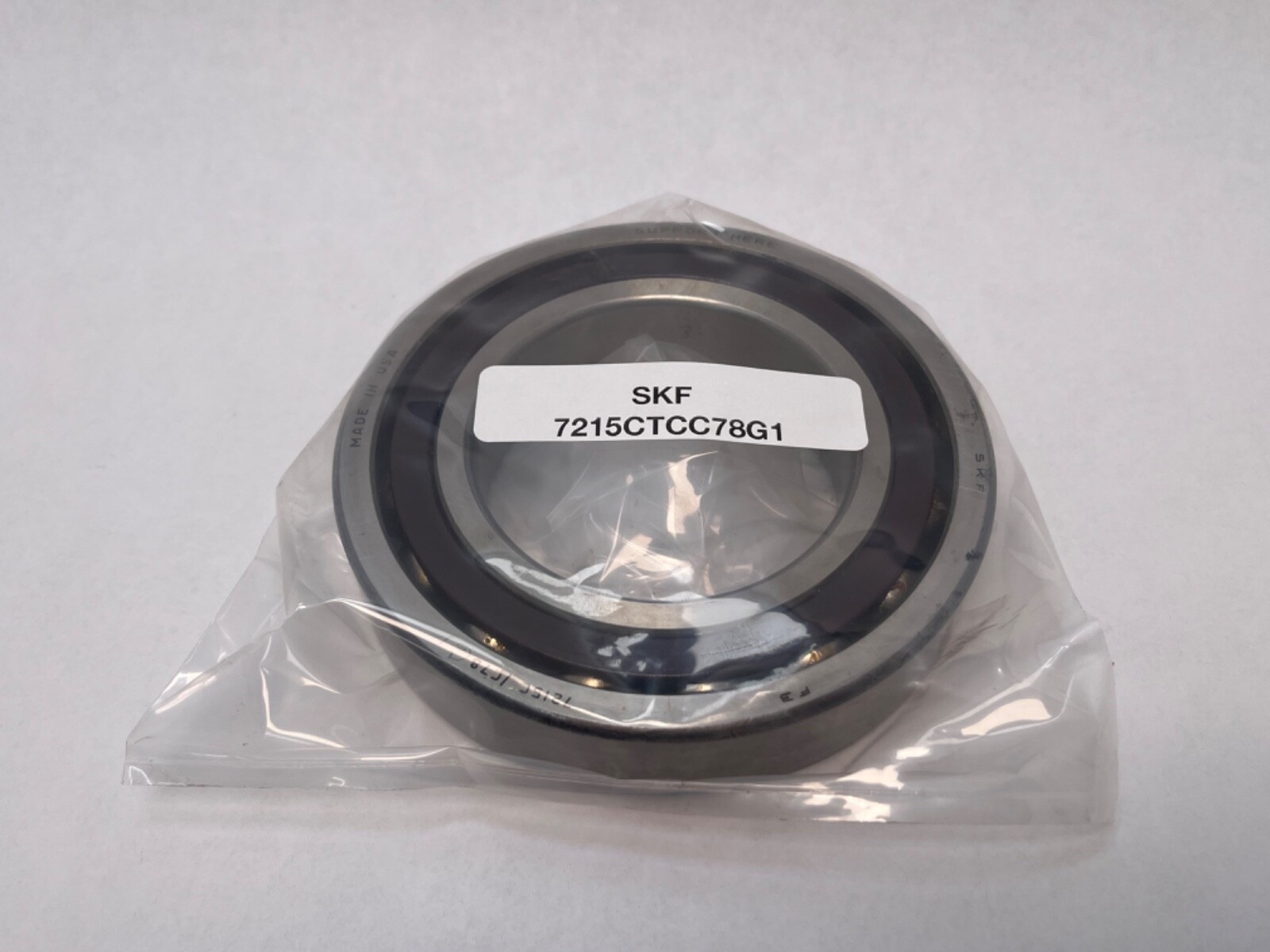

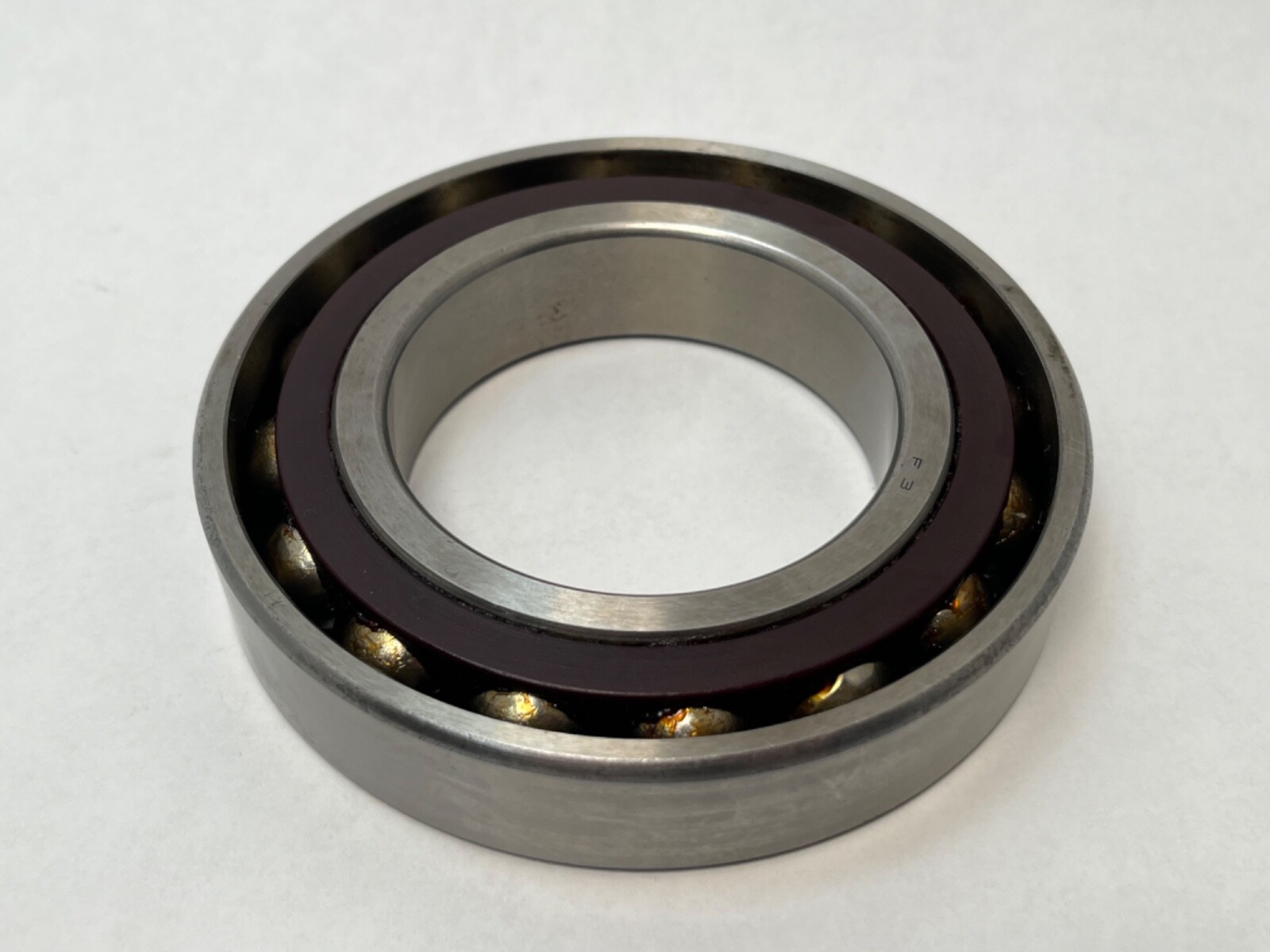

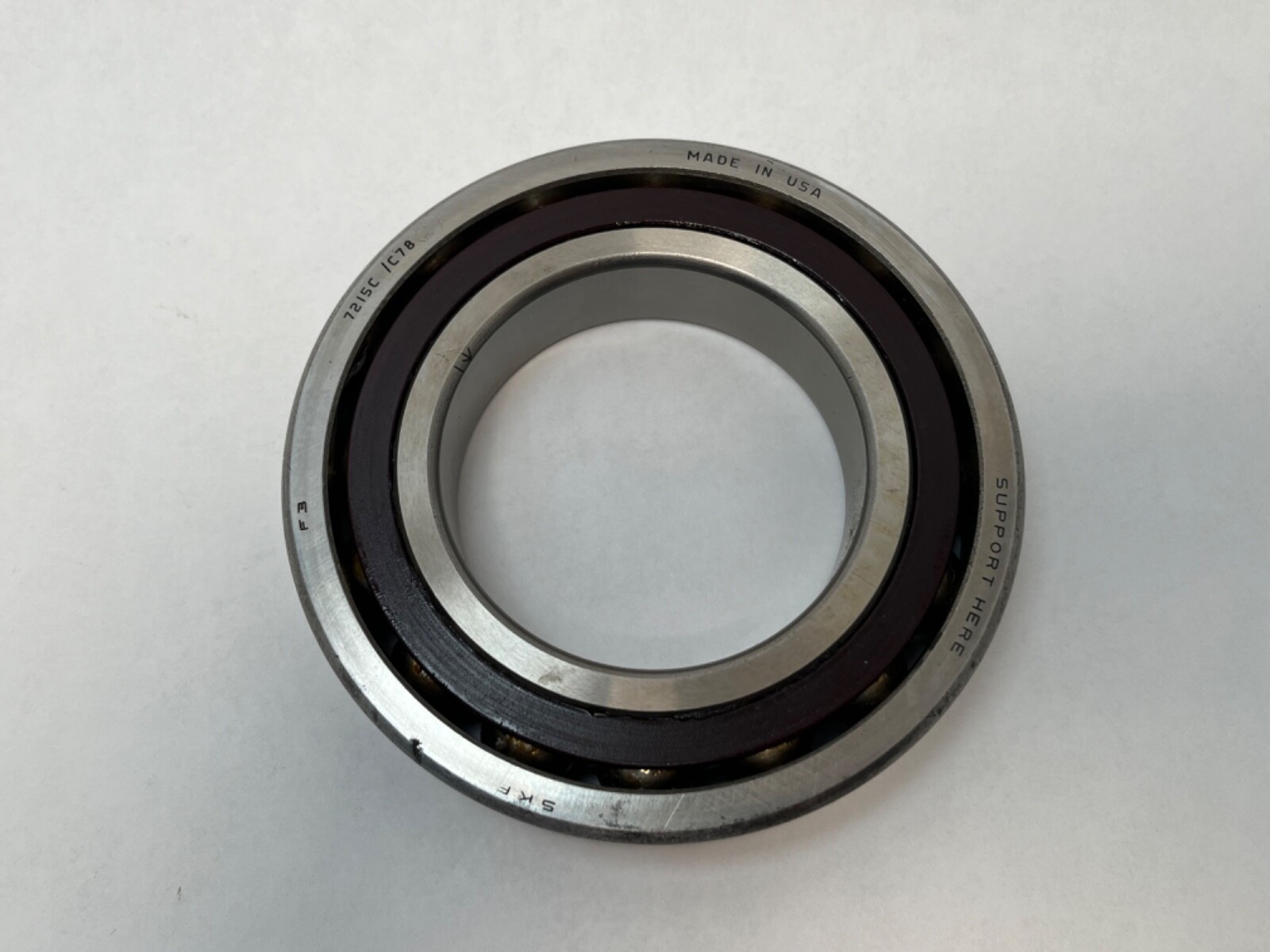

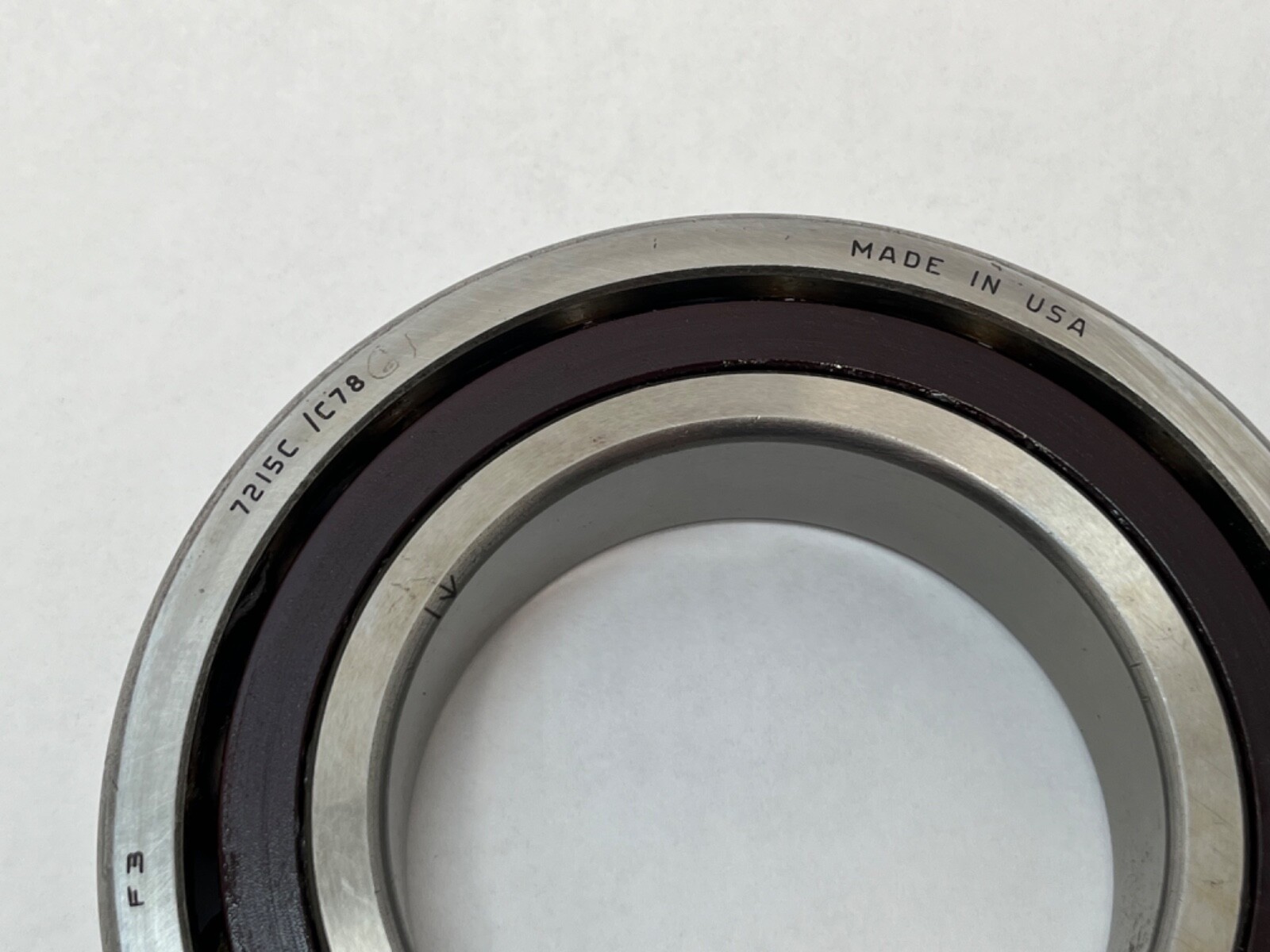

SKF single row angular contact ball bearing in the 72 series, ISO dimension series 02. Bore Diameter: 75 mm. Outside Diameter: 130 mm. Overall Width: 25 mm. Contact Angle: 15°. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Bearing Material: Bearing steel. Series: 7200. Base Number: 7215. Unit Quantity: 1 Pc.
72 — angular contact ball bearing to ISO dimension series 02.
15 — bore code. Bore diameter 75 mm.
C — 15° contact angle.
Contact Angle: 15°. The load line runs at 15° to the radial plane, so the bearing carries radial load together with axial load in one direction. The shallow angle favours running speed and radial stiffness. Ring Type: One-piece inner and outer rings.
ISO dimension series 02 at a 75 mm bore gives a 130 mm outside diameter and a 25 mm width. Single row angular contact bearings of this size run in machine tool spindles, gearbox shafts, pumps and screw drive supports, mounted in opposed pairs or in tandem so that thrust is taken in both directions.
Unit Quantity: 1 Pc. Single bearing, open on both faces, straight bore, one row of balls.
The cross-references listed are same-envelope, same-angle equivalents at 75 x 130 x 25 mm and 15°: Timken Fafnir 2MM215WICR, FAG B7215C.T.P4S, NSK 7215CTR, RHP B7215X2TA, NTN 7215C, Koyo 7215C, GMN S6215C, IBC 7215C.T and SNR 7215CG1.
$259.27
1 in stock
$259.27
1 in stock
