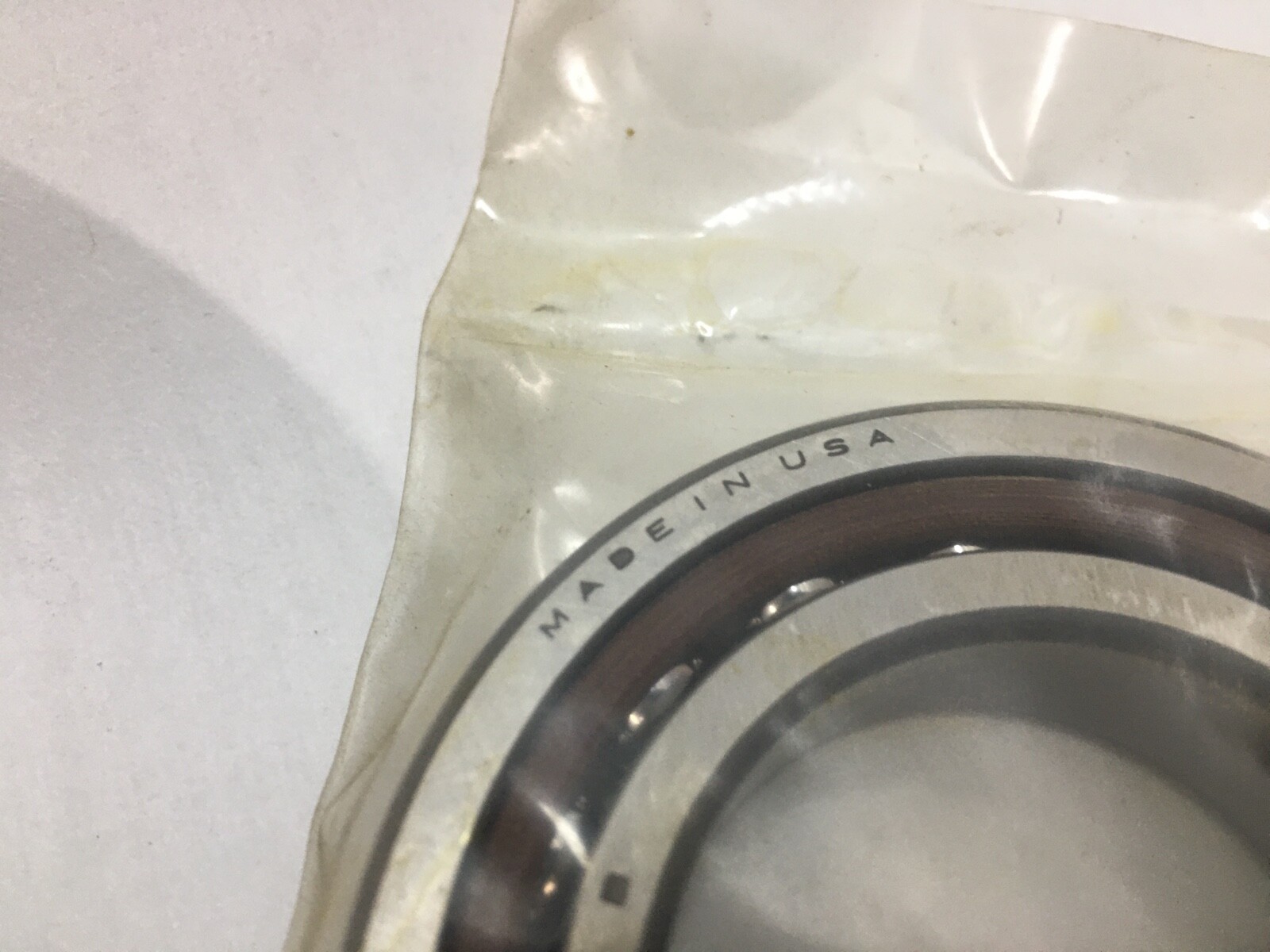

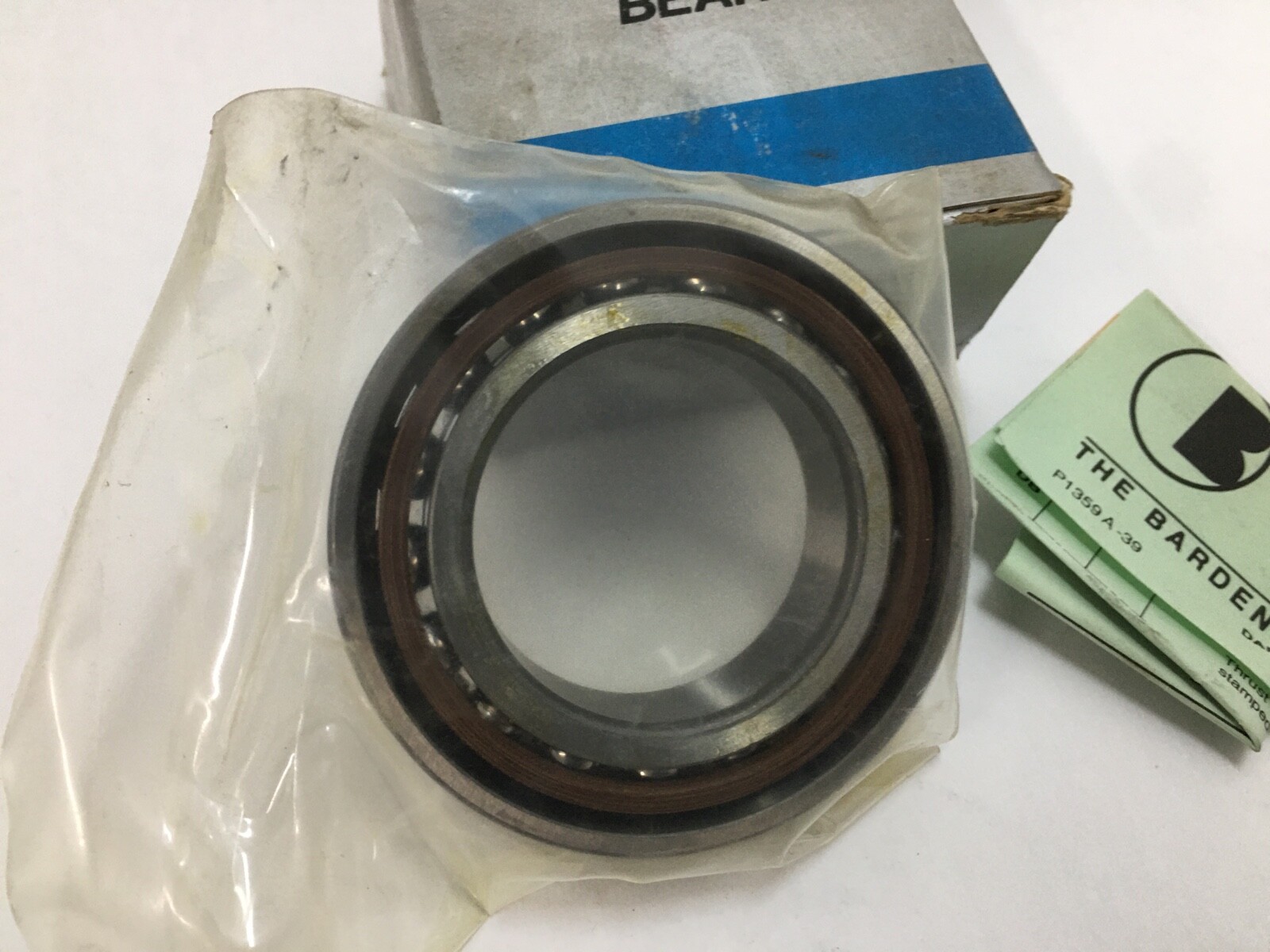

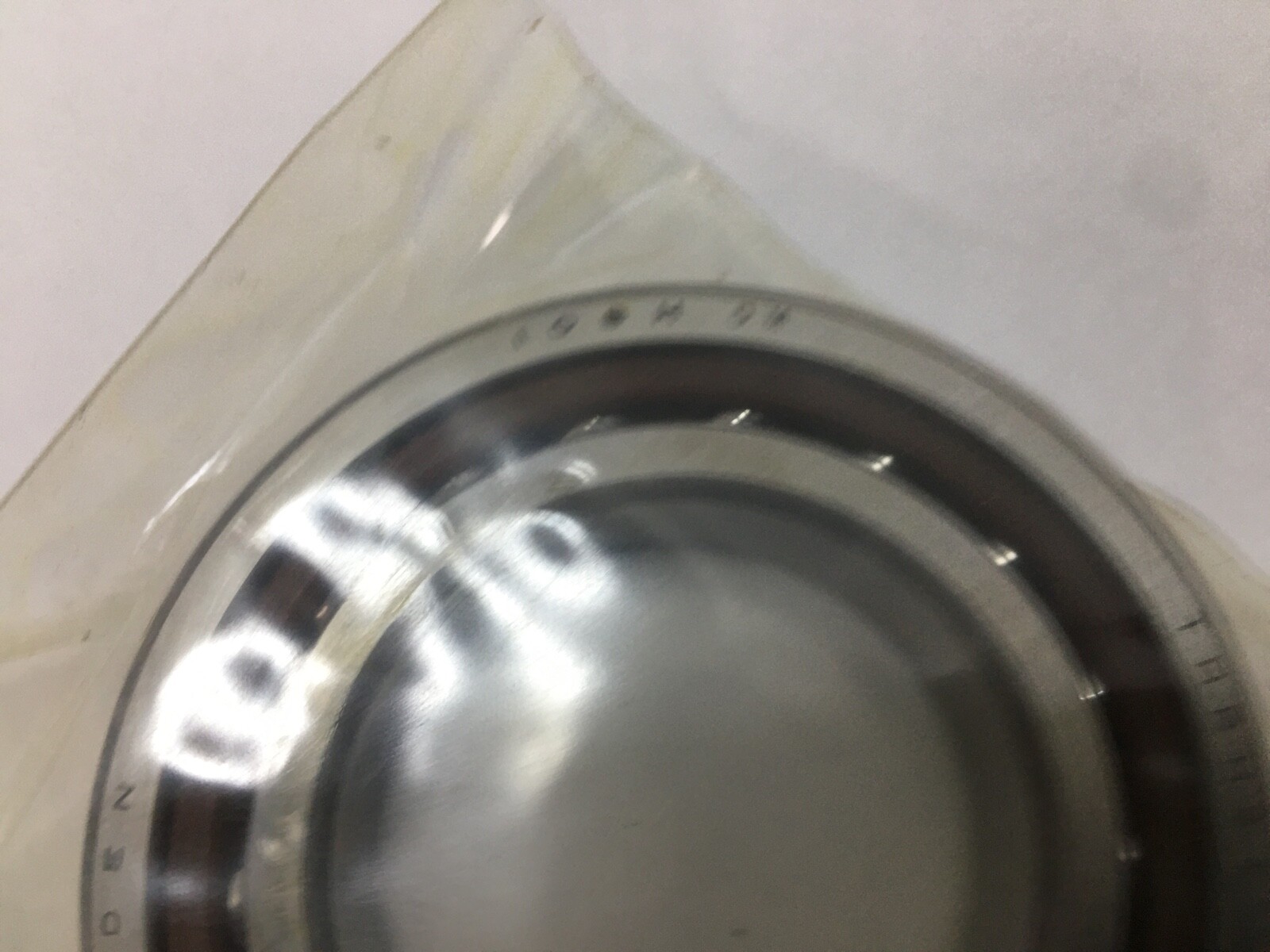

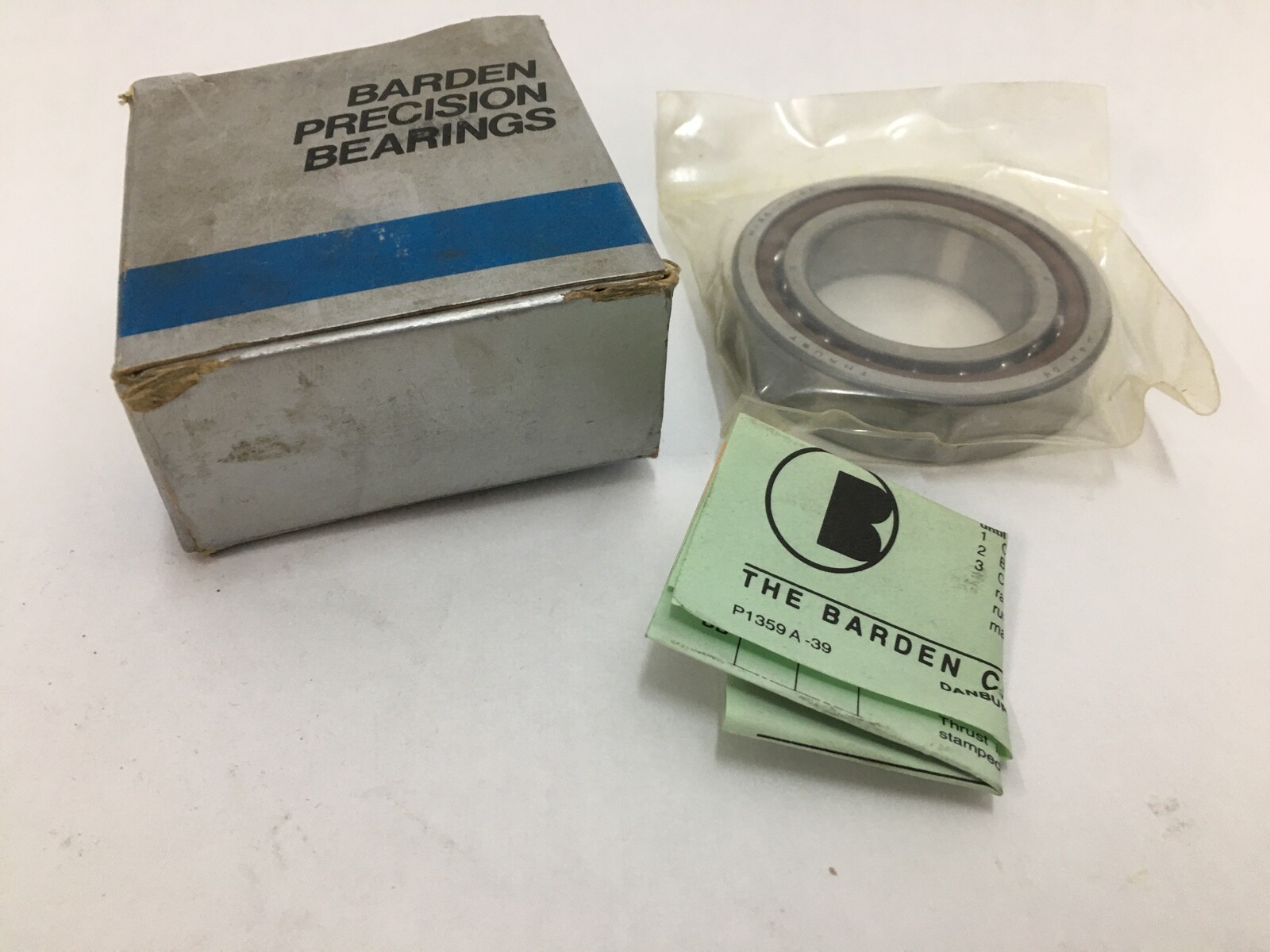

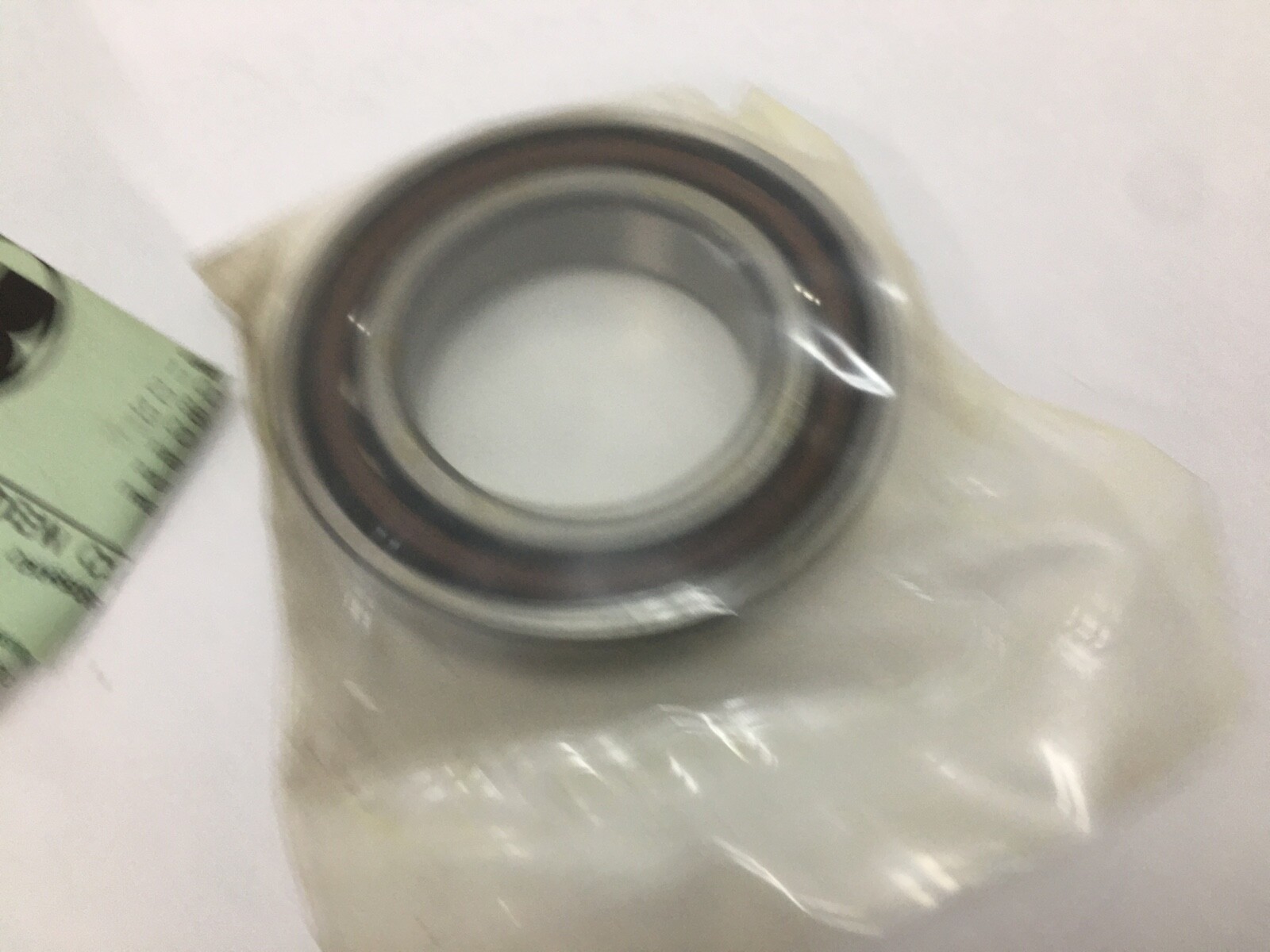

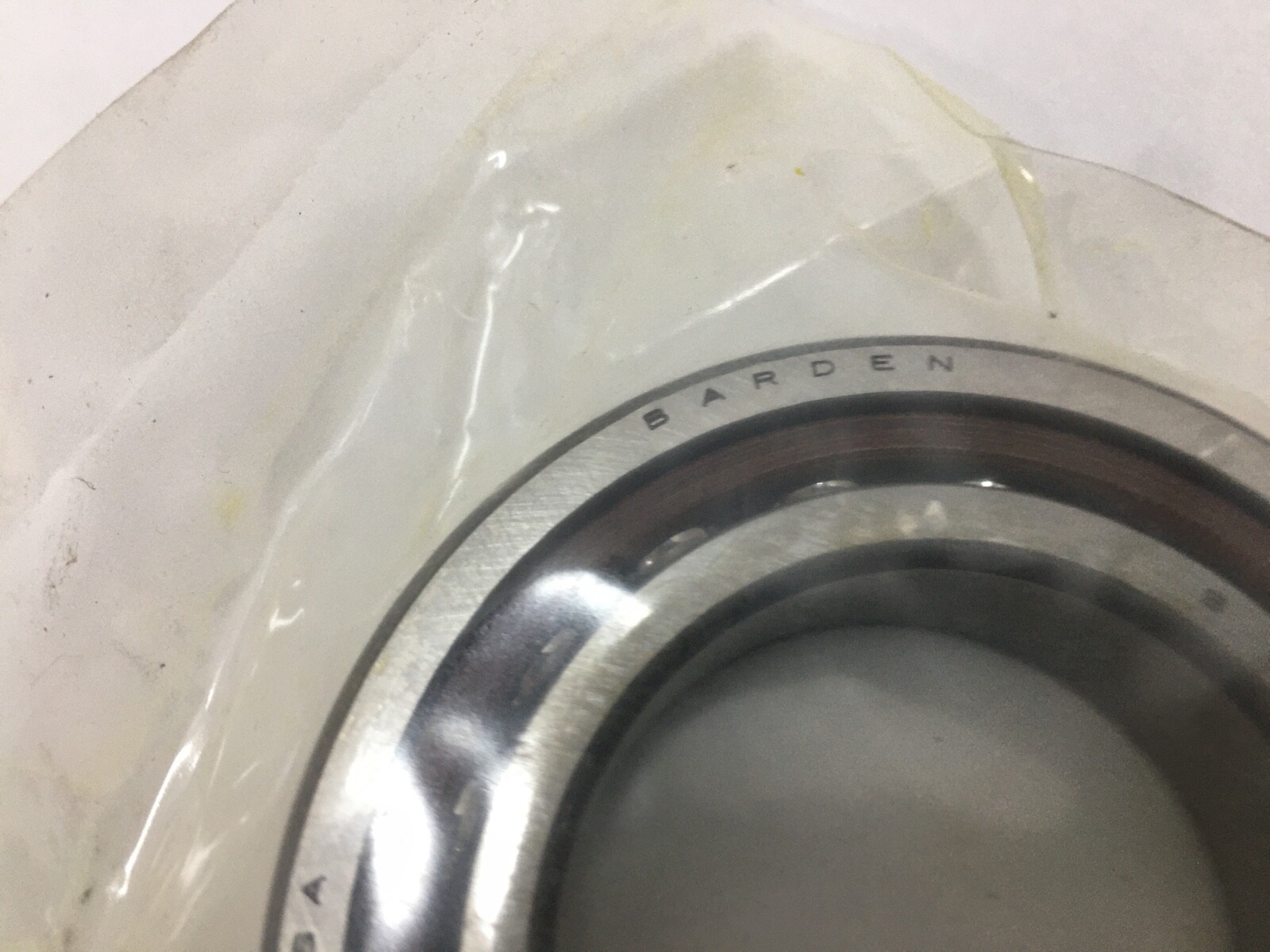

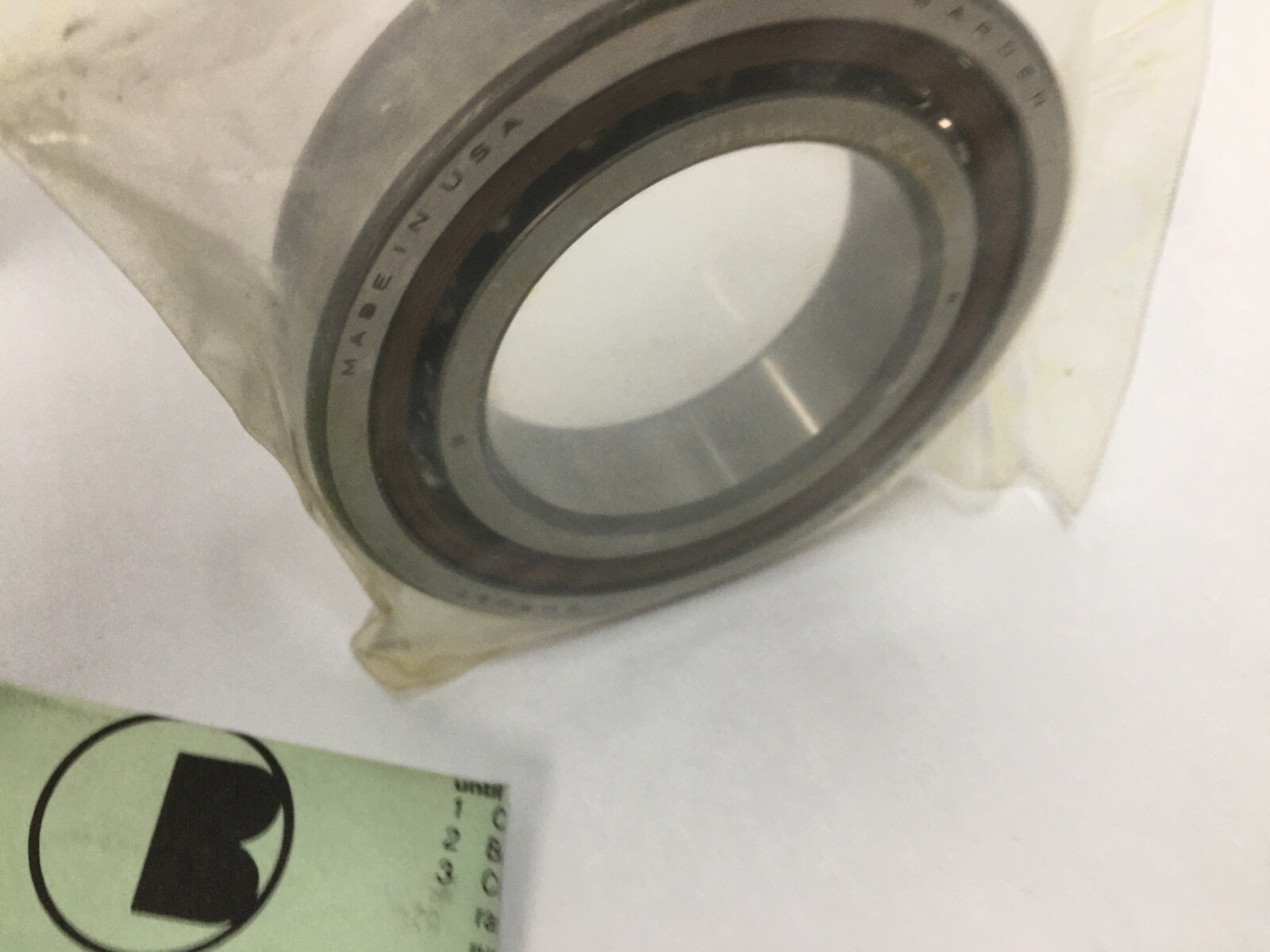

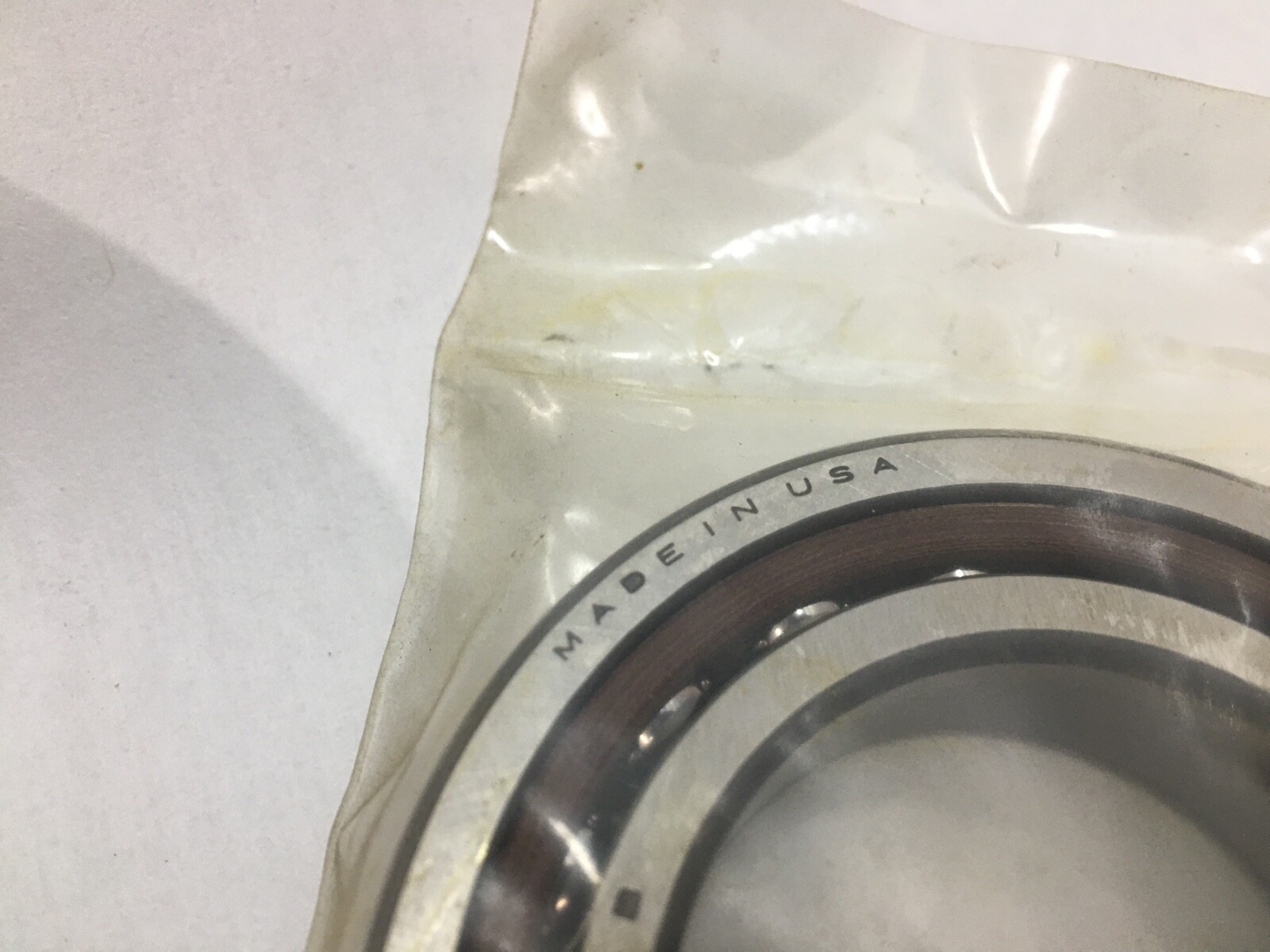

Name: Angular contact bearing - 40 mm ID, 68 mm OD, 15 mm Width, Open, 15° Contact Angle, Flush Ground.
Brand: Barden
SKU: B-AR1B2#0OHBMJ
Price: 136.85 USD
Availability: InStock

Additional information

Key Specifications

MFR / Brand	Barden
MPN	108 H
Model	108H D M
Bearing Type	Angular Contact Ball Bearing, Open
ID	40 mm
OD	68 mm
Width	15 mm

Specifications

Advertise	1
Material	Chrome Steel
Min Temp	-30°C
Cage Type	Textile Laminated
Dynamic Load Rating	17.5 kN
Static Load Rating	12.8 kN
Precision Rating	ABEC 7 / P4
Series	100
Rolling Elements	Balls
Max Temp	100°C
Condition	New
Item Weight	0.42 lbs
Cage Material	Phenolic
Number Of Rows	1
Bore Type	Straight
Snap Ring Included	Without Snap Ring
Harmonization Code	8482.10.50
Contact Angle	15°
Mounting Arrangement	Universal
Running Accuracy	P4
