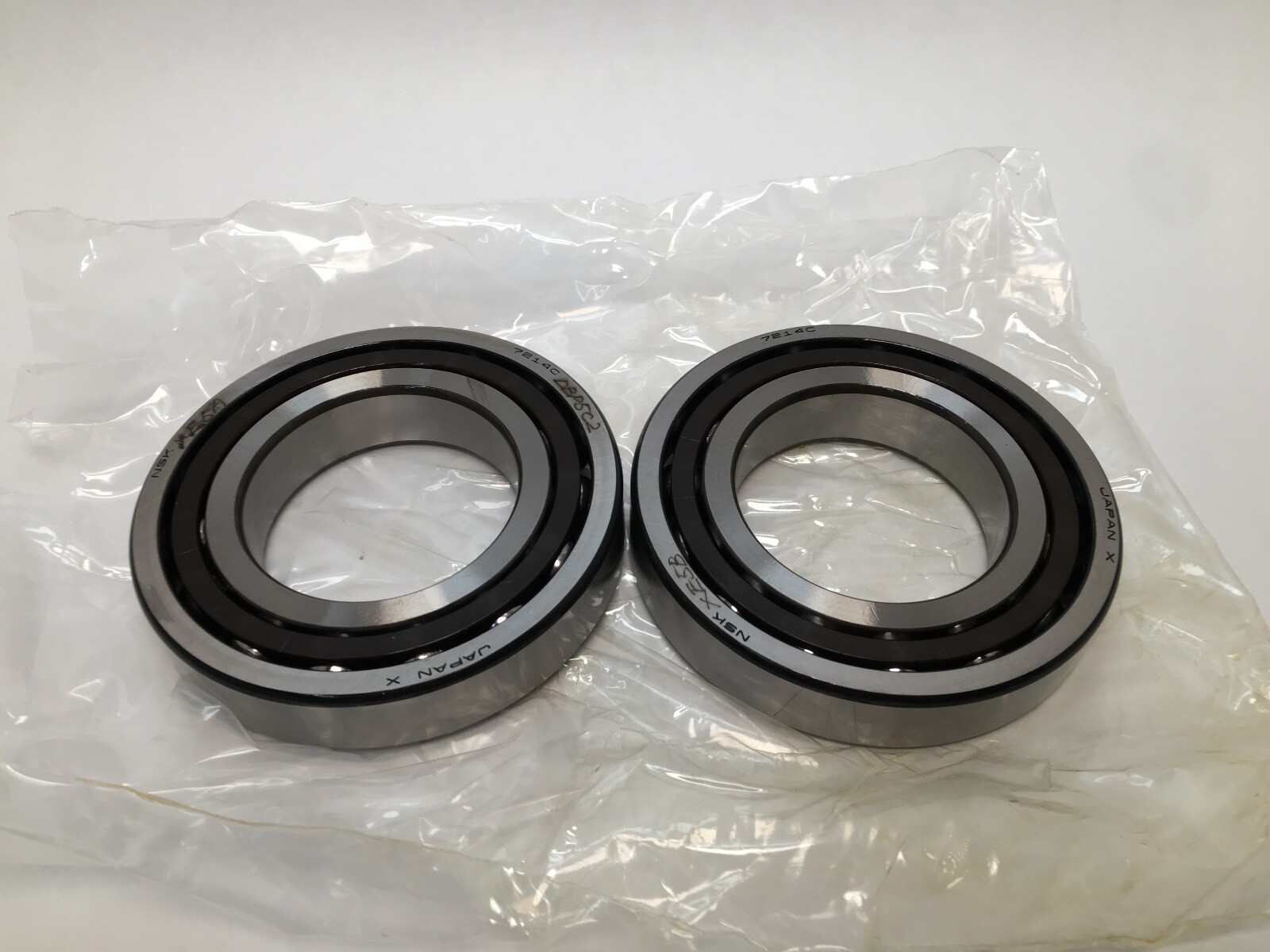

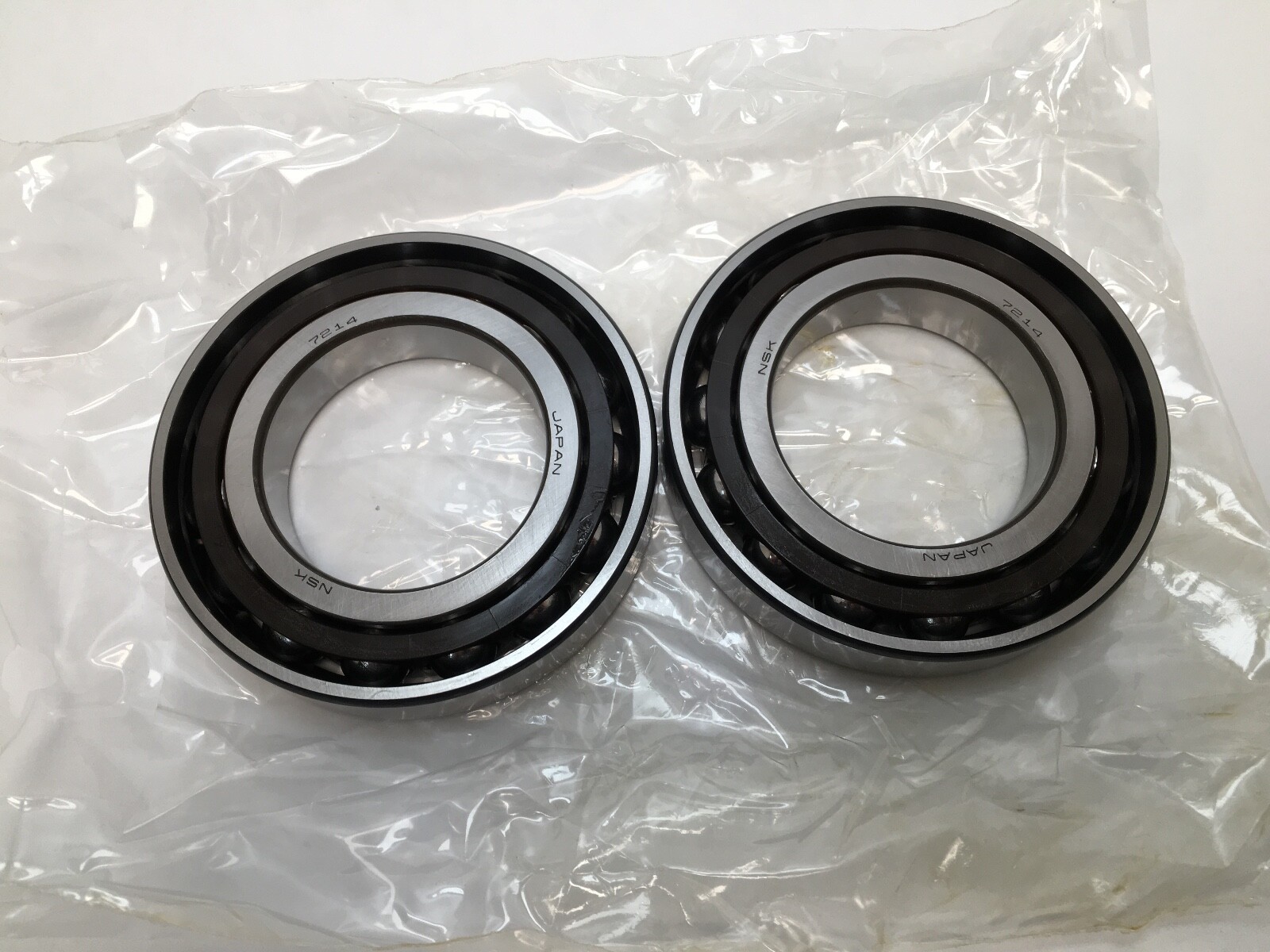

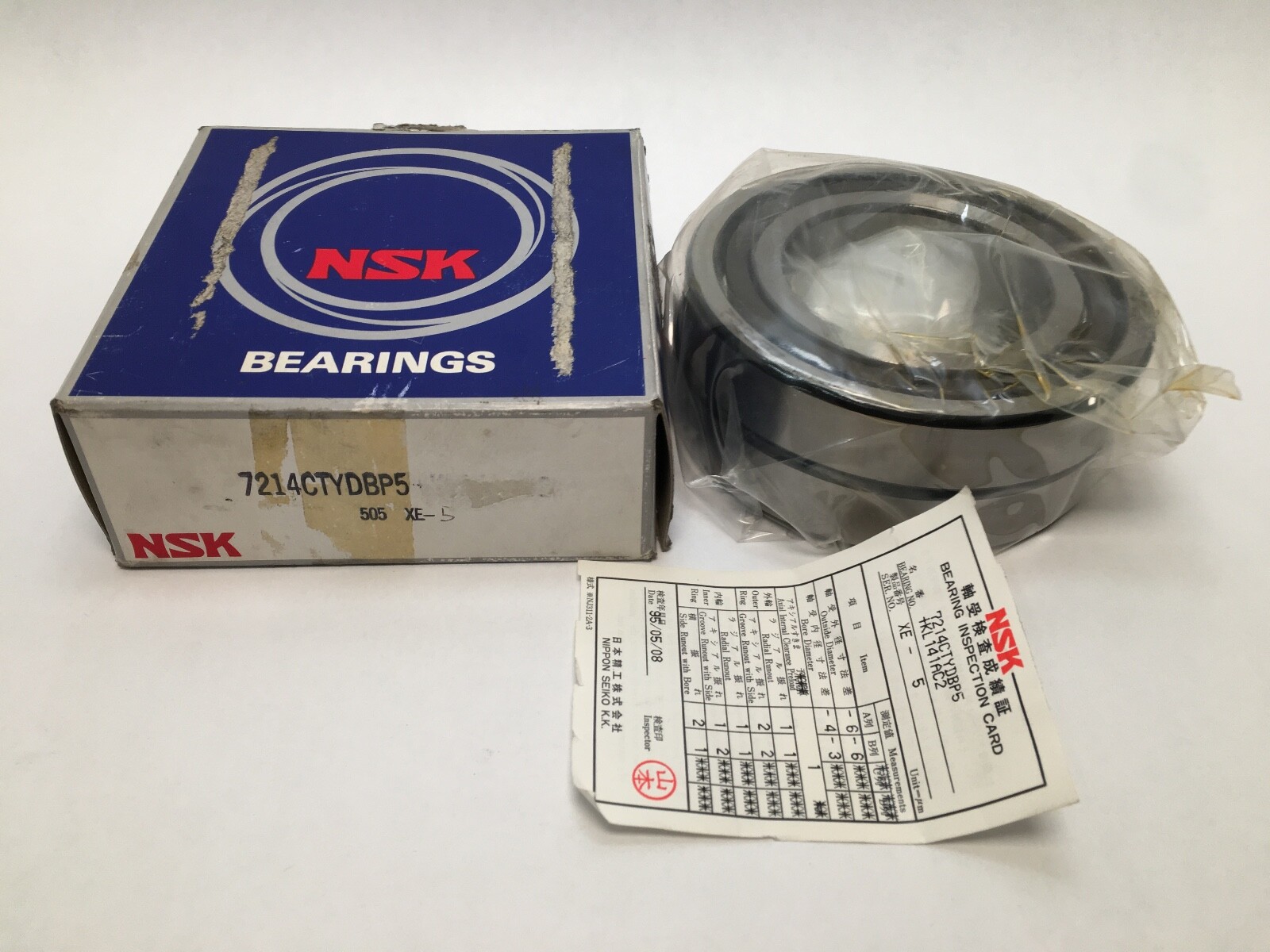

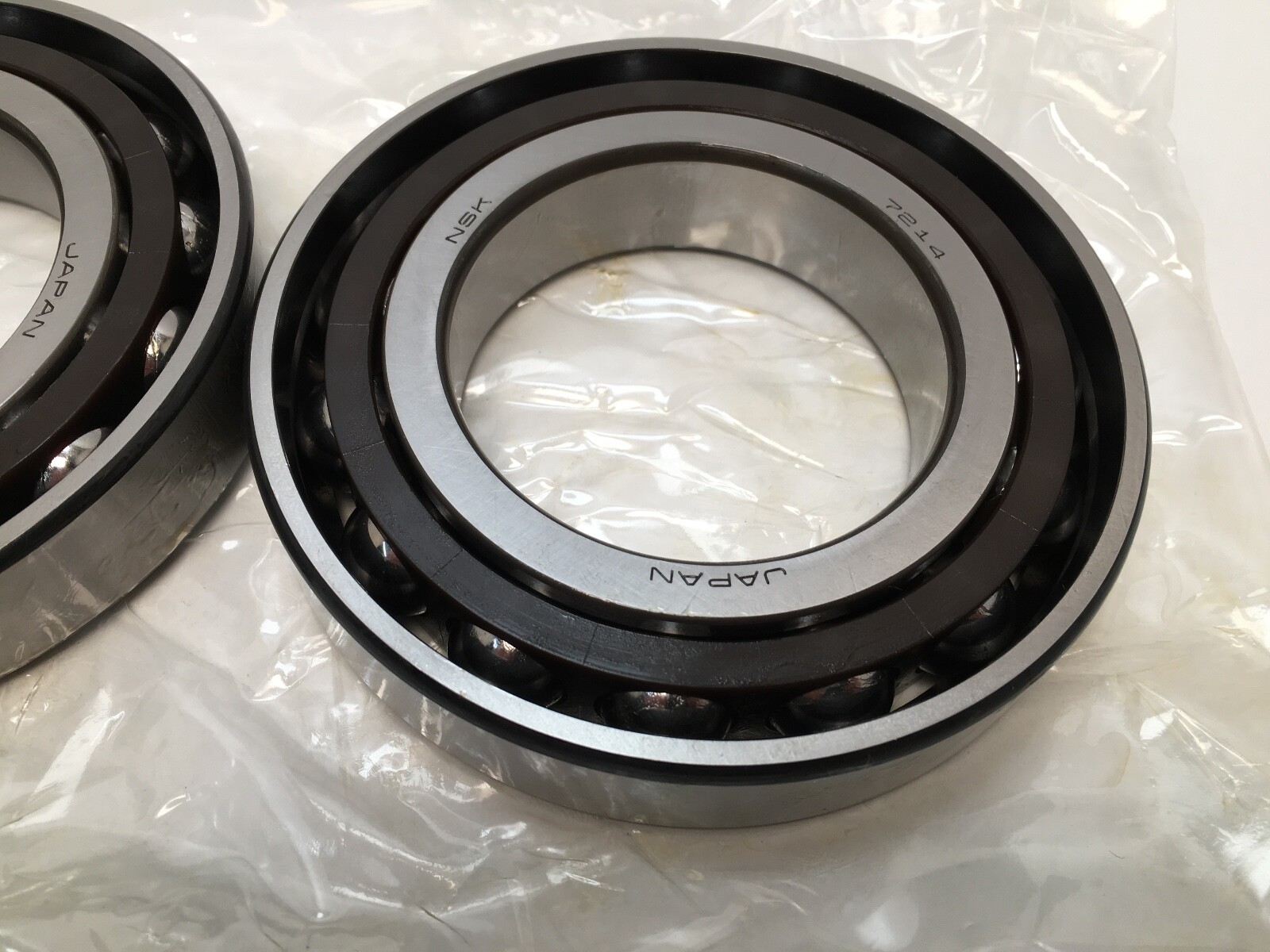

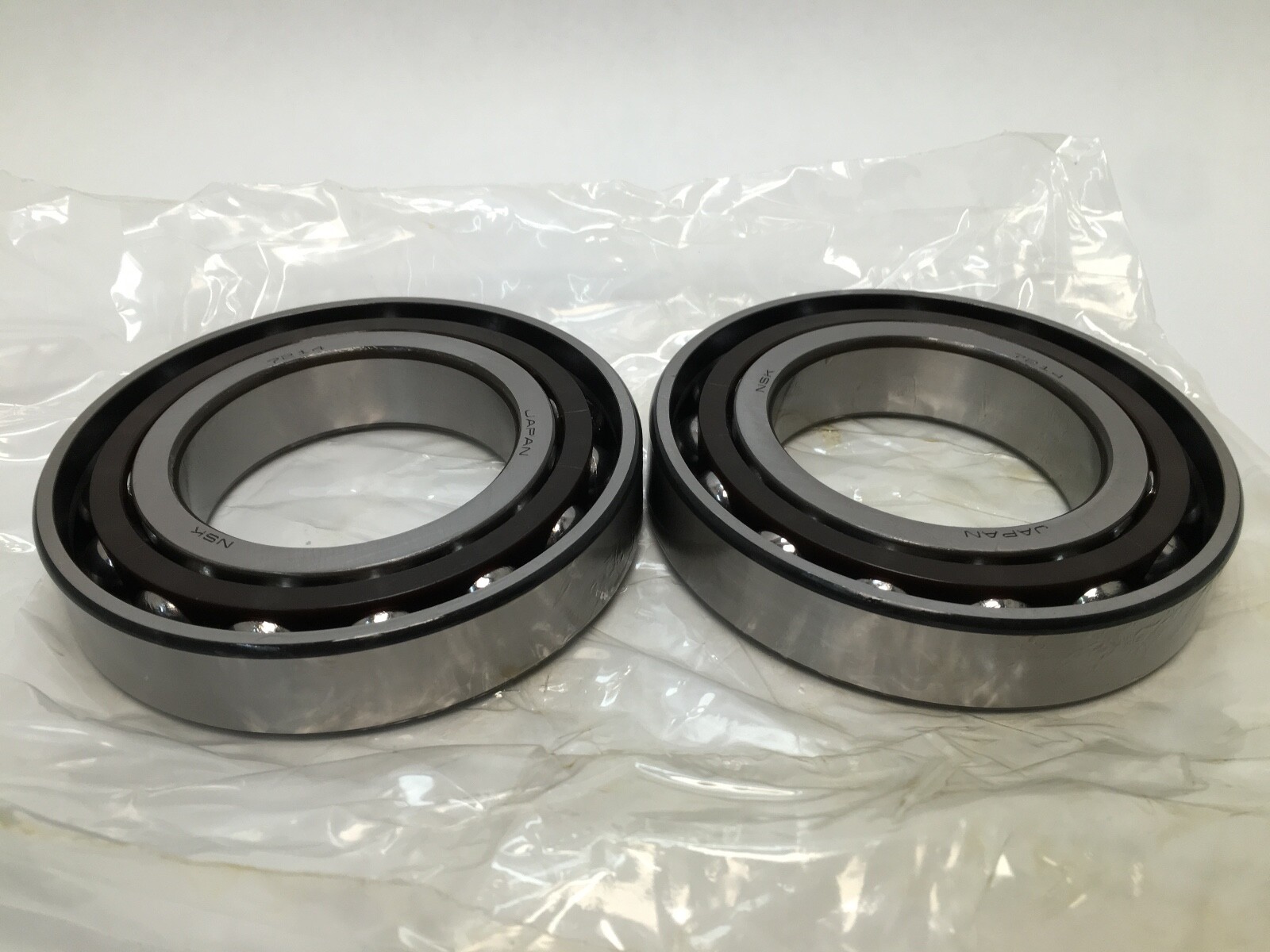

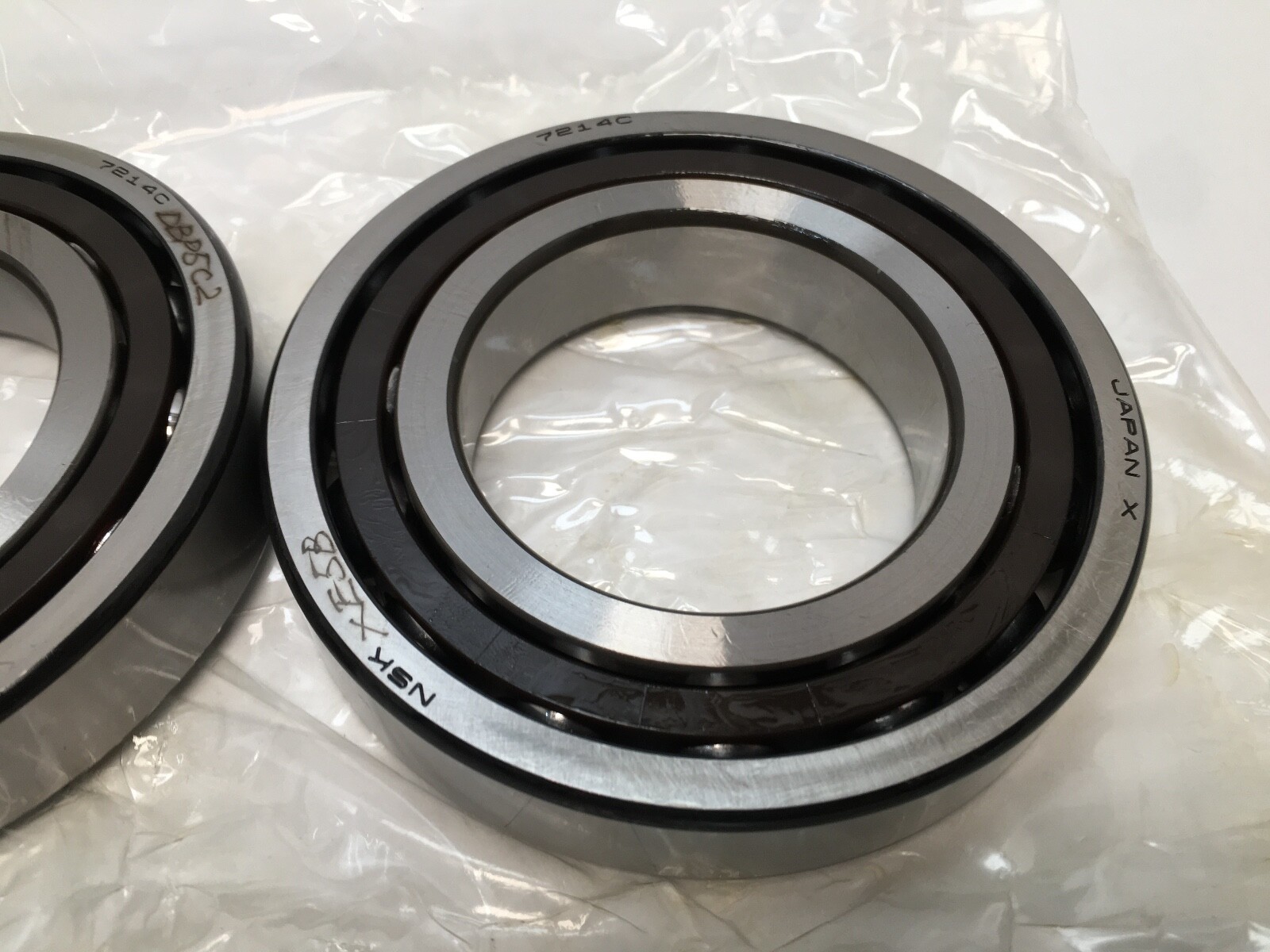

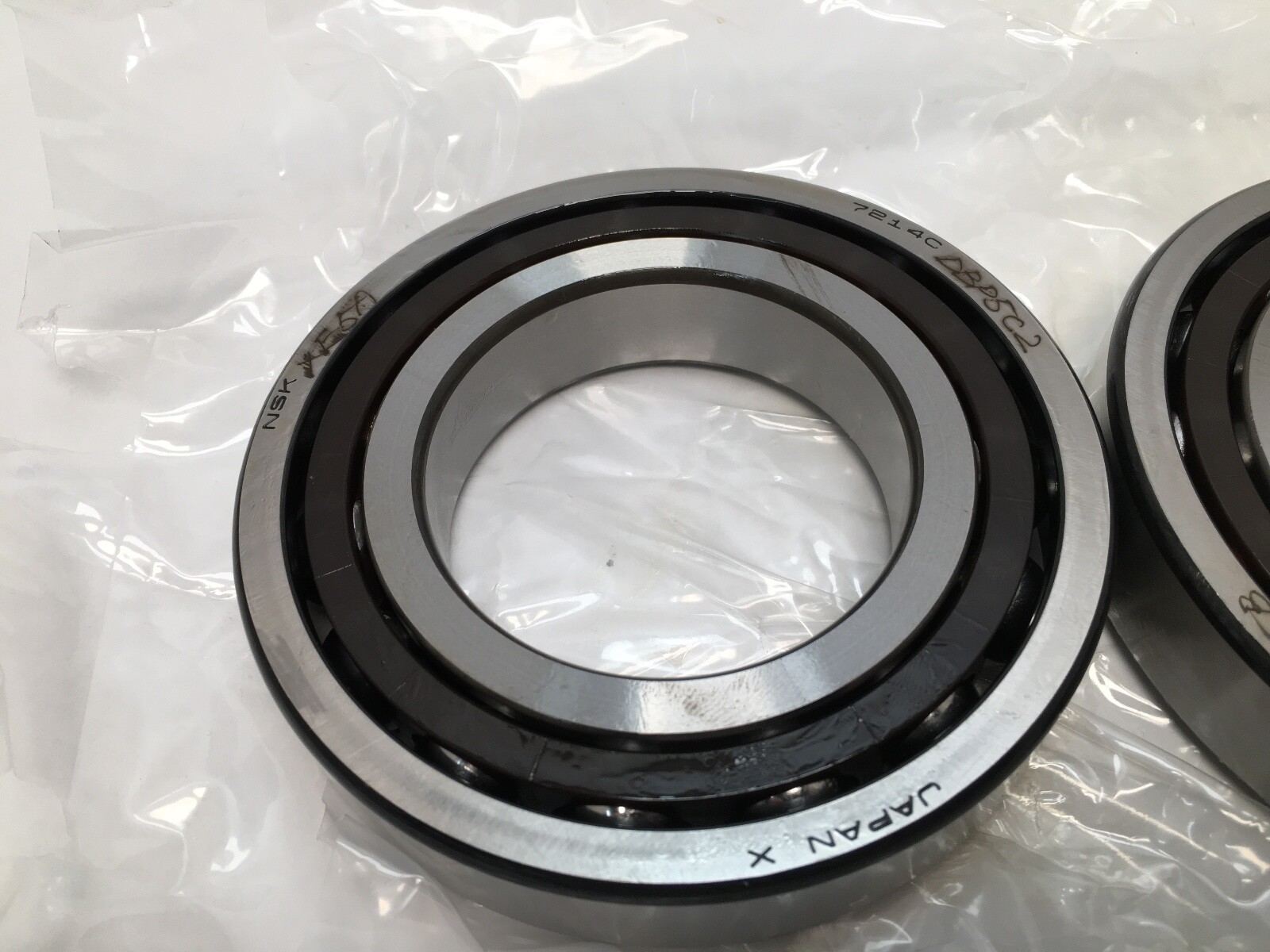

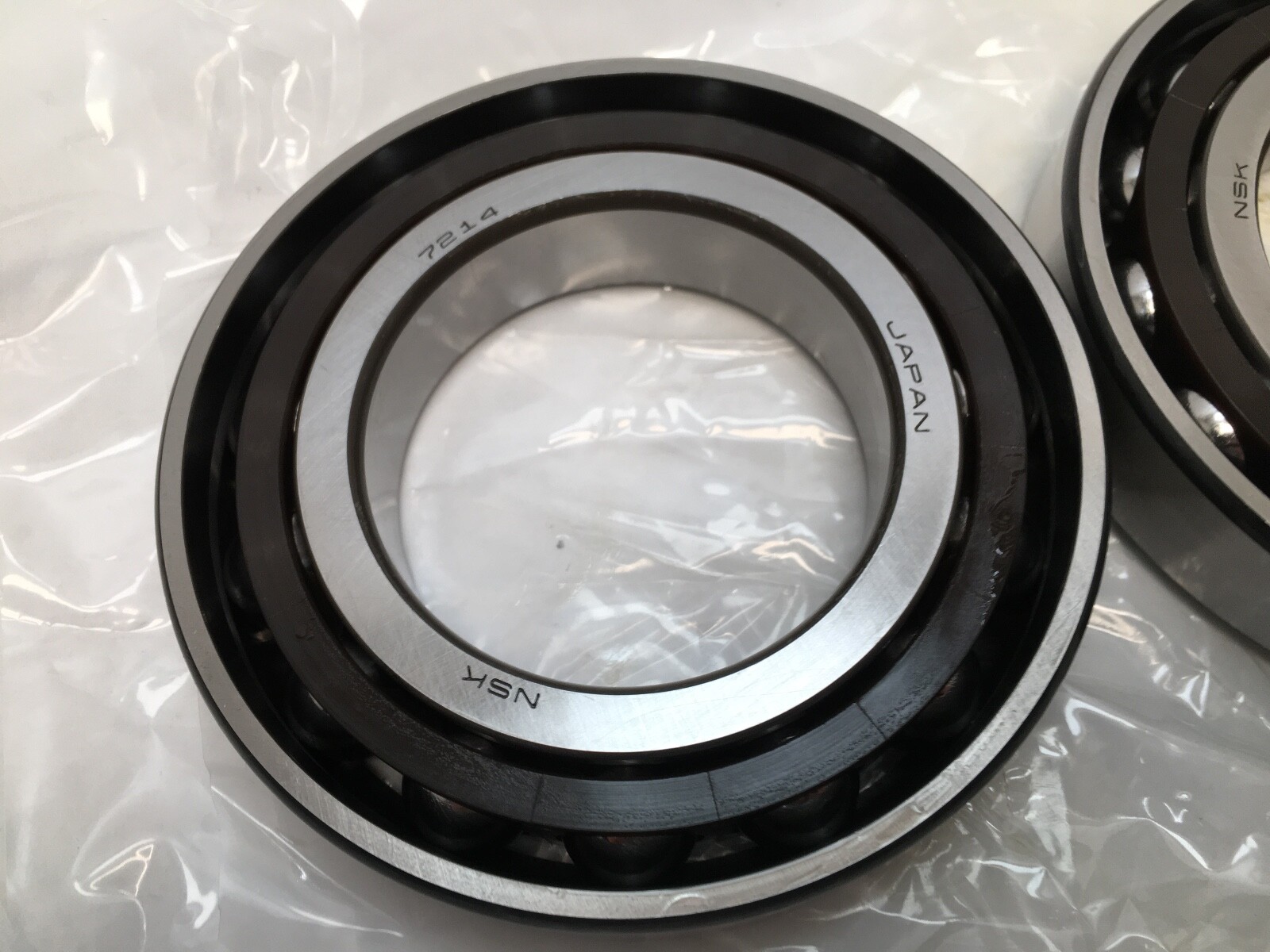

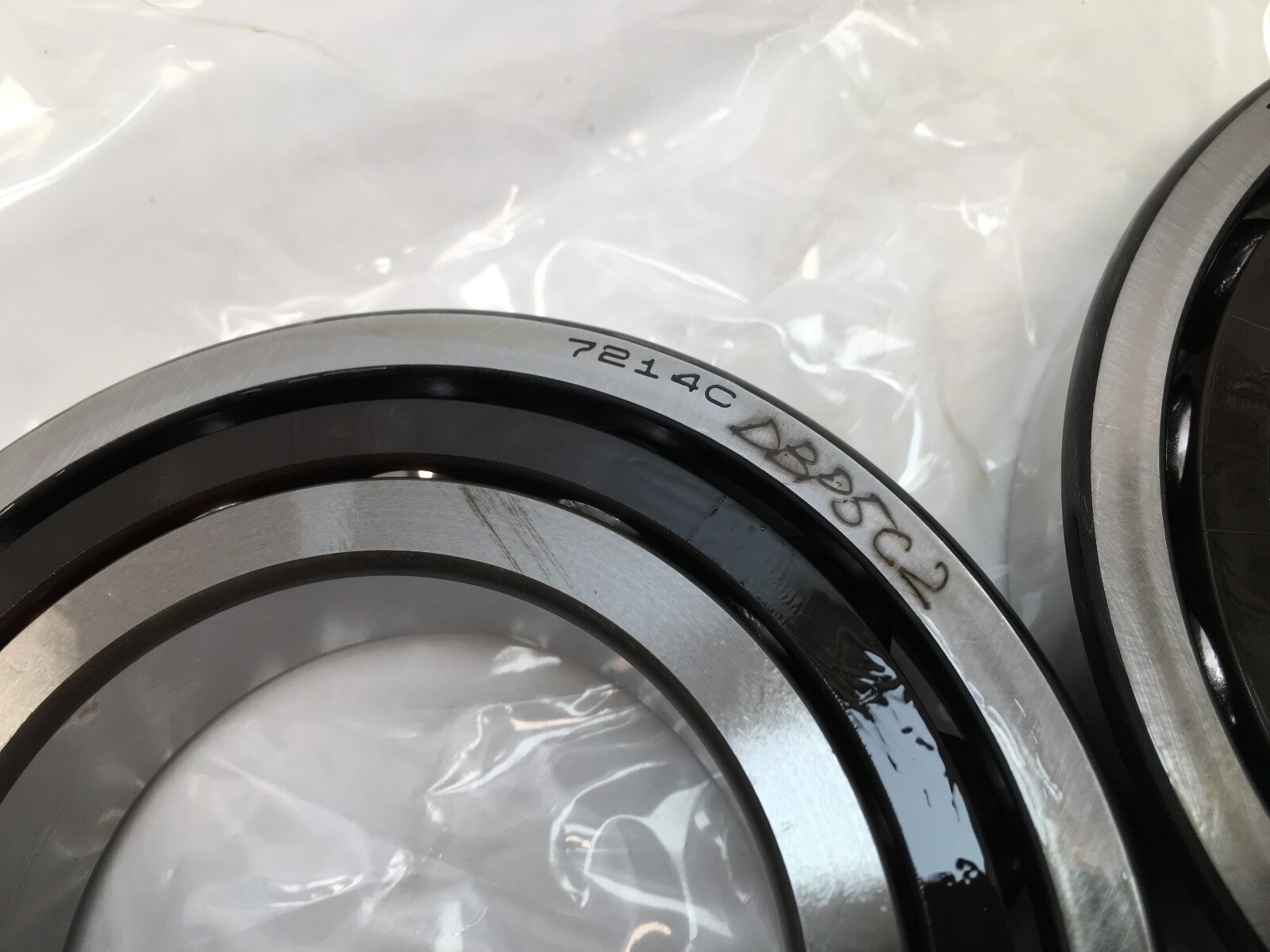

Name: Angular Contact Ball Bearing Pair - Straight Bore, 70 mm ID, 125 mm OD, 48 mm Width, Open, 15° Contact Angle, Back-to-Back Arrangement.
Brand: NSK
SKU: B-BC5#ARK0NX
Price: 351.86 USD
Availability: InStock

Additional information

Key Specifications

MFR / Brand	NSK
MPN	7214CTYDBP5
Model	7214C TY DB P5 2MM-214-WI-DUL
Bearing Type	Angular Contact Ball Bearing, Open
ID	70 mm
OD	125 mm
Width	48 mm

Specifications

Advertise	1
Material	Bearing Steel
Series	7200
Condition	New
Lubricant	Oil/Grease
Min Temp	-30 °C
Cage Type	Polyamide
Dynamic Load Rating	71.0 kN
Static Load Rating	65.0 kN
Precision Rating	ABEC 5 / P5
Rolling Elements	Ball
Max Temp	120 °C
Item Weight	4.90 lbs
Cage Material	Polyamide
Number Of Rows	2
Bore Type	Straight
Snap Ring Included	Without Snap Ring
Harmonization Code	8482.10.50
Contact Angle	15 °
Mounting Arrangement	Back-To-Back

Cross-References

Cross Reference 1	SKF 7214 CD/P4A
Cross Reference 2	FAG 7214-C-TVP-DB
