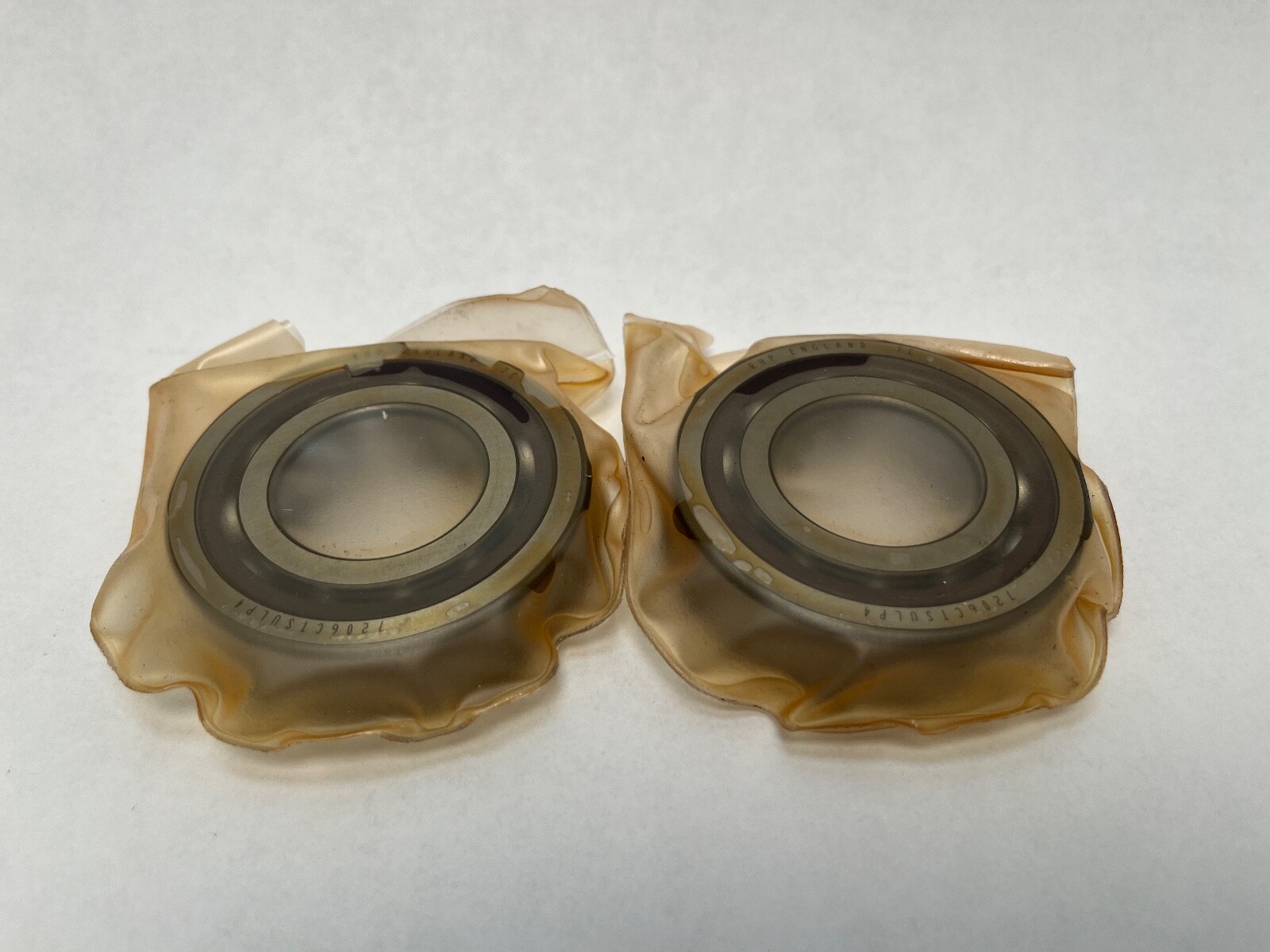

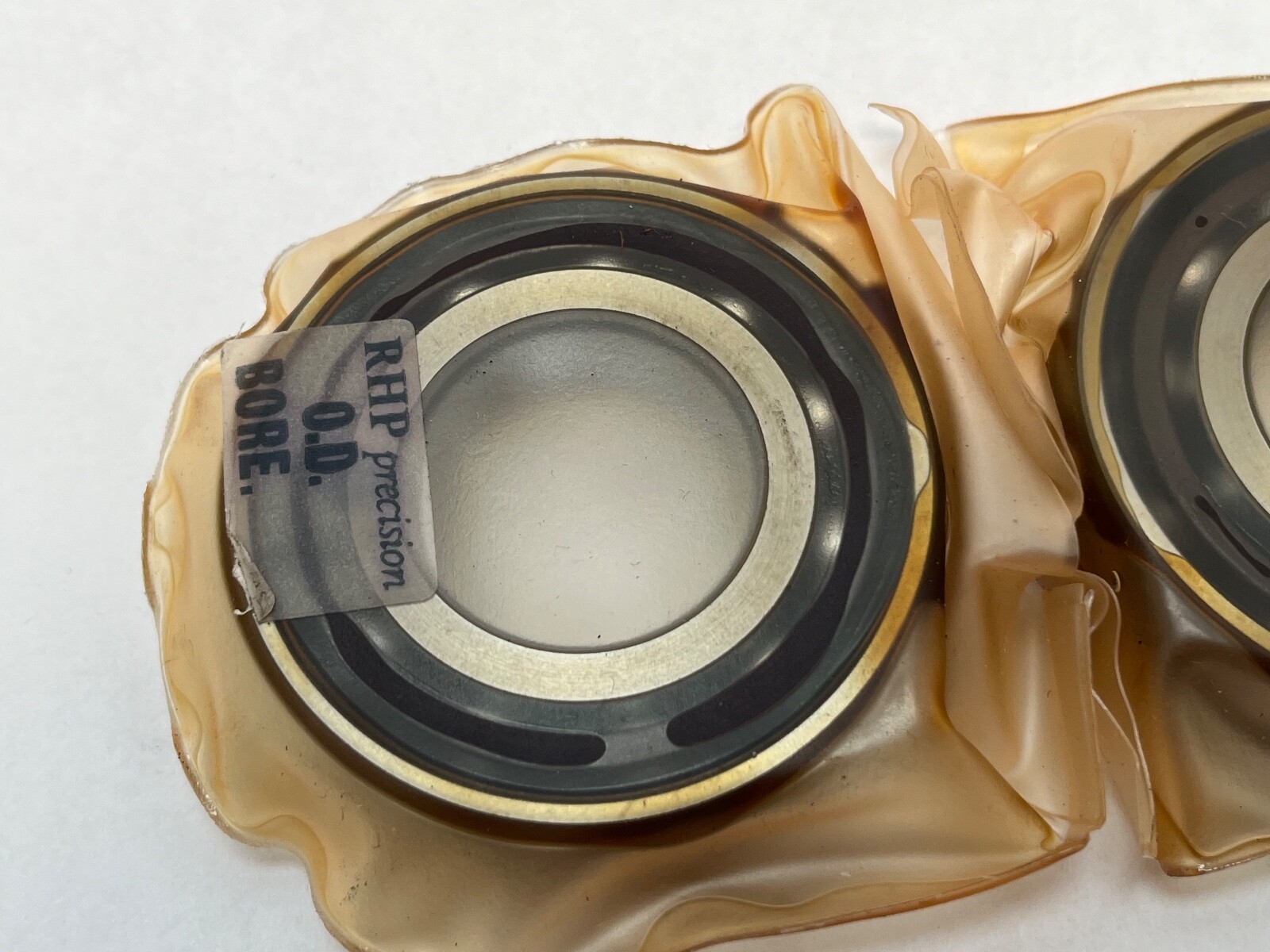

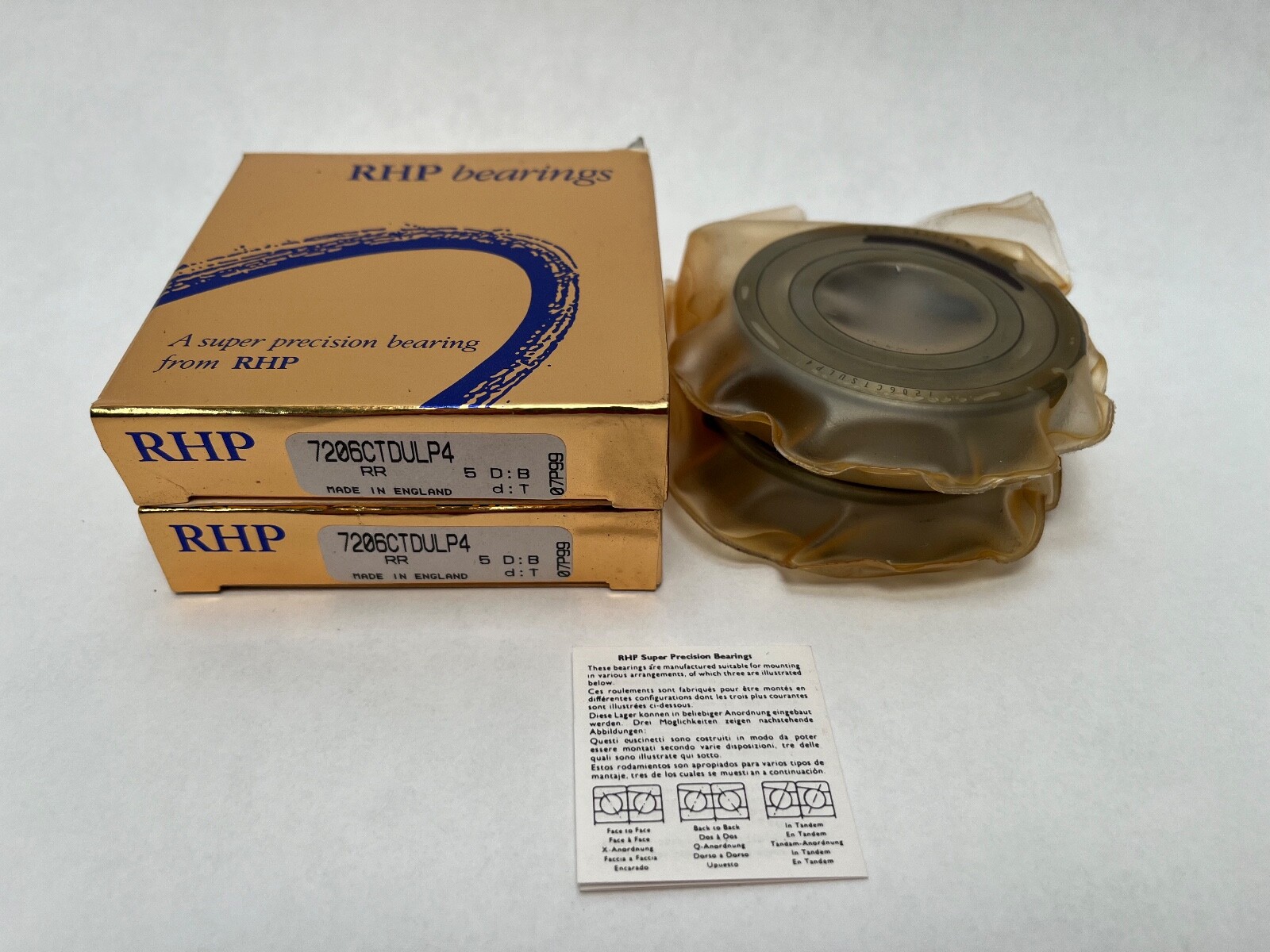

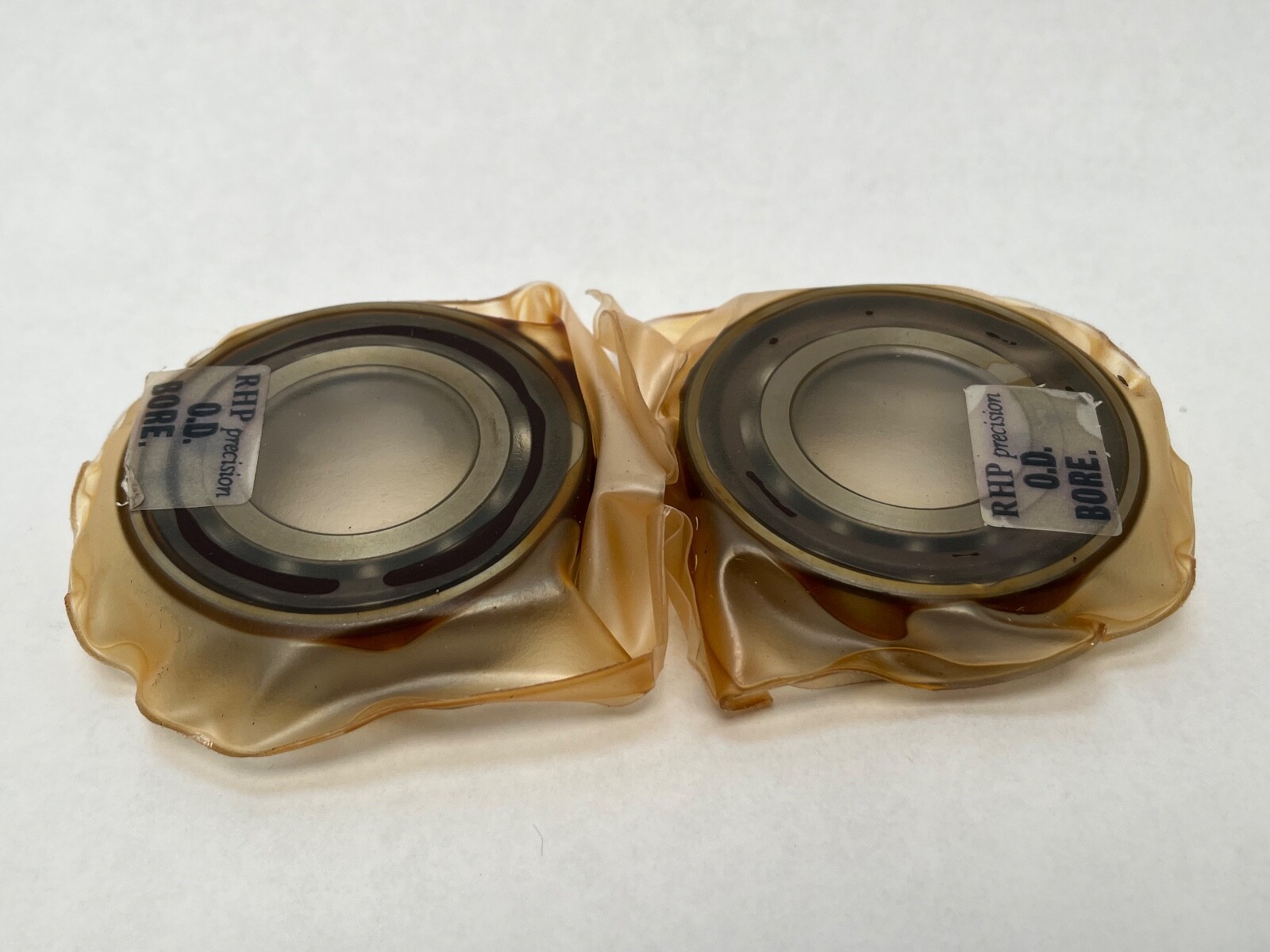

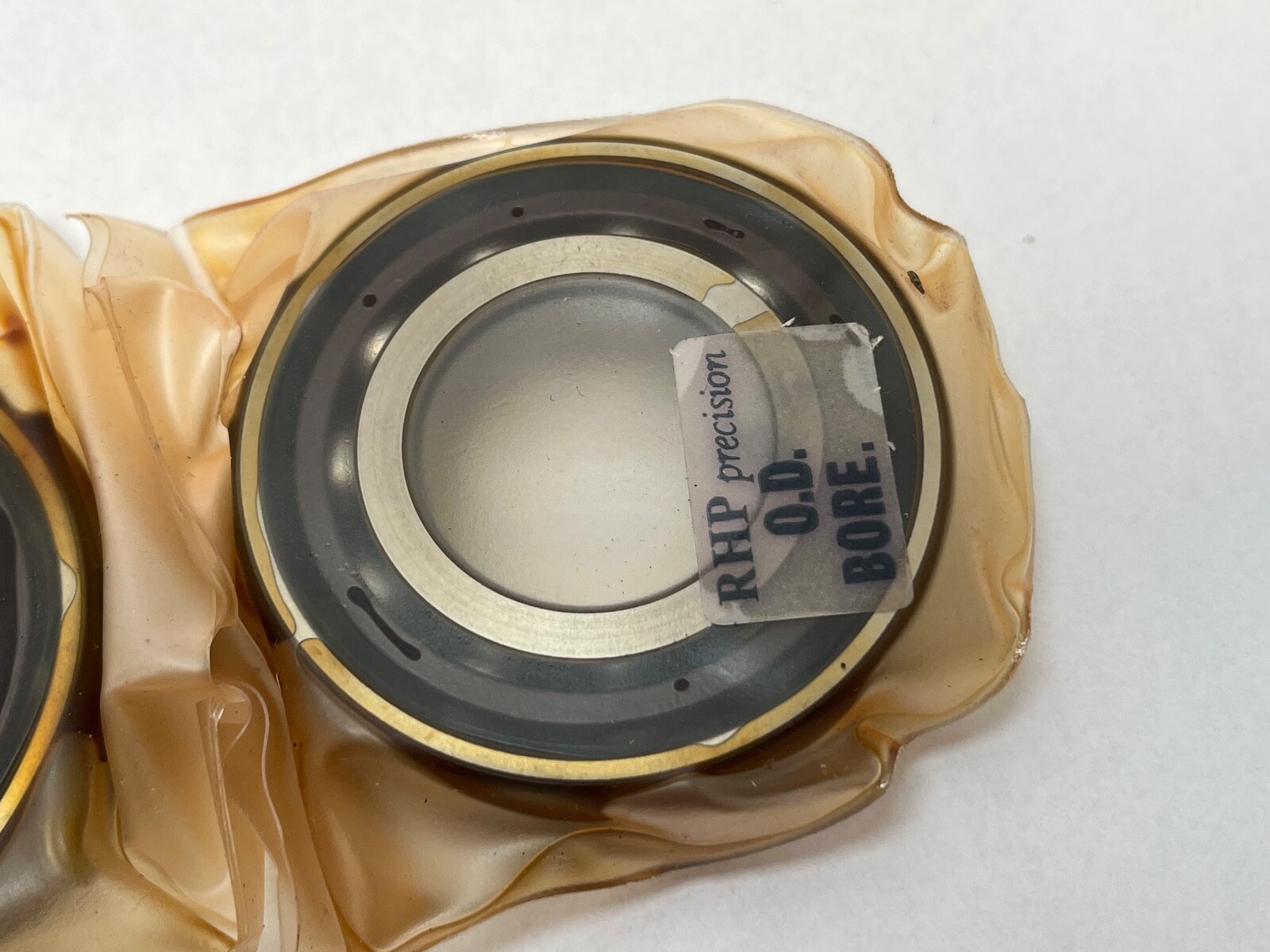

Name: Angular Contact Ball Bearing - 30 mm ID, 62 mm OD, 16 mm Width, Open, 15°, Light preload.
Brand: RHP
SKU: B-EH2B3#MOKJPP
Price: 152.18 USD
Availability: InStock

Additional information

Key Specifications

MFR / Brand	RHP
MPN	7206CTDULP4

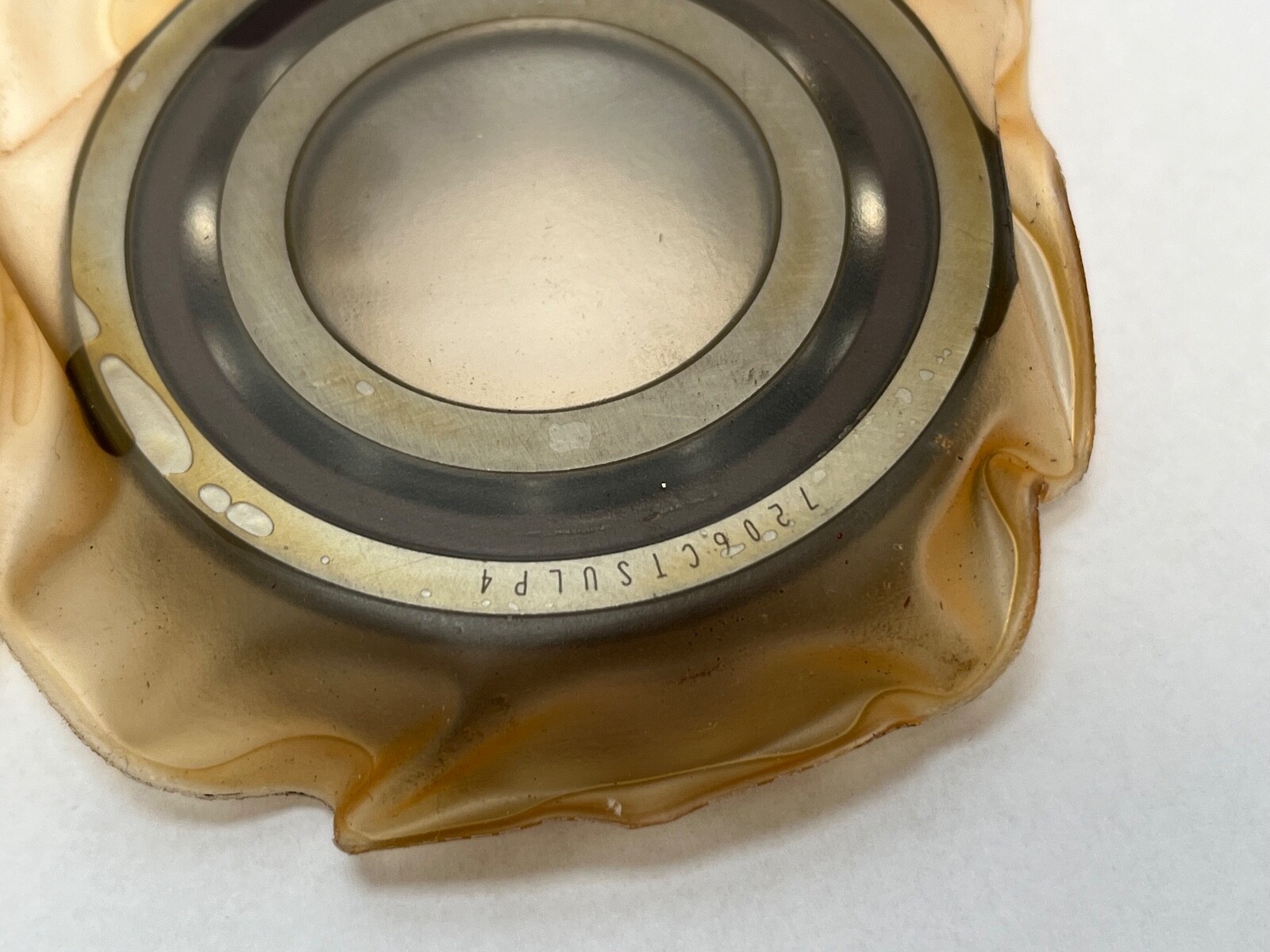

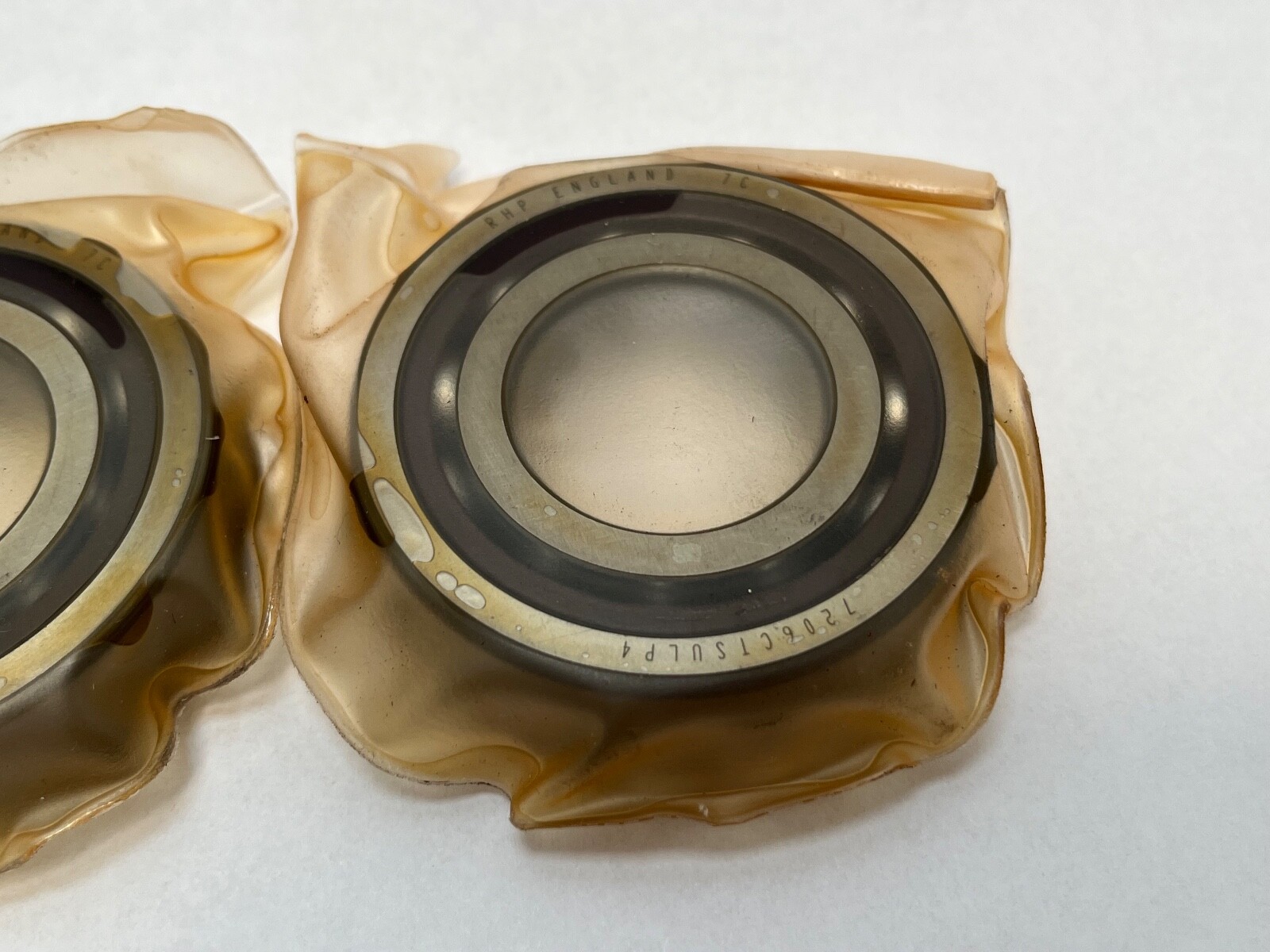

Model	7206-C-T-DUL-P4 / 2MM206WI CR DUL
Bearing Type	Angular Contact Ball Bearing, Open
ID	30 mm
OD	62 mm
Width	16 mm

Specifications

Advertise	1
Material	High Carbon Chrome Steel
Min Temp	-30°C
Dynamic Load Rating	17.2 kN / 3867 lbf
Static Load Rating	14.3 kN / 3215 lbf
Precision Rating	ABEC 7 / P4
Series	72 Series
Rolling Elements	Ball
Max Temp	120°C
Condition	New
Item Weight	0.44 lbs
Cage Material	Phenolic
Limiting Speed	30000 rpm
Number Of Rows	1
Bore Type	Straight
Snap Ring Included	Without Snap Ring
Lubricant	Preserved
Harmonization Code	8482.10.50
Contact Angle	15°
Preload	Light Preload
Mounting Arrangement	Universal
Running Accuracy	P4
Running Accuracy Radial And Axial Runout	P4

Cross-References

Cross Reference 1	SKF 7206CD/P4ADGA
Cross Reference 2	NSK 7206CTYDULP4
