THK HSR30CA1SS(GK) LM Guide carriage block for 28 mm rail, 42 mm height, 90 mm width, four-row 45 degree ball contact, C 40.5 kN. Block only.
List Price
$108.59
8 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | THK |
|---|---|
| MPN | HSR30CA1SS |
| Model | HSR30CA1SS (GK) |
| Type | Linear Bearing |
|---|---|
| Base Number | HSR30CA |
| Industry Terms | LM guide block, linear carriage, linear bearing block, linear guide runner block, LM block, profile rail carriage, HSR block |
| Application Types | Machine tool axes, CNC routers and mills, gantry and pick-and-place automation, semiconductor and electronics assembly, packaging machinery, measuring and inspection stages |
| Housing Style | CA block type - flanged with tapped mounting holes, mountable from the top or the bottom |
| Mpn Variants | HSR30CA1SS, HSR30CA1SS(GK), HSR30CA1SSGK, HSR-30-CA1-SS, HSR 30 CA1 SS, HSR30CA1UU, HSR30CA, HSR-30 CA, HSR30-CA1-SS-GK |
| Manufacturer Status | THK active catalogue series; GK interchangeable line current |
| Compatible With Replaces | Runs on THK HSR30 LM rail, 28 mm wide, 80 mm hole pitch. As a GK-series block it may be freely combined with any HSR30 GK rail of the same accuracy and preload grade. |
| Bearing Type | Linear motion guide carriage block, four-way equal load, full-complement ball |
| Item Weight | 1.1 kg (2.43 lb) block |
| Number Of Rows | 4 rows of balls |
| Part Number | HSR30CA1SS(GK) |
| Min Temp | -15 °C |
| Dynamic Load Rating | 40.5 kN |
| Static Load Rating | 53.7 kN |
| Max Temp | 80 °C |
| Closure Type | End, side and inner seals (SS) |

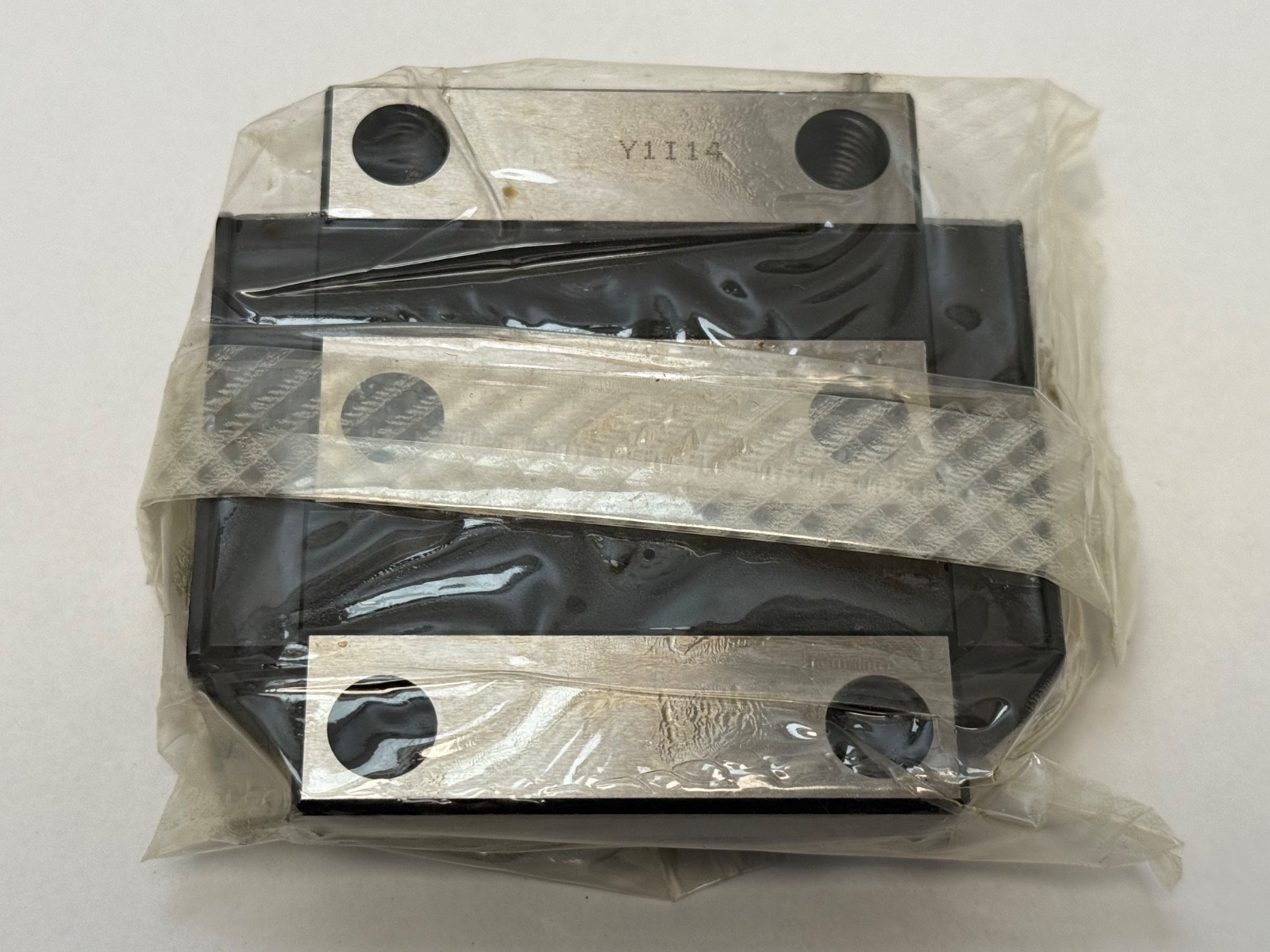

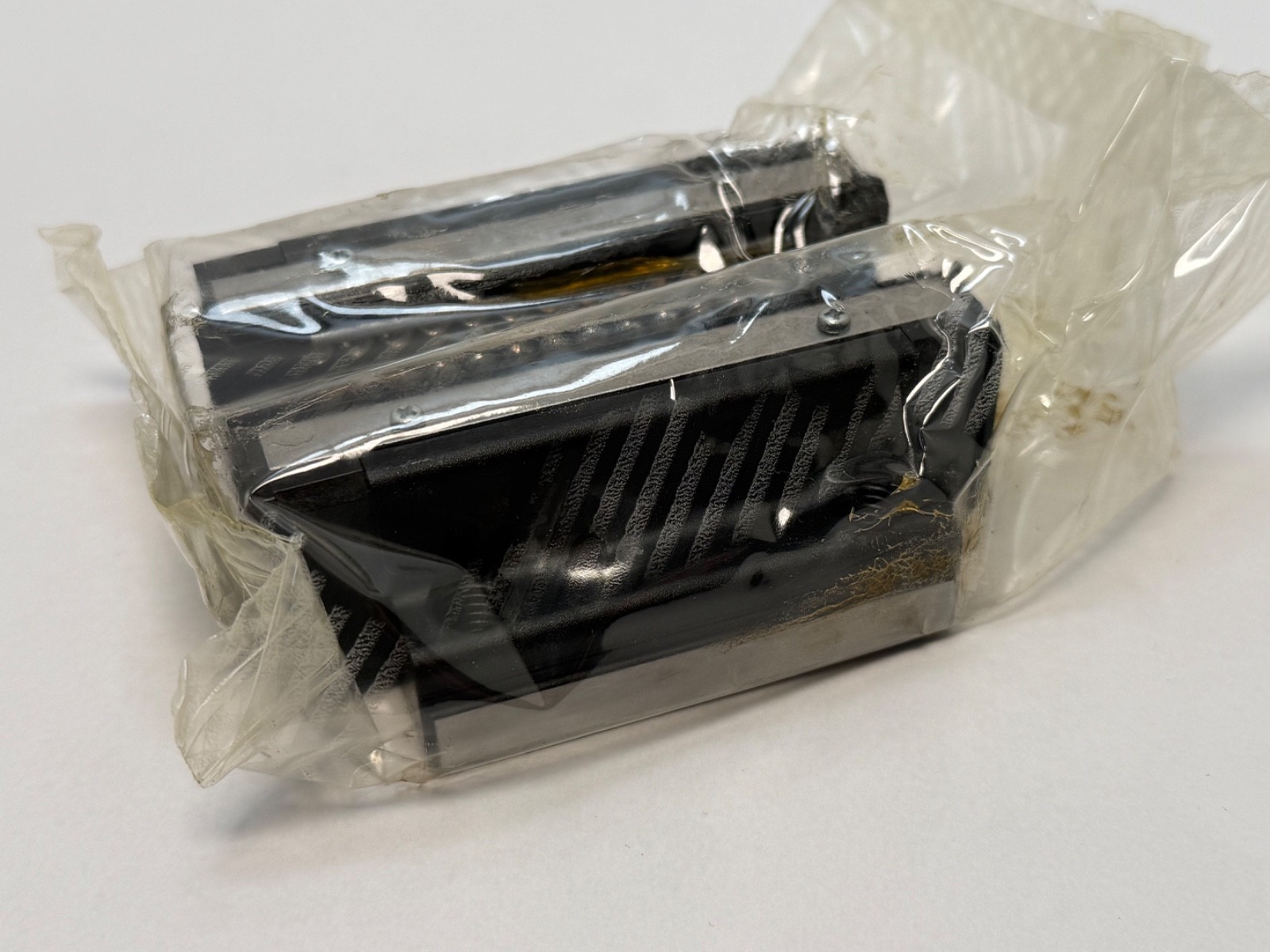

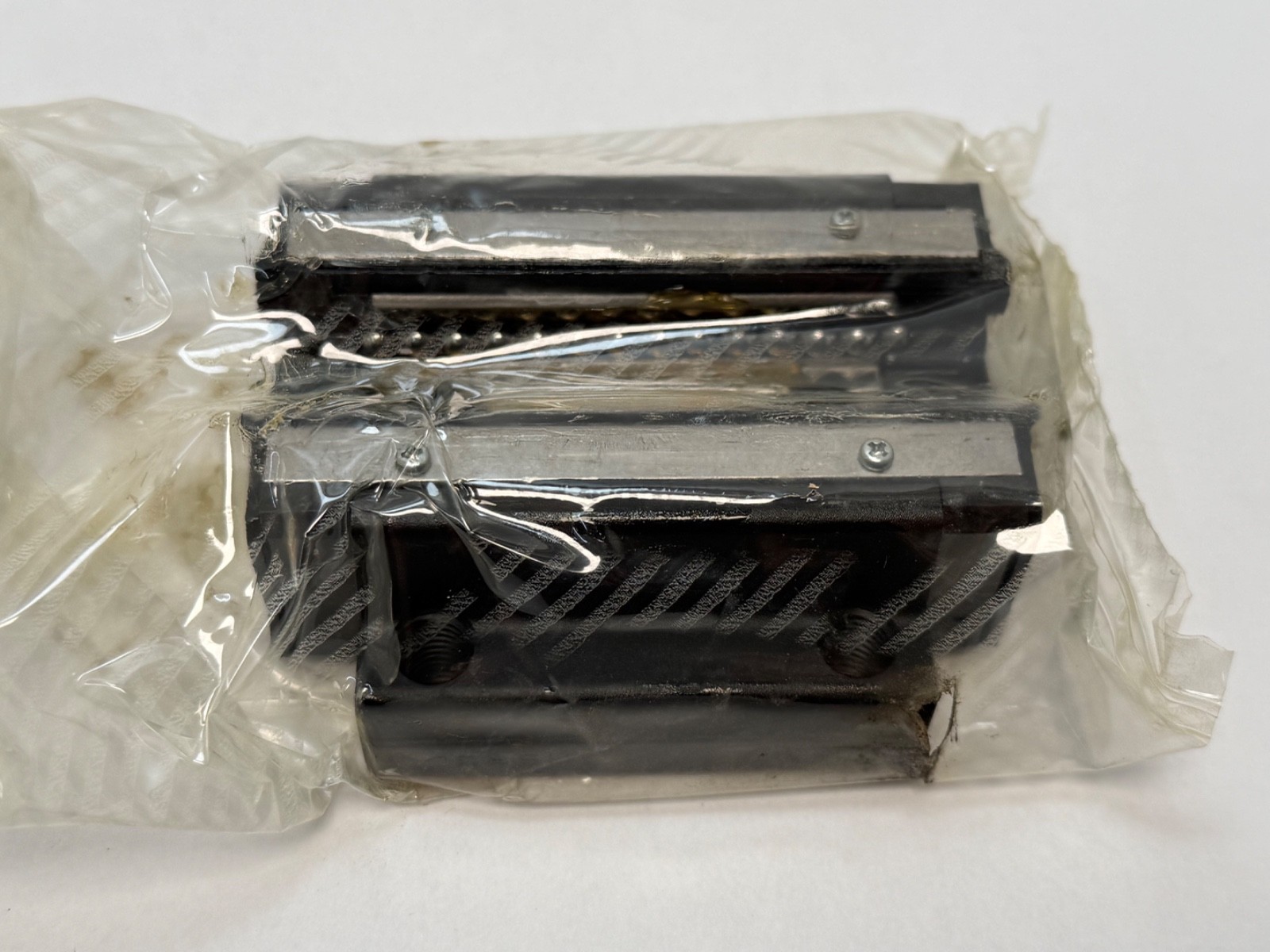

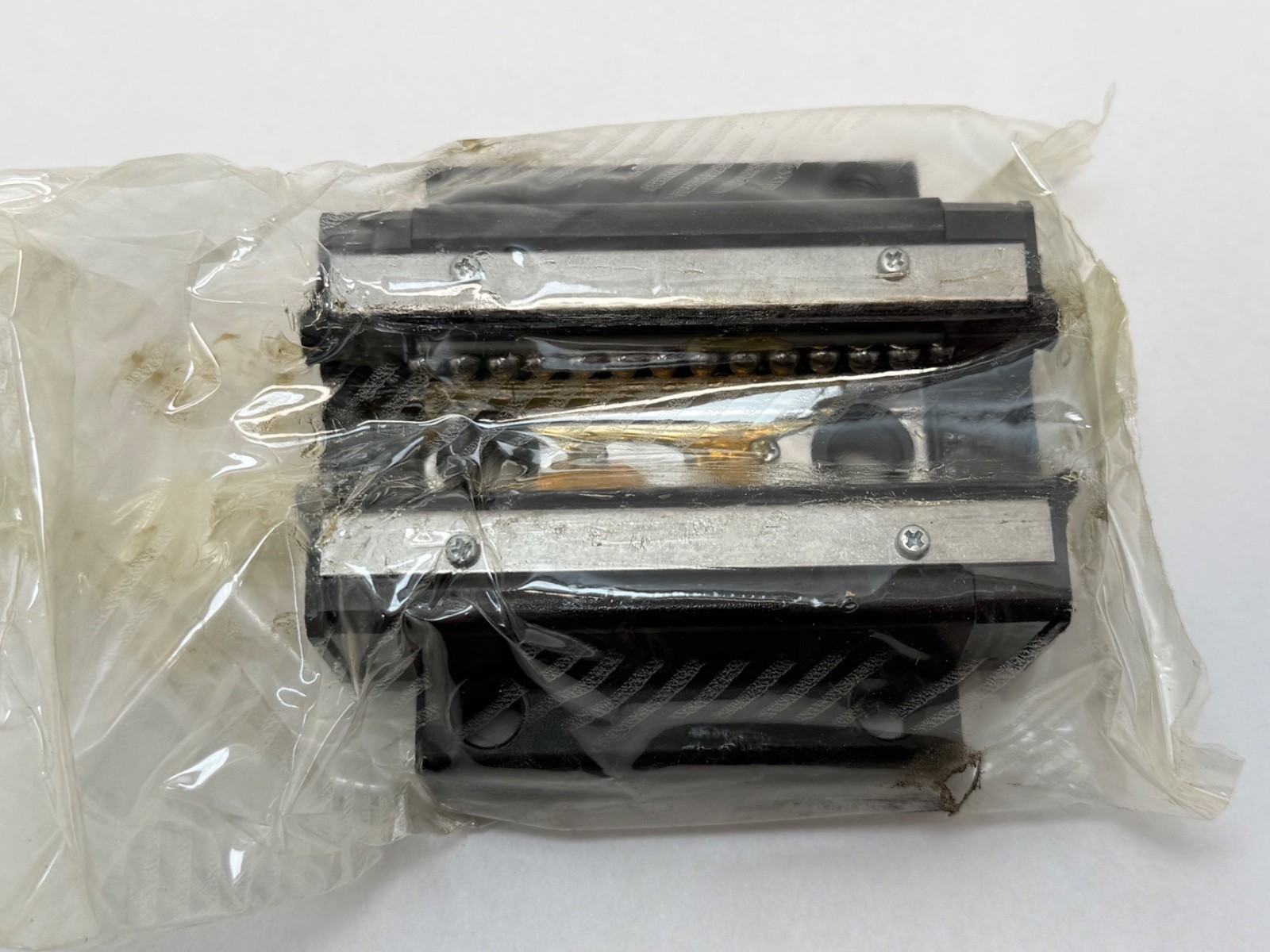

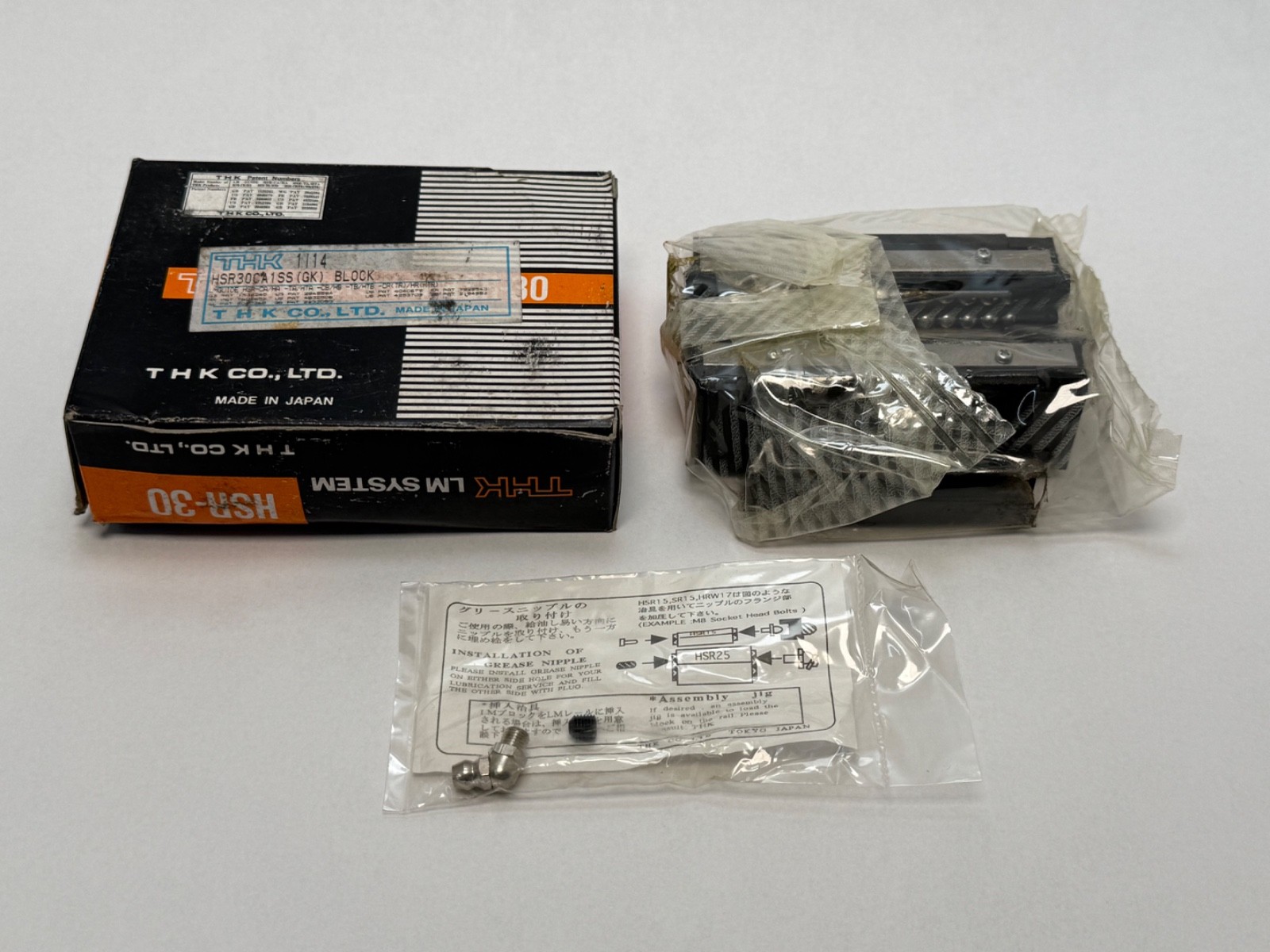

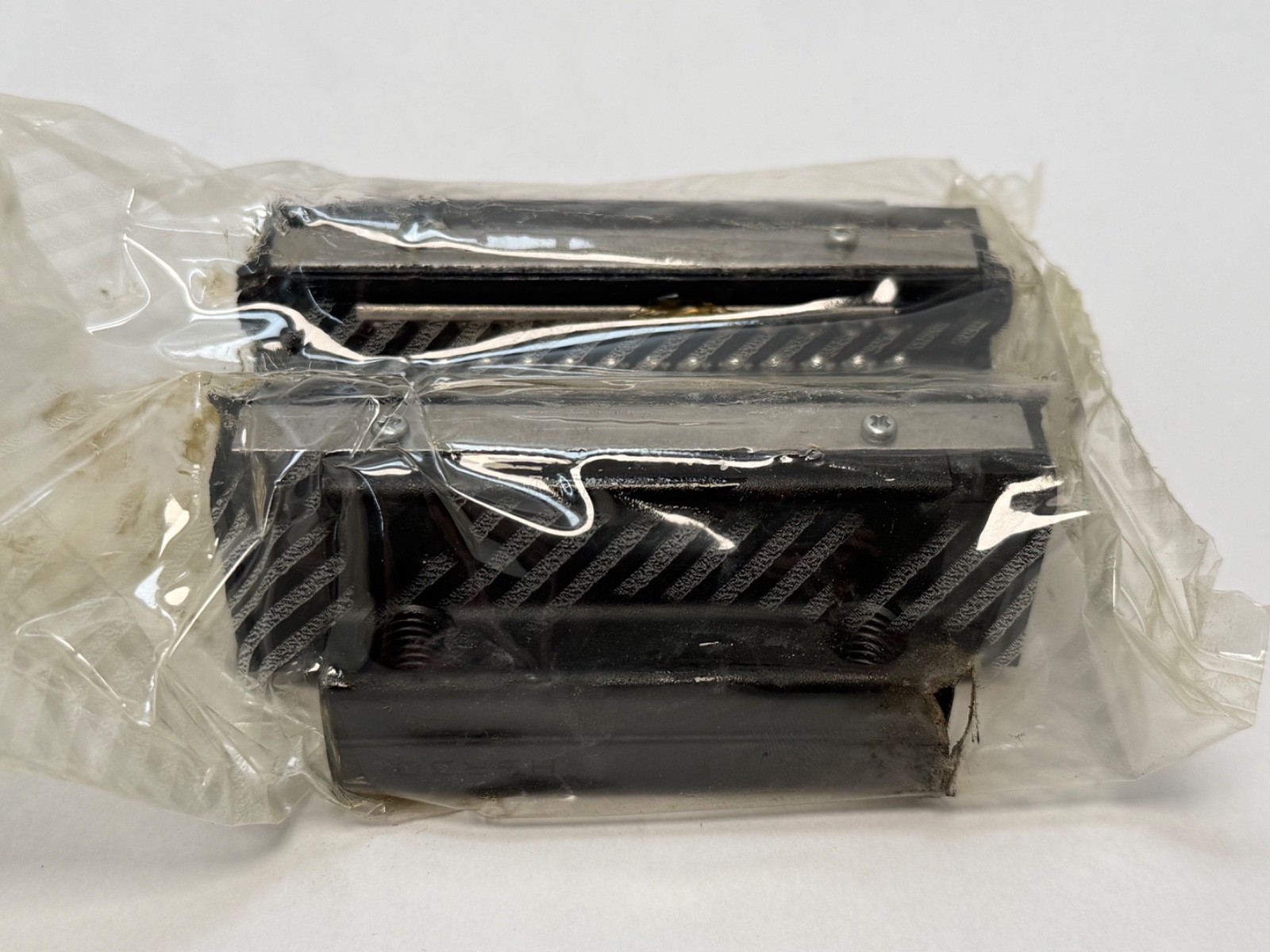

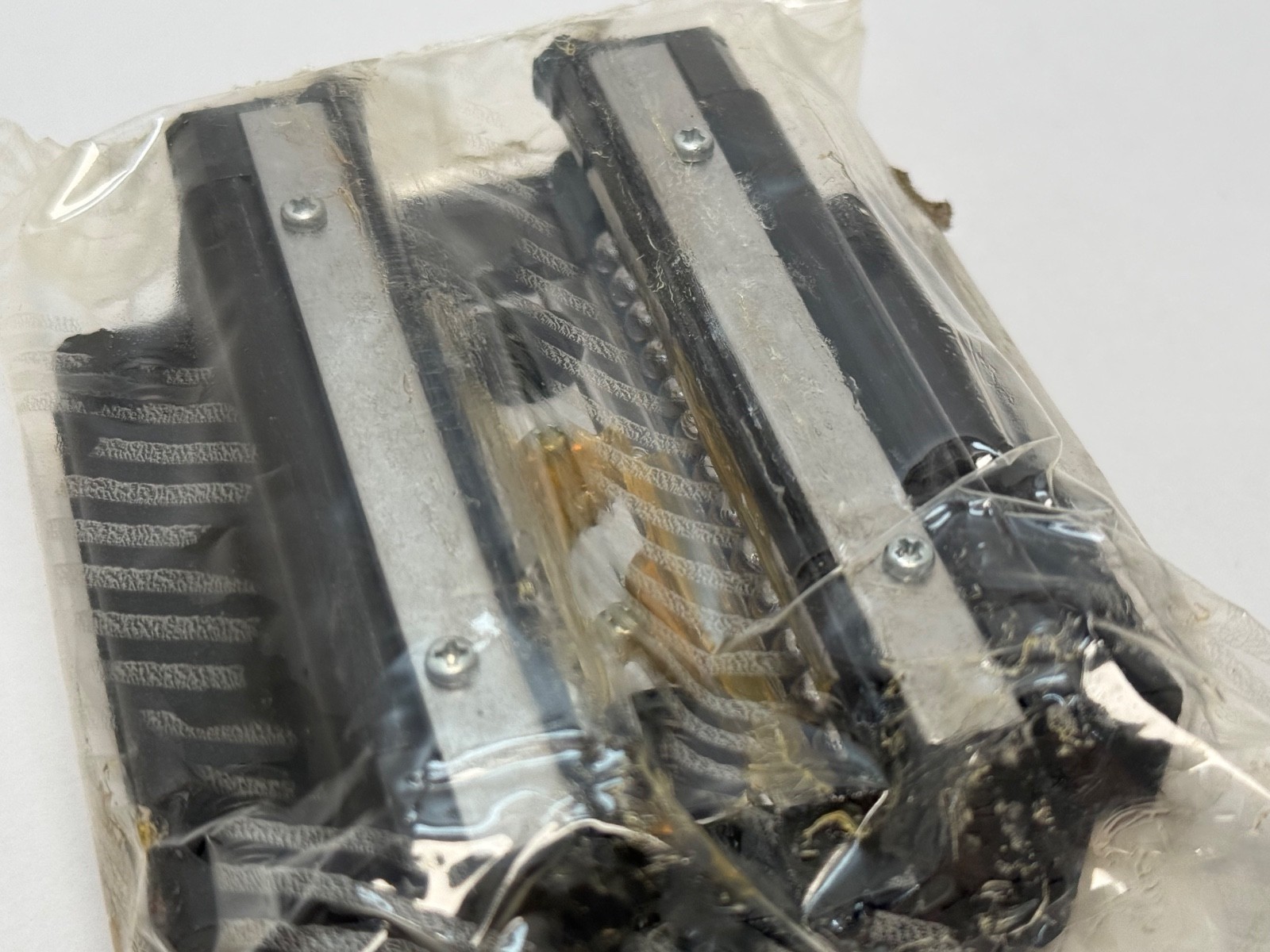

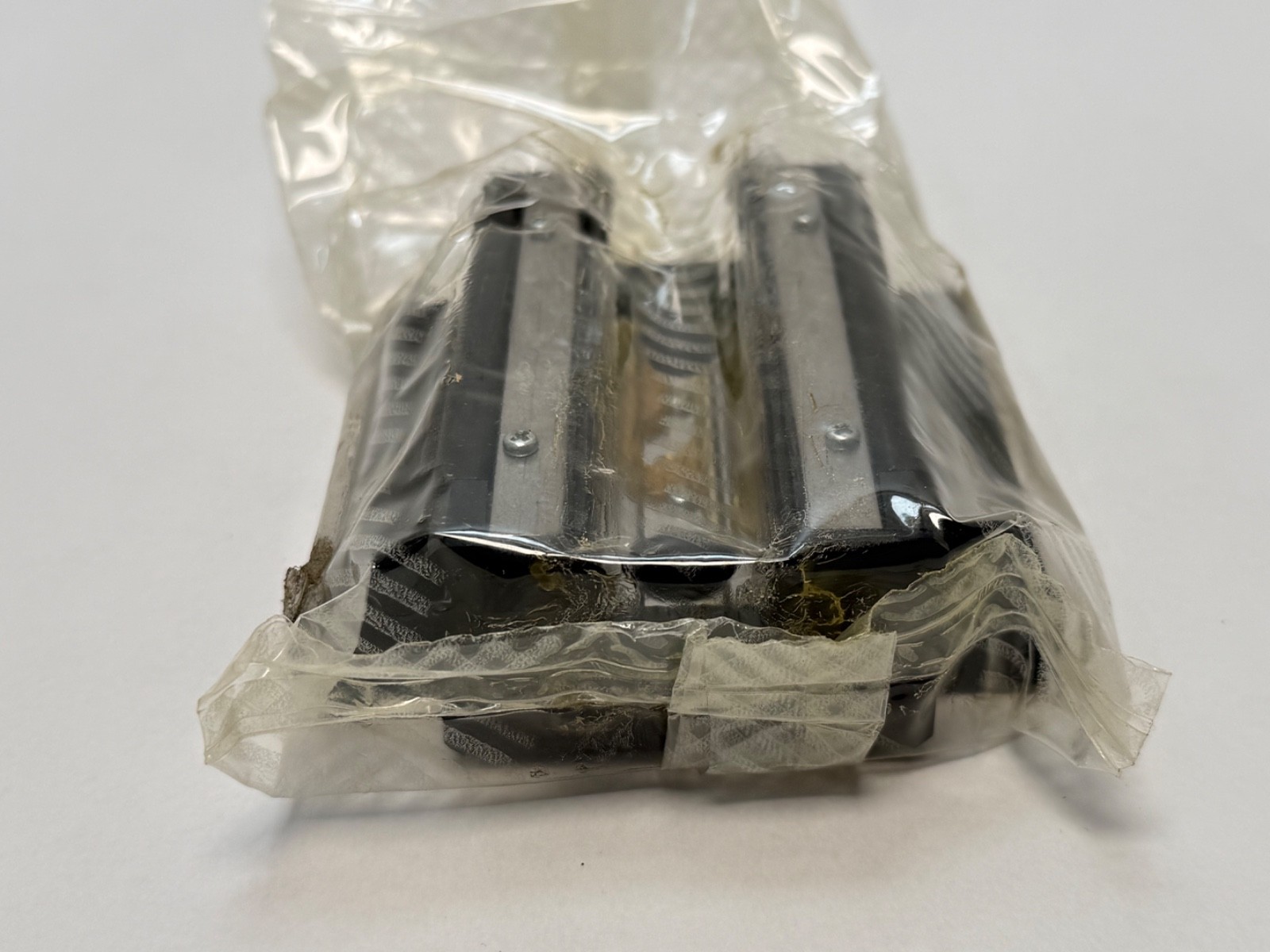

THK HSR30CA1SS(GK) is an LM Guide carriage block, four-way equal-load, full-complement ball, for a 28 mm wide HSR size-30 LM rail. Block only, no LM rail. GK series: interchangeable block-only and rail-only line. Assembly height 42 mm, block width 90 mm. Unit Quantity: 1 Pc.
HSR — THK four-way equal-load full-ball LM Guide series.
30 — size, 28 mm wide rail.
CA — flanged block with tapped mounting holes, mountable from the top or the bottom.
1 — THK coding field for the number of LM blocks used on the same rail.
SS — end seal, side seal and inner seal. (DD is double seal; UU is end seals only.)
GK — interchangeable block-only and rail-only series; blocks and rails combine freely with the same model number.

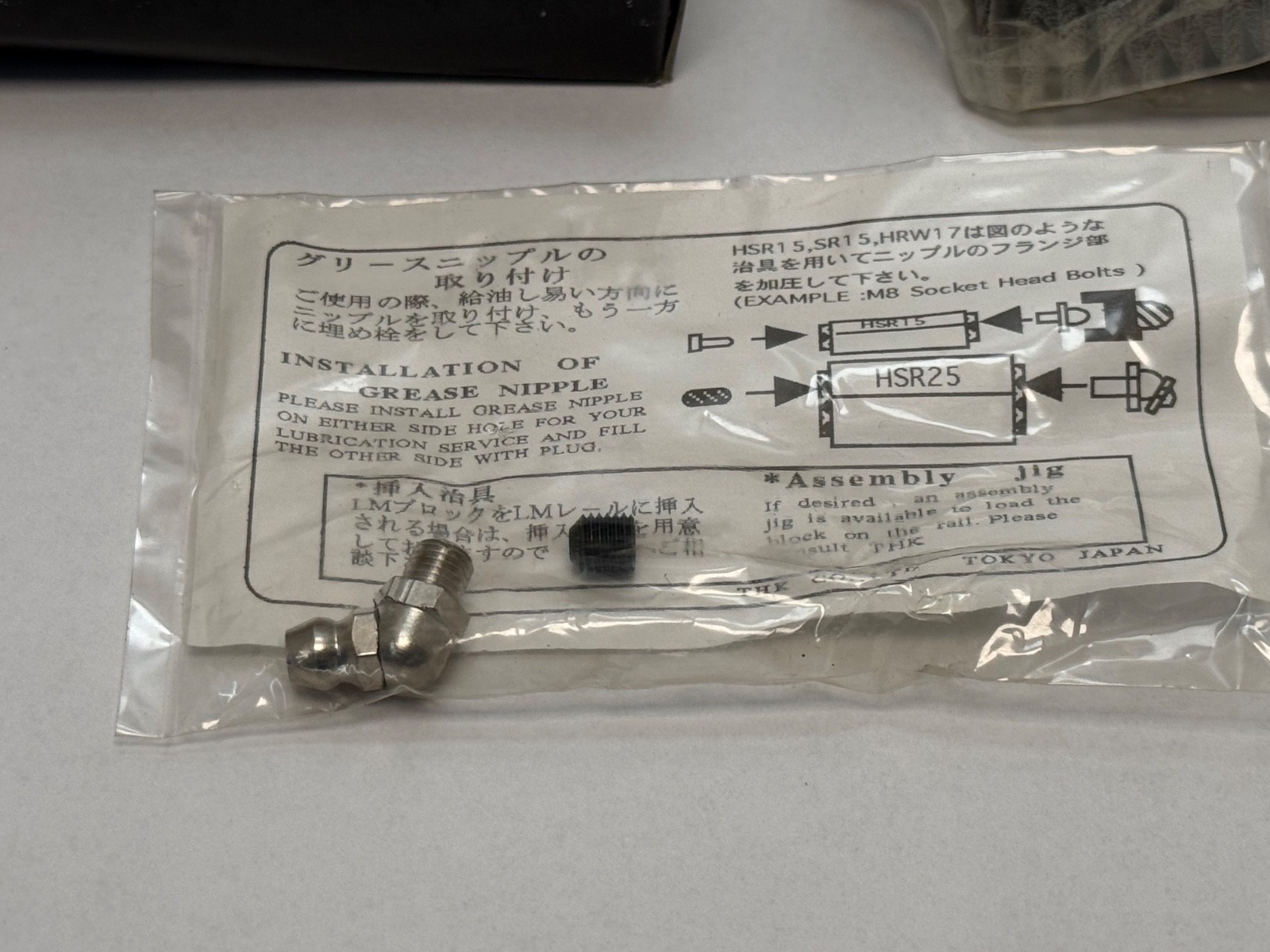

Basic Dynamic Load Rating C: 40.5 kN. Basic Static Load Rating C0: 53.7 kN. Static Permissible Moment MA: 0.599 kN·m (one block), 3.1 kN·m (two blocks). Static Permissible Moment MB: 0.599 kN·m (one block), 3.1 kN·m (two blocks). Static Permissible Moment MC: 0.652 kN·m (one block). Rolling Elements: four rows of balls, 45° contact angle, full complement retained by retainer plates. Block Mass: 1.1 kg. Service Temperature: −15 to 80 °C. Standard Grease: AFB-LF. Grease Nipple: B-M6F. UU Seal Resistance: 7.80 N.
Assembly Height M: 42 mm. Block Width W: 90 mm. Block Length L, with UU or SS seals: 98 mm. Block Body Length L1: 70.4 mm. Block Mounting Hole Pattern B x C: 72 x 52 mm. Block Taps: 6 x M10. Mating Rail Width W1: 28 mm (±0.05). Rail Height M1: 26 mm. Rail Mounting Hole Pitch F: 80 mm. Rail Hole d1 x d2 x h: 9 x 14 x 12 mm. Rail Mass: 4.8 kg/m. Maximum Rail Length: 3000 mm. Rail Hole Cap: CV8.
Runs on THK HSR30 LM rail, 28 mm wide, 80 mm hole pitch. As a GK-series block it combines with any HSR30 GK rail of the same accuracy and preload grade. Other designations: HSR30CA1SS(GK), HSR30CA1SSGK, HSR-30-CA1-SS, HSR30CA.
No. It is the carriage block only; it fits the HSR30 GK rail, 28 mm wide.
SS is end seal, side seal and inner seal.
Basic dynamic load rating C is 40.5 kN and basic static load rating C0 is 53.7 kN.
