Spherical Roller Bearing – Tapered Bore, 45 mm ID, 85 mm OD, 23 mm Width, Open, C3 Internal clearance

Spherical Roller Bearing – Tapered Bore, 45 mm ID, 85 mm OD, 23 mm Width, Open, C3 Internal clearance

Spherical Roller Bearing – Tapered Bore, 45 mm ID, 85 mm OD, 23 mm Width, Open, C3 Internal clearance

Spherical Roller Bearing – Tapered Bore, 45 mm ID, 85 mm OD, 23 mm Width, Open, C3 Internal clearance

Spherical Roller Bearing – Tapered Bore, 45 mm ID, 85 mm OD, 23 mm Width, Open, C3 Internal clearance

Spherical Roller Bearing – Tapered Bore, 45 mm ID, 85 mm OD, 23 mm Width, Open, C3 Internal clearance

Spherical Roller Bearing – Tapered Bore, 45 mm ID, 85 mm OD, 23 mm Width, Open, C3 Internal clearance

FAG

22209SKC3W33

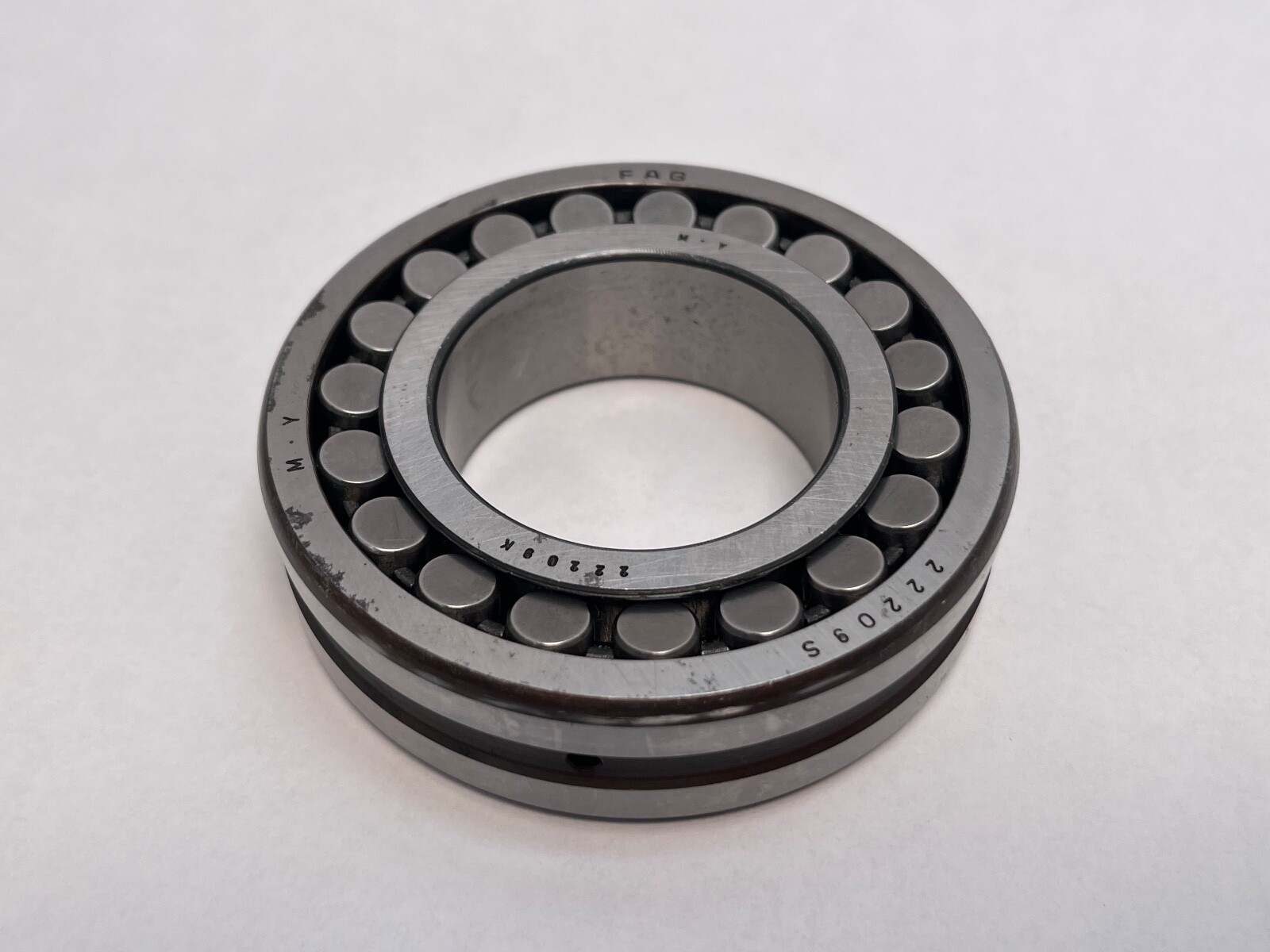

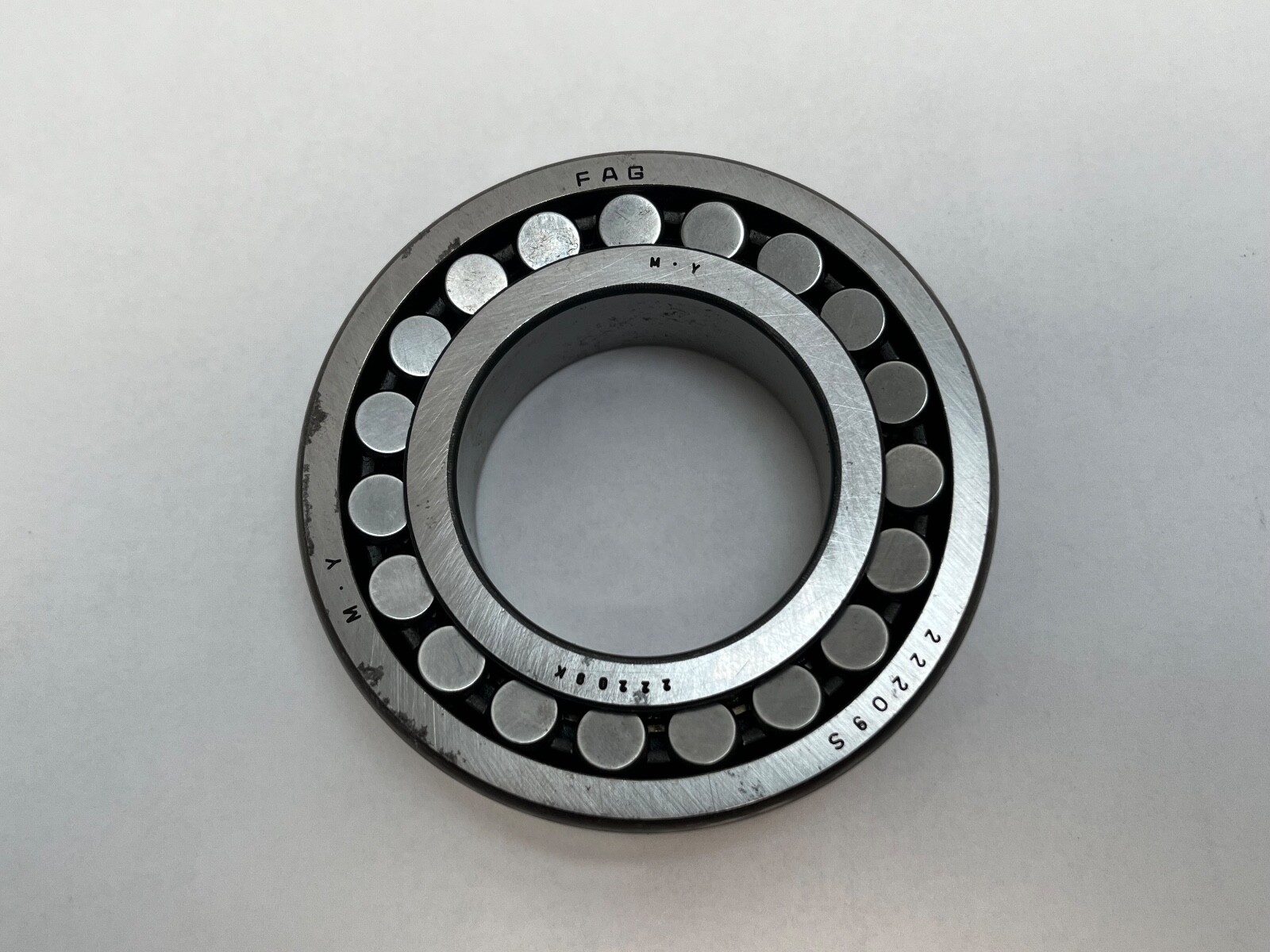

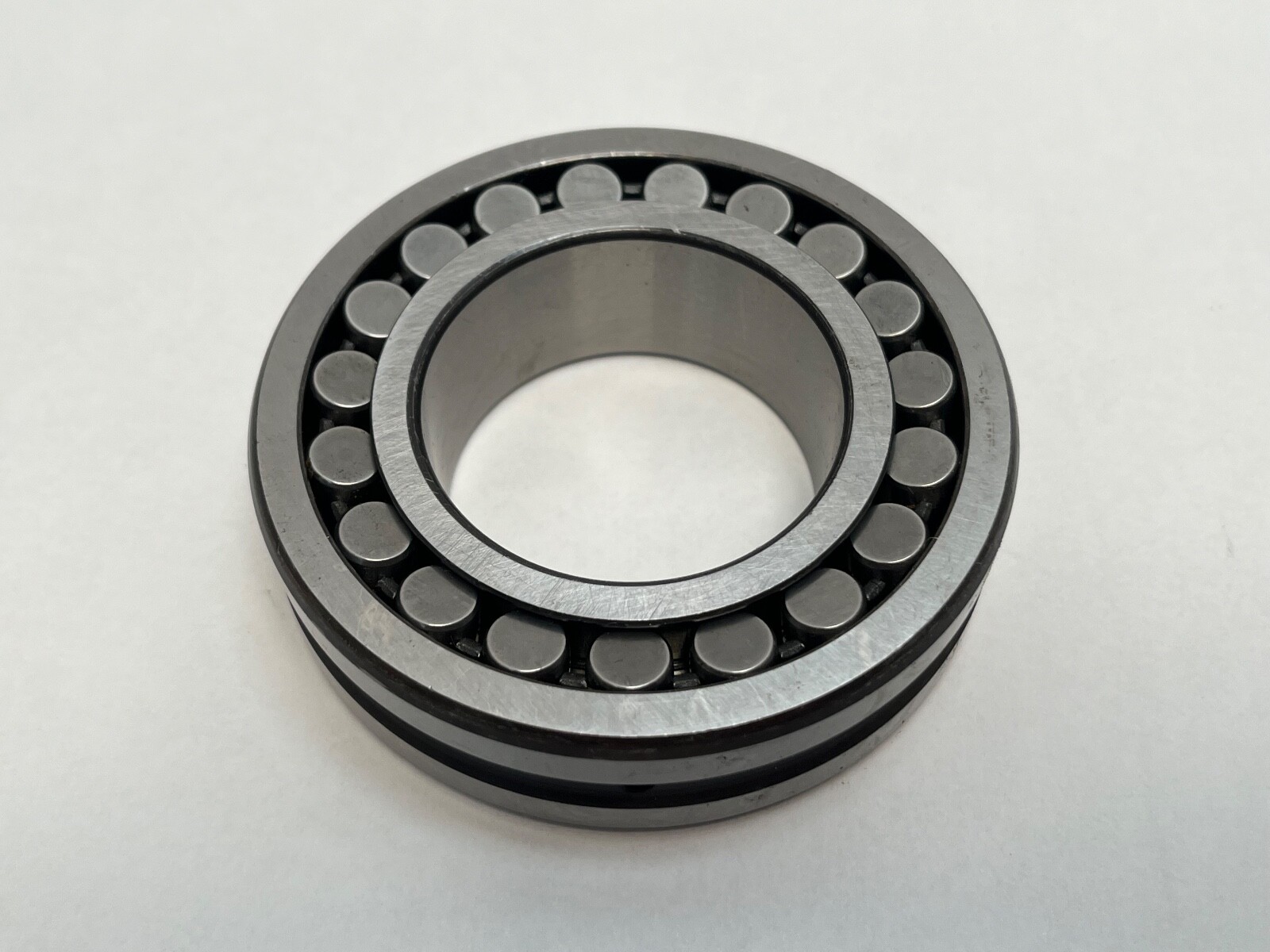

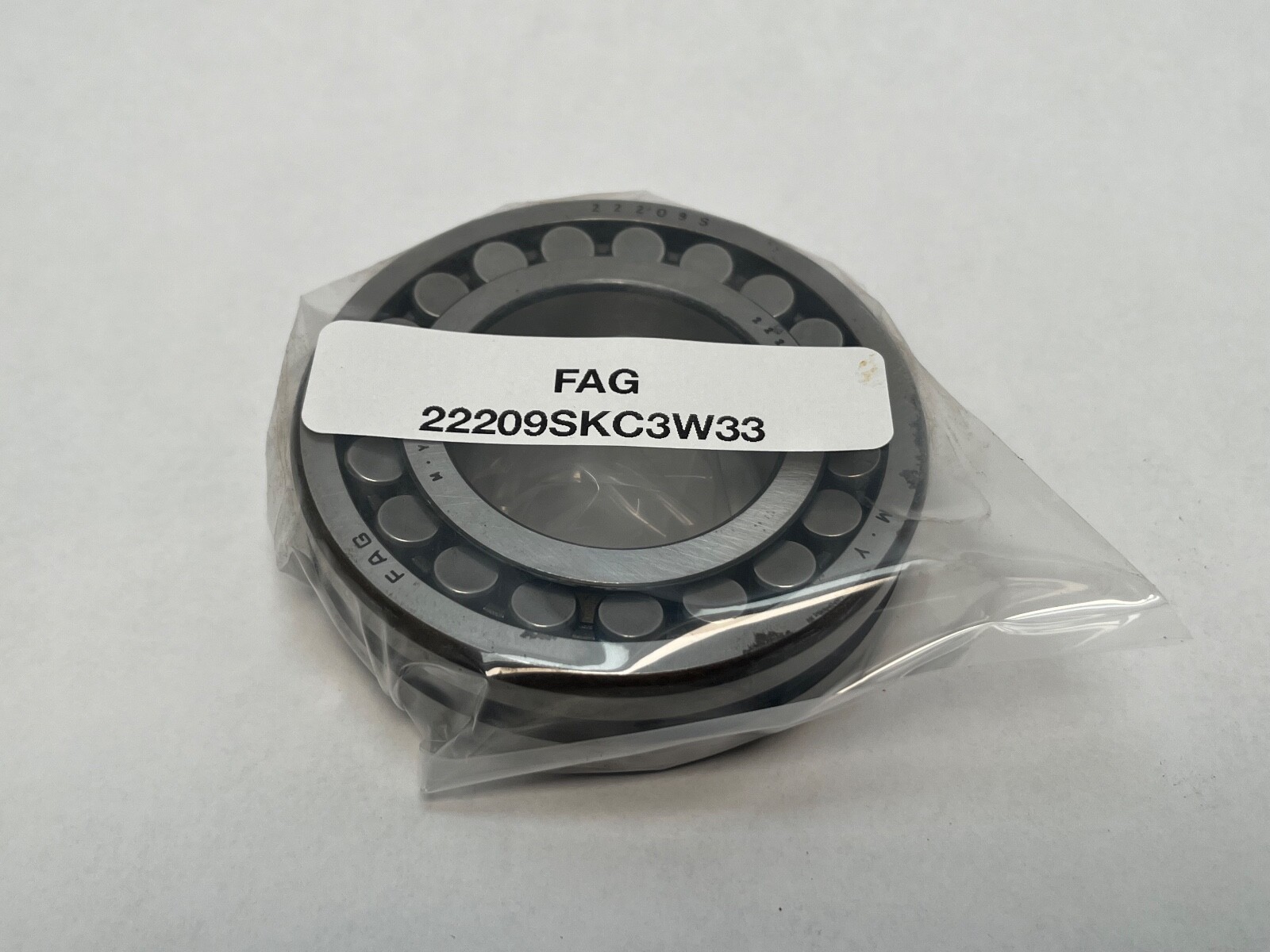

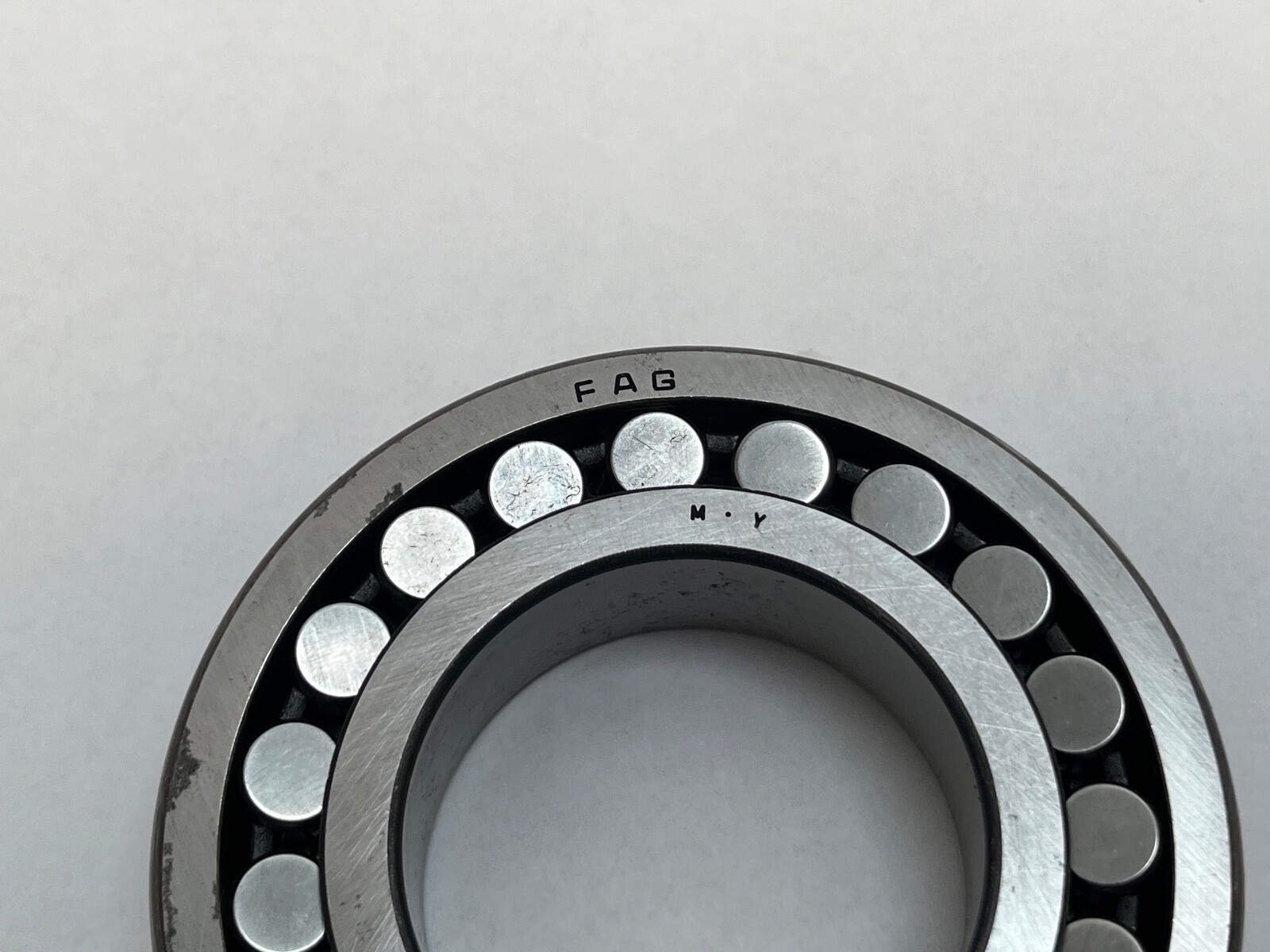

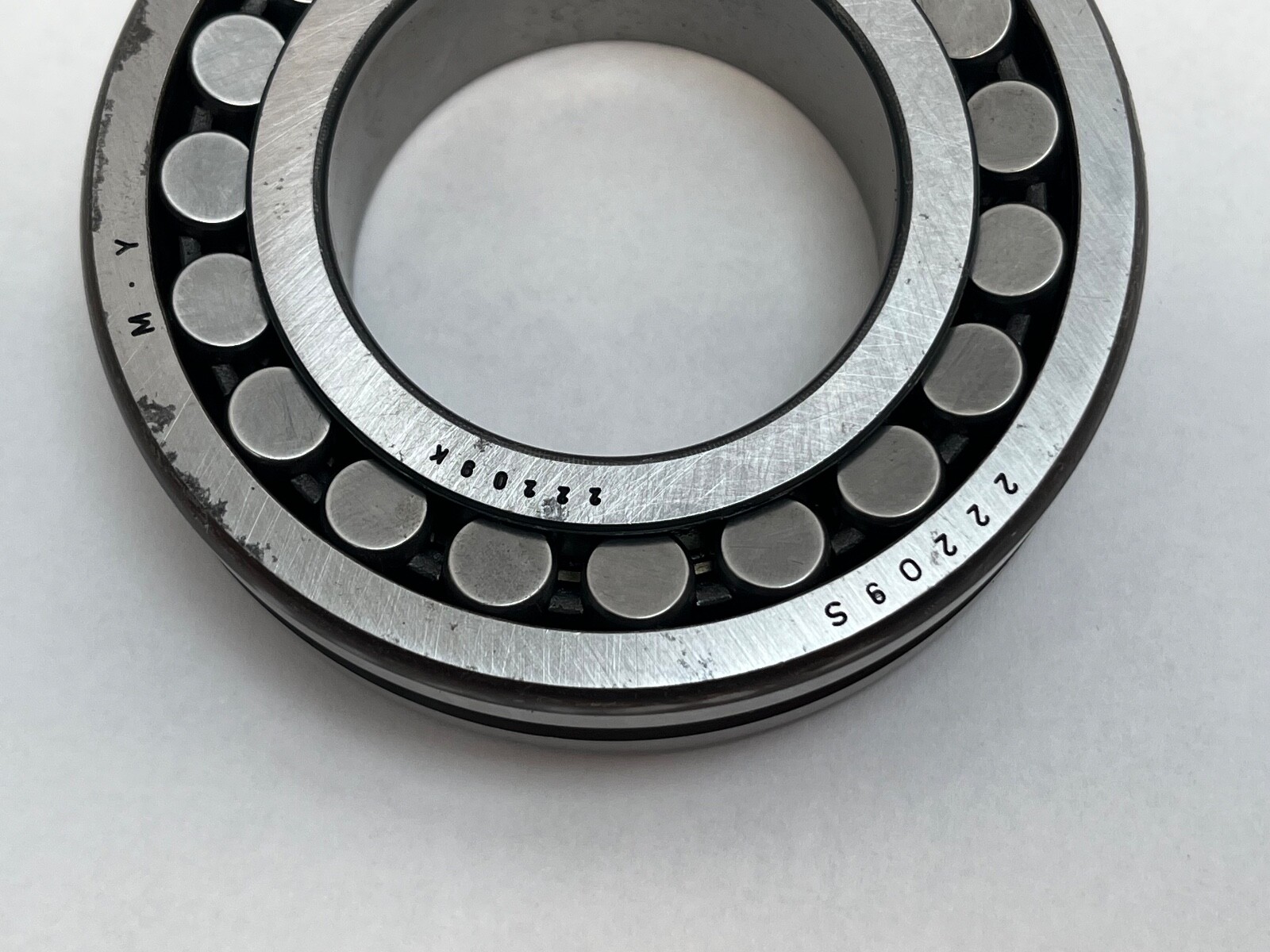

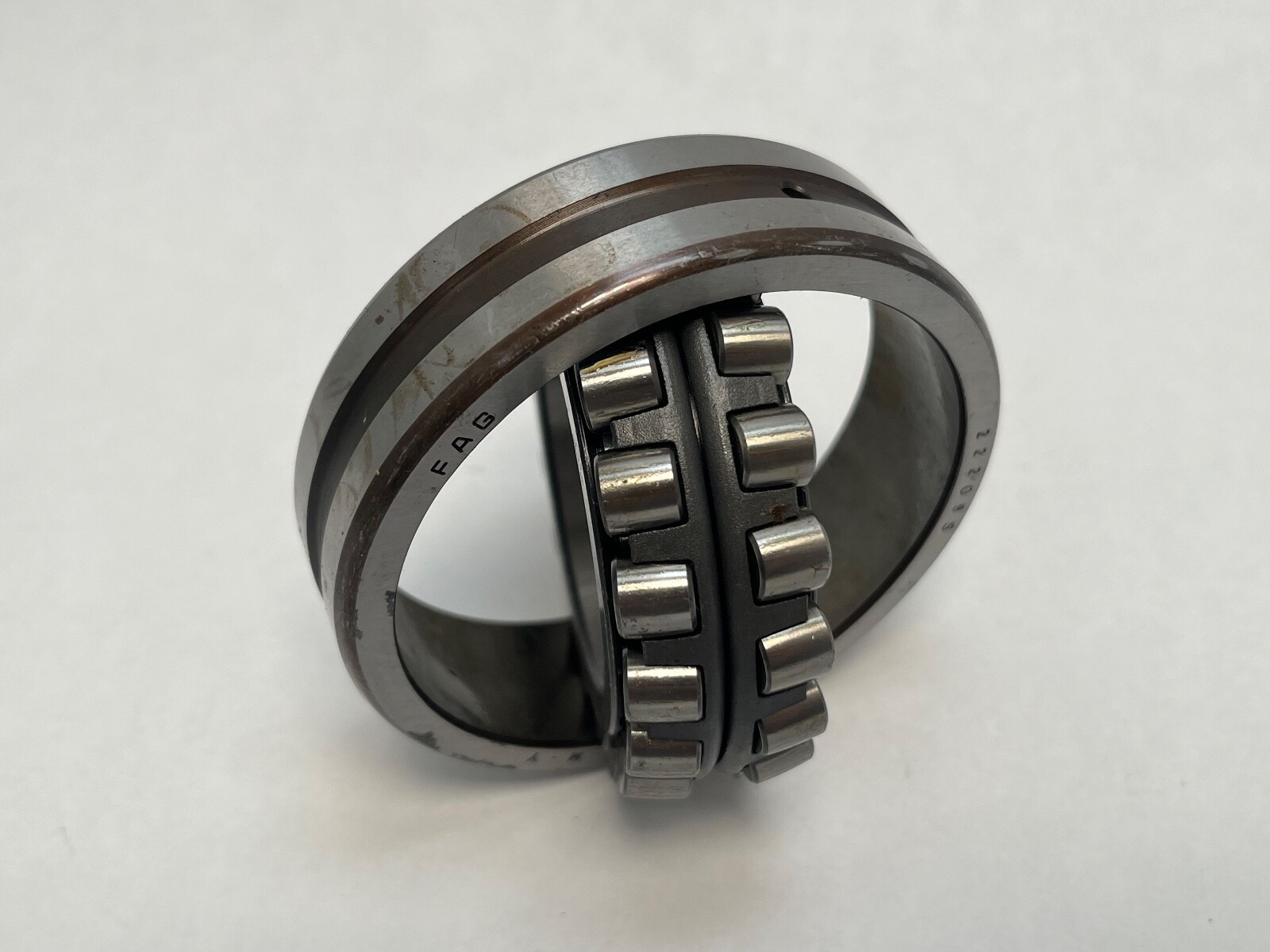

Spherical Roller Bearing – Tapered Bore, 45 mm ID, 85 mm OD, 23 mm Width, Open, C3 Internal clearance

Condition: New – Open box

Model #: 22209 S K C3 W33

Availability:

2 in stock

Categories: Uncategorized

Product Description

Can’t find a part you’re looking for? CLICK HERE TO CONTACT US! -We can get all parts needed at competitive prices -International shipping is offered on every item and all orders -Shipping is combined on all orders -Collect Shipping offered for UPS, FedEx, DHL, Freight SAME DAY SHIPPING ON ALL ITEMS NEXT DAY SHIPPING AVAILABLE AT CHECKOUT

Same day shipment

List Price

$42.01

2 in stock

Also Available From:

Need Help?
Click Here To Contact Support

Specifications

Additional information

Key Specifications

MFR / Brand	FAG
MPN	22209SKC3W33
Model	22209 S K C3 W33
Bearing Type	Spherical Roller Bearing, Open
ID	45 mm
OD	85 mm
Width	23 mm

Specifications

Advertise	1
Material	Chrome Steel
Min Temp	-30°C
Cage Type	Pressed
Dynamic Load Rating	104 kN
Static Load Rating	98 kN
Precision Rating	ABEC 1 / P0
Series	22200
Rolling Elements	Spherical Roller
Max Temp	200°C
Condition	New – Open box
Item Weight	1.25 lbs
Cage Material	Steel
Number Of Rows	2
Bore Type	Tapered Bore
Snap Ring Included	Without Snap Ring
Lubricant	Oil
Relubrication Feature	Yes
Harmonization Code	8482.30.00.80
Maximum Permissible Misalignment	1.5°
Internal Clearance	C3

Cross-References

Cross Reference 1	SKF 22209 EK/C3
Cross Reference 2	Timken 22209KJC3

Seller Part Number: AD4B2#YJCX9R
