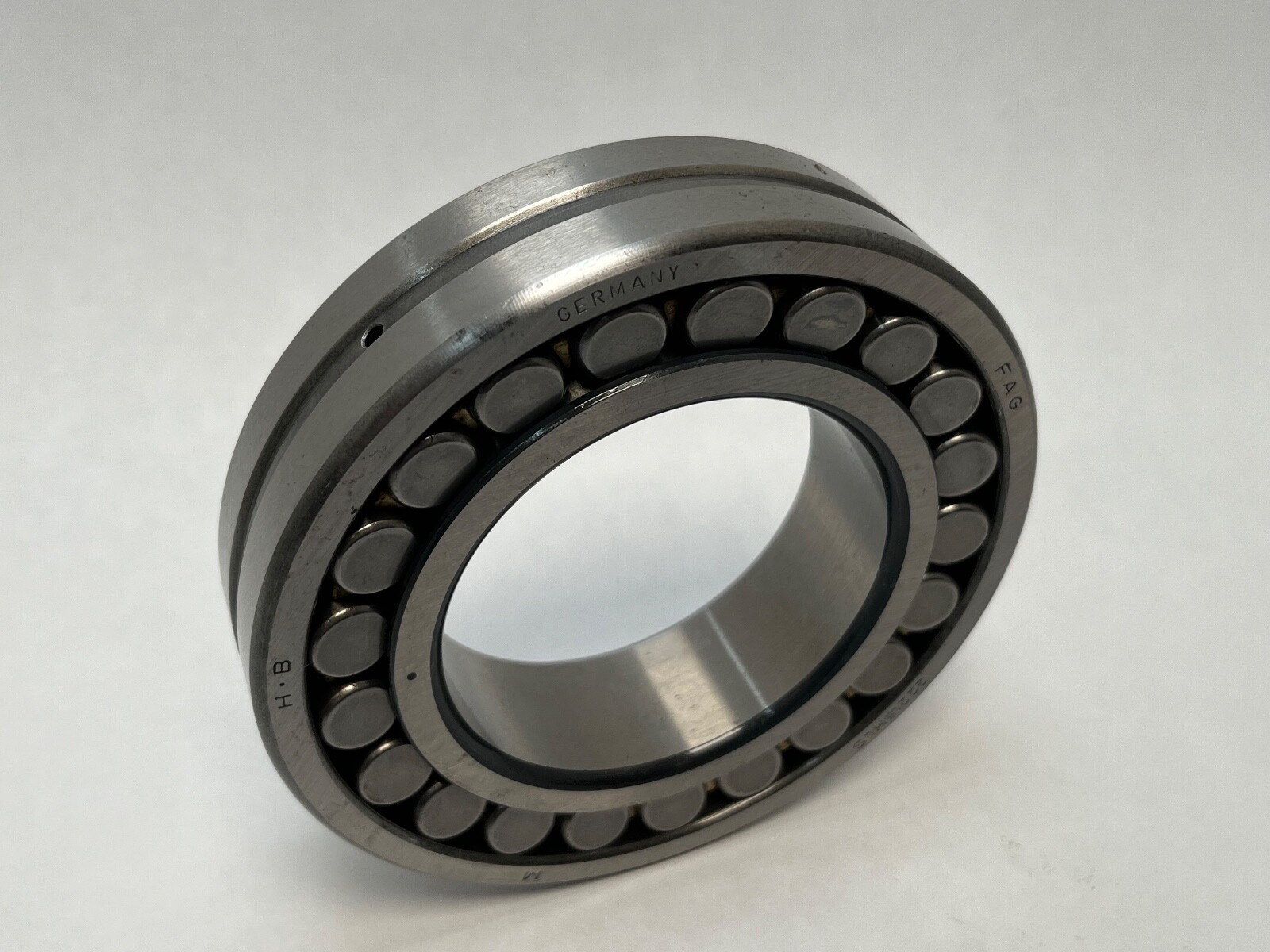

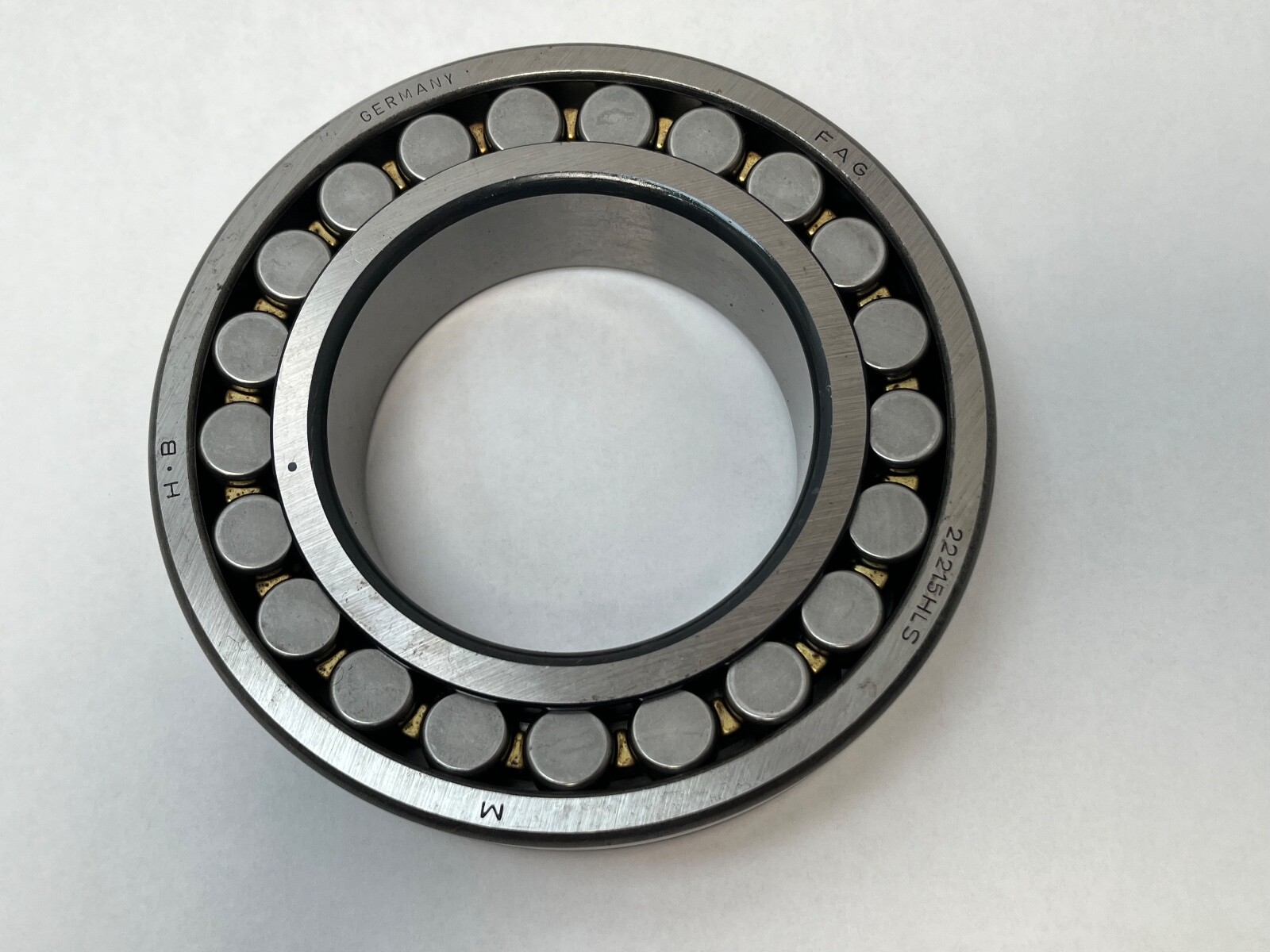

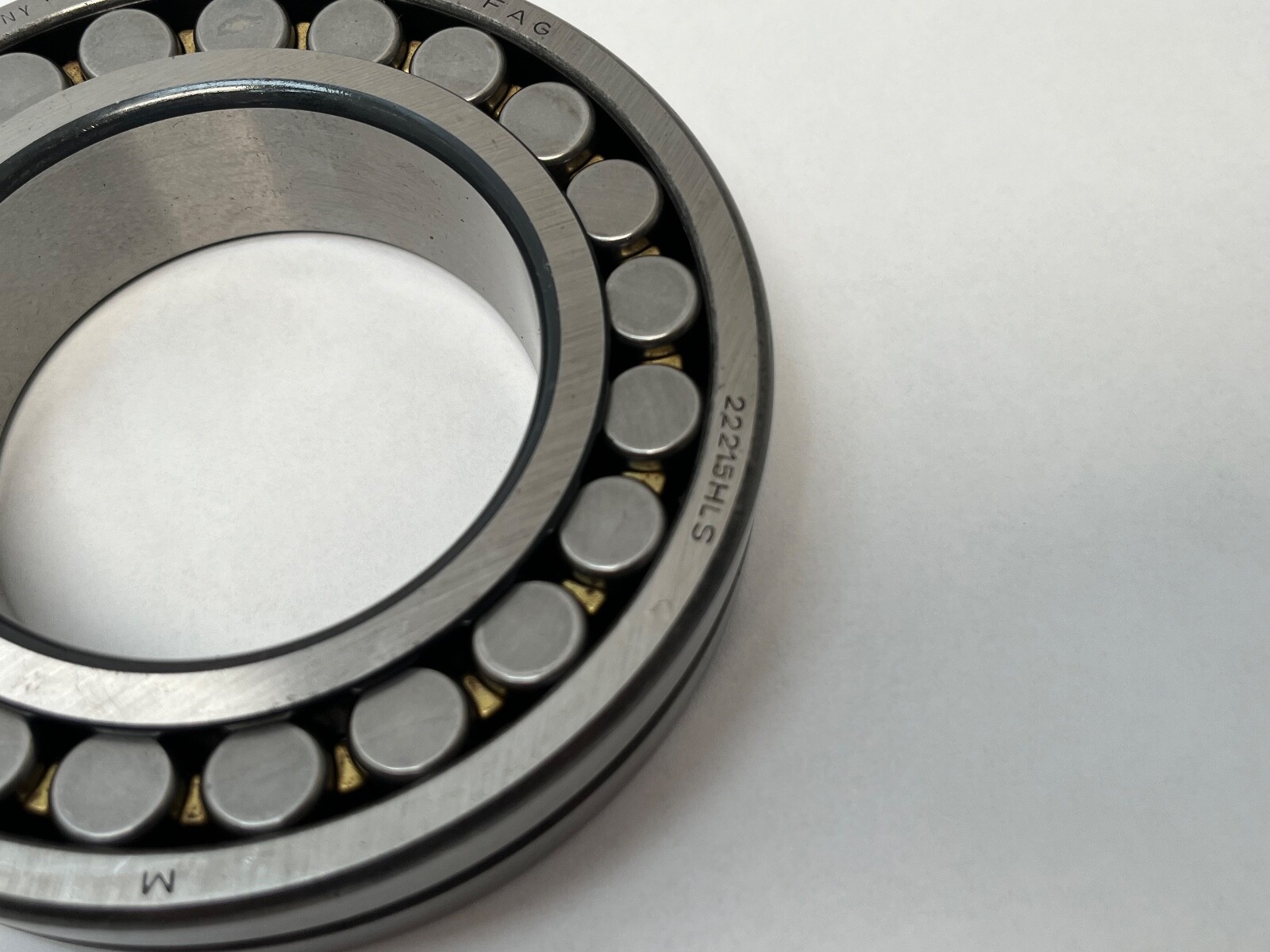

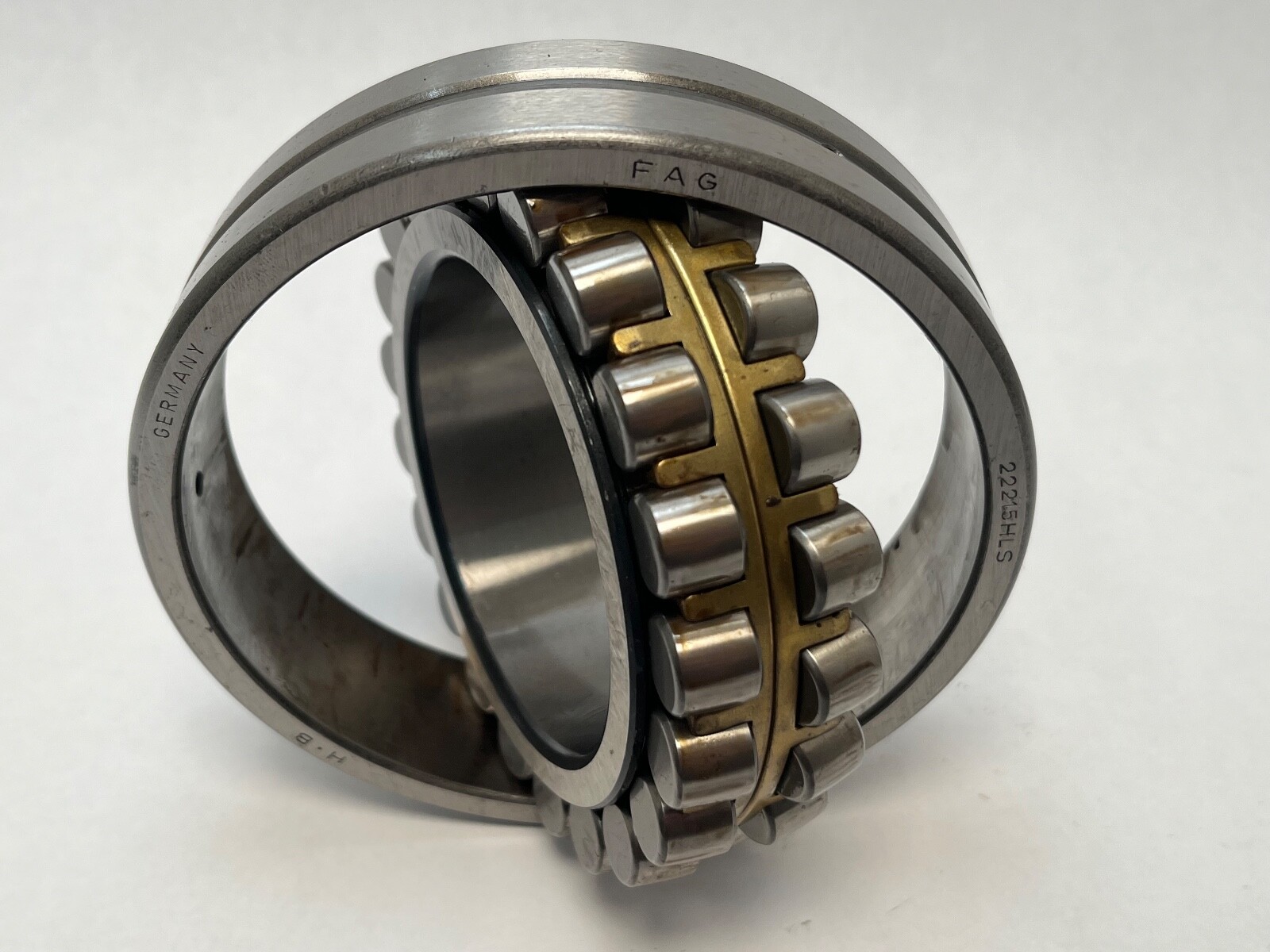

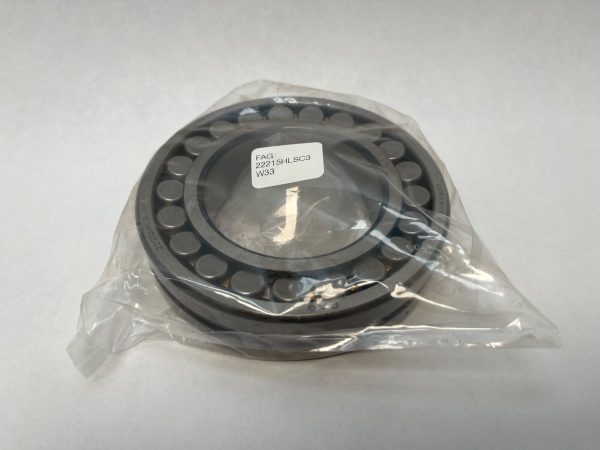

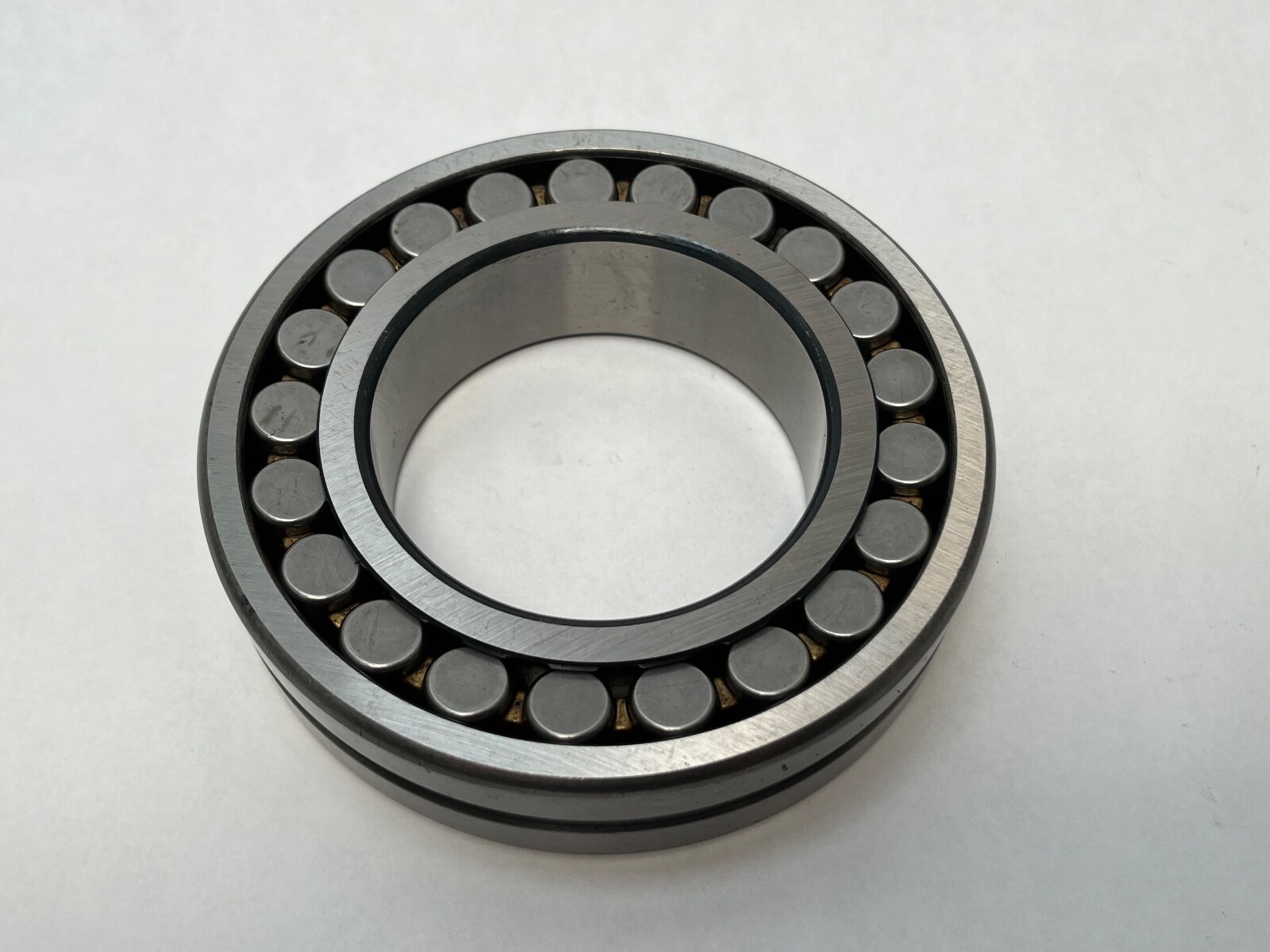

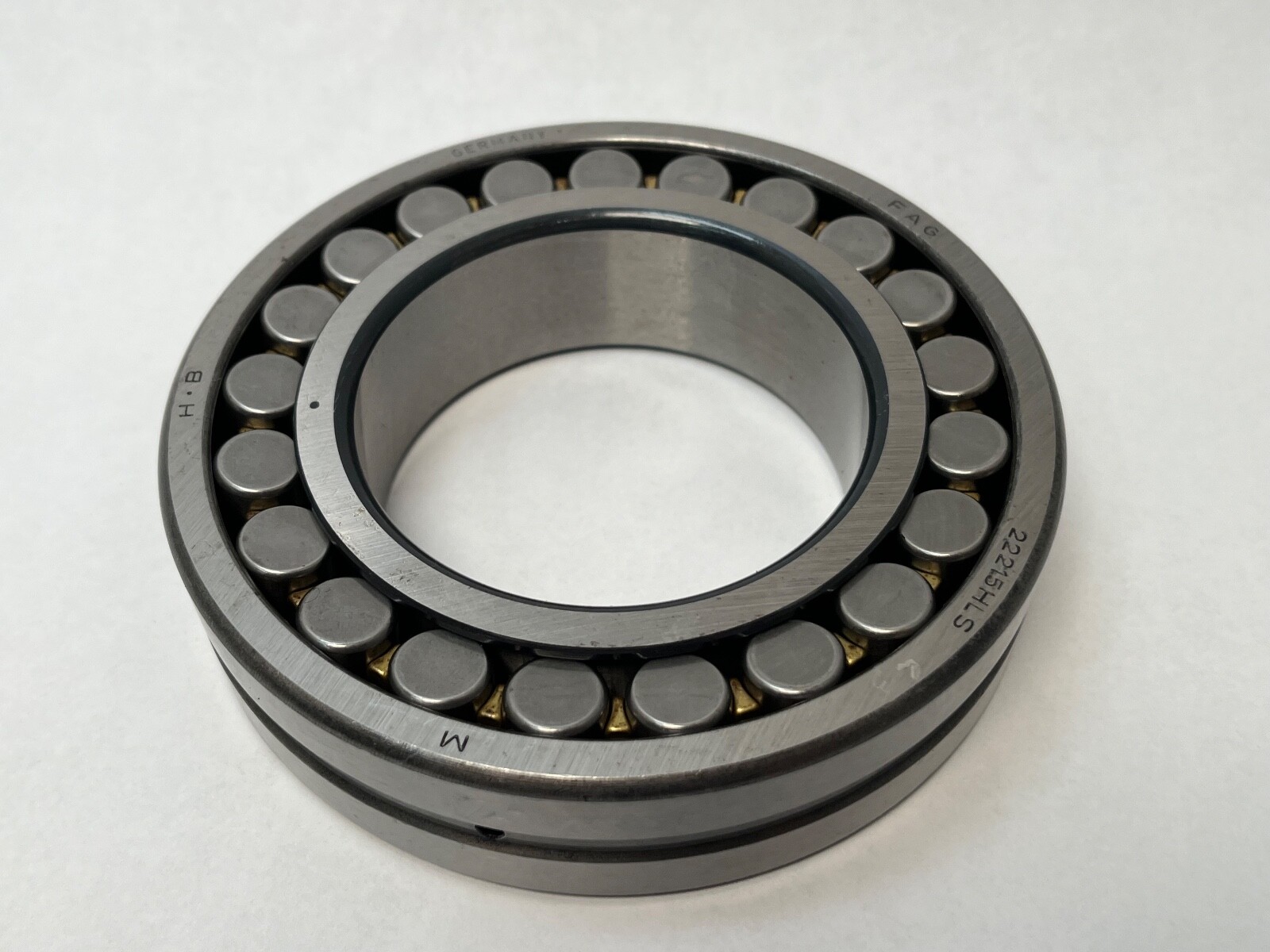

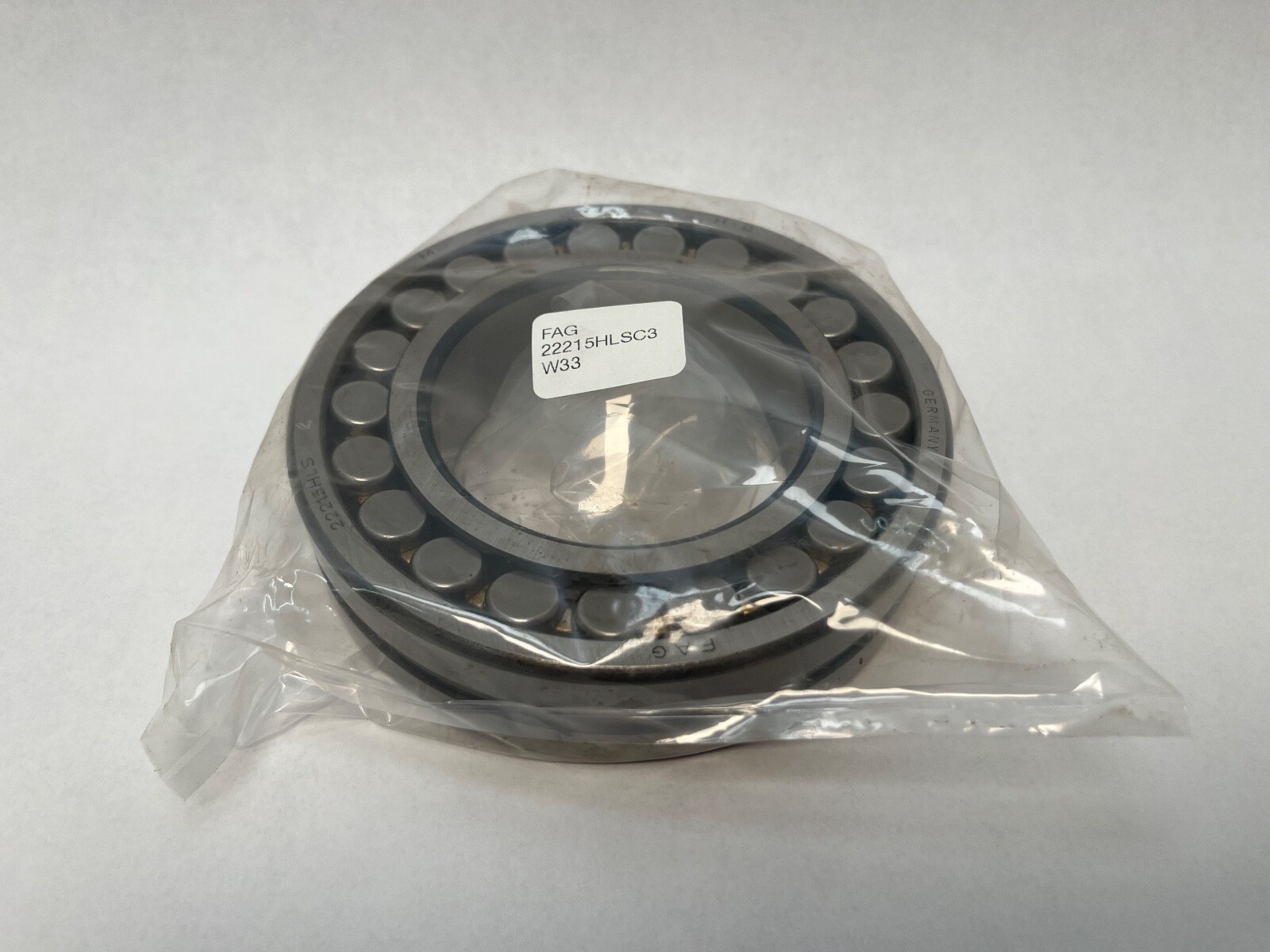

Name: Spherical Roller Bearing - Straight Bore, 75 mm ID, 130 mm OD, 31 mm Width, Open, C3 Internal clearance.
Brand: FAG
SKU: AM3B3#AYSNUI
Price: 82.2 USD
Availability: InStock

Additional information

Key Specifications

MFR / Brand	FAG
MPN	22215HLSC3W33
Model	22215 HL S C3 W33
Bearing Type	Spherical Roller Bearing, Open
ID	75 mm
OD	130 mm
Width	31 mm

Specifications

Advertise	1
Condition	New – Open box
Material	Bearing Steel
Min Temp	-40°C
Cage Type	Steel
Dynamic Load Rating	216 kN
Static Load Rating	240 kN
Precision Rating	ABEC 1 / P0
Rolling Elements	Spherical Rollers
Max Temp	200°C
Item Weight	3.42 lbs
Number Of Rows	2
Bore Type	Straight
Snap Ring Included	Without Snap Ring
Relubrication Feature	Yes
Internal Clearance	C3

Cross-References

Cross Reference 1	SKF 22215 E/C3
Cross Reference 2	NTN 22215EAE4C3
