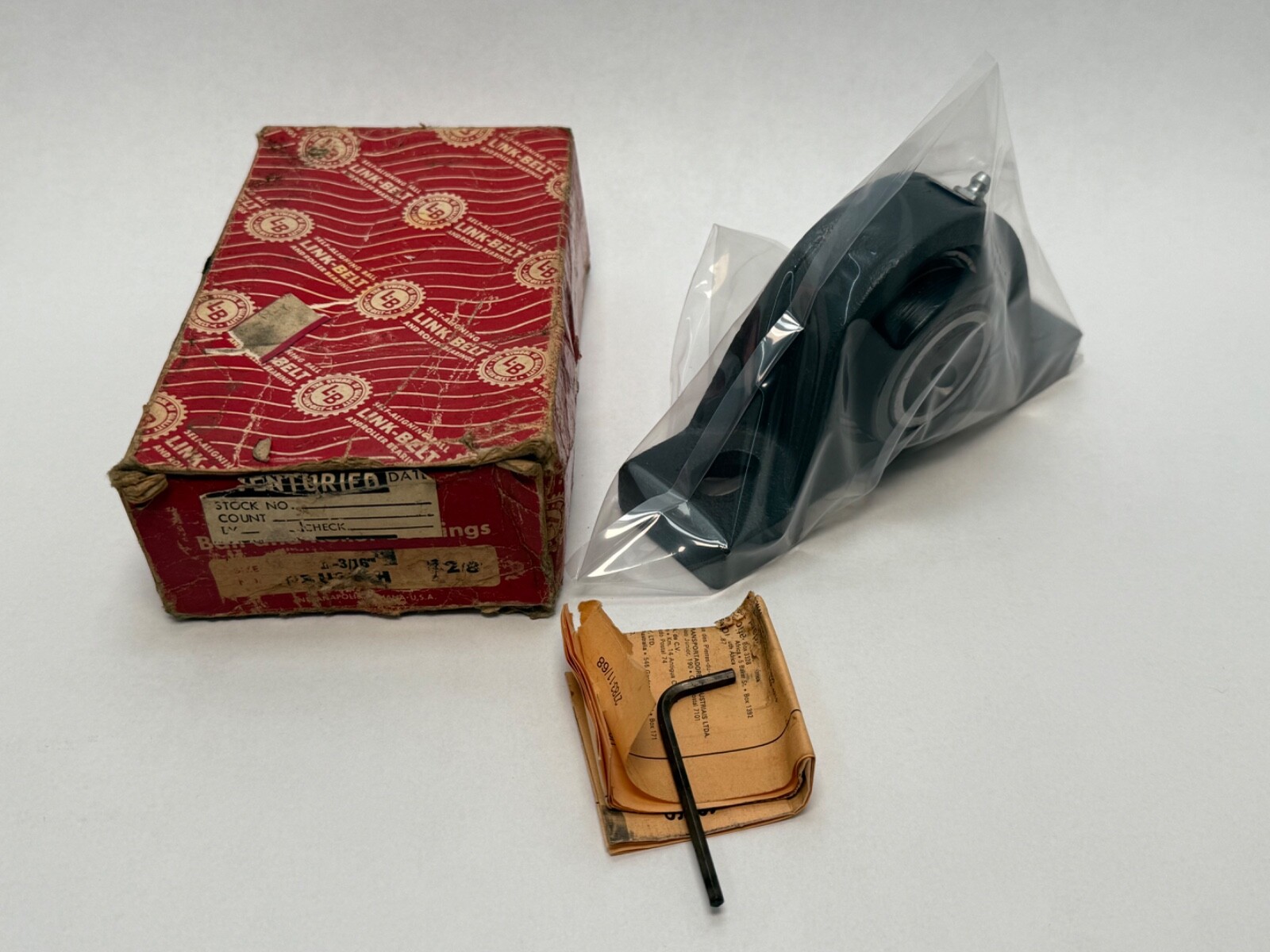

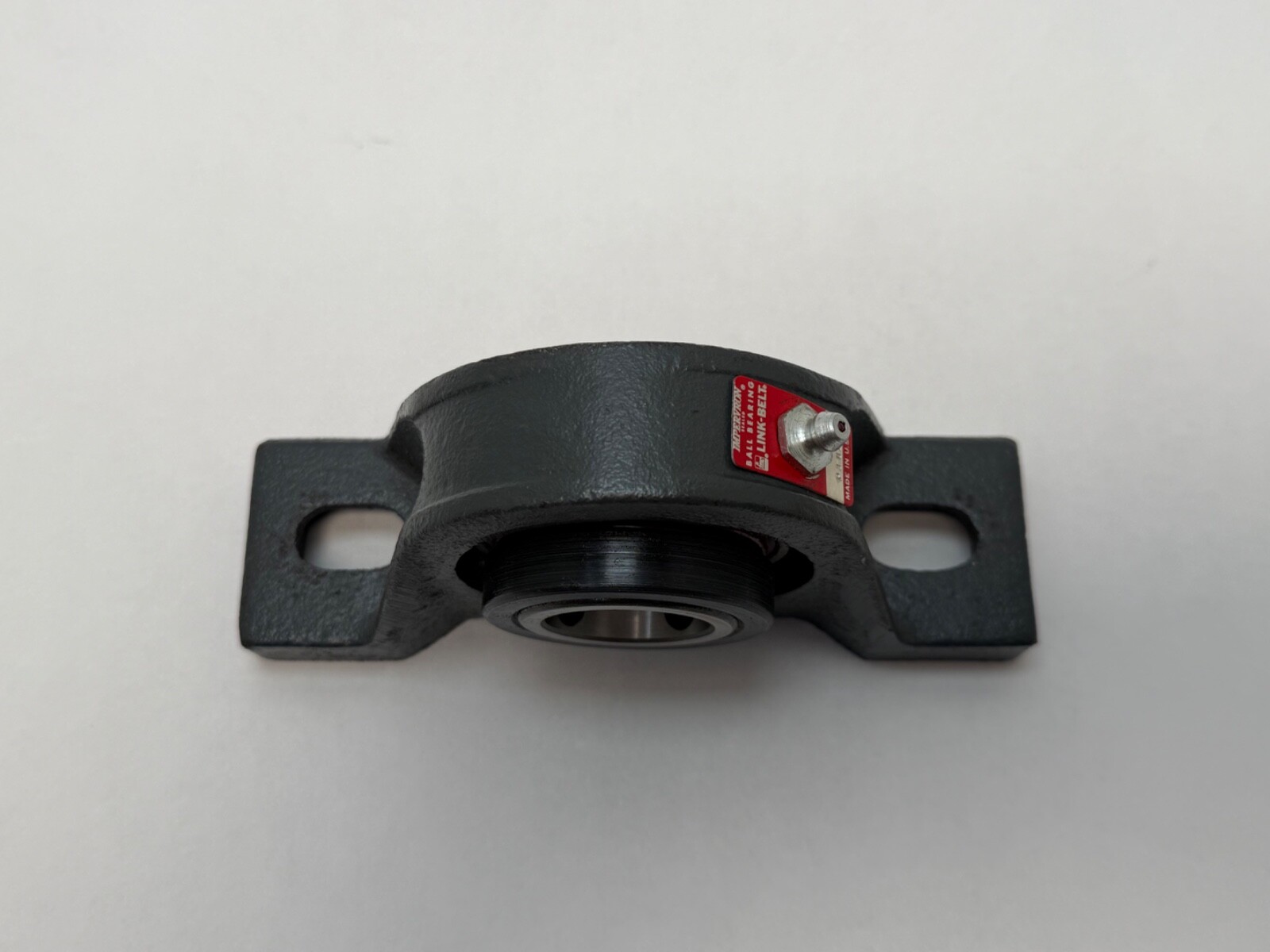

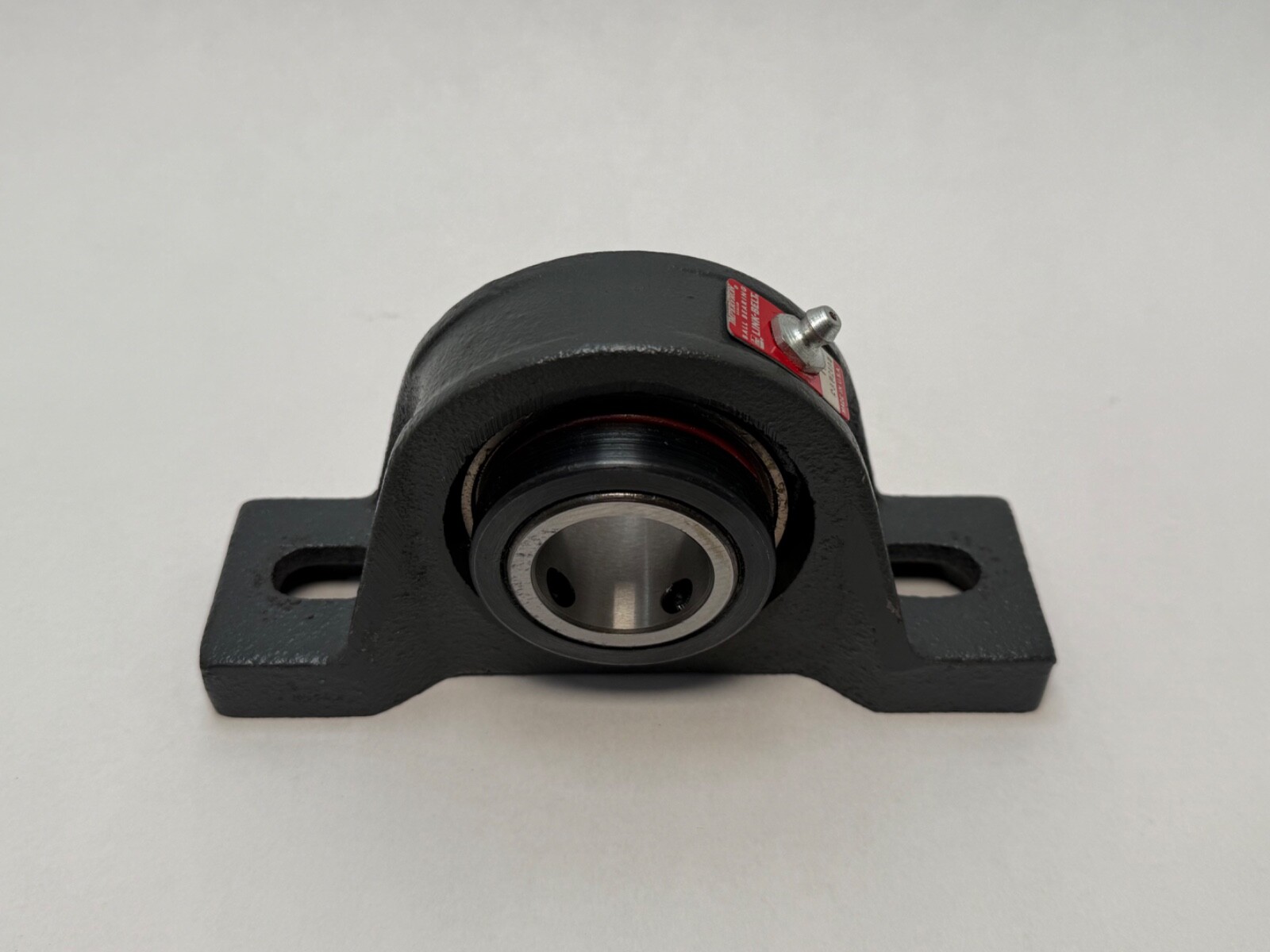

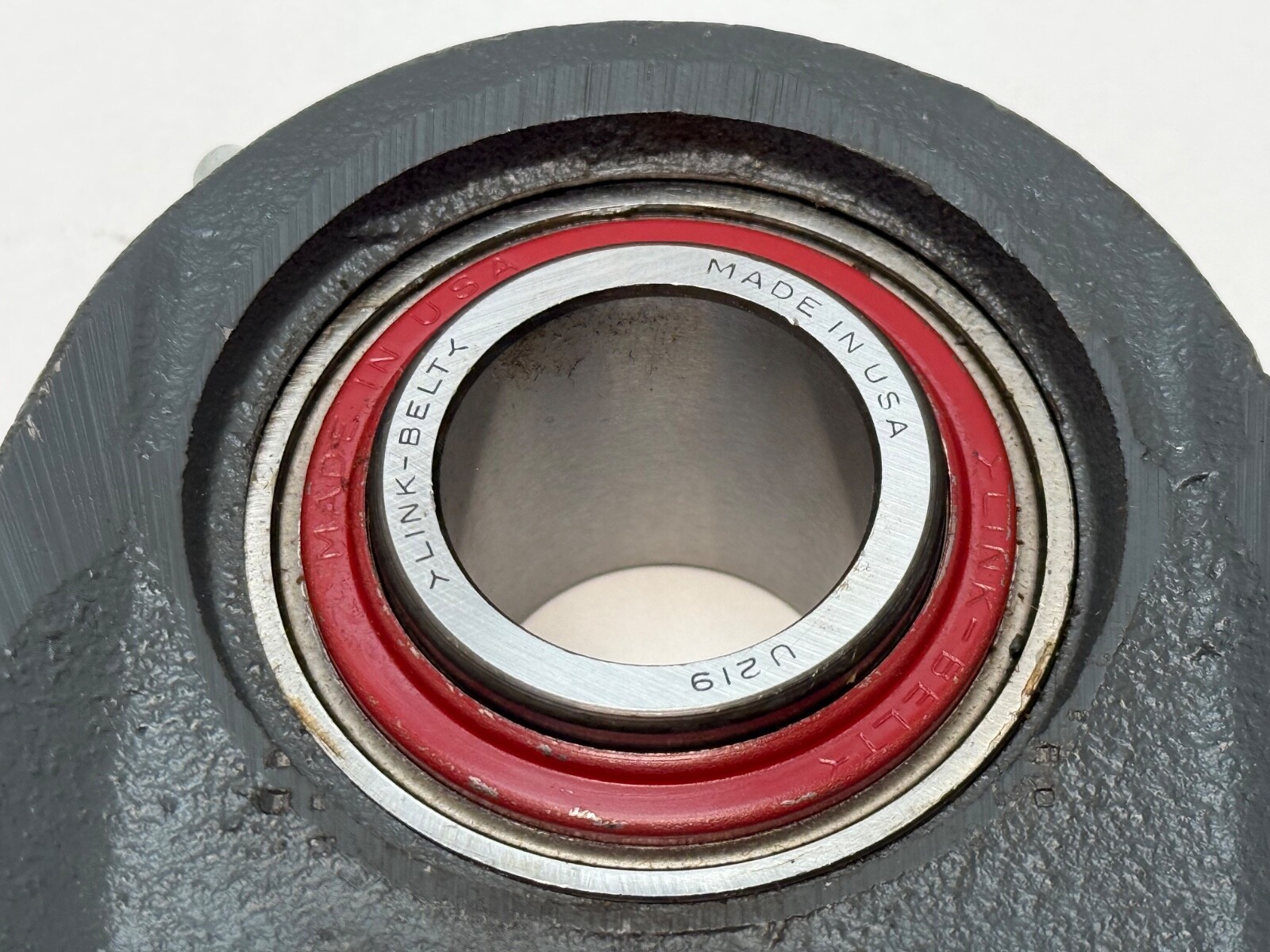

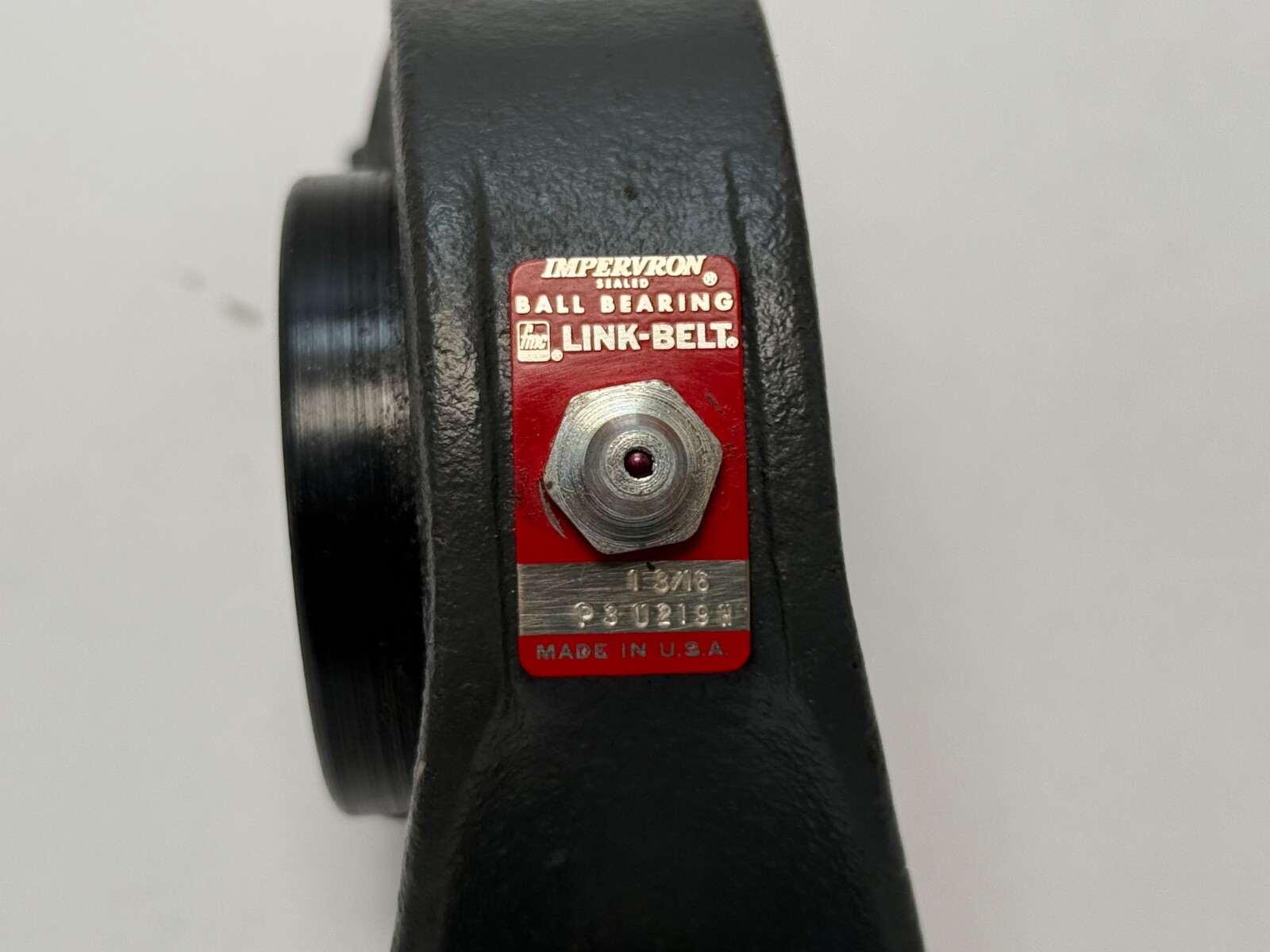

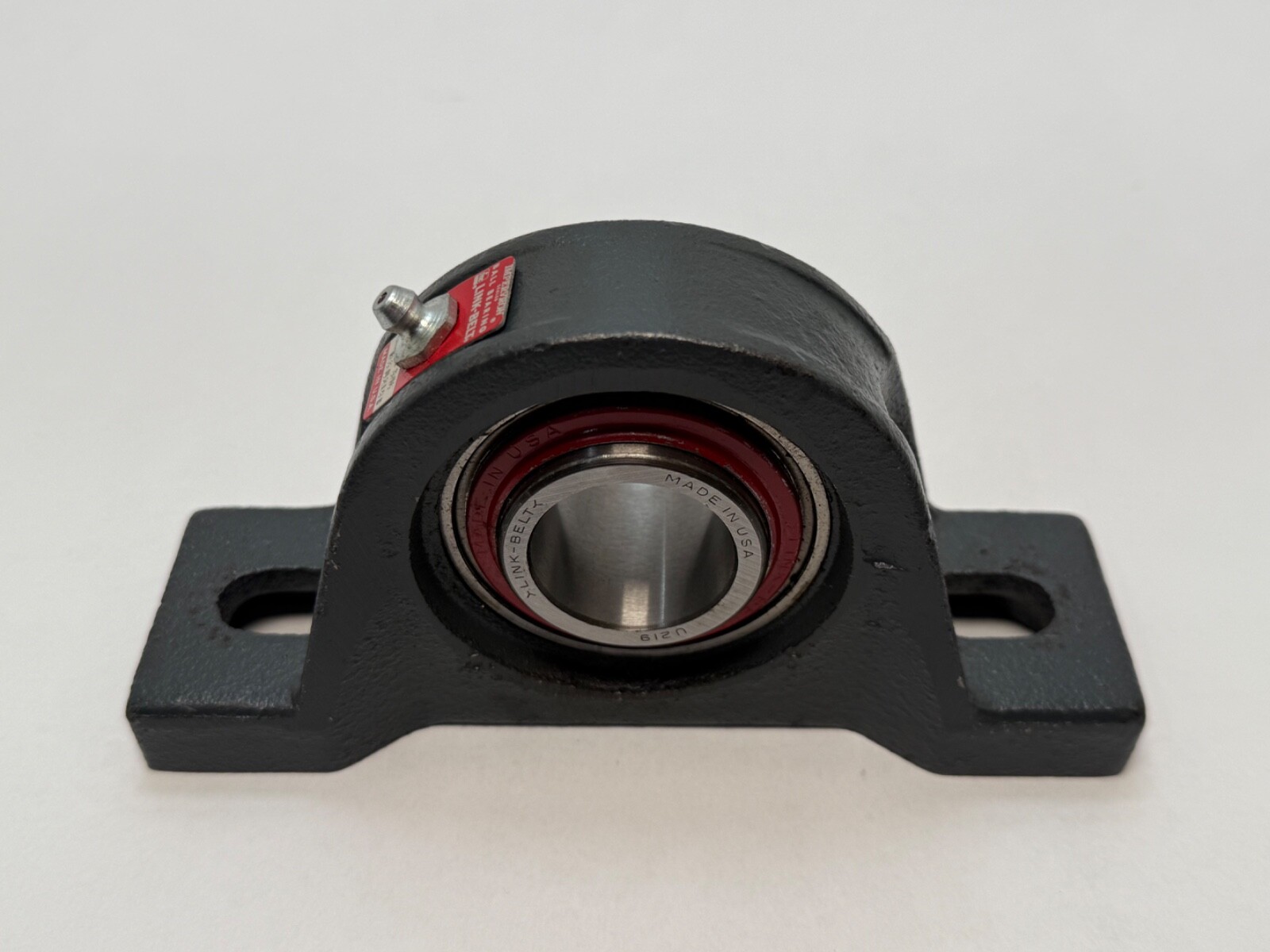

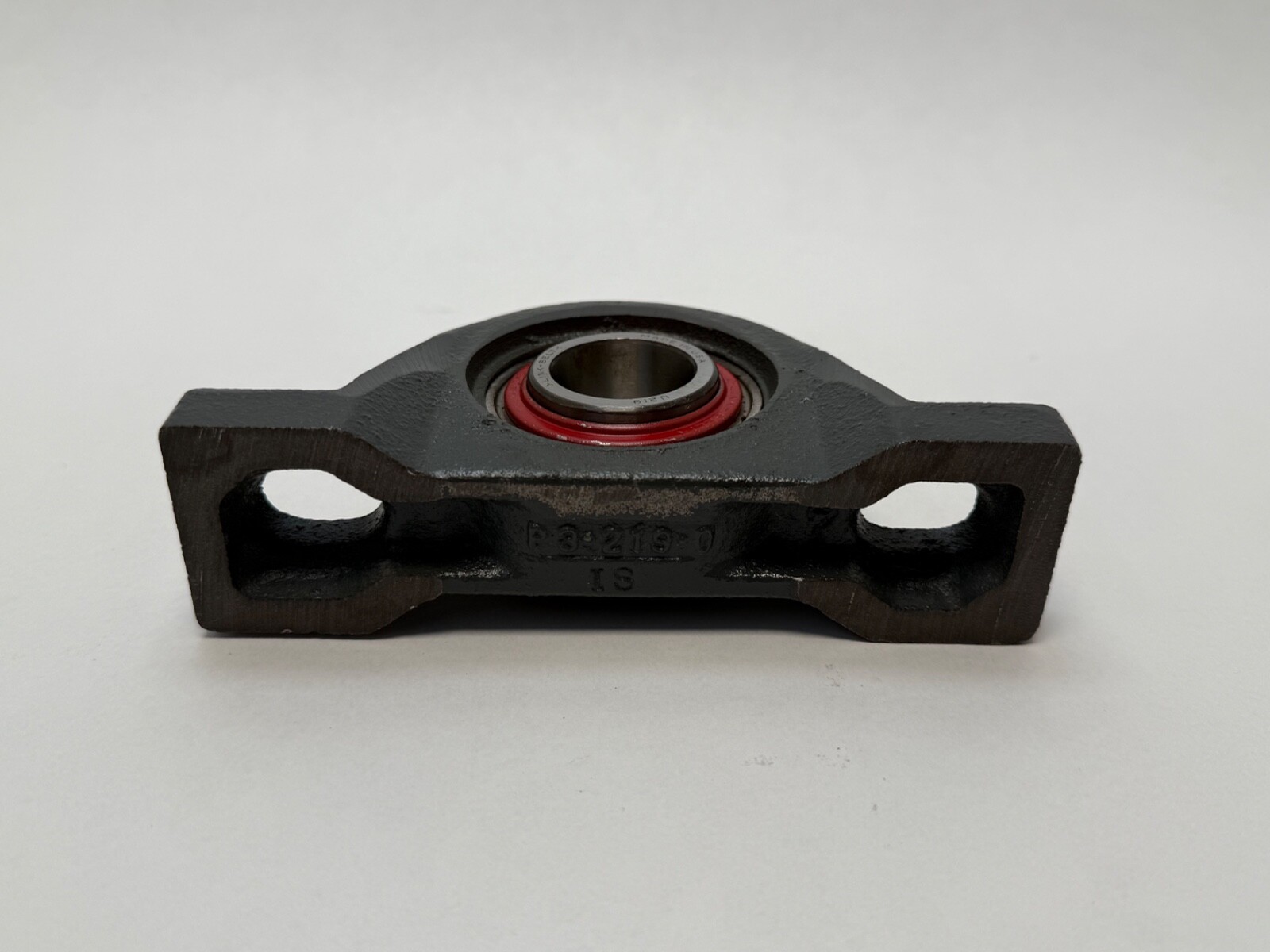

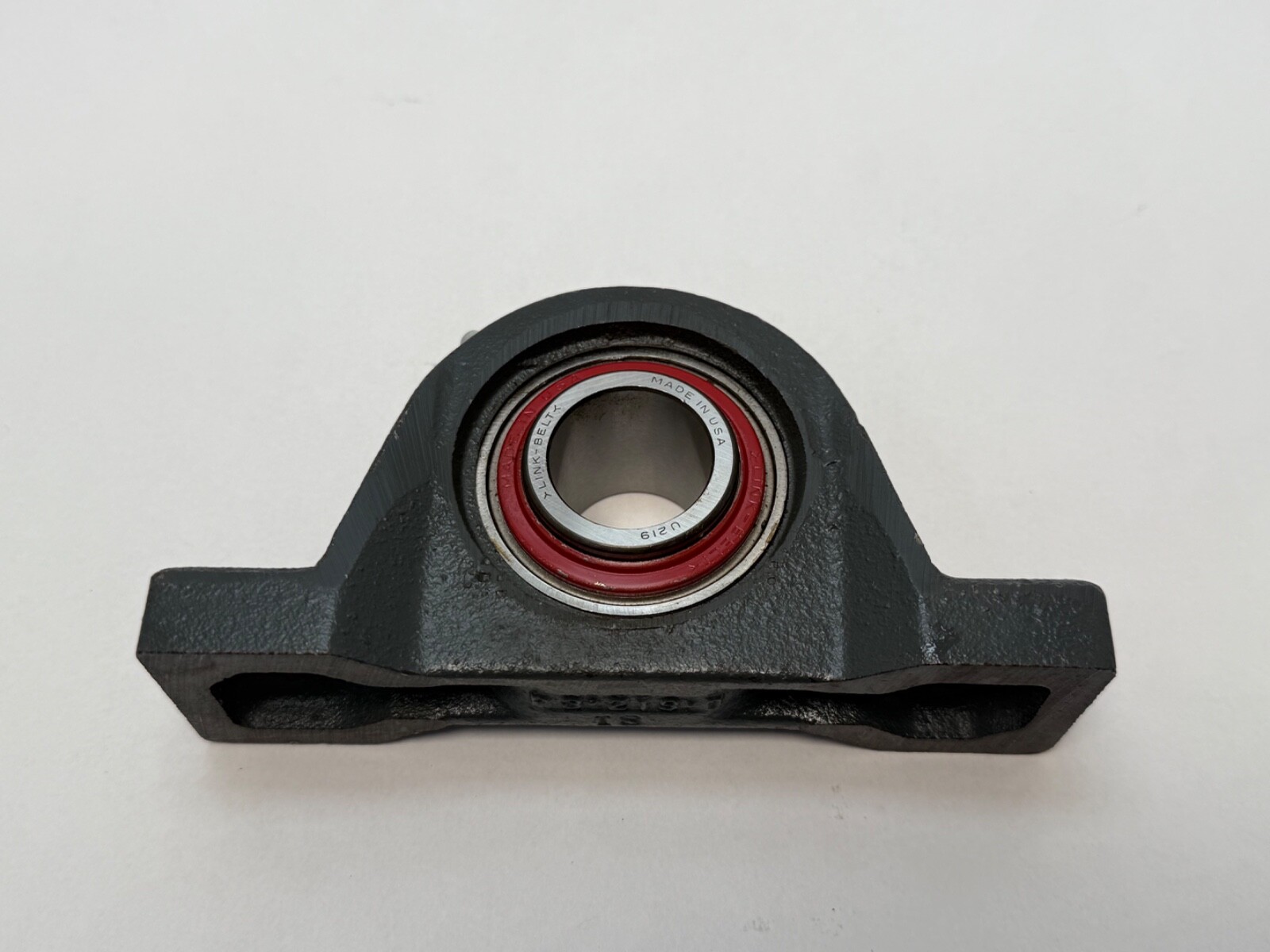

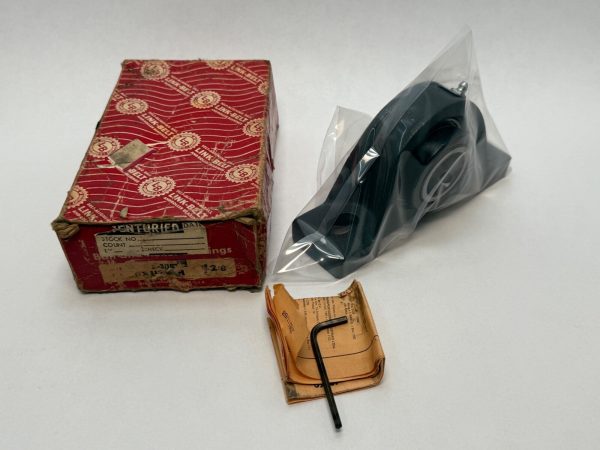

Name: Pillow Block Unit - 1.1875 in Bore, 2 bolt, Cast Iron, Standard Duty, Non-Expansion.
Brand: Link Belt
SKU: B-AD6B4#DXZNDL
Price: 47.86 USD
Availability: InStock

Additional information

Key Specifications

MFR / Brand	Link Belt
MPN	P3U219H
Model	P3 U219H
ID	1.1875 in
Width	1.7500 in

Specifications

Advertise	1
Series	P3U
Condition	New
Type	Flanged Mount Bearing
Lubricant	Grease
Material	Cast Iron
Bolt Center To Center	4.625 in
Number Of Bolt Holes	2
Bolt Center To Center Length	4.625 in
Number Of Bolt Holes For Fasteners	2
Centre Height Pillow Block	1.6875 in
Centre Height	1.6875 in
Min Temp	-20°C
Dynamic Load Rating	19.5 kN / 4390 lbf
Static Load Rating	11.2 kN / 2530 lbf
Precision Rating	ABEC 1 / P0
Rolling Elements	Ball
Max Temp	107°C
Bearing Type	Pillow Block Unit
Item Weight	2.90 lbs
Limiting Speed	8000 rpm
Number Of Rows	1
Bore Type	Straight
Internal Clearance	C3
Duty Type	Standard Duty
Locking Device	Set Screw
Relubrication Feature	Yes
Harmonization Code	84832040
Housing Material	Cast Iron
Expansion Type	Non-Expansion
Maximum Permissible Misalignment	2°

Cross-References

Cross Reference 1	Dodge P2B-SC-103
Cross Reference 2	SKF SY 1.3/16 TF
Cross Reference 3	Sealmaster NP-19
