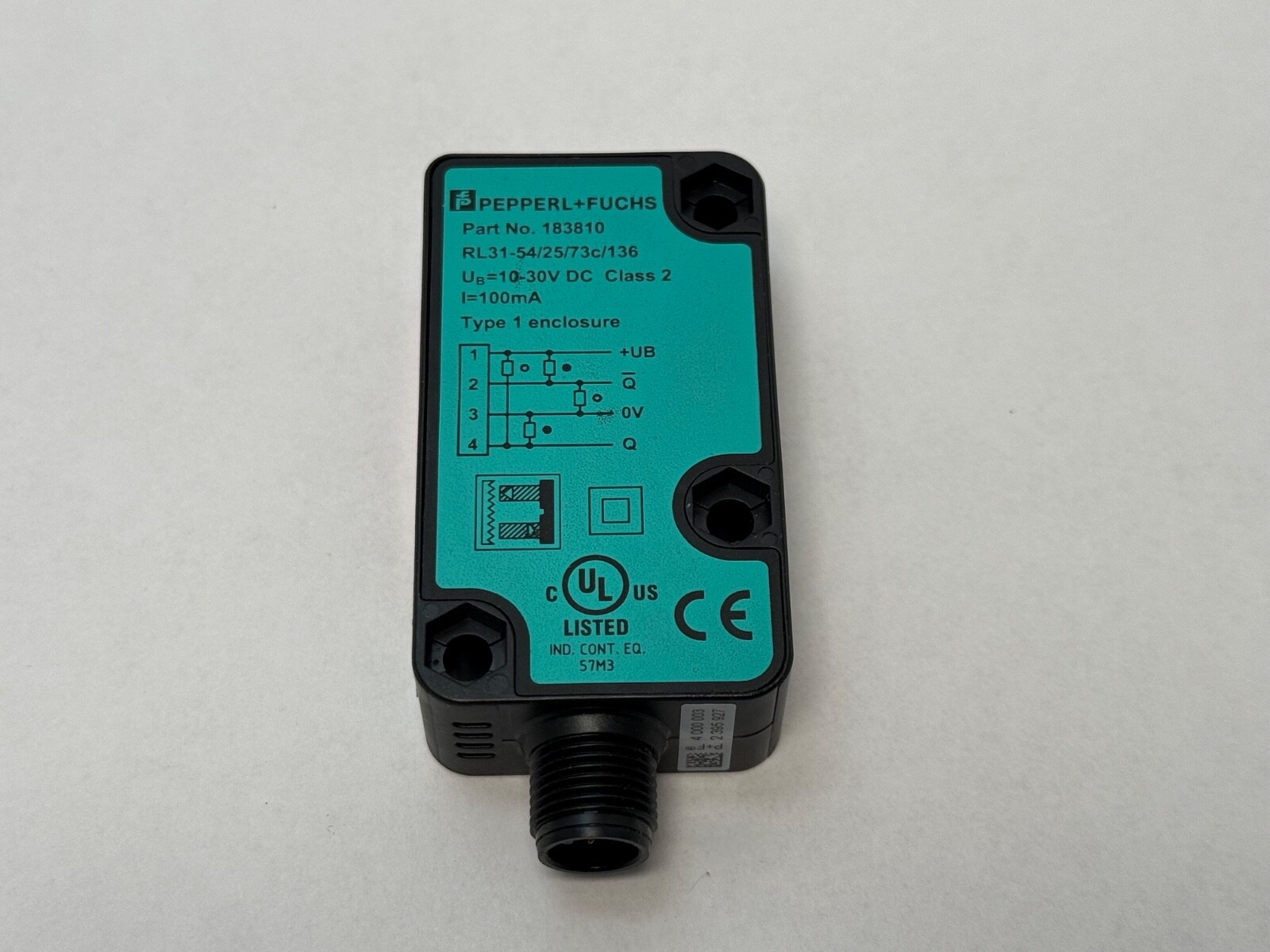

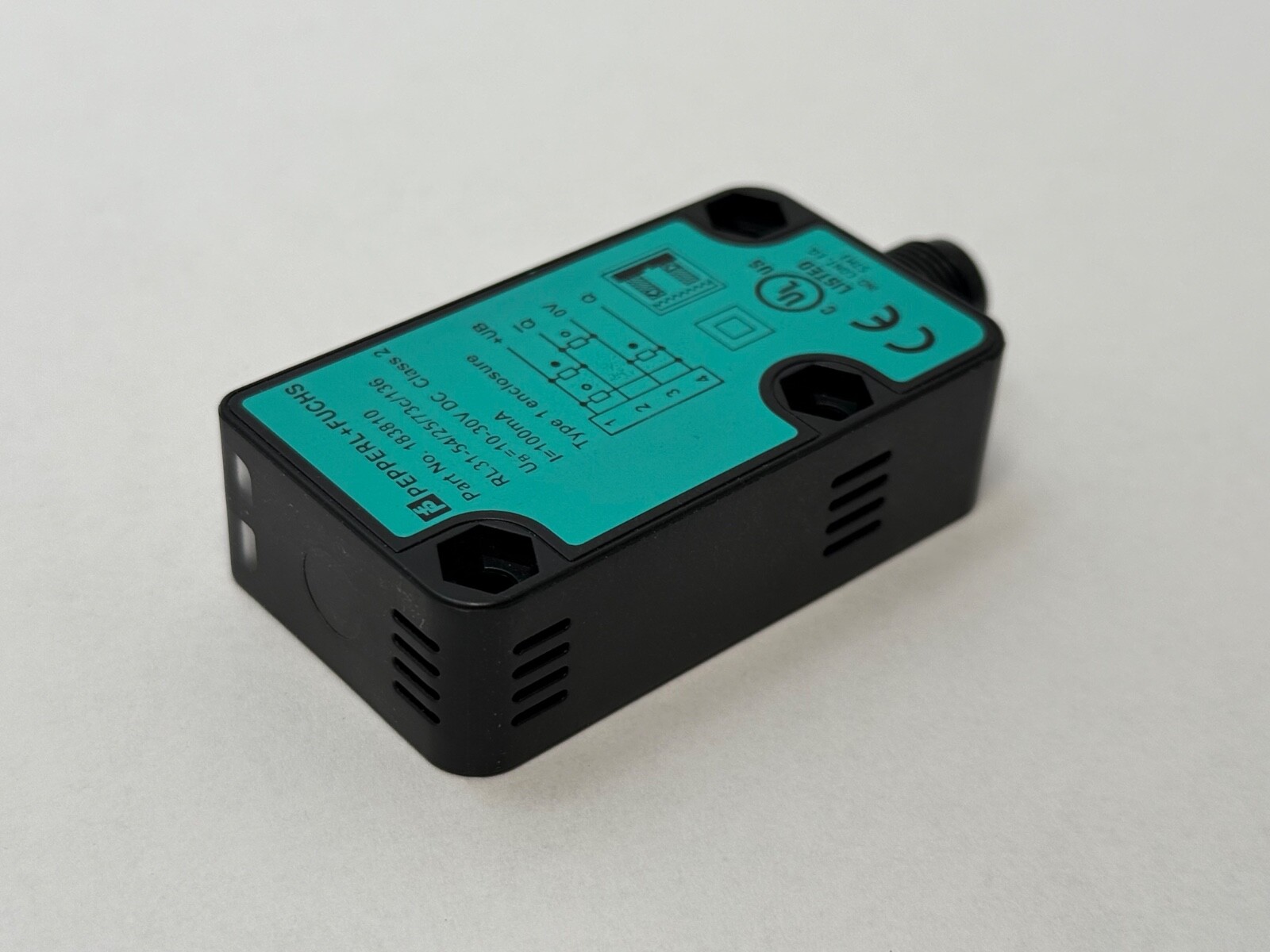

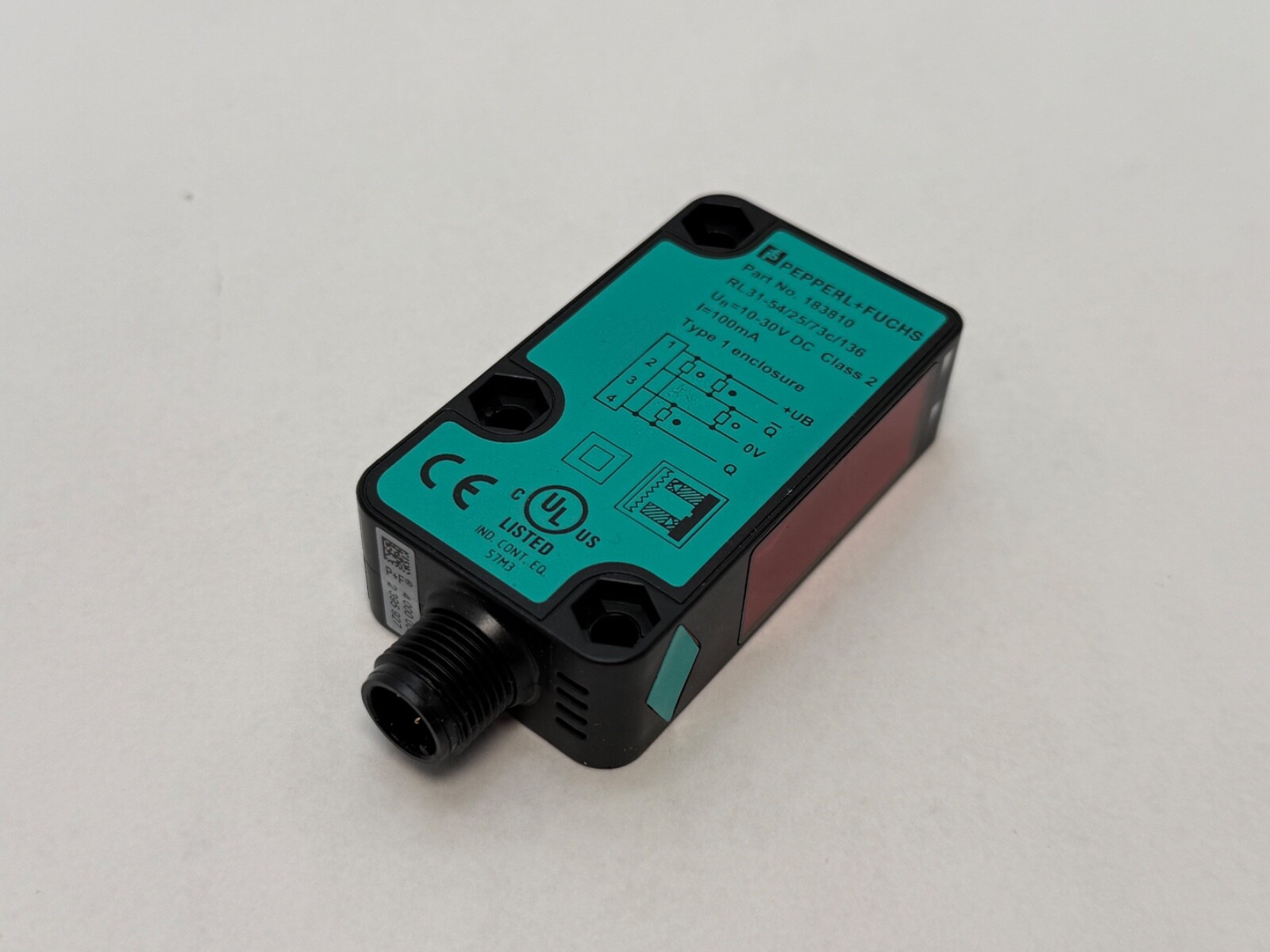

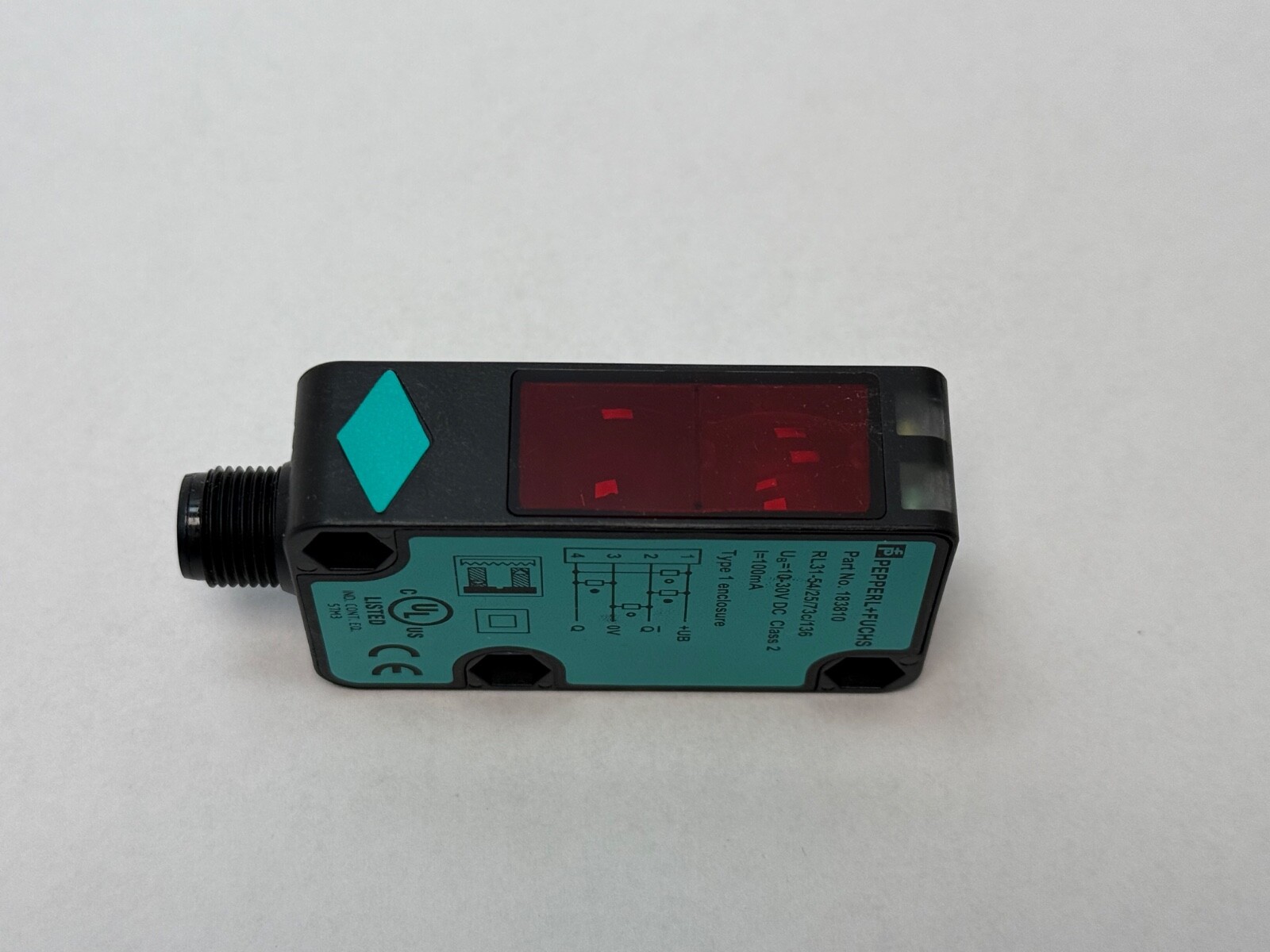

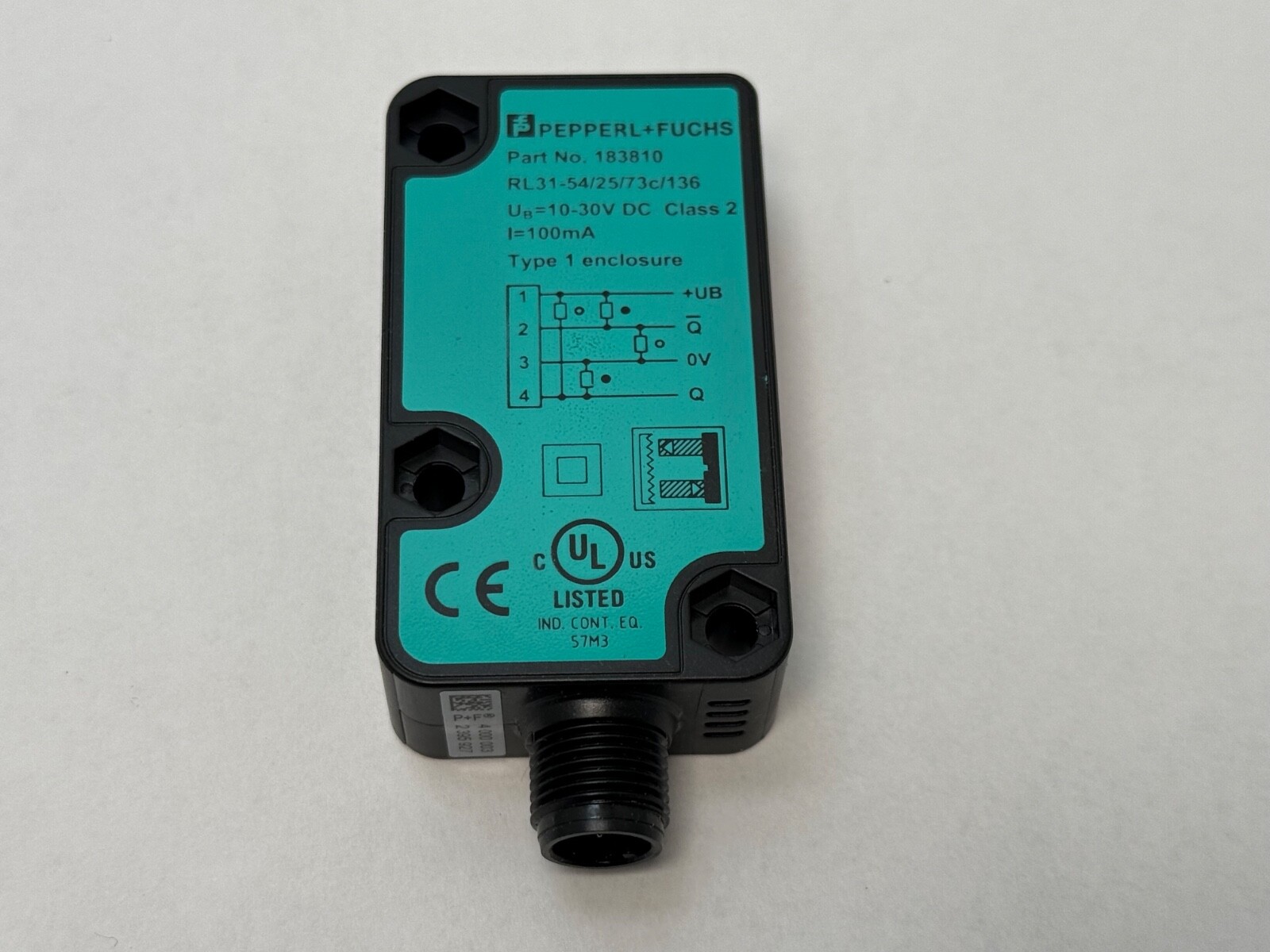

Pepperl+FuchsRL31-54/25/73C/136Retroreflective Photoelectric Sensor – 9 m Range, Polarised Red Light, 10-30 V DC, Two Push-Pull Outputs, M12, IP67

Name: Retroreflective Photoelectric Sensor - 9 m Range, Polarised Red Light, 10-30 V DC, Two Push-Pull Outputs, M12, IP67
Brand: Pepperl+Fuchs
SKU: B-AR3B5#GLRXWT
Price: 68.82 USD
Availability: InStock

Condition: New

Availability:

3 in stock

Categories: Industrial Automation, Sensors & Switches

Retroreflective photoelectric sensor, 9 m range, polarising filter, red light, 10-30 V DC, two push-pull outputs, M12 connector, IP67 plastic housing.

Same day shipment

List Price

$68.82

3 in stock

Also Available From:

Need Help?
Click Here To Contact Support

Specifications

Key Specifications

MFR / Brand	Pepperl+Fuchs
MPN	RL31-54/25/73C/136
Model	RL31-54/25/73c/136

Technical Specifications

Condition	New
Base Number	183810
Industry Terms	Retroreflective sensor, photoelectric sensor, reflex sensor, polarised retro-reflective sensor, photoeye, light barrier
Application Types	Factory automation, conveyor product detection, packaging machinery, palletising, shiny and film-wrapped target detection

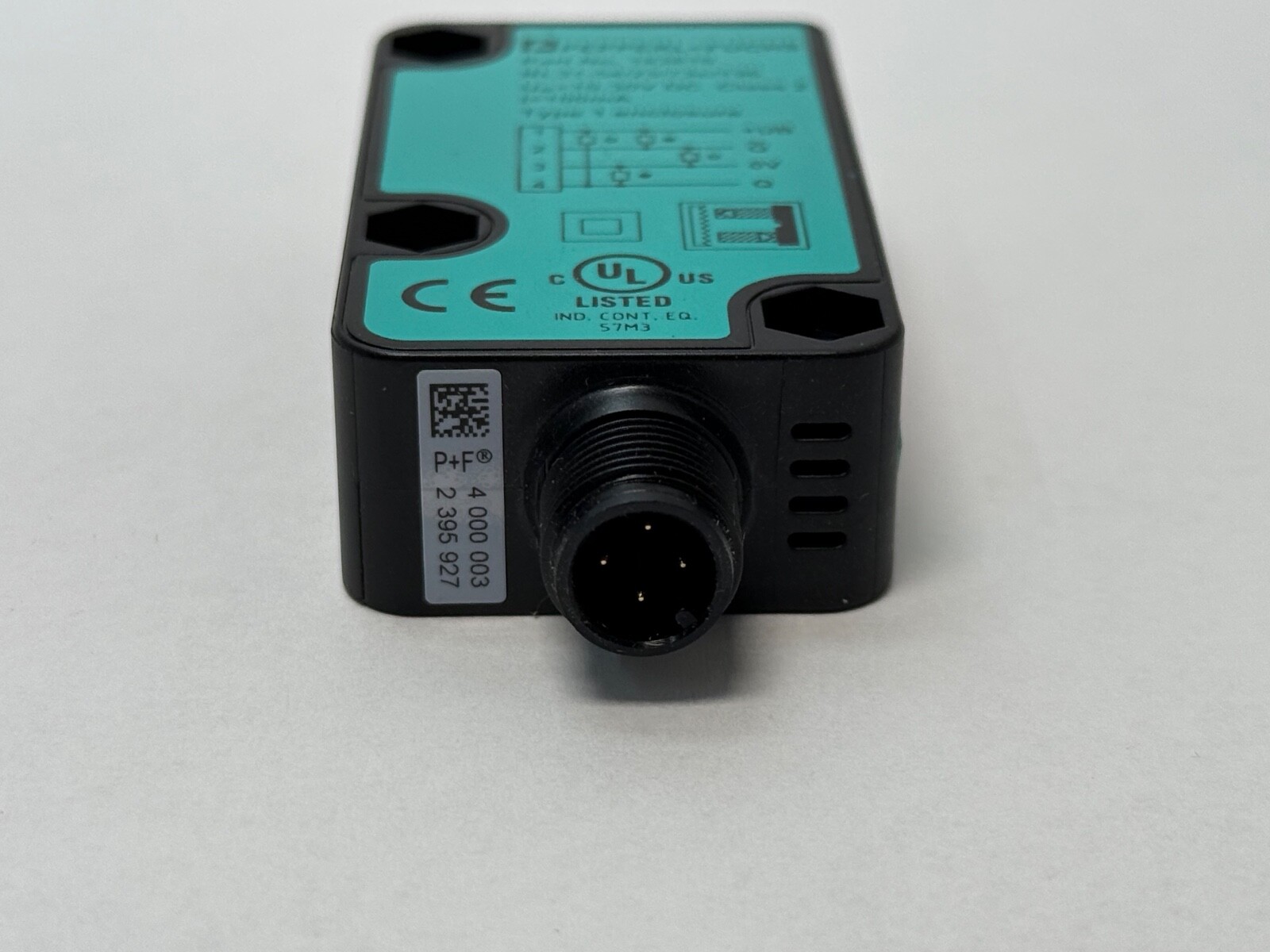

Connector Style	4-pin M12 x 1 connector
Output Amperage	100 mA max per output
Mpn Variants	RL31-54/25/73C/136, RL31-54/25/73c/136, RL31 54 25 73C 136, RL315425 73C136, 183810
Compatible With Replaces	Reflectors C110-2, H85, H50, ORR-50, GP-RR8; brackets OMH-RL31-01 to OMH-RL31-06; cordsets V1-G-2M-PUR, V1-W-2M-PUR
Additional Attributes	Operating principle: retroreflective with polarisation filter; effective detection range 0-9000 mm; reflector distance 20-9000 mm; threshold detection range 12 m; reference target C110-2; light source LED, modulated visible red light 630 nm; light spot approx. 200 mm at 6 m; opening angle 3 deg; ambient light limit 50000 lux per EN 60947-5-2; switching type light-on; 2 push-pull (4 in 1) outputs, short-circuit and reverse-polarity protected; switching voltage max 30 V DC; switching current max 100 mA; voltage drop max 1.5 V; switching frequency max 500 Hz; response time max 1 ms; no-load supply current max 20 mA; ripple 10 percent; storage temperature -40 to 70 C; protection class II, 250 V AC rated insulation, pollution degree 1-2 per IEC 60664-1; cULus Listed Class 2 power source, Type 1 enclosure; MTTFd 920 years; mission time 20 years; housing 18 mm W x 62 mm H x 35 mm D; green LED power on, yellow LED function reserve
Material	Plastic housing, PMMA optical face
Min Temp	-30 °C (-22 °F)
Series	RL31
Max Temp	55 °C (131 °F)
Nominal Rated Input Voltage	10 ... 30 V DC
Item Weight	24 g
Design Units	Metric
Part Number	RL31-54/25/73C/136
Mounting Type	Bracket mount, OMH-RL31 series
Communication Standard	Discrete switching output, 2 x push-pull (4 in 1)

Cross-References

Cross Reference 1	RL31-54/73C/136 (related designation, different variant of the same family)

Seller Part Number: B-AR3B5#GLRXWT

Product Description

What this part is

Pepperl+Fuchs RL31-54/25/73c/136 retroreflective photoelectric sensor, part number 183810. Operating Principle: Retroreflective with polarisation filter. Effective Detection Range: 0 to 9,000 mm. Reflector Distance: 20 to 9,000 mm. Threshold Detection Range: 12 m. Light Source: LED, modulated visible red light, 630 nm. Switching Type: Light-on. Signal Output: Two push-pull outputs, 4-in-1. Operating Voltage: 10 to 30 V DC. Connection: 4-pin M12 x 1 connector. Degree Of Protection: IP67. Housing Material: Plastic, PMMA optical face. Mass: 24 g.

Optical performance

Reference Target: C110-2 reflector. Light Spot Diameter: approximately 200 mm at 6 m. Opening Angle: 3°. Ambient Light Limit: 50,000 lux to EN 60947-5-2. Polarisation Filter: fitted. The polarising filter is what makes this sensor work against shiny targets: it discriminates the reflector’s own rotated return from specular glare off polished metal, glass or film, so a bright object passing through the beam still breaks it cleanly.

Electrical specifications

Operating Voltage: 10 to 30 V DC. Ripple: 10 percent. No-Load Supply Current: 20 mA maximum. Switching Voltage: 30 V DC maximum. Switching Current: 100 mA maximum. Voltage Drop: 1.5 V maximum. Switching Frequency: 500 Hz maximum. Response Time: 1 ms maximum. Outputs are short-circuit protected and reverse-polarity protected. A push-pull output drives both PNP and NPN inputs, so one part number covers either input card polarity.

Environment and approvals

Ambient Temperature: -30 to 55 °C (-22 to 131 °F). Storage Temperature: -40 to 70 °C (-40 to 158 °F). Degree Of Protection: IP67. Protection Class: II, rated insulation voltage 250 V AC at pollution degree 1-2 to IEC 60664-1. Product Standard: EN 60947-5-2. UL Approval: cULus Listed, Class 2 power source, Type 1 enclosure. MTTFd: 920 years. Mission Time: 20 years.

Housing and indicators

Housing Width: 18 mm. Housing Height: 62 mm. Housing Depth: 35 mm. Green LED indicates power on. Yellow LED indicates function reserve: lit constantly above twice the switching point, flashing between one and two times the switching point, off below the switching point. The housing carries the green colour code Pepperl+Fuchs uses for a polarised retroreflective sensor.

Wiring

Pin 1 brown, +UB. Pin 2 white, second output. Pin 3 blue, 0 V. Pin 4 black, output. Wire colours follow EN 60947-5-2. Light-on and dark-on are taken from the two separate outputs.

Quantity and configuration

Unit Quantity: 1 Pc. Sensor only.

Interchange guidance

Compatible reflectors: C110-2, H85, H50, ORR-50 and GP-RR8. Mounting brackets: OMH-RL31-01, OMH-RL31-02, OMH-RL31-03, OMH-RL31-04, OMH-RL31-05 and the stainless steel OMH-RL31-06. Cordsets: V1-G-2M-PUR straight and V1-W-2M-PUR angled, both M12 A-coded 4-pin PUR. Related designation: RL31-54/73C/136 (a different variant of the same family). Searchable designation forms: RL31-54/25/73C/136, RL31-54/25/73c/136, RL3154257 3C136, RL31-5425 73C 136 and part number 183810.
