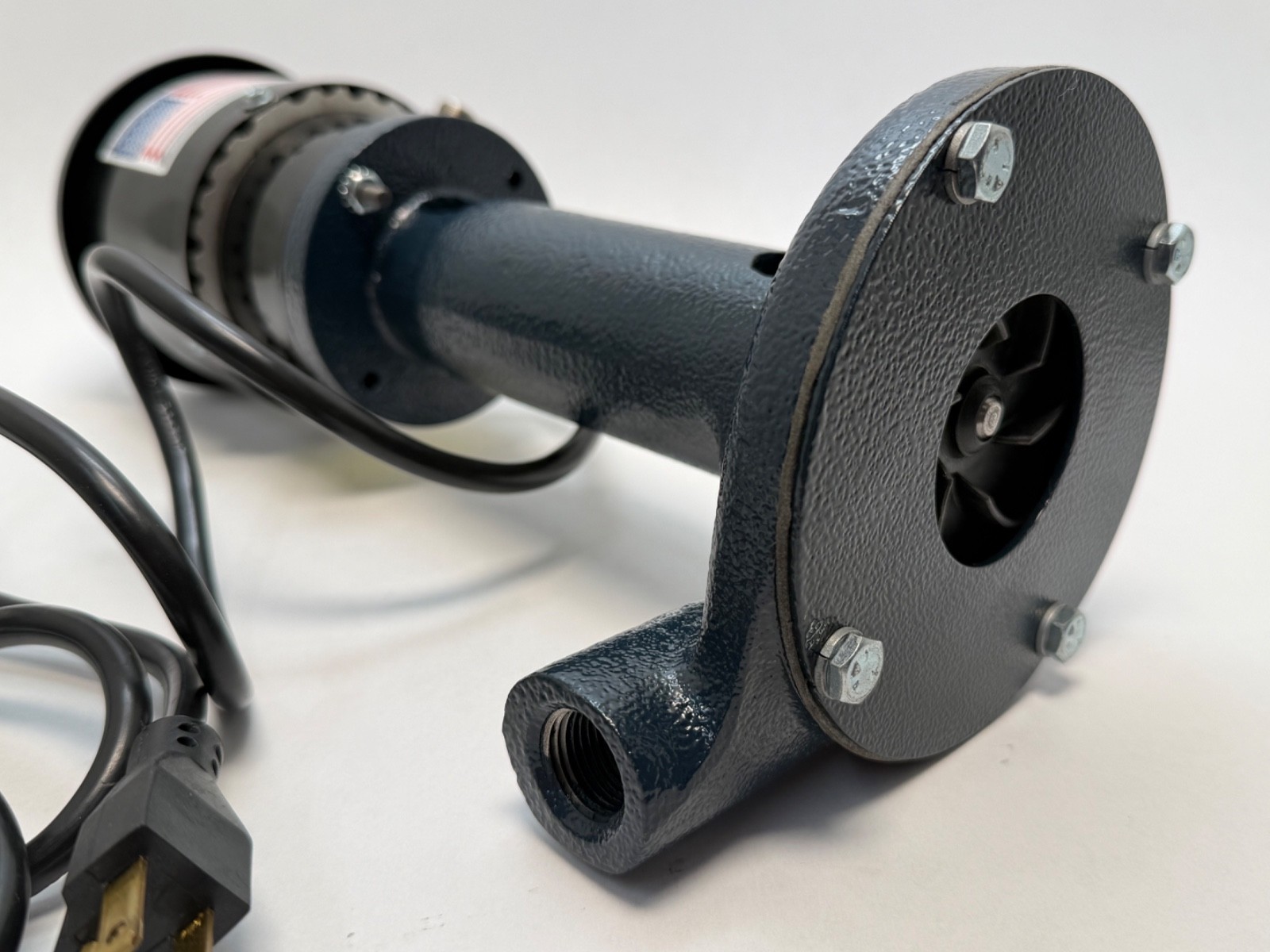

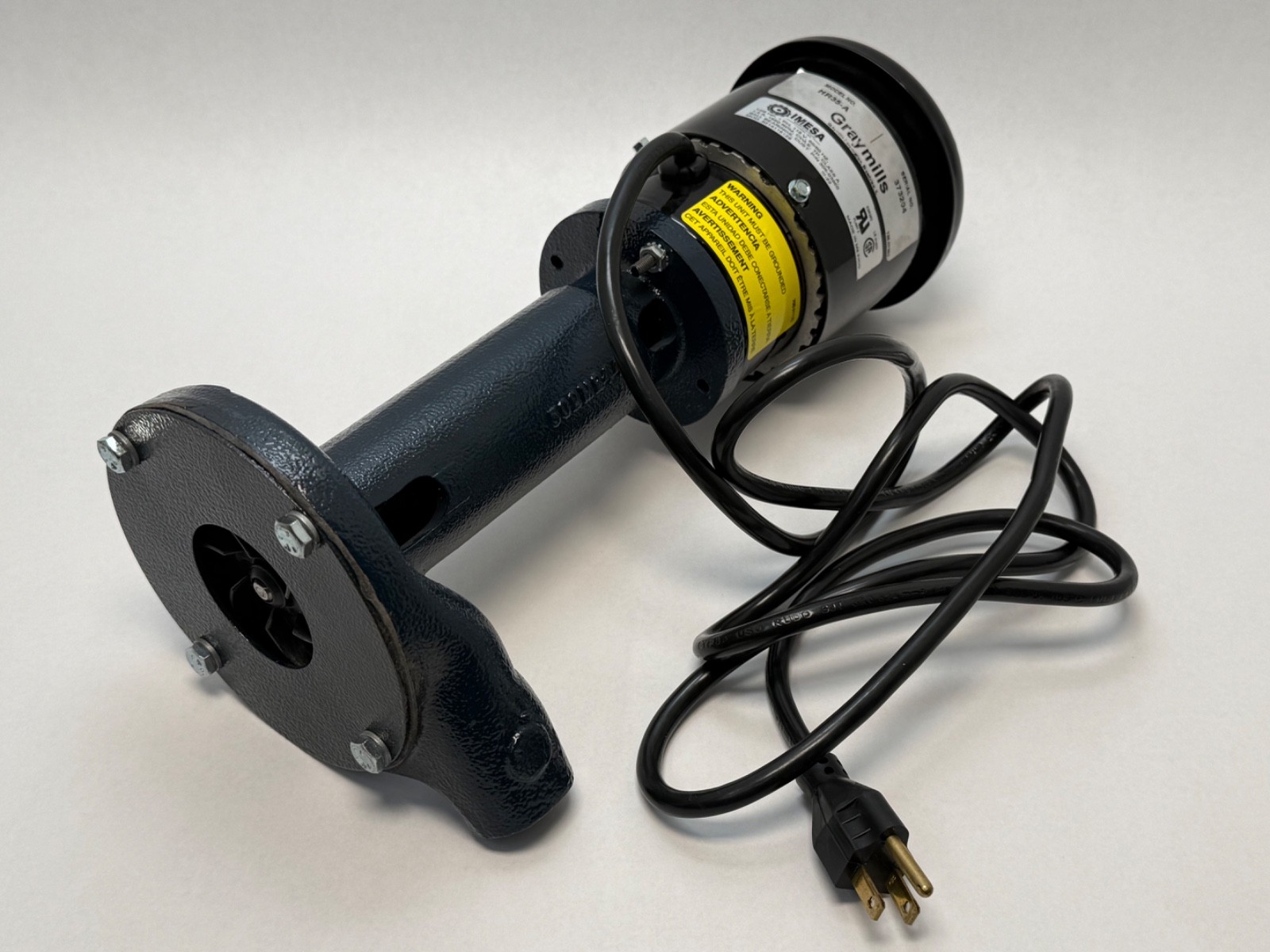

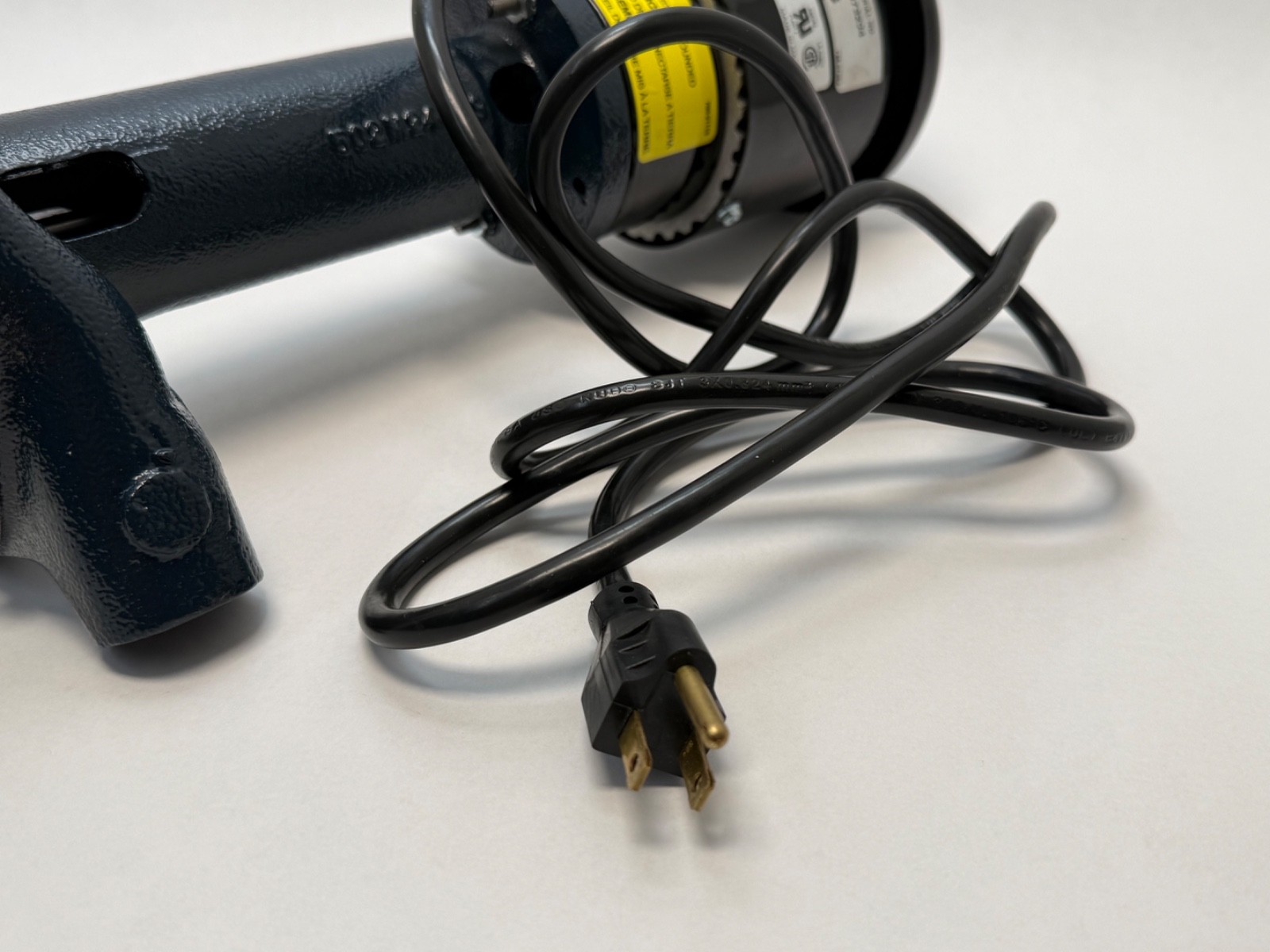

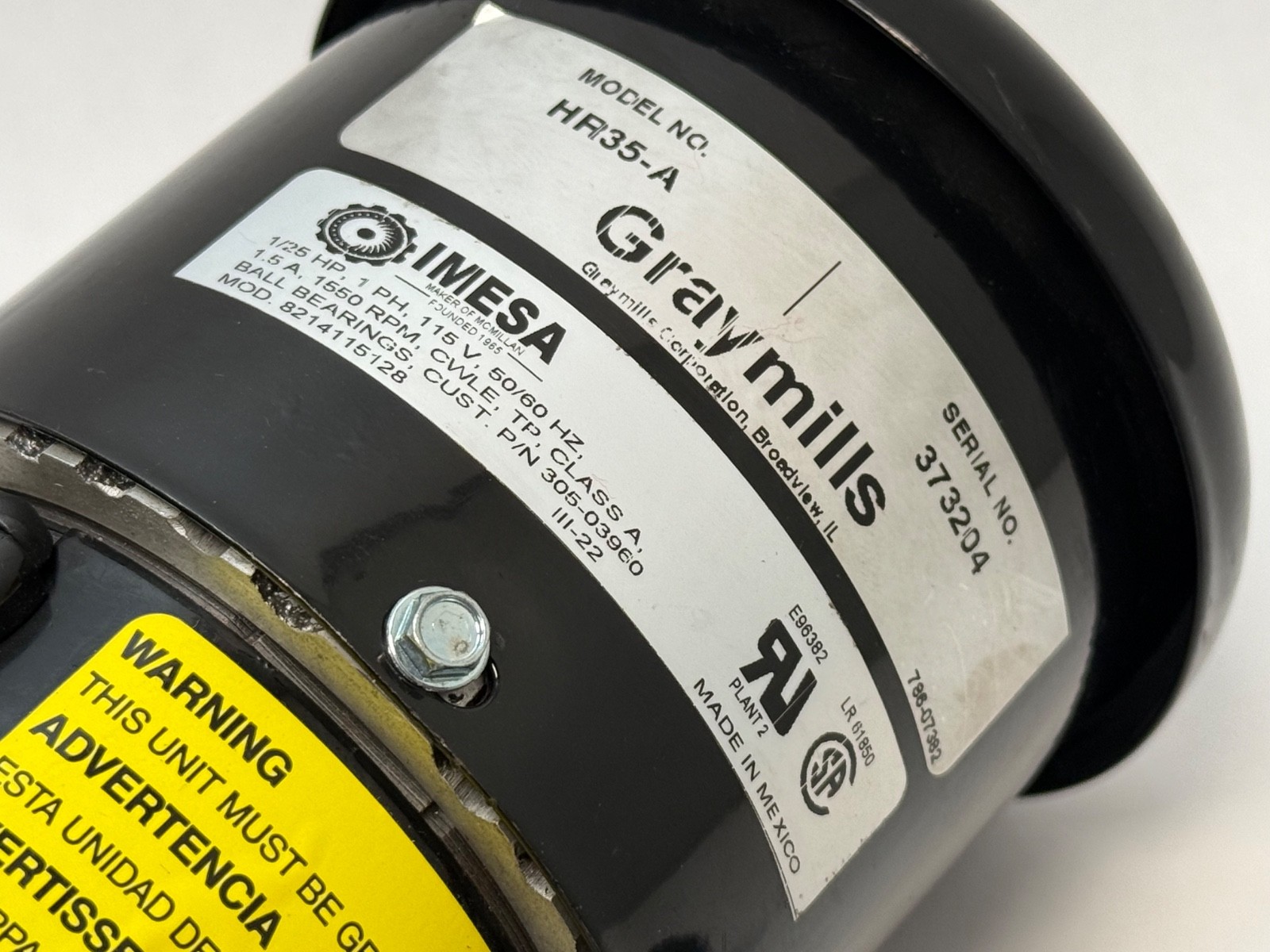

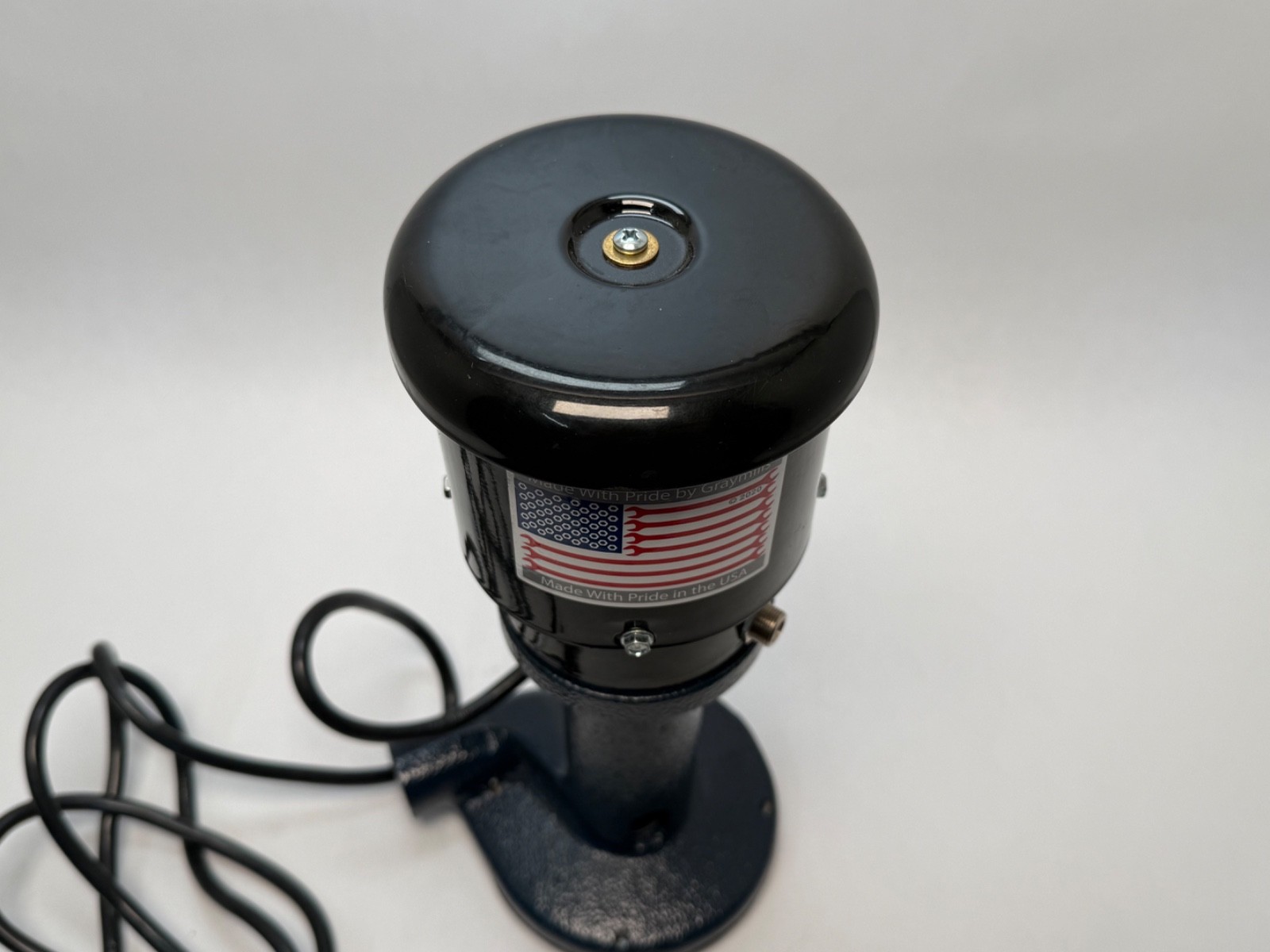

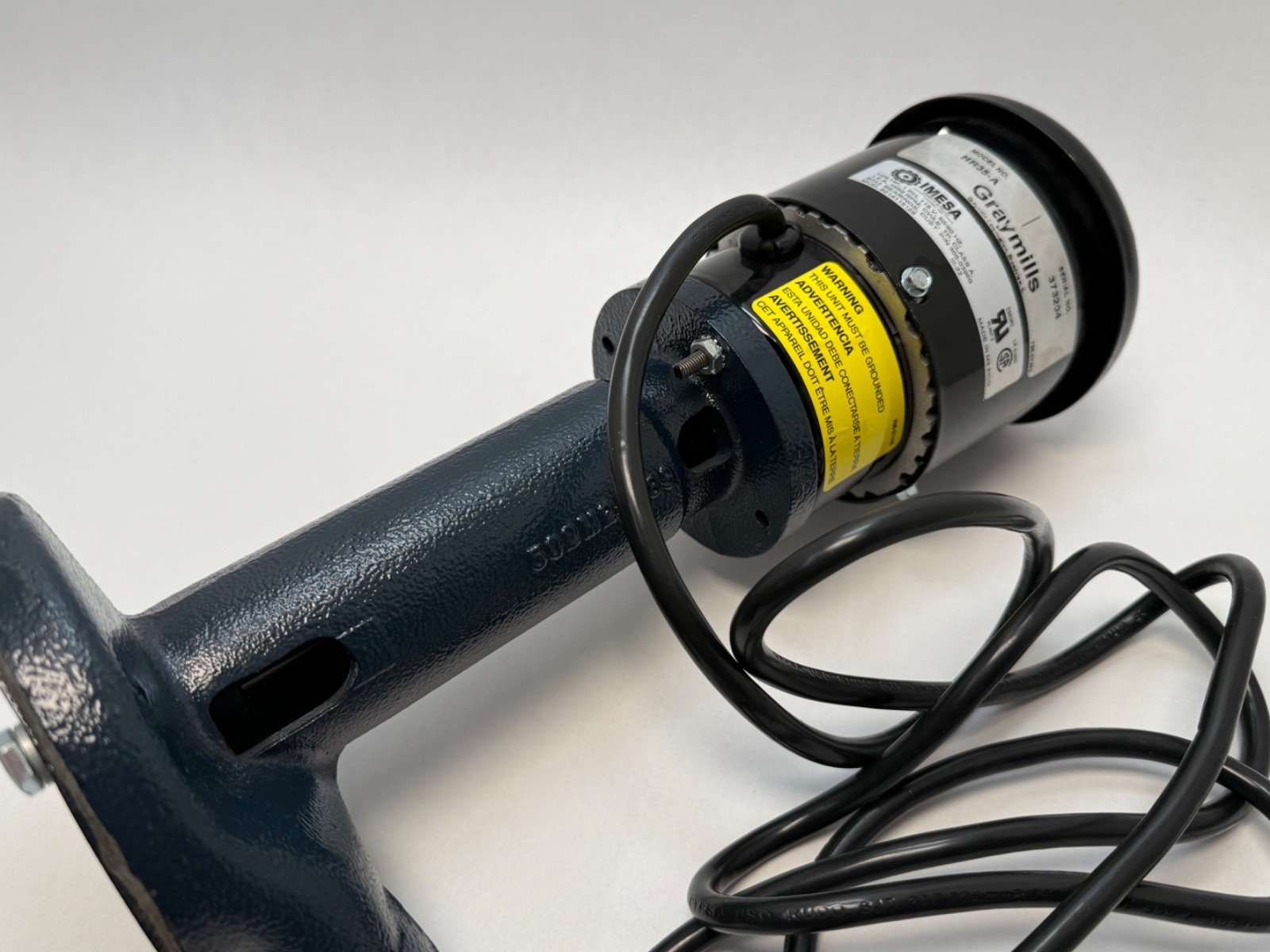

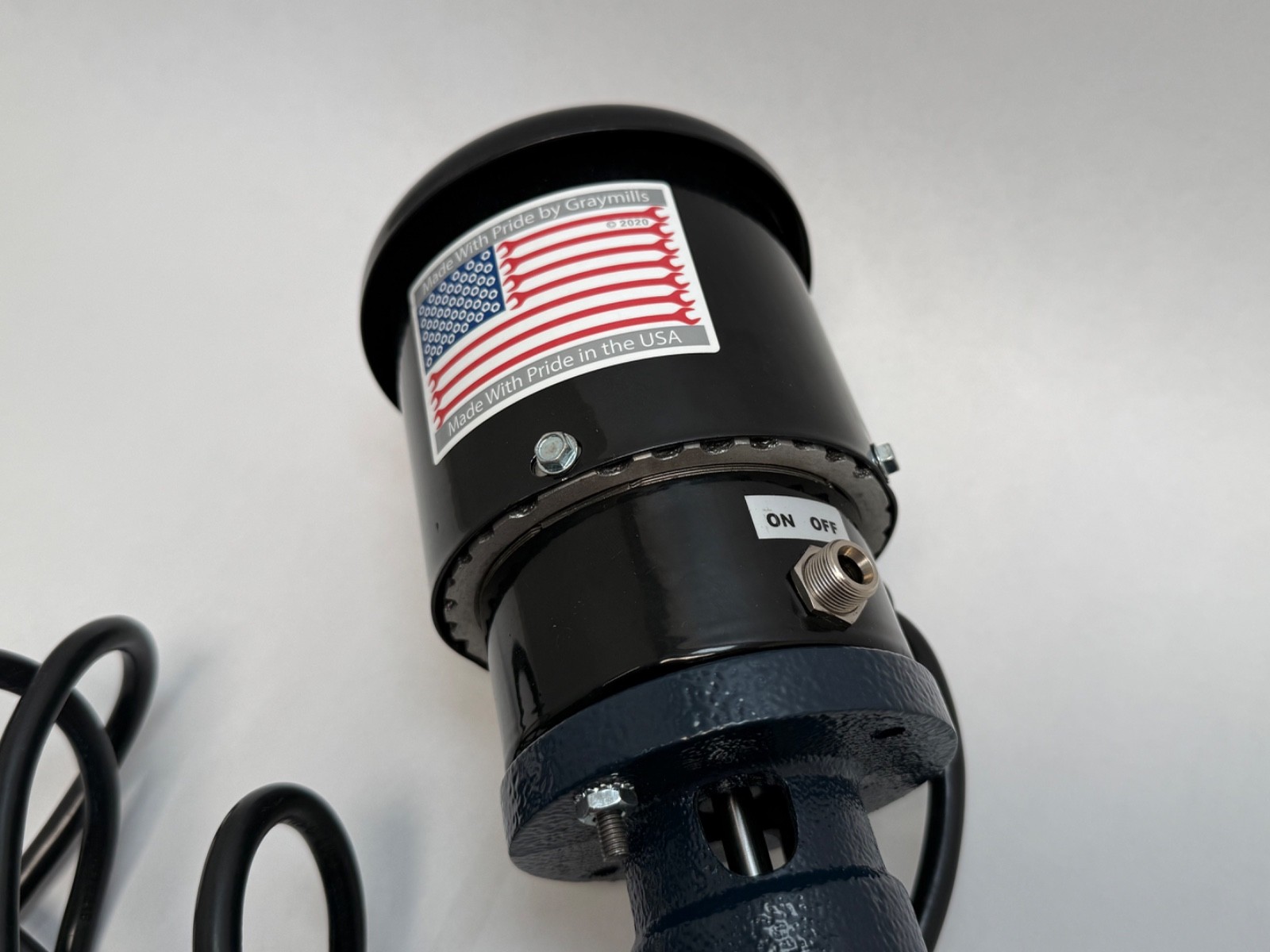

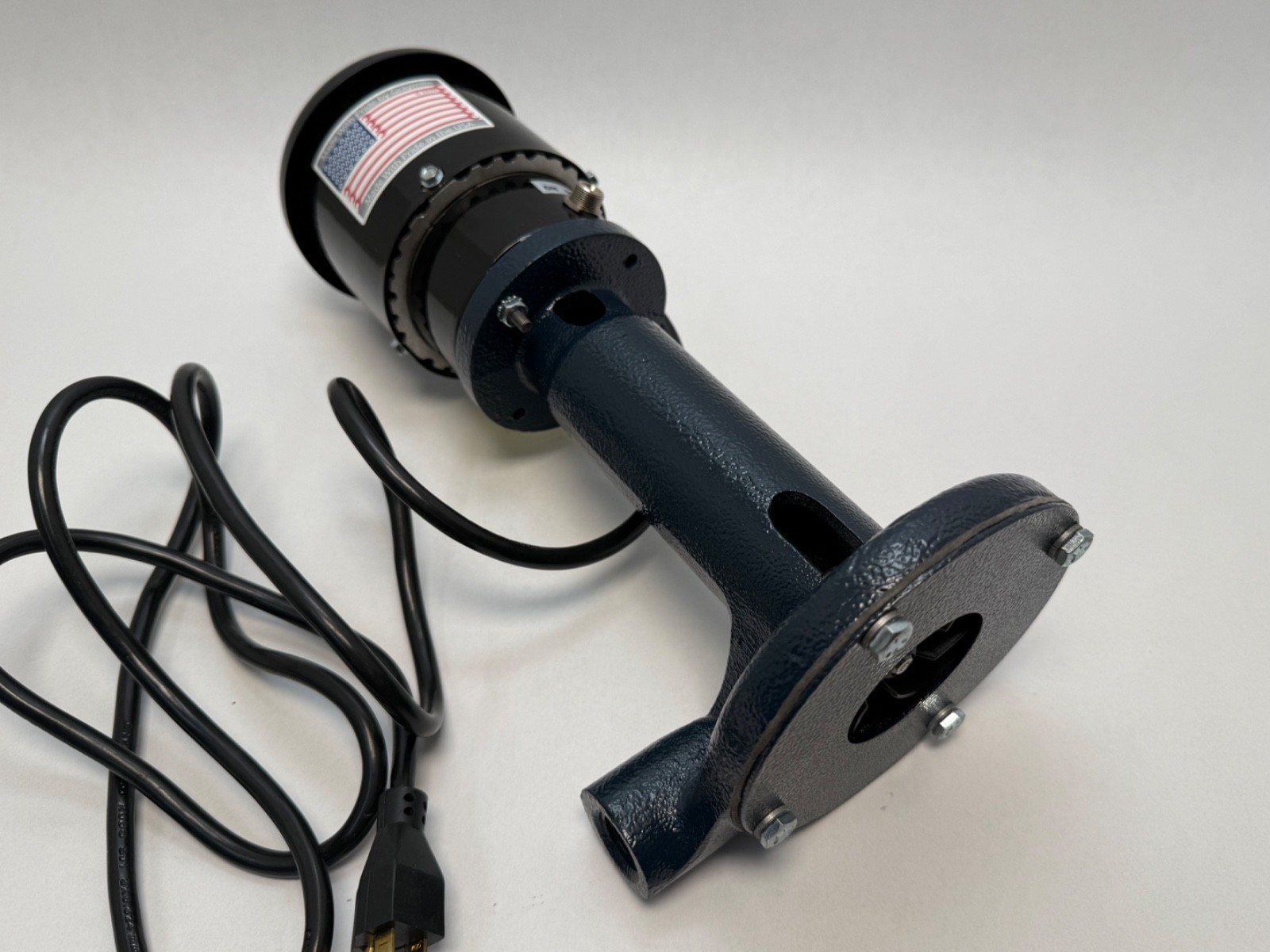

Graymills HR35-A vertical centrifugal coolant pump, 1/25 HP, 115 V single phase, 1,500 rpm, 1/2 in NPT horizontal discharge, 150 SSU max viscosity.
List Price
$279.40
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
| MFR / Brand | Graymills |
|---|---|
| MPN | HR35 A |
| Model | HR35A |
| Type | Vertical Centrifugal Pump |
|---|---|
| Base Number | HR35 |
| Industry Terms | coolant pump, immersion pump, machine tool coolant pump, vertical centrifugal pump |
| Common Misspellings | Greymills, Graymill, HR 35A |
| Application Types | Drill presses, small grinders, lathes, bench mills, coolant circulation |
| Voltage | 115 V |
| Mpn Variants | HR35-A, HR35A, HR35 A, HR-35-A |
| Compatible With Replaces | Graymills 5-HR35-A pump and tank system |
| Additional Attributes | Speed: 1,500 rpm; Maximum Viscosity: 150 SSU; Impeller: Open, Celcon; Shaft: Carbon steel; B Length: 8 in; Frequency: 50/60 Hz |
| Material | Cast Iron |
| Series | HR Series |
Graymills HR35-A is an HR Series vertical immersion centrifugal pump for circulating thin liquids, coolants and abrasive-laden fluids. Type: Vertical Centrifugal Pump. Series: HR Series. Motor Power: 1/25 HP. Speed: 1,500 rpm.
HR35 — Graymills HR Series pump, 1/25 HP model, 8 in B length.
A — voltage suffix: 115 V, 50/60 Hz, single phase.

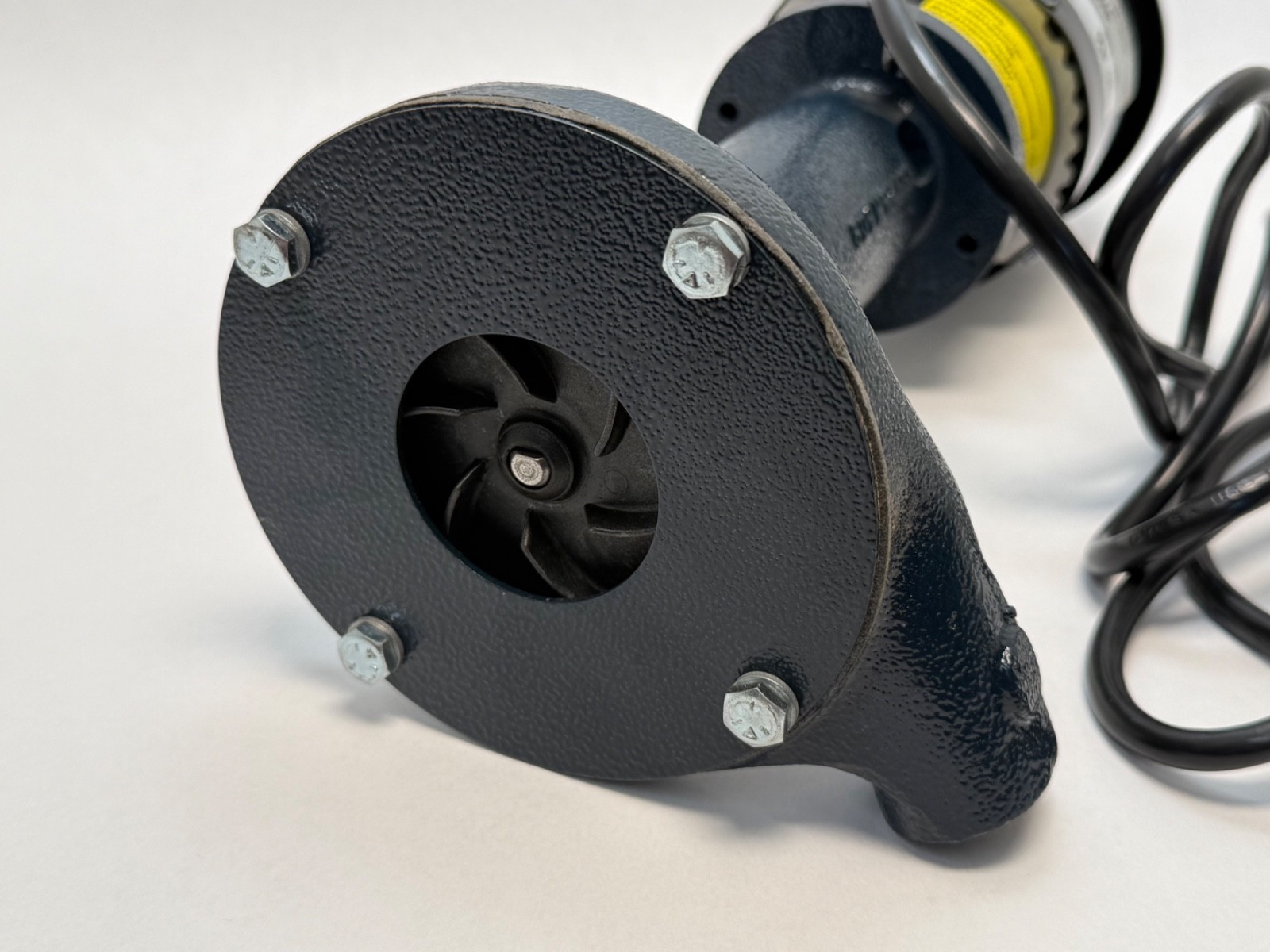

Voltage: 115 V. Frequency: 50/60 Hz. Phase: 1. Discharge: 1/2 in NPT, horizontal. Maximum Viscosity: 150 SSU. Impeller: Open type, Celcon. Pump Body and Volute: Cast iron. Shaft: Carbon steel. No bearings, packings or seals sit below the liquid level, which keeps abrasive coolant away from wear points.
B Length: 8 in. Mounting: vertical, pump end immersed in the tank.
Unit Quantity: 1 Pc, pump only.
Pump used in Graymills HR35 pump and tank systems such as the 5-HR35-A. Sister models: HR45 and HR49 (1/8 HP).
